KOCASO motion Classic Series User manual

-I-
Catalogue
1. Getting to know your phone.......................1
1.1 Your Phone..............................................1
1.2 Installing SIM card and battery.................1
1.3 Installing Storage card.............................1
1.4 Battery charging......................................1
1.5 Power on/ off...........................................2
1.5.1 Power on...........................................2
1.5.2 Power off...........................................2
2. Using Call Function ....................................2
2.1 Making a call...........................................2
2.2 Answering or rejecting a call....................2
2.2.1 Answer a call.....................................2
2.2.2 Reject a call......................................2
2.3 Adjusting call volume...............................2
2.4 Endinga call.............................................2
3. Contacts......................................................2
3.1 View a contact.........................................2
3.2 Adding anew contact ...............................2
4. Message......................................................2
4.1 Write message ........................................2
New SMS ..................................................2
4.2 Inbox.......................................................3
4.3 Outbox....................................................3
4.4 Drafts......................................................3
4.5 Sentbox...................................................3
4.6 Security message box .............................3
4.7 Templates................................................3
4.8 Broadcast message.................................3
4.9 Voice mail server..................................... 3
5. Call logs...................................................... 3
5.1 Missed calls............................................ 3
5.2 Dialed calls ............................................. 3
5.3 Received calls......................................... 3
5.4 Rejected calls.......................................... 3
5.5 Delete all................................................. 3
5.6 Call timers............................................... 3
5.7 GPRS counter......................................... 4
6. Camera........................................................ 4
7. Multimedia .................................................. 4
7.1 Video recorder ........................................ 4
7.2 Image...................................................... 4
7.3 Audio ...................................................... 4
7.4 Video ...................................................... 4
7.5 FM radio ................................................. 4
7.6 Recorder................................................. 4
8. My files........................................................ 4
9. Settings....................................................... 5
9.1 Phone settings........................................ 5
9.1.1 Date&time........................................ 5
9.1.2 Language settings ............................ 5
9.1.3 Shortcut settings............................... 5
9.1.4 Auto power on/off.............................. 5
9.1.5 Power management.......................... 5
9.1.6 Restore factory settings .................... 5
9.2 Display settings....................................... 5
9.2.1 Animation effect................................ 5

-II-
9.2.2 Wallpaper settings ............................ 5
9.2.3 Contrast............................................ 5
9.2.4 Backlight........................................... 5
9.2.5 Keypad backlight time....................... 5
9.3 Security................................................... 5
9.3.1 PIN................................................... 5
9.3.2 Modify PIN2...................................... 6
9.3.3 Phone locked.................................... 6
9.3.4 Modify the cellphone password......... 6
9.3.5 Privacy ............................................. 6
9.3.6 Auto keypad lock............................... 7
9.3.7 Lock screen by end-key.................... 7
9.3.9Mobile tracker.................................... 7
9.3.10 Blacklist.......................................... 7
9.4 Call settings............................................ 7
9.4.1 Dual-SIM .......................................... 7
9.4.2 Call divert ......................................... 7
9.4.3 Call waiting (Need network support).. 7
9.4.4 Call barring....................................... 8
9.4.5 Hide ID (Need network support)........ 8
9.4.6 Others .............................................. 8
9.5 Connections............................................ 8
10. Profiles...................................................... 8
11. Tools.......................................................... 9
11.1 Calendar ............................................... 9
11.2 Alarm..................................................... 9
11.3 Calculator.............................................. 9
11.4 World clock............................................ 9
11.5 Ebook.................................................... 9
11.6 Torch..................................................... 9
12. Games........................................................9
12.1 Snake....................................................9
13. Browser .....................................................9
13.1 Bookmarks ............................................9
13.2 History...................................................9
13.3 Offline pages .......................................10
14. Bluetooth.................................................10
15. Safety Precaution....................................10
15.1 Usage environment..............................10
15.2 Medical devices...................................10
15.2.1 Pacemaker....................................10
15.2.2 Hearing aids..................................11
15.2.3 Emergency calls............................11
15.3 Password access.................................11
15.3.1 Phone password............................11
15.3.2 PIN code.......................................12
15.3.3 PIN2 code.....................................12
15.3.4 PUK code......................................12
15.3.5 PUK2 code....................................12
15.4Cautions for battery charging ................12
15.5Cautions for battery usage....................13
15.6Cautions for spare parts usage .............14
15.7 Other safety information.......................14

-1-
1.Getting to know your phone

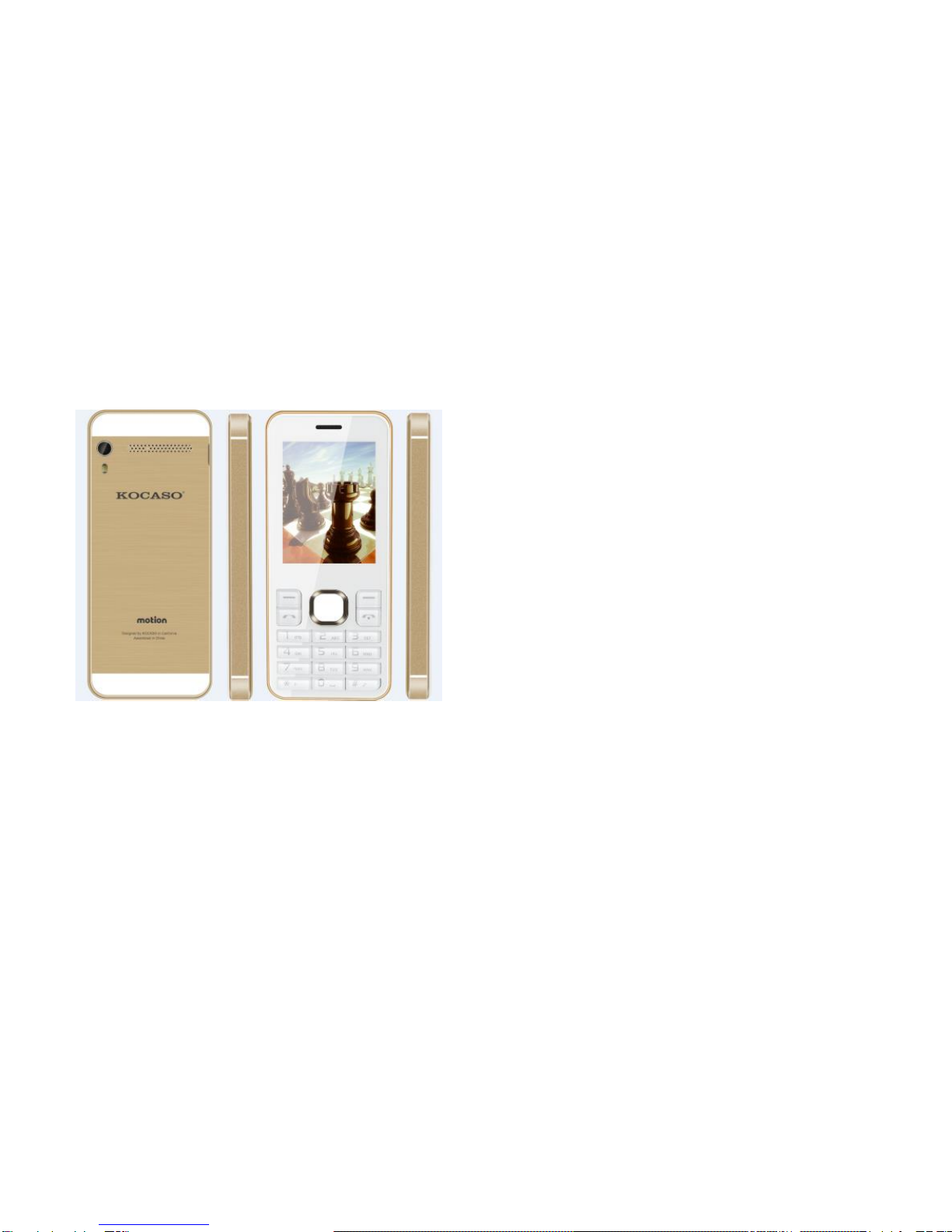

1.1 Your Phone
1.2 Installing SIM card and battery
(1) Hold on【End Key】for about three seconds
to switch off the phone.
(2) Remove the battery cover.
(3) Remove the battery.
(4) Follow the sign for SIM1 and SIM2 on the
phone to install SIM1 and SIM2. Please
make sure that the golden contacts of the
card face into the phone and the notched
corner has the same direction with the card
slot, then push the other side of the card
gently until it fixes itself in the card slot.
(5) Replace the battery with its golden contact
part facing the set phone battery contact
piece, and then replace the battery cover.
1.3 Installing Storage card
(1) Hold on【End Key】for about three seconds
to switch off the phone.
(2) Remove the battery cover.
(3) Remove the battery.
(4) Follow the sign of the T-Card slot cover, push
the T-Card into the slot, make sure that the
gold contacts of the card face upwards, until
the card fixes itself in the card slot.
1.4 Battery charging
Charged by the travel charger
(1) Install the battery correctly into the phone.
(2) Insert the lead of the travel charger to
connecting slot of the phone, and then
connect the charger to a standard power
socket.

-2-
When charging is complete, unplug the charger
from the standard power socket first, and then
disconnect the phone and charger.
1.5 Power on/ off
1.5.1 Power on
Hold on【End Key】for three seconds to switch on
the phone.
1.5.2 Power off
Hold on【End Key】for three seconds to switch off
the phone.
2.Using Call Function
2.1 Making a call
(1) On the Home Screen, input the area code
and phone number.
(2) Select <Options →Call →Voice call →
SIM1/SIM2> to select SIM1 or SIM2 to call.
2.2 Answering or rejecting a call
2.2.1 Answer a call
When there is an incoming call, you can press
【Left Soft Key】to answer.
2.2.2 Reject a call
When there is an incoming call, you can press
【End Key】to reject it.
2.3 Adjusting call volume
During a call, you can press【Up/Down Key】to
adjust the earphone volume.
2.4 Endinga call
Press 【End Key】to end the call.
3.Contacts
3.1 View a contact
Enter the phonebook, the phone is defaulted to
show contact list with all entries.
3.2 Adding anew contact
On the Contacts list, select<Options→New>to
create a new contact.
Phone: You can input the contact name,
mobile phone, etc. You can also set special
ring for the contact entry.
SIM1: The input record will be saved to SIM1,
with each name one phone number.
SIM2: The input record will be saved to SIM2,
with each name one phone number.
4.Message
4.1 Write message
New SMS
Enter the main menu and select [Message→
Write message→New SMS] to edit a new SMS

-3-
directly.
After writing an SMS, select <Send> to send the
message.
4.2 Inbox
Store all received SMS and MMS.
4.3 Outbox
Store all SMS and MMS failed to be sent.
4.4 Drafts
Save edited SMS and MMS haven’t sent.
4.5 Sentbox
Store all the SMS and MMS successfully sent
out.
4.6 Security message box
The mail security management.
4.7 Templates
While editing messages, you can directly cite the
preset common phrases. Select <Edit> to set the
common phrases by yourselves.
4.8 Broadcast message
You can receive broadcast text messages with
various contents via network service, such as
news, weather or traffic information. For more
details, please consult your network operator.
4.9 Voice mail server
This function works like an answering machine,
which can transfer a missed call to your personal
voice mail, allowing the caller to leave a voice
message and notify you by an SMS. Voice Mail is
a part of the bundled software provided by
network operator, therefore, you need to register
to active this function, and manually set the
phone. Please contact with your network operator
for more details.
5.Call logs
5.1 Missed calls
Display recent calls unpicked up.
5.2 Dialed calls
Display recent calls dialed.
5.3 Received calls
Display recent calls received.
5.4 Rejected calls
Display recent calls rejected.
5.5 Delete all
Delete all the call entries.
5.6 Call timers
Select the desired SIM Card, and then you can
view all relevant information about the SIM Card.

-4-
5.7 GPRS counter
You can view the detail about GPRS flow rate.
6.Camera
Enter the main menu, and select [Camera] to
enter the camera preview screen, press 【OK
Key】to take a photo.
7.Multimedia
7.1 Video recorder
Enter the main menu, and select [Multimedia→
Video recorder] to enter the video preview
screen, and press 【OK Key】to start recording
the video.
7.2 Image
The function provides a prompt access to view
the photos and pictures.
7.3 Audio
Enter the main menu, and select [Audio player]
to enter theAudio Player screen:
Press【OK Key】to play or pause
Press【Left/Right Key】to skip to last /next one
Press【Up/Down Key】to adjust the playing
volume
7.4 Video
Enter the Main menu, and click [Multimedia→
Video player].
Press【OK Key】to play or pause
Press【Up/Down Key】to adjust the playing
volume
Press【Left/Right Key】to skip to last /next one
7.5 FM radio
Enter the Main menu, then select [Multimedia→
FM radio].
Press【OK Key】to play or pause
Press【Left/Right Key】to adjust the radio
frequency.
Press【Up/Down Key】to adjust the playing
volume
7.6 Recorder
Enter the main menu, select [Multimedia →
Recorder], and press【OK Key】to start recording.
After ceasing the recording, the recorded file will
be automatically save in the folder [Audio], select
<Options→Record file list> to check.
8.My files
This menu allows you to manage files stored in

-5-
the phone or storage card.
9.Settings
9.1 Phone settings
9.1.1 Date&time
Set time: Directly input the time or press 【Up
/Down Key】to set it.
Set date: Directly input the date or press【Up
/Down Key】to set it.
9.1.2 Language settings
You can select the language you want.
9.1.3 Shortcut settings
You can change the responsible shortcuts for
【Navigation Key】under standby mode.
9.1.4 Auto power on/off
You can set the phone to switch on/off at a
scheduled time.
9.1.5 Power management
Display the battery capacity.
9.1.6 Restore factory settings
Reset all parameter values into default status.
Please enter the privacy preserving password
(Initial password is 1234 or 0000) to resume
factory setting.
9.2 Display settings
9.2.1 Animation effect
You can select the preset animation or others as
the power on/off animation for your phone.
9.2.2 Wallpaper settings
Select the default or other pictures as the
wallpaper of the phone.
9.2.3 Contrast
Press 【Left /Right Key】to adjust the contrast.
9.2.4Backlight
Select the desired backlight time.
9.2.5 Keypad backlight time
Select the desired keypad light time.
9.3 Security
9.3.1 PIN
PIN code is the personal identification number for
SIM card. If never be modified, the initial
password set by network operator should be
1234 or 0000. If activated the power-on PIN code,
then you have to input the PIN password each
time you switch the phone on. You can modify
the PIN code to prevent your SIM card being
used by others.
Caution：
If you input your PIN code incorrectly three

-6-
times in succession, the SIM card will be
locked automatically, and prompting to enter
PUK code to unlock it. Therefore, please do
remember the PIN code, if you modify it.
PUK code (PUK1) is made up by 8 digits,
unmodifiable. When the phone is locked by PIN
code, please enter correct PUK code to unlock
the phone. If you incorrectly input the PUK code
ten times in succession, then the SIM card
cannot be used any more. Some PUK codes are
provided together with the SIM card, some
should be gained from the network service
provider. If you don’t know the PUK code while
your PIN code is locked, please never input the
code casually. In this case, please call the hotline
of the service provider for your SIM card, after
simply checking about the user identity, you can
gain the PUK code for free to unlock your phone.
Caution：
Please be careful when use this function. If
you forget PUK code, please consult your
network operator. If you incorrectly input the
PUK code ten times in succession, the SIM
card will be scrap.
9.3.2 Modify PIN2
PIN2 code is the personal identification code
required for some certain functions (such as set
fixed number, set phone fare, etc).
PIN2 code is another password provided together
with SIM card by service provider. If wrongly input
it for three times in succession, the phone will be
locked until correct PUK2 code entered, for
detailed operation, please refer to PIN code and
PUK code.
Caution：
If you incorrectly input the PUK2 code ten
times in succession, you will not be able to
use SIM card. Please be careful when use
this function.
9.3.3 Phone locked
After activated this function, you should input
password each time you switch the phone on.
The defaulted password is “1234 or 0000”.
9.3.4 Modify the cellphone password
You can change the phone password.
The defaulted password is “1234 or 0000”.
9.3.5 Privacy
Secured by phone password, the phone will be
protected from other unauthorized users. When
password function has been activated for call
logs or message, you have to enter correct
password on corresponding main menu or
