Kodak DP1100 - Digital Projector User manual

PN 010-0210-00 8/99
with KODAK Image Manager
KODAK DP900 / DP1100 Digital Projectors
Reference Manual

FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Safety Certifications
UL, CUL, TÜV, NOM
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be
required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.
Declaration of Conformity
Manufacturer: Eastman Kodak Company
Rochester, New York 14650 USA
We declare under our sole responsibility that the KODAK DP900/1100 Digital Projector conforms to the following direc-
tives and norms:
Directive 89/336/EEC, Amended by 93/68/EEC
EMI: EN 55022 (1992) Class A
EMC: EN 50082-1 (1992)
IEC 801-2, IEC 801-3, IEC 801-4
Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 1992 + A1 + A2 + A3: 1995
July, 1999
Australian Certification C-tick mark

3/99 5
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Terms: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Image Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front of Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear and Side of Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Usage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
If You Need Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting up the Projector . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the Cable Hub Connector . . . . . . . . . . . . . . . 13
Connecting a Video Player . . . . . . . . . . . . . . . . . . . . . . . . . 20
Starting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning Off the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reference Manual KODAK DP900 / DP1100
63/99
Basic Image Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the Keypad and Remote Buttons . . . . . . . . . . . . . . . 29
Using the On-Screen Menus . . . . . . . . . . . . . . . . . . . . . . . . 31
Kodak Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Maintenance & Troubleshooting . . . . . . . . . . . . . . . 45
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . 46
Replacing the Batteries in the Remote Control . . . . . . . . . 49
Using the Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . 49
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Portable and Laptop Activation Chart . . . . . . . . . . . . . . . . 61
Appendix D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Using Video Mirroring with a PowerBook Computer . . . . 71
Appendix E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Projected Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

3/99 1
Safety Instructions
Please read and follow all safety instructions provided before
using your new projector. Failure to comply with safety
instructions may result in fire, electrical shock, or personal injury
and may damage or impair protection provided by equipment.
Please save all safety instructions.
Safety Definitions
•Warning: Statements identify conditions or practices that
could result in permanent personal injury.
•Caution:Statements identify conditions or practices that
could result in damage to your equipment.
Safety Symbols
Attention: For information about use of a feature, please
refer to the Reference Manual.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.

Reference Manual KODAK DP900 / DP1100
23/99
Safety Terms:
•Warning: Don’t look directly into the lens when the
projector is turned on.
•Warning: Don’t block ventilation openings.
•Warning: To replace the lamp, turn the power off
and unplug the power cord. To avoid burns, wait 30
minutes before opening the lamp door. Follow all
instructions provided in the Reference Manual.
•Warning: Please use the power cord provided.
Connect the power cord to a receptacle with a
protective safety (earth) ground terminal.
•Warning: Refer all service to qualified service personnel.
Servicing your own projector will void the warranty. See “If
You Need Assistance” on page 8 for the customer service
contact information.
•Caution: Don’t set liquids on the projector. Spilled liquids
may damage your projector.
•Caution:Don’t place the projector on a hot surface or in
direct sunlight.
•Caution: Do not drop the projector. Transport the projector
in a Kodak-approved case.
•Caution: For ceiling mount installations, please use the
ceiling mount recommended in the Reference Guide and
follow all instructions provided with it.
•Caution: The projector lamp bulb is pressurized and may
rupture after more than 1,000 hours use. Always change the
bulb as soon as you notice a decrease in the brightness.

3/99 3
Introduction

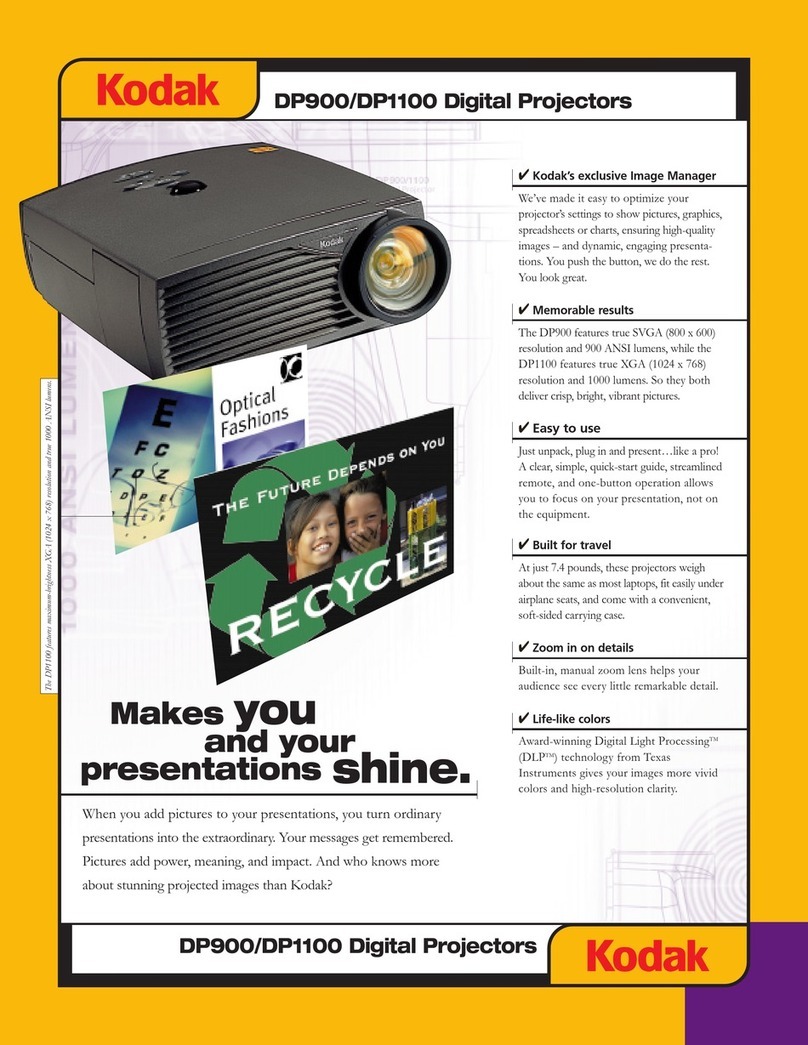

The KODAK DP900 /DP1100 Digital Projectors are lightweight
multimedia projectors specifically designed for the mobile
presenter. They generate crisp, clear images using Digital Light
Processing™ (DLP) technology. The projectors are easy to
connect, easy to use, and easy to maintain. The soft carry case
makes it easy to transport the 7.4 pound projectors. The DP900
has SVGA 800x600 graphics, the DP1100 has XGA 1024x768
graphics. The user interfaces of the two products are identical;
information in this User’s Guide applies to both products.
Included with the DP900 / 1100 projectors is Kodak’s exclusive
Image Manager feature. With this feature you can select the
image display setting best suited for your specific presentation
material and projection environment.
Image Resolution
DP900
The SVGA resolution of the DP900’s projected image is
800x600. Screen resolutions between 800x600 and 1024x768 are
compressed to 800x600. The DP900 cannot compress screen
resolutions above 1024x768. If your computer’s screen resolution
is higher than 1024x768, reset it to a lower resolution before you
connect the projector.
Note: The DP900 automatically expands 640x480 images to
800x600. You can display these images at 640x480 by
turning off the Auto Resize feature. See “Auto Resize” on
page 35.

Reference Manual KODAK DP900 / DP1100
43/99
DP1100
The XGA resolution of the DP1100’s projected image is
1024x768. The DP1100 cannot compress screen resolutions
above 1024x768. If your computer’s screen resolution is higher
than 1024x768, reset it to a lower resolution before you connect
the projector.
Note: The DP1100 automatically expands 640x480 and 800x600
images to 1024x768. You can display these images at their
original resolutions by turning off the Auto Resize feature.
See “Auto Resize” on page 35.
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
• IBM-compatible computers, including laptops, up to
1024x768 resolution at 75 Hz
• Apple Macintosh and PowerBook computers up to
1024x768 resolution at 75 Hz.
• Most standard VCRs, DVD players, camcorders and
laser disc players.

Introduction
3/99 5
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your Kodak dealer
immediately if anything is missing.
Note: The contents of your shipping box may vary depending on
the projector configuration you’ve ordered.
Figure 1 Shipping box contents
1. Digital projector and lens cap 6. RCA audio/video cable
2. Soft carry case 7. Cable connector hub
3. Remote control 8. Audio cable
4. Power cord 9. PS/2 mouse cable
5. DP900 / DP1100 User’s Guide,
Reference Manual, and Online
User Guide CD
10.
11.
USB mouse cable
MAC adapter
1
2
3
4
5
7
8
9
10
11
6

Reference Manual KODAK DP900 / DP1100
63/99
Projector Features
Front of Projector
Rear and Side of Projector
Connector Panel
focus ring
zoom ring elevator button
speaker
elevator button
power
cord
connector power switch
front of projector
keypad
connector panel
composite audio in
computer
L/R audio in
connector
s-video cable
hub connector
(for video source)

Projector Features
3/99 7
Usage Guidelines
• Do not look directly into the projection lens when the
projector is turned on. The bright light may harm your
eyes.
• Do not block the grills on the projector. Restricting the
air flow can cause it to overheat and turn off. If this
happens, you must wait a minute before attempting to
turn it back on.
• Handle the projector as you would any product with
glass components. Be especially careful not to drop it.
• Avoid leaving the projector in direct sunlight or
extreme cold for extended periods of time. If this
happens, allow it to reach room temperature before use.
• This projector is not intended for use in mainframe
computer rooms as defined in the Standard for the
Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.

Reference Manual KODAK DP900 / DP1100
83/99
If You Need Assistance
The first place to look for help is in “Troubleshooting” on
page 50.
Online Services
Contact Kodak via:
Faxed Information
Kodak offers automated support by fax:
World Wide Web http://www.kodak.com
(click on Service and Support)
America Online (keyword) KODAK
CompuServe GO KODAK
Kodak Internet List Server [e-mail]; or
ftp.kodak.com
U.S. and Canada 1-800-508-1531
Europe 44-0-131-458-6962
U.K. 44-0-131-458-6962

Projector Features
3/99 9
Customer Support
If you have questions concerning the operation of your KODAK
projector, you can speak directly to a customer support
representative. Have the projector serial number ready, and be at
your computer with your projector when you call.
In the U.S. and Canada call toll free, 1-888-375-6325, between
the hours of 9:00 a.m. and 8:00 p.m. (Eastern Standard Time)
Monday through Friday.
In Europe call the Kodak Digital Imaging Support Centre toll free
numbers associated with your location, or the U.K. toll line,
44-0-131-458-6714, between the hours of 09.00 and 17.00
(GMT/CET) Monday through Friday.
For other locations call:
Austria/Osterreich 0179 567 357
Germany/Deutschland 069 5007 0035
Spain/Espana 91 749 76 53
Belgium/Belgique 02 713 14 45
Ireland/Eire 01 407 3054
Sweden/Sverige 08 587 704 21
Denmark/Danmark 3 848 71 30
Italy/Italia 02 696 334 52
Switzerland/Schweiz/Suisse 01 838 53 51
Finland/Soumi 0800 1 17056
Netherlands/Nederland 020 346 9372
UK 0870 2430270
France 01 55 1740 77
Norway/Norge 23 16 21 33
1 Int. Fax Line [phone]

Reference Manual KODAK DP900 / DP1100
10 3/99
Warranty
This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your Kodak dealer.

3/99 11
Setting up the Projector
If you want to project from behind a translucent screen, set up the
projector behind your screen. See “Rear Projection” on page 38
to reverse the image.
If you are installing the projector on the ceiling, refer to the
Ceiling Mount Installation Guide that comes with the optional
Ceiling Mount Kit for more information. To turn the image
upside down, see “Ceiling Projection” on page 38. The Ceiling
Mount Kit is sold separately.
1. Make sure your projector is on a flat surface. It must be
within 10 feet (3 m) of your power source and within 8 feet
(2.4 m) of your computer.
2. Make sure the projector and your computer are turned off.
3. Position the projector the desired distance from the screen
and adjust the focus ring.
• The distance from the lens of the projector to the screen
and the zoom setting determine the size of the projected
image. Figure 2 and Figure 3 show three projected image
sizes. For information about image sizes at minimum and
maximum zoom settings, see “Projected Image Size” on
page 73.

Reference Manual KODAK DP900 / DP1100
12 3/99

Figure 2 Projected image size for DP900 at minimum focusing distance
Figure 3 Projected image size for DP1100 at minimum focusing distance
2.9 -3.8 m
5 ft. 20 ft.
1.8-2.3m
DP900
2.4-3.0ft.
.7 -.9m
5.8-7.6 ft.
9.6 -12.6ft.
1.5 m 3.7 m 6 m
12 ft.
DP1100
1.5 m 3.7 m 6 m
5 ft. 20 ft.
12 ft.
3.8 -4.9m
2.3 -3 m
12.4-16 ft.
3.0-3.6 ft.
.9-1.1 m
7.4-9.7ft.

Setting up the Projector
3/99 13
Connecting the Cable Hub Connector
&DXWLRQ 7XUQRIIWKHFRPSXWHUPRQLWRUDQGSURMHFWRU
ZKHQHYHU\RXFRQQHFWRUGLVFRQQHFWFDEOHV
The cable hub connector simplifies the connection process by
providing a central hub for all the connections between the
projector and your computer. The connectors on the cable hub are
labeled with icons. The cable hub also has an LED that lights
solid green when the projector is on and the cable hub is
functioning properly. A slowly blinking LED indicates that the
cable hub is waiting to initialize with the projector; a rapidly
blinking LED indicates a problem with the cable hub.
Connect the end of the cable hub to the connector on
the projector’s connector panel. (Figure 4)
Figure 4 Connecting the cable hub to the projector
Note: In some older computers, the monitor connector does not
have a hole for Pin 9. If you have trouble connecting the
cable hub to your computer, contact Kodak Support. See
“If You Need Assistance” on page 8

Reference Manual KODAK DP900 / DP1100
14 3/99
Preparing to Connect Your Equipment to the
Projector
Note: Before you continue, make sure the projector and your
equipment are turned off. If you’re connecting a
computer, make sure the distance between it and the
projector is 10 feet or less.
Now you’re ready to connect your equipment. Computers are
connected to the cable hub. Video players are connected directly
to the projector.
Steps for connecting the different types of equipment are given
on the pages listed here..
Note: If you are connecting an older MACINTOSH computer
that does not have a 15-pin connector, you must use the
MAC adaptor between the computer and the cable hub.
Equipment you want to
connect Page
Laptop computer with cable hub page 15
Desktop computer with cable hub page 17
USB or PS/2 mouse page 18
Video player page 20

Setting up the Projector
3/99 15

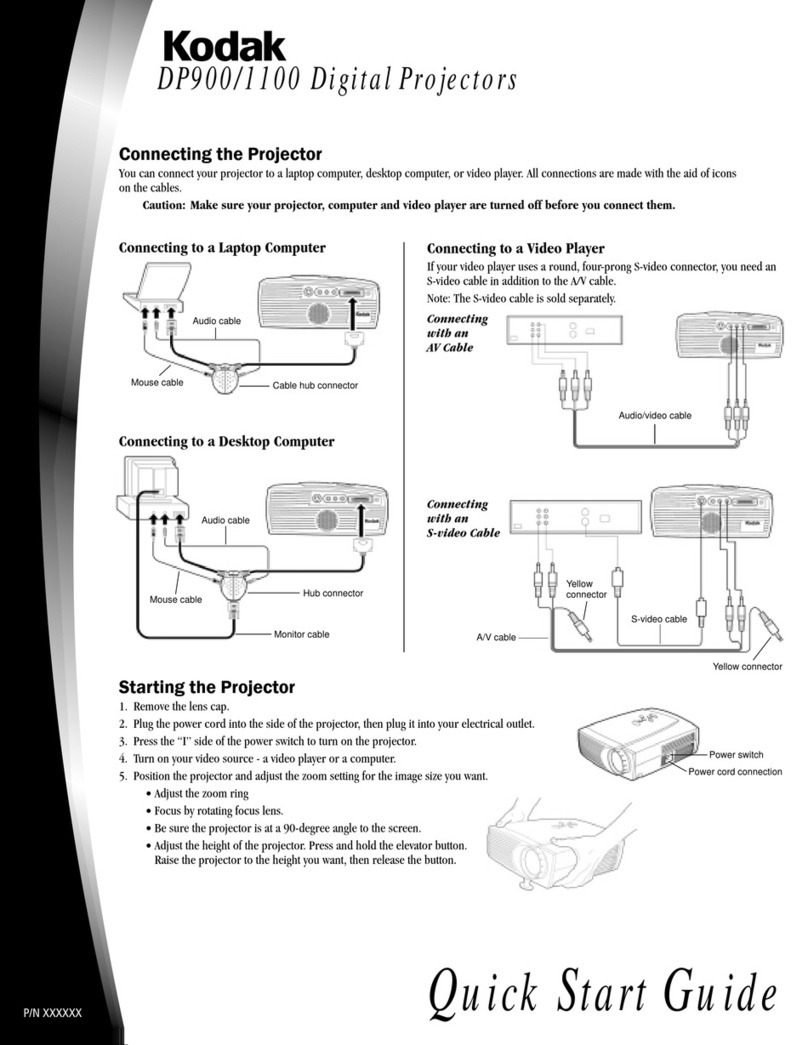

Connecting a Laptop Computer
Note: Many laptop computers do not automatically turn on
their external video port when a secondary display device
such as a projector is connected. Refer to your computer
manual for the command that activates the external video
port. Activation commands for some laptop computers
are listed in the Appendix C.
1. Plug the end of the cable hub into the video connector on
your laptop.
Figure 5 Connecting to a laptop computer
2. Plug either end of the audio cable into the audio connector on
your computer.
3. Plug the other end of the audio cable into the connector
on the cable hub.
Do you want to control the computer’s mouse from the
projector’s remote or keypad?
If your computer has a PS/2 connector, use the PS/2 mouse cable.
Note: If you are connecting an older MACINTOSH computer
that does not have a 15-pin connector, you must use the
MAC adaptor between the computer and the cable hub.
1. Plug the end of the mouse cable into the mouse connector
on your computer.
2. Plug the end of the mouse cable into the connector on
the cable hub.

Reference Manual KODAK DP900 / DP1100
16 3/99
Figure 6 Connecting audio and mouse cables to a laptop computer
If your computer has a USB connector and is running
Windows 98, use the USB mouse cable
Note: The USB mouse is supported for use with Windows 98
only.
1. Plug the end of the mouse cable into the mouse
connector on your computer.
2. Plug the end of the mouse cable into the connector on
the cable hub.
You must have the appropriate USB drivers installed on your
computer to use the USB feature. Windows 98 ships with the
appropriate drivers.
Note: A USB mouse is hot-pluggable, meaning you do not need
to re-boot your computer after connecting the mouse to
use it. A PS-2 mouse is not hot-pluggable.
Now you’re ready to power up the projector and your laptop.
Skip to “Starting the Projector” on page 22.
audio cable
mouse cable
