Kodak Ektalite 1000 User manual

KODAK EKTALITE Slide Projectors 43
english
Table of Contents
1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Loading the Slide Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Operating the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Clearing a Gate Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Changing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . 70
Cleaning the Condenser and Mirror . . . . . . . . . . . . . . . . . . . . 72
4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Self-check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
5 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
6 How to Obtain Service . . . . . . . . . . . . . . . . . . . . . . . . . 81
Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Shipping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
7 Special Application Receptacle . . . . . . . . . . . . . . . . . . 82
Twelve-Pin Receptacle Specifications(Model 2000) . . . . . . 82

KODAK EKTALITE Slide Projectors
44
Important Safety Instructions
When operating your projector, always follow basic safety precautions:
1. Read and understand all instructions before operating your projector.
2. Before you switch on your projector, ensure that the mains voltage input is correct or is
correctly adjusted for Models 2000, 1500, and 1000! Incorrect voltage can lead to malfunction
in the projector.
3. Close supervision is necessary when any appliance is used by or near children, or others who
may not understand the need for these precautions. Do not leave the projector unattended
during use.
4. Be careful not to touch hot parts. For lamp replacement, allow the module to cool before
touching the lamp. Do not place the lamp module on heat-sensitive surfaces.
5. Do not operate your projector if the cord is damaged or if the projector has been dropped or
damaged (see “How to Obtain Service” on page 81).
6. Position the cord so that it is not tripped over, pulled, or placed in contact with hot surfaces.
7. If an extension cord is necessary, use a cord with a current rating at least equal to that of the
projector. Cords rated for less amperage than the projector may overheat.
8. Always unplug the projector from the electrical outlet before cleaning and servicing and when
it is not in use.
9. Allow the project to cool before storing.
10. Do not immerse this equipment in water or other liquids.
11. Do not disassemble this projector. Use a qualified service technician when service or repair is
required. Incorrect reassembly can cause electric shock the next time the projector is used.
12. Use only safety electrical low-voltage (SELV) devices.
13. The use of an accessory attachment not recommended by the manufacturer may increase risk
of damage.
14. Connect this projector to a grounded outlet.
15. Keep the air-flow vents unobstructed.
Electrical Approvals and CE Mark
This projector complies with International Safety requirements of IEC 335-/-2-56 and bears the
following safety marks:
•CE
• SGS Australian Standard
• TÜV
• VDE (Pending)

KODAK EKTALITE Slide Projectors 45
english

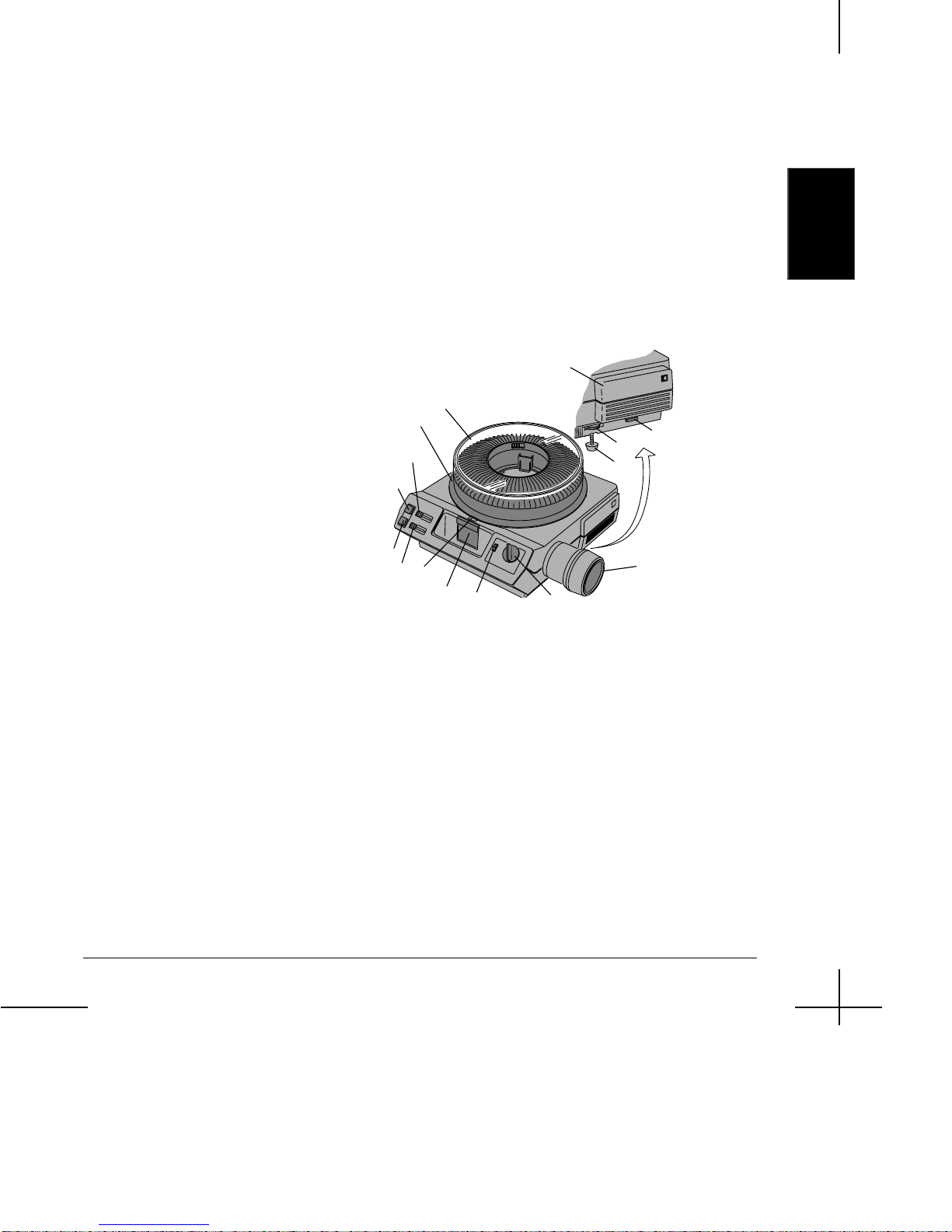

1Overview
FRONT RIGHT
1. Tray
2. Lock Ring/Cover
3. Transformer Module
4. Elevating Foot
5. Elevating Adjustment Wheel
6. Quick Release Button (Models
2000, 1500, 1000)
7. Projection Lens
8. Lens Focus and Release Knob
9. Autofocus (Models 2000, 1500)
10. Select Bar
11. Gate Index
12. Timer (Models 2000, 1500)
13. Reverse
14. Forward
15. Power (NO LIGHT/LO/HI—
Models 2000, 1500, 1000)
(NO LIGHT/ON—Model 500)
A098_0069AC
3
6
45
7
A098_0069ACA
8
9
10
11
12
13
15
14
2
1

Overview
KODAK EKTALITE Slide Projectors
46

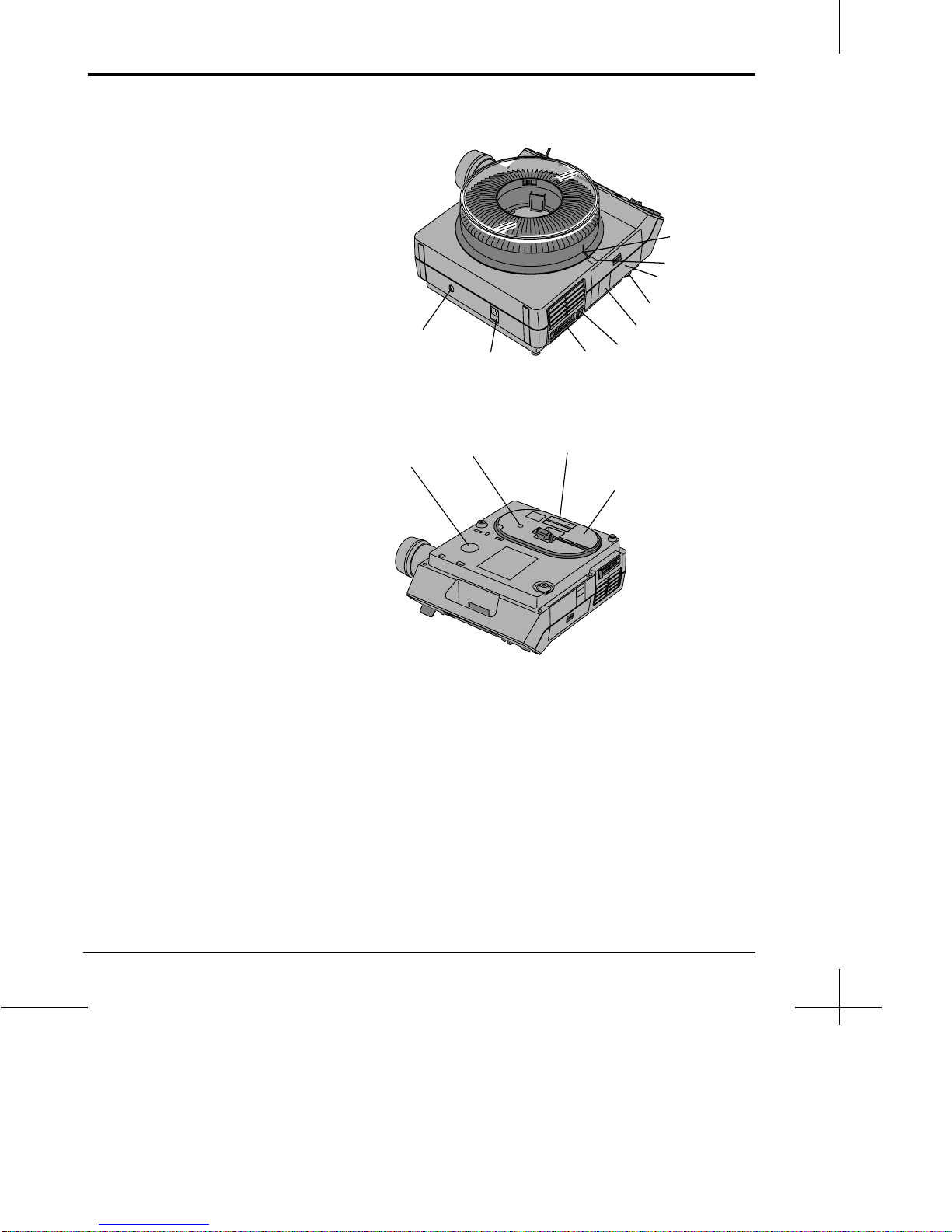

BACK RIGHT
16. Alignment Mark
17. Index Mark
18. Lamp Module
19. Leveling Foot
20. Reading Light Cover
(Models 2000, 1500, 1000)
21. Internal/External Switch
(Model 2000)
22. Twelve-Pin (Dissolve)
Receptacle (Model 2000)
23. AC Power Main Receptacle
24. Six-Pin Remote Control
Receptacle (Models 2000, 1500,
1000)
BASE
25. Voltage Selector
(Models 2000, 1500, 1000)
26. Fixing Holes (6 mm thread)
(Models 2000, 1500, 1000)
27. Serial Number Label
28. Power Cord Retainer
A098_0070AC
23
24
A098_0070ACA
21
22
2019
18
17
16
A098_0071AC
27
28
25 26
A098_0071ACA

KODAK EKTALITE Slide Projectors 47
english
2Operation

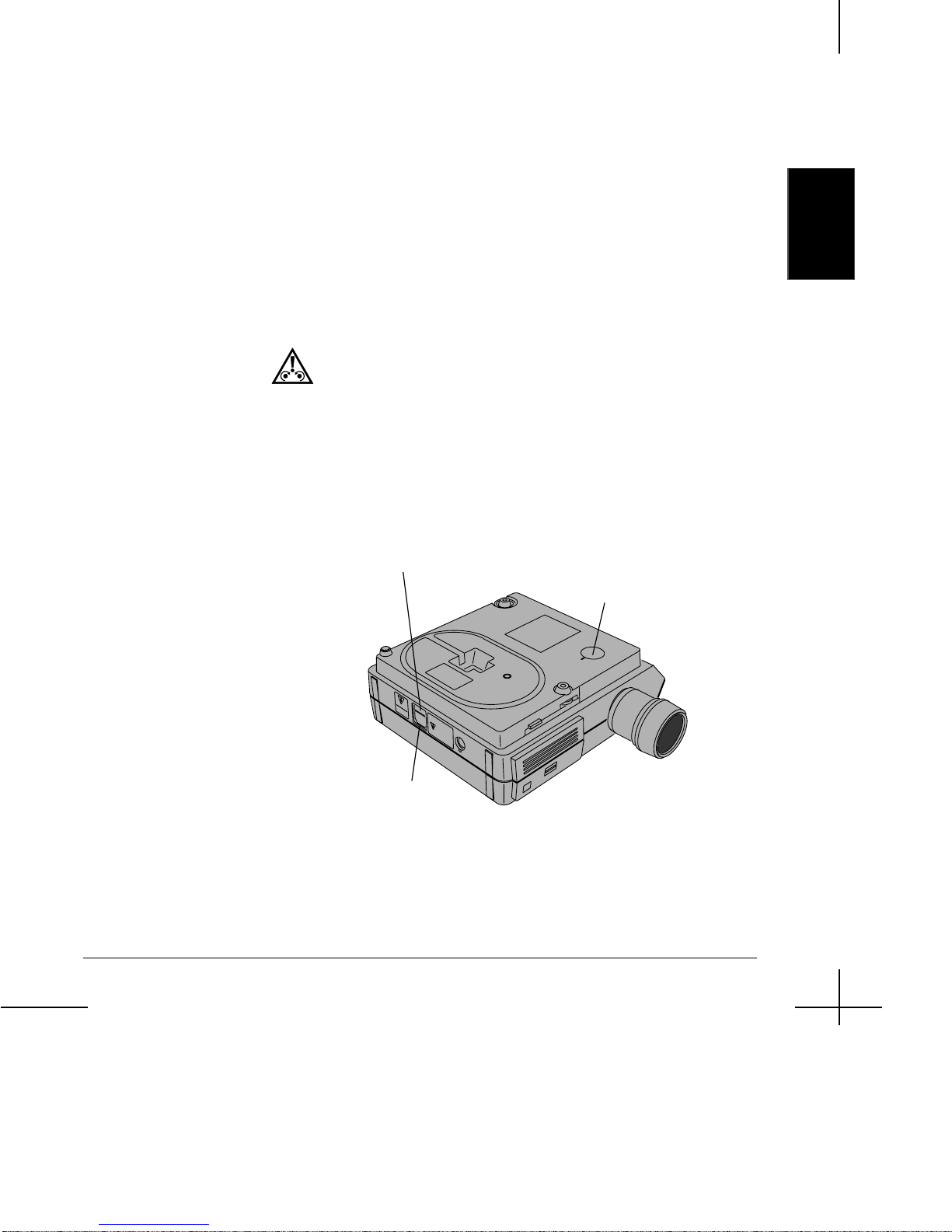

Start-up Models 2000, 1500, and 1000 only
Caution
Before you turn on your new KODAK EKTALITE Slide Projector, it is
critical to set the voltage selector to the proper setting.
The voltage selector is located on the base of the projector. You can set
the voltage selector for the proper voltage (100, 115, 130, 220, 230, and
240 V, 50/60 Hz) by turning the selector until the arrow of your main
voltage lines up with the arrow on the projector housing.
A098_0046AC
A098_0046ACA
Voltage selector
Fuse storage door
Power BASE

Operation
KODAK EKTALITE Slide Projectors
48
A 220, 230, or 240 main requires a 2.5 A H/250 V fuse. The 100, 115
or 130 V main requires a 5 A slow blow/250 V fuse. To fit or check the
fuse, pull out the fuse holder located beneath the power main.
At manufacture, the voltage selector is set at 240 V with a 2.5A
slow blow/250 V fuse fitted in the fuse holder. A spare fuse for
replacement is provided in the first compartment of the fuse holder.
Important
Countrieswith100,115,or130Vmainwillrequireremovalofthetwo
fuses in the fuse holder. Use the 5 A slow blow/250 V fuse, provided.
Set the voltage selector for your main voltage.
After you have set the correct voltage and fitted the required fuse, you
can safely plug the projector into your power main and switch it on.
Model 500 only
Operating Voltage Range: Minimum 207V
Maximum 254 V
50/60Hz

Operation
KODAK EKTALITE Slide Projectors 49
english
All Models
Plug the 6-pin cable remote connector into the remote-control
receptacle, aligning the raised arrow with the notched side of the socket.
This receptacle also accepts plugs for accessories, such as a KODAK
EKTALITE IR Remote Control.
A098_0079AC
control
Remote
receptacle
Remote control
A098_0079ACA

Operation
KODAK EKTALITE Slide Projectors
50
Loading the
Slide Tray The KODAK EKTAPRO 80 Slide Tray (with transparent cover) and
the KODAK EKTAGRAPHIC Universal Slide Tray are designed to
hold up to 80 slides. Be sure that your slide mounts are in good
condition; frayed or bent mounts or mounts with loose tape may fail to
drop into the projector. A variety of slide trays are available with
capacity up to 140 slides. See your dealer in Kodak products for a
complete list of Kodak trays and accessories.
Place the tray over the center post of the projector. Align the “0” slot
with the gate index; the tray will drop into position.
If your slide tray does not drop easily, rotate the metal plate on the
bottom of the tray until it locks into position.
80 - Slide Tray
Metal plate
80 - Slide Tray

Operation
KODAK EKTALITE Slide Projectors 51
english
Place the loaded slide tray on the projector. Align the gate index at the
zero slide position. The tray will drop.
Front-Screen Projection
Remove the tray’s transparent cover (or the lock ring) by turning it
counterclockwise and lifting it off.
Check each slide’s orientation (horizontal or vertical) and arrange them
in the order you wish to show them. Then turn the slides upside down.
Number each mount in the upper right-hand corner.
Gate index
Lock ring

Operation
KODAK EKTALITE Slide Projectors
52

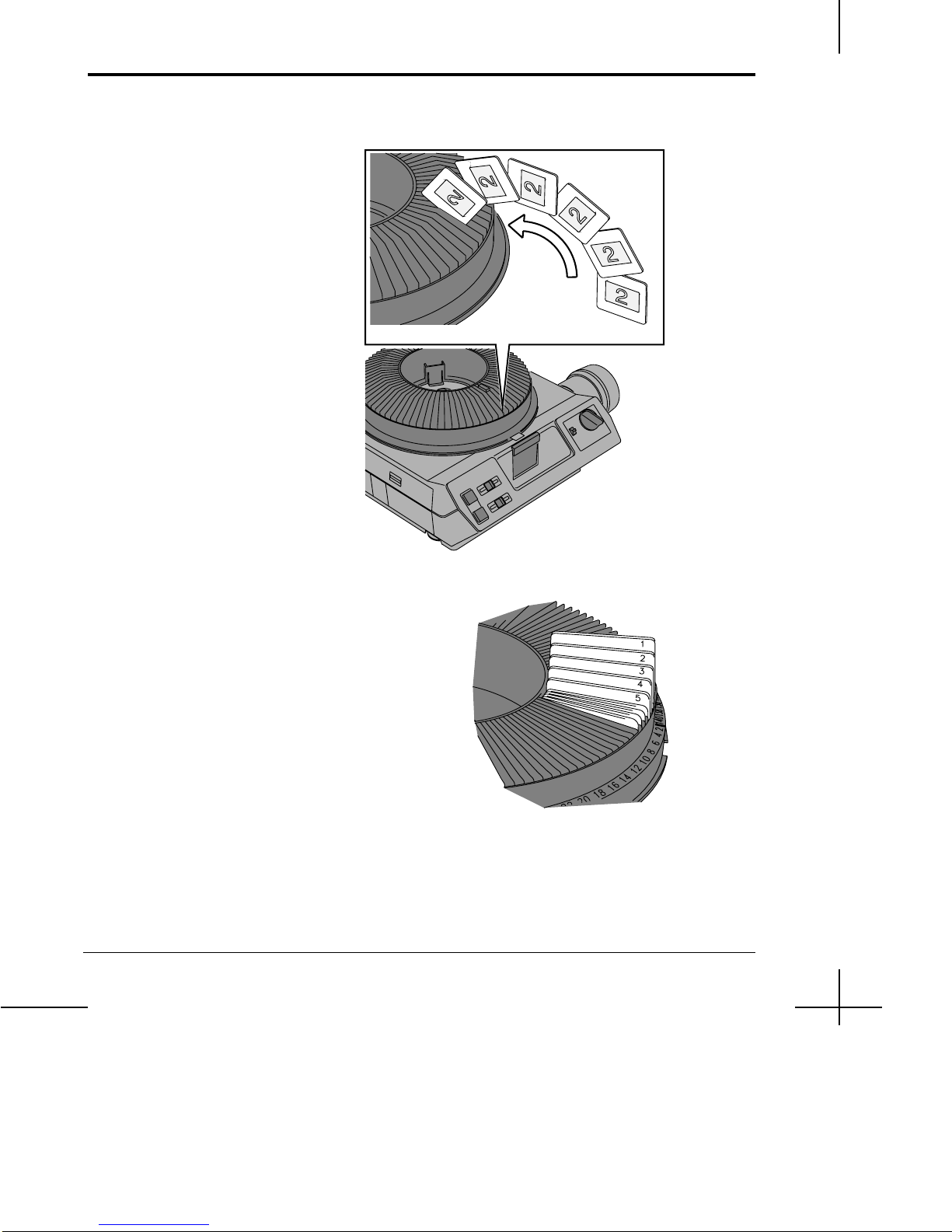

Insert your first slide into the first slot in the tray so that the number is
visible on the outer circumference of the tray.
A098_0050GC
Front Projection
A098_0051AC

Operation
KODAK EKTALITE Slide Projectors 53
english
Replace the cover (or lock ring) by turning it clockwise until it is secure.
Rear-Screen Projection
You can easily adapt a show from front- to rear-screen projection.
Remove each slide from the tray and turn it horizontally (keeping the
slide upside down). This will give the projected slide a mirror image on
the screen. Insert your first slide back into the first slot in the tray.
Replace the transparent cover (or lock ring).
A098_0052AC
Rear
Projection
Front
Projection
2
2

Operation
KODAK EKTALITE Slide Projectors
54
Raised Index Mark
This feature allows you to coordinate tray starting positions for
multiple projector presentations. For an 80-slide tray in the zero
position, the raised index mark is at slot 20. If you start with slide 6, it
will align at slot 26.
A098_0055AC
Raised index
mark

Operation
KODAK EKTALITE Slide Projectors 55
english
Removing the Tray
To remove the slide tray:
• if the tray is at the zero position, simply lift it off
• if the tray is not at zero—
– press the select bar all the way down
– return the tray to zero
– lift off the tray.
A098_0054GC
Tray
Select bar

Operation
KODAK EKTALITE Slide Projectors
56

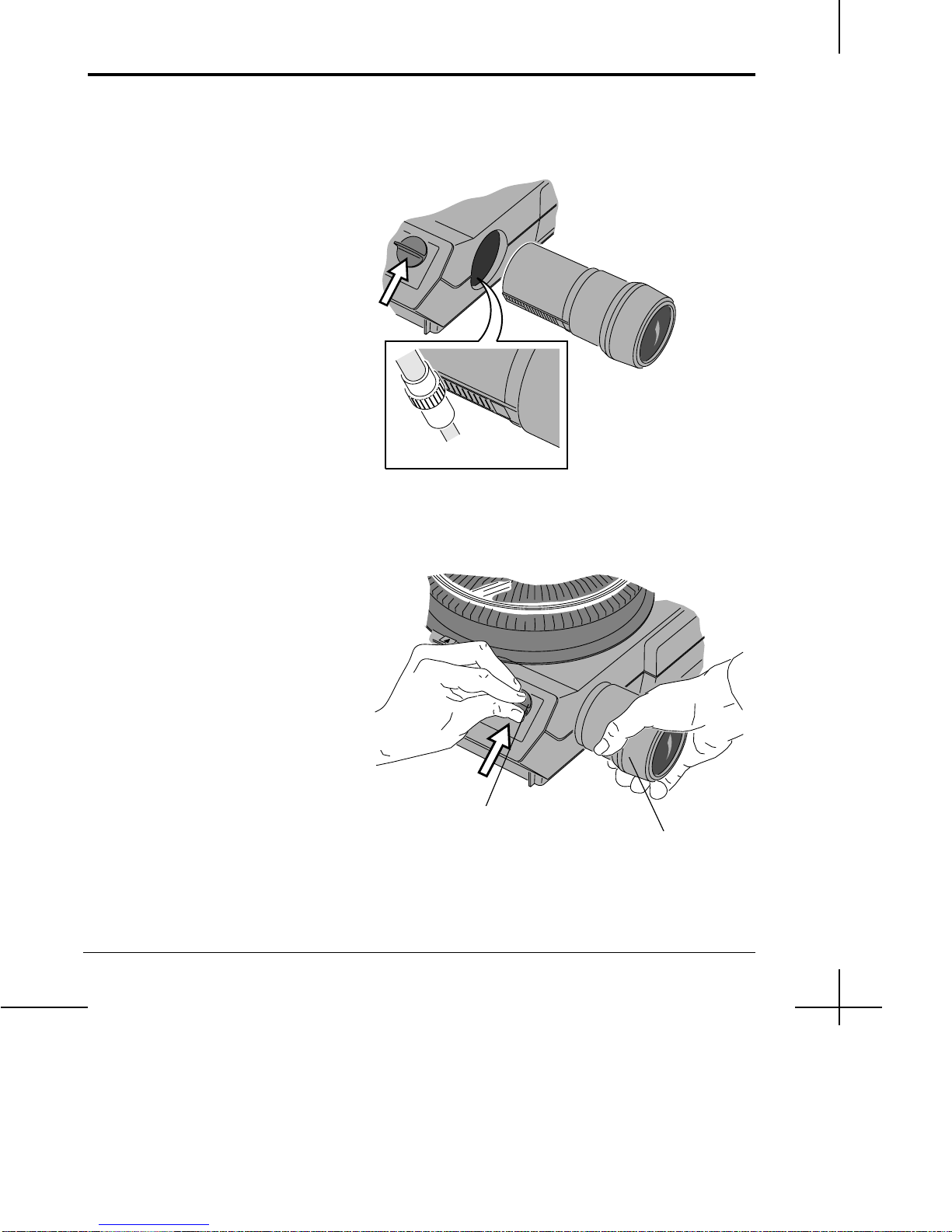

Operating the
Projector Lens
To insert a lens, push the focus knob up and position the lens gear teeth
on the lens barrel with the notch on the projector.
To remove the lens, push the horizontal knob toward the top of the
projector as you withdraw the lens.
A098_0018AC
A098_0017AC
Focus knob
Lens

Operation
KODAK EKTALITE Slide Projectors 57
english
Lamp
Slide the power switch to LO for longer lamp life (Models 2000, 1500,
1000)or to HI for maximum brightness. Model 500 has only one setting
(maximum brightness).
You may want to keep a spare KODAK Extra Bright Lamp Module
(CAT 816 7181) on hand in case the lamp burns out during a
presentation. Replacing the entire module makes the change quick and
easy. (See Maintenance on page 69 for instructions on changing the
lamp module.) See your dealer in Kodak products to order this module.

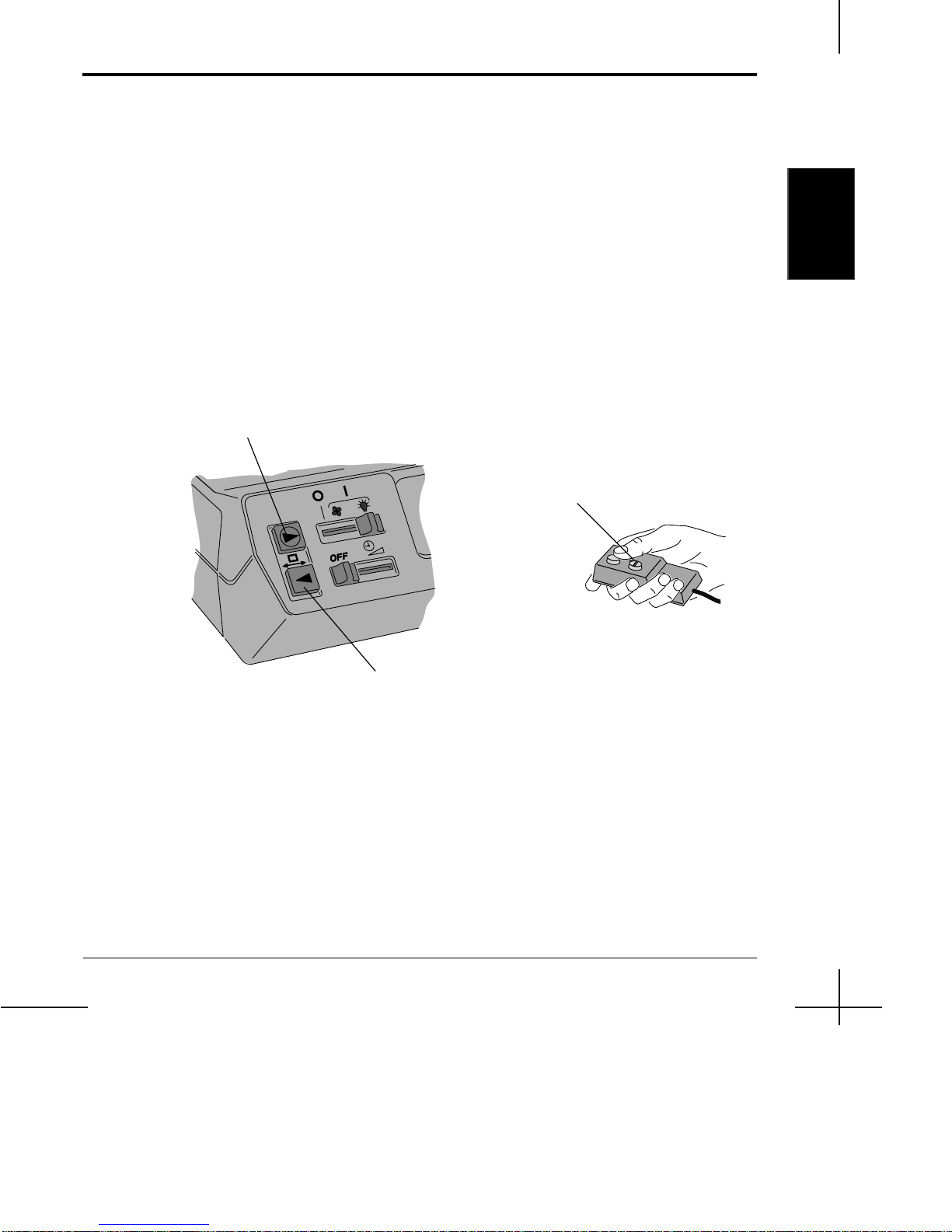

Slide Forward and Reverse
Press the forward button on the projector or the remote control to
project the first slide. To change slides, press the forward or reverse
buttons.
Forward
Reverse
Forward

Operation
KODAK EKTALITE Slide Projectors
58

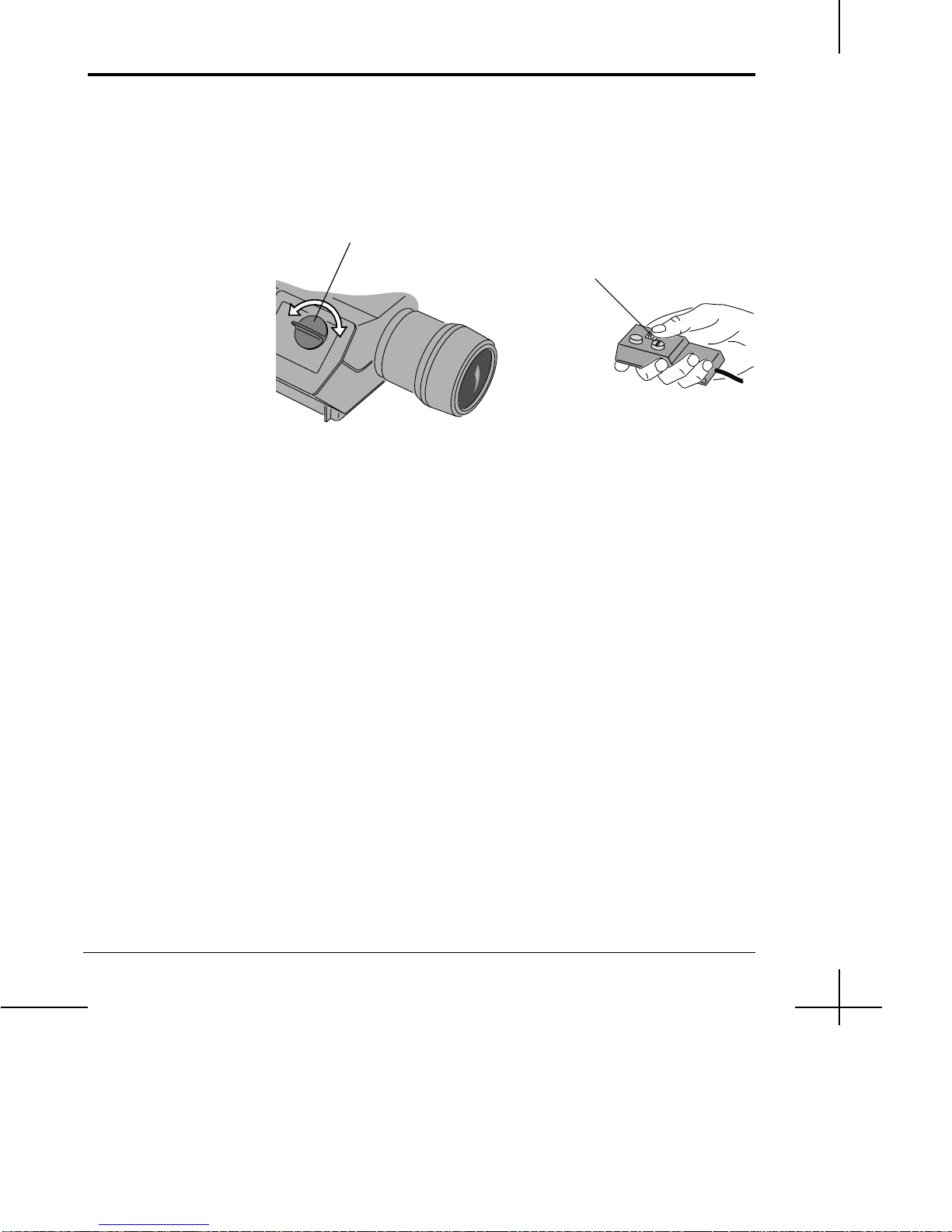

Focus
Focus your first slide using the focus knob on the projector or the focus
button on the remote control. (Models 2000 and 1500 have the
Autofocus On/Off Switch.)
Autofocus (Models 2000 and 1500 only)
Withautofocuson,theprojectorautomatically focuses eachslide,after
you focus your first slide manually.
Focus
Focus

Operation
KODAK EKTALITE Slide Projectors 59
english

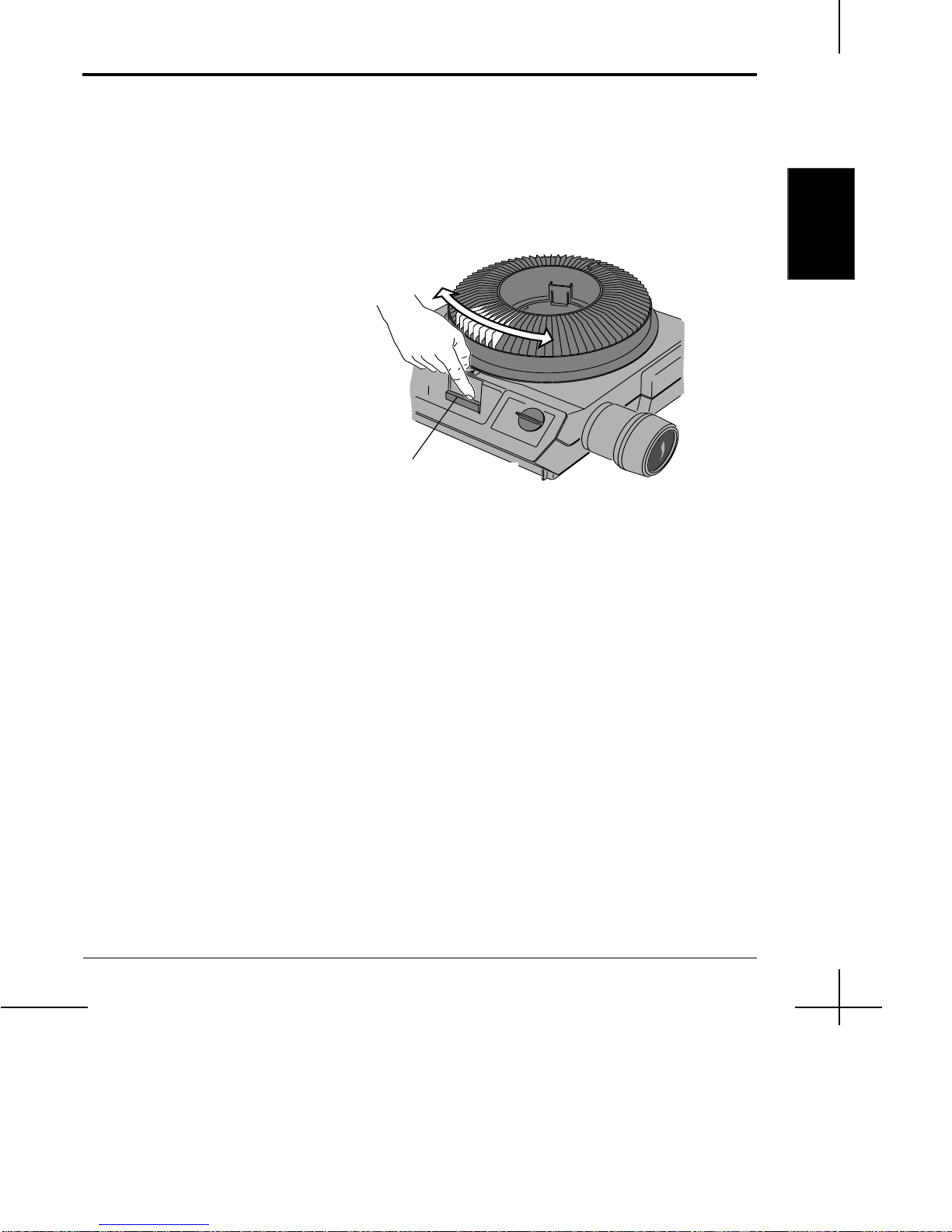

Random Projection
For random projection of any slide in the tray:
• press and hold down the select bar
• rotate the tray to the desired slide, and
• release the select bar
A098_0056AC
Select bar

Operation
KODAK EKTALITE Slide Projectors
60

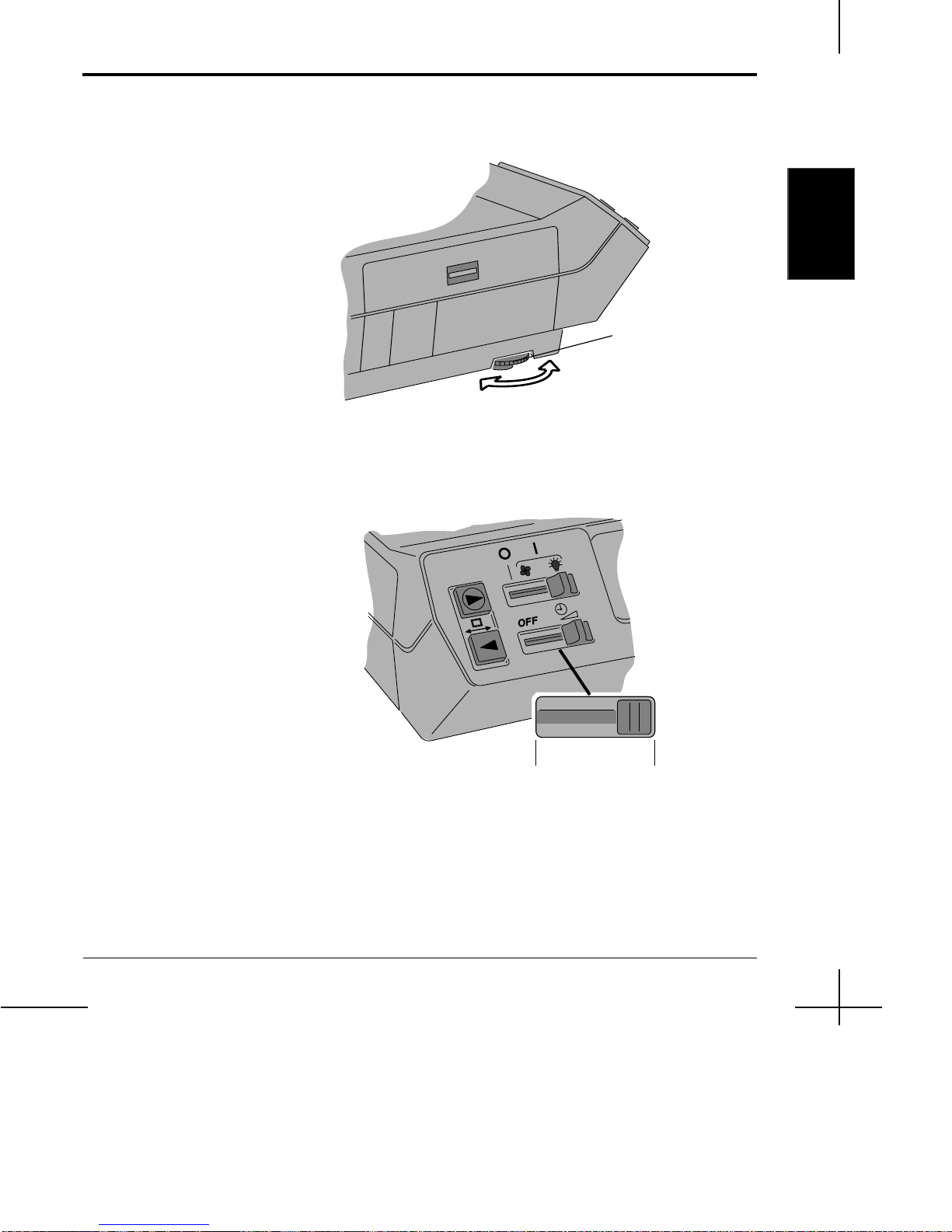

Elevating and Leveling
Use the elevating foot for projected-image height adjustment. To
release the foot on Models 2000, 1500, and 1000, press the quick
release button, while lifting the front of the projector to the desired
height. On the Model 500, use the elevating wheel. The elevating
wheel can also be used to make fine-height adjustments on all
projector models.
A098_0057AC
Release button
Elevating wheel
Elevating foot

Operation
KODAK EKTALITE Slide Projectors 61
english
If the image is not level, make an adjustment by turning the leveling
foot at the rear of the projector.
Timer (Models 2000 and 1500 only)
To time your slides, use the timer switch for slide changes from 3 to 22
seconds.
To interrupt the timer, press either the forward or reverse button. For
manual operation, slide the timer switch to OFF.
Leveling foot
3 seconds 22 seconds
A098_0011AC 3 seconds 22 seconds

Operation
KODAK EKTALITE Slide Projectors
62

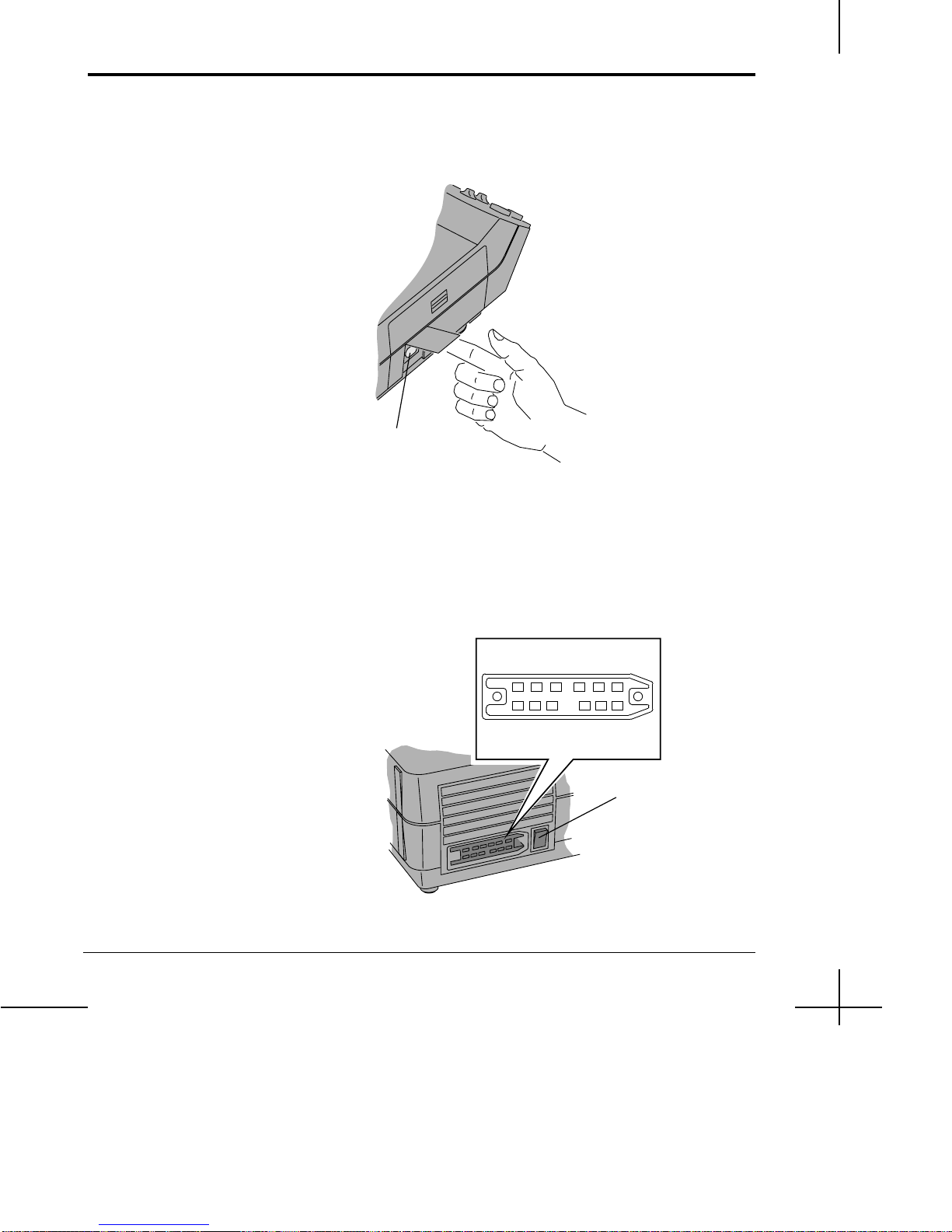

Reading Light (Models 2000, 1500, and 1000)
To illuminate a small area for reading, lift the reading light cover while
the projector lamp is on.
Dissolve Control Receptacle (Model 2000 only)
The special-application receptacle allows additional external control
and programming capability for accessories such as a dissolve control.
It provides 25.5 V low-voltage power isolated from the main power
line.
Turn the Int/Ext Switch to Ext when using a dissolve control.
A098_0030AC
Reading light
A098_0047AC
1 2 3 5 4 6b
a
Int/Ext switch
