Meet all your
workgroup needs
with an easy-to-use
scanner that fits
anywhere

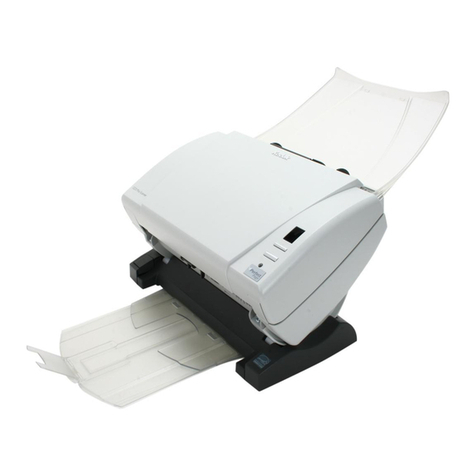

i1200 Plus Series Scanners
It all adds up to outstanding image
quality that’s virtually automatic.
No need for rescans!
Enjoy unique value
With all this capability, aordable
pricing and the peace of mind that
comes with Kodak Service & Support,
the i1210 Plus and i1220 Plus Scanners
deliver an extraordinary combination of
performance and value.
Small, powerful and packed with features
and benefits, the Kodak i1210 Plus and
i1220 Plus Scanners deliver on your
desktop scanning needs. They can
auto-feed almost anything at speeds
up to 45 pages per minute, including
documents as small as an identification
card or as long as 863 mm (34 in.).
All the ease of use and
versatility you need
Our Smart Touch feature enables you to
easily select the right scan settings and
applications for the job. With the touch of
a button, scan documents to:
• Microsoft SharePoint
• Fileandstorage
• E-mail,includingWebe-mailclients
such as Gmail, Yahoo! and Hotmail
• Printers
• Otherdesktopapplicationsthat
supportTIFF,JPEG,RTF,BMP,PDF
andsearchablePDF
In addition, these powerful scanners have
a unique tilt-and-scan feature that allows
you to select the best scanning position
for the job:
• Flatwithtraysextendedforhigher-
volume batch scanning
• Fullyuprightwiththeinputtrayfolded
down for transaction scanning
There are also optional “tethered” flatbed
accessories in A3 and A4 sizes for more
convenienceandexibility.Justconnect
either, and you can scan A3 documents
at up to 600 dpi and A4 documents at
up to 1,200 dpi. Then just unplug and
store the flatbed. It’s that easy!
Get exceptional
image quality
It starts with 600 dpi optical resolution
forrazor-sharpimages.Butwedidn’t
stop there. These compact machines
feature our latest Perfect Page
technology, which delivers imaging
benefits such as:
• Streak filtering, to improve the
appearance of images and reduce
the need for cleaning
• Imageholell,forcleaner-looking
images from hole-punched documents
• Sharpnessltering,whichenhances
overall image clarity

i1200 Plus Series Scanners
©Kodak, 2010. Kodak is a trademark of Kodak.
Specifications are subject to change without notice.
A-5760 CAT No. 888 4983 Printed in USA 3/10
Specifications
RecommendedDailyVolume Up to 3,000 pages per day
Throughput Speeds
(portrait, letter size)
Bitonal/grayscale:Upto45ppm/90ipmat200dpi
Color:Upto30ppm/60ipmat200dpi
( Throughput speeds may vary depending on your choice of driver, application software, operating system and PC.)
Scanning Technology i1210Plus:SingleCCD;i1220Plus:DualCCD;Grayscaleoutputbitdepthis256levels(8bits)
Colorcapturebitdepthis48bits(16x3);Coloroutputbitdepthis24bits(8x3)
OpticalResolution 600 dpi (1200 dpi A4 flatbed accessory)
Illumination Dualuorescent(coldcathode)
OutputResolution 75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi
Max./Min.DocumentSize 215mmx863mm(8.5in.x34in.)/50mmx63.5mm(2in.x2.5in.)
Paper Thickness and Weight 34-413g/m2(9-110lb.)paper;IDcardthickness:upto1.25mm(0.05in.)
Feeder Upto75sheetsof75g/m2(20lb.)paper,handlessmalldocumentssuchasIDcards,embossedcardsand
insurance cards
Multi-feedDetection With ultrasonic technology
Connectivity USB2.0(cableincluded)
BundledSoftware TWAIN, ISIS, WIA Drivers;KodakCaptureDesktopSoftware,SmartTouch;Nuance ScanSoft PaperPort and
OmniPage. Linux SANE and TWAIN Driversavailablefromwww.kodak.com/go/scanonlinux.
ImagingFeatures
(in the scanner)
PerfectPageScanning;iThresholding;adaptivethresholdprocessing;deskew;autocrop;relativecropping;aggressive
cropping;electroniccolordropout;dualstreamscanning;interactivecolor,brightnessandcontrastadjustment;
automaticorientation;automaticcolordetection;backgroundcolorsmoothing;imageedgell;imagemerge;content
basedblankpagedetection;streakltering;imageholell;sharpnesslter
FileFormatOutputs Singleandmulti-pageTIFF,JPEG,RTF,BMP,PDF,searchablePDF
Warranty (US and Canada) One-year warranty
Accessories Kodakwhiteimagingbackgroundaccessory(front);KodakA3Flatbed(blackbackground)Accessorywith1.8-meter
(6ft.)cable;KodakA4Flatbed(whitebackground)Accessorywith1.8-meter(6ft.)cable;OptionalA4atbedblack
imaging background accessory
ElectricalRequirements 100-240V(International);50-60Hz
Power Consumption Scanner:Omode:<4watts;Running:<35watts
ScannerwithA3Flatbed:Omode:≤6watts:Running:<65watts
ScannerwithA4Flatbed:Omode:≤6watts:Running:<57watts
EnvironmentalFactors
Energy Starqualiedscanners,Operatingtemperature:10-35°C(50-95°F),Operatinghumidity:15%to76%RH
Acoustical Noise (operator
position sound pressure level)
Omode:<30dB(A)
Operatingmode:<58dB(A)
RecommendedPCConguration Fordocumentsupto660mm(26in.)longat400dpi: Intel Core2,2GHzDuoProcessororequivalent,2GBRAM
Forlongerdocuments/higherresolutions: Intel Core2,2GHzDuoProcessororequivalent,4GBRAM
Note: for optimal performance when using a PC running the Windows 7operatingsystem,atleast3GBRAM
is recommended.
Supported Operating Systems Windows XP SP2 and SP3 (32-bit), Windows XP x64 edition SP2, Windows Vista SP1 (32-bit and 64-bit),
Windows 7 (32-bit and 64-bit), Windows 2003 Server and 2008 Server x64Editions,Linux Ubuntu 8.04,
Fedora9,SUSE 11
Approvals and Product
Certifications
AS/NZS3548ClassB(C-TickMark),CAN/CSA-C22.2No.60950-1-03(C-ULMark),CanadaICES-003
Issue3(ClassB),GB4943,GB9254(ClassB),GB17625.1Harmonics(CCC“S&E”Mark),EN55022ITE
Emissions(ClassB),EN61000-3-3Flicker,EN55024ITEImmunity(CEMark),EN60950(TUVGSMark),
IEC60950,CISPR22(ClassB),VCCI(ClassB),CNS13438(ClassB),CNS14336,(BSMIMark),UL60950-1
(ULMark),CFR47Part15SubpartB(FCCClassB),ArgentinaS-Mark
Consumables Available Feedmodule,separationmodule,feedrollers,rollercleaningpads,Staticide Wipes
Dimensions Weight: i1210 Plus: 5.2 kg (11.5 lbs.), i1220 Plus: 5.5 kg (12 lbs.)
Depth:162mm(6.3in.)notincludinginputtrayandoutputtray
Width: 330 mm (13 in.)
Height:246mm(9.7in.)notincludinginputtray
As an Energy Star® Partner,
Eastman Kodak Company has
determined that these products
meet Energy Star® guidelines
for energy eciency.
