Kodiak SXA1900HX User manual

Models SXA1900HX,
SXA2800HX,SXB2800HX,
SXB4000HX, SXB5500HX(S),
SXB7000HX(S)
Gasoline Powered Generators
Owner’s Manual
IMPORTANT: Do not operate this equipment until you have read and understand all of the
enclosed Owner’s Manuals. Carefully read all Warnings, Safety Precautions, Assembly
and Operating Instructions, Maintenance and Storage information.
Introduction .......................................................................... 1
Features & Specifications ................................................... 1
Safety Precaution ............................................................ 2,3
Before Starting Engine .......................................................... 3
Operation .................................................................... 4,5,6,7
Stopping Operation .............................................................. 8
Maintenance & Storage ........................................................ 8
Wattage Information ............................................................. 9
Troubleshooting ............................................................... 9,10
Customer Service Hotline:
1-800-461-1323
Visit our website:
www.kodiakpower.ca

1
Introduction
Dear Customer:
You are now the proud owner of a Kodiak generator. Kodiak generators are carefully
designed and manufactured to give you safe, dependable service. To obtain the best use
of your generator, please read and understand this manual as well as the Honda Engine
Owner’s Manual. Failure to do so could result in personal injury or equipment damage.
Similar to all mechanical products, your machine will occasionally require routine
maintenance. This manual and the Honda Engine Owner’s manual should be read
carefully before operating or performing any adjustments or maintenance on your
machine.
This manual as well as the Honda Engine Owner’s manual should be considered a
permanent part of the generator and should always remain with the unit.
All information contained in this manual reflects the latest product data at the time of
publication. Specifications are subject to change without prior notification or obligation.
Features & Specifications
SXA1900 SXA2800 SXB2800 SXB4000 SXB5500 SXB7000
Honda OHV Engine
Full Frame Protection
Oil Alert
Automatic Idle Control
Voltmeter
Voltage Regulator
DC Output
No-Fuse Breaker
Optional Electric Start
Model SXA1900HX SXA2800HX SXB2800HX SXB4000HX SXB5500HX/
SXB5500HXS
SXB7000HX/
SXB7000HXS
Generator Type Brushless, self exciting 2 pole single phase
Engine: Model GX120 GX160 GX160 GX240 GX340 GX390
HP 4 5.5 5.5 8 11 13
Tank Capacity
US gal (l) 0.66 (2.5) 0.95 (3.6) 2.90(11) 4.49(17) 4.49(17) 4.49(17)
Operating Hours 3.3 3.0 8.3 8.5 5.8 5.2
AC Output 120V 120V 120V 120/240V 120/240V 120/240V
Rated Output 1600W 2400W 2400W 3600W 4500W 5700W
Rated Amps 13.3A 20A 20A 30/15A 37.5/18.8A 47.5/23.8A
DC Output N/A N/A 12V 12V 12V 12V
Dimensions (mm) 555x395x390 545x415x405 545x425x420 645x500x500 665x515x505 680x515x505
Dimensions (inches) 21.8X15.6X15.3 21.5X16.3X15.9 21.5X16.7X16.5 25.4x19.7x19.7 26.2x20.3x19.9 26.8x20.3x19.9
Dry Weight lbs. (kg) 65 (30) 76 (35) 93(43) 148(68) 163(75)/174(80) 176(81)/186(86)
A. Features of the full range of Kodiak generators
B. Specifications*
* subject to change without notification

2
Safety Precaution
CAREFUL OPERATION IS YOUR BEST INSURANCE AGAINST ACCIDENT!
Read carefully and understand this section before operating your generator. All operators,
no matter how much experience they have had, should read this and other manuals
included with your machine. It is the owner’s obligation to instruct all operators in safe
operation.
Indicates a possibility of personal injury or equipment
damage if instructions are not followed.
Indicates that equipment or property damage can result
if instructions are not followed.
CAUTION: Indicates that equipment or property damage can result
if instructions are not followed.
NOTICE
1. Read this manual and the Honda Engine Owner’s manual carefully
before using your new generator - KNOW YOUR EQUIPMENT!!!
2. DO NOT operate generator in the rain or with wet hands.
If you ignore this condition, you may suffer severe electric shock.
3. REFUELING
a. DO NOT refuel the generator while it is in operation
or still hot.
b. DO NOT refuel while smoking or near flames, pilot lights,
sparking electrical devices, etc. (e.g. power tools, welders,
or grinders) Unit should be refueled in a well lighted,
& well ventilated area.
c. Avoid spillage.
d. DO NOT operate this generator with any other fuel
except gasoline.
4. DO NOT operate generator near inflammable products.
5. DO NOT operate in areas with poor ventilation where vapors may
be trapped.(i.e. inside a room or tunnel)
Engine exhaust gases are dangerous - the exhaust fumes contain
carbon monoxide, a poisonous, tasteless, odorless, and invisible gas.
The exhaust gases will endanger lives.
6. DO NOT connect the unit to a commercial power line.
7. DO NOT operate any generators with missing or broken parts.
Contact your dealer for replacement parts.
8.A ground should be used in damp or highly conductive locations.
9.DO NOT operate with extensions, power cords or any other electrical
equipment, which is damaged or defective. Never operate any
electrical equipment with damaged or defective cords.
!
WARNING
!
WARNING

3
Safety Precaution
CAUTION: 1. Operate your unit only on a firm supporting, level surface.
2. Sophisticated electronics (ie computers, phone systems…etc)
should not be connected to this type of generator.
1. Fill Engine with oil. Refer to the Honda Engine Owner’s
Manual for oil recommendations.
2. This Honda engine has an OIL ALERT system to protect the
engine against low oil level. If the engine oil level is low the
engine will not start.
3. Do not cover the unit while in operation. It could cause
overheating and result in equipment damage.
4. For storage, do not cover unit until the engine has cooled
completely.
5. Ambient temperature should not exceed 100oF/40oC.
NOTICE
Before Starting Engine
Read and understand the Honda Engine Owner’s Manual
Check and fill engine with the recommended engine oil to the proper level.
Change oil if it becomes dirty or discolored. (Diagram 1) Oil capacity at upper level
mark on the oil dipstick: see Honda engine owner’s manual for more information.
Remove the tank cap and check the fuel level. If fuel level is low, refill with unleaded
automotive gasoline.
Diagram 1: Inspecting oil capacity.

4
Operation
Starting the engine:
1. Read Honda Engine Owner’s Manual.
2. Open fuel cock.
3. Set choke lever towards the “close” position when engine is cold.
If engine is warm, choke lever should be moved to the "Open” position.
4. Set the engine switch to the “run” position.
5. Pull on starter rope with a fast steady pull to start the engine. (Diagram 2)
6. After engine has started, move the choke
lever back gradually to the “Open” position.
7. Once the engine is running at normal
speed, useable AC power is available.
Diagram 2: Starting the engine.
Applying AC load (single voltage type) (Refer to Diagrams 3, 4, 5.):
1. Place generator’s “no fuse breaker” switch in the “0" position.
2. Start engine (Please refer to the Honda Engine Owner’s Manual.)
3. Allow the engine to warm up for 2 - 3 minutes before connecting tools
or appliances.
4. Insert the plug of the electrical appliance into the “AC receptacle”.
5. Place generator’s “no fuse breaker switch” in the “1” position.
6. Reset the GFCI receptacle.
Diagram 3: SXA1900HX AC Panel
Tee Slot GFCI Receptacle
“Power On” Indicator Light
No Fuse Breaker
Ground Terminal

5
Operation
Applying AC load (single voltage type) coninued:
Diagram 5: SXB2800HX AC Panel
Be sure to ground the generator if the connected electrical equipment
is grounded.
CAUTION: When the generator is overloaded or a short circuit is made, the
‘no-fuse breaker” switch will stop the engine to protect the circuit
automatically. If the “no-fuse breaker” switch trips during operation,
the generator is either over loaded or the appliance is defective.
Check the appliance and/or generator for overloading or defect, make
necessary corrections or repairs before use.
Diagram 4: SXA2800HX AC Panel
No Fuse Breaker
Ground Terminal
Tee Slot GFCI Receptacle
“Power On” Indicator Light
!
WARNING
Output Voltage Meter “Power On” Indicator Light
Tee Slot GFCI Receptacle
No Fuse
Breaker
12V DC Output
Ground Terminal
Engine
“ON/OFF”
Switch

6
Operation
Dual voltage type (SXB4000HX,SXB5500HX(S),SXB7000HX(S) only)
1. Select the voltage using the "select" switch in accordance with the electrical
appliance. Refer to table below.
SWITCH LOWER VOLTAGE RECEPTACLE HIGHER VOLTAGE RECEPTACLE
110V or 120V RATED OUTPUT IS AVAILABLE UNAVAILABLE
110V/220V or
120V/240V HALF OF RATED OUTPUT IS AVAILABLE RATED OUTPUT IS AVAILABLE
2. Place generator’s “no fuse breaker” switch in the “0" position.
3. Start engine (Please refer to the Honda Engine Owner’s Manual.)
4. Allow the engine to warm up for 2 - 3 minutes before connecting tools
or appliances.
5. Insert the plug of the electrical appliance into the “AC receptacle”.
6. Place generator’s “no fuse breaker switch” in the “1” position.
7. Reset the GFCI receptacle.
Diagram 6: SXB4000HX Control Panel
120 Volt
Twist Lock
Receptacle
NEMA L5-30R
Tee Slot GFCI Receptacle
Auto Throttle
Switch
12V DC
Output
Engine
“ON/OFF”
Switch
Output Voltage
Meter
“Power On”
Indicator Light Output voltage
selector switch
4 wire Twist
lock receptacle
NEMA L14-30R
No Fuse Breaker

7
Operation
Dual voltage type (SXB4000HX,SXB5500HX(S),SXB7000HX(S) only) continued:
Diagram 7: SXB5500HX Control Panel
Diagram 8: SXB7000HX Control Panel
Tee Slot GFCI Receptacle
120 Volt
Twist Lock
Receptacle
NEMA L5-30R
Auto Throttle
Switch
12V DC
Output
Engine
“ON/OFF”
Switch
Output Voltage
Meter
“Power On”
Indicator
Light Output voltage
selector switch
4 wire Twist
lock receptacle
NEMA L14-30R
No Fuse Breaker
Tee Slot GFCI Receptacle
120 Volt
Twist Lock
Receptacle
NEMA L5-30R
Auto Throttle
Switch
12V DC
Output
Engine
“ON/OFF”
Switch
Output Voltage
Meter
“Power On”
Indicator
Light
No Fuse
Breaker
4 wire Twist
lock receptacle
NEMA L14-30R
Output voltage
selector switch

8
Battery charger (SXB2800HX,SXB4000HX,SXB5500HX(S),SXB7000HX(S) only)
The DC terminal is used only for charging 12 volt batteries. It provides up to
12V-8.3A(100W) of maximum power.
Operation
CAUTION: Be sure to make correct connection to the battery.
The positive(+) battery terminal should be connected to the "red"
terminal.
Do not over-charge the battery. Over-charging of a battery can result in
personal injury due to explosion of battery.
Stopping Operation
In an emergency:
(Please refer to the Honda Owner’s manual)
To stop the engine in an emergency, move the engine switch to the "off” position.
In normal use:
1. Turn the “no-fuse” breaker to the “0” position.
2. Unplug all appliances.
3. Move the engine switch to the “off” position.
4. Turn the fuel valve to the “off “position.
Never leave an appliance plugged into the generator when you
stop the generator, as damage could result to the generator and/or
appliance.
NOTICE
Maintenance & Storage
Maintenance (Please refer to the Honda Engine Owners Manual):
Periodic inspection and adjustment of the Honda engine are essential if a high level of
performance is to be maintained. Regular maintenance will also ensure a long service
life. The required service intervals and kind of maintenance to be performed are
described in the Honda Engine Owner’s Manual. Please refer to the Honda Engine
Owner’s Manual for more details.
Transportation/Storage (Please refer to the Honda Engine Owners Manual):
When transporting the generator, turn the fuel cock OFF and keep the unit level
to prevent fuel spillage.
When the generator is in storage for a long period, carry out the following maintenance.
Please refer to the Honda Owner’s manual.
1. Store generator in a well-ventilated, low humidity area.
2. Clean each part with an oil permeated rag.
3. Change the engine oil.
4. Clean the air cleaner.
5. Empty the gasoline from fuel tank.
6. Start and run engine until the it runs out of fuel.
Never use water to clean the generator
!
WARNING
!
WARNING

9
Wattage Information
Some appliances need a “surge” or “in rush” of power at start up. This means that the
amount of electrical power needed to start the appliance may exceed the amount needed
to maintain its use. Refer to the appliance for its maximum starting power.
Electrical appliances and tools normally come with a label indicating voltage, cycles (HZ),
amperage and electrical power needed to run the appliance or tool. If the appliance
does not have this information in watts - but does have it in voltage & amperage - simply
multiply them together to get the power in watts.
(Power in watts = voltage x amperage)
Troubleshooting
The majority of troubles with generator units are with the engine. Please refer to the
Honda Engine manual if engine troubles arise. If problem persists please contact your
local Honda dealer.
Engine:
Symptom CAUSE REMEDY
Engine fails to start Fuel level is low Refill fuel tank making sure
not to overfill
Oil Level is low Fill oil to proper level
Fuel strainer cock closed Open fuel strainer cock
Choke lever is not in the
proper position
Place chose lever “close”
Spark plug loose or dirty 1. If loose, push spark plug
cap back into place
2. Remove spark plug and
clean electrodes
Others See Honda owner’s manual
or contact your local Honda
Dealer for assistance
Generators:
Symptom CAUSE REMEDY
No Power No-fuse breaker is “0”
position
After making sure that
the total wattage of the
electrical appliance is with
in permissible limits and
there are no defects in the
appliance, turn the no-fuse
breaker to the “1” position
The GFCI receptacle has
tripped or has not been set
Press the reset button in the
GFCI receptacle
Voltage is too low Engine speed is too low Contact your local Kodiak
dealer for assistance

10
Troubleshooting
If problem persist please call the Kodiak toll free hot-line below for the service
center nearest you.
Customer Service Hotline:
1-800-461-1323
Visit our website:
www.kodiakpower.ca

2005.4
GENERATOR
PARTS CATALOG
MODEL : GESXB5500HX(S) (CSA)
4500VA 120/240V 60Hz
No.GESXB5500HX(S)

No.2R-06125
1 GESG15411460000 BRACKET (1) 1
2 GESG15311462000 N-BRACKET 1
3 GESG15311461000 BRACKET (2) 1
4 GESG15200347000 ROTOR ASSY 1L#20212122
5 GESG15250222000 STATOR ASSY 1L#20212119
6 GESG1531E471000 COVER,BRACKET 1
7 GESG6205ZZ-CM-NS7 BALL BEARING 1
8 GESGK4403005 RUBBER BUSH 1
9 GESG15111473000 BRIDGE DIODE 1
10 GESGK3403011 HEX,BOLT W/FLANGE(M10×1.25-250)1
11 GESGK3403015 HEX,BOLT W/FLANGE(M6×1.0-165)4
12 GESG19B30908020 HEX,BOLT W/FLANGE(M8×1.0-20)4
13 GESG19B30905012 HEX,BOLT W/FLANGE(M5×0.8-12)2
14 GESG19B50908020 FLAT HEAD BOLT W/SOCKET(M8×1.25-20) 4
15 GESG19S00904018 CROSS RECESSED HEAD SCREW(M4-18)1
16 GESG19S00905007 CROSS RECESSED HEAD SCREW(M5-7)1
17 GESG15350107000 TUBE,LEAD WIRE(L=240) 1
18 GESG15350101000 CONNECTOR 4P 凸 2
19 GESG15350307000 CONNECTOR 6P 凸 1
ALTERNATOR
GESXB5500HX(S)
REF No. RemarksParts No. Parts name Q'ty Price
E/G
1
14
14
14
14
7
2
4
12
10
12
12
12
19
17
18
19
8
5
3
16
11
6
13
13
11
15
9
11
ALTERNATOR
1

No.2R-06125

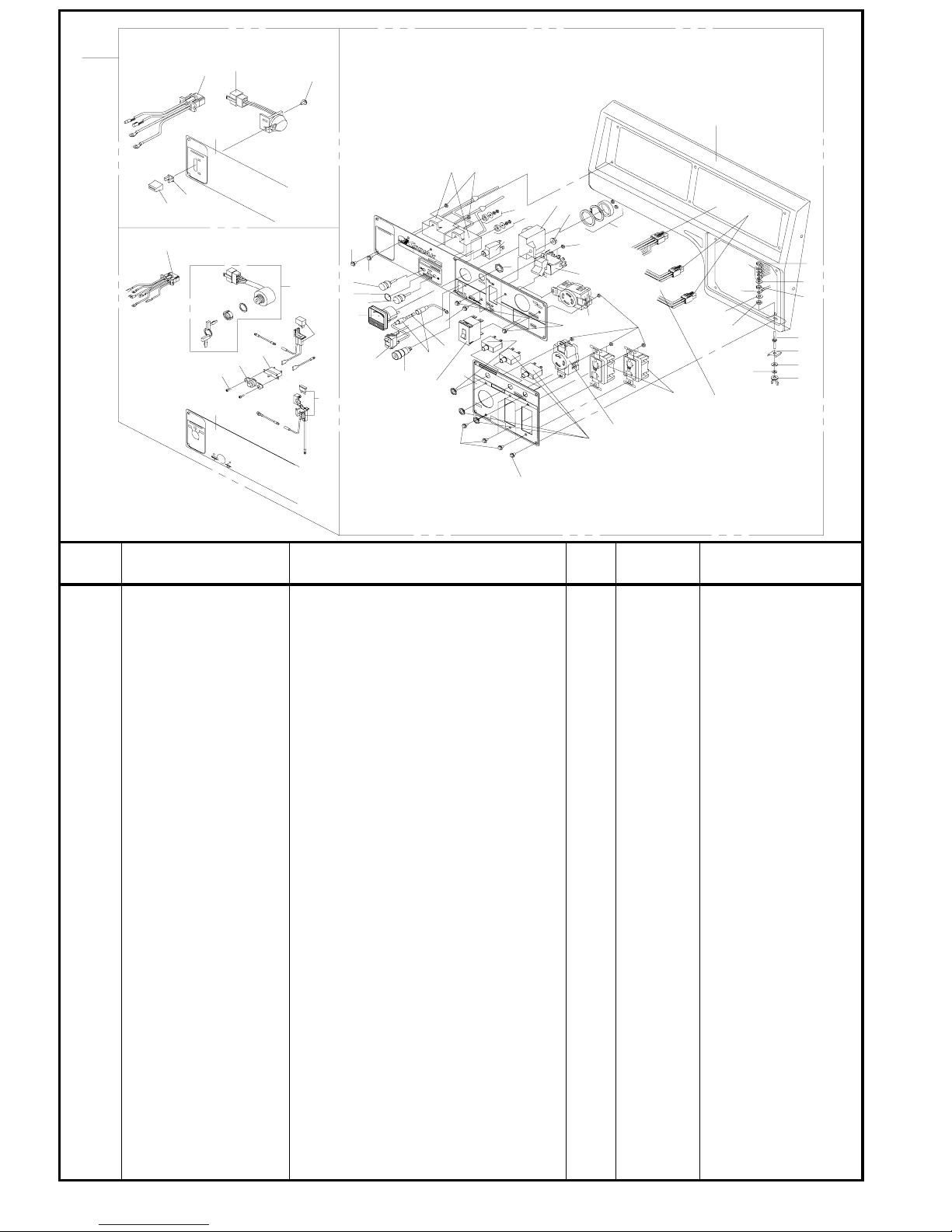

1CONTROL BOX ASSY 1
2A GESG15450758000 PANEL 1
2B GESG15450759000 PANEL 1
3 GESG15450768000 PANEL 1
4 GESG15300837000 CONTROL PANEL 1
5 GESG15400104000 RECEPTACLE 20A、GFCI 2
6 GESG15400105000 RECEPTACLE 30A、3P 1
7 GESG15400106000 RECEPTACLE 30
A
、4P 1
8 GESG15400144000 NO-FUSE BREAKER (250V,20A) 2
9 GESG85111573300 NEON BRACKET 1
10 GESG15400143000 SWITCH,VOLTAGE SELECTOR 1
11 GESG15400108000 SWITCH,AUTO THROTTLE 1
12 GESG19600700660 CONTROL UNIT,AUTO THROTTLE 1
13 GESG15111584000 D.C TERMINAL RED(+) 1
14 GESG15111583000 D.C TERMINAL BLACK(-)1
15 GESG15400141000 NO-FUSE BREAKER DC 10A 1
16 GESG85321072000 LEAD WIRE ASSY,AUTO THROTTLE 1
17 GESG15111585020 FUSE 1A 1
18 GESG15400142000 TWIN NO-FUSE BREAKER (250V,20A) 1
19 GESG15450145000 NO-FUSE BREAKER (250V,30A) 1
20 GESG15400109000 VOLTMETER,FS:300V 1
21 GESG89700581050 CONDENSOR ASSY,18μF2
22 GESG15350101000 CONNECTOR 4P 凹 2
23 GESG15350307000 CONNECTOR 6P 凹 1
24 GESG36110-ZB4-701 SWITCH ASSY,ENGINE STOP 1HONDA PART
25 GESG15500981000 LEAD WIRE ASSY,ENGINE SWITCH 1
26 GESG35100-ZB4-013 KEY SWITCH ASSY,COMBINATION 1 HONDA PART
27 GESG32130-ZE1-000 COUPLER COMP,SILICON RECTIFIER 1HONDA PART
CONTROL BOX
GESXB5500HX(S)
Price RemarksREF No. Parts No. Parts name Q'ty
26
30
28
27
29
37
36
2B
SXB5500HXS ONLY
SXB5500HX ONLY
25
2A
24
38 39
40
CONTROL BOX
23
21
32
31
12
20
31
20
33
4
9
32
42
44
45
43
47
3
6
5
7
8
9
10
11
14
13
13
14
15
17
16
18
19
22
31
33
33
34
41
43
49
43
49
46
49
1
35
48
15
2

No.2R-06125
28 GESG38220-ZE1-000 CASE COMP,FUSE 1HONDA PART
29 CIRCUIT PROTECTOR (1A、125V) 1HONDA PART
30 GESG15500982000 LEAD WIRE ASSY,COMBINATION SWITCH 1
31 GESG19S00904012 CROSS RECESSED HEAD SCREW (M4-12) 12
32 GESG19S00905010 CROSS RECESSED HEAD SCREW (M5-10) 10
33 GESG19N10904000 HEX,NUT W/FLANGE M4 12
34 GESG19SF4906015 CROSS RECESSED HEAD SCRED (M6-15) 1
35 GESG19N10906000 HEX,NUT W/FLANGE M6 1
36 GESG19S00903012 CROSS RECESSED HEAD SCREW (M3-12) 2
37 LENS ASSY,PROTECTOR 1HONDA PART
38 GESG32343-892-003 KNOB,CONTROL LEVER 1HONDA PART
39 GESG36106-892-003 BUSH,CONTROL KNOB 1HONDA PART
40 GESG19S00904006 CROSS RECESSED HEAD SCRED (M4-6) 1
41 GESG15500958000 EARTH WIRE 1 1
42 EARTH WIRE 21
43 FLAT WASHER(5) 3
44 GESG15550168000 STUD BOLT (M5) 1
45 GESG15301034000 CAP WASHER 1
46 LOCK WASHER(5) 1
47 GESG19N60905000 WING NUT (M5) 1
48 LEAD WIRE 1
49 GESG19N10905000 HEX,NUT W/FLANGE (M5) 3
Price RemarksREF No. Parts No. Parts name Q'ty
CONTROL BOX
GESXB5500HX(S)
26
30
28
27
29
37
36
2B
SXB5500HXS ONLY
SXB5500HX ONLY
25
2A
24
38 39
40
CONTROL BOX
23
21
32
31
12
20
31
20
33
4
9
32
42
44
45
43
47
3
6
5
7
8
9
10
11
14
13
13
14
15
17
16
18
19
22
31
33
33
34
41
43
49
43
49
46
49
1
35
48
15
3

No.2R-06125
1GESG15300838000 FUEL TANK 1
2GESG15321771100 FILTER COMP., FUEL 1
3GESG15321771000 CAP COMP., FUEL FILLER 1
4GESG15321278000 GAUGE ASSY., FUEL 1
5GESG15221880110 RUBBER,TANK MOUNTING 2
6GESG15321880100 RUBBER,TANK CUSHION 2
7GESG19B30906022 HEX,BOLT W/FLANGE (M6×1.0-22) 2
8GESG15321670270 COLLAR,TANK CUSHION 2
9GESG19W00906025 WASHER,TANK CUSHION (6×25,1.0t) 2
10 GESG16950-ZB4-0150 COCK COMP、FUEL 1
11 GESG90854-ZB2-0000 RUBBER,FUEL TUBE 1
12 GESG95001-45150-40 TUBE,FUEL 1
13 GESG95002-02080 CRIP B8,TUBE 2
14 GESG15350202000 CASE,CONTROL 1
15 GESG19B30906040 HEX,BOLT W/FLANGE (M6×1.0-40) 3
16 GESG15321880150 RUBBER,CONTROL CASE 1
17 GESG90101-692-000 SCREW GROVE BOX 1HONDA PART
18 GESG15321880130 GROMMET PANEL LEAD #2 1
19 GESG15321880160 GROMMET SWITCH CODE 1
20 GESG15321880140 GROMMET TUBE 1
Price RemarksREF No. Parts No. Parts name Q'ty
FUEL TANK
GESXB5500HX(S)
HONDA PART
HONDA PART
HONDA PART
HONDA PART
3
1
2
4
5
5
6
8
7
9
10
11
12 13
13
FUEL TANK
14
16
20
19
18
15
17
4

No.2R-06125
1GESG15321670001 FRAME 1
2GESG19500691010 ANTI-VIBRATION RUBBER 4
3GESG19N15910000 HEX, NUT W/FLANGE (M10×1.25) 4
4GESG19N10908000 HEX, NUT W/FLANGE (M8×1.25) 4
5GESG15321880120 STOPPER,DISCHARGE GURD 2
6GESG19B30906012 HEX, BOLT W/FLANGE (M6×1.0-12) 1
7GESG15500377000 BONDING WIRE 1
8GESG19W50906000 TOOTH LOCK WASHER(6) 1
9GESG19B30906020 HEX, BOLT W/FLANGE (M6×1.0-20) 3
10 GESG19W00906020 WASHER,PANEL CUSHION (6×20,1.0t) 3
11 GESG15221880100 RUBBER,PANEL CUSHION 3
12 GESG15221670270 COLLAR,PANEL CUSHION 3
FRAME
GESXB5500HX(S)
Price RemarksREF No. Parts No. Parts name Q'ty
FRAME
5
3
10
3
2
1
4
12
11
9
4
2
6
7
8
5
5
Other manuals for SXA1900HX
1
This manual suits for next models
7
Table of contents
Other Kodiak Portable Generator manuals

Kodiak
Kodiak SXA3000HX Service manual

Kodiak
Kodiak SGA2300GC Service manual

Kodiak
Kodiak KD3000VR User manual

Kodiak
Kodiak SXA1900HX Manual

Kodiak
Kodiak SGB12000HX Service manual

Kodiak
Kodiak SGA1900HX Manual

Kodiak
Kodiak SXD5000HX User manual

Kodiak
Kodiak SGB12000HX User manual

Kodiak
Kodiak SXB12000HXV Series User manual

Kodiak
Kodiak KD5000D User manual
