Koelstra Mambo Daily User manual

MaMbo Daily
RG20028/1
EN Instructions for use

MaMbo Daily
2

MaMbo Daily
3
1
2
3
4
5
6 7
8
9

MaMbo Daily
ab
a
b
10
11
12
13
14 15
16

MaMbo Daily
17
18
19
20
21
22
24
25
23

MaMbo Daily
26
27
28
29
30
31

MaMbo Daily
32
34
35
3837
39
40 41
42
43
33
36

MaMbo Daily
a
b
c
d
a
44 45
46
47 48
49
50
51
52

MaMbo Daily
53

MaMbo Daily

MaMbo Daily
1
Preface
Dear customer,
Please read this instruction manual and the warranty conditions carefully before using your pushchair. It is important that
every person using this pushchair reads and understands both documents. Demonstrate how the pushchair works, before
lending it to anyone else. If you do not follow the instructions, maintenance suggestions and warnings, you may jeopardize
your child's safety. Keep both documents in a safe place for future reference. Safety instructions have the symbol, tips
have the symbol.
The pushchair can be used for children from their birth up to the age of 4 approximately, it has a load-bearing capacity of
15 kg. It is important to check the complete pushchair and all its parts before use. If a part is missing or damaged, please
report this to your Koelstra point of sale within 7 days of purchase.
We hope you enjoy using your Koelstra pushchair!
www.koelstra.com
The pushchair, ride-along board and carrycot have been manufactured in accordance with the European standard EN 1888.
In addition, the carrycot conforms to the standard EN 1466.
Warning!
• Usetheproductonlyforitsintendedpurpose.Usingitforanyotherpurposeisimproperanddangerous.KoelstraBV
cannot be held liable for any damage caused or injuries sustained due to incorrect or improper use of your product.
• ThisKoelstraproductisnotatoy,soneverallowchildrentoplaywithit.
• Important:Pleasereadthisinstructionmanualcarefullyandkeepthisdocumentforfutureuse.Ifyoudonotfollowthe
instruction manual, you may jeopardize your child's safety.
• Itmaybedangeroustoleaveyourchildunattended.
• Ensurethatallthelockingdevicesareengagedbeforeuse.
• Useaharnessassoonasyourchildcansitunaided.
• Alwaysusethecrotchstrapincombinationwiththewaistbelt.
• Anyloadattachedtothehandleaectsthestabilityofthepushchair.
• Checkthattheprambodyorseatunitattachmentdevicesarecorrectlyengagedbeforeuse.
• Thisproductisnotsuitableforrunningorskating.
• Thispushchairisintendedforchildrenfromtheirbirthuptoaweightof15kg.
Attention!
•You are responsible for your child's safety. Avoid dangerous situations.
•The warranty conditions can be found in a separate appendix that comes with the manual. To claim on the warranty
you must be able to show the pushchair together with the serial number*, proof of purchase and a fully completed
warranty form.
•The sticker with the serial number can be found at the bottom of the pushchair. Do not remove this sticker, this is a
warranty requirement.
* Only so-called ‘hard goods’ have a serial number. ‘Soft goods’ do not have a serial number.

MaMbo Daily
2
Table of Contents
What's in the box? 4
Product description of pushchair with seat 5
Product description of carrycot & ride-along board (optional) 6
1 Unpacking and assembling 7
 1.1Beforerstuse  7
1.2 Mounting the
wheels 7
 1.3Unfold  7
1.4 Installing seat, canopy and safety front brace 8
2 Pushing the pushchair 8
 2.1Adjustingthepushbar  9
 2.2Adjustingthebackrest  9
 2.3Adjustingthelegrest  9
 2.4Usingthe5-pointsafetyharness  9
2.5 Locking/unlocking the swivel wheel 10
 2.6Usingtheparkingbrake  10
2.7 Shopping basket 11
3 Using the carrycot (optional) 11
 3.1Beforerstuse(carrycot)  11
 3.2Assemblingthecarrycot  12
 3.3Usingthemattress(carrycot)  12
 3.4Adjustingthecanopy(carrycot)  12
 3.5Installingthewindprotector(carrycot)  12
3.6 Installing the carrycot 13
4 Using the ride-along board (optional) 13
4.1 Installing the ride-along board 13
 4.2Adjustingtheride-alongboard  13
4.3 Hanging up the ride-along board 14
4.4 Removing the ride-along board 14
5 Folding up and transporting 14
5.1 Folding 14
5.2 Transporting 14

MaMbo Daily
3
6 Disassembling 14
6.1 Removing the seat from the frame 14
6.2 Removing the safety front brace 14
6.3 Removing the canopy from the seat 15
6.4 Removing the carrycot from the frame 15
6.5 Removing the canopy from the carrycot 15
6.6 Disassembling the carrycot 15
6.7 Removing the swivel wheel 15
6.8 Removing the rear wheels 15
 6.9Removingthe5-pointsafetyharnessandupholsteryfromtheseatframe  15
6.10 Installing the 5-point safety harness and upholstery on the seat frame 16
7 Maintenance 17
7.1 General 17
 7.2Cleaning  17
7.3 Washing in the washing machine 17
7.4 Wheels 17
7.5 Faults 18
8 Accessories 18
 8.1Carrycot(optional)  18
 8.2Ride-alongboard(optional)  18
 8.3Maxi-Cosiadapterset(optional)  18
 8.4Additionalshoppingbasket(optional)  18
 8.5Parasol(optional)  18
 8.6Seatraincover(optional)  19
 8.7Carrycotraincover(optional)  19
 8.8Seatliner(optional)  19
 8.9Footmu(optional)  19
 8.10Nurserybag(optional)  19
 8.11Safetyfrontbraceupholstery(optional)  19
 8.12miBasket(optional)  19
9 Technical specications 20
 9.1Pushchair  20
 9.2Carrycot(optional)  20
 9.3Ride-alongboard(optional)  20
10 Disposing of product and packaging 20

MaMbo Daily
4
What's in the box?
Pushchair
Carrycot (optional)
MAMBO DAILY
RG835200910
EN | Instruction manual
Frame
with shopping basket
Seat
with seat frame
Canopy
with canopy bracket
Safety front brace
Front wheel (2x)
with installation
material
Rear wheel (2x) Instructions for use
Carrycot Canopy
with canopy bracket
Padding (2x),
mattress & airflow
Wind protector

MaMbo Daily
5
Product description of pushchair with seat
Sliding buckle
Strap with Dring
Hip strap
Central lock for strap
Crotch strap
Shoulder pad
Shoulder strap
Strap clip
Press stud
Crotch strap cover upholstery
W
A
R
N
I
N
G
Safety front brace unlocking button
Safety front brace
Central Lock
Leg rest release
Leg rest
Leg rest adjuster
Transport lock
Footrest
Front leg
Swivel wheel lock
Swivel wheel release button
Swivel wheel
(front wheel (2x)
Shopping basket
Canopy
Push bar
Push bar adjustment button
Fold-up lock
Back rest adjuster
Storage compartment
Rear leg
Pin for hanging up the ride-along board
Ride-along board
unlocking button
Wheel release button
Rear wheel
Parking brake

MaMbo Daily
6
Wheel release button
Mud guard
Swivel wheel
AIRFLOW
Canopy
Storage compartment
Plastic part of central lock
Attachment point for canopy
Dring
Padding
Airow
Mattress
Wind protector
Canopy press stud
Tightening bar
Tightening loop
Securing pin
Hanging loop
Locking detent
Product description of carrycot & ride-along board (optional)

MaMbo Daily
7
1 Unpacking and assembling
1.1 Before rst use
Danger, risk of death!
• Keep plastic packaging materials away from children
as they can present a choking hazard for children.
• Beware of small parts. Your child may swallow a small
part and choke.
• Do not place any loose objects in the pushchair.
Warning!
• Beforeuse,checkyourproductforanydamage,looseor
missing parts, sharp edges and/or protruding parts.
• Never exceed the maximum weight allowed in the
pushchair(seechapter9‘Technicalspecications’).
Caution!
•To prevent damage, do not remove logos or stickers.
Some logos and stickers are required by law.
Tip
•For environmental reasons, we recommend that you
dispose of the packaging at your local civic amenity site.
1. Take the pushchair and the remaining parts out of the
box.
2. Remove all packaging materials and discard immediately.
3. Use ‘What's in the box?’ to check if the pushchair is
complete(seep.4).
1.2 Mounting the wheels
Caution!
• Always check that all the wheels have been tted
correctly, as among other things, this is important for the
brake to function properly.
Assemblingtheswivelwheel(seeg.1):
1. Take the wheel with the swivel wheel lock.
2. Remove the transparent protective cover from the axle
and discard this.
3. Take the parts out of the plastic bag that is attached to
the loose wheel.
4. Place a ring on the axle.
5. Slide the loose wheel on to the axle with the valve facing
outwards.
6. Place the remaining ring on the axle.
7. Squeeze the split pen through the opening in the axle.
8.Thentthewheelcapinplaceontheaxlewithaclick.
Installingtheswivelwheel(seeg.2):
1. Slide the assembled swivel wheel on the front leg of the
frame.
You will hear a click.
2.Checkthattheswivelwheelissecurelyattached.
Toinstalltherearwheels:
1. Remove the transparent protective covers from the axles
of both rear wheels.
2.Slidetherearwheelsintherearaxleasshowningure3
(notethedirectionoftheproleonthetyres).
You will hear a click.
3.Checkthattherearwheelsaresecurelyattached.
1.3 Unfold
Warning!
•Bewareofanymovingpartsorhingeswhenunfolding,
folding or adjusting the pushchair.
•Keepyourchildatasafedistance.Bewareofgettingyour
ngersorhandstrapped,orthoseofyourchild.
Caution!
• Neveruseforceifyouexperienceresistancewhenfolding
or unfolding the pushchair.
The frame has been folded, the wheels have been attached.
1. Engage the pushchair's parking brake (see section 2.6
‘Usingtheparkingbrake’).
2. Stand next to the pushchair.
3. Lift the push bar until the frame falls into the locking
mechanismonbothsides(seeg.4).
You will hear a click on both sides.
4. Rotatethepushbartotherequiredposition(seesection
2.1‘Adjustingthepushbar’).

MaMbo Daily
8
1.4 Installing seat, canopy and safety front brace
Warning!
• Neverchangetheseat'sdirectionoftravelwhileyouris
child sitting or lying in it.
• Ifyourchildcannotyetsitindependently,onlyusethe
lying position.
• Neverusetheseatseparatefromthepushchair'sframe.
•Never lift the entire pushchair by the safety front brace.
Caution!
•Never lift the seat by the canopy, use the safety front
brace instead.
Tip
•Open the safety front brace on one side, so you can easily
place your child in the pushchair or take it out of the
pushchair.
Toinstallthesafetyfrontbrace:
•Fit the safety front brace in place in the designated plastic
partsontheseatwithaclick(seeg.5).
Toinstallthecanopy:
1. Half open the zips on both sides of the seat.
2. Open the press studs underneath.
3. Guide the canopy fasteners through the slits in the seat
(seeg.6).
4. Fit the canopy fasteners in place on the seat frame with a
click(seeg.7).
5. Closethezipsandpressstudsyouopenedjustnow.
6. Open the zip at the top of the seat completely, so that
theseatframeshows(seeg.8).
7. Attachthecanopyziptotheseatzip.
Attention: The remaining part of the zip on the seat has
no function at this moment.
Toinstalltheseatontheframe:
The pushchair is unfolded.
1. Engagethepushchair'sparkingbrake.
2. Fold up the canopy.
3. Lift the seat by the safety front brace.
4. Drop the plastic parts of the carrycot on the central lock
partsontheframe(seeg.9).
You will hear a click on both sides.
Attention:
• Youcanplacetheseatontheframesothatitisfacing
forwards or backwards. This will change the direction in
whichyourchildwillbelooking(seeg.10).
• Thepushchaircanonlybefoldedwiththeseatiftheseat
isfacingforwards,thedirectionoftravel(seeg.10a).
5. Checkthattheseatissecurelyattached.
6. Remove or disassemble the seat if desired, as described
inthestepsinchapter6,‘Disassembling‘.
2 Pushing the pushchair
Danger, risk of serious injury or death!
• Never place the pushchair near heaters, open re or
other sources of heat as this could pose a re hazard.
• Keep the pushchair away from loose leads, wires and
cables on account of the risks of falling objects,
strangulation or choking.
Warning!
• Beforeuse,checkthattheseatissecurelyattachedtothe
frame.
• Nevertransportmorethanonechildinthepushchair.
• Always keep hold of the pushchair when your child is
inside.
• Only use accessories that are supplied by Koelstra BV.
Otheraccessorieshavenotbeenspecicallydesignedfor
Koelstra products and may overload your pushchair and
cause it to be incorrectly balanced.
• Donotuseasecondchild'sseat.
• Donotallowyourchildtostandonthebarsbetweenthe
wheels. This can be dangerous for your child and will
damage the pushchair.
• Remove your child from the pushchair when using
escalators, stairs, lifts and steep slopes.
• Never allow your child to stand up in the pushchair,
always use the 5-point safety harness.
• Donotliftupthepushchairwhenyourchildisstillinit.
• Never leave your child in or around the pushchair
unsupervised.
• Takeextracareneartrainstationsorroads.Gustsofwind
from passing trains or cars can cause the pushchair to
move.

MaMbo Daily
9
• Avoiddangeroussituations:donot jog,skateetc.with
the pushchair.
• Aluminium,metalandsyntheticpartscanbecomevery
hot in the sun. Make sure your child cannot burn itself on
any hot parts.
Caution!
• Always use all wheels simultaneously, even when
manoeuvringthepushchair ontooro thepavement.
Althoughtheframeisstrong,itwillwearmuchquickerif
you only use the rear wheels.
• Donotusethepushchairfortransportingbaggage,as
overloading the pushchair may cause damage.
• Neverexposethepushchairtoextremetemperatures.
• Neverpushthepushchairthroughwateronthebeach.
• Donotplaceproductsonthecanopy.
Attention!
• Alwayskeepthecanopyonthepushchairunfoldedto
protect your child's sensitive skin from the sun. If you do
not want to use the canopy, then attach a parasol.
• To avoid danger of ngers becoming jammed or the
product suddenly folding, check that all the locks are
securely engaged each time before use.
• Checkthatthezipsandpressstudsareproperlyclosed
and/or attached.
2.1 Adjusting the push bar
Warning!
• Donotletanyshoppingbagsorotheritemshangfrom
thepushbar,asthismayaectthepushchair'sstability
and durability, and may cause the pushchair to tip over.
1. Standbehindthepushchair(behindthepushbar).
2. Engagethepushchair'sparkingbrake.
3. Place your hands on the plastic parts below the push bar.
4. Usingyourindexngers,pressthepushbaradjustment
buttons and keep them down.

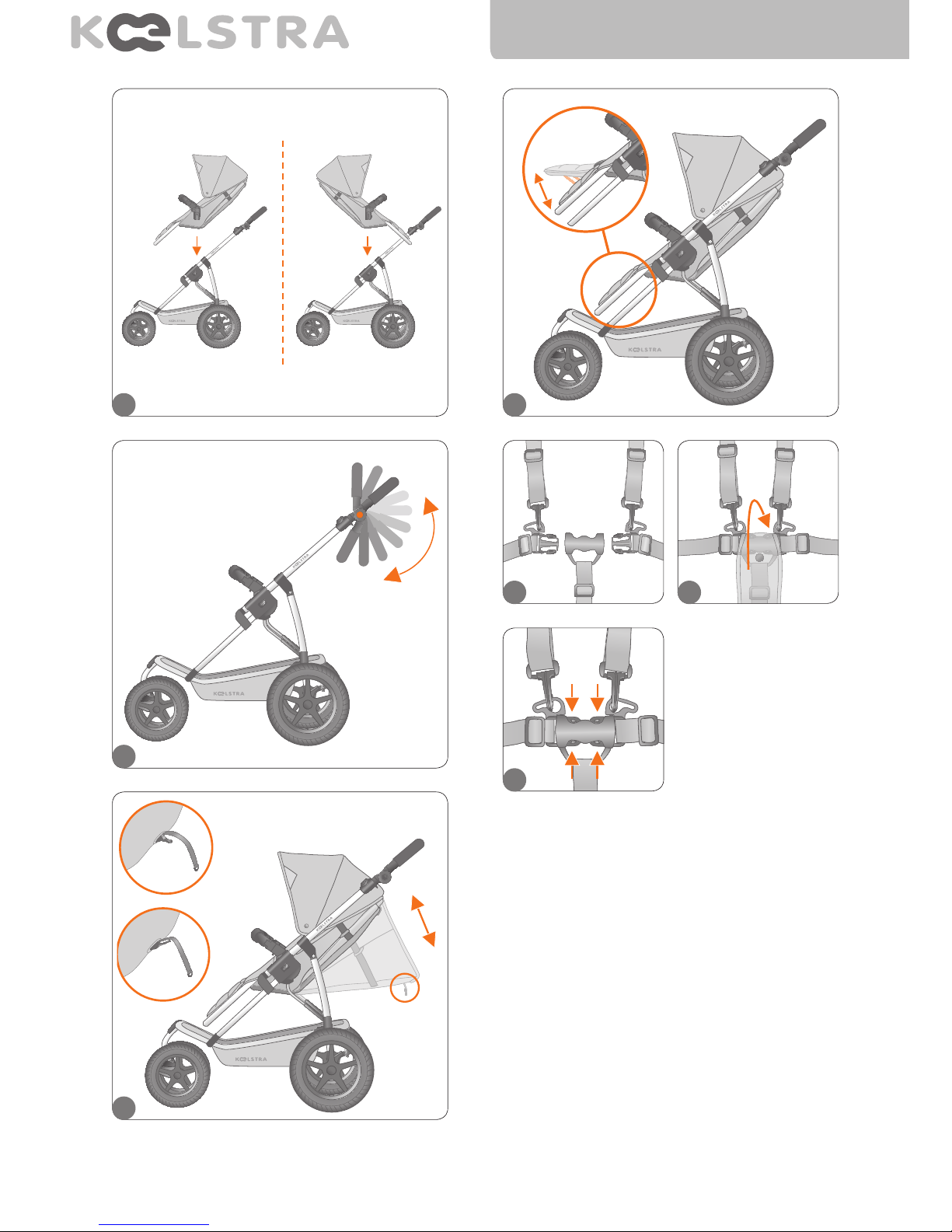

5. Nowpushthepushbardownorup(seeg.11).
If you release the push bar adjustment buttons, the push bar
will automatically lock in the required position.
2.2 Adjusting the back rest
Attention!
•Never adjust the back rest when your child is sitting or
lying in the pushchair.
The back rest allows for stepless adjustment.
Toplacetheseatinthelyingposition:
The pushchair is unfolded, the seat is upright.
• Pushthebackrestadjusterlugdownandpullittoplace
thebackrestinthedesiredlyingposition(seeg.12a).
Toplacetheseatinsittingposition:
The pushchair is unfolded, the seat is in lying position.
1. Usingonehand,pushthebackrestupwards.
2. Pull the Dring of the back rest adjuster strap to secure the
backrestinthedesiredsittingposition(seeg.12b).
Tip: You can place the dangling part of the back rest
adjuster strap in the storage compartment at the back of
the seat.
2.3 Adjusting the leg rest (see g. 13)
Warning!
• Neverletanotherchildstandonthepushchair'slegrest.
The pushchair is unfolded, the seat has been mounted on the
frame, the leg rest is in the vertical position.
1. Lift the leg rest.
2. Rotate the leg rest adjuster upwards and place it on the
hook behind the protruding part on the bottom of the
leg rest.
The leg rest has 2 modes: horizontal and vertical.
2.4 Using the 5-point safety harness
Warning!
• Always use the safety front brace when your child is
sitting or lying in the pushchair.
• Checkthatthe5-pointsafetyharnessisneithertootight
nor too slack. Prevent your child from adopting a posture
in which it can tip the pushchair over or can fall out of it.
• Alwaysusetheentire5-pointsafetyharness,thatmeans
also the shoulder straps and crotch strap.

MaMbo Daily
10
Caution!
• Only use the 5-point safety harness supplied with this
pushchair.
• Always secure your child in the 5-point safety harness
(evenifyourchildisabletositupunaided).
Attention!
• Always adjust the height of the 5-point safety harness
according to your child's height. The larger the child, the
higher the shoulder strap should be positioned in the
seat.
• Always adjust the depth of the 5-point safety harness
according to your child's size. The smaller the child, the
further in the crotch strap should be positioned in the
seat.
• Always adjust the length of the 5-point safety harness
according to your child's size. Do this using the sliding
buckles on the 5-point safety harness.
• Makesurethestrapsofthe5-pointsafetyharnessarenot
twisted.
Tip
• The5-pointsafetyharnesshasDringsattachedtothehip
straps. If desired, an additional set of straps or a harness
can be attached to these.
• Slidetheshoulderpadsontheshoulderstrapsalongthe
sliding buckles to make your child more comfortable.
Locking the 5-point safety harness (seeg.14):
All buckles on the 5-point safety harness are unclasped.
1. Engagethepushchair'sparkingbrake.
2. Place your child in the pushchair.
Attention! Make sure that the strap of the hip strap
always runs behind your child's back and is attached at
the front.
3. Place one of your child's legs on each side of the crotch
strap.
4. Place the shoulder straps over each of your child's
shoulders.
5. Connectthestrapclipononesideofthehipstrapinthe
central harness lock to the crotch strap with a click.
6. Then connect the strap clip on the other side of the hip
strap in the central harness lock to the crotch strap with a
click.
7. Open the crotch strap cover upholstery and then close
the press stud in the middle of the central harness lock
(seeg.15).
Attention: The central harness lock must always be
covered by the crotch strap cover upholstery.
8. Checkthatthe5-pointsafetyharnessissecurebygiving
it a gentle tug.
9. Tightentheshoulderstraps,hipstrapandcrotchstrap
using the sliding buckles attached to the belts of the
harness.
Unlockingthe5-pointsafetyharness(seeg.16):
1. Usingyourthumbandindexnger,pressthestrapclip
on one side of the hip strap and take the strap clip out of
the central harness lock.
2. Repeat step 1 for the other side.
Tip: The hip and shoulder straps can remain connected
to each other.
2.5 Locking/unlocking the swivel wheel (see g. 17)
Tip
• The locked position is very handy for pushing the
pushchair on sandy or rough ground.
• Withtheswivelwheelunlocked,thepushchairhasavery
small turning circle, which is very handy when shopping.
Tolocktheswivelwheel:
• Useyourfoottopresstheswivelwheellockontheswivel
wheel.
The swivel wheel is then locked as soon as you start pushing
the pushchair.
Tounlocktheswivelwheel:
• Useyourfoottopushuptheswivelwheellockonthe
swivel wheel to unlock it.
The swivel wheel can now move freely.
2.6 Using the parking brake (see g. 18)
Warning!
• Neverleaveyourchildinthepushchairunsupervised,not
even if the parking brake is engaged.
• Always engage the parking brake on the pushchair
whenever you bring the pushchair to a standstill (for
example when putting your child in or taking your child
outofthepushchair).
