Kogan KAMOPSTW03J User manual

3-IN-1 STEAM MOP AND
SWEEPER
KAMOPSTW03J

Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions listed below may result in electric shock, fire and/or serious injury.
Warning: When using electrical appliances, basics safety precautions, including the
following, should always be followed to reduce the risk of fire, electric shock, personal injury
and material damage.
•Read all this user guide carefully before using the appliance.
•The intended use is described in this user guide. The use of any accessory or
attachment or the performance of any operation with this appliance other than
those recommended in this user guide may present a risk of personal injury.
•Retain this user guide for future reference.
Using the steam mop
•Do not direct steam at people, animals, electrical appliances or electrical outlets.
•Do not expose to rain.
•Do not immerse the appliance in the water.
•Do not leave the appliance unattended. Keep children away from unit while in use.
•Do not leave the appliance connected to an electrical outlet when not in use.
•Never pull the power cord to disconnect the appliance from the socket. Keep the
appliance cord away from heat, oil and sharp edges.
•Do not handle steam cleaner with wet hands.
•Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord
around sharp corners or expose cord to heated surfaces.
•Do not use appliance in an enclosed space filled with vapor given off by oil-based
paint thinner, some moth-proofing substances, flammable dust or other explosive
or toxic vapours.
•Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or
other delicate, steam-sensitive materials.
•Do not use on any unsealed hard floor surfaces. Additionally, on surfaces that have
been treated with wax or some no-wax floors, the sheen may be removed by the
heat and steam action. It is always recommended to test an isolated area of the
surface to be cleaned before proceeding. We also recommend that you check the
use and care instructions from the floor manufacturer.
•Never put de-scaling, aromatic, alcoholic or detergent products into the steam
mop, as this may damage it or make it unsafe for use.
•If the circuit breaker activates while using the steam function, discontinue product
use immediately and contact help.kogan.com before further use. Beware of the
risk of electrical shock.
SAFETY & WARNINGS

•The appliance emits very hot steam to sanitise the area of use, and the steam
head and cleaning pads get very hot during use.
•Caution: Always wear suitable shoes when using your steam mop and when
changing the accessories on your steam mop. Do not wear slippers or open-toed
footwear.
•The lid may become hot during use.
•Care should be taken when using this appliance. DO NOT touch any parts which
may become hot during use.
•Do not use if micro-fibre cleaning pad are not correctly fitted.
Safety of others:
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliances by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
Residual risks:
Additional residual risks may arise when using the tool which may not be included in the
enclosed safety warnings. These risks can arise from misuse, prolonged use, etc.
Even with the application of the relevant safety regulations and the implementation of
safety devices, certain residual risks cannot be avoided. These include:
•Injuries caused by touching any moving parts.
•Injuries caused by touching any hot parts.
•Injuries caused when changing any parts or accessories.
•Injuries caused by prolonged use of the appliance. When using any appliance for
prolonged periods ensure you take regular breaks.

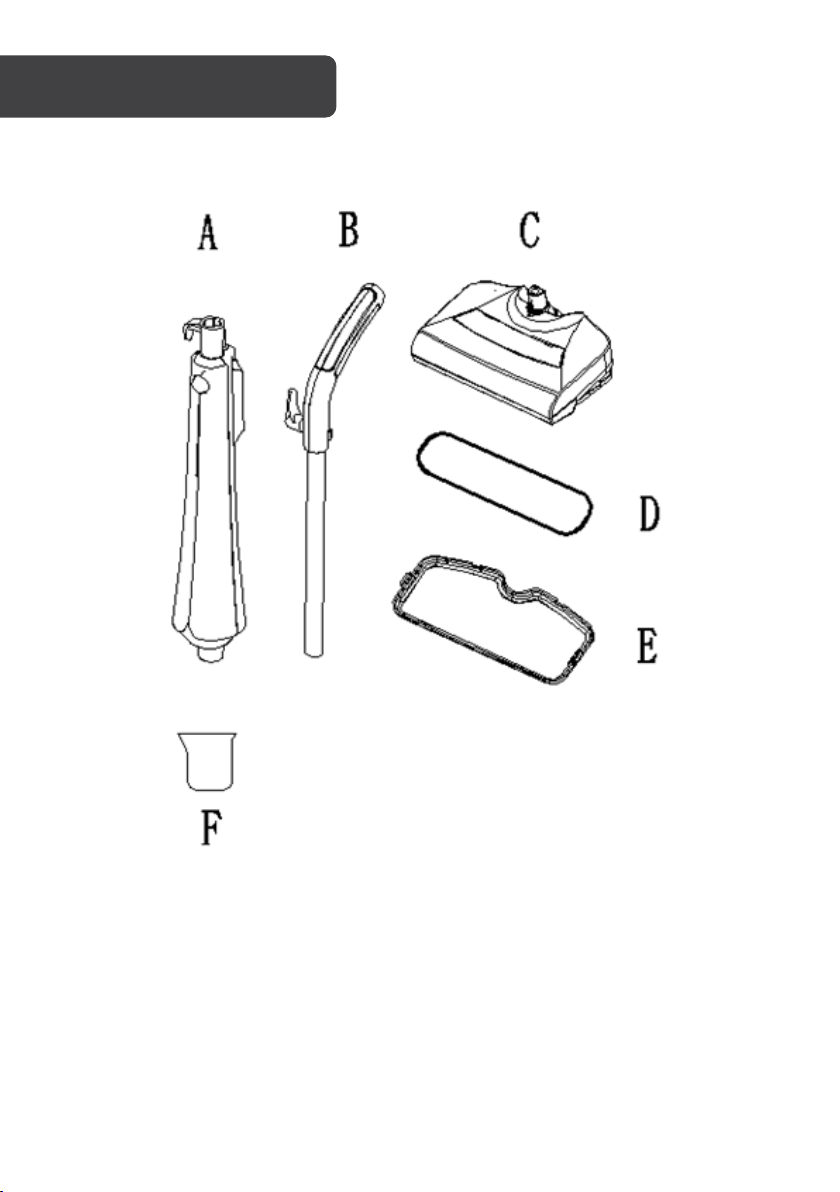

A
Main Body
D
Microfibre Pad
B
Handle
E
Carpet Glider
C
Steam Head
F
Measuring Cup
COMPONENTS

1
Handle
6
Power cord
2
Cord holder
7
Water tank filler
3
Hand bar
8
Steam head spindle
4
Sweep the floor machine switch
9
Dust collection box
5
Power switch

Attaching the handle
•Slid the handlebar with the handle into the main body until it clicks into place (1a).
•The handle can be removed from the steam mop body for easy storage by
pressing the Handle tube button (1b).
1a
1b
ASSEMBLY
Notes:
Each steam mop is tested prior to sale to ensure product performance and safety.
When assembling your new steam mop for the first time you may notice water residue
inside of the unit. This is normal.
WARNING: Before beginning the assembly, ensure that the appliance
is switched off and unplugged.

Attaching the steam head
•Slide the bottom end of main body into the steam head until steam head spindle
clicks into place (2a).
•The steam head can be removed from the main body by pressing salient point on
the steam head spindle (2b).
Attaching a cleaning pad
•Microfibre cleaning pad (D) is to be placed at the bottom of steam head.
•To remove the pad, place the front of your shoe onto the cleaning pad removal tab
and press down firmly.
Attaching Carpet Gilder
•Ensure microfibre cleaning pad is fitted before the carpet glider.
•Attach carpet gilder by clipping into place on the steam head and applying vertical
pressure, until it clicks into place.
•To remove the carpert glider, place the front of your shoe onto the cleaning pad
removal tab and press down firmly, the carpet gilder will remove from steam head.
2a
2b

Getting started
1. Fill the water tank, by opening the tank plug, filling with water tank (350ml water
capacity), and replacing the tank plug.
Open tank plug
Fill tank
Replace plug
2. Plug in the appliance to a grounded wall outlet.
3. Press the power switch. The indicator lights will turn red, indicating preheating. If
the lights do not turn on, please check the Troubleshooting section at the back of
this user guide for more details.
4. The appliance warm-up time is 25 seconds. When preheating is complete, the
indicator light will turn to be blue, and the appliance will be ready for use.
OPERATION
Notes:
If a power failure occurs in the middle of the warm-up, or power-off occurs after the
warm-up is complete, turn the power supply on again. Depending on the time
between power off and on, the appliance may repeat the above warm-up operation.

Operation
1. During normal operation, the steam head has a wide
rotary angle not only to clean corners but also to clean
lower space.
•Continuous steam output (up to 5 minutes continuously
working, steam averaged): about 16-24g/min.
•Steam output time: about 15minutes
2. The detachable dust bin allows for convenient and quick clearing.
3. To remove the microfibre cleaning pad, place the front of your shoe onto the
cleaning pad removal tab and press down firmly.

Ensure that the product is powered off and unplugged before cleaning the appliance.
Empty the water tank after use every time and clean the water tank.
How to decalcify the water tank interior
To clean calcium deposits that builds up inside the water tank, add one or two tablespoons
of white vinegar to water tank and then shake the contents. Let it sit for several hours, then
pour away the solution and rinse with clean water.
Cleaning procedure to remove scale.
If your steam mop outputs steam more slowly than usual, or no steam, you may need to
remove lime scale. Lime scale can develop over time on the metal parts and greatly affect
steam mop performance.
It is necessary to remove lime scale on regular basis every 25-50 times you use a full tank of
water, or at least once a month, especially in areas with hard water.
The frequency of lime scale removal depends upon the hardness of you tap water and how
often you use the steam mop.
By using cleaning solution
1. Prepare a solution of 1/3 white vinegar and 2/3 tap water and add to the water
tank.
2. Secure and position the unit to ensure steam released is aimed away from the floor
or surrounding objects and surface. Plug the unit in, turn the unit ON by pressing
the power switch and allow the unit to produce steam unit the vinegar/water
solution in used up.
3. Repeat the above procedure as many times as necessary unit a normal steam flow
rate is achieved.
4. Fill the water tank with fresh water and rinse ours.
5. Fill the water tank with fresh water, attach to the unit and releasee steam through
the system unit the water tank is empty.
CLEANING & CARE
WARNING: Do not immerse the appliance in water.
WARNING: Don't leave the appliance during the lime scale removal
process and/or while in use

Notice:
Perform a test cleaning on a suitable isolated area after each lime scale removal to ensure
that there is no debris left in the system.
This product contains no serviceable parts. Do not try to repair it by yourself. Any servicing
that requires disassembly other than cleaning must be performed by a qualified appliance
repair technician.
All servicing should be done by an authorised service representative.
Cleaning Microfiber Pad
•Machine washable on "warm" setting. Always use a mild detergent.
•For best care results, lay flat to dry.
•Important: Allow the steamer to fully cool down before performing any
maintenance or troubleshooting checks.
•Important: Never use bleach or fabric softener when washing the microfiber
cleaning pad.
Storage
•After the steamer is used, turn power off and then unplug the power cord.
•Take out the water tank and empty the residual water in the tank and clean the
external surface with a dry cloth. Until the steam mop cools down, clean
appliances.
•Remove the cleaning pad and wash it so that it will be ready for next use.;
•Store product in a protected, dry area. Keep water funnel and measuring cup for
future use.
•Keep out of reach of children.
Notes:
After cleaning, take out the water tank before cutting off the power and then let the
product work for a while, until there is no steam. It can make pipe without water, good
to store.

Rated voltage
230V
Rated frequency
50Hz
Output power
1300W (+5%, -10%)
Water tank capacity
About 350ML
Waterproof level IPX4
SPECIFCATIONS

Use troubleshooting guide as a first step to resolve any problems you may be experiencing.
If further assistance is required, contact help.kogan.com for support.
Problem Possible reason Possible solution
Reduced steam
or no steam
Water tank may be empty Fill water into the water tank
Steam nozzle may be blocked Clean steam nozzle
There is no power to the unit
Ensure unit is plugged in and
switched on at wall
Tapping steam button Press and hold steam button
Steam control knob is set to
minimum
Turn steam control knob
clockwise
Unit will not turn on
Power cord not plugged in Plug cord into a working circuit
Blown fuse or breaker
Replace fuse or reset breaker in
home
Internal fuse is blown Contact with customer service
Disposal
This marking indicates that this appliance should not be disposed with other
household wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources.
WARNING: To reduce risk of personal injury, unplug the steamer before
servicing and allow to cool.
TROUBLESHOOTING

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
