Kogan 9 XU9210 Series User manual

65” SMART HDR 4K LED TV
QUICK START GUIDE
SERIES 9 XU9210
(KALED65XU9210STB)

65” SMART HDR 4K LED TV
QUICK STARTGUIDE
SERIES 9 XU9210
(KALED65XU9210STB)
3
COMPONENTS
A Kogan 65” Smart
B Remote control
C Stand (x2)
D
E AAA battery (x2)
F Quick-start guide
G Warranty card
B D
E
NOTINCLUDED
Phillips head screwdriver, antenna cable, broadband internet connection.
G
F
HDR 4K LED TV
C
A
M6 x 25mm screw (x2)

4
REMOTE CONTROL OVERVIEW
1 Power, press to enter or exit
2 Mute to toggle sound on/o
standby mode
to select channels
INFO displays the current program
information
EPG Electronic Program Guidein DTV
mode
Device preferences to display
3 Number buttons
4
5
6
Source displays the list of input
source channels.
7
or input passwords
/// Direction buttons for
navigating menus and settings
8
OK Enter select the current item
or confirm selection, display Channel
list in DTV mode
9
sound and picture options
Quick Menu to display TV options
with optional, adjustable settings
Back to the previous menu
10
11
12
13
to open app homepage
to open app homepage
12
3
45
67
8
9
10 11
13
12

5
14 to open app homepage
15 to open app homepage
Google Assistant to launch the
built-in virtual assistant for voice
commands
16
+- Volume to adjust the volume
up or down
17
Program to scroll channels
18
Home to access the home page
19
Audio to select available
languages and audio channels.
Subtitles to select subtitles
Teletext to show/hide Teletext
(Teletext not available in Australia
or New Zealand)
20
Start playback in media mode;
MIX mode in teletext
II Pause in media/PVR mode;
Timeshifunction in DTV mode
Stop in media/PVR mode;
Hold teletext page on display,
Record in DTV mode;
Change size of teletext screen
Reverse playback rapidly in
Subtitle mode, or
Submenu
Advance playback rapidly in
Cancel teletext but not exit
Skip to previous in media mode;
Index page
Skip to next in media mode;
Reveal hidden information in
Colour buttons for navigational use
within apps
21
press again to release
media mode;
some teletext pages
media mode;
14 15
16
17
18
19
20
21
USB Press to switch to the USB source.
SUBT

6
BEFORE YOU GET STARTED
Spread cushioning flat to lay the TV on. This will help to prevent damage.
1. Stand assembly
a. Attach stands to base of TV, ensuring ‘L’ and ‘R’ markings on the TV
and stands match.
b. Insert one 25mm screw for each stand and use Phillips head
screwdriver (not supplied) to tighten.
a. Open the battery compartment cover on the back side.
b. Insert two 1.5V AAA size batteries, making sure to match the polarity
markings (+ / -) of the batteries with the diagram inside
the compartment.
c. Replace battery compartment cover.
2a 2b 2c
ASSEMBLY AND INSTALLATION
2. Remote control assembly
1a 1b

7
4. Turning TV on
Plug the power cord into a suitable power outlet, then press the
POWER ( ) button on the remote control, making sure to aim it at the
sensor at the front of the TV. Alternatively, you can press the power
button on the lower side of the back panel on the TV.
3. Connect to antenna
a. Connect an antenna cable (not supplied) via the ‘ANT’ input port at
the back of the TV.
b. Ensure the antenna cable is also connected to a working antenna,
either via an antenna wall socket in your home, or directly.
TURNING TV OFF
Press the POWER ( ) button on the remote control to enter standby mode.
To power down th e TV c o m p l etely, unplug th e p o wer cord f rom the pow e r
outlet.
Do not leave your set in standby mode for long periods of time. If you will
not use the TV for a long time, it is recommended to unplug the set from
both the power outlet and aerial.
Antenna
wall socket
3b
Antenna cable
(not supplied)
ANT
3a

8
When turning the TV on for the first time, the Welcome screen will
appear. Use the , and OK buttons to navigate the following options.
Bluetooth
Your Android TV remote control has bluetooth capabilities. Follow the
onscreen prompts to pair the remote with the TV. This will allow you to
use voice commands with your remote via the Google Assistant button.
Language
Select your menu language.
Quickly set up with Android phone
If you have an Android smartphone, you can easily transfer your phone’s
Wi-Fi network and Google account to your TV. If not, select ‘Skip’.
Select Wi-Fi network
Your Android TV will automatically scan for wireless networks nearby.
Ensure the TV is within range of your wireless modem or router, and have
your password handy. Follow the prompts to input your password and
connect your TV to your selected network.
If you’d prefer to connect an Ethernet cable to connect to the internet,
simply insert the cable (not supplied) to the ‘LAN’ input port at the back
of the TV (4b), and ensure that it is correctly connected to the internet.
Google Account sign-in
Linking your Google Account to your Android TV will allow you to install
new apps from the Play store, as well as receive recommendations,
movies, and more from Google.
Te r m s o f S e r v i c e
This page will allow you to read each of the Google Terms of Service,
Privacy Policy, and Google Play Terms of Service in full, and to accept.
Location
Grant permission for your Android TV to detect your location. You can
adjust these permissions at any time from Settings.
Help improve Android
Grant permission for your Android TV to detect your location to
automatically send diagnostic information to Google.
FIRST TIME SETUP

9
Following these options, the
‘ANT’ input
‘LAN’ input
Auto Tuning screen will appear. Ensure you
have an antenna cable connected to the ‘ANT’ input port at the back of
the TV (4a).
The auto tuning function will search for and save all available free-to-air
TV channels. After confirming your settings (the default will be set for
Australia), the process will automatically begin. The number of searched
channels will be displayed on the screen.
When setup is complete, you will be able to access the Home page.
HDMI 1 (ARC)
ANT USB 2.0
(5V 500mA)
DIGITAL
AUDIO OUT
USB 2.0
(5V 500mA)
LAN HDMI 2HDMI 3HDMI 4 AV
R AUDIO L VIDEO
4a
4b

10
HOME PAGE
89
11
10
12
1 3 4 52 6 7
1 Google Assistant
Click to launch the built-in virtual
assistant, which will begin listening
for voice commands. Give it a try, ask
“What’s the weather today?”
2 Text search
Enter text manually to search TV apps.
3 System notifications
This option will only appear when
notifications are present.
4 Source
Access free-to-air channels (‘DTV’)
or other input source channels.
5 Internet connection
This will display as a Wi-Fi or LAN icon,
depending on your connection. Select
for connectivity options.
6 Settings
Access the global settings menu.
7 Clock
Time and date settings can be adjusted
in the global settings.
8 Apps
Access the App Centre to display all
installed apps. Free-to-air channels can
be accessed under the ‘Live TV’ option.
9 Favourites list
A customisable list of apps available at
a single click.
10 Play next
Displays the program you are watching
or have queued to play next. You can
add to this list by long pressing the OK
button, then selecting “Add to play
next”. If the play next queue is empty, it
will not be shown on the home page.
11 Pinned channels
Show the program list of pinned
channels. The order of this list can be
adjusted by pressing from the channel
icon and selecting the “<>” icon. Empty
channels will not be shown on the home
page.
12 Customise channels
Add or remove pinned channels from
the home page.

11
To ac ce ss th e g lo ba l sett in gs m en u , si mp ly na v i g a t e to the ‘ ’ icon
on the Home screen. Here you will find all of the adjustable options for
Android TV’s interface, connectivity, and apps.
5a
Options for your TV (picture, aspect ratio, speakers, etc) can be
accessed by pressing the button on your remote control.
Use / buttons to navigate through the submenus, and / buttons to
access Channel and Recording/Time Shift options.
SETTINGS
uick enu
Quick Menu
Quick Menu
Quick Menu
In DTV mode you can also press the
(5a)
Global settings
button on your
remote control and use the / buttons to navigate to the Settings
option.
Device preferences
To open the device options submenu directly during live TV playback,
press the Device preferences button on your remote control.

12
Poor picture and sound quality
• Try a different channel
• Adjust the antenna
• Check all connections
No picture or sound in TV status
• Try another channel
• Press the TV/AV button
• Make sure TV is plugged in
• Check the antenna connection
No sound or sound is too low at
maximum volume
• Check the volume settings on any
external speakers connected to your
television
• Adjust the TV volume accordingly
• Check another channel or input
• Check that MUTE hasn’t been
turned on
No colour, wrong colour or tints
• Make sure the program itself is
broadcast in colour
• Select the picture menu, then adjust
the colour and tint submenus
Picture rolls vertically
• Check all connections
Blurred or snowy picture, distorted
sound
• Check direction, location and
connections to your antenna
• Issues may be caused by the use of
an indoor antenna (poor signal)
Remote control malfunctions
• Replace remote control batteries
• Check battery terminals
• Remote is out of range, move closer
to TV
• Remove any obstructions between
remote and IR sensor of TV
• Make sure the power cord to your TV
is plugged in and turned on
Image is not centred on the screen
• Adjust the horizontal and vertical
position
“No Signal” on HDMI source
• Test the device with a different HDMI
cable
• Plug the device into another HDMI
port
• Try a different device connected to
the same cable and port
• Perform a factory reset on your TV
For our full TV troubleshooting guide
and extended User Manual for this
TV, head online to help.kogan.com
BASIC TROUBLESHOOTING
Manufactured under license from Dolby
Laboratories, Dolby, Dolby Audio, and
the double-D symbol are trademarks of
Dolby Laboratories.

13

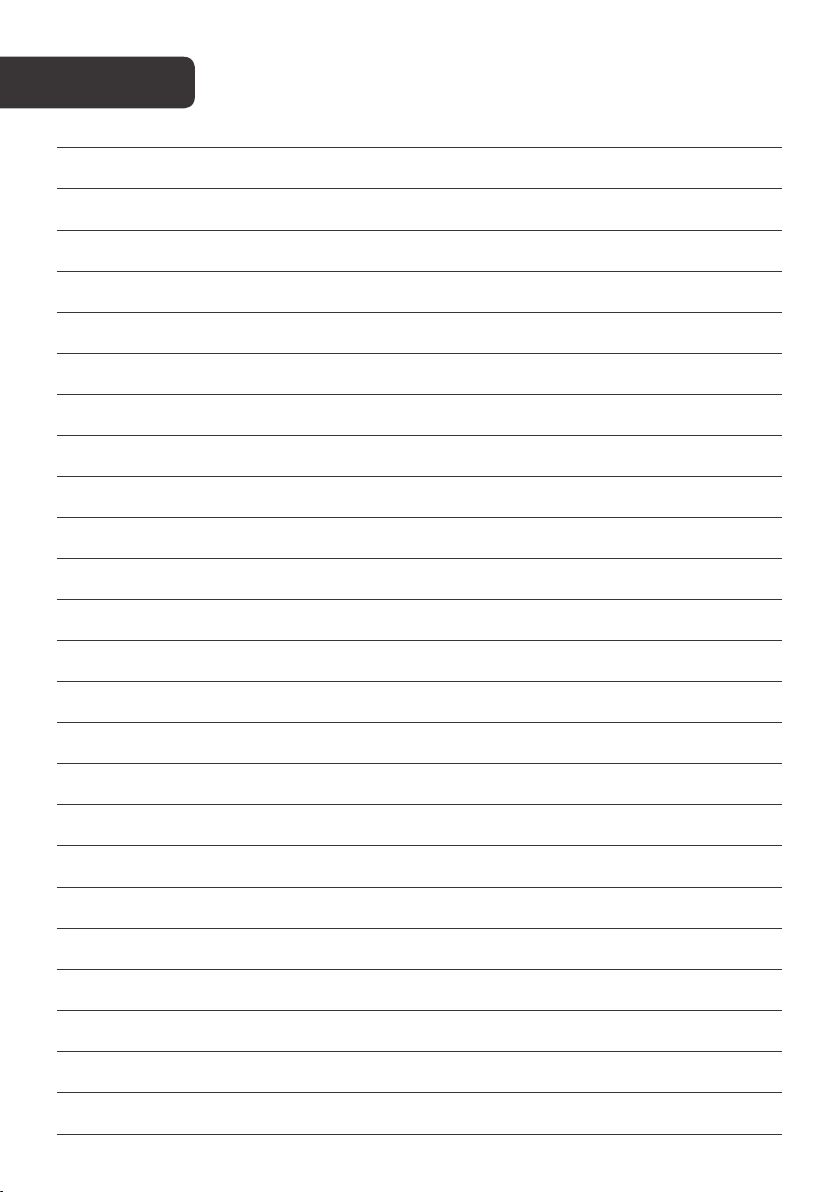

NOTES

14
NOTES

15

Need more information?
This is a Quick Start Guide, and while we hope that this
has given you the assistance needed for a simple set-up,
a full user guide outlining all of this product’s instructions
and features can be found online at help.kogan.com
