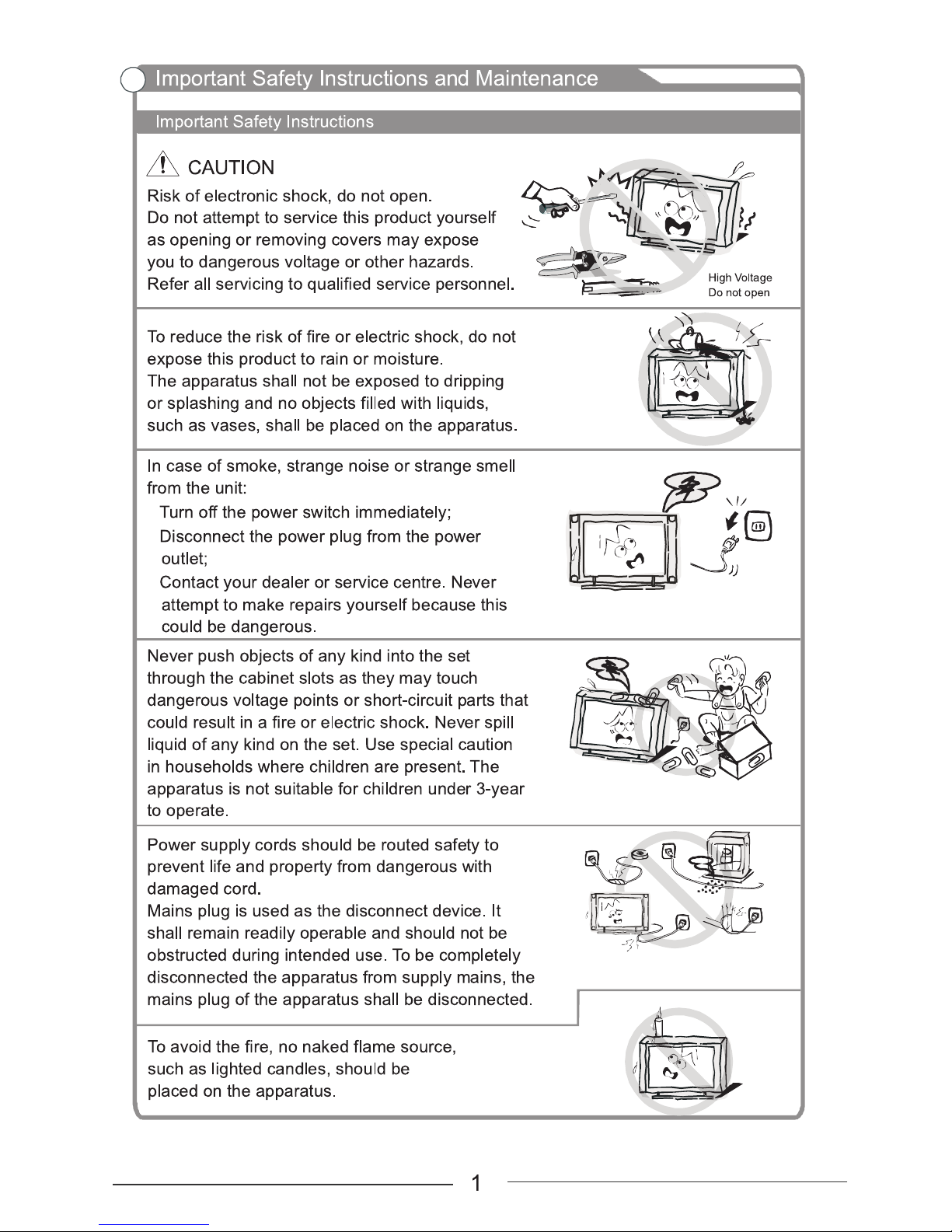

IMPORTANT INFORMATION
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions
such as:
Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
Not standing the televisions on cloth or other materials placed between the television and
supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television or its
controls.

65
180W
110-240V~ 50/60Hz
KALED65UHDNSZA
Quick Start Guide
5
3840X2160

6
(Optional)
BM4X20mm(3pcs) BM4X20mm(3pcs)

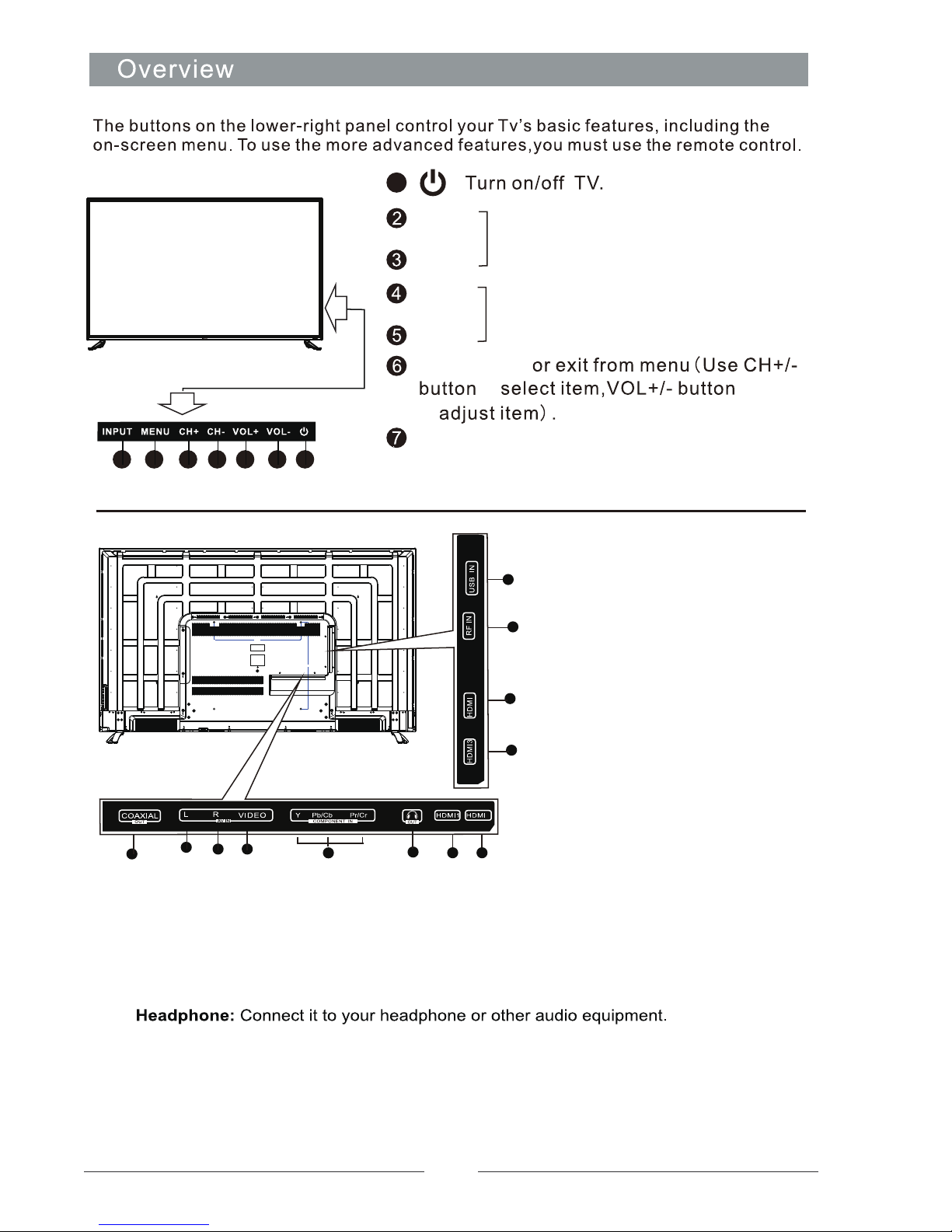

MENU
Source Select.
CH+
CH-
CH+/-:Select channel.
Enter
to
to
VOL+
VOL-
VOL+/-:Adjust Volume.
INPUT
1
7
1
234567
400.0
10
1
11
7 8
156
23 4
9
12
4
2
1.
VIDEO: Connect composite video.
2/3. R/L: Composite Audio or Component Audio.
4.
YPbPr: Connect them to the YPbPr video output terminal of DVD with the Converter cable.5.
RF IN: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
7/8/9/10. HDMI1/HDMI2/HDMI3/HDMI4: Connect it to the HDMI of DVD or other equipment.
11.
USB: USB jack for update,media and PVR.12.
COAXIAL: Digital coaxial output.
6.

8
To freeze current picture.
FRERZEE
Switch back and front between the current and previous channels.
RECALL
Press to switch between DTV and radio programs
TV/RADIO
Press to choose a differrent angle
ANGLE
Press to choose a differrent angle(DVD)
LANGUAGE
Access the on-screen menu.
DVD MENU
Change audio mode:left,right,mono,stereo.
AUDIO/NICAM
Favourite program channel button.
FAV
Used t o sel ect the c orresponding col oured
items on the screen during DTV mode.
Press to display EPG information(Electronic
Program Guide).
EPG
Press EXIT to exit menu of sub menu
EXIT
INPUT
MUTE
REPEAT
A-B

9
HOLD On or Off the current page display in Teletext mode
HOLD
Reveal or Hide the hidden words.
REVEAL
Change the size of display in Teletext mode
SIZE
Press to return to the index/initial page.
INDEX
LIST
Displays the channel list.
Press to change the playing mode.
REPEAT
Select subtitle language(DVD)
SUBTITLE
Press to record the program immediately.
REC
T.SHIFT
Press the button to panse current DTV program and start recording.
Eject in DVD Source.
Press to turn the Teletext On and Off.
TTX
Display a sub-page of upper options.
S.PAGE
Before turning off the m ain power o r swit ching off the
power supply,yuo must switch t he TV by pressing
the(Power) botton on the TV set or on the remote controt .
Turn off the main power under standing mode.
INPUT
MUTE
REPEAT
A-B

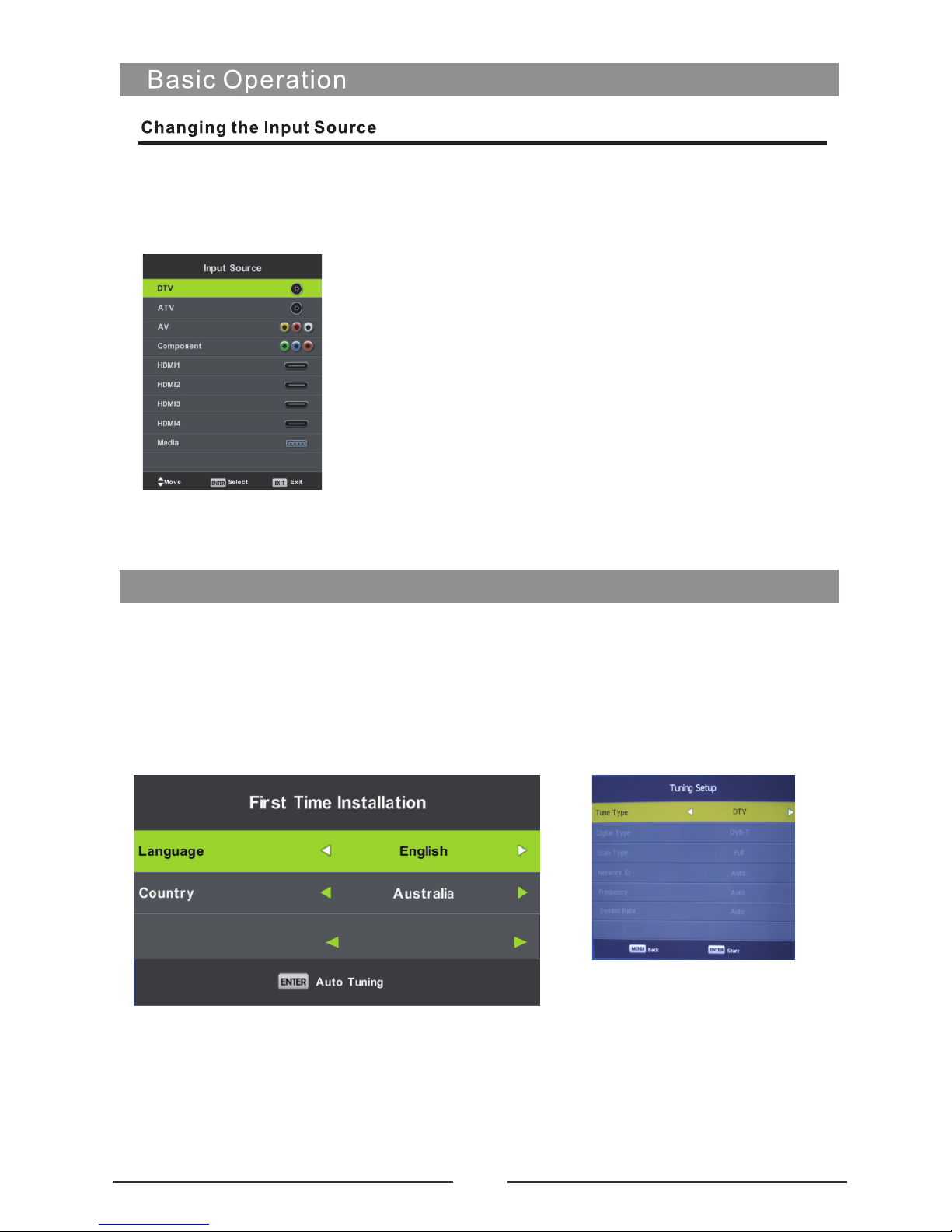

Press INPUT button to display the input source list.
Press ▼ / ▲ or OK button to select the input source you want,
Press OK button to enter the input source, Press EXIT button to quit.
(Options:DTV,ATV,AV,Component,HDMI1,HDMI2,HDMI3,SMART TV,Media)
First Time Installation
Connect an RF cable from the TV’s input called “ANT.IN” to your TV Aerial socket.
Select Language
Press ◄ / ► button to select the language to be used for menus and message.
Select Country
Press ▼ / ▲ button to highlight country menu.
Press ◄ / ► button to select the country you want to.
10
Tune Type DTV

First tuning ATV, press Menu and left arrow button to skip ATV tuning,
Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

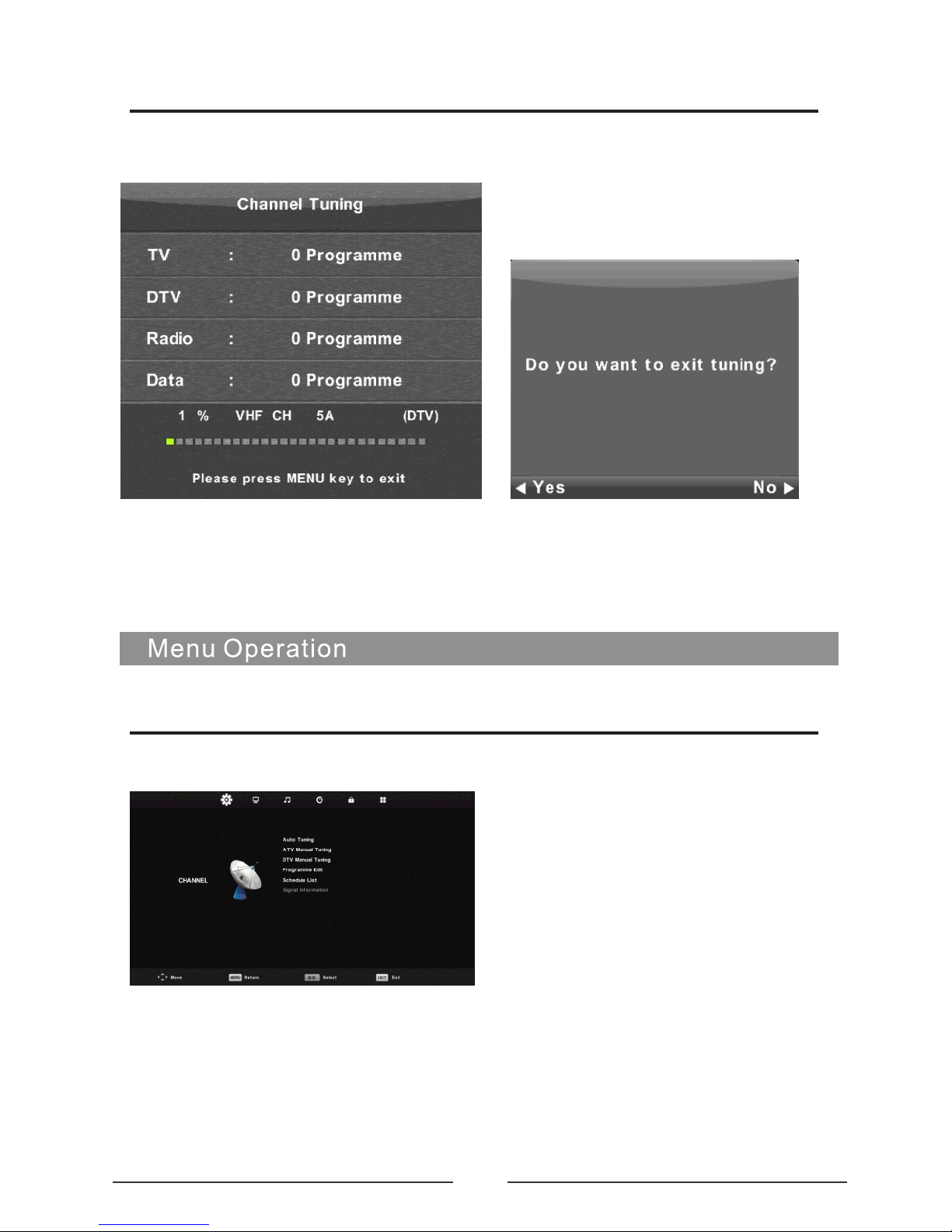

Channel Menu
Auto Tuning
Press MENU button to display the main menu.
Press ◄ / ► button to select CHANNEL in the main menu.
1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.
11

Auto Tuning
Press ▼ / ▲ button to select Auto Tuning, then press Enter/► button to enter.
ATV Manual Tuning
Current CH
Set the channel number.
Color System
Select the color system
(Available System: AUTO,PAL , SECAM )
Sound System
Select the Sound system
Fine-Tune
Adjust the frequency of the channel finely.
Search
Start searching channel.
12

Program Edit
Press ▼ / ▲ button to select Program Edit, then press Enter button to enter sub-menu.
The three colored key is the shortcut key for programming the channel.
First press ▼/ ▲to highlight the channel you want to select, then:
Press the button to delete the selected program in the list.Red
Press the button to move the channel in favorite list.Yellow
Press
Press the Grreen button to Rename the channel
(Only available for analog channels)
.
the button to skip the selected channel.Blue
Press Fav button to add or remove the channel to or from your favorite list.
(Your TV set will skip the channel automatically when using CH+/-
to view the channels.)
Schedule List
Press ▼ / ▲ button to select Schedule List, then press Enter button to enter sub-menu.
It is available in source. This displays the list of programs for which you have set reminders.
Signal Information
Press ▼ / ▲ button to select Signal Information, press the Enter button to see the detail
information about the signal. Only available when there is signal in DTV.
Rename
13

Picture Menu
Picture Mode
Press ▼/ ▲button to select Picture Mode, then press OK button to enter sub-menu.
You can change the value of contrast, brightness, color, sharpness and tint when the picture is in
Personal mode.
TIPS: You can press PMODE button to change the Picture Mode directly.
Press MENU button to display the main menu.
Press ◄ / ► button to select PICTURE in the main menu.
1. Press ▼/▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.
Contrast/ Brightness/ Color/ Tint / Sharpness
Press ▼/ ▲ button to select option, then press ◄ / ► button to adjust.
Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Brightness Adjust the optical fiber output of the entire picture, it will affect the dark region of the picture.
Color Adjust the saturation of the color based on your own like.
Tint Use in compensating color changed with the transmission in the NTSC code.
Sharpness Adjust the peaking in the detail of the picture.
14
Noise Reduction
Dynamic CR
HDMI Mode
Back light
Advanced Image
Auto
10
Standard
Middle
Off

Color Temp
Change the overall color cast of the picture.
Press ▼/ ▲button to select Color Temperature , then press OK button to enter sub-menu.
Press ◄ / ►button to select. (Available Picture mode: Cool, Medium, Warm).
You can change the value of red,green and blue when the color temperature is in User mode.
Noise Reduction
To filter out and reduces the image noise and improve picture quality.
Press ▼/ ▲button to select Noise Reduction , then press OK button to enter sub-menu.
Cold Increase the blue tone for the white.
Normal Standard colour temperature for a vivid image.
Warm Increase the red color for the white.
Off Select to turn off video noise detection.
Low Detect and reduce low video noise.
Middle Detect and reduce moderate video noise.
High Detect and reduce high video noise.
Default Set as Default.
HDMI Mode
Press ▼/ ▲button to select HDMI Mode, then press OK button to select the mode.
15

Sound Menu
Balance
Adjust the speaker’s output, it enables you to listen to best at your position.
Press ▼ / ▲ button to select option, Press ◄ / ► button to adjust.
You can change the value of Treble and Bass
TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.
Press MENU button to display the main menu.
Press ◄ / ► button to select SOUND in the main menu.
1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.
Sound Mode
Press ▼ / ▲ button to select Sound Mode, then press Enter button to enter sub-menu.
Press▼/▲ button to select.
Standard
Music
Movie
Sports
Personal
Note
Produces a balanced sound in all environments.
Preserves the original sound.Good for musical programs.
Enhances treble and bass for a rich sound experience.
Enhances vocals for sports.
Select to customize picture settings.
Auto Volume level
Reduces the difference between channel and program’s volume automatically.
Press ▼ / ▲ button to select Auto Volume Level, then press ◄ / ► button to select On or Off.
SPDIF Mode
Press ▼ / ▲ button to select SPDIF Mode, then press ◄ / ► button to select Off / PCM / Auto.
AD Switch
Press ▼ / ▲ button to select AD Switch, then press ◄ / ► button to select On or Off.
Audio Description (not available in Australia currently) is a separate narrative track that
describes what is happening on screen.
when the sound is in Personal mode.
16

Time Menu
Press MENU button to display the main menu.
Press ◄ / ► button to select TIME in the main menu.
1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.
Time Zone
Press ▼ / ▲ button to select Time Zone, then press Enter button to enter sub-menu.
OSD Timer
Auto Standby
Press ▼ / ▲ button to select Auto Standby, then press Enter button to enter sub-menu.
Press ▼ / ▲ button to select.
Tips: If no operation is done using the remote control during the specified time,
it will close down automatically. If you do any operation, it will reset the time.
Press ▼ / ▲ button to select OSD Timer, then press Enter button to enter sub-menu.
Press ◄ / ► button to select.
Sleep Timer
Press ▼ / ▲ button to select Sleep Timer, then press Enter button to enter sub-menu.
Press ▼ / ▲ button to select.
(Available options are:Off,10min,20min,30min,60min,90min,120min,180min,240min).
17

Lock System
Lock Menu
Press MENU button to display the main menu.
Press ◄ / ► button to select Lock in the main menu.
1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/◄ / ► button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu
.
Press ▼ / ▲ button to select Lock System,
then press Enter button to make the following 3 options valid.
and if you forget what you set, Default password is 0000,
please call the Customer Service.
Set Password
Press ▼ / ▲ button to select Set Password,
then press Enter button to enter sub-menu to set new password.
18

Key Lock
Press ▼/ ▲button to select Key Lock, then press ◄ / ► button to select Off or On.
When Key Lock is on, you can’t use the Key panel button.

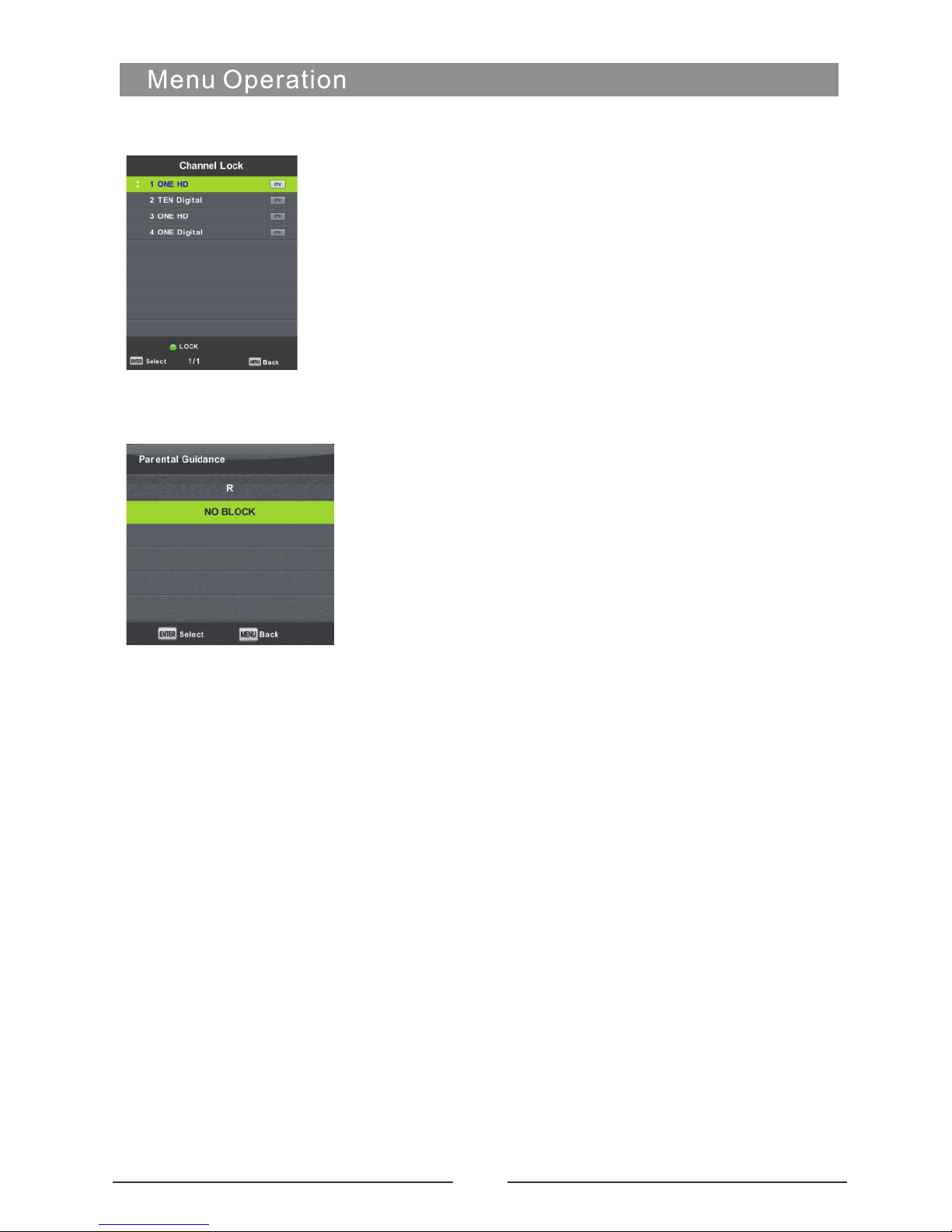

Channel Lock
Press ▼/ ▲button to select Channel Lock
then press Enter button to enter sub-menu to block programs
that are unsuitable for children.
Parental Guidance
Press ▼/ ▲button to select Parental Guidance,
then press Enter button to enter sub-menu to select the number
of age which is suitable for your children.
19
