Kogan KAMERSUVBKA User manual

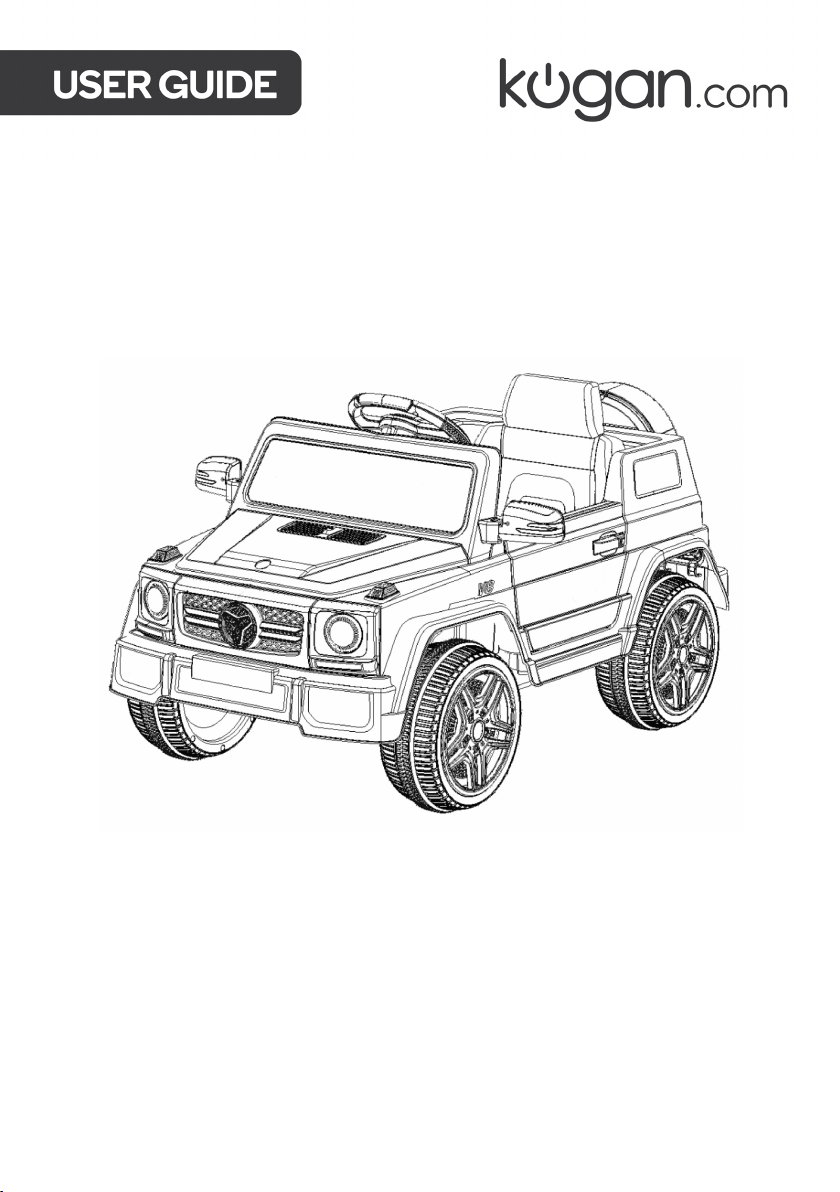

KIDS RIDE-ON CAR
(BLACK & WHITE)
KAMERSUVBKA & KAMERSUVWHA

•Be sure to read and understand these instructions in full before using the product.
•The product must be assembled by an adult before use.
•Battery charging should be carried out by adults, and the product must be
charged for a full 10 hours before first use.
•Do not use in the street, the road, in traffic or other dangerous places, and always
use under adult supervision.
•Do not used on polished surfaces, such as marble or tile.
•This product is limited to a single occupant. Do not exceed the weight capacity of
30 kg.
•Ensure the occupant’s seatbelt is always in place and that they do not stand in the
vehicle.
•Avoid sudden changes between forward and backward operation.
•To prevent collisions, do not use in narrow or confined spaces.
•Protective equipment should always be worn by the occupant during use.
•Always check over the product before use, ensuring that the charger, wires, plugs,
outer shell, and other components are undamaged. Discontinue use immediately if
parts are found to be damaged.
•When not in use for an extended period, turn the power off and remove the battery
connector.
•Suitable for children aged 37-96 months.
•Charging of the batteries should always be performed by an adult.
•The occupant should never leave the seat while the vehicle is in motion.
•Do not attempt to modify or alter the vehicle or its electrical circuits.
•Keep the remote control away from moisture and head sources.
•Do not attempt to ride the vehicle over obstructions or obstacles.
•Do not use in water. Do not allow water or any other liquids to enter the vehicle.
•Do not clean the vehicle with water.
•Do not use this toy outdoors when it is raining, hailing, sleeting, or snowing.
•When not in use, turn off the switch and unplug the battery connector. Ensure the
vehicle is stored safely.
•Non-rechargeable batteries must not be recharged.
SAFETY & WARNINGS

•Rechargeable batteries are only to be charged under adult supervision and should
be removed from the toy before being charged.
•Different types of batteries or new and used batteries are not to be mixed.
•Ensure batteries are always inserted according to the correct polarity.
•Exhausted batteries should be removed in a timely manner to avoid damaging the
product.
•Transformers or battery chargers used with the toy are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.

Charge Method
1. Ensure the battery is fully charged before first use. Open the cushion to locate the
battery connections within the main distributing frame and ensure that the
connectors are matched with red in red and black in black. Any alteration to this
may cause a short circuit.
2. The battery will take approximately 8-10 hours to charge. Avoid charging the
battery for more than 10 hours.
3. In the first to use the deposit, we must ensure that the cell battery up to 10 hours.
Otherwise, permanent damage cells and beyond repair.
4. The charger or battery may heat up whilst charging is in progress – temperatures
less than 60°C are normal.
5. Recharge the batteries in a timely manner when the driving speed of the toy slows
significantly.
6. Different types of batteries or new and used batteries are not to be mixed.
7. Ensure the circuit connection is correct before charging the battery.
8. When the toy is not in use for an extended period, ensure to charge it at least once
a month.
9. The car cannot be used whilst it is charging.
INSTRUCTION
WARNING: This product should always be used in private places to avoid the risk of
drowning, bums, falls and other hazards.

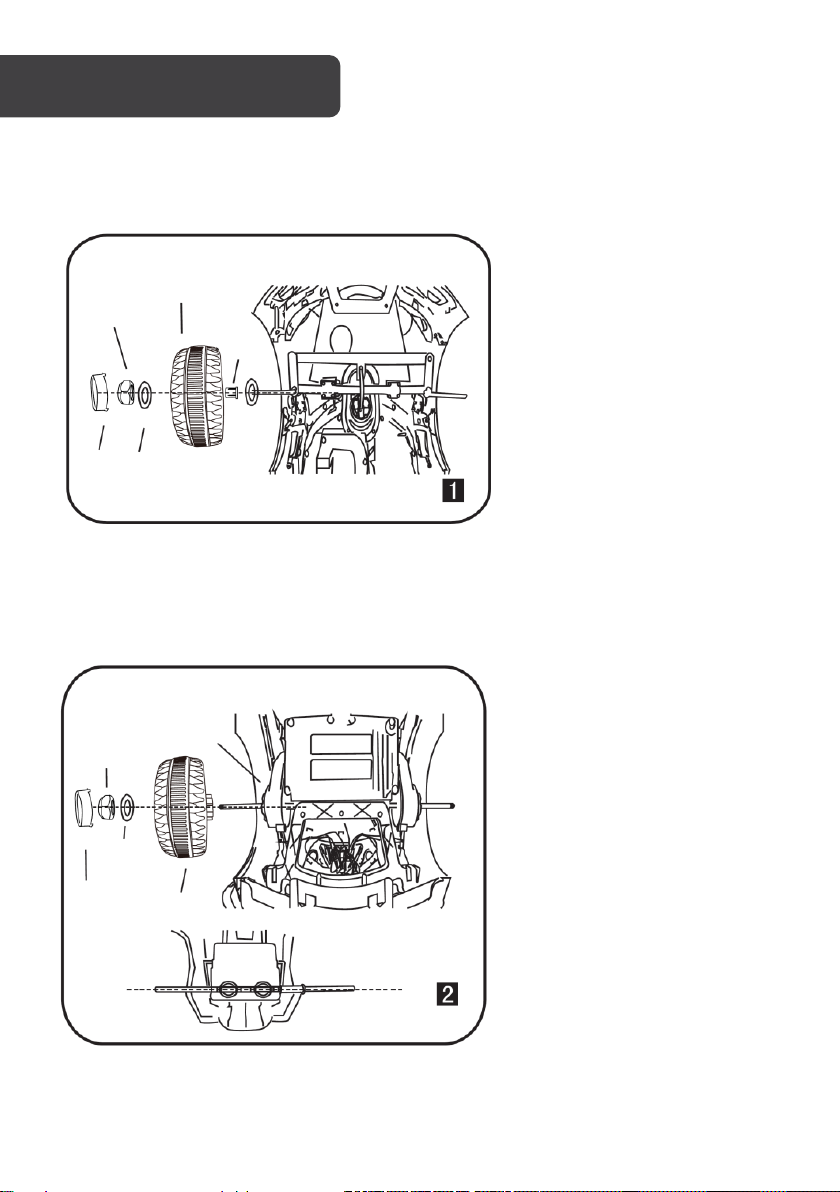

Step 1: Install the front wheel
Step 2: Install the rear wheel
Turn the car body over, remove
the manual damping spring and
bushing inside, and then put a
spring into the suspension hole
and set it into the sleeve. Thread
the 10mm rear axle through the
sleeve and body, fixing the spring
inside the car.
Ensure the electrical connectors
on the gearbox are connected to
those on the car itself, then place
the wheel on the axle, then the
large washer, and fix it in place
with the locknut and cover with
the wheel cap.
Set the washer and bushing onto
the front axle, then the front
wheel and second washer, and
tighten the lock nut into place
with a wrench. Cover the locknut
with the wheel cap.
INSTALLATION
Wheel
Locknut
Bushing
Washer
Cap
Gear box
Locknut
Washer
Cap
Rear wheel

Step 3: Install the toolbox
Attach the toolbox at the rear of the car
body, pushing firmly until it clicks into place.
Step 4: Install the steering wheel
Ensure the steering power plug is securely
connected to the dashboard power (noting
to connect the positive and negative
terminals accordingly). Align and attach the
steering wheel in the direction of the pole,
inserting the M5 inner hexangular set screw
rod through the steering wheel and
dashboard in turn as shown.
Steering wheel
Dashboard

Step 5: Charging instructions
Before installing the seat, connect
the power terminals, and then place
the seat into the slot on the vehicle
body. Affix the seat in place with
screws on both sides as shown.
To charge, open the cover and then
insert the charging adaptor into the
slot below the seat. Only charge the
vehicle when it is not in operation.
Step 6: Remote control battery installation
Use a screwdriver to remove the
screw on the battery cover, then the
battery cover itself. Insert two AAA
1.5 V batteries, replace the battery
cover, and screw it back into place.
Refer to Remote Control section for
instructions on pairing.
Chair
Safety belt
Charging seat
2x AAA 1.5V
Battery cover

Step 7: Controls and radio instructions
1. Turn the key in the ignition to power on the vehicle for sounds and driving. Turn the
key to the second position and the vehicle lights will flash. electric steering wheel
on the left button from the music, on the right side of the horn.
2. Move the gearstick to the D (drive) position; stepping on the foot switch will slowly
move the car forward. Move the gearstick to the 2 position; stepping on the foot
switch will move the car forward faster. Moving the gearstick to P (park) will cause
the car to stop. Putting the gearstick in R (reverse) and stepping on the foot switch
will move the car backwards.
3. Pressing MODE key on the radio will switch between radio and MP3 playback. V +
and V - key long-press can adjust the volume, and the middle button will
pause/play accordingly. The upper-left USB interface and card reader below it will
allow MP3 playback, as well as from an external device using the 3.5mm audio
input.
Pause/Play
USB
MP3 and switch
the radio
MP3
V -
V+

When using the unit for the first time, you must pair the remote with the car.
1. Turn off the car’s power switch.
2. Remove the battery cover on the remote control and insert 2 AAA batteries.
Once this has been done, the remote control’s LED indicators will flash slowly.
3. Turn on the car’s power switch and the LEDs will turn solid when pairing is
successful.
Once pairing has completed, there is no need to repair until the remote control
batteries are next replaced.
4. If the remove and car do not pair (the LEDs will continue flashing), remove the
battery and repeat steps 1-3.
5. The indicator LED will turn off 10 seconds after the last input to save power. It will
wake when any button is pressed.
REMOTE CONTROL
Accelerate
Back
Brake
Forward
Left
Right

Problem
Possible cause
Solution
Car does not
operate
correctly
Low power
Recharge the battery
Damage of thermic fuse
Change with new thermic fuse
Loose of the battery connector
Put on the connector
Exhaust & bad battery
Change with a new battery
Damage to electrical parts or
motor
Contact Kogan.com
Battery cannot
be recharged
Battery connector is loose
Tighten the connector
Charger is not connected to power
Connect the charger to power
Charger is damaged
Replace the charger
Short run time
Low power
Recharge the battery fully
Old or exhausted battery
Replace the battery
Noise or heat
during charging
Heat and noise may be produced
during the charging process
This is normal and no cause for
concern (unless exceeding 60°C)
Low speed
Old or exhausted battery
Replace the battery
Low power
Recharge the battery fully
Overburden
Reduce the burden under 25kg
Running on sloped or rough terrain
Operate on flat ground
Gearbox is noisy
Damage to gearbox or motor
Contact Kogan.com
Car shakes
when running
Motor wire not securely connected
Reconnect the wire securely
The motor may be faulty
Contact Kogan.com
No sound or
lights
Sound & light wire is loose
Reconnect the wire securely
Damage of sound & light board.
Contact Kogan.com
Car will not stop
Damage of electrical parts
Contact Kogan.com
Remote control
does not
operate
Remote control battery exhausted
Change battery
Remote control out of distance
Reduce distance between the car
and remote control
Damage to remote control
Contact Kogan.com
Damage of receiver board
Contact Kogan.com
Magnetic disturbance
Move away from nearby magnetic
fields
TROUBLESHOOTING

Car body (polypropylene)
1 pc
Charger
1 pc
Steering wheel
1 pc
MP3 connector
1 pc
Chair
1 pc
Manual
1 pc
Car wheels
4 pcs
Remote controller
1 pc
Battery
6V 4.5AH
k2 motor
12V 25W x2
Charger
Input: 100-240VAC 50/60HZ, Output: DC12V 1000MA
Maximum load
30kg
Operational time
Approx. 1h (charging approx. 8-10h)
Speed
3-5 KM/H
Age restriction
37 months-96 months
R/C battery
AA I.5V x 2
R/C distance
15 ± 5m
SPECIFICATIONS
IN THE BOX

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
