Kogan KAUDRCARBKA User manual

KIDS AUDI-INSPIRED RIDE-
ON CAR
(BLACK & PINK)
KAUDRCARBKA & KAUDRCARPKA

•Be sure to read and understand these instructions in full before using the product.
•The product must be assembled by an adult before use.
•Battery charging should be carried out by adults, and the product must be charged
for a full 10 hours before first use.
•Do not use in the street, the road, in traffic or other dangerous places, and always
use under adult supervision.
•Do not used on polished surfaces, such as marble or tile.
•This product is limited to a single occupant. Do not exceed the weight capacity of
30 kg.
•Ensure the occupant’s seatbelt is always in place and that they do not stand in the
vehicle.
•Avoid sudden changes between forward and backward operation.
•To prevent collisions, do not use in narrow or confined spaces.
•Protective equipment should always be worn by the occupant during use.
•Always check over the product before use, ensuring that the charger, wires, plugs,
outer shell, and other components are undamaged. Discontinue use immediately if
parts are found to be damaged.
•When not in use for an extended period, turn the power off and remove the battery
connector.
•Suitable for children aged 37-96 months.
•Charging of the batteries should always be performed by an adult.
•The occupant should never leave the seat while the vehicle is in motion.
•Do not attempt to modify or alter the vehicle or its electrical circuits.
•Keep the remote control away from moisture and head sources.
•Do not attempt to ride the vehicle over obstructions or obstacles.
•Do not use in water. Do not allow water or any other liquids to enter the vehicle.
•Do not clean the vehicle with water.
•Do not use this toy outdoors when it is raining, hailing, sleeting, or snowing.
•When not in use, turn off the switch and unplug the battery connector. Ensure the
vehicle is stored safely.
•Non-rechargeable batteries must not be recharged.
SAFETY & WARNINGS

•Rechargeable batteries are only to be charged under adult supervision and should
be removed from the toy before being charged.
•Different types of batteries or new and used batteries are not to be mixed.
•Ensure batteries are always inserted according to the correct polarity.
•Exhausted batteries should be removed in a timely manner to avoid damaging the
product.
•Transformers or battery chargers used with the toy are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.

Charge Method
1. Ensure the battery is fully charged before first use. Open the cushion to locate the
battery connections within the main distributing frame and ensure that the
connectors are matched with red in red and black in black. Any alteration to this
may cause a short circuit.
2. The battery will take approximately 8-10 hours to charge. Avoid charging the
battery for more than 10 hours.
3. In the first to use the deposit, we must ensure that the cell battery up to 10 hours.
Otherwise, permanent damage cells and beyond repair.
4. The charger or battery may heat up whilst charging is in progress – temperatures
less than 60°C are normal.
5. Recharge the batteries in a timely manner when the driving speed of the toy slows
significantly.
6. Different types of batteries or new and used batteries are not to be mixed.
7. Ensure the circuit connection is correct before charging the battery.
8. When the toy is not in use for an extended period, ensure to charge it at least once
a month.
9. The car cannot be used whilst it is charging.
INSTRUCTION
WARNING: This product should always be used in private places to avoid the
risk of drowning, bums, falls and other hazards.

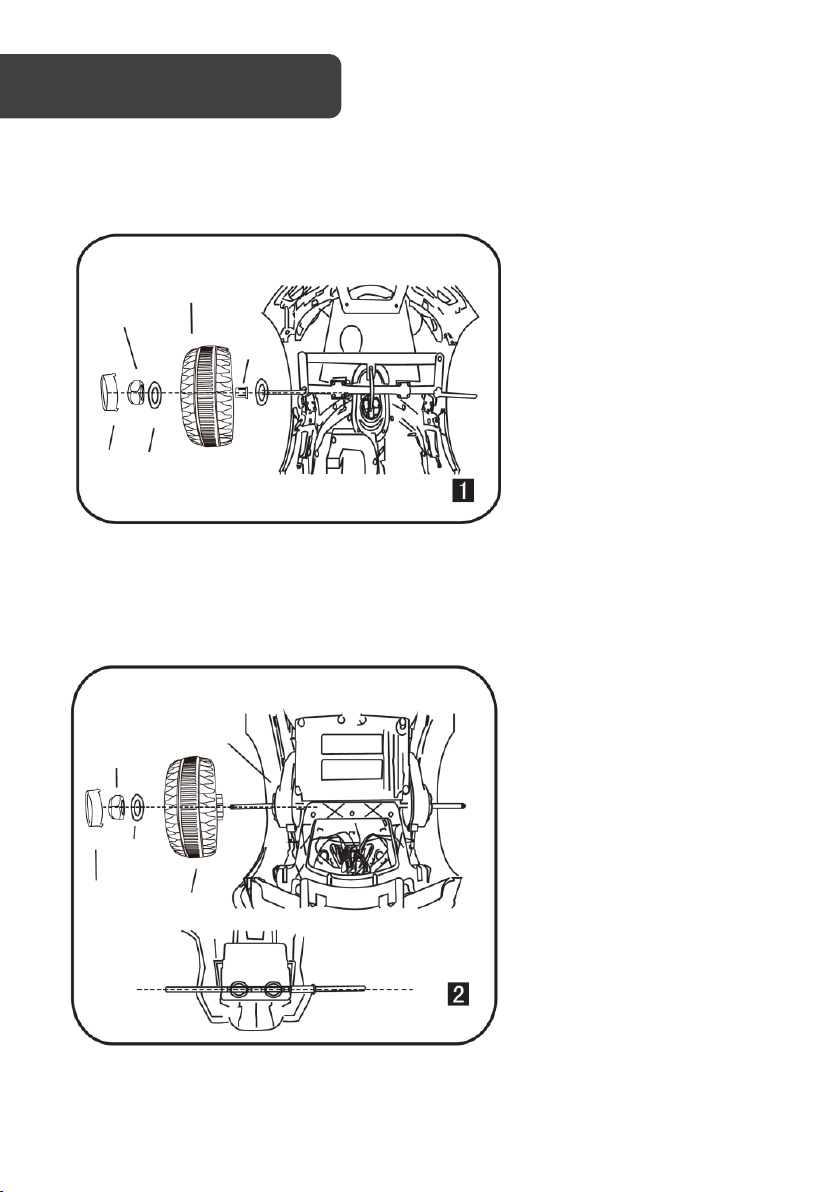

Step 1: Install the front wheel
Step 2: Install the rear wheel
Turn the car body over, remove
the manual damping spring
and bushing inside, and then
put a spring into the suspension
hole and set it into the sleeve.
Thread the 10mm rear axle
through the sleeve and body,
fixing the spring inside the car.
Ensure the electrical
connectors on the gearbox are
connected to those on the car
itself, then place the wheel on
the axle, then the large washer,
and fix it in place with the
locknut and cover with the
wheel cap.
Set the washer and bushing
onto the front axle, then the
front wheel and second washer,
and tighten the lock nut into
place with a wrench. Cover the
locknut with the wheel cap.
INSTALLATION
Wheel
Locknut
Bushing
Washer
Cap
Gear box
Locknut
Washer
Cap
Rear wheel

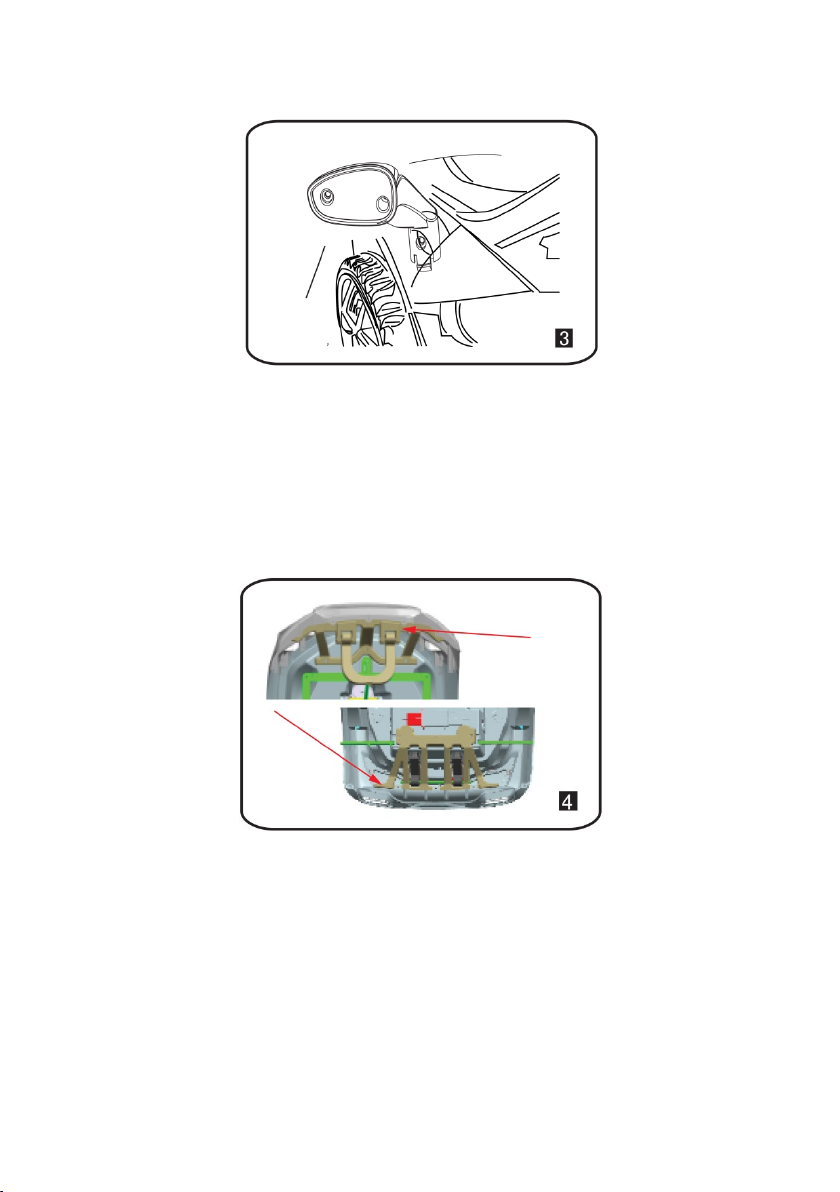

Step 3: Install the rear-view mirror
Insert the rear-view mirror into the corresponding slot on the car body and press down firmly
until it clicks into place.
Step 4: Install the front and rear brackets
Affix the front bracket to the underside of the car with screws as shown. Attach the rear
bracket in the same manner.
Rear view
mirror

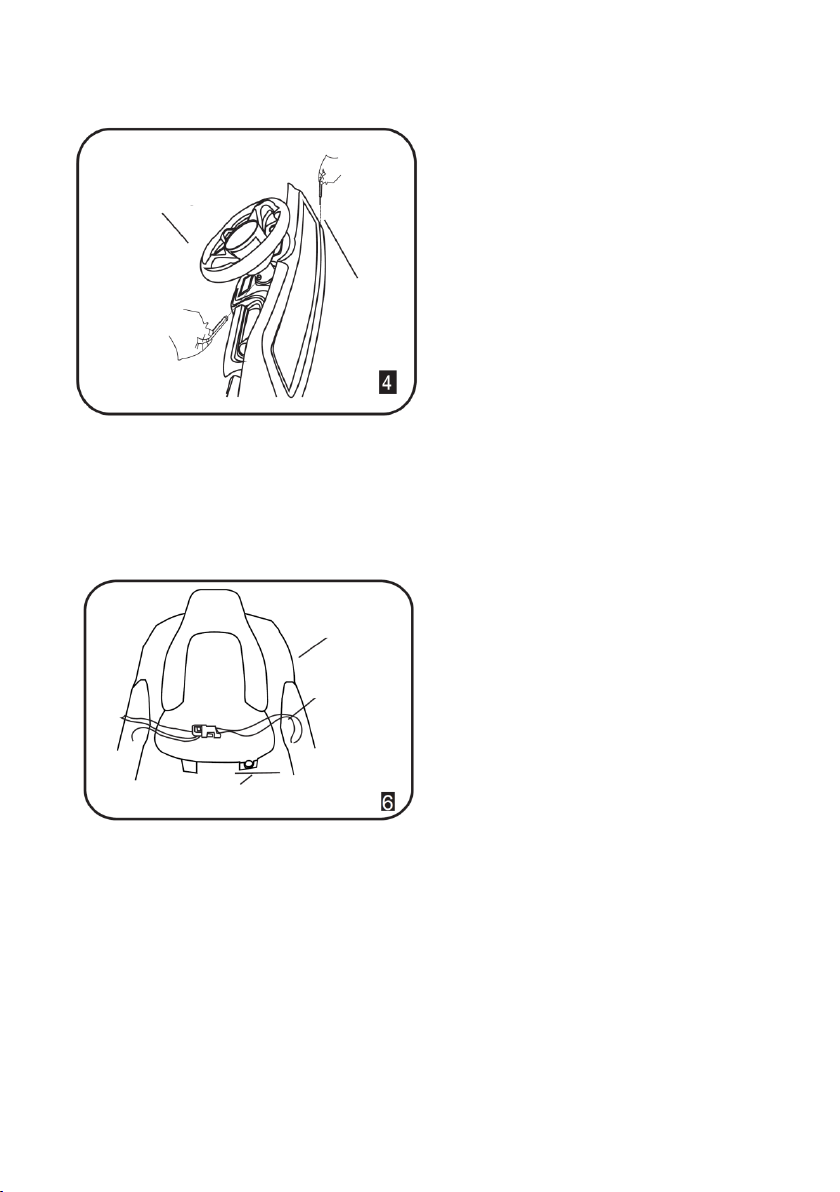

Step 5: Install the steering wheel
Step 6: Charging instructions
Before installing the seat, connect the power
terminals, and then place the seat into the
slot on the vehicle body. Affix the seat in
place with screws on both sides as shown.
To charge, open the cover and then insert
the charging adaptor into the slot below the
seat. Only charge the vehicle when it is not
in operation.
Ensure the steering power plug is securely
connected to the dashboard power (noting
to connect the positive and negative
terminals accordingly). Align and attach the
steering wheel in the direction of the pole,
inserting the M5 inner hexangular set screw
rod through the steering wheel and
dashboard in turn as shown.
Steering wheel
Dashboard
Chair
Safety belt
Charging seat

Step 7: Remote control battery installation
Use a screwdriver to remove the screw on the battery cover, then the battery cover itself.
Insert two AAA 1.5 V batteries, replace the battery cover, and screw it back into place.
Refer to Remote Control section for instructions on pairing.
Step 8: Using the handle
When the vehicle has no power, remove the occupant from the car and pull down the
support handle from under the front of the vehicle. You can easily roll the car home on its
rear wheels whilst dragging it from the handle.
2x AAA 1.5V
Battery cover

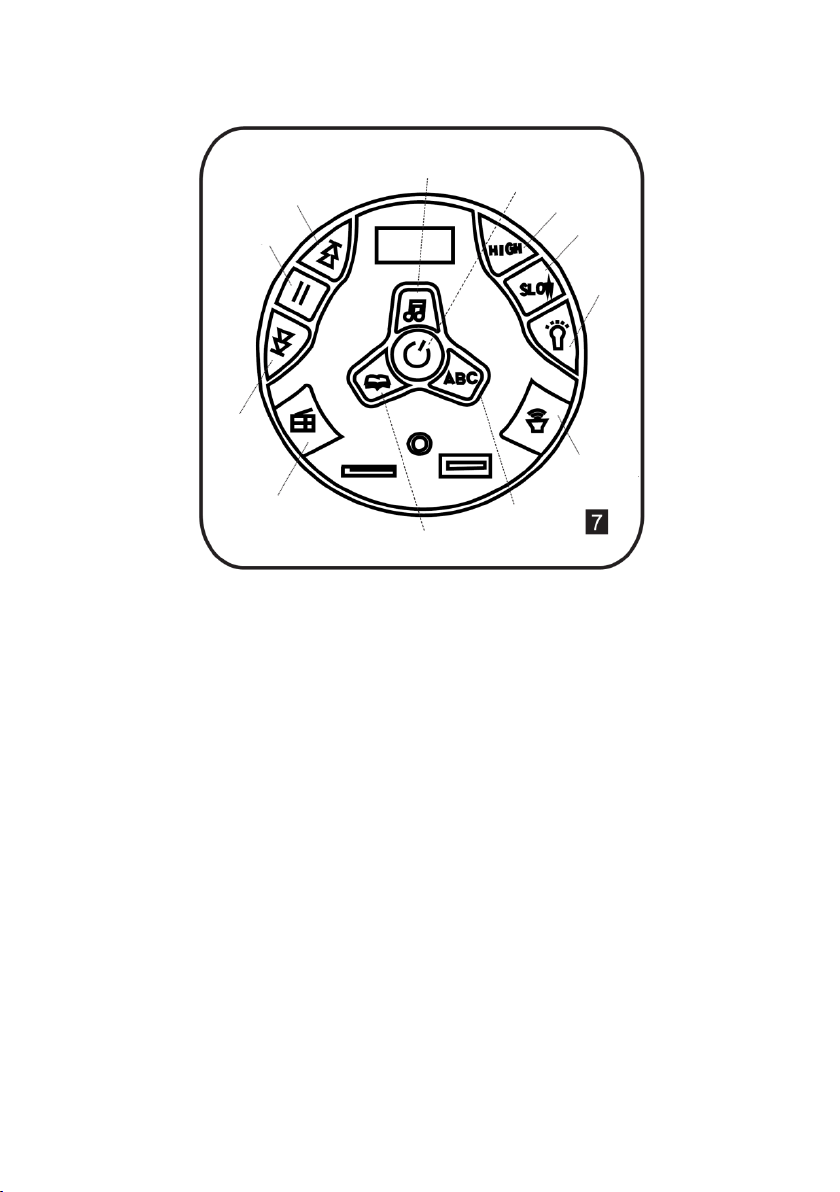

Step 9: Function of the instructions
1. Press the power button to power on the vehicle and the control panel lights will
illuminate.
2. Press the music button to commence audio playback from the USB/micro SD
inputs. The previous, play and next buttons will control audio playback and allow
for volume adjustment.
3. Press the story key to commence playback of the story recording.
4. Press the ABC key to commenced playback of the alphabet recording.
5. Press the light button to activate the vehicle lights.
6. Press the horn button to sound the vehicle’s horn.
7. Press the High and Slow buttons to alternate between high and low-power modes.
8. The inputs at the bottom of the panel allow for the insertion of USB or micro SD
cards for audio playback, or the connection of a 3.5mm audio device such as
phone.
9. The forward and back switch will alternate between forward and reverse motion of
the vehicle accordingly.
Power
Music
High (fast)
Slow
Light
Horn
Alphabet
Story
Radio
Previous
Play
Nex
t

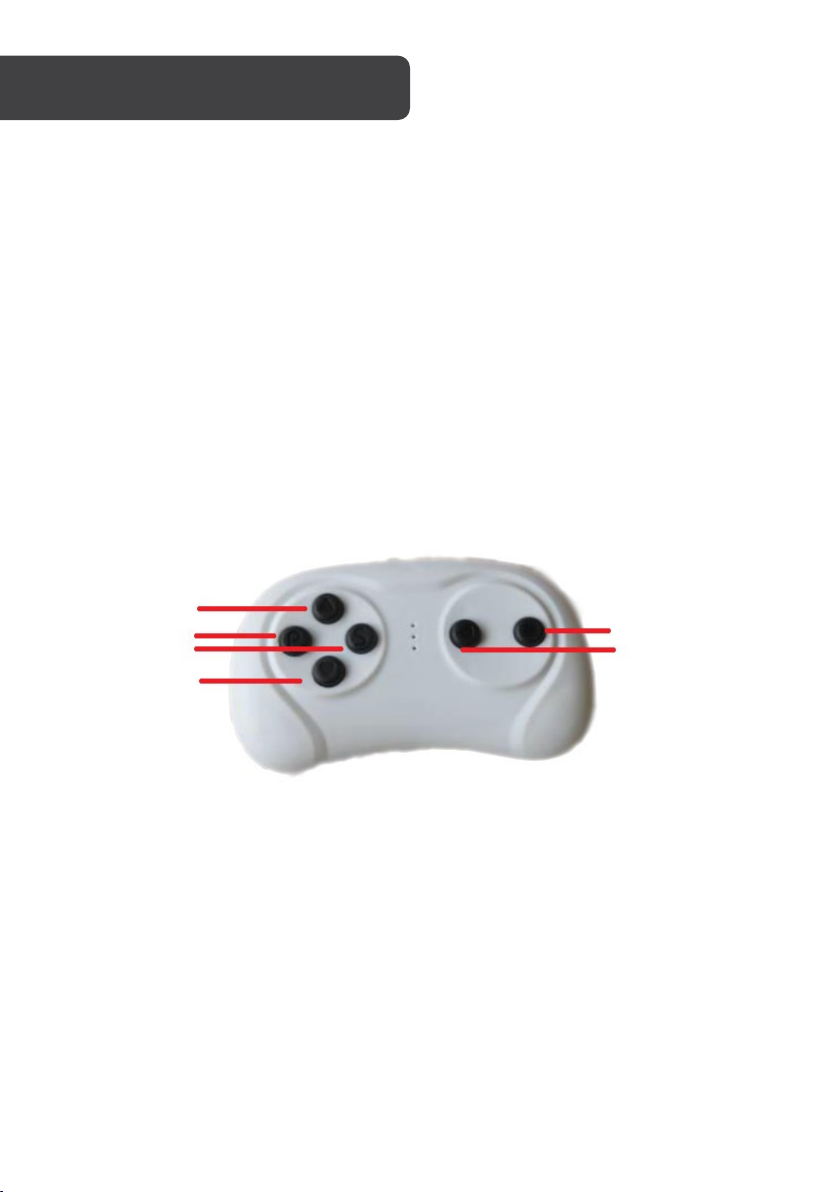

When using the unit for the first time, you must pair the remote with the car.
1. Turn off the car’s power switch.
2. Remove the battery cover on the remote control and insert 2 AAA batteries.
Once this has been done, the remote control’s LED indicators will flash slowly.
3. Turn on the car’s power switch and the LEDs will turn solid when pairing is
successful.
Once pairing has completed, there is no need to repair until the remote control
batteries are next replaced.
4. If the remove and car do not pair (the LEDs will continue flashing), remove the
battery and repeat steps 1-3.
5. The indicator LED will turn off 10 seconds after the last input to save power. It will
wake when any button is pressed.
REMOTE CONTROL
Accelerate
Back
Brake
Forward
Left
Right

Problem
Possible cause
Solution
Car does not
operate
correctly
Low power
Recharge the battery
Damage of thermic fuse
Change with new thermic fuse
Loose of the battery connector
Put on the connector
Exhaust & bad battery
Change with a new battery
Damage to electrical parts or
motor
Contact Kogan.com
Battery cannot
be recharged
Battery connector is loose
Tighten the connector
Charger is not connected to power
Connect the charger to power
Charger is damaged
Replace the charger
Short run time
Low power
Recharge the battery fully
Old or exhausted battery
Replace the battery
Noise or heat
during charging
Heat and noise may be produced
during the charging process
This is normal and no cause for
concern (unless exceeding 60°C)
Low speed
Old or exhausted battery
Replace the battery
Low power
Recharge the battery fully
Overburden
Reduce the burden under 25kg
Running on sloped or rough terrain
Operate on flat ground
Gearbox is
noisy
Damage to gearbox or motor Contact Kogan.com
Car shakes
when running
Motor wire not securely connected
Reconnect the wire securely
The motor may be faulty
Contact Kogan.com
No sound or
lights
Sound & light wire is loose
Reconnect the wire securely
Damage of sound & light board.
Contact Kogan.com
Car will not stop
Damage of electrical parts
Contact Kogan.com
Remote control
does not
operate
Remote control battery exhausted
Change battery
Remote control out of distance
Reduce distance between the car
and remote control
Damage to remote control
Contact Kogan.com
Damage of receiver board
Contact Kogan.com
Magnetic disturbance
Move away from nearby magnetic
fields
TROUBLESHOOTING

Car body (polypropylene)
1 pc
Charger
1 pc
The steering wheel
1 pc
MP3 connector
1 pc
Chair
1 pc
Manual
1 pc
Car wheel, blocks
4 pcs
Remote controller
1 pc
Battery
6V 4.5AH
k2 motor
12V 25W x2
Charger
Input: 100-240VAC 50/60HZ, Output: DC12V 1000MA
Maximum load
30kg
Operational time
Approx. 1h (charging approx. 8-10h)
Speed
3-5 KM/H
Age restriction
37 months-96 months
R/C battery
AA I.5V x 2
R/C distance
15 ± 5m
IN THE BOX
SPECIFICATIONS

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
