Kogan KARDRVCRPKA User manual

KIDS RANGE ROVER-
INSPIRED RIDE-ON CAR
KARDRVCRPKA, KARDRVCRWHA & KARDRVCRBKA

Ensure you have read and fully understood all these instructions.
•The product should be assembled correctly by an adult before use.
•Do not drive in the street, traffic or other dangerous places. Ensure the car is driven
under constant adult supervision.
•The car contains small components which is not suitable for children less than 3
years old.
•Charge up the battery before using the car. The charging should be performed by
an adult.
•Ensure the battery is fully charged for 10 hours before using the car for the first time
otherwise the battery will get damaged permanently and cannot be repaired.
•Do not drive the car in dangerous places such as the public roads, streets and
place with various obstacles.
•Observe the maximum occupancy of one child. The maximum load capacity is
30kg.
•Fasten the seat belt and make sure the child always sits in the car. Do not let the
child stand or perform dangerous actions while driving.
•Do not suddenly switch the forward/backward button while the car is in motion.
•To prevent damaging valuables and the car, do not drive it in narrow spaces.
•Check the car, the charger, the plug, the electric wire, the outer casing and other
components regularly for any evidence of damage. Stop operating the car
immediately if it is damaged. Turn off the power supply and unplug the battery
connector if you do not use it for a long time.
•Children should always be supervised when driving the car.
•The remote control must be operated by an adult but not the children.
•The charging stand is at the right side of the car, turn open the charging cover first,
insert the plug into the charging hole, then plug the charger into a power outlet to
charge. This should be done by an adult, do not let your children touch the power
supply.
•When the driving speed of the car has slowed down significantly, charge the car
immediately. It should be fully charged for 8-10 hours. (Do not exceed 10 hours)
•It is normal for the charger or battery to get hot during charging. (Below 60°C)
•It must be used with a special charger and battery which are equipped with the car
to avoid damage to the charger, battery and electrical cable.
•Do not operate the car while it is charging.
•Ensure the cable connections are secure before charging.
SAFETY & WARNINGS

•If there is a non-rechargeable battery in the remote control, do not attempt to
charge it. If it is a rechargeable battery, the charging should be done by the adult.
Do not use different types of batteries in the remote control. Do not mix old and
new batteries.
•The battery should be placed on the correct electrode.
•Remove the battery from the remote control when it is depleted.
Warnings on the Car
1. The car contains small components which are not suitable for the children less
than 3 years. Suitable age: 37 months - 96 months.
2. Maximum load capacity: 30kg.
3. Children should always be supervised when driving the car.
4. Do not drive the car in a public area or dangerous place, it is better to drive on flat
ground.

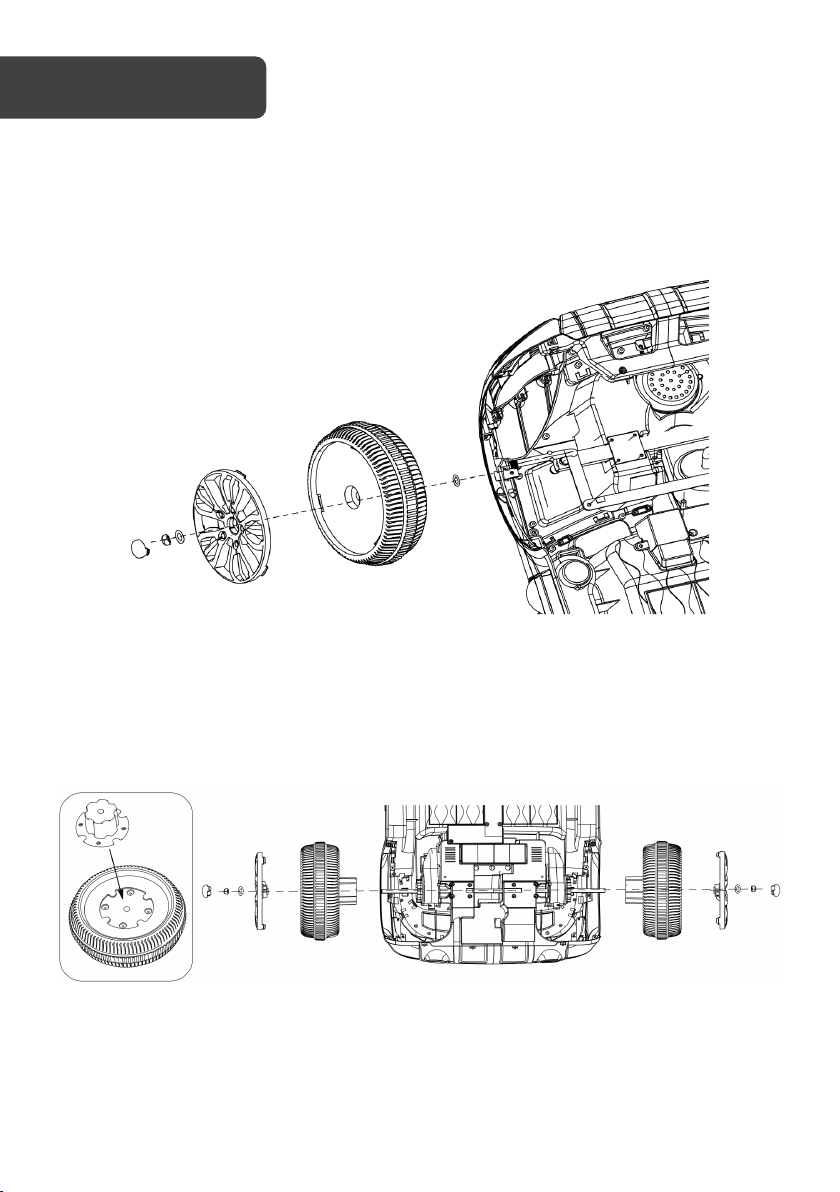

1. Front Wheel
Set the gasket into the front axle and then put the wheel on it. Next, insert the gasket on the
wheel and lock them with the locknut. Finally, affix the wheel cover.
2. Rear Wheel
Place the gear on the rear wheel and attach it with 4pc ST4 0x16 screws. Next, turn the car
over, insert the wheel into the rear axle then put the gasket on it and attach them with the
screws. Finally, cover the wheel with a cap.
ASSEMBLY

3. Windows
Determine which are the left and right windows, align them carefully and with the door slots
and insert. Use the 3 ST40*16 screws to attach.
4. Steering Wheel
Connect the connector on the steering wheel to the steering shaft in the middle of the
dashboard and attach the steering wheel with a bolt.

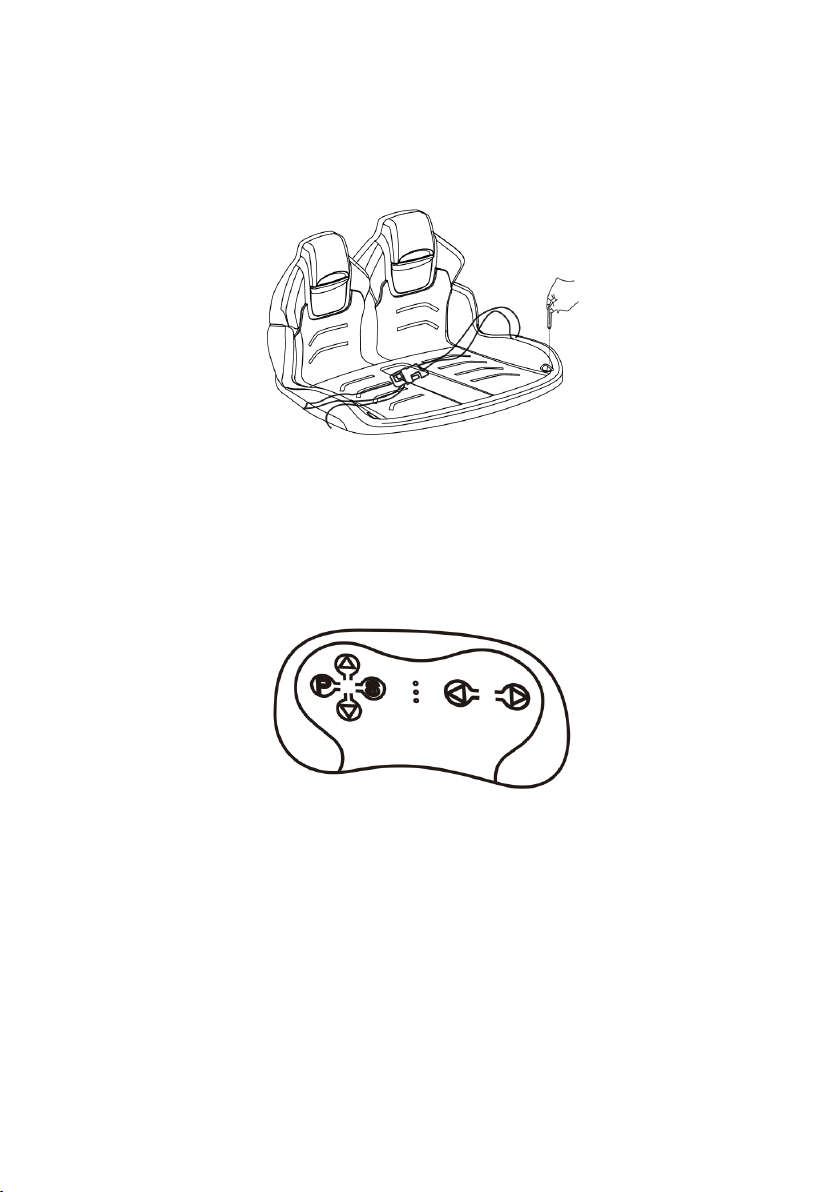

5. Car Chair
Connect the batteries before installing the car chair. The hook of the seat should be aligned
in the slot, then tighten the fixing holes on both sides and the front of the seat with screws
turning clockwise. Insert the charger into the charging hole for charging. Do not operate the
car while charging.
6. Adding Batteries to the Remote Control
Remove the screw on the battery cover with a screwdriver and then remove the battery
cover, insert the 2 AAA 1.5V batteries. It needs to match the frequency to control the car.
Refer to the remote control section of this user guide for pairing instructions.

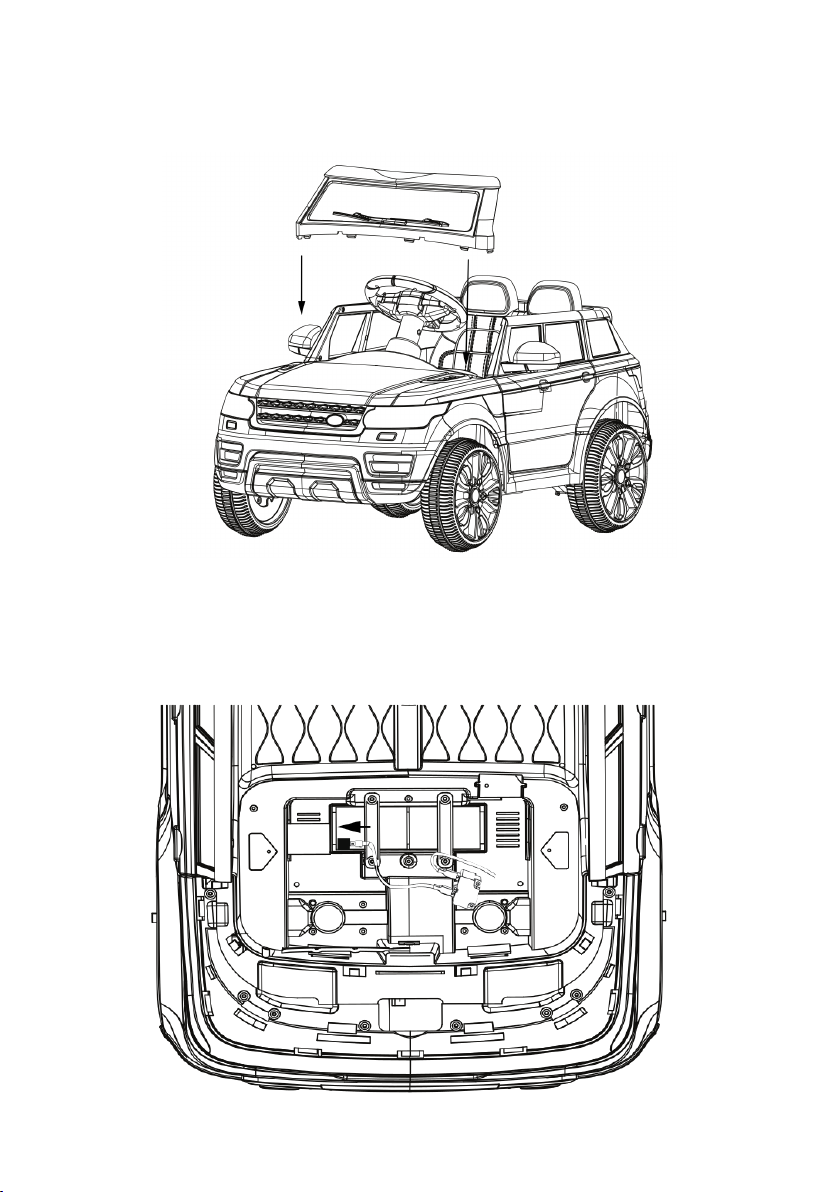

7. Windshield
Remove the windshield carefully from the box, then insert the windshield into the slot: it will
click into place.
9. Battery
Connect the red wire to the storage battery positive terminal as indicated below:

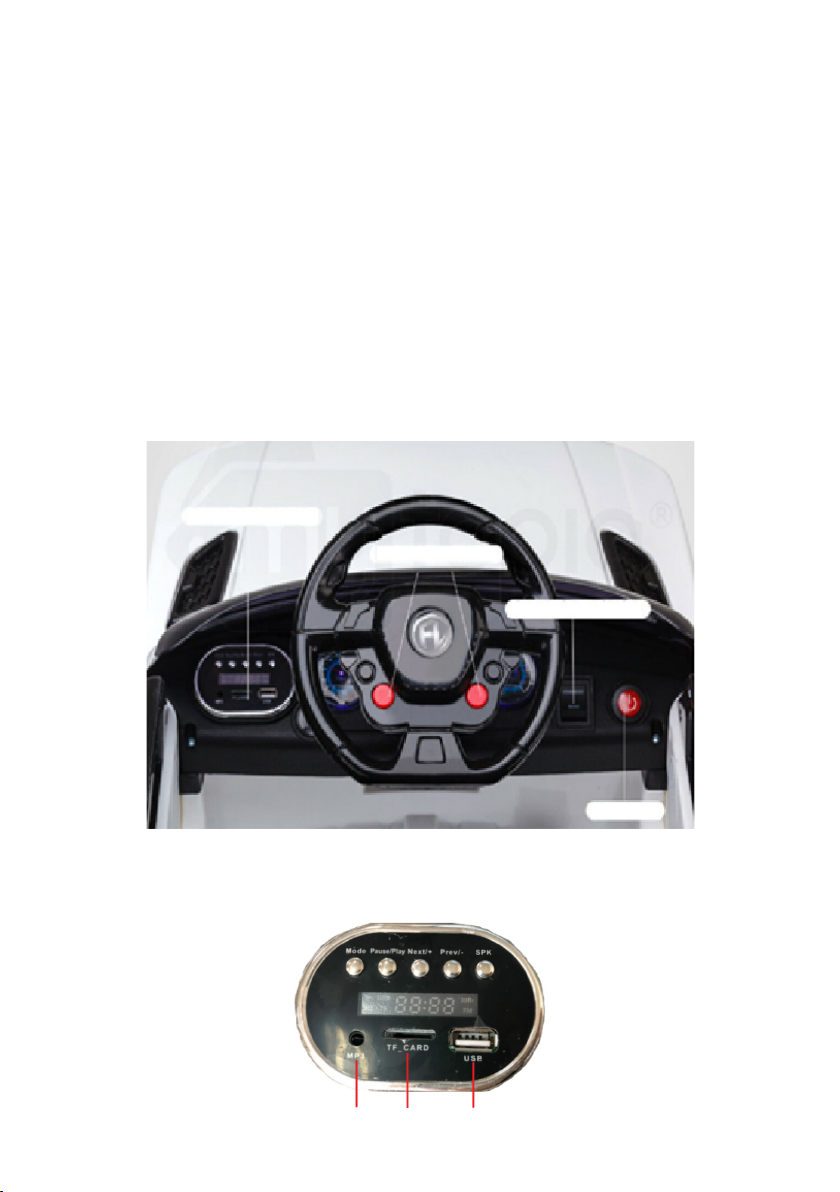

Function details
1. Turn on the ignition: the car will start with lights on and the car display will show
the voltage.
2. Switch the Forward/Backward button to the forward position, then step on the
footswitch, the car goes forward. Switch the Forward/Backward button to the
backward position and then step on the footswitch, the car moves backwards.
3. There are a horn button and music button on the steering wheel.
4. On the dashboard, there is a Mode button, Pause/Play button. Next/+ button,
Prev/- button, SPK button. MP3 interface, TF card interface and USB interface.
5. Press the Mode button, the car will play music. Holding down the Next/+ and
Prev/- volume controls on the music player changes the overall volume for all
audio effects with the car, including the horn/SPK
6. Turn off the power switch and disconnect the battery if the car is not operated for a
long time and ensure that the car is recharged once a month.
Music Console
Aux
SD
USB
Music Console
Music & Horn
Gear Selector
Ignition

When using the unit for the first time, you must pair the remote with the car.
1. Turn off the car’s power switch.
2. Remove the battery cover on the remote control and insert 2 AAA batteries.
Once this has been done, the remote control’s LED indicators will flash slowly.
3. Turn on the car’s power switch and the LEDs will turn solid when pairing is
successful.
Once pairing has completed, there is no need to repair until the remote control
batteries are next replaced.
4. If the remove and car do not pair (the LEDs will continue flashing), remove the
battery and repeat steps 1-3.
5. The indicator LED will turn off 10 seconds after the last input to save power. It will
wake when any button is pressed.
REMOTE CONTROL
Accelerate
Back
Brake
Forward
Left
Right

Battery
2x6V 4.5Ah
Motor
12V 30W, 12V 15W
Charger
Input: AC220V-240V, 50Hz-60Hz
Output: DC 12V, 1A
Maximum load
30kg
Working hour
Recharge hour 8-12 hour, Working hour: 1-2 hour
Speed
3-5km/hr
Expected product life
37–96 months
R/C Battery
AAA 1.5Vx2
R/C Distance
15±5m
Electric car
1 piece
Steering wheel
1 piece
Chair
1 piece
Car Wheel/Cap
4 pieces
Charger
1 piece
MP3 connector
1 piece
User manual
1 piece
Remote control
1 piece
SPECIFICATIONS
IN THE BOX

Before attempting to use the car, make sure the battery is connected under the seat as per
the instructions in assembly.
Issue
Possible Cause
Solutions
Car cannot run
Low battery voltage
Charge the battery
Battery damage
Replace battery
Cable connectors are off
Reconnect the connectors
Motor damage
Replace new motor or repair it
Wheel latch is lost
Equip with new wheel latch
Fuse damage
Replace fuse
The power supply is off
Turn on the power switch
Battery not connected
Follow Assembly instructions
Car running slowly
Battery not fully charged
Fully charge battery
Motor damage
Replace motor
The car is overloaded
Reduce load capacity
The battery used up
Replace battery
Battery cannot be
charged
Charger/battery damage
Replace a new charger or
battery
Charger socket damage
Replace socket
Running time short
Battery not fully charged
Fully charge battery
Battery used up
Replace battery
Car shaking while driving
Poor motor contact
Reconnect the circuit
Wheels falling off
Wheels not fully connected
Follow Assembly instructions
Car noisy while driving
Gearbox damage
Replace gearbox
TROUBLESHOOTING

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
