Kohler K-1106 User manual

Installation Guide
Flanged 120 V Bath Whirlpool
K-1106, K-1112, K-1114,
K-1126, K-1131, K-1139,
K-1144, K-1154, K-1157,
K-1160, K-1192, K-1194,
K-1196, K-1198, K-1209,
K-1224, K-1239, K-1244,
K-1257, K-1266, K-1458,
K-1630, K-1635
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(e.j. K-12345M)
Français, page “Français-1”
Español, pagina “Español-1”
1011092-2-E

Important Information
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD). The GFCI or RCD protects against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated
service for the whirlpool.
″H″models require a separate 120 V, 15 A, 60 Hz dedicated service for the heater.
NOTE: If the pump supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard. The heater supply cord cannot be replaced. If the
cord is damaged the heater should be scrapped.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool
system, as this could adversely affect the performance and safe operation of the whirlpool. Kohler
Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any
such unauthorized modification.
WARNING: Risk of electrical shock. Disconnect power before servicing.
WARNING: Risk of electrical shock. A licensed electrician should make all electrical connections.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation.
NOTICE: Follow all local plumbing and electrical codes.
Factory-Assembled Features
Factory installed components include pump with power supply cord and air switch transmitter. No
installation is needed.
″H″models are also supplied with a factory assembled heater.
An optional timer kit is available for certain models.
The whirlpool pump and piping are factory-assembled.
1011092-2-E 2 Kohler Co.

Important Information (cont.)
Connections and Service Access
Before installation, ensure proper access to the final connections.
NOTICE: Provide unrestricted service access to the pump. You must provide access for servicing the
pump and controls. The access must be located immediately next to the pump. Study the roughing-in
information packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Thank You For Choosing Kohler Company .............................................. 4
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 5
Prepare the Site ................................................................. 6
Prepare the Whirlpool ............................................................. 7
Secure the Whirlpool — Models With Support Blocks ...................................... 8
Secure the Whirlpool — Models With Whirlpool Base ...................................... 9
Secure the Whirlpool to the Stud Framing .............................................. 10
Cut the Pump Banding Straps ...................................................... 10
Install the Plumbing .............................................................. 10
Make Electrical Connections ........................................................ 11
Test Run the Whirlpool ............................................................ 12
Complete the Finished Wall ........................................................ 13
Removing the Apron .............................................................. 13
Clean-Up After Installation ......................................................... 13
Confirm Proper Operation .......................................................... 14
Troubleshooting Procedure ......................................................... 15
Kohler Co. 3 1011092-2-E

Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company product reflects the true passion for design,
craftsmanship, artistry, and innovation Kohler Company stands for. We are confident its dependability and
beauty will surpass your highest expectations, satisfying you for years to come.
All the information in this guide is based upon the latest product information available at the time of
publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for
each person who is touched by our products and services. We reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please take a few minutes to review this guide. If you encounter any installation or performance problems,
please call 1-800-4KOHLER (1-800-456-4537) from within the USA and Canada, or 001-877-680-1310 from
within Mexico.

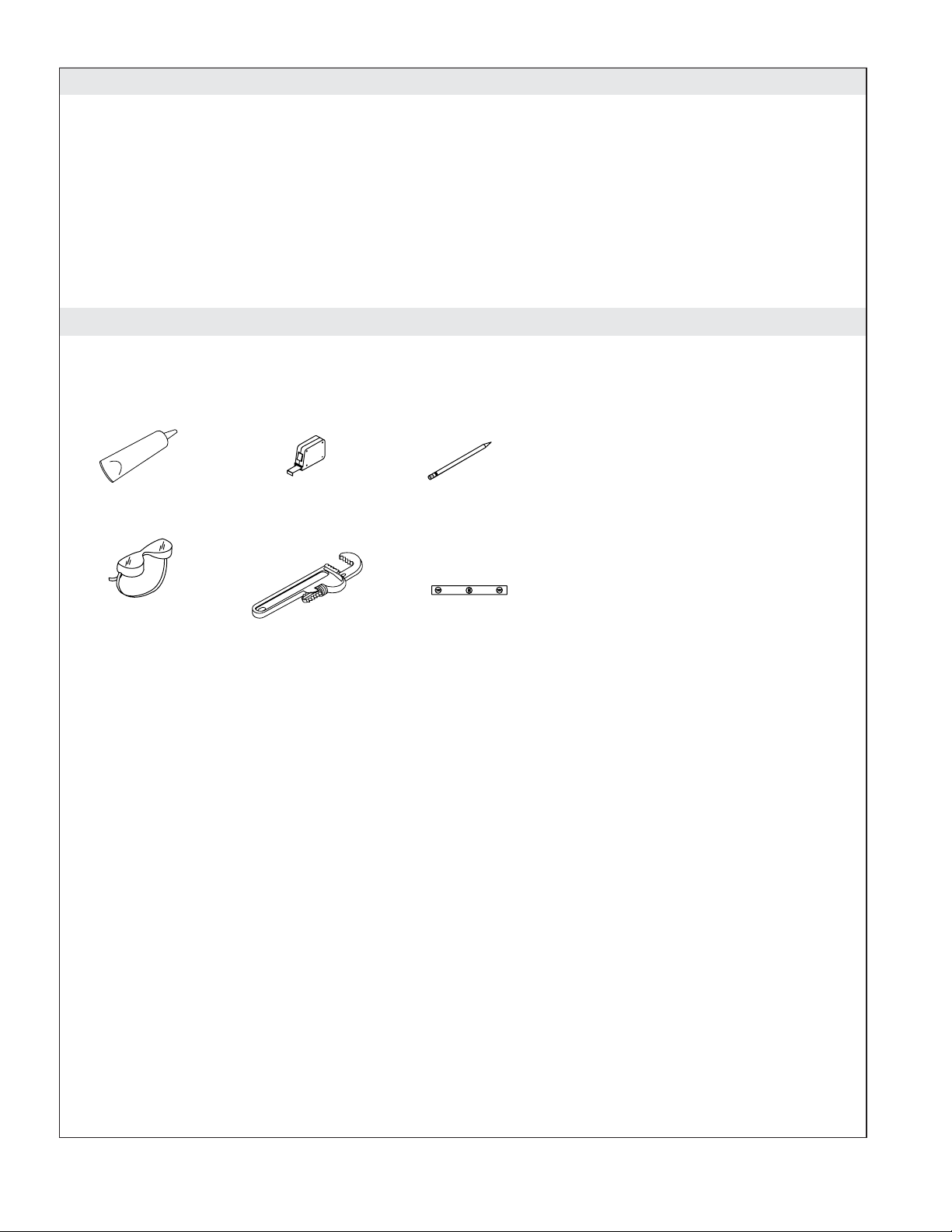

Tools and Materials
Silicone Sealant Pencil
Level
Safety Glasses
Tape Measure
Pipe Wrench
Plus:
• Conventional woodworking tools
and materials
• Drop Cloth
• Construction adhesive (optional)
• Cement or mortar (optional)
• 2x4s or 2x6s
• Screws or Lag Bolts
1011092-2-E 4 Kohler Co.

Before You Begin
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
For whirlpools without an apron, a drop-in installation is necessary. For whirlpools with integral or
optional apron, an alcove or corner installation is recommended, depending upon the model chosen.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Confirm adequate mounting and connection space for the faucet specified for your installation.
For corner units with integral apron: Have a qualified electrician install the outlets for the pump
and heater (if used) at the specified location on the whirlpool. Refer to the above illustration.
Kohler Co. reserves the right to make revisions in the design of products without notice, as specified
in the Price Book.
Install the outlets for
the pump and heater
(if used) to the
mounting plate.
Outlet
Kohler Co. 5 1011092-2-E

1. Prepare the Site
NOTICE: Refer to the Roughing-in Guide packed with your bath whirlpool for the required minimum
lb/square foot (kg/square meter) floor support.
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
For Whirlpools without Apron:
NOTICE: The whirlpool should be installed in a drop-in installation.
Construct 2x4 or 2x6 stud framing for your installation.
NOTICE: When planning the construction of the site, take into consideration that the whirlpool must be
supported by its feet or base to avoid product damage. Do not support the load weight of the whirlpool
by the perimeter of the rim. The rim perimeter must be adequately supported, but must not support the
load weight of the whirlpool. This includes whirlpools placed in alcove installations.
For a raised installation: Frame the floor or construct a frame in accordance with the roughing-in
information packed with the whirlpool.
Carefully lay out and cut the rough deck material. Use the cut-out template if one is provided, or
refer to the roughing-in cut-out information.
For Whirlpools with Integral or Optional Apron:
The whirlpool should be installed in an alcove or corner installation, depending upon the model
chosen. Construct 2x4 or 2x6 stud framing designed for your particular installation. Construct a
frame in accordance with the roughing-in information packed with the whirlpool.
For All Installations:
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Frame the floor
according to the
roughing-in information.
Position the rough
plumbing.
Construct 2x4 or 2x6
tud framing according
to the roughing-in
information. Verify that the subfloor
offers adequate support,
and is flat and level.
Construct 2x4 or
2x6 stud framing
according to the
roughing-in
information.
Position the
rough plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
1011092-2-E 6 Kohler Co.

2. Prepare the Whirlpool
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Kohler Co. 7 1011092-2-E

3. Secure the Whirlpool — Models With Support Blocks
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
If the subfloor is not level, shim the whirlpool support blocks as necessary.
Choose the installation option that best applies to your particular installation. Follow the appropriate
instructions.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
NOTE: The pump support bracket (when the pump banding straps are cut) and support blocks must
rest directly on the subfloor.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit. Clear all the material away from the pump
support bracket and support block locations.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place, and make sure the pump support bracket and support blocks
do not rest in the bed material.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Clear space for pump.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Clear spaces for
support blocks.
Apply construction adhesive
to the support blocks.
1011092-2-E 8 Kohler Co.

4. Secure the Whirlpool — Models With Whirlpool Base
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
Choose the installation option that best applies to your particular installation. Follow the appropriate
instructions.
If the subfloor is not level, shim the whirlpool base as necessary.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts (not
provided) to secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool
base as needed.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the whirlpool base.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts (not
provided) to secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool
base as needed.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Apply construction adhesive
to the whirlpool base.
Kohler Co. 9 1011092-2-E

5. Secure the Whirlpool to the Stud Framing
Drill a small pilot hole through the nailing-in flange at each stud. Add shims between the nailing-in
flange and the studs as needed to eliminate gaps.
Nail 1/4″(6 mm) thick furring strips to the studs to shim out to the edge of the nailing-in flange.
Use #6 large-head galvanized nails to secure the nailing-in flange to the studs.
6. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.
NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is
raised too high, it will not prime properly.
Use tin snips to cut the two pump banding straps. When the banding straps are cut, the pump
support bracket and pump will drop about 1/2″(1.3 cm) until they rest on the subfloor. If the pump
drops more than 1/2″(1.3 cm), shim under the pump support bracket so there is a 1/2″(1.3 cm)
gap between the pump and bracket to allow for proper drainage.
To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the
shipping bracket after the pump banding straps are cut.
Secure the pump support bracket to the subfloor with screws or lag bolts (not provided).
7. Install the Plumbing
CAUTION: Risk of property damage. A watertight seal must exist on the whirlpool drain. The
watertight seal will prevent property damage.
Connect the drain to the trap according to the drain manufacturer’s instructions.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
Stud
Nail 1/4" (6 mm)
thick furring strips
to the studs.
Drill a small hole
through the nailing-in
flange at each stud.
Use #6 large-head
galvanized nails to secure
the nailing-in flange to the
studs.
Drainage Suction Line
Pump
Cut the pump
banding straps.
NOTE:
Pump model illustrated may differ from your
actual product.
1011092-2-E 10 Kohler Co.

8. Make Electrical Connections
WARNING: Risk of electric shock. Make sure the power has been disconnected before performing
the following procedures.
WARNING: Risk of electric shock. To reduce the risk of electrical shock, connect the pump and
in-line heater (if heater option included) to properly grounded, grounding-type receptacles
protected by Ground-Fault Circuit-Interrupters (GFCI’s) or Residual Current Devices (RCD’s). Do
not remove the plugs’ grounding pins. Do not use grounding adapters.
Pump Wiring
NOTE: The whirlpool model number is printed on a label near the whirlpool pump. This label also
identifies the electrical rating of the whirlpool.
Your Kohler bath whirlpool is equipped with a cord and plug. All wiring of the pump and control
has been completed at the factory. A licensed electrician must install a GFCI- or RCD-protected, 120
V, 15 A, grounded outlet. No other load should be on this circuit. Locate the outlet behind the
whirlpool, and within 24″(61 cm) of the pump.
Plug the pump into this outlet.
NOTE: Make sure the air actuator tubing is securely attached to the pump, and is not kinked or damaged.
If a K-1639 Timer Kit will be used, install it now according to the instructions packed.
Heater Wiring
″H″Models: The heater is equipped with a cord and plug. All wiring of the heater has been
completed at the factory. A licensed electrician must install a GFCI- or RCD-protected, 120 V, 15 A,
grounded outlet. No other load should be on this circuit. Locate the outlet behind the whirlpool,
and within 24″(61 cm) of the heater.
Plug the heater into this outlet.

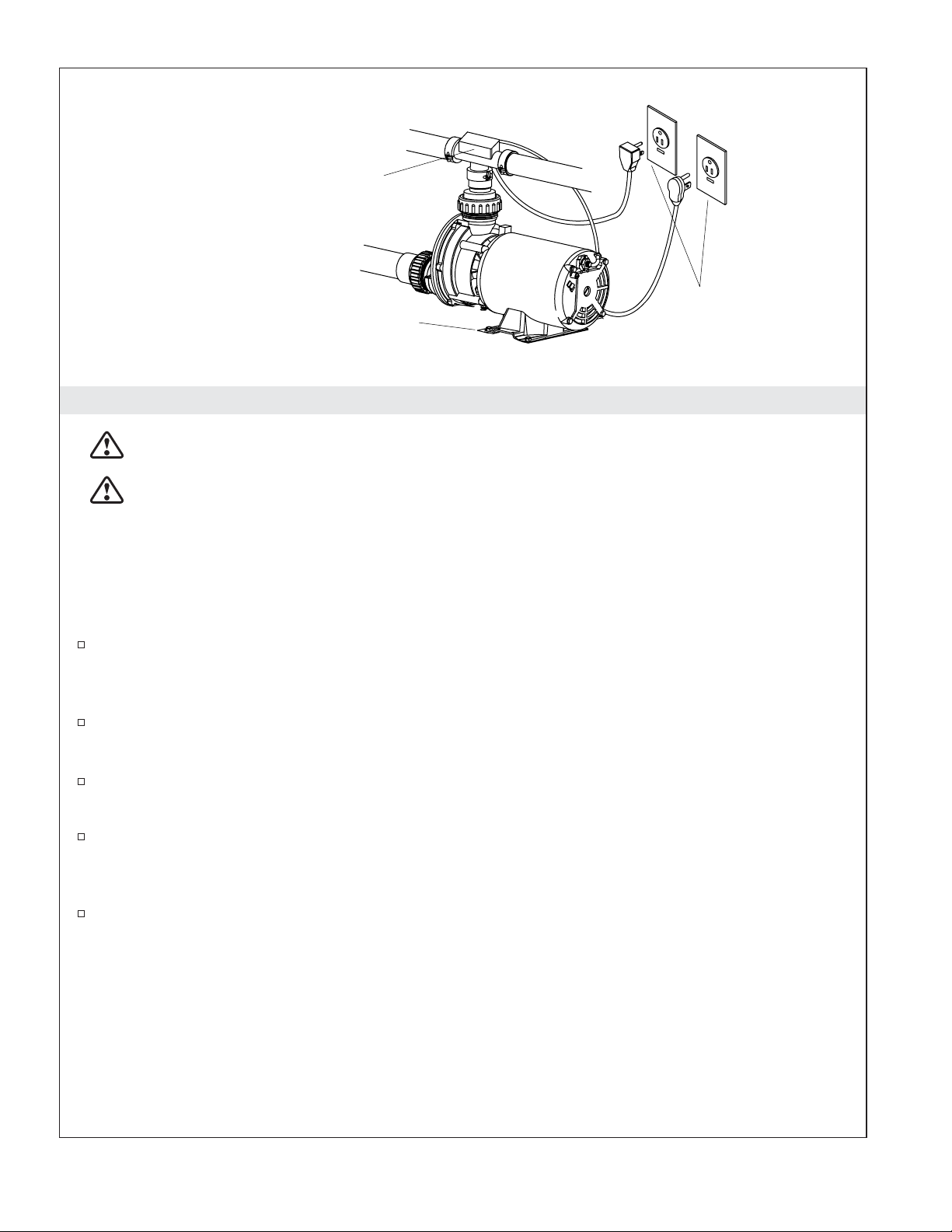

NOTE:
Pump model illustrated may differ from your actual product.
Install a GFCI- or RCD-protected 120 V, 15 A grounded outlet. Install
a second GFCI- or RCD-protected outlet for "H" models for the heater.
Make sure air actuator tubing is securely
attached to the pump or the optional timer box.
Optional Heater (models may vary)
either T-style (shown) or water intake
(not shown).
Bond in accordance with applicable codes.
Plug pump and heater
into these outlets.
Kohler Co. 11 1011092-2-E

9. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool and heater (if
equipped) is on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut (if applicable), and that the pump is resting
directly on the subfloor or whirlpool base.
Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes, and check all whirlpool piping connections for leaks.
For additional information on whirlpool operation, refer to ″Confirm Proper Operation.″

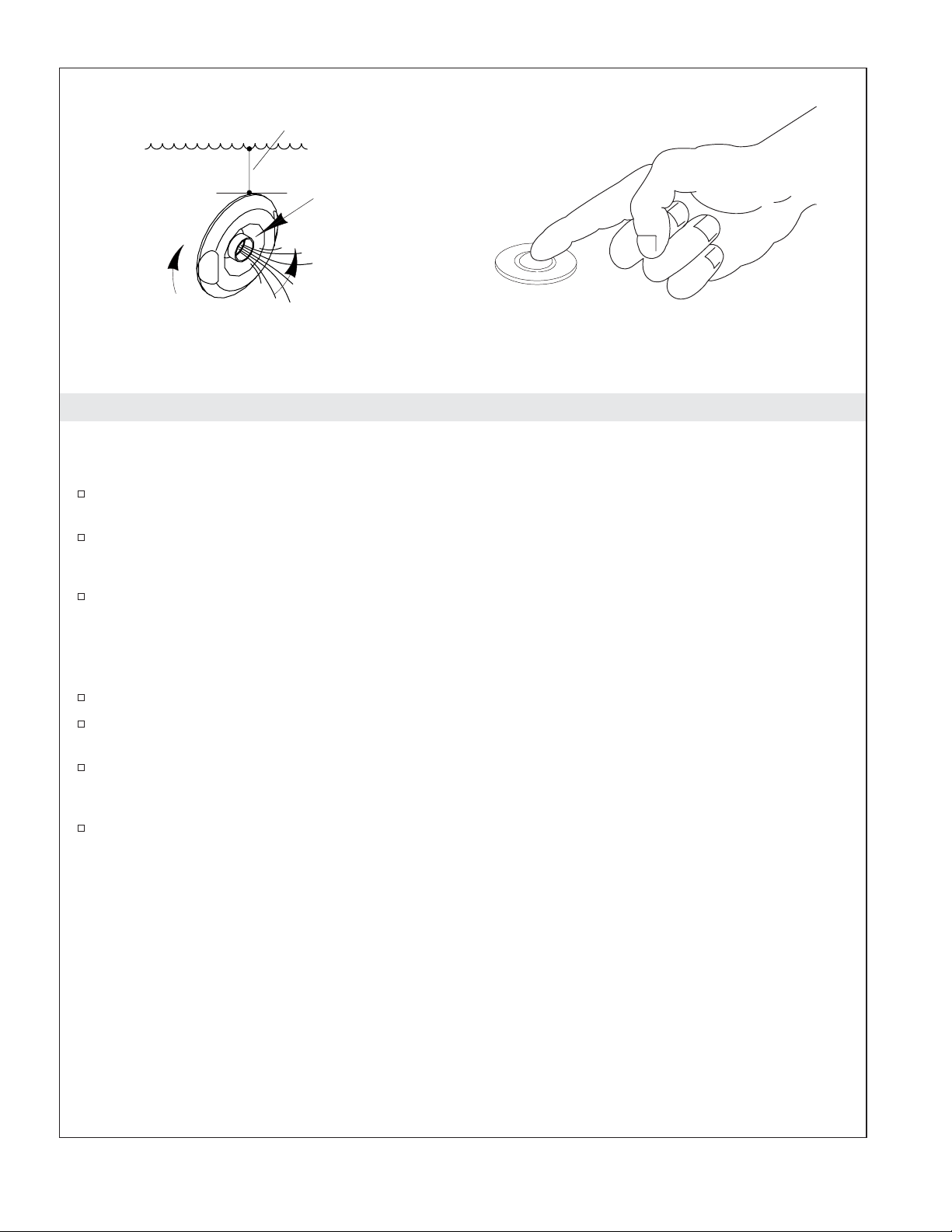

Fill with water at least 2" (5.1 cm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow. Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air switch to turn the
whirlpool on or off.
1011092-2-E 12 Kohler Co.

10. Complete the Finished Wall
NOTE: If your whirlpool has an integral apron, it is designed so the finished wall material (1-1/2″[3.8 cm]
maximum) will overlap the apron columns. The finished floor material (2″[5.1 cm] maximum) should butt
against the apron.
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
If necessary allow for deck-mounted valves and spout.
Cover the framing with water-resistant wall material. Seal the joints between the whirlpool rim edge
and the water-resistant wall material with silicone sealant.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material. Seal the joints between the whirlpool rim and the finished wall material with silicone
sealant.
Install the faucet trim according to the trim manufacturer’s instructions.
11. Removing the Apron
Your whirlpool may be equipped with an integral apron which allows you convenient access to
your whirlpool controls. To remove the apron, insert the edge of a flat blade screwdriver or dull
knife under the edge of the apron panel. Be careful not to scratch the visible surfaces. Gently pry up
at one end. Carefully pull the apron panel off.
To reinstall, bow the apron slightly so both ends can be inserted at the same time. Gently press in
the center of the panel to secure the apron in place.
12. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.

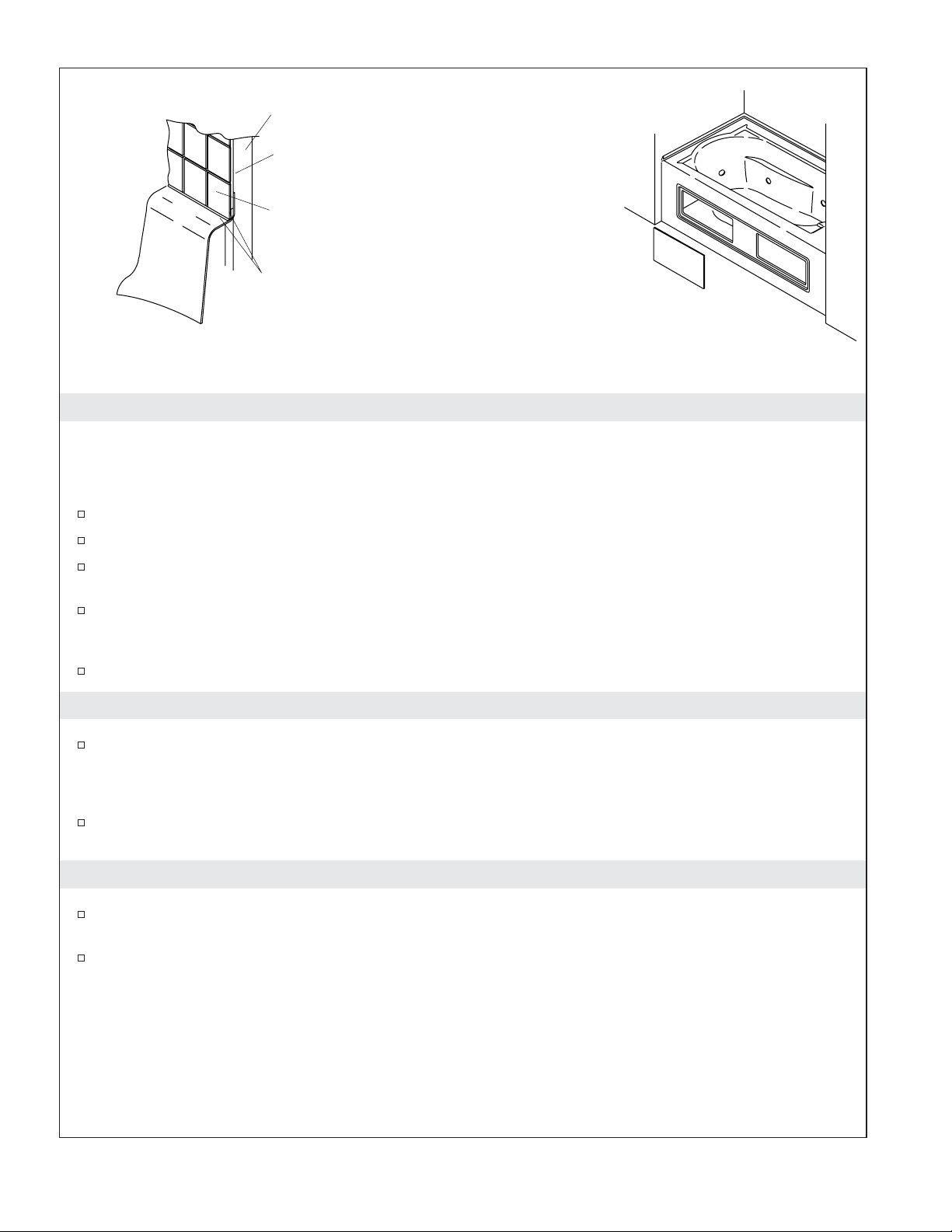

Framing
Whirlpool
Finished Wall
Water-Resistant
Wall Material
Apply silicone sealant to the
joint between the whirlpool
and the finished wall.
On models with an integral apron,
access the pump by gently prying
at the apron edge with a
screwdriver or dull knife to remove.
Kohler Co. 13 1011092-2-E

13. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104°F (40°C).
To service orifices insert a pencil into the end of the jet nozzle and push the orifice out. After
removing any blockage, check the orifice to make sure it is clear and press it into the jet housing.
NOTE: Orifices are only installed in whirlpool jets when there are six or more jets in the whirlpool system.
Operating Sequence
Press the air actuator to turn on the whirlpool jets.
Adjust each jet for optimum air/water mixture. Turn the trim ring clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
If equipped with a heater, the heater will engage automatically when the pump is turned on and
will disengage when the pump is turned off. The heater will not turn on if the water temperature
exceeds 104°F (40°C).
Press the air actuator a second time to turn off the whirlpool.
Fill with water at least 2" (5.1 cm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow. Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air actuator to turn
on and off the whirlpool.
1011092-2-E 14 Kohler Co.

14. Troubleshooting Procedure
Remove the Factory Installed Jets
NOTE: A special tool is provided with the replacement jets that will allow you to remove the jets from the
whirlpool. This tool is also supplied with each trim kit.
Position the jet ball nozzle so it is pointing upward.
NOTE: The nozzle must remain pointed up or the tool will slip off.
Insert the removal tool, hooked end up, into the opening of the jet and hook the inside top of the
nozzle.
Grasp the tool firmly and place your thumb against the whirlpool wall. Pull steadily on the tool
until the jet assembly pulls free of the hole. Be careful not to lose the O-ring.
Reinstall the Jets
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. Whirlpool does not start
or stop. A. No power to motor. A. Check that the pump and heater are plugged in and that the GFCI
or RCD is switched to the correct
position. Plug in or reset the
GFCI/RCD as needed.
B. Air hose is loose or disconnected. B. Check that the hose is connected
at both the receiver/pump end
and to the air switch. Reconnect
if needed.
Remove the Jets
Insert the tool hook as shown and pull the jet out of the
housing. The jet should be facing up when this is done.
Housing
Reinstall the Jets
Insert the jet into the housing, and lightly
push and rotate until it snaps in position.
Slide the O-ring
onto the first
shoulder of the jet.
Inspect and
lubricate the O-ring.
Kohler Co. 15 1011092-2-E

Troubleshooting Procedure (cont.)
Symptoms Probable Causes Recommended Action
C. Air hose is pinched or kinked. C. Adjust hose to clear the
pinched/kinked area. If the
tubing is pinched/kinked and
cannot be readjusted, or no
noticeable pinch/kink is
apparent, poke a small hole in
the tubing with a tack and try
the system again.
D. Part(s) of the push button
assembly is/are damaged. D. Replace the push button assembly.
E. Push button has grease in the
bleed area. E. Disassemble the push button assembly and wipe away any
excess grease. Reassemble the
button and retry the system.
F. Air hose is not properly installed
to the optional timer kit, or the
pump is in the ″off″position.
F. Refer to the timer kit installation
instructions to check the timer kit
installation. Contact the
installer/dealer.
G. Air hose is damaged. G. Replace the air hose.
H. Motor/pump does not work. H. Rebuild or replace motor/pump.
2. Motor starts, not all jets
are functioning. A. Jet is closed. A. Rotate jet trim ring counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. Whirlpool stops
automatically before 18
minutes.
A. The GFCI or RCD trips. A. Identify source of fault, and
correct.
B. Suction blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and protection
device activated. D. Check for blockage at motor vents. Remove blockage and
allow motor to cool.
Check for suction blockage.
Remove blockage and allow
motor to cool.
Check for jet blockage. Remove
blockage and allow motor to
cool.
4. Pump does not prime.
(Models with support
blocks only.)
A. Pump shimmed too high. A. Lower pump support bracket.
5. Noisy operation. A. Pump banding straps have not
been cut. (Models with support
blocks only.)
A. Cut pump banding straps with
tin snips.
B. Jet O-ring dislodged. B. Remove jet, replace and lubricate
O-ring, and reinstall jet.
6. Heater does not operate.
(“H” models only) A. No power to heater. A. Reset the GFCI or RCD.
B. Water temperature exceeds 104°F
(40°C). B. Allow water to cool and heater will reengage.
C. Heater does not work. C. Replace heater.
1011092-2-E 16 Kohler Co.

Guide d’installation
Baignoire à hydromassage bridée 120 V
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation de produits électriques, des précautions de base doivent
toujours être observées, incluant ce qui suit :
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Une mise à la terre est requise. Ce dispositif doit être installé par un technicien qualifié, et il doit être mis à
la terre.
AVERTISSEMENT : Risque d’électrocution. Un électricien agréé doit effectuer toutes les
connexions électriques.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Toutes les
instructions doivent être lues avec la plus grande attention avant de commencer l’installation, et
toutes les conditions suivantes doivent être respectées.
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Informations sur le produit
Branchements électriques requis
L’installation électrique doit avoir un Disjoncteur de Fuite de Terre (GFCI) ou un appareil de courant
résiduel (RCD) de classe A. Le GFCI ou le RCD protège contre les risques d’électrocution phase-terre. Utiliser
une alimentation de 120 V, 15 A, 60 Hz dédiée à la baignoire à hydromassage.
Les modèles«H»nécessitent une alimentation dédiée de 120 V, 15 A, 60 Hz pour le chauffe-eau.
REMARQUE : Si le câble d’alimentation de la pompe est endommagé, il doit être remplacé par le
fabricant, son représentant ou autre personnel similaire qualifié pour éviter tout danger. Le cordon
d’alimentation du chauffe-eau ne peut pas être remplacé. Si le cordon est endommagé, le chauffe-eau
devrait être retiré.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées peuvent provoquer un fonctionnement
dangereux et un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car cela
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kohler Co. décline
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
AVERTISSEMENT : Risque d’électrocution. Un électricien agréé doit effectuer toutes les
connexions électriques.
Kohler Co. Français-1 1011092-2-E

Renseignements importants (cont.)
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez lire toutes
les instructions avant de commencer l’installation.
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Pièces assemblées en usine
Les composants installés en usine comprennent la pompe avec câble d’alimentation électrique et
l’interrupteur d’air. Aucune installation n’est nécessaire.
Les modèles«H»sont aussi fournis avec un chauffe-eau assemblé en usine.
Le kit de minuterie optionnelle est disponible pour certains modèles.
La pompe et la tuyauterie de la baignoire à hydromassage ont été assemblées en usine.
Connexions et accès pour l’entretien
S’assurer que l’accès aux connexions finales est suffisant avant l’installation.
AVIS : Fournir un panneau d’accès libre à la pompe. Il faut prévoir un accès pour l’entretien de la pompe
et des contrôles. L’accès doit être situé tout près de la pompe. Étudier les instructions de raccordement
accompagnant la baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Merci d’avoir choisi la compagnie Kohler ............................................... 3
Outils et matériels ................................................................ 3
Avant de commencer .............................................................. 4
Préparer le site .................................................................. 5
Préparer la baignoire à hydromassage ................................................. 6
Sécuriser la baignoire à hydromassage - Avec blocs de support .............................. 7
Sécuriser la baignoire à hydromassage - Avec base de baignoire ............................. 8
Sécuriser la baignoire à hydromassage au cadrage du montant .............................. 9
Sectionner les sangles de retenue de la pompe .......................................... 9
Installer la plomberie .............................................................. 9
Effectuer les connexions électriques .................................................. 10
Tester la baignoire à hydromassage .................................................. 11
Compléter le mur fini ............................................................. 12
Retirer le bandeau ............................................................... 12
Nettoyage après installation ........................................................ 12
Confirmer le bon fonctionnement .................................................... 13
Procédure de dépannage .......................................................... 14
1011092-2-E Français-2 Kohler Co.

Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la compagnie Kohler reflète la véritable passion
du design, d’artisanat, d’art et d’innovation représentant la compagnie Kohler. Nous sommes confiants que
sa fiabilité et beauté surpasseront vos exigences les plus élevées, vous satisfaisant pendant les années à venir.
Toute l’information dans ce guide est basée sur la dernière disponible au moment de la publication. A la
compagnie Kohler, nous aspirons à remplir notre mission d’améliorer le niveau de vie gracieux pour chaque
individu affecté par nos produits et services. Nous nous réservons le droit d’apporter des modifications aux
caractéristiques, aux emballages et à la disponibilité des produits à tout moment, et ce sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce guide. En cas de problème d’installation ou
de performance, veuillez composer le 1-800-4-KOHLER (1-800-456-4537) à partir des É.U., et Canada, ou le
001-877-680-1310 à partir du Mexique.
Outils et matériels
Mastic à la silicone Crayon
Lunettes de protection
Mètre ruban
Niveau à bulle
Clé à tuyau
Plus:
• Outils conventionnels de menuiserie et
matériaux
• Toile de protection
• Adhésif de construction (optionnel)
• Ciment ou mortier (optionnel)
• 2x4 ou 2x6
• Vis ou tire-fonds
Kohler Co. Français-3 1011092-2-E

Avant de commencer
AVIS : Ne pas soulever la baignoire à hydromassage par la tuyauterie ou par la pompe ou utiliser la
tuyauterie ou la pompe pour supporter la baignoire à hydromassage. Afin d’éviter d’endommager la
baignoire à hydromassage, soulever sur les côtés de la baignoire.
AVIS : Ne pas supporter le poids de charge de la baignoire à hydromassage par le périmètre du rebord. Le
périmètre du rebord doit être soutenu de manière adéquate, mais il ne doit pas supporter le poids de
charge de la baignoire à hydromassage.
Dans le cas de baignoires à hydromassage sans bandeau, il est nécessaire d’effectuer une installation
encastrée. Dans le cas de baignoires à hydromassage muni d’un bandeau intégré ou optionnel, il est
recommandé d’effectuer une installation en alcôve ou en angle, selon le modèle choisi.
Avant de commencer l’installation, examiner la baignoire à hydromassage pour y déceler tout
dommage.
Cette baignoire à hydromassage doit être installée sur un sous-plancher soutenu de manière
adéquate et à niveau.
S’assurer que l’espace de montage et de raccordement du robinet soit adéquat pour l’installation.
Pour des unités en angle avec bandeau intégré: Laisser un électricien qualifié installer les prises
pour la pompe et le chauffe-eau (si utilisé) à l’emplacement spécifié sur la baignoire à
hydromassage. Se référer à l’illustration ci-dessus.
Kohler Co. se réserve le droit d’apporter toutes modifications sur le design des produits et ceci sans
préavis, tel que spécifié dans le catalogue des prix.
Installer les sorties de
la pompe et chaffeau
(si utilisé) sur la
plaque de montage.
Sortie
1011092-2-E Français-4 Kohler Co.
