Kohler K-1167 Assembly instructions

Homeowners Guide

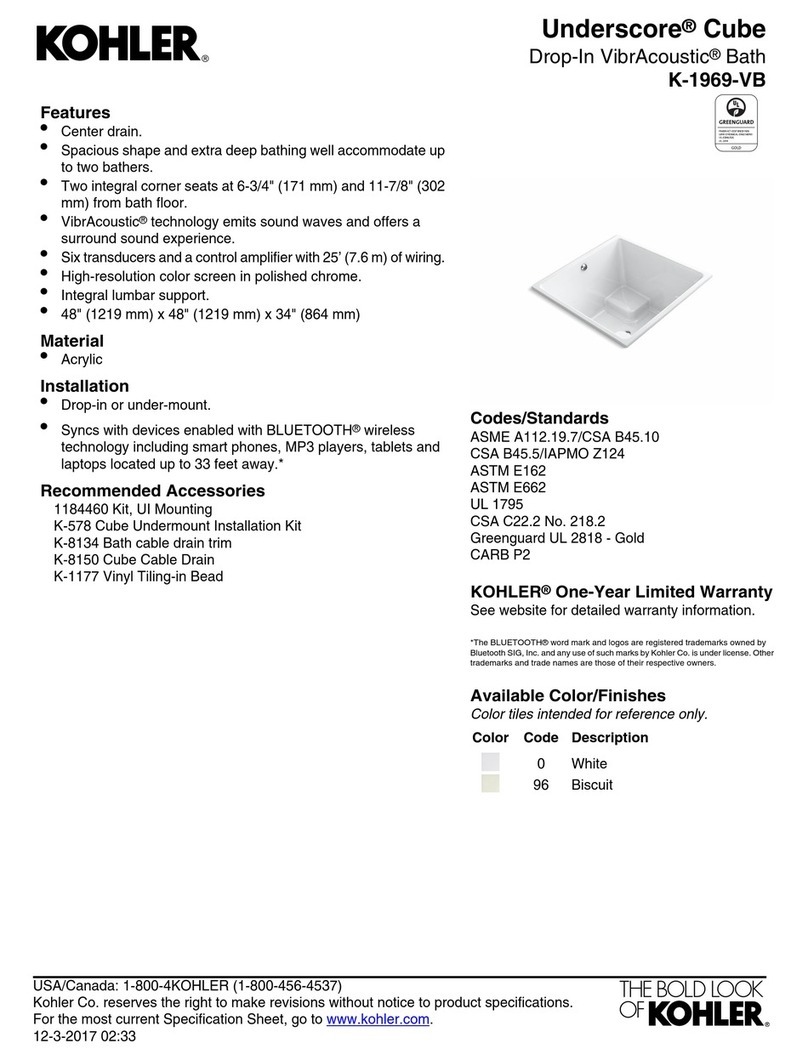

Vibracoustic Bath
K-1167, K-1168, K-1173,
K-1174, K-1822, K-1835,
K-1849, K-1969
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
1181168-5-A

Table of Contents
IMPORTANT INSTRUCTIONS ....................................................... 3
Specifications ................................................................... 3
Your Vibracoustic Bath ............................................................. 4
User Interface Icons ............................................................... 5
Operating Your Bath ............................................................... 6
Setting Menu .................................................................... 7
Experiences ..................................................................... 8
Chromatherapy (If Equipped) ........................................................ 9
Auxiliary Sound ................................................................. 10
Adjusting Resonance ............................................................. 11
Care and Cleaning ............................................................... 11
Troubleshooting ................................................................. 12
Warranty ...................................................................... 15
Warranty ...................................................................... 15
Service Parts ................................................................... 17
1181168-5-A 2 Kohler Co.

IMPORTANT INSTRUCTIONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
WARNING: Risk of electric shock. Connect only to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD). Grounding is required. The unit
should be installed and grounded by a qualified service representative.
WARNING: Risk of electric shock. A licensed electrician should route all electrical wiring.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of electric shock. Do not operate electrical powered auxiliary audio devices near
water.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation.
NOTICE: Follow all plumbing, electrical, and building codes.
Specifications
User Interface
Ambient Temperature Max 125°F (51.5°C)
Maximum Relative Humidity 100% condensing (External surface only)
Interface Cable Length 25’ (7.6 m)
Control Amplifier
Ambient Temperature Greater than 34°F (1°C), Max 104°F (40°C)
Maximum Relative Humidity 95% non-condensing
Transducer Cable Length 25’ (7.6 m)
Chromatherapy Cable Length 25’ (7.6 m)
Electrical Service 120 V, 15 A, 60 Hz
Kohler Co. 3 1181168-5-A

Your Vibracoustic Bath
Your vibracoustic bath is designed to provide a relaxing resonating surround sound experience. The bath is
equipped with the following components:
Bath – Allows the bather to relax in comfort while enjoying the vibracoustic experience.
User Interface – Located within easy reach, the interface allows you to turn the unit ON and OFF. It
also enables you to select experiences and regulate the resonance intensity and chromatherapy
lighting (if equipped). The interface also allows you to select an auxiliary music source (if
connected).
Chromatherapy Lights (if equipped) – Add ambience to your bath with a continuous cycle through
eight colors, or you can set the lighting to a specific color.
Transducers – Components through which the vibracoustic pulses are transferred to the bath. When
the bath is filled with water, two transducers are positioned above the waterline, and four are
located below the waterline.
Control Amplifier – Provides power to the transducers and chromatherapy lighting (if equipped) to
create soothing or exhilarating vibracoustic experiences. The control also contains a port to connect
an optional auxiliary music source.
Your bath offers several distinct vibracoustic experiences:
″Awakening,″″Solitude,″″Transcendence,″″Letting Go,″″Toms,″and ″Up Down″– six custom
experiences combining sound and vibrations designed to relax or invigorate your mind and body.
The sound resonance and lighting color can be adjusted for each experience as desired. Refer to the
″Adjusting Resonance″and ″Chromatherapy Options″sections.
Transducer
Wires
User Interface
Control
Amplifier
Chromatherapy Light
(If Equipped)
Transducer
1181168-5-A 4 Kohler Co.

User Interface Icons
[Home] Icon – The main menu that displays when the user interface is powered ON.
[Setting] Icon – Allows access to menus for brightness, language and reset.
[Experience] Icon – Combination of sound vibrations and original compositions designed to relax
your mind and body.
[Chromatherapy] Icon (equipped models only) – Turns chromatherapy lights in the bath ON or
OFF, and allows adjustment of color.
[Intensity] Icon – Enables adjustment of above water and below water sound resonance for all
experiences.
[Aux] Icon – Allows for the selection of music from an external audio device connected via the
“Line In” jack on the control amplifier.
[Back Arrow] Icon – Allows navigation back to the setting menu after brightness or language
adjustment.
Minus [-] Icon – Decreases resonance intensity or interface screen brightness.
Plus [+] Icon – Increases resonance intensity or interface screen brightness.
[Mute] Icon – Turns sound resonance OFF or ON.
[Music] Icon – Turns auxiliary sound ON or OFF.
[Power OFF] Icon – Turns the user interface OFF.
Music
Mute
Plus
Minus
Home Setting Experience Chromatherapy Intensity Aux
Power OFFBack Arrow
Kohler Co. 5 1181168-5-A

Operating Your Bath
Fill the Bath
To begin using your bath, close the drain, then fill the bath with water.
Using your hand, test the water temperature for comfort and safety. Carefully enter the bath.
Turn On the Interface
NOTE: User Interface “Sleep” Mode – To enhance your bathing experience, the interface is programmed
to darken after two minutes of inactivity. When in sleep mode, the screen will be blank. To resume normal
operation, touch the interface screen.
NOTE: If the interface is not functioning properly, consult the ″Troubleshooting″section of this guide
before calling a qualified service representative.
Touch the screen to turn on the interface. The KOHLER logo will briefly fade in and out, then the
home page will appear.
Navigating the Touch Screen
NOTE: All menu icons displayed on the interface touch screen are enclosed in brackets.
To select a menu option, touch the desired icon.
The brackets of the selected icon will illuminate when the icon is touched, then the screen will
change to the selected menu option.
Home Page
The home page displays the [Experience] icon.
Baths with Chromatherapy (shown): Provide options on the right side of the screen for:
[Chromatherapy], [Aux], [Setting], and [Power OFF].
Baths without Chromatherapy: Provide options on the right side of the screen for: [Aux], [Setting],
and [Power OFF].
Home Page
Aux
Setting
Power OFF
Chromatherapy
(If Equipped)
1181168-5-A 6 Kohler Co.

Setting Menu
From the home page, touch the [Setting] icon to access the setting screen.
The [Setting] menu contains three options: [Brightness], [Language], and [Reset].
Screen Brightness
The [Brightness] option controls the intensity of the interface screen.
Touch the minus [-] icon to decrease brightness, or the plus [+] icon to increase brightness.
To return to the [Setting] menu, touch the [Back Arrow] icon on the right side of the screen.
To return to the home page, touch the [Home] icon.
Language
The [Language] menu provides three options: [English], [Francais], or [Espanõl].
Touch the desired language. The chosen language will illuminate, and any screens accessed from
that point forward will display the chosen language.
To return to the [Setting] menu, touch the [Back Arrow] icon on the right side of the screen.
To return to the home page, touch the [Home] icon.
Reset
The [Reset] option is available to reset the system to factory settings if the user interface is not
functioning properly.
NOTE: To reset the control amplifier and maintain custom settings, unplug the amplifier power supply,
wait 30 seconds, then plug back in.
NOTE: Resetting the system will return your interface to the original factory default settings.
The reset option resets the user interface as well as the control amplifier.
To reset the system, touch the [Reset] icon. After several seconds, the system will reboot and the
user interface will return to the home page.
Reset
Home
Language
Kohler Co. 7 1181168-5-A

Experiences
NOTE: Experience Duration – The unit is designed to run continuously for two hours and then shuts
down whether it is playing an experience or auxiliary sound. Within this two hours, if the user touches
the interface screen, the two-hour timer resets and starts again.
Turn an Experience ON
From the home page, touch the large [Experience] icon to access the various experience options.
The screen will display an experience icon enclosed in brackets.
Touch the icon to begin the experience. The brackets will illuminate while the experience is playing.
The experience will play for two hours unless the user touches the screen to extend the timer or
turns the power OFF.
Select an Experience
The experiences can be changed by touching the arrows to the right or left of the icon. A different
experience can be selected while an experience is currently playing.
The sound resonance and light color can be adjusted for each experience as desired. Refer to the
″Adjusting Resonance″and ″Chromatherapy Options″sections.
Turn the Experience OFF
Touch the icon to turn OFF the experience.
NOTE: Turning on auxiliary sound will stop any experience that is currently playing. Refer to the
″Auxiliary Sound″section.
Chromatherapy
(If Equipped)
Power OFF
Home Page
Aux
Intensity
1181168-5-A 8 Kohler Co.

Chromatherapy (If Equipped)
If your vibracoustic bath is equipped with chromatherapy lights, the user interface home page will display a
[Chromatherapy] icon in the top right corner of the screen.
Three chromatherapy options are available: continuous cycle through eight light colors, pause on a selected
light color, and turn OFF chromatherapy lights. To access these options, touch the [Chromatherapy] icon until
the desired setting is reached.
Turn Chromatherapy ON
NOTE: The default chromatherapy setting is a continuous cycle through eight colors of light.
Touch the [Chromatherapy] icon located at the top right of the interface screen to turn the
chromatherapy lights ON. The brackets will illuminate, and a dotted arrow will appear inside the
icon to indicate that the lights are cycling through all colors.
The chromatherapy lights will continuously cycle through eight colors. One full cycle takes
approximately one minute.
Pause Chromatherapy Color Cycling
The chromatherapy lights can be set to a specific color.
Touch the [Chromatherapy] icon to pause the chromatherapy cycle. The dotted arrow will disappear
to indicate that the lights are paused on the selected color.
During the PAUSE mode, the screen will display right and left arrows.
Touch the right or left arrow to toggle through the desired chromatherapy light color.
Turn Chromatherapy OFF
Touch the illuminated [Chromatherapy] icon to turn the chromatherapy lights OFF. The icon and
brackets will no longer be illuminated and all arrows will disappear.
Experience
Intensity
Home
Color Cycling ON Pause Color Chromatherapy OFF
Aux
Kohler Co. 9 1181168-5-A

Auxiliary Sound
NOTE: The auxiliary sound option is functional only if a cable connection exists between the control
amplifier and an auxiliary sound device.
NOTE: Turning on auxiliary sound will stop any experience that is currently playing.
The auxiliary connection can be used for pairing Bluetooth devices and other audio devices so users
can play their own music with the vibracoustic bath.
To access auxiliary sound, touch the [Aux] icon located on the right side of the screen.
If an auxiliary sound source is connected, touch the [Music] icon to turn the sound ON. The
brackets surrounding the icon will illuminate when the sound is ON.
NOTE: If sound does not resonate through the transducers when the [Music] icon brackets are
illuminated, ensure that the auxiliary device is properly connected and turned ON, and the auxiliary
MUTE function is turned OFF.
The resonance intensity of the auxiliary sound can be controlled from the user interface or from the
auxiliary sound device. Refer to the ″Adjusting Resonance″section to adjust auxiliary sound from
the user interface.
To turn the auxiliary sound OFF, touch the [Music] icon. The brackets will no longer be brightly
illuminated.
Experience
Intensity
Auxiliary Sound ONAuxiliary Sound OFF
Home
Chromatherapy
(If Equipped)
1181168-5-A 10 Kohler Co.

Adjusting Resonance
Your bath is equipped with six transducers. When the bath is filled with water, two transducers are
positioned above the waterline, and four are located below the waterline.
Follow the steps below to adjust transducer intensity.
Resonance Above Water
This function enables the adjustment of the above water sound resonance for all experiences.
While an experience is running, touch the minus [-] or the plus [+] icon above the indicator bars to
adjust resonance intensity coming from the transducers located near the top of the bath.
Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.
Resonance Below Water
This function enables the adjustment of the below water sound resonance for all experiences.
While an experience is running, touch the minus [-] or the plus [+] icon below the indicator bars to
adjust resonance intensity coming from the transducers located near the bottom of the bath.
Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.
Mute
This function mutes the combination of sound and vibrations coming from the transducers.
Touch the [Mute] icon to turn sound resonance ON or OFF. The icon and brackets will illuminate
when MUTE is ON.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
Adjust Resonance Above Water Adjust Resonance Below Water
Experience
Aux
Mute
Home
Kohler Co. 11 1181168-5-A

Care and Cleaning (cont.)
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Troubleshooting
This troubleshooting guide is for general aid only. For service and installation issues or concerns, call
1-800-4KOHLER.
Troubleshooting Table
Symptom Probable Cause Recommended Action
1. No sound; no experiences
are functioning. A. Power to the control amplifier is off. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. The control amplifier must be
reset. B. If the red LED on the control amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. The control amplifier does not
work. C. If the red LED on the control amplifier is still not blinking
following restart, replace the control
amplifier.
D. The user interface cable
connections are loose or
damaged.
D. Inspect the cable for loose
connections or damage. Tighten the
connections or replace the cable as
needed.
E. The experiences data module
connection is loose or damaged. E. Inspect the data module for loose connection or damage. Tighten the
connection or replace the module as
needed.
F. The user interface does not
work. F. Replace the user interface.
G. An experience has not been
selected on the user interface. G. Select an experience.
H. The vibracoustic intensity is
muted on the user interface. H. Touch the [Mute] icon on the user interface to turn off the mute
setting.
2. The music is distorted
(undesirable resonance)
when the vibracoustic
functions are on.
A. The intensity setting is too high
on the user interface. A. Turn down the intensity setting on the user interface.
B. The transducers on the back
surface of the bath are in direct
contact with framing, joists, or
other materials.
B. Remove or reposition any materials
that are making direct contact with
the transducers.
C. One or more of the transducers
on the back surface of the bath
are loose.
C. Rotate the loose transducer(s)
clockwise with your fingers until
tight. Do not overtighten.
D. The bath is making direct
contact with framing, joists, or
other materials.
D. Identify the point of contact and
correct it. The bath must not make
contact with any framing or support
materials.
3. The user interface does
not light up and does not
work.
A. Power to the control amplifier is
not on. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
1181168-5-A 12 Kohler Co.

Troubleshooting (cont.)
Troubleshooting Table
Symptom Probable Cause Recommended Action
B. The control amplifier must be
reset. B. If the red LED on the control amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. The control amplifier does not
work. C. If the red LED on the control amplifier is still not blinking
following restart, replace the control
amplifier.
D. The user interface cable
connections are loose or
damaged.
D. Inspect the cable for loose
connections or damage. Tighten the
connections or replace the cable as
needed.
E. The user interface does not
work. E. Replace the user interface.
4. The user interface lights
up but does not work. A. The control amplifier must be reset. A. If the red LED on the control amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
B. The control amplifier does not
work. B. If the red LED on the control amplifier is still not blinking
following restart, replace the control
amplifier.
C. The user interface cable
connections are loose or
damaged.
C. Inspect the cable for loose
connections or damage. Tighten the
connections or replace the cable as
needed.
D. The user interface does not
work. D. Replace the user interface.
5. The Auxiliary music does
not work. A. Power to the control amplifier is not on. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. The control amplifier must be
reset. B. If the red LED on the control amplifier is not blinking, unplug the
control amplifier for 30 seconds,
then plug in and restart.
C. The control amplifier does not
work. C. If the red LED on the control amplifier is still not blinking
following restart, replace the control
amplifier.
D. The auxiliary music source
option is not selected on the
user interface.
D. Select the auxiliary music option on
the user interface.
E. The vibracoustic sound is
muted on the user interface. E. Touch the [Mute] icon on the user interface to turn off the mute
setting.
F. The vibracoustic intensity is
turned down on the user
interface.
F. Turn up the vibracoustic intensity
on the user interface.
G. The auxiliary-in or user
interface cable connections are
loose or damaged.
G. Inspect the cables for loose
connections or damage. Tighten the
connections or replace the cables as
needed.
H. The user interface does not
work. H. Replace the user interface.
Kohler Co. 13 1181168-5-A

Troubleshooting (cont.)
(Optional) Chromatherapy Troubleshooting Table
Symptom Probable Cause Recommended Action
1. Chromatherapy lights do
not work. A. Power to the control amplifier is off. A. Reset the circuit breaker to the control amplifier, then check the
electrical power supply and
connections.
B. The control amplifier must be
reset. B. If the red LED on the control amplifier is not blinking, unplug
the control amplifier for 30
seconds, then plug in and restart.
C. The control amplifier does not
work. C. If the red LED on the control amplifier is still not blinking
following restart, replace the
control amplifier.
D. The Chromatherapy or user
interface cable connections are
loose or damaged.
D. Inspect the cables for loose
connections or damage. Tighten or
replace the cables as needed.
E. The user interface does not
work. E. Verify that the user interface cable is securely connected to the user
interface and the control amplifier
terminal. If the connections are
good, replace the user interface.
F. The Chromatherapy feature has
not been selected on the user
interface.
F. Select the Chromatherapy feature
on the user interface.
G. The Chromatherapy control
does not work. G. Replace the Chromatherapy control.
2. The Chromatherapy lights
do not cycle through all
colors.
A. The control amplifier must be
reset. A. If the red LED on the control amplifier is not blinking, unplug
the control amplifier for 30
seconds, then plug in and restart.
B. The control amplifier does not
work. B. If the red LED on the control amplifier is still not blinking
following restart, replace the
control amplifier.
C. The Chromatherapy or user
interface cable connections are
loose or damaged.
C. Inspect the cables for loose
connections or damage. Tighten or
replace the cables as needed.
D. The user interface does not
work. D. Cycle through the Chromatherapy light functions. If the
Chromatherapy lights do not cycle
through all colors and the blue icon
on the user interface is not lit,
replace the user interface.
E. If none of the recommended
actions correct the problem,
contact Kohler Co.
E. Contact the Customer Care Center
using the contact information on
the back cover.
3. The Chromatherapy lights
remain locked on one
color when cycled.
A. The control amplifier must be
reset. A. If the red LED on the control amplifier is not blinking, unplug
the control amplifier for 30
seconds, then plug in and restart.
B. The control amplifier does not
work. B. If the red LED on the control amplifier is still not blinking
following restart, replace the
control amplifier.
1181168-5-A 14 Kohler Co.

Troubleshooting (cont.)
(Optional) Chromatherapy Troubleshooting Table
Symptom Probable Cause Recommended Action
C. The user interface does not
work. C. Cycle through the Chromatherapy light functions. If the
Chromatherapy lights do not cycle
and the blue icon on the user
interface is not lit, replace the user
interface.
D. If none of the recommended
actions correct the problem,
contact Kohler Co.
D. Contact the Customer Care Center
using the contact information on
the back cover.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI
53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how
long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You
may also have other rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Warranty
KOHLER
®
Electronic Faucets, Valves and Controls
FIVE-YEAR LIMITED WARRANTY
Kohler Co. warrants that its electronic faucets, valves and controls will be free of defects in material and
workmanship during normal residential use for five years from the date the product is installed. This
warranty applies only to electronic faucets, valves and controls installed in the United States of America,
Canada and Mexico (″North America″).
If a defect is found in normal residential use, Kohler Co. will, at its election, repair, provide a replacement
part or product, or make appropriate adjustment where Kohler Co.’s inspection discloses any such defect.
Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning
will void the warranty*. Proof of purchase (original sales receipt) must be provided to Kohler Co. with all
warranty claims. Kohler Co. is not responsible for labor charges, installation, or other incidental or
consequential costs other than those noted above. In no event shall the liability of Kohler Co. exceed the
purchase price of the faucet, valve or control.
If the electronic faucets, valves or controls are used commercially or are installed outside of North America,
Kohler Co. warrants that the faucet, valve or control will be free from defects in material and workmanship
Kohler Co. 15 1181168-5-A

Warranty (cont.)
for one (1) year from the date the product is installed, with all other terms of this warranty applying except
duration.
If you believe that you have a warranty claim, contact your Home Center, Dealer, Plumbing Contractor or
E-tailer. Please be sure to provide all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, the date the product was purchased, from whom the
product was purchased and the installation date. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility nearest you, write Kohler Co., Attn:
Customer Care Center, Kohler, Wisconsin 53044 USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-800-456-4537 from within Mexico, or visit www.kohler.com within the
USA, www.ca.kohler.com from within Canada, or www.mx.kohler.com in Mexico.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of such damages, so these limitations and exclusions may not
apply to you. This warranty gives the consumer specific legal rights. You may also have other rights that
vary from state/province to state/province. This warranty is to the original consumer purchaser only, and
excludes product damage due to installation error, product abuse, or product misuse, whether performed
by a contractor, service company, or the consumer.
This is Kohler Co.’s exclusive written warranty.
*Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or
other products not recommended for chrome. This will void the warranty.
1181168-5-A 16 Kohler Co.

Service Parts
**Finish/color code must be specified when ordering.
Mounting Plate
1172315**
Spring Clip
1172318
Controller
Assembly
1190051
Access
Cover
1176986
Mounting
Bracket
1176987
User Interface
Cable Assembly
1182596
Transducer
1180388
93841
Screw
1012821
Light Housing
1010618
Elbow
1019933
Chromatherapy Lights
User Interface Assembly
1190050-J**
1190050-K**
Access
Cover Kit
1184458
Chromatherapy
Cable Assembly
1183679
Mounting Kit (2 ea.)
1184459
Mounting
Kit
1184460**
(Without Chromatherapy)
(With Chromatherapy)
User Interface
1175680-J**
1175680-K** (Without Chromatherapy) (With Chromatherapy)
Data Module
1190095
Kohler Co. 17 1181168-5-A

Guide du propriétaire
Baignoire Vibracoustic
Sommaire
INSTRUCTIONS IMPORTANTES ..................................................... 2
Spécifications ................................................................... 2
La baignoire Vibracoustic ........................................................... 3
Icônes de l’interface utilisateur ....................................................... 4
Fonctionnement de la baignoire ...................................................... 5
Menu Paramètre ................................................................. 6
Effets ......................................................................... 7
Chromathérapie (si équipée) ........................................................ 8
Son auxiliaire .................................................................... 9
Réglage de la résonance .......................................................... 10
Entretien et nettoyage ............................................................ 10
Dépannage .................................................................... 11
Garantie ...................................................................... 14
Garantie ...................................................................... 15
Pièces de rechange .............................................................. 17
Kohler Co. Français-1 1181168-5-A

INSTRUCTIONS IMPORTANTES
AVERTISSEMENT: Lors de l’utilisation de produits électriques, toujours observer les
précautions de base, notamment:
AVERTISSEMENT: Risque d’électrocution. Raccorder uniquement à des circuits protégés par un
disjoncteur de fuite de terre (GFCI) ou un appareil de courant résiduel. La mise à la terre est
requise. L’appareil doit être installé et mis à la terre par un représentant technique qualifié.
AVERTISSEMENT: Risque d’électrocution. Tout câblage électrique doit être réalisé par un
électricien agréé.
AVERTISSEMENT: Risque d’électrocution. Mettre hors tension avant de procéder à toute
réparation.
AVERTISSEMENT: Risque d’électrocution. Ne pas faire fonctionner d’appareil audio auxiliaire
électrique près de l’eau.
AVERTISSEMENT: Risque de blessures ou d’endommagement du matériel. Lire toutes les
instructions avant de commencer l’installation.
AVIS: Respecter tous les codes de plomberie, d’électricité et de bâtiment.
Spécifications
Interface utilisateur
Température ambiante Max 125°F (51,5°C)
Humidité relative maximale Condensation 100% (surface externe uniquement)
Longueur du câble d’interface 25’ (7,6 m)
Amplificateur de contrôle
Température ambiante Plus que 34°F (1°C) Min 104°F (40°C)
Humidité relative maximale 95% sans condensation
Longueur du câble du transducteur 25’ (7,6 m)
Longueur du câble de chromathérapie 25’ (7,6 m)
Service électrique 120 V, 15 A, 60 Hz
Kohler Co. Français-2 1181168-5-A

La baignoire Vibracoustic
La baignoire Vibracoustic est conçue pour apporter un grand moment de détente en ambiophonie par
résonance. La baignoire est équipée des composants suivants:
Baignoire – Permet de se détendre dans le plus grand confort tout en appréciant l’effet
vibracoustique.
Interface utilisateur – Facile d’accès, l’interface permet de démarrer ou d’arrêter l’appareil. Elle
permet également de sélectionner les effets et de régler l’intensité de la résonance et l’éclairage de
chromathérapie (si équipée) et de sélectionner une source de musique auxiliaire (si connectée).
Lumière de chromathérapie (si équipée) – L’ambiance du bain change grâce à un cycle
chromatique continu de huit couleurs ou en réglant l’éclairage sur une couleur particulière.
Transducteurs – Composants grâce auxquels les impulsions vibracoustiques sont transférées à la
baignoire. Lorsque la baignoire est pleine d’eau, deux transducteurs se trouvent au-dessus du
niveau de l’eau et quatre autres se trouvent sous l’eau.
Amplificateur de contrôle – Alimente les transducteurs et l’éclairage de chromathérapie (si équipée)
pour créer une ambiance relaxante ou exaltante. Le contrôle contient également un port permettant
de connecter une source de musique auxiliaire.
La baignoire offre plusieurs effets vibracoustiques différents:
″Awakening″,″Solitude″,″Transcendence″,″Letting Go″,″Toms″,et″Up Down″– six effets
customisés combinant sons et vibrations pour relaxer ou revigorer corps et esprit.
Pour chaque effet, il est possible de régler la résonance sonore et les couleurs de l’éclairage. Voir les
sections ″Réglage de la résonance″et ″Options de chromathérapie″.
Câbles du
transducteur
Interface utilisateur
Amplificateur
de contrôle
Lumière de chromothérapie
(si équipeé)
Transducteur
1181168-5-A Français-3 Kohler Co.
