Kohler K-1151 User manual

Installation Guide
Bath with Airjets with Integral Apron
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page“ Français-1”
Español, página“ Español-1”
K-1151 K-1257 K-1357
K-1244
1040292-2-C

Important Information
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI).
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
Building materials and wiring should be routed away from the blower motor body and other heat-producing
components of the unit.
Install to permit access for servicing.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI). The GFCI protects against
line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated service for the bath with airjets.
NOTE: If the pump supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation or affect performance of the
bath with airjets. Do not relocate the blower motor, or make other modifications to the system in the
absence of kit instructions, as this could adversely affect the performance and safe operation of the
bath with airjets. Kohler Co. shall not be liable under its warranty or otherwise for personal injury or
damage caused by any such unauthorized modification.
WARNING: Keep the area around the blower motor clean and free of debris. Ensure that the area
around the blower motor is free of sawdust, insulation, dirt, or other small loose debris. Such material
could clog the blower motor air ducts and reduce the air flow through the blower.
Factory-Assembled Features
Factory installed components include blower motor with power supply cord, check valve, air piping, user
keypad, and keypad cable. Other than power wiring and plumbing, no assembly is needed.
Connections and Service Access
NOTICE: Provide unrestricted service access to the blower motor. You must provide access for servicing
the blower motor and check valve. The access must be located immediately next to the blower motor.
Study the roughing-in information packed with the bath.
Before installation, ensure that there is proper access to the blower motor and final connections. If the blower
motor is installed in an enclosed area, an access panel is required at the blower motor. This panel should be
1040292-2-C 2 Kohler Co.

Product Information (cont.)
18″(45.7 cm) wide and 14″(35.6 cm) high minimum.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Factory-Assembled Features ...................................................... 2
Connections and Service Access ................................................... 2
Thank You For Choosing Kohler Company .............................................. 4
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 4
Prepare the Site ................................................................. 5
Prepare the Site - Concrete Construction ............................................... 6
Prepare the Bath with Airjets ........................................................ 6
Secure the Unit .................................................................. 7
Option Using a Cement or Mortar Bed ............................................... 7
Option Using Construction Adhesive ................................................. 7
Secure the Whirlpool .............................................................. 8
Install the Plumbing ............................................................... 8
Make Electrical Connections ......................................................... 9
Test Run the Bath with Airjets ....................................................... 10
Complete the Finished Wall ........................................................ 11
Removing the Apron Panel ......................................................... 11
Clean-Up After Installation ......................................................... 11
Confirm Proper Operation .......................................................... 12
Fill the Bath .................................................................. 12
Troubleshooting Procedure ......................................................... 14
Troubleshooting Guide .......................................................... 14
Kohler Co. 3 1040292-2-C

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start your installation. If you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing
Kohler Company.

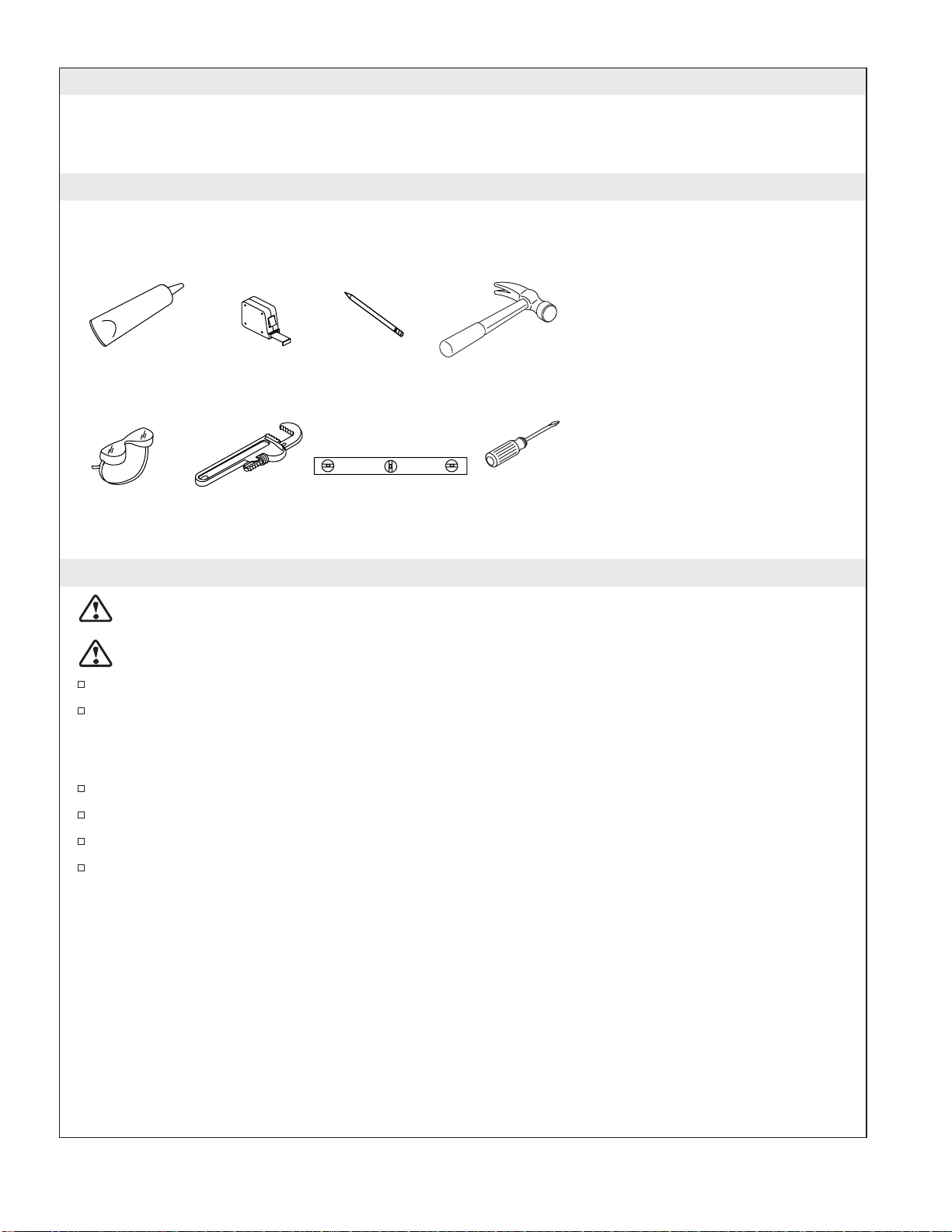

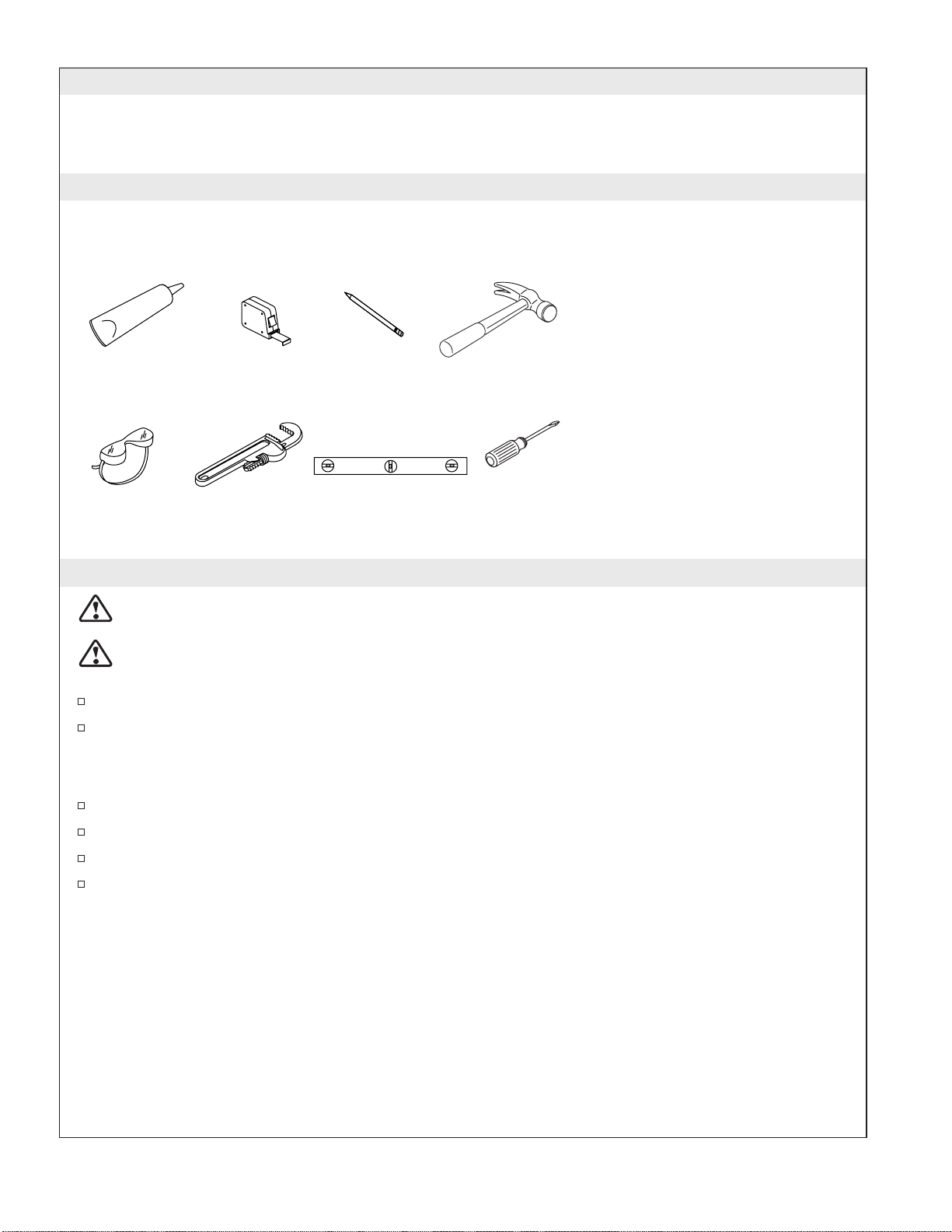

Tools and Materials
Before You Begin
CAUTION: Risk of product damage. Do not lift the bath with airjets by the piping or blower motor, or
use the piping or blower motor for structural support of the bath.
CAUTION: Risk of product damage. Do not lift the bath with airjets by the integral apron.
We recommend this bath with airjets for alcove installation.
Please read these instructions carefully to familiarize yourself with the required tools, material, and
installation sequences. Follow the sections that pertain to your particular installation. This will help
you avoid costly mistakes. In addition to installation instructions, read all operating and safety
instructions.
Inspect the bath with airjets for damage before you begin installation.
You must install this bath to an adequately supported, level subfloor.
Confirm adequate mounting and connection space for the faucet specified for your installation.
An optional accessories kit is available for relocating the blower motor. Refer to the back cover for
contact information if this kit is desired but was not ordered. If relocating the blower motor, follow
the instructions that came with the kit while performing this installation.
Pencil
Safety Glasses Level
Silicone Sealant Measuring Tape
Pipe Wrench
Plus:
• Conventional woodworking tools
and materials
• Drop Cloth
• Construction adhesive (optional)
• Cement or mortar (optional)
• #6 Large-head Galvanized Nails
• 2x4's or 2x6's
Claw
Hammer
Blade
Screwdriver
1040292-2-C 4 Kohler Co.

1. Prepare the Site
CAUTION: Risk of product damage. Do not support the bath by the rim.
NOTICE: Unless otherwise specified, floor support under the bath must provide for a minimum of 80
lbs./square foot (390 kg./square meter) loading.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the floor offers adequate support for your bath, and verify that the subfloor is flat and
level.
Construct 2x4 or 2x6 stud framing designed for your particular installation.
Install an access panel to allow the blower motor to be serviced.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Showerhead
Blocking
Supply
Valves
Spout
Header
Over
Opening
Remove
Bottom
Plate
Kohler Co. 5 1040292-2-C

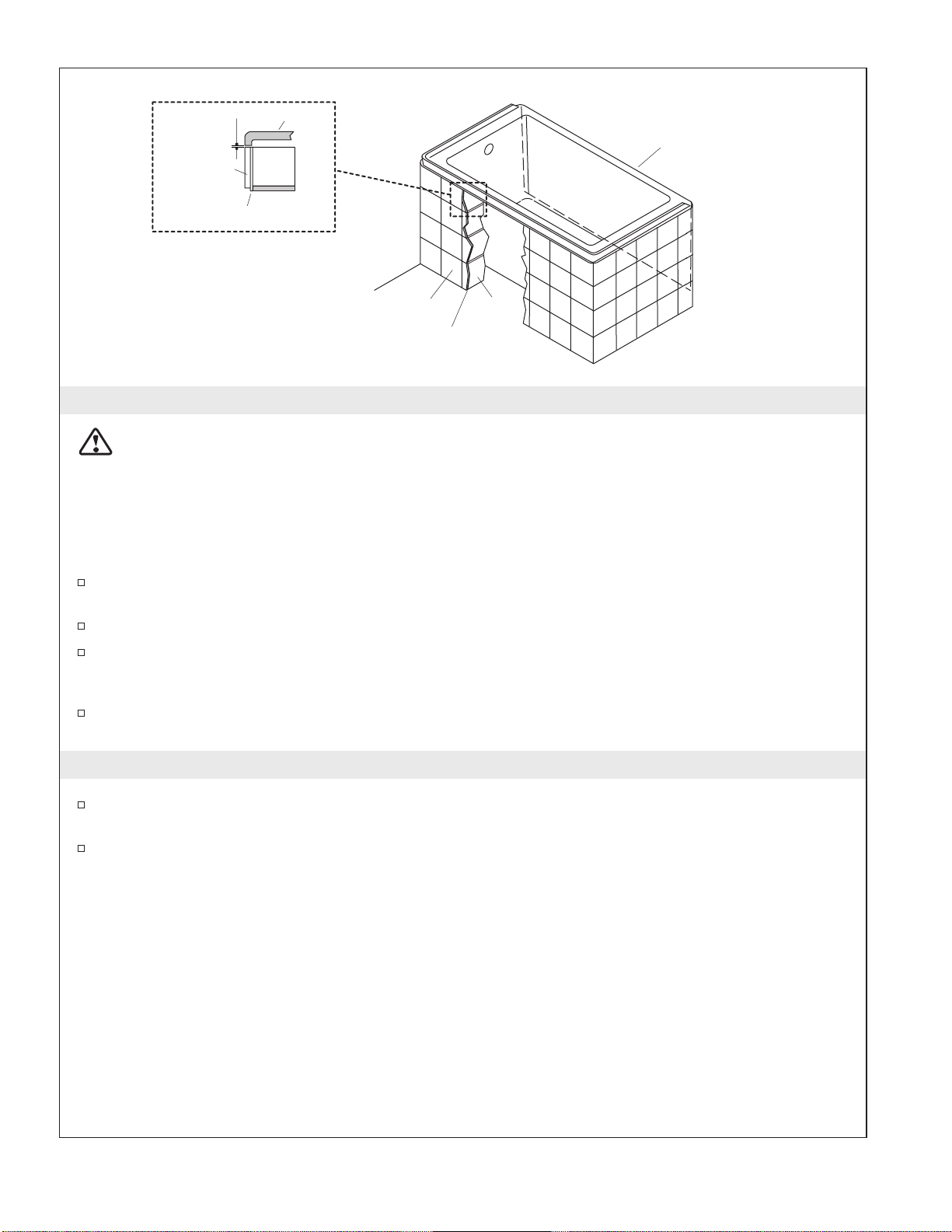

2. Prepare the Site - Concrete Construction
CAUTION: Risk of product damage. Do not support the bath by the rim.
NOTICE: Unless otherwise specified, floor support under the bath must provide for a minimum of 80
lbs./square foot (390 kg./square meter) loading.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the flooring offers adequate support for your bath, and verify that the subfloor is flat and
level.
Construct brick or concrete supports.
Provide a 1/16″(2 mm) gap between the bath rim and the concrete or brick framing. Frame the
floor, or construct a frame for a raised installation, in accordance with the roughing-in information
packed with the bath.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
3. Prepare the Bath with Airjets
Install the drain to the bath according to the drain manufacturer’s instructions. Do not connect the
trap at this time.
Position a clean drop cloth or similar material in the bottom of the bath to protect the finish. Be
careful not to scratch the surface of the bath.
Brick
Bath
1/16"
(2 mm)
Tile
Approved Tile Backing
Tile
Approved Tile Backing
Apron Side
Brick
1040292-2-C 6 Kohler Co.

4. Secure the Unit
CAUTION: Risk of product damage. Do not lift the bath with airjets by the air channels or blower
motor, or use the air channels or blower motor for structural support of the bath.
CAUTION: Risk of product damage. Do not support the bath by the rim.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the bath support blocks as necessary.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Spread a 2″(5 cm) thick layer of cement or mortar on the subfloor where the bath will be set. This
will help secure, level, and support the unit. Clear all the material away from the support block
locations.
Position a piece of plastic drop cloth material on top of the cement or mortar bed.
With help, carefully lift the bath into place, and make sure the support blocks do not rest in the bed
material.
Insert the drain tailpiece into the trap. Make sure the bath is level and resting on all support blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the bath.
Allow the sealant to cure according to the manufacturer’s instructions.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the bath into position.
Insert the drain tailpiece into the trap. Make sure the bath is level and resting on all support blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the bath.
Allow the sealant to cure according to the manufacturer’s instructions.
Clear spaces
for support
blocks.
Apply construction
adhesive to the
support blocks.
Spread a 2" (5.1 cm)
layer of cement or
mortar bed material.
Kohler Co. 7 1040292-2-C

5. Secure the Whirlpool
Wood Construction
Drill a small pilot hole through the nailing-in flange at each stud. Add shims between the nailing-in
flange and the studs as needed to eliminate gaps.
Nail 1/4” (6 mm) thick furring strips to the studs to shim out to the edge of the nailing-in flange.
Use #6 large-head galvanized nails to secure the nailing-in flange to the studs.
Concrete Construction
NOTE: We recommend that the flange be secured to the wall for support.
Drill pilot holes through the nailing-in flange so they are about 16” (40.6 cm) apart.
Install concrete wall anchors to the wall at the pilot hole locations.
Secure the nailing-in flange to the wall anchors with screws.
6. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the bath drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the bath, and check the drain connections for leakage.
Stud
Nail 1/4" (6 mm)
thick furring strips
to the studs. Drill a small hole
through the nailing-in
flange at each stud.
Use #6 large-head
galvanized nails to secure
the nailing-in flange to the
studs.
1040292-2-C 8 Kohler Co.

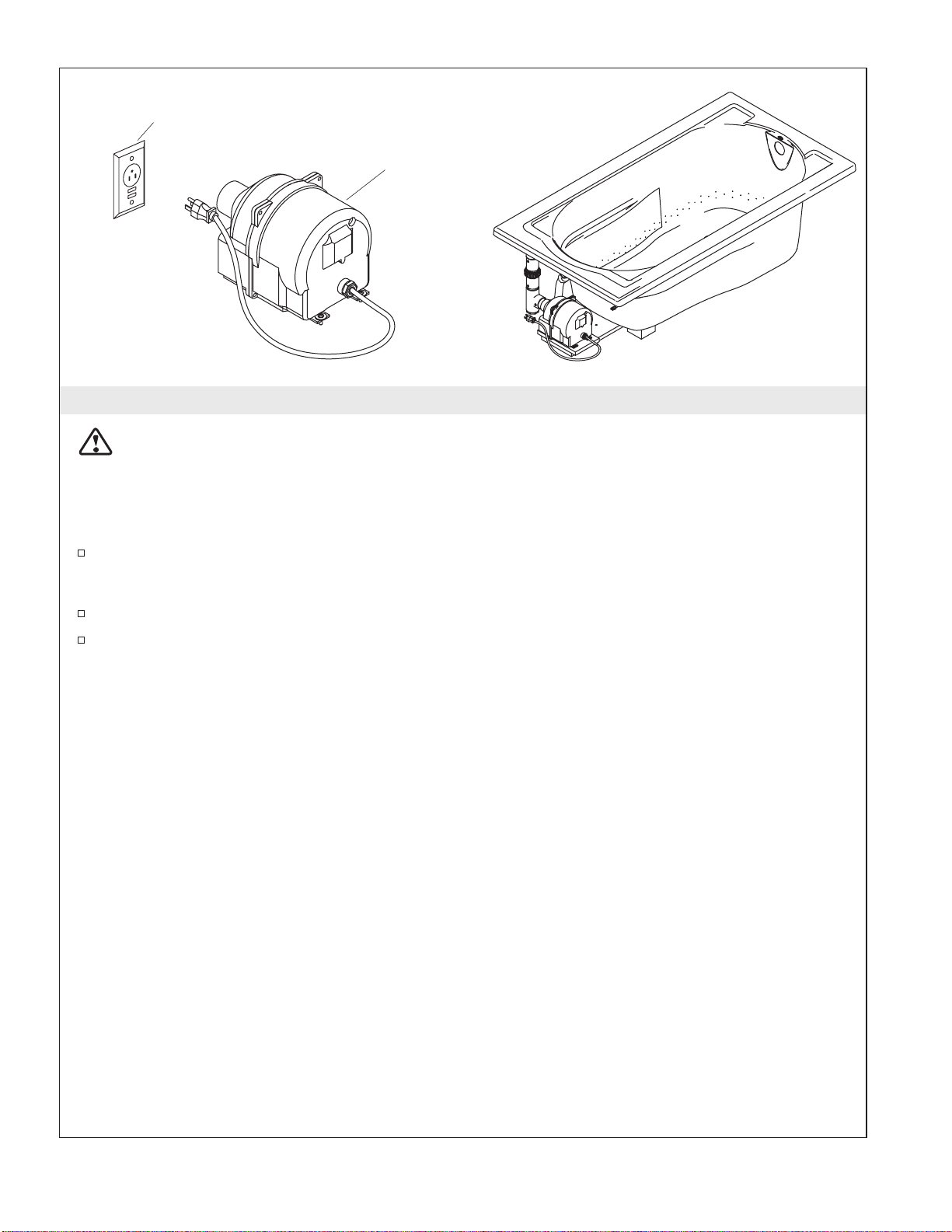

7. Make Electrical Connections
WARNING: Risk of electric shock. To reduce the risk of electrical shock, connect the blower motor to
a properly grounded, grounding-type receptacle protected by Ground-Fault Circuit-Interrupters
(GFCI’s). Do not remove the plug grounding pins. Do not use grounding adapters.
NOTE: The bath with airjets model number is printed on a label near the blower motor. This label also
identifies the electrical rating.
Your Kohler bath with airjets is equipped with a cord and plug. The blower motor has been wired
at the factory. A licensed electrician must install a dedicated GFCI-protected, 120 V, 15 A, grounded
outlet. Locate the outlet behind the bath, and within 24″(61 cm) of the blower motor.
Plug the blower motor into this outlet.
Clean the area of all dust and debris.
Blower Motor
GFCI-Protected
Receptacle
Kohler Co. 9 1040292-2-C

8. Test Run the Bath with Airjets
For information on unit operation, refer to the ″Confirm Proper Operation″section.
Check all electrical connections, and make sure the electrical power to the bath with airjets is on.
Make sure all piping connections in the air harness are secure.
Verify that the blower motor is secure.
Temporarily remove the plastic drop cloth or other protective sheeting from the bath.
Fill the bath to a level at least 2″(5 cm) above the top of the highest airjet.
Check the drain piping for leaks. Repair any leaks.
Operate the bath and check for air flow through the airjets. Check the air piping for air leaks.
Stop the bath and drain the water.
Return the plastic drop cloth or other protective sheeting to the bath.
Purge Mode
On/Off
Increases Flow
Decreases Flow
1040292-2-C 10 Kohler Co.

9. Complete the Finished Wall
NOTE: Your bath with airjets has an integral apron. It is designed so the finished wall material [1-1/2” (3.8
cm) maximum] will overlap the apron columns. The finished floor material [2” (5 cm) maximum] should
butt against the apron.
If you have not already done so, carefully remove the protective tape from the bath rim.
If necessary allow for deck-mounted valves and spout.
Cover the bath framing with water-resistant wall material. Seal the joints between the rim edge and
the water-resistant wall material with silicone sealant.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material. Seal the joints between the bath rim and the finished wall material with silicone sealant.
Install the faucet trim according to the trim manufacturer’s instructions.
10. Removing the Apron Panel
To remove the apron panel, insert the edge of a flat blade screwdriver or dull knife under the edge
of the panel. Be careful not to scratch the visible surfaces. Gently pry up at one end. Carefully pull
the apron panel off.
To reinstall, bow the apron panel slightly so both ends can be inserted at the same time. Gently
press in the center of the panel to secure it in place.
11. Clean-Up After Installation
Clean the area around the blower motor of all dust and debris.
Use warm water and a liquid detergent to clean the surface of the bath with airjets. Do not use
abrasive cleansers, as they may scratch and dull the surface. Do not use powdered cleaners unless
the cleaner is fully dissolved in water. Solid substances could block the airjets. Do not use bleach
or ammonia cleaning solutions. Chemically active cleaning solutions can damage the bath surface.
Refer to the homeowners guide for normal cleaning recommendations.
Framing
Bath
Finished Wall
Water-Resistant
Wall Material
Apply silicone sealant to the
joint between the bath and
the finished wall. On models with an integral apron,
access the pump by gently prying
at the apron edge with a
screwdriver or dull knife to remove.
Kohler Co. 11 1040292-2-C

12. Confirm Proper Operation
Fill the Bath
CAUTION: Risk of product damage. Ensure that the area around the blower motor is free of sawdust,
insulation, dirt, or other small loose debris. Such material could clog the blower motor air ducts and
reduce the air flow through the blower motor.
NOTE: Please read these steps carefully before you operate your bath with airjets. Troubleshoot any
problems using the ″Troubleshooting″section.
Keypad Operation
On/Off - Turns the blower motor on and off. Pressing the switch once starts the blower motor at a
midrange speed. Pressing the button again stops the blower motor. The blower motor automatically
stops after about 20 minutes of operation. The blower motor can be restarted by pressing the
On/Off button.
Purge Mode - Initiates the purge cycle manually. The purge cycle blows any residual water out of
the air channels after the bath has been drained. Pressing the button once starts the blower motor at
low-speed. The blower motor stops automatically after about two minutes. Pressing the button
again before the cycle ends will stop the blower motor. Note that this product also has an automatic
purge cycle, which initiates about 30 minutes after the blower has stopped.
Increases Flow - Increases the air flow.
Decreases Flow- Decreases the air flow.
Preliminary Checks
Temporarily remove all access panels.
Verify that the union connection at the check valve is securely hand tightened.
Verify that the screws are installed in the PVC air piping at the blower motor and at the check
valve.
Verify that cable ties support the air piping.
Verify that the blower motor is secure.
Verify that the keypad cable is securely connected at the user keypad and at the blower motor.
Fill the bath to a level at least 2″(5 cm) above the top of the highest airjet.
Purge Mode
On/Off
Increases Flow
Decreases Flow
1040292-2-C 12 Kohler Co.

Confirm Proper Operation (cont.)
Confirm Air System Operation
Press the power button on the user keypad.
Observe that the blower motor starts at a midrange speed.
Observe that air is blowing through all of the airjets.
Press the up button on the user keypad.
Verify that the air flow increases.
Press the down button on the user keypad.
Verify that the air flow decreases.
Press the power button on the keypad to stop the blower motor.
Confirm Manual Purge Operation
Drain the bath.
When the bath has drained, press the purge button once.
Observe that the blower motor starts at low speed and blows any residual water from the air
channels.
Observe that air comes out of the airjets.
Verify that pressing the purge button again stops the blower motor.
Press the purge button to restart the manual purge.
Observe that the blower motor stops automatically after about two minutes.
Confirm Automatic Purge Operation
Press the power button.
Press the power button again to turn off the blower. Note the time.
If filled, drain the bath.
Observe that the blower motor starts in the purge cycle after about 30 minutes.
Observe that the blower motor stops automatically after about two minutes.
Kohler Co. 13 1040292-2-C

13. Troubleshooting Procedure
Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. Bath with airjets does not start. A. No power to blower motor. A. Set/reset GFCI or ELCB
breaker; check wiring.
B. User keypad cable loose or
damaged. B. Check wire connections. If necessary, replace user keypad
cable.
C. User keypad does not work. C. Check wire connections.
Replace user keypad.
D. Blower motor does not work. D. Replace blower motor.
2. Blower motor starts, but there
are few or no bubbles. A. Blower motor is disconnected. A. Connect blower motor to air harness.
B. Blower motor air flow is
restricted. B. Clean the area around the blower motor. Ensure adequate
ventilation.
3. Bath stops automatically before
18 minutes. A. GFCI or ELCB trips. A. Identify source of fault and correct.
B. Motor overheated and
protection device activated. B. Check for blockage at motor vents. Remove blockage and
allow motor to cool.
4. Bath does not stop
automatically after 22 minutes. A. Blower motor does not work. A. Replace blower motor.
5. Blower motor does not stop
when power button on user
keypad is pressed.
A. User keypad cable loose or
damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
6. Blower motor operates but
variable speed feature does not
work.
A. User keypad cable loose or
damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
C. Blower motor does not work. C. Replace blower motor.
7. Automatic purge cycle does
not occur. A. Blower motor does not work. A. Replace blower motor.
Purge Mode
On/Off
Increases Flow
Decreases Flow
1040292-2-C 14 Kohler Co.

Troubleshooting Procedure (cont.)
Symptoms Probable Causes Recommended Action
8. Manual purge cycle does not
work. A. User keypad cable loose or damaged. A. Check wire connections. If necessary, replace user keypad
cable.
B. User keypad does not work. B. Replace user keypad.
C. Blower motor does not work. C. Replace blower motor.
Kohler Co. 15 1040292-2-C

Guide d’installation
Baignoire à jets d’air avec bandeau intégré
Renseignements importants
DANGER : Risque d’électrocution. Raccorder uniquement à une prise de terre protégée par un
disjoncteur différentiel (GFCI).
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
être toujours observées, incluant ce qui suit :
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques doivent être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou de dommages matériels. S’il vous plaît, veuillez lire avec
attention cette notice avant de commencer l’installation :
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
Les matériaux de construction et le câblage devraient être acheminés loin du corps du moteur-souffleur et
des autres composants producteurs de chaleur.
Installer de façon à permettre l’accès pour l’entretien.
Information sur le produit
Branchements électrique requis
L’installation doit avoir un disjoncteur de fuite de terre de classe A (GFCI). Le disjoncteur GFCI protège
contre les risques de chocs. Utiliser une alimentation dédiée de 120 V, 15 A, 60 Hz pour la baignoire à jets
d’air.
REMARQUE : Si le câble d’alimentation de la pompe est endommagé, il doit être remplacé par le
fabricant, son représentant ou autre personnel similaire qualifié pour éviter tout danger.
Notices du produit
AVERTISSEMENT : Des modifications non-authorizées pourraient provoquer un fonctionnement
dangereux ou affecter la performance de la baignoire à jets d’air. Ne pas re-localiser le
moteur-souffleur, ni effectuer d’autres modifications au système sans les instructions du kit, ce qui
pourrait affecter la performance et l’opération sécurisée de la baignoire à jets d’air. Kohler Co. décline
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
AVERTISSEMENT : Garder l’espace autour du moteur-souffleur propre et exempt de débris.
S’assurer que l’espace autour du moteur-souffleur soit exempt de sciure, insulation, poussière, ou
autres petits débris volatiles. De tels matériaux pourraient boucher les conduits d’air du
moteur-souffleur et réduire le débit d’air à travers le souffleur.
Kohler Co. Français-1 1040292-2-C

Information sur le produit (cont.)
Pièces assemblées à l’usine
Les composants installés en usine comprennent le moteur-souffleur avec câble d’alimentation, valve clapet de
non retour, conduits d’air, clavier d’utilisateur, et câble du clavier. Aucun montage n’est nécessaire excepté
celui du câblage électrique et de la tuyauterie.
Raccordements et accès pour l’entretien
AVIS : Prévoir un accès total de service au moteur-souffleur. Prévoir unaccès pour l’entretien du
moteur-souffleur et de la valve clapet de non retour. La panneau d’accès doit être placé juste à côté du
moteur-souffleur. Etudier le plan de raccordement qui accompagne la baignoire.
Avant l’installation, s’assurer qu’il y ait un bon accès au moteur-souffleur et aux connexions. Si le
moteur-souffleur est installé dans un espace fermé, un panneau d’accès au moteur-souffleur est requis. Ce
panneau devrait être de 18″(45,7 cm) de large et de 14″(35,6 cm) de haut minimum.
Sommaire
Renseignements importants ......................................................... 1
Information sur le produit ........................................................... 1
Branchements électrique requis .................................................... 1
Notices du produit .............................................................. 1
Pièces assemblées à l’usine ....................................................... 2
Raccordements et accès pour l’entretien .............................................. 2
Merci d’avoir choisi Kohler Company. .................................................. 3
Outils et matériaux ................................................................ 3
Avant de commencer .............................................................. 3
Préparation du site ................................................................ 4
Préparation du site - Construction ciment ............................................... 5
Préparation de la baignoire à jets d’air ................................................. 5
Fixation de l’unité ................................................................. 6
Option pour utilisation de lit de ciment ou de mortier ..................................... 6
Option pour l’utilisation d’adhésif de construction ........................................ 6
Fixation de l’unité ................................................................. 8
Installation de la plomberie .......................................................... 8
Faire des raccordements électriques .................................................. 9
Effectuer un essai de fonctionnement de la baignoire à jets d’air ............................. 10
Compléter le mur fini ............................................................. 11
Retirer le panneau du bandeau ...................................................... 11
Nettoyage après l’installation ....................................................... 11
Confirmation du bon fonctionnement .................................................. 12
Remplir la baignoire ............................................................ 12
Procédure de dépannage .......................................................... 14
Guide de dépannage ........................................................... 14
Kohler Co. Français-2 1040292-2-C

Merci d’avoir choisi Kohler Company.
Nous apprécions votre engagement envers la qualité Kohler. Veuillez lire attentivement ce guide avant de
commencer l’installation. N’hésitez pas à nous contacter en cas de problème d’installation ou de
fonctionnement. Nos numéros de téléphone et notre adresse du site Internet sont au verso. Merci encore
d’avoir choisi la Compagnie Kohler.
Outils et matériaux
Avant de commencer
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à jets d’air par les
tuyaux ou le moteur-souffleur, ou utiliser ceux-ci comme support de la baignoire.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à jets d’air par le
bandeau intégré.
Nous recommandons cette baignoire à jets d’air pour une installation en alcôve.
Veuillez lire avec attention cette notice pour connaître les outils et matériel requis, ainsi que les
étapes d’installation. Suivre les étapes qui s’appliquent particulièrement à votre installation. Ceci
vous évitera des erreures coûteuses. Outre les conseils d’installation appropriée, lire toutes les
instructions d’utilisation et de sécurité.
Avant l’installation, examiner la baignoire à jets d’air pour déceler tout dommage.
Cette baignoire doit être installée sur un support adéquat, et sur un sol nivelé.
S’assurer que l’espace du montage et du raccordement soit adéquat pour l’installation du robinet.
Un jeu d’accessoires optionnel est disponible pour relocaliser le moteur-souffleur. Consulter le dos
de la couverture pour les coordonnées si le kit désiré n’a pas été commandé. Suivre les instructions
incluses avec le kit lors de l’installation si le moteur-souffleur est relocalisé.
Niveau à bulle
Joint en silicone Mètre ruban
Clé à griffes
Plus:
• Outils conventionnels de
menuiserie et matériaux
• Chiffon
• Adhésif de construction (optionnel)
• Ciment ou mortier (optionnel)
• Clous galvanisés #6 à tête large
• 2x4 ou 2x6
Marteau de
charpentier
Tournevis plat
Crayon à
papier
Lunettes de
protection
1040292-2-C Français-3 Kohler Co.

1. Préparation du site
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire par le rebord.
AVIS : Le support de plancher sous la baignoire doit pouvoir soutenir une charge minimale de 80 lbs./pi
carré (390 Kg/m2) sauf contre-indication.
AVIS : Fournir une ventilation adéquate et un minimum de 15 pieds cube (0.4 m3) à l’endroit d’installation
pour le refroidissement du moteur et pour alimenter assez d’air au souffleur. Ne pas installer le
moteur-souffleur plus près que 1″(2,5 cm) du mur ou d’autres objets.
S’assurer que le plancher constitue un support adéquat pour votre baignoire et vérifier que le sol
soit plat et nivelé.
Construire un cadre avec des montants de2x4oude2x6pour votre installation particulière.
Installer un panneau d’accès pour l’entretien du moteur-souffleur.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
arrivées d’eau et vérifier s’il y a des fuites.
Pomme de douche
Support
Valves
d'alimentation
Bec
Linteau au-
dessus de
l'ouverture
Retirer
plaque
inférieure.
Kohler Co. Français-4 1040292-2-C

2. Préparation du site - Construction ciment
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire par le rebord.
AVIS : Le support de plancher sous la baignoire doit pouvoir soutenir une charge minimale de 80 lbs./pi
carré (390 Kg/m2) sauf contre-indication.
AVIS : Fournir une ventilation adéquate et un minimum de 15 pieds cube (.4 m3) à l’endroit d’installation
pour le refroidissement du moteur et pour alimenter assez d’air au souffleur. Ne pas installer le
moteur-souffleur plus près que 1″(2,5 cm) du mur ou d’autres objets.
S’assurer que le podium constitue un support adéquat pour votre baignoire et que le fond soit plat
et nivelé.
Construire un support en brique ou béton.
Laisser un espace de 1/16″(2 mm) entre le rebord de la baignoire et le cadre en brique ou en béton.
Préparer le plancher ou construire un cadre pour une installation élevée, selon le plan de
raccordement fourni avec la baignoire.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
arrivées d’eau et vérifier s’il y a des fuites.
3. Préparation de la baignoire à jets d’air
Installer le drain à la baignoire selon les instructions du fabricant du drain. Ne pas connecter le
siphon à ce moment.
Placer un linge propre ou matière similaire au fond de la baignoire pour protéger la finition. Faire
attention à ne pas rayer la surface de la baignoire.
Brique
Baignoire
1/16"
(2 mm)
Carreau
Panneau de support
à carreau approuvé
Carreau
Panneau de support à
carreau approuvé
Côté bandeau
Brique
1040292-2-C Français-5 Kohler Co.
