Kohler K-1835-H2-0 Assembly instructions

Installation and Care Guide
Whirlpool Bath
Standard Installation
Retain serial number for reference.
Numéro de série du produit:
Número de serie del producto:__________________________
Français, page “Français-1”
Español, página “Español-1”
1194657-2-B

Installation Instructions
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI)*.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the electric supply panel with a
conductor equivalent in size to the circuit conductors supplying this equipment.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
NOTICE: Follow all local plumbing and electrical codes. In Canada, install this unit in accordance with
the Canadian Electrical Code, Part 1.
*Outside North America, this device may be known as a Residual Current Device (RCD).
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD). The GFCI or RCD protects against line-to-ground shock hazards. Use a 220 - 240 V, 20 A, 50/60 Hz
dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of
the whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool
system, as this could adversely affect the performance and safe operation of the whirlpool. Kohler
Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any
such unauthorized modification.
Features
″CT″Series: Components include a pump, heater, control, effervescence ports, chromatherapy lights, and
illuminated keypad with remote control.
″AH″Series: Components include a pump, heater, control, effervescence ports, chromatherapy lights,
1194657-2-B 2 Kohler Co.

Product Information (cont.)
whirlpool jets, and illuminated keypad with remote control.
″M″Series: Components include a pump, heater, control, backjet system, neckjet system, whirlpool jets, and
illuminated keypad with remote control.
″V″Series: Components include a pump, heater, control, backjet system, neckjet system, effervescence ports,
chromatherapy lights, whirlpool jets, and illuminated keypad with remote control.

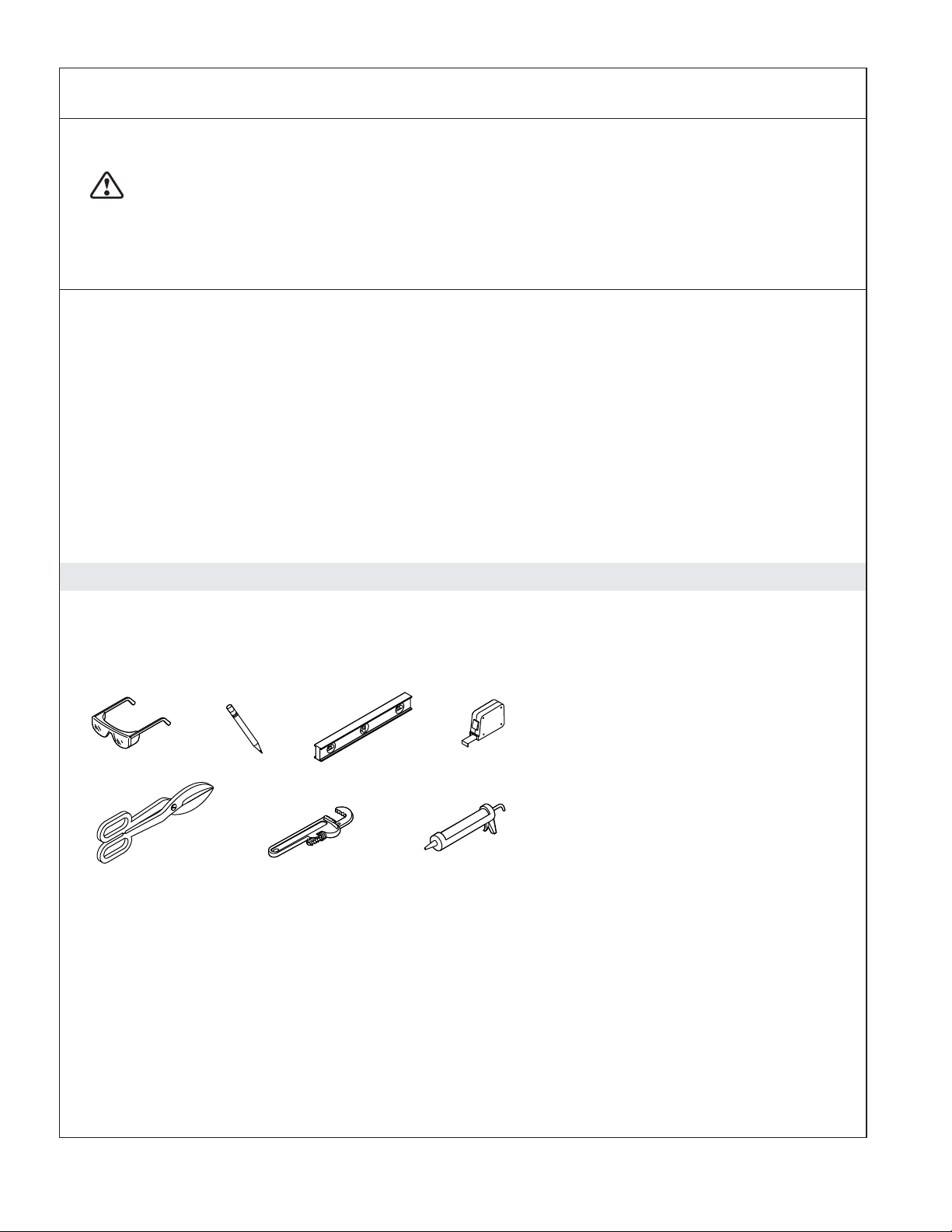

Tools and Materials
100% Silicone Sealant
Plus:
• Conventional Woodworking
Tools and Materials
• Drop Cloth
• Construction Adhesive (Optional)
• Cement* or Mortar (Optional)
• 2x4s
* Do not use gypsum cement.
Tin Snips
Kohler Co. 3 1194657-2-B

1. Prepare the Site
NOTICE: Measure your product for site preparation. Note the model number located on the pump, then
visit the product page at www.kohler.com for more information.
NOTICE: Provide generous, unrestricted access to the pump. You must provide access for servicing the
pump and controls. The access must be located immediately next to the pump.
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the rim.
NOTE: Drop-in, alcove, or corner installation is possible, depending on the product chosen.
Carefully unpack and inspect the new whirlpool for damage before installation. If there is damage
do not install the whirlpool; contact your dealer.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
Construct 2x4 stud framing.
Install an access panel for future pump servicing. The access panel must be at least 20″(508 mm)
wide by 15″(381 mm) high.
Install the rough plumbing.
Install the drain to the whirlpool according to the drain manufacturer’s instructions.
Protect the whirlpool surface by positioning a clean drop cloth in the basin bottom.
Access
Panel
Construct according
to the product dimensions.
Construct 2x4
stud framing
according to the
product dimensions.
Position the
rough plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
Alcove Drop-In
Position
the rough
plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
1194657-2-B 4 Kohler Co.

2. Install the Whirlpool
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the whirlpool by the rim.
If the subfloor is not level, shim the whirlpool support blocks or molded supports as necessary.
Option 1: Install Using Construction Adhesive
NOTE: Some models come with support blocks; some models have molded supports.
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks
or molded supports. With help, carefully lift the whirlpool into position.
Option 2: Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Set the basin area in 1″(25 mm) to 2″(51 mm) of mortar cement.
NOTE: The pump control (when the pump banding straps are cut) must rest directly on the subfloor.
The pump control should not be in contact with mortar.

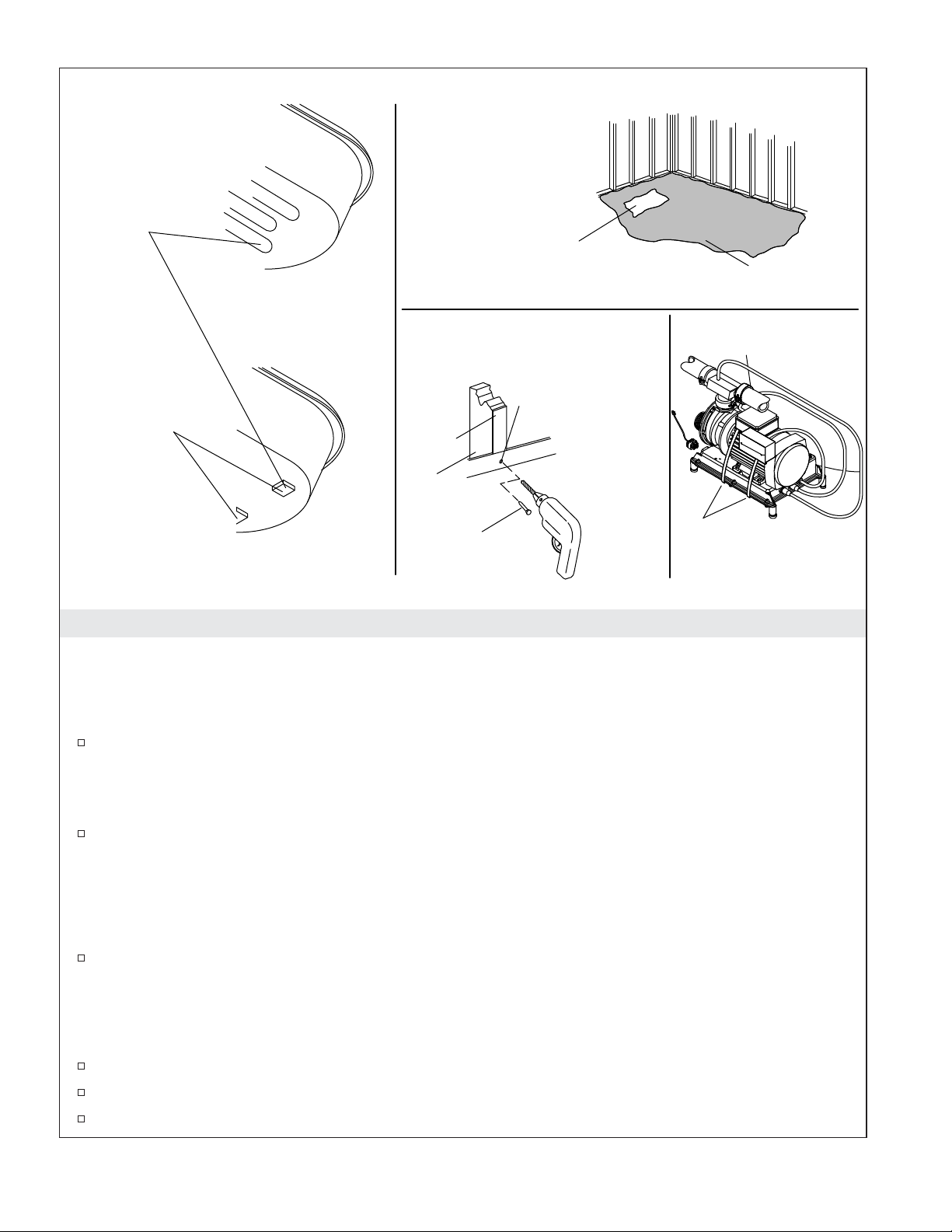

Secure the Nailing-in Flanges (Alcove Units)
Drill a small pilot hole through the nailing-in flange at each stud. Add shims as needed.
Use large-head galvanized nails to secure the nailing-in flange to the studs.
Nail 1/4″(6 mm) thick furring strips to the studs.
Stud
Cement or
Mortar Bed
Clear space for pump.
Option 1
Furring
Strip
Nail
Option 2
Three Wall Alcove or
Corner Installations
Support Blocks
Apply construction
adhesive.
Cut the Pump
Banding Straps
Drill a small hole
through the nailing-in
flange at each stud.
Cut the pump
banding straps.
Kohler Co. 5 1194657-2-B

Install the Whirlpool (cont.)
Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make the whirlpool operate more quietly.
Cut the two pump banding straps from the whirlpool pump with a tin snips.
NOTE: Do not raise the pump higher than it was before cutting the straps. If the pump is raised too high,
it will not prime properly. Make sure the rubber isolation feet are in place.
Install the Plumbing
Insert the drain tailpiece into the trap. Secure the drain tailpiece to the trap.
Install the faucet valve.
Check the drain connections for leakage.
If needed, install the grab bars according to the instructions.
1194657-2-B 6 Kohler Co.

3. Make Electrical Connections
NOTE: The product model number is printed on a label on the pump side of the whirlpool bath. This
label also identifies the electrical rating of the product. All whirlpools come equipped with a wiring
junction box and are designed to operate between 220 V and 240 V at either 50 Hz or 60 Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before
performing the following procedures.
WARNING: Risk of electrical shock. Connect the pump to a properly grounded Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD). This will provide additional
protection against line-to-ground shock hazard. A 220-240 V, 20 A, 50/60 Hz dedicated circuit is
required.
IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal
on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripe is the
equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.
NOTE: The wiring harness includes an antenna for the optional remote control. Do not alter or damage
this antenna during installation.

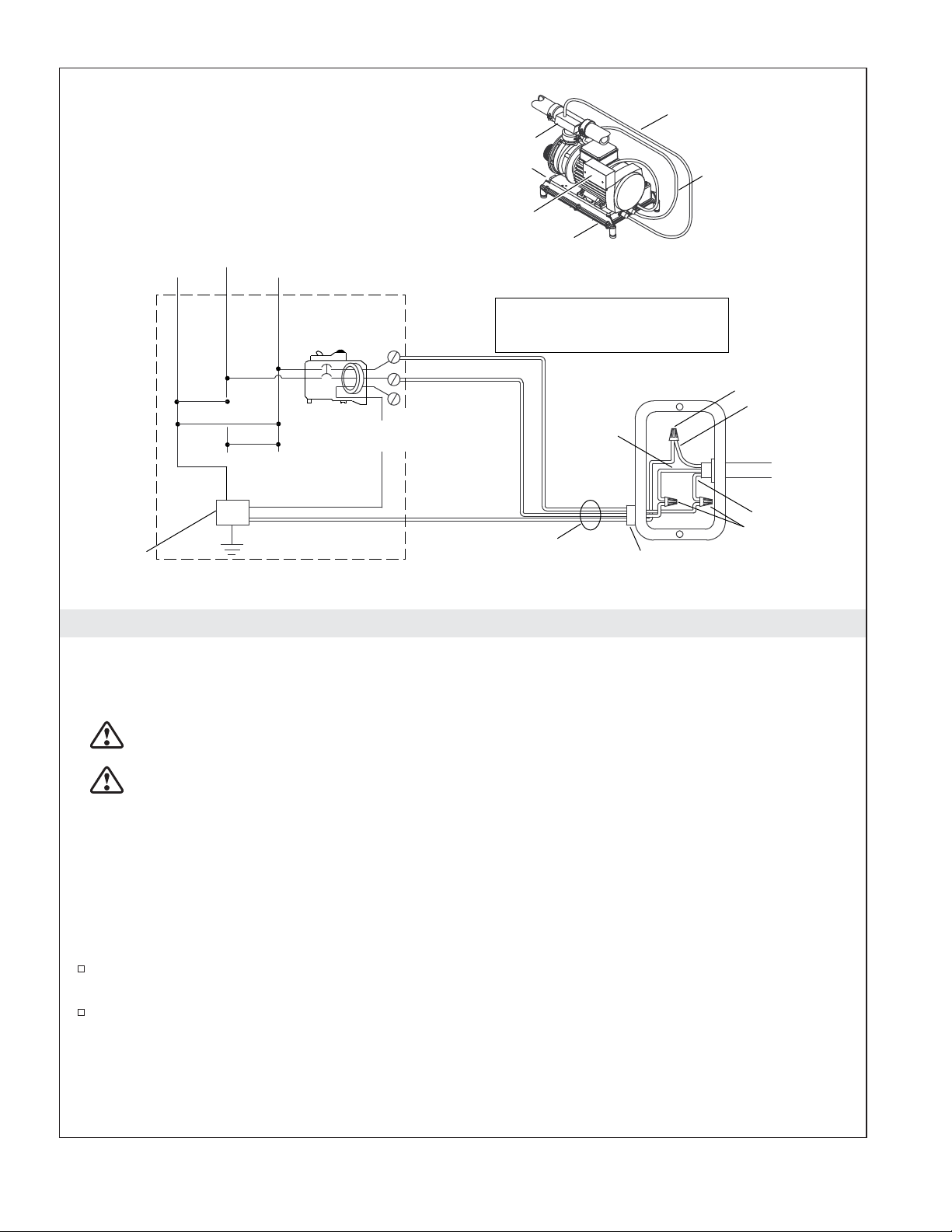

Connect service to the junction box. The junction box contains blue, brown, and green with a yellow
stripe colored wires and a ground lug
Follow local electrical codes. Bond in accordance with national and local codes.
NL2
From Control
Bond in accordance with national and local codes.
Open bonding lugs are located at top of the junction box.
Heater (models may vary)
T-style (shown) or In-line (not shown)
Heater Electrical Cord
Pump Electrical Cord
Control
Junction Box
120/240
VAC Source Typical Wiring Connection for North America
Wiring Harness
*Connections to be made
by the electrician.
Wire Connector
Ground (Green
with Yellow
Stripes)
Brown (L2)
Wire Connectors
Electrician to provide suitable
strain relief.
Field Wiring (From
Junction Box to
GFCI Breaker)
No Connection
(Load Neutral)
*Line Neutral
(White Curly Wire)
*Equipment Ground
120 V
240 V
Typical Two-Pole
Circuit Breaker
with GFCI
Breaker Box
*L2
240 V
*L1
Blue (L1)
120 V
Neutral Bus
(In Breaker Box)
Kohler Co. 7 1194657-2-B

4. Install the Whirlpool Trim Kit
Install the Trim Kit
Install the suction cover and jets according to the instructions packed with the trim kit.
Install the Neckjet Trim (if included)
NOTE: The neckjets will not operate unless the pillow is installed. Always use a slip cover to prevent
water from spraying from the whirlpool.
Choose a slip cover, and fit it over the pillow.
Carefully slide the pillow down onto the neckjet body grooves until it is secure.
Test Run the Whirlpool
Fill the whirlpool to a level at least 2″(51 mm) above the top of the highest jet.
Operate the whirlpool for 5 minutes and check all whirlpool piping connections for leaks. Check for
leakage along the front, sides, and back of the whirlpool.
Turn on each of the whirlpool features and verify proper function. Check for water leakage along
the front, sides, and back of the whirlpool.
For additional information on whirlpool operation, see the ″Operating Instructions″section.
Complete the Installation
Install water-resistant wallboard and all finished wall, deck, and floor materials.
Apply silicone sealant to seal all areas where the whirlpool and finished wall or deck meet.
Install the faucet trim.
Clean-up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad, and remote control.
Remove stubborn stains or paint with turpentine or paint thinner. Do not allow cleaners containing
petroleum distillates to remain in contact with any whirlpool surface for long periods of time.
Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire brushes, or
other metal tools. Use a powder-type detergent on a damp cloth to provide mild abrasive action to
any residual plaster.
Slide the O-Ring
onto the first shoulder
of the jet.
Housing
Inspect and lubricate
the O-Ring.
Insert the jet into the housing,
and lightly push and rotate until
it snaps in position.
Neckjet Body
Slide the pillow onto
the neckjet body.
Fit the slip cover
over the pillow.
1194657-2-B 8 Kohler Co.

Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of accidental injury or drowning. To reduce the risk of injury, do not permit
children to use this unit unless they are closely supervised at all times.
WARNING: Risk of personal injury. To avoid injury, exercise care when entering or exiting the
whirlpool.
WARNING: Risk of electric shock. Do not permit electric appliances (such as a hair dryer, lamp,
telephone, radio, or television) within 5’ (1.5 m) of this whirlpool.
WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia. Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs
when the internal temperature of the body reaches a level several degrees above the normal body
temperature of 98.6°F (37°C). The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia
include: (a) failure to perceive heat, (b) failure to recognize the need to exit the whirlpool, (c)
unawareness of impending hazard, (d) fetal damage in pregnant women, (e) physical inability to
exit the whirlpool, and (f) unconsciousness resulting in the danger of drowning.
WARNING: Risk of hyperthermia. People using medications and/or having an adverse medical
history should consult a physician before using a whirlpool equipped with a heater.
WARNING: Risk of fetal injury. Pregnant or possibly pregnant women should consult a physician
before using the whirlpool.
WARNING: Risk of hyperthermia or drowning. Do not use the whirlpool immediately following
strenuous exercise.
WARNING: Risk of hyperthermia or drowning. Water temperature in excess of 100°F (38°C) may
cause injury. Test and adjust the water temperature before use.
WARNING: Risk of personal injury or drowning. Do not operate this unit without the guard
(cover) over the suction fitting.
WARNING: Risk of personal injury. Never drop or insert any object into any opening.
Use this whirlpool only for its intended purpose as described in this guide. Do not use attachments not
recommended by Kohler Co.
The whirlpool must be connected only to a supply circuit that is protected by a Ground-Fault
Circuit-Interrupter (GFCI)*. Such a GFCI should be provided by the installer and should be tested on a
routine basis. To test the GFCI, press the test button. The GFCI should interrupt power. Press the reset
button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the
GFCI interrupts power to the whirlpool without the test button being pressed, a ground current is flowing,
indicating the possibility of an electric shock. Do not use this whirlpool. Disconnect the whirlpool and have
the problem corrected by a qualified service representative before using.
Flush your whirlpool system twice a month or more depending upon usage, as described in the ″Flush the
System″section of this guide.
Kohler Co. 9 1194657-2-B

Important Safety Instructions (cont.)
Repeated use of personal care products containing oils can damage plastic whirlpool components. Avoid
using bath oils.
Whirlpool hydro-massage action can cause even a small amount of bubble bath, bath soap, shampoo, or bath
oil to foam excessively. For this reason, please do not use these products during whirlpool operation.
Your new KOHLER whirlpool has been listed by Underwriter’s Laboratories, ensuring safety for you and
your family. This whirlpool also conforms to rigid ANSI and IAPMO standards set within the plumbing
industry.
* Outside North America, this device may be known as a Residual Current Device (RCD).
1194657-2-B 10 Kohler Co.

Operating Instructions
All Models
NOTE: A built-in heater helps to maintain the water temperature when the whirlpool is running. If the
temperature exceeds 104°F (40°C), the heater will turn off.
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2″(51 mm) above the top of the highest jet.
Press the Power icon to turn on the whirlpool. The whirlpool will start at medium flow, and the
heater will turn on automatically.
Adjust the water flow by pressing the up or down icon on the keypad. An indicator bar in the
center of the keypad shows the water flow volume.
Adjust each jet for optimum air/water mixture. Turn the jet trim clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
Press the heater icon to turn the heater off and on. When illuminated, the indicator light shows that
the water temperature will be maintained up to 104°F (40°C).
Press the Power icon a second time to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
Models with Neckjets
Make sure the slip cover is in place on the pillow, and the pillow is attached to the neckjet body.
Flexjet
Mode
Backjet
Mode
Rotate outer
ring to access
desired mode.
Power
Chromatherapy -
Specific Color
Neckjet
Mode
Up
Effervescence
Mode
Down
Chromatherapy
Cycle
Heater
Lighted User Keypad
Indicator
Bar
Turn jet trim
clockwise to
decrease the flow.
Turn jet trim
counterclockwise
to increase the flow.
Heater On/Off Heater Indicator Light
Up
Indicator Bar
Down
Power
Lighted User Keypad
(for whirlpools
without neckjets)
Kohler Co. 11 1194657-2-B

Operating Instructions (cont.)
With the whirlpool operating, rotate the outer ring until the neckjet icon is flashing. Press ″OK″to
activate the neckjets. The neckjet pulsing action will start at medium speed.
Adjust the neckjet pulsing action by pressing either the up or down icon.
To adjust the different modes while the neckjets are operating, rotate the outer ring until the desired
mode is flashing and press ″OK.″
Press ″OK″while the neckjet mode is flashing to turn off the neckjets.
Press the Power On/Off icon a second time to turn the whirlpool off.
Neckjet and Backjet Operation (if equipped)
Rotate the outer ring until the backjet mode is flashing and press ″OK.″The backjet pulsing action
will start at medium speed. The backjets pulse from the bottom of the whirlpool toward the top,
with water flow and pulse action occurring from two backjets at a time.
NOTE: If the water level falls below the water level sensors, the backjets will stop. The backjet icon and
indicator bar on the user keypad will flash. The backjets will automatically restart when the water level
covers the sensors.
To adjust the backjet pulsing action use the up and down icons.
To adjust the flow volume to the backjets, rotate the outer ring to the Flexjet mode, press ″OK,″and
press the up or down icons. (This also adjusts the flow to all modes.)
NOTE: To activate or deactivate different modes while the neckjets and/or backjets are operating, rotate
the outer ring until the desired mode is flashing and press ″OK.″(Example: To turn the heater off, rotate
the ring until the heater icon is flashing and press ″OK.″)
Press ″OK″while the neckjet mode is flashing to turn off the neckjets.
Press ″OK″while the backjet mode is flashing to turn off the backjets.
Effervescence Operation (if Equipped)
With the whirlpool operating, rotate the outer ring until the effervescence icon is flashing. Press
″OK″to activate the effervescence ports. The effervescence action will start at the flow volume last
set in the Flexjet flow mode.
Adjust the flow volume by pressing either the up or down icon.
NOTE: Flexjet mode, backjets and neckjets will automatically turn off when the effervescence mode is
activated. Chromatherapy may be used with this and all modes of operation.
Press ″OK″while the effervescence mode is flashing to turn off the effervescence ports.
Chromatherapy Operation (if Equipped)
NOTE: Chromatherapy may be used with all modes of operation as well as when the pump is not
operating.
Chromatherapy Cycle: Rotate the outer ring to select this mode and press ″OK″to activate. Press
″OK″again to turn off the lights.
NOTE: When this mode is activated, the chromatherapy lights will automatically and continuously cycle
through the eight colors; white, violet, indigo blue, aqua blue, green, yellow, orange and red. One cycle
through all eight colors takes approximately one minute.
Chromatherapy Specific Color Selection: Rotate the outer ring to ″Chromatherapy Specific Color
and press ″OK″to activate. Press the up or down icons to change the desired color. Press ″OK″
while the chromatherapy mode is active to turn off the lights.
Remote Control
1194657-2-B 12 Kohler Co.

Operating Instructions (cont.)
NOTE: Refer to the Homeowners Guide included with your remote control for detailed operating
instructions.
The waterproof remote control is designed to be used in the bath and will float in the water.
The remote control uses two AAA batteries.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Flush the System
NOTE: Flush your whirlpool system twice a month or more, depending upon usage.
Turn the jet trim rings fully clockwise to reduce air induction.
Fill the whirlpool with hot water to a level at least 2″(51 mm) above the highest jet.
Add 2 teaspoons (10 ml) of a low-foaming, powder automatic dishwasher detergent and 20 ounces
(590 ml) of household bleach (5% - 6% sodium hypochlorite) to the water.
Run the whirlpool for 5 to 10 minutes. Turn off the whirlpool and drain.
If desired, rinse the bath surfaces with water.
Rinse the surfaces of the jets, faucet, grab bars, and drain, and wipe them dry with a soft cloth.
Troubleshooting
NOTICE: This section is for general aid only. A Kohler Co. Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, call 1-800-4KOHLER from within
the USA and Canada, or 001-800-456-4537 from within Mexico.
NOTE: The product model number is printed on a label on the pump side of the whirlpool bath.
NOTE: For service parts information, visit your product page at www.kohler.com/serviceparts.
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when Power
icon is pressed or (if
applicable) the outer ring
is rotated.
A. No power to control. A. Check wiring and connect power.
B. GFCI or RCD tripped. B. Reset GFCI or RCD.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
Kohler Co. 13 1194657-2-B

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is
illuminated, but does not
respond to icons or outer
ring.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at
power-up.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
5. User keypad is
illuminated, but pump
won’t start.
A. Power cord from pump to
control is loose, disconnected or
damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump
won’t prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on intake
side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Pump stops before 18
minutes. A. GFCI or RCD tripped. A. Identify source of fault, and correct.
Reset GFCI or RCD.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage and
allow motor to cool.
8. Pump does not
automatically stop after 22
minutes.
A. 20-minute timer inadvertently
disabled. A. See Service Manual.
9. Pump won’t turn off
when the Power icon on
user keypad is pressed.
A. User keypad does not work. A. Replace user keypad.
B. Control does not work. B. Replace control.
10. Pump operates but
variable speed feature
does not work.
A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
11. Bath water cools while
pump is operating. A. Water temperature above 104°F (40°C). A. Allow bath water to cool.
1194657-2-B 14 Kohler Co.

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
B. Heater has turned off either
manually or automatically. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or damaged. C. Check wiring for proper connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
12. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall jet.
13. Remote control (if
equipped) does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
C. Remote control not
programmed correctly. C. See remote control Homeowners Guide or whirlpool Service
Manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
Troubleshooting the Neckjet System
Symptoms Probable Causes Recommended Action
14. Keypad does not respond
when neckjet mode is
selected.
A. User keypad does not work. A. Replace the user keypad.
15. Pump operates but
neckjets do not turn on.
Indicator bar on user
keypad is flashing.
A. Pillow is not installed. A. Make sure pillow is properly
attached to the neckjet body.
B. Reed switch does not work. B. Check reed switch wiring and
replace if necessary.
C. Wiring harness from neckjet to
control is loose, disconnected or
damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
16. Pump operates but
neckjets do not turn on.
Indicator bar on user
keypad is NOT flashing.
A. Neckjet line is blocked. A. Disconnect neckjet hoses and
remove blockage.
B. Wiring harness from neckjet to
control is loose, disconnected or
damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. Butterfly valve does not work. C. Replace the butterfly valve.
D. Control does not work. D. Replace control.
17. Water flows from neckjets,
but neckjets do not pulse. A. Wiring harness from neckjet pulse cannister to control is
loose, disconnected or damaged.
A. Check wiring for proper
connections. Replace wiring
harness if necessary.
B. Pulse cannister does not work. B. Replace the butterfly valve.
C. Control does not work. C. Replace control.
Troubleshooting the Backjet System
Symptoms Probable Causes Recommended Action
18. Backjets do not operate. A. Whirlpool pump is not
operating. A. Turn on pump.
Kohler Co. 15 1194657-2-B

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
B. Backjet butterfly valve does not
open. B. Check for loose connections or wires leading from backjet pulse
cannister to control. Replace backjet
pulse canister or control if
necessary.
C. Not enough water in whirlpool. C. Fill whirlpool so water level
sensors are covered.
D. User keypad does not work. D. Replace user keypad.
E. Power from pump motor to
control is off. E. Check for loose connections or wires leading from pump motor to
control.
F. Backjet pipe is blocked. F. Remove blockage.
G. Switch wire from switch to
control is disconnected. G. Reconnect or replace switch wires that use modular plug.
19. Backjets do not pulse. A. Pulse cannister does not work. A. Check for loose connections or
wires leading from pulse cannister
to control. Replace pulse canister or
control if necessary.
Troubleshooting the Effervescence Jets
Symptoms Probable Causes Recommended Action
20. Effervescence ports do not
work. A. Whirlpool pump is not operating. A. Turn on pump.
B. Butterfly valve does not work. B. Replace butterfly valve.
C. Pump does not work. C. Refer to the Service Manual to
troubleshoot the system.
D. Control does not work. D. Replace control.
21. Effervescence ports do not
bubble. A. Air intake on suction line is blocked. A. Remove blockage.
B. Water flow is too low. B. Increase water flow.
Troubleshooting the Chromatherapy Lights
Symptoms Probable Causes Recommended Action
22. Chromatherapy lights do
not work. A. Loose, disconnected or damaged wiring/connections. A. Check wiring for proper connections. Replace wiring if
necessary.
B. Control does not work. B. Replace control.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI
53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
1194657-2-B 16 Kohler Co.

Warranty (cont.)
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how
long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You
may also have other rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Warranty
For Mexico
KOHLER CO.
It is recommended that at the time of purchase, you verify that all accessories and components are complete
in this package.
This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the
date of purchase as shown on the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its authorized distributors.
2. To obtain warranty service, please present the invoice and corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair the defective product or provide a new
replacement or an equivalent model (in those cases that the model has been discontinued) when the product
is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the date the product is received.
5. It is recommended that the consumer save the invoice or receipt as additional protection, as it may
substitute the warranty in the case that there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the instructions concerning use and operation set
forth in the owner’s manual or installation instructions, and when the recommendations and warnings
included are not observed.
2. When the product has been modified or dismantled partially or totally; or has been used in a negligent
fashion and as a consequence has suffered damages attributable to the consumer, individual, or hardware not
authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster such as fire or acts of God, including
flooding, earthquake, or electric storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-800-456-4537.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 17 1194657-2-B

Guide d’installation et d’entretien
Baignoire à hydromassage
Installation standard
Instructions d’installation
AVERTISSEMENT: Lors de l’utilisation de produits électriques, toujours observer les
précautions de base, notamment:
DANGER: Risque de choc électrique. Raccorder uniquement à un circuit protégé par un
disjoncteur de fuite de terre (GFCI)*.
Les matériaux de construction et le câblage doivent être acheminés loin du corps de la pompe et des autres
composants de l’appareil qui dégagent de la chaleur.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Earth/Ground″(Terre/Masse) est fourni dans le
compartiment de câblage. Afin de réduire les risques de choc électrique, raccorder ce connecteur à une borne
de terre du panneau de service électrique ou du panneau d’alimentation avec un câble en cuivre ayant la
même dimension que le conducteur du circuit qui alimente cet équipement.
Des connecteurs à pression par câble sont fournis sur l’extérieur de la boîte de jonction ou de la commande
incluse dans cet appareil afin de permettre la connexion d’un conducteur de mise à la terre entre cet appareil
et toutes les autres surfaces de métal avoisinantes, tel que requis par les normes locales.
Une borne de mise à la terre est incluse dans le boîtier du câblage sur place. Pour réduire les risques de choc
électrique, cette borne doit être raccordée à un dispositif de mise à la terre fourni dans le panneau
d’alimentation électrique, avec un conducteur ayant le même calibre que celui des conducteurs du circuit qui
alimente cet équipement.
Une mise à la terre est requise. L’appareil doit être installé par un représentant qualifié et doit être mis à la
terre.
AVERTISSEMENT: Risque de blessures ou d’endommagement du matériel. Toutes les
instructions doivent être lues avec la plus grande attention avant de commencer l’installation, et
toutes les conditions suivantes doivent être respectées.
AVERTISSEMENT: Risque de choc électrique. Un électricien qualifié doit effectuer toutes les
connexions électriques.
AVERTISSEMENT: Risque de choc électrique. Déconnecter l’alimentation électrique avant
d’effectuer un entretien.
AVIS: Respecter tous les codes de plomberie et électriques locaux. Installer cet appareil conformément
au Code canadien de l’électricité, Partie 1.
* Hors de l’Amérique du Nord, ce dispositif peut être connu sous le nom de dispositif à courant résiduel
(RCD).
Information sur le produit
Installations électriques requises
L’installation doit comprendre un disjoncteur de fuite de terre (GFCI) ou un dispositif à courant résiduel
(RCD) de classe A. Le GFCI ou le RCD protège contre les dangers d’électrocution par une tension
phase-terre. Raccorder la baignoire à hydromassage à une alimentation dédiée de 220 - 240 V, 20 A, 50/60
Hz.
Kohler Co. Français-1 1194657-2-B

Information sur le produit (cont.)
Notices du produit
AVERTISSEMENT: Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux et une mauvaise performance de la baignoire à hydromassage. Ne pas déplacer la
pompe de la baignoire à hydromassage et ne pas effectuer d’autres modifications sur le système
d’hydromassage car cela pourrait affecter la performance et la sécurité de la baignoire à
hydromassage. Kohler Co. décline toute responsabilité sous sa garantie et pour toutes blessures ou
tous dommages causés par de telles modifications non autorisées.
Caractéristiques
Série ″CT″:Les composants comprennent une pompe, un chauffe-eau, une commande, des ports
d’effervescence, des lumières de chromothérapie et un clavier lumineux avec télécommande.
Série ″AH″:Les composants comprennent une pompe, un chauffe-eau, une commande, des ports
d’effervescence, des lumières de chromothérapie, des jets d’hydromassage et un clavier utilisateur lumineux
avec télécommande.
Série ″M″:Les composants comprennent une pompe, un chauffe-eau, une commande, un système de jets
pour le dos, un système de jets pour le cou, des jets d’hydromassage et un clavier lumineux avec
télécommande.
Série ″V″:Les composants comprennent une pompe, un chauffe-eau, une commande, un système de jets
pour le dos, un système de jets pour le cou, des ports d’effervescence, des lumières de chromothérapie, des
jets d’hydromassage et un clavier lumineux avec télécommande.
Outils et matériel
Mastic à la silicone à 100%
Plus:
• Matériaux et outils à bois classiques
• Toile de protection
• Colle mastic (optionnelle)
• Ciment* ou mortier (optionnel)
• Des 2x4
* Ne pas utiliser de plâtre dur.
Cisailles de ferblantier
Kohler Co. Français-2 1194657-2-B

1. Préparer le site
AVIS: Mesurer le produit pour la préparation du site. Noter le numéro de modèle se trouvant sur la
pompe, puis visiter la page des produits sur le site www.kohler.com pour obtenir de l’information
supplémentaire.
AVIS: Fournir un large espace non restreint pour pouvoir accéder à la pompe. Un accès doit être prévu
pour l’entretien de la pompe et des commandes. L’accès doit être situé juste à côté de la pompe.
AVIS: Ne pas soulever la baignoire à hydromassage par la tuyauterie ou la pompe et ne pas utiliser la
tuyauterie ou la pompe comme support structurel de la baignoire à hydromassage. Afin d’éviter tout
endommagement de la baignoire à hydromassage, soulever celle-ci par les côtés.
AVIS: Ne pas supporter le poids de charge de la baignoire à hydromassage par le rebord.
REMARQUE: Une installation à encastrer par le dessus, en alcôve ou en coin est possible, selon le produit
choisi.
Déballer et examiner soigneusement la nouvelle baignoire à hydromassage pour y déceler tout
dommage avant d’effectuer l’installation. Si des dommages sont notés, ne pas installer la baignoire à
hydromassage; contacter le concessionnaire.
S’assurer que le sol offre un support adéquat pour la baignoire à hydromassage et vérifier que le
plancher est plat et de niveau.
Construire une charpente avec des montants de2x4.
Installer un panneau d’accès pour permettre un entretien futur de la pompe. Le panneau d’accès
doit avoir une largeur de 20″(508 mm) et une hauteur de 15″(381 mm) au moins.
Installer la tuyauterie de raccordement.
Installer le drain sur la baignoire à hydromassage conformément aux instructions du fabricant du
drain.
Protéger la surface de la baignoire à hydromassage en plaçant une toile de protection propre dans le
bas du bassin.
Panneau
d'accès
Effectuer la construction
selon les dimensions
du produit.
Positionner la
plomberie de
raccordement.
Vérifier que le sous-plancher
offre un support adéquat et
qu'il est plat et nivelé.
Alcôve À encastrer par le dessus
Positionner la
plomberie de
raccordement.
Vérifier que le
sous-plancher offre un
support adéquat et qu'il est plat et nivelé.
Construire la
charpente à
montants de 2x4
selon les
dimensions
du produit.
1194657-2-B Français-3 Kohler Co.
