Kohler K-99025T User manual

1
368 201419

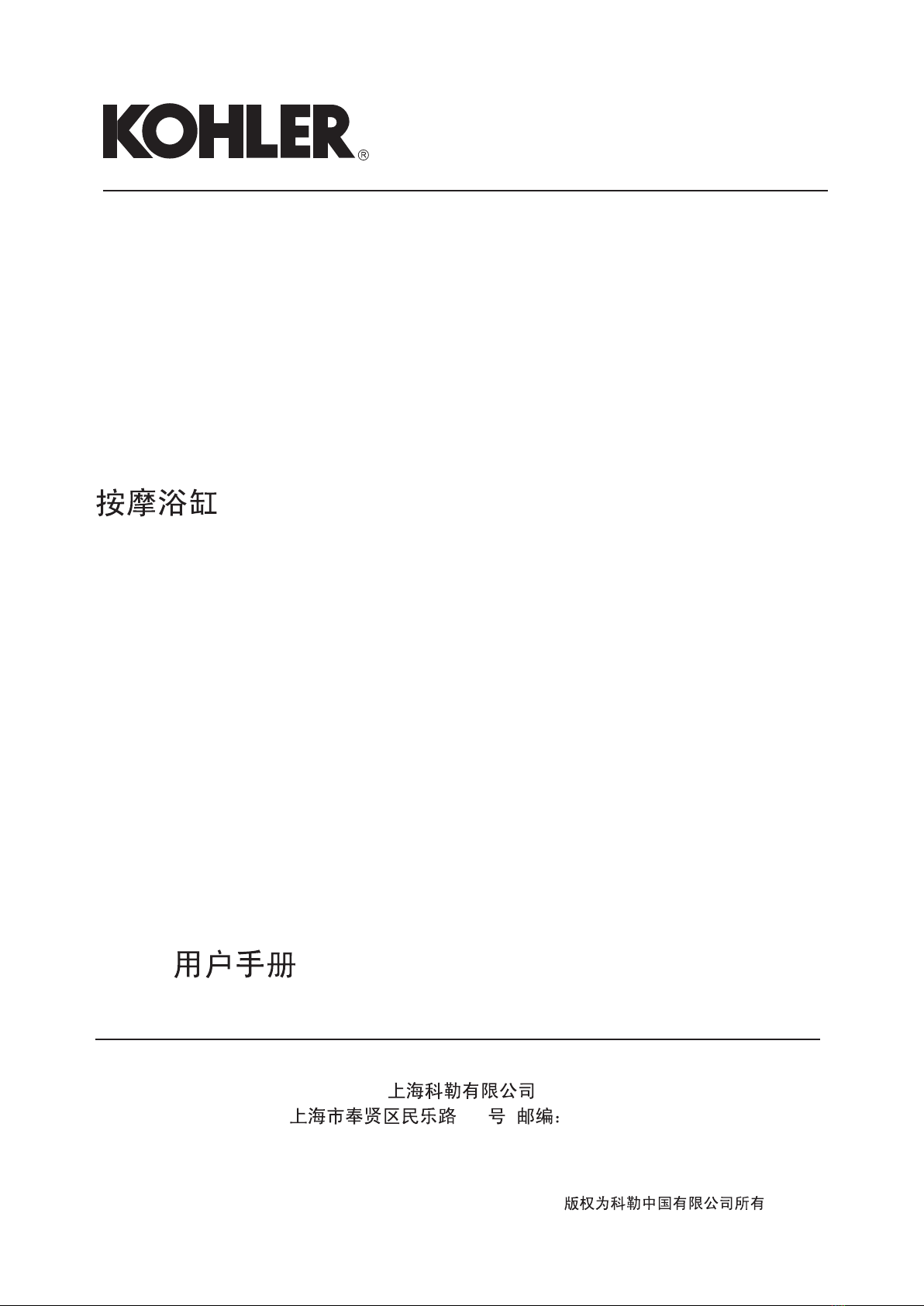

WhirlPool Bath
OWNER S MANUAL'
ã
ã
, 2014
Copyright Kohler China Ltd., 2014
1216853-T01-B

21216853-T01-B

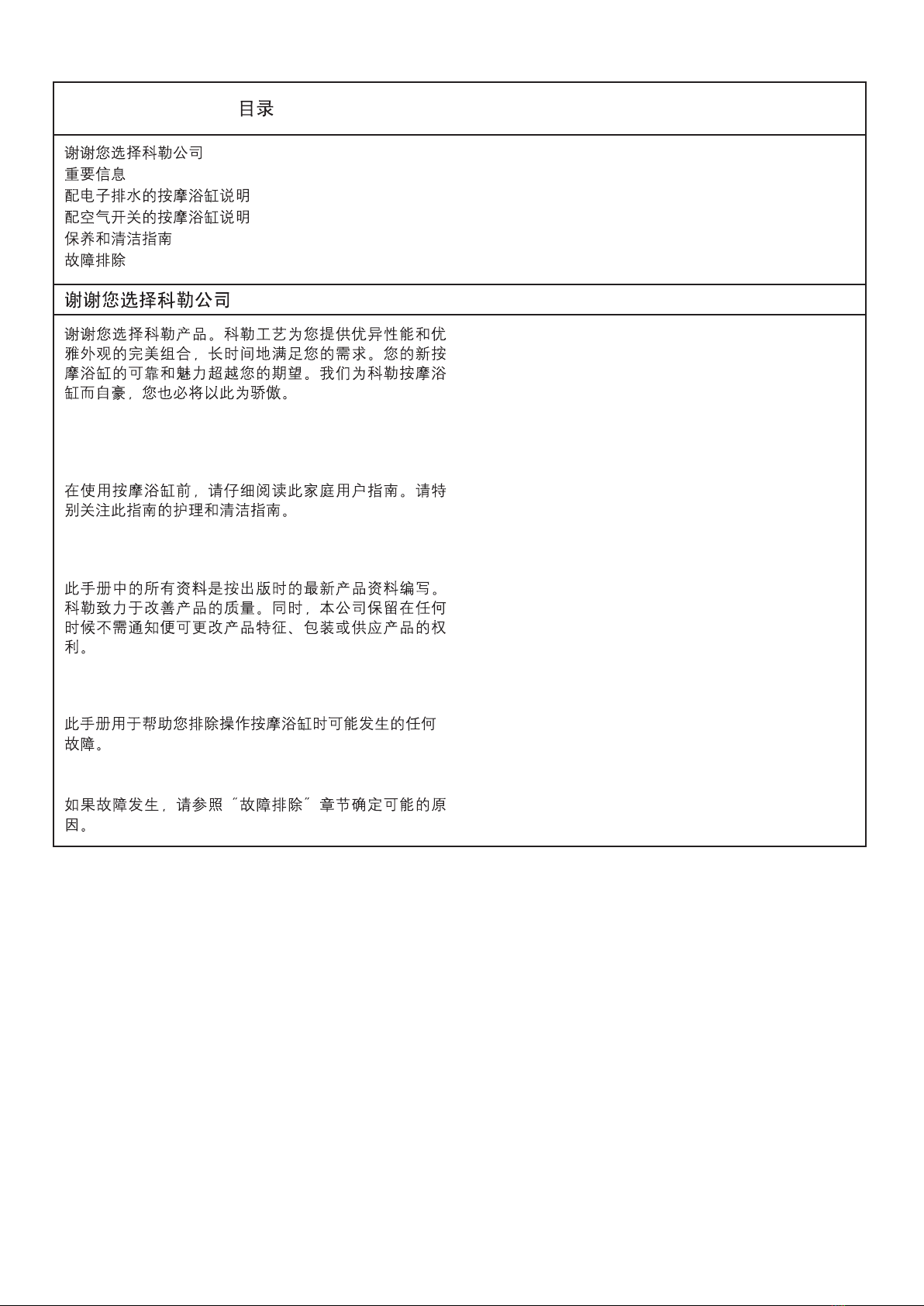

TABLE OF CONTENTS
....................................................2
......................................................................3
........................................ 4
.........................................7
.......................................................... 8
................................................................... 10
Thank You For Choosing Kohler Company
Important Information ..................................................3
Instructions for Whirlpool with Air Switch.....................7
.................2
Instructions for Whirlpool with Electronic Drain .......... 4
Care and Cleaning Instructions ...................................8
Troubleshooting Procedures......................................10
THANK YOU FOR CHOOSING KOHLER COMPANY
Thank you for choosing The Bold Look of Kohler.
Kohler craftsmanship offers you a rare combination of
proven performance and graceful sophistication that
will satisfy you for years to come. The dependability
and beauty of your new whirlpool bath will surpass your
highest expectations. We're proud of our whirlpool bath
here at Kohler, and we know you will be too.
Please take a few minutes to study this Homeowners
Guide before you use your whirlpool bath. Pay
special attention to the "Care and Cleaning"
instructions in this manual.
All information in this manual is based upon the latest
product information available at the time of
publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to
make changes in product characteristics, packaging, or
availability at any time without notice.
This manual is designed to help you troubleshoot any
problems that may develop with the operation of the
whirlpool bath.
If a problem occurs, refer to the "Troubleshooting"
section to determine a probable cause.

113864-5-BB
31041246-T01-C1216853-T01-B
(GFCI)
(ELCB) GFCI ELCB
GFCI
ELCB GFCI ELCB
GFCI ELCB GFCI ELCB
GFCI ELCB
Never drop or insert any object into any opening.
The whirlpool bath must be connected only to a supply
circuit that is protected by a Ground-Fault Circuit-
Interrupter (GFCI) or Earth-Leakage Circuit-Breaker
(ELCB). Such a GFCI or ELCB should be provided by
the installer and should be tested on a routine basis. To
test the GFCI or ELCB, press the test
button. The GFCI or ELCB should interrupt power.
Press the reset button. Power should be restored. If
the GFCI or ELCB fails to operate in this manner, the
GFCI or ELCB is defective. If the GFCI or ELCB
interrupts power to the bath without the test button
being pressed, a ground current is flowing, indicating
the possibility of an electric shock. Do not use this bath.
Disconnect the bath and have the problem corrected by
a qualified service representative before using.

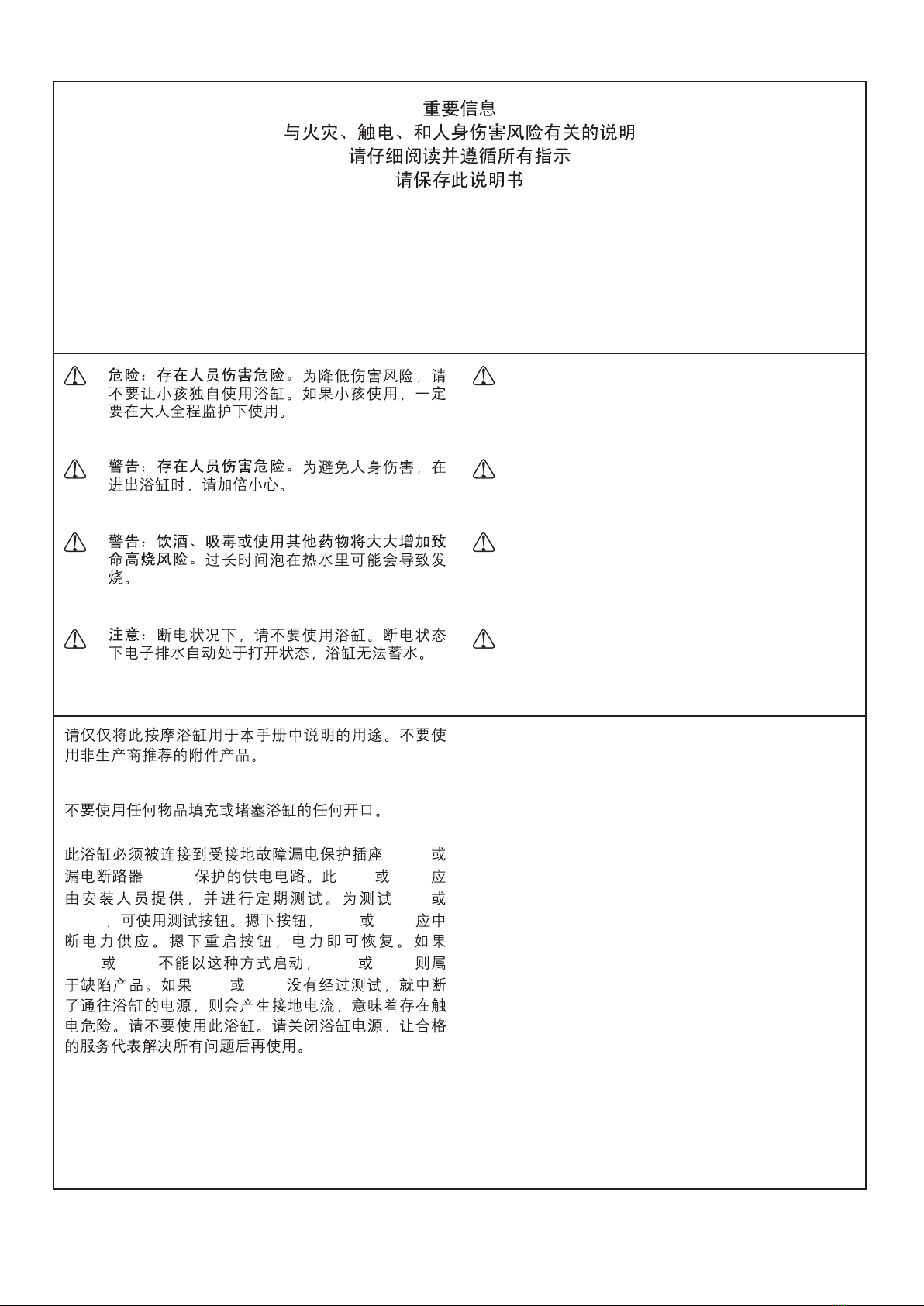

IMPORTANT INFORMATION
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER: Risk of personal injury.
WARNING: Risk of personal injury.
WARNING: The use of alcohol, drugs, or
medication can greatly increase the risk of
fatal hyperthermia.
To reduce
the risk of injury, do not permit children to use
this unit unless they are closely supervised at all
times.
To avoid
injury, exercise care when entering or exiting the
whirlpool bath.
Prolonged immersion in hot
water may induce hyperthermia.
NOTE: Please do not use the bath in case of
outage. In this case, the electronic drain
automatically opens and the bath can not be
filled with water.
Use this whirlpool bath only for its intended purpose as
described in this manual. Do not use attachments
not recommended by the manufacturer.

41216853-T01-B
on/off
c
KOHLER
Pipe Cleaning
Electronic
Drain On/Off
/
Pump On/Off
/
Water Temperature
Increase Flow Decrease Flow
INSTRUCTIONS FOR WHIRLPOOL WITH ELECTRONIC DRAIN
FUNCTION OPERATION
Light
!
!
!
Temperature Display
Display water temperature in the bath and display
air temperature when the bath is empty.
Before taking bath, please make sure of water
temperature with hands.
Electronic Drain
Start the drain by pushing the button " " once,
the green light flashes, push again to stop it, the red
light flashes. When pushing this button, a slight
sound can be heard from the drain at the bottom of
the bath.
Massage
Push the button " " to start the pump and push
again to stop it.
The pump will automatically stop after running for
about 20 minutes.
!
!
!
/
/
/
20
on/off
on/off
on/off
on/off
Your new whirlpool bath is designed to stimulate,
invigorate, and energize your body. You will use the
following components:
!
!
Bath
Electronic Keypad (Only For Some SKU)
Nozzles
Water Pump
Electronic drain (Only For Some SKU)
!
!
!
!
!
!
!
!
()
()
YOUR KOHLER WHIRLPOOL BATH

5
1216853-T01-B

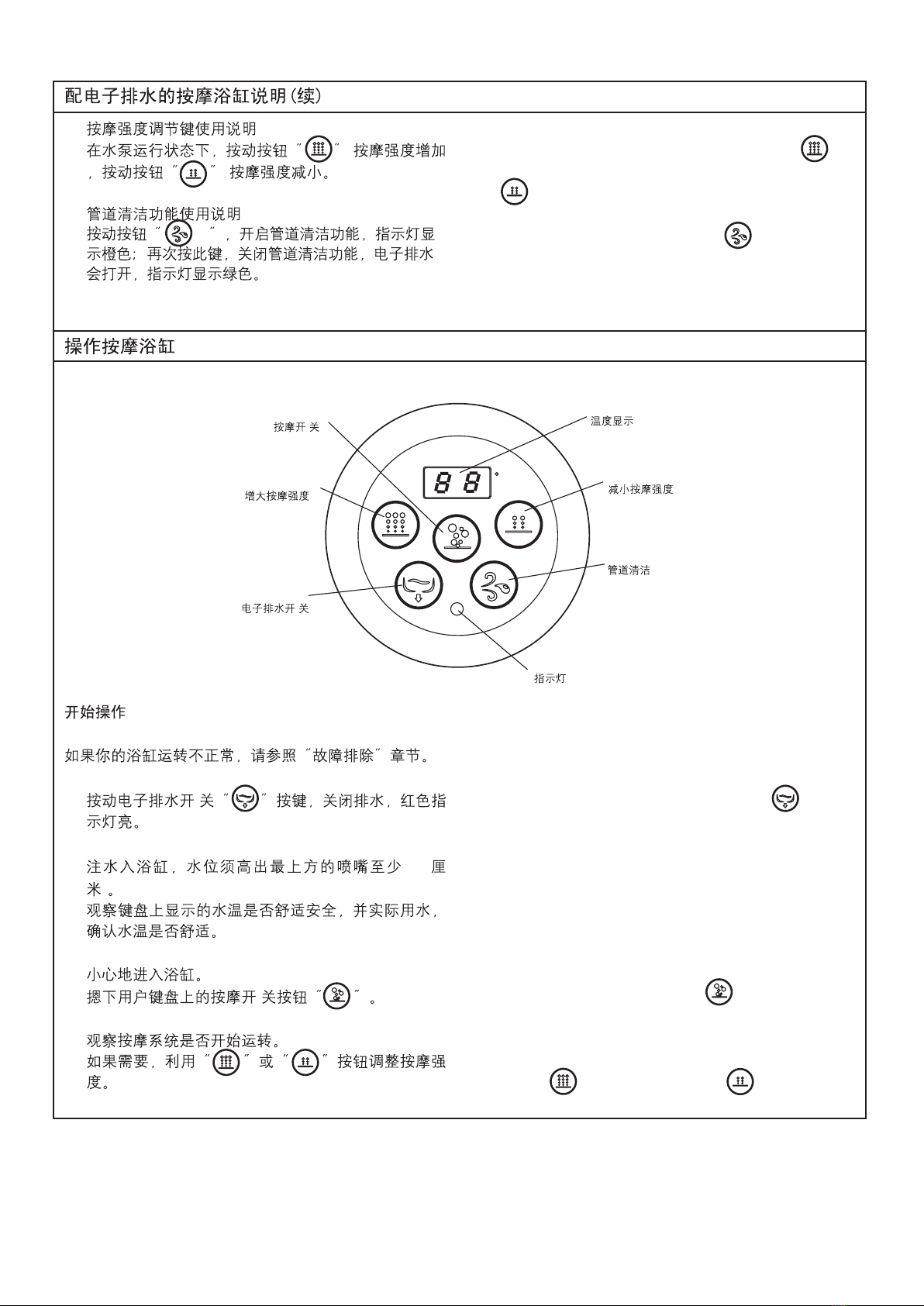

INSTRUCTIONS FOR WHIRLPOOL WITH ELECTRONIC DRAIN (CONT)
!
!
Massage Strength Adjustment
When the pump is running, push the button " " to
increase the and push the button
" " to decrease the .
massage strength
massage strength
Pipe Cleaning
Start piping cleaning by pressing " ", and orange
light is on. Press again to stop pipe cleaning.
Meanwhile, electronic drain is open and green light is
on.
!
!
,
,
on/off
c
KOHLER
Pipe Cleaning
Electronic
Drain On/Off
/
Light
Pump On/Off
/
Water Temperature
Increase Flow Decrease Flow
STARTING THE UNIT
If the unit does not function properly, please refer to the
"Troubleshooting" section.
Press the electronic drain on/off button " " on the
user keypad to close the drain, and the red light
flashes.
Fill the bath to a level at least 2" (5 cm) above the
top of the nozzle.
Observe water temperature displayed on the keypad
for comfort and safety, run water to make sure of
water temperature.
Carefully enter the bath basin.
Press the pump on/off button " " on the user
keypad.
Observe that the air system starts .
If desired, adjust the massage rate using the up
button" "or the down button " ".
!
!
!
!
!
!
!
!
!
!
!
!
!
!
/
2"(5
)
/on/off on/off
OPERATING YOUR WHIRLPOOL BATH

61216853-T01-B
OVERFLOW STATUS
NOTE:
!
!
!
Water level reaches overflow level.
The electronic drain automatically opens. Red light
and green light alternately flash and sound alarm
starts.
Turn off the tap. When water level is below overflow
level, the electronic drain automatically closes.
Sound alarm stops and red light flashes, (Refer to
"Roughing-in" for specific overflow level of each
bath.)
When the bath reaches overflow level,
water level may rise quickly if you enter the bath,
which may trigger the compelling drain function.
Compelling drain function will discharge lots of
water, so it is not recommended to use the bath
when it reaches overflow level.
!
!
!
(
)
OPERATING YOUR WHIRLPOOL BATH(CONT)
STOPPING THE BATH
!
!
!
After taking the bath, press the pump on/off button
" " a second time to stop the massage system.
Carefully exit the bath.
Press the electronic drain on/off button" ". The
green light flashes.
!
!
!
/
/
POWER OFF STATUS
!
!
The electronic drain automatically starts under
power off status.
Please do not use the bath in case of outage. In
this case, the electronic drain automatically opens and
the bath can not be filled with water.
NOTE:
Plug again, and the electronic drain is at draining
status.
!
!
!
on/off
on/off
Pipe Cleaning Operation
!
!
!
!
!
!
Press the purge button " " and orange light is on.
The bath automatically drains.
After the bath is drained, the electronic drain is off
and the bath will be filled automatically.
The bath fills until water reaches the water level for
automatic cleaning.
The pump automatically runs for two minutes.
Electronic drain opens. The bath automatically
drains and pipe cleaning is finished.
!
!
!
!
!
!

7
1216853-T01-B
OPERATING YOUR WHIRLPOOL BATH(CONT)

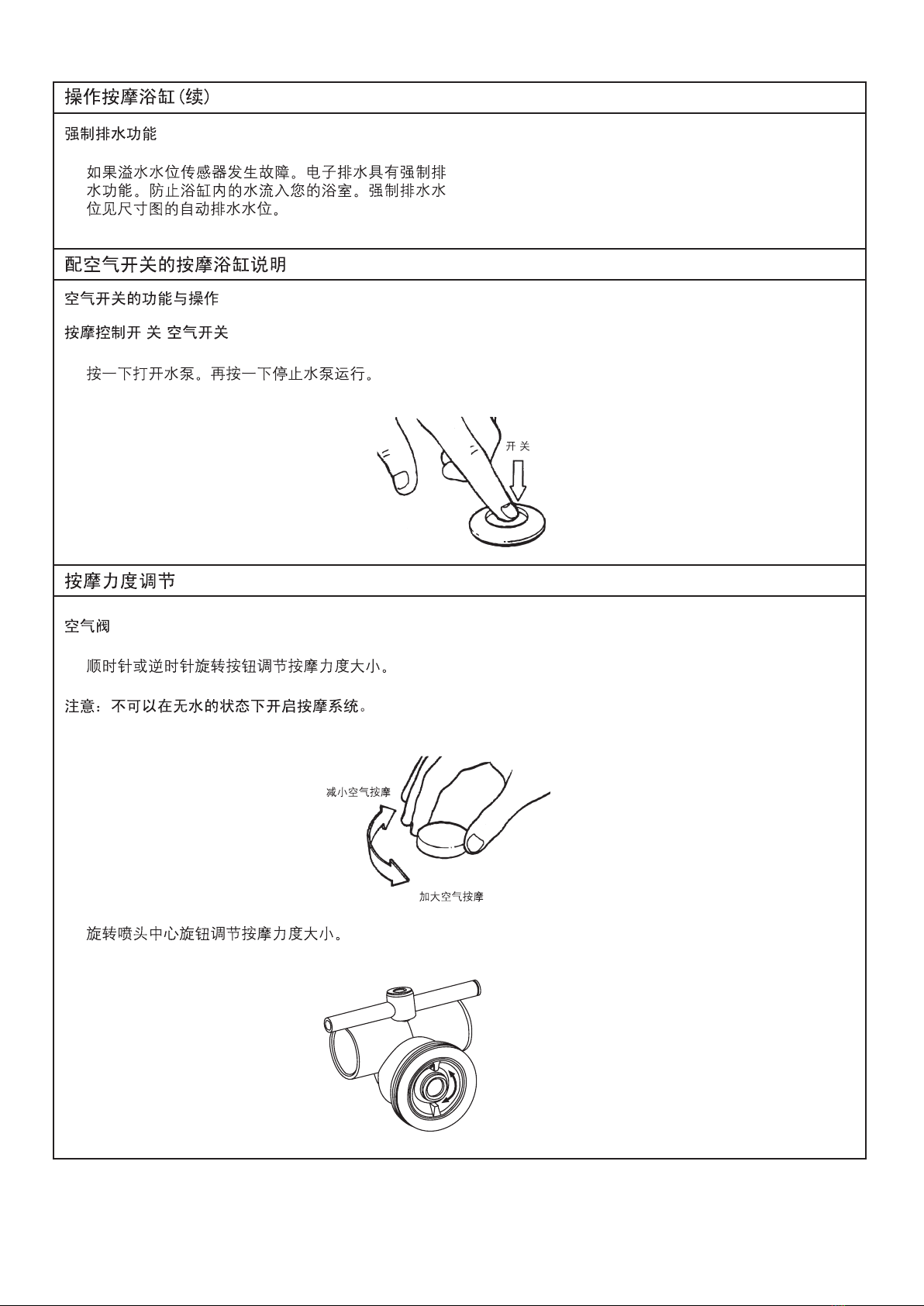

COMPELLING DRAIN FUNCTION
!If the overflow level sensor does not work, you can
use the compelling drain function to prevent water
overflow to your bathroom. Please refer to the
automatic drain water level in the Roughing-in.
!
/
On/Off
Decrease Air
Massage
Increase Air
Massage
/( )
!
!
!
On/Off Spa Control (Air Switch)
!Push once to start the water pump. Push again to
stop the water pump.
Air Valve
IMPORTANT: Do not operate spa bath without water.
!Rotate clockwise and anticlockwise to adjust the
massage strength.
!Rotate the knob at center of the nozzles to adjust
massage strength
MASSAGE STRENGTH ADJUSTMENT
INSTRUCTIONS FOR WHIRLPOOL WITH AIR SWITCH
AIR SWITCH FUNCTION & OPERATION

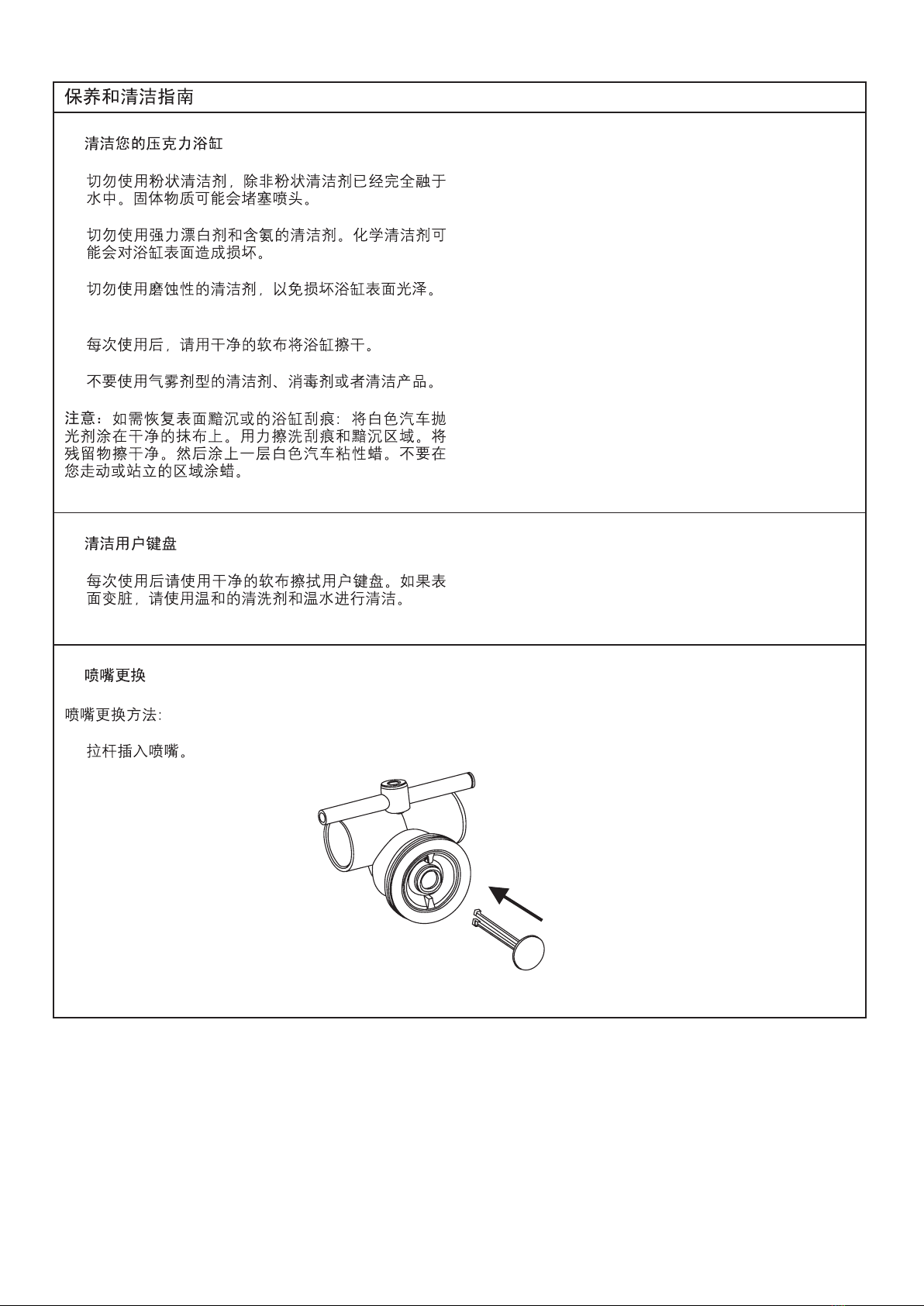

CARE AND CLEANING INSTRUCTIONS
A.
!
!
!
!
!
A. Cleaning Your Acrylic Bath
NOTE:
Do not use powdered cleaners unless the cleaner is
fully dissolved in water. Solid substances could
block the air jets.
Do not use full strength bleach or ammonia cleaning
solutions. Chemically active cleaning solutions can
damage the bath surface.
Do not use abrasive cleansers or solvents on acrylic
surfaces. Abrasive cleaners and solvents can
damage the bath surface.
Wipe out your acrylic bath with a soft cloth after
each use.
Avoid detergents, disinfectants, or cleaning products
in aerosol cans.
To restore dull or scratched units: Apply white
automotive polishing compound with a clean rag.
Rub scratches and dull areas vigorously. Wipe off
residue. Follow with a coat of white automotive paste
wax. Do not wax areas where you walk or stand.
!
!
!
!
!
B.
!
C.
!
B. Cleaning Your User Keypad
Use a soft cloth to wipe the keypad after each use. If
the surface becomes dirty, use a non-abrasive soap
and warm water to clean.
!
C. Nozzle Replacement
How to replace nozzle:
Insert the rod into the nozzle.
!
81216853-T01-B

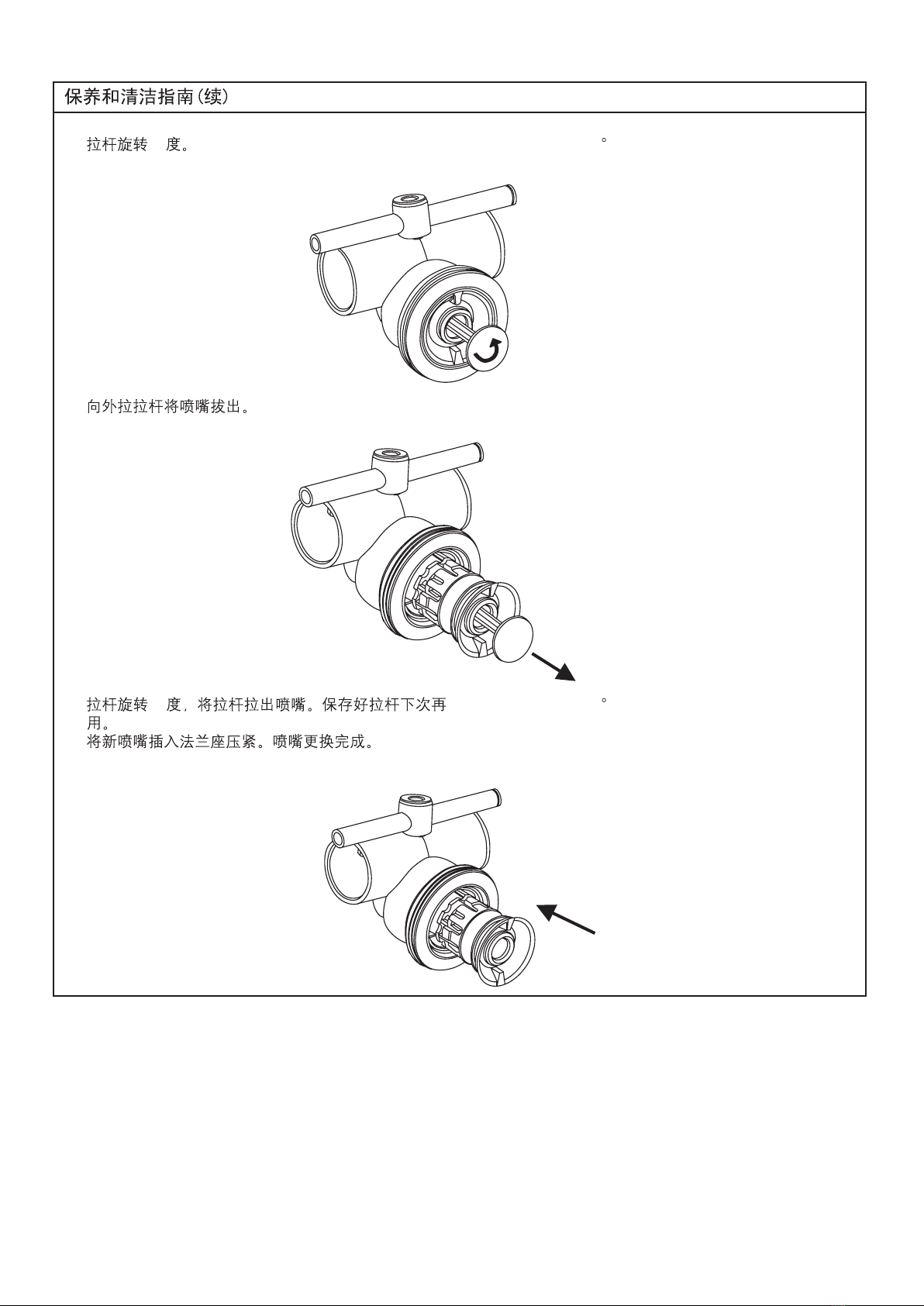

CARE AND CLEANING INSTRUCTIONS(CONT)
!90
!
!
!
90
!Turn the rod 90 .
!Pull the rod outwards to pull out the nozzle.
!
!
Turn the rod 90 to pull it out of the nozzle. Keep
the rod for future use.
Insert the new nozzle into the flange and press tight.
The replacement process is finished.
9
1216853-T01-B

This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.

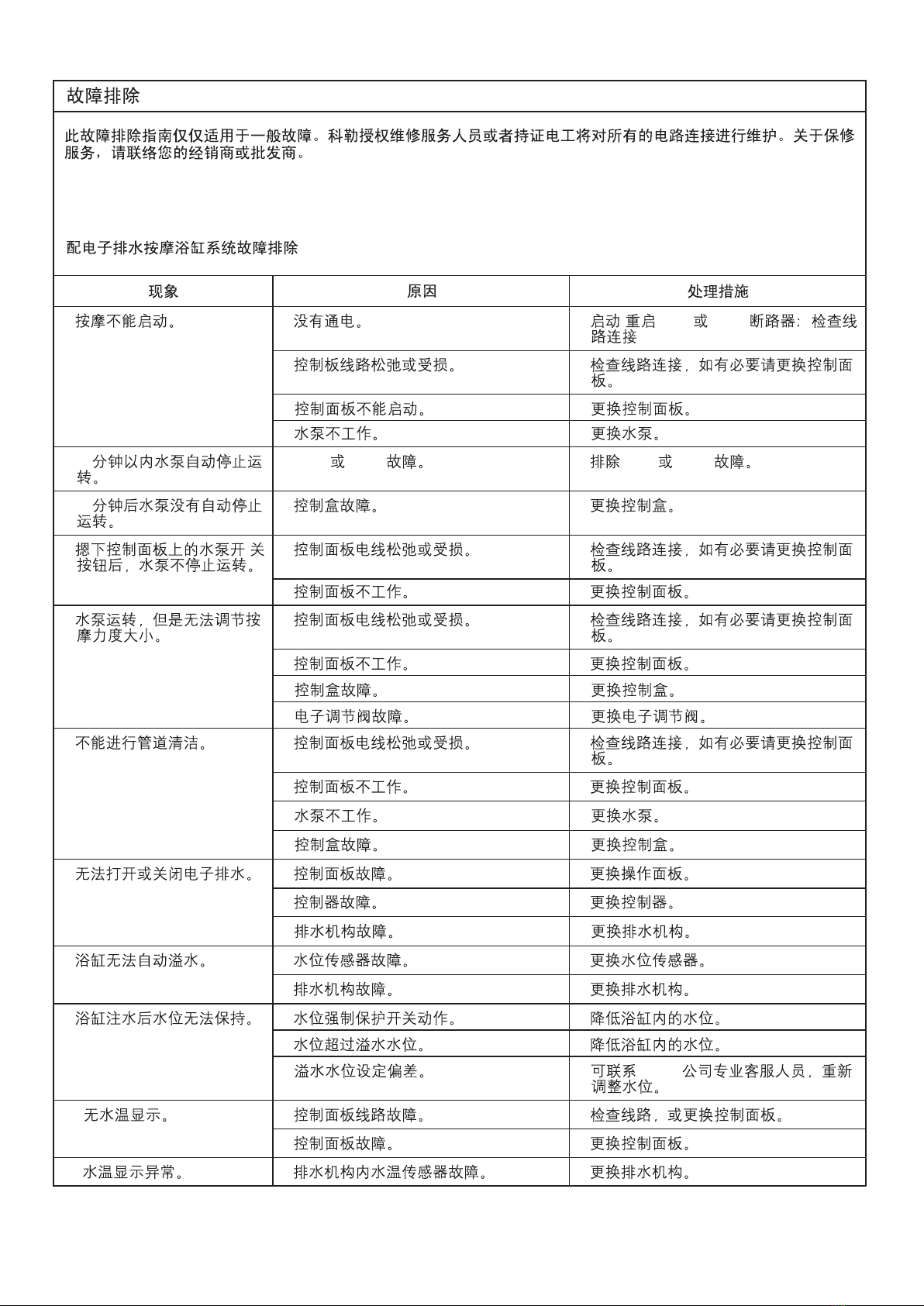

TROUBLESHOOTING PROCEDURES
Troubleshooting The Bath System With Electronic Drain
1. A. A. / GFCI ELCB
B. B.
C. C.
D. D.
5. A.
2. 20 A.GFCI ELCB A. GFCI ELCB
3. 20
4. /
A.
A.
A.
A.
B. B.
A.
B. B.
C. C.
D. D.
6. A.
B.
C.
D.
A.
B.
C.
D.
7. A.
B.
C.
A.
B.
C.
8. A. A.
B. B.
9. A.
B.
C.
A.
B.
C. Kohler
10 1216853-T01-B
10. A.
B.
A.
B.
11. A. A.

11
1216853-T01-B
SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION
1. Whirlpool bath does not
start.
A. Power on.is not
B. User keypad cable loose or damaged.
C. User keypad does not work.
D. Pump does not work.
A. Set/reset GFCI or ELCB breaker;
check wiring.
B. Check wire connections. If necessary,
replace user keypad.
C. Replace user keypad.
D. Replace pump.
2. Pump stops automatically
within 20 minutes.
A. GFCI or ELCB trips. A. Correct GFCI or ELCB trips.
A. Replace controller.
A. Check wire connections. If necessary,
replace user keypad.
B. Replace user keypad.
C. Replace the controller.
D. Replace electronic adjustment valve.
3. Pump does not stop
automatically after 20 minutes.
4. Pump does not stop when
pump on/off button on user
keypad is pressed.
5. Pump operates but can not
adjust massage strength.
A. Controller trips.
A. User keypad cable loose or damaged.
B. User keypad does not work. B. Replace user keypad.
A. User keypad cable loose or damaged.
B. User keypad does not work.
C. Controller dose not work.
A. Check wire connections. If necessary,
replace user keypad.
D. Electronic adjustment valve does not
work.
6. Pipe cleaning does not
work.
7. Cannot operate or stop
electronic drain.
A. User keypad cable loose or damaged.
A. User keypad trips.
B. User keypad does not work.
B. Controller trips.
C. Pump does not work.
D. Controller dose not work.
C. Electronic drain mechanism
.
does not
work
A. Check wire connections. If necessary,
replace user keypad.
A. Replace user keypad.
B. Replace user keypad.
B. Replace controller.
C. Replace pump.
D. Replace the controller.
C. Replace electronic drain mechanism.
8. The bath cannot overflow. A. Water level sensor trips.
B.
.
Electronic drain mechanism does not
work
A. Replace water level sensor.
B. Replace electronic drain mechanism.
9. Water level cannot be
maintained after the bath is
filled with water.
A. Water level protector functions.
B. Water level surpasses overflow level.
C. Overflow level is not correct.
A. Lower the water level in the bath.
B. Lower the water level in the bath.
C. Contact customer service personnel of
Kohler to readjust the water level.
10. Water temperature cannot
be shown.
A. User keypad cable trips.
B. User keypad trips.
A. Check wire connections, or replace
user keypad.
B. Replace user keypad.
11. Abnormity shown of water
emperature.
A. Temperature sensor of electronic drain
mechanism does not work.
A. Replace electronic drain mechanism.

SERVICE PARTS PAGE (For SKU with Air Switch)
()
SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION
1. Whirlpool bath does not
start.
A. Pump does not work.
B. Air tube between switch and water
pump drops or leaks.
C. Malfunction of air switch.
A. Replace pump.
B. Reconnect or replace air tube.
C. Replace air switch.
2. Pump stops automatically . A. GFCI or ELCB trips. A. Correct GFCI or ELCB trips.
A. Replace air control valve.3. Pump operates but can not
adjust massage strength.
A. Malfunction of air control valve.
Troubleshooting The Bath System With Air Switch Control
1. A.
B.
C.
A.
B.
C.
3.
2. A.GFCI ELCB A. GFCI ELCB
A. A.
12 1216853-T01-B
1051166
1.5HP Pump
1.5
1051165
1.0HP Pump
1.0
1051164
0.75HP Pump
0.75
1217126
Jet Assy
1217081
Suction Cover
1217082
Suction Cover Screw
1217300
Spacer
1217288
Draw Bar
1022829
Silent Air
Control Chrome
1022922
O-Ring
O
1038572-CP
Air Switch
Refer to roughing-in for service parts page of bath with electronic drain.
