BEFORE YOU BEGIN
-1-
!please carefully read this installation instruction in order to
ensure proper care and assembly of this accessory.
!Please keep this installation instruction for future
reference.
Prior to drilling into walls, check there are no hidden
electrical wires, cables or water supply pipes with the
aid of ar, electronic detector. If you use power tools do
not forget:
1. Wear eye protection.
2. Unplug equipment after use.
1.
2.
!
!
TOOLS AND ACCESSORIES
Leveling Instrument
Tape
Screw Driver
Drill
Hammer
ROUGHING-IN
Unit: mm
:
Reference Value
Our company reserves the right to change marked dimensions without prior notice.
KARAT SAFTY BAR - FOLDABLE (WHITE)
()
77660T-WK
20160902
pencil
Allen wrench
Screw and expansive colloidal particles

-2-

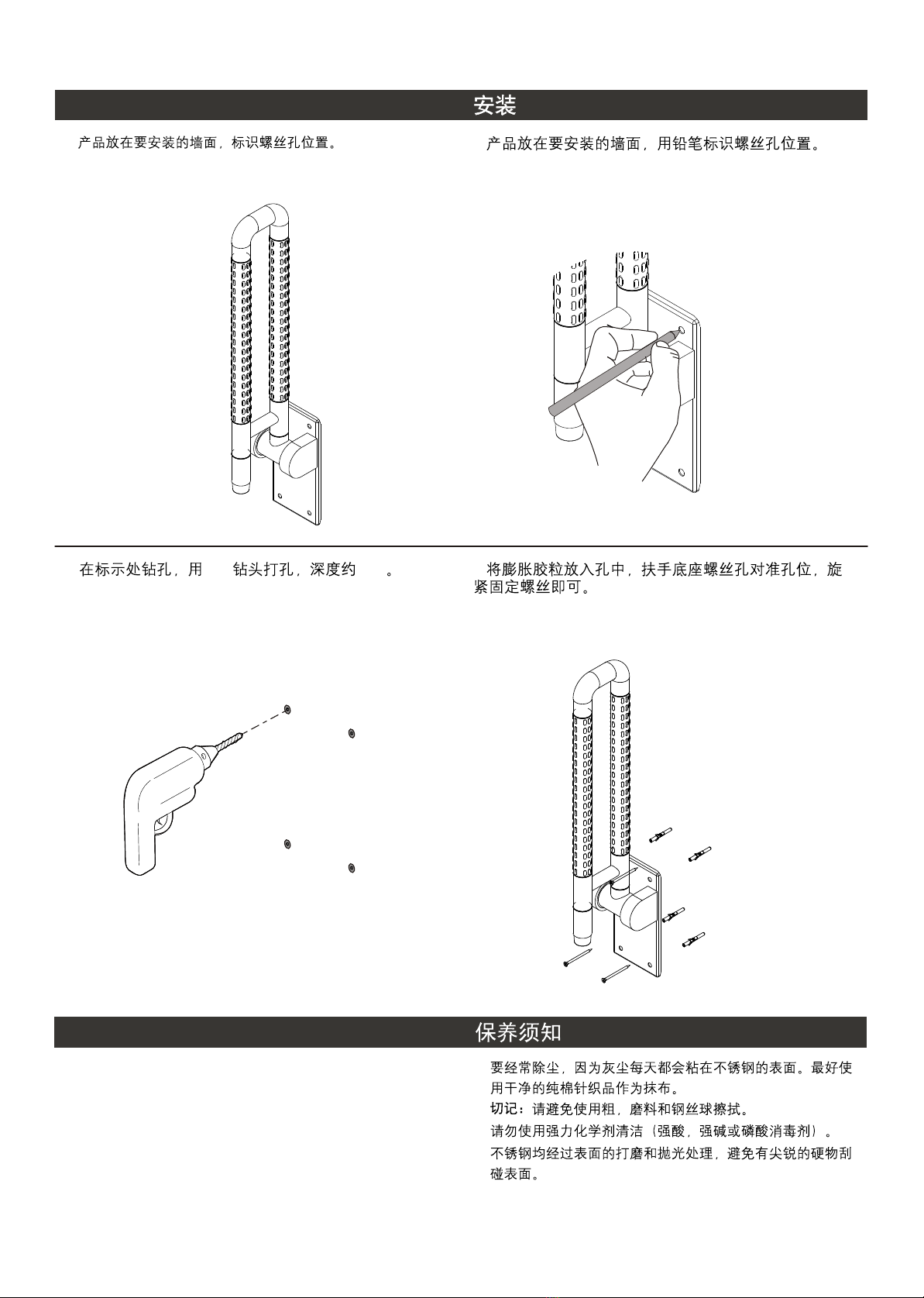

INSTALLATION
1,
1, Put the product on the wall to install, identifies the location
of the screw holes.
2,
2,Put the product on the wall to install, with a pencil
identifies the location of the screw holes.
3, 8cm 7cm
3,Drilling hole, with 8 cm drill holes and the depth of
about 7 cm.
4,
4,Put swell colloidal particles into the hole, armrest
base screw holes aimed at the hole location.
tighten the screws.
the
Just
1. Clean the product daily with cotton cloth.
Do not use abrasive materials.
2. Do not use strong chemical detergents such as strong acid,
strong alkali or phosphoric acid.
3. Avoid scratching product surface with sharp objects.
1.
2.
3.
CARING FOR YOUR PRODUCTS

-3-
Our company provides one years warranty for its drain. Our
company will at its election, repair, replace or make
appropriate adjustment where our company inspection
discloses any such defects occurring in normal usage within
warranty.
The warranty, including products, is limited clearly. Our
company is not responsible for other damages appeared after
the warranty. Also, the warranty dose not cover problems
arising from labor charges, incorrect use and installation.
Shanghai Kohler International Trade Co., Ltd.
Address: Room 324, 2 Xinlin Rd, Waigaoqiao Free
Trade Zone, Shanghai
Tel: [phone]
Postcode: 200131

KARAT SAFTY BAR - FOLDABLE (WHITE)
()
77660T-WK
1301051
Mounting Hardware
