Kohler COMPOSED K-25421T User manual

WM FOAM SOAP DISPENSER
入墙自动感应泡沫给皂器
K-25421T/K-EX25421T
1434862-T01-D
2021
2021
12.7mm
6.57mm
123.5mm
∅40.7mm
7.6mm
28.6mm
137mm
COMPOSED 柏诗

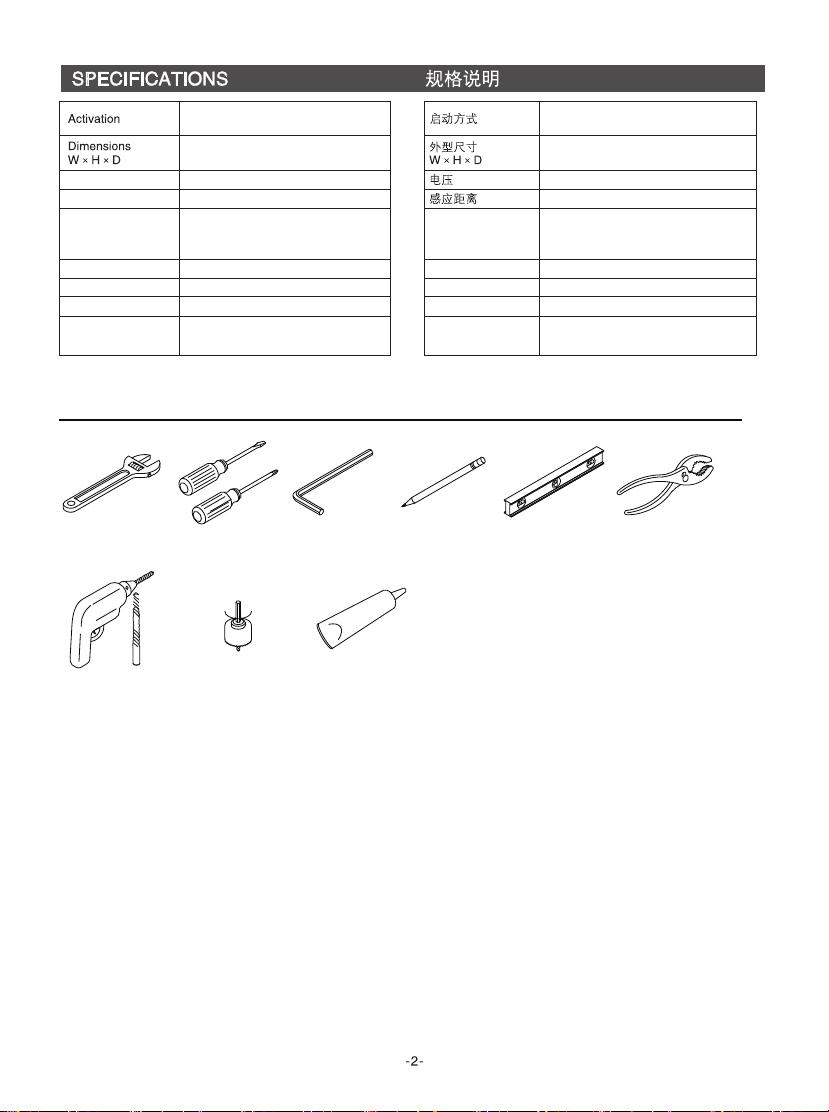

DC 6V
1 - 10CPS (mPa.s)
适用皂液黏度
环境温度
1.6L
皂瓶容量
按钮调距调节方式
4档可调出液量
137xφ40.7mm137xφ40.7mm
DC 6V
1 - 10CPS (mPa.s)
Voltage
Sensing distance
Applicable viscosity
of soap solution
Ambient temperature
Ambient temperature
1.6 L
Press button to adjust the distance
4-level adjustable
Soap bottle capacity
Regulating mode
Soap volume
dispensed
Tools and Materials 工具与材料
1-1/4” Hole Bit
1-1 / 4"钻头 Silicone Sealant
硅胶
1/4" (6mm)
Plus: 另需：
Wood Brace Materials 木撑材料
木工工具
Wood Screws 木螺钉
PVC Tubing
Wood Working Tool
Electrical Tape
PVC管
电工胶带
Hacksaw 钢锯
1434862-T01-D
7±1cm(默认) 2.5-10cm(可调) 7±1cm(Default) 2.5-10cm(Adjustable)
The machine operates automatically 自动感应
1 ℃- 55 ℃
1 ℃- 55 ℃

1434862-T01-D

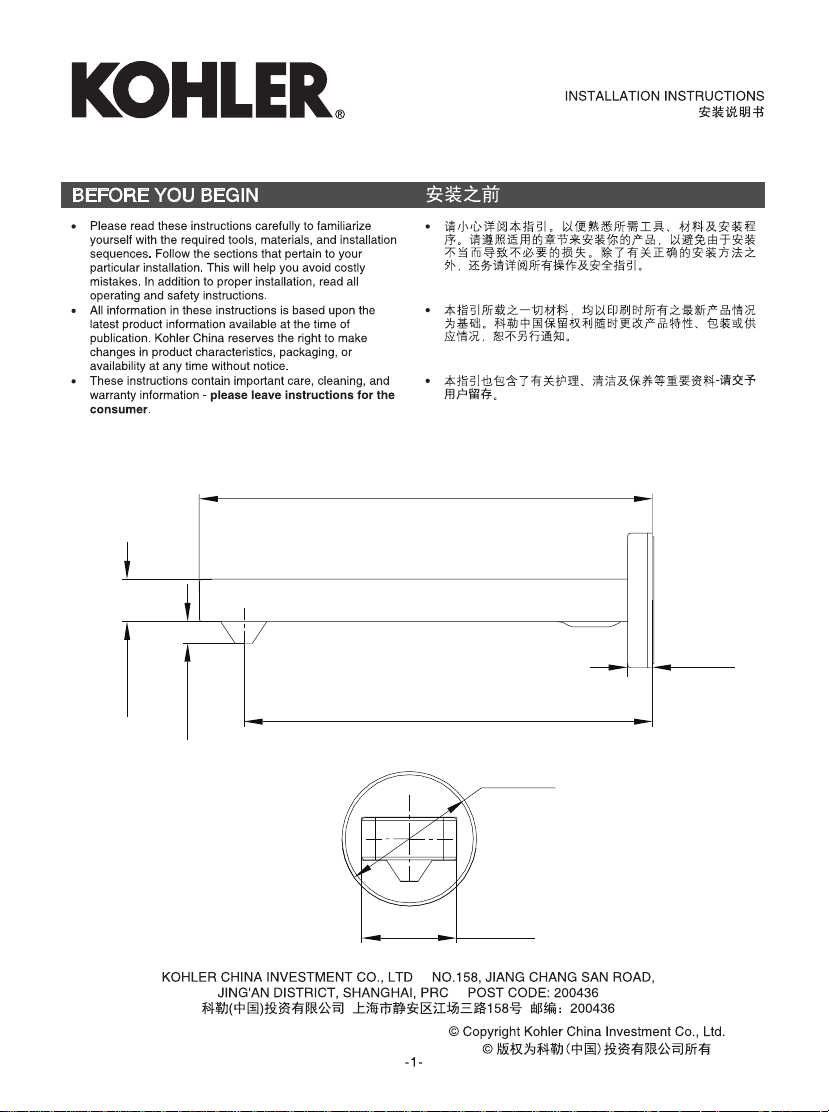

BEFORE YOU BEGIN 安装前的注意事项
WARNING: When using electrical products, basic
precautions should always be followed, including
the following:
IMPORTANT! Your product may appear different than
illustrated. The installation procedure is the same.
Consult the specification sheet for rough-in dimensions for
your model requirements.
Follow all local plumbing and electrical codes.
重要！您所购产品可能与插图不一致，但安装步骤是相同的。
您所购型号产品的安装尺寸要求，请参见规格表。
请遵守所有当地的管道工程和电气法规。
DANGER: Risk of electric shock. Connect only to a
circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI)*.
警告：使用电气产品时，必须始终采取下列基本预防
措施：
危险：有触电危险。只能连接至有接地故障电路断路
器（GFCI）*保护的电路。
WARNING: Risk of electric shock. Disconnect the
power before servicing. 危险：有触电危险。维修前需断开电源。
WARNING: Risk of injury or property damage.
Read all instructions thoroughly before beginning
installation.
警告：有受伤或财产损失的危险。开始安装之前，请
充分阅读所有说明。
CAUTION: Risk of product damage.This product
contains sensitive electronic components. Do not
store open containers of chemical or cleaning
products near this product. Cleaning rags or sponges
must be rinsed with fresh water before storage.
注意：产品损坏风险。本产品包含敏感电子组件。请
勿在本产品附近存放盛有化学或清洁产品的开口容器。
储存前必须将抹布或海绵用清水冲洗干净。
CAUTION: Risk of product damage.Only use
foaming hand soap with viscosity between 1 CPS
and 20 CPS. Gel soaps and foaming hand soaps not
within the CPS range will damage the soap dispenser
and void the warranty.
注意：产品损坏风险。仅可使用粘度在1 CPS至20 CPS
之间的起泡洗手液。超出该粘度范围的凝胶皂和起泡洗
手皂会损坏皂液器，并失去保修资格。

1434862-T01-D
AC(交流) DC(直流)
DC(直流)电池盒
2P母线接头
2P公线接头
2P母线接头
2P公线接头
AC电源
2P母线
接头
2P公线
接头
龙头体感应器
Faucet
Sensor
2P male
connector
4P male connector
4P female connector
2P female
connector
2P male
connector
2P female
connector 2P母线接头
2P公线接头
2P male
connector
2P female
connector
Soap pipe
2P female
connector
2P male
connector
AC power
Air pipe
Сontrol box
Soap Reservoir
DC battery box
4P公线接头
4P母线接头
4P male
connector
4P female
connector
4P公线接头
4P母线接头
进气管
Air pipe
进气管
进皂管 Soap pipe
进皂管
控制盒
Сontrol box
控制盒
皂液盒
Soap Reservoir
皂液盒
137mm
123.5mm
12.7mm
6.57mm
龙头体感应器
Faucet
Sensor
137mm
123.5mm
12.7mm
6.57mm
注意： AC电源或DC电池盒需另购。 NOTE: AC Power or DC battery box need purchasing.

1434862-T01-D

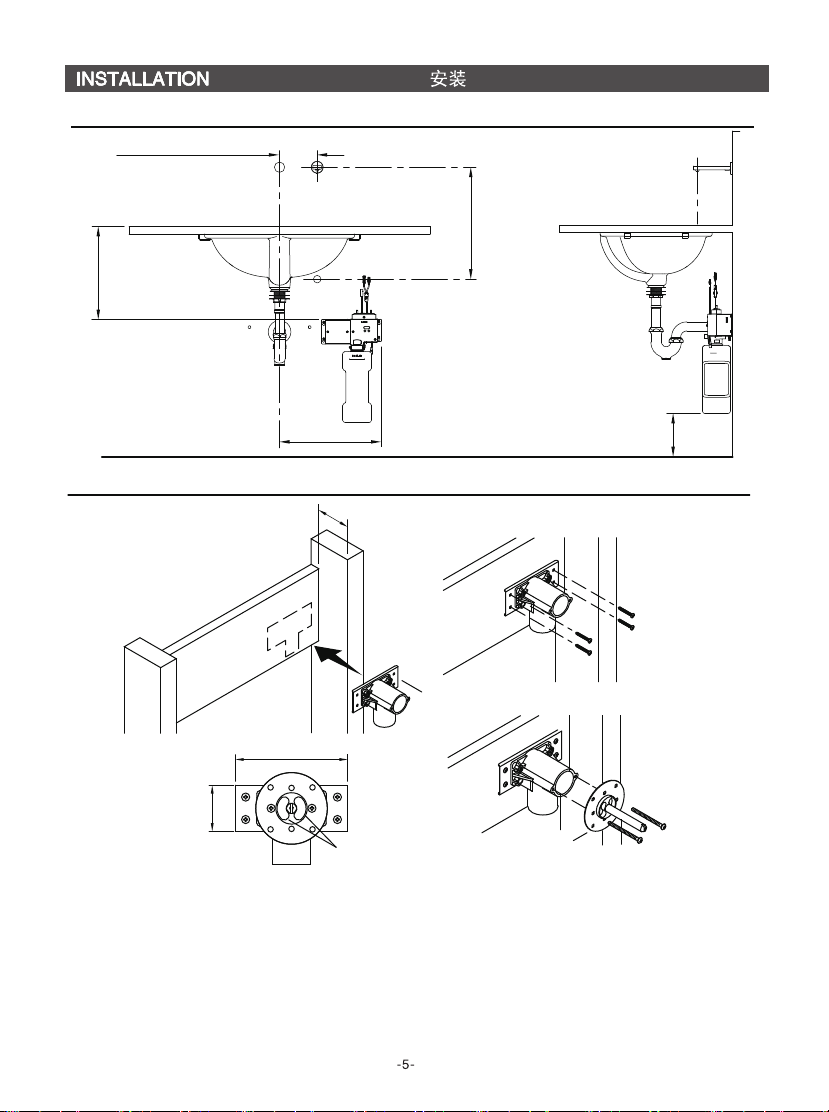

Roughing-in 预埋
Install the Mounting Bracket 安装支架
15"
(381 mm)
Max
14-1/2"
(368 mm)
5" (127 mm) Min最小
4" (102 mm) Min最小
Floor 地面
11-1/2"(292 mm) 12-1/2" (317 mm)
110 mm
44 mm
2-3/4" (70 mm) Min 最小
3" (76 mm) Max 最大
Mounting
Bracket
托架
Slots
插槽
Mounting Pin
安装销
- Construct the framing for your installation. - 设置安装框架。
- Secure the mounting pin to the mounting bracket using
the two screws provided.
- 使用随机提供的两个螺钉将安装销固定到托架上。
- Secure the mounting bracket to the framing using four
wood screws- size #8.
- 使用四个#8木螺钉将支架固定到框架上。
- Remove the plaster guard. - 卸下护管。
- NOTE: Verify the slot orientation as shown above. - 注意：如上图所示确认插槽的方向。

1434862-T01-D

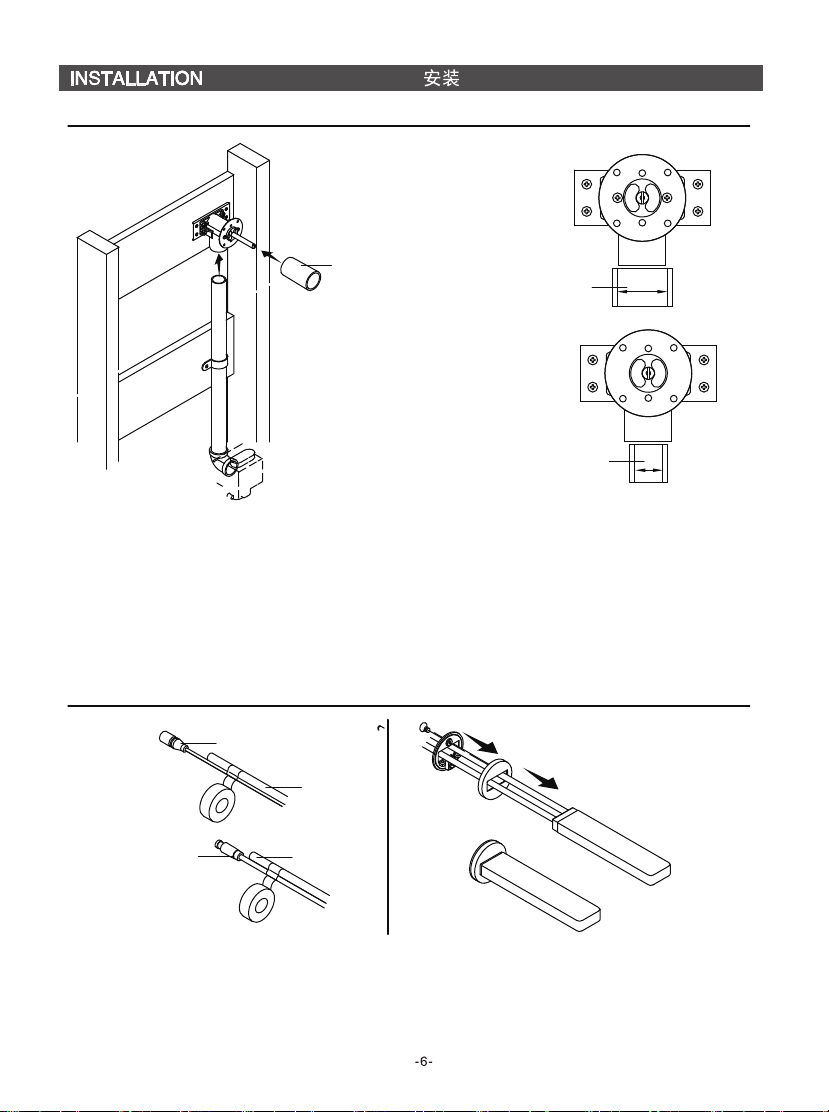

Install the Tubing (Recommended) 安装导管（推荐）
Prepare the Spout 准备龙头
- Connect a straight PVC tube to the mounting bracket as
shown. Verify that the tube is long enough to reach the
control box.
- 将一段直的PVC管连接到支架上，如图所示。确保导管的长度足以
连接至控制盒。
- Finish the wall with a 1-1/4" (32 mm) hole for the spout,
cables and tubing.
- 在墙壁上钻取一个1-1/4" (32 mm)的喷嘴孔、电缆和导管孔。
- Connect a 90 degree elbow at the end of the PVC tube
at the control box installation location.
- 在位于控制盒安装位置的PVC管末端连接一个90°的弯头。
- Remove the plaster guard. - 卸下护管。
- Reinstall the plaster guard over the mounting pin. - 将护管重新安装在安装销上。
- Route the cables and tubes though the escutcheon to
install the escutcheon onto the spout.
- 将电缆和导管穿过底座，然后将底座安装到龙头上。
- For ease when routing the cables and tubes, use electrical
tape to secure one of the cables to one of the tubes.
Repeat for the remaining cable and tube.
- 为便于电缆和导管的布线，使用电工胶带将其中一根电缆固定到其
中一根导管上,对剩余的电缆和套管重复该步骤。
1-1/4" OD
PVC Tubing
PVC管
1-1/2" ID
PVC Tubing
1-1/2"内径
Plaster
Guard
护管
Plastic Tube
塑料管
LED Assembly
Cable
LED组件电缆
Sensor Cable
感应器电缆
Plastic Tube
塑料管

1434862-T01-D

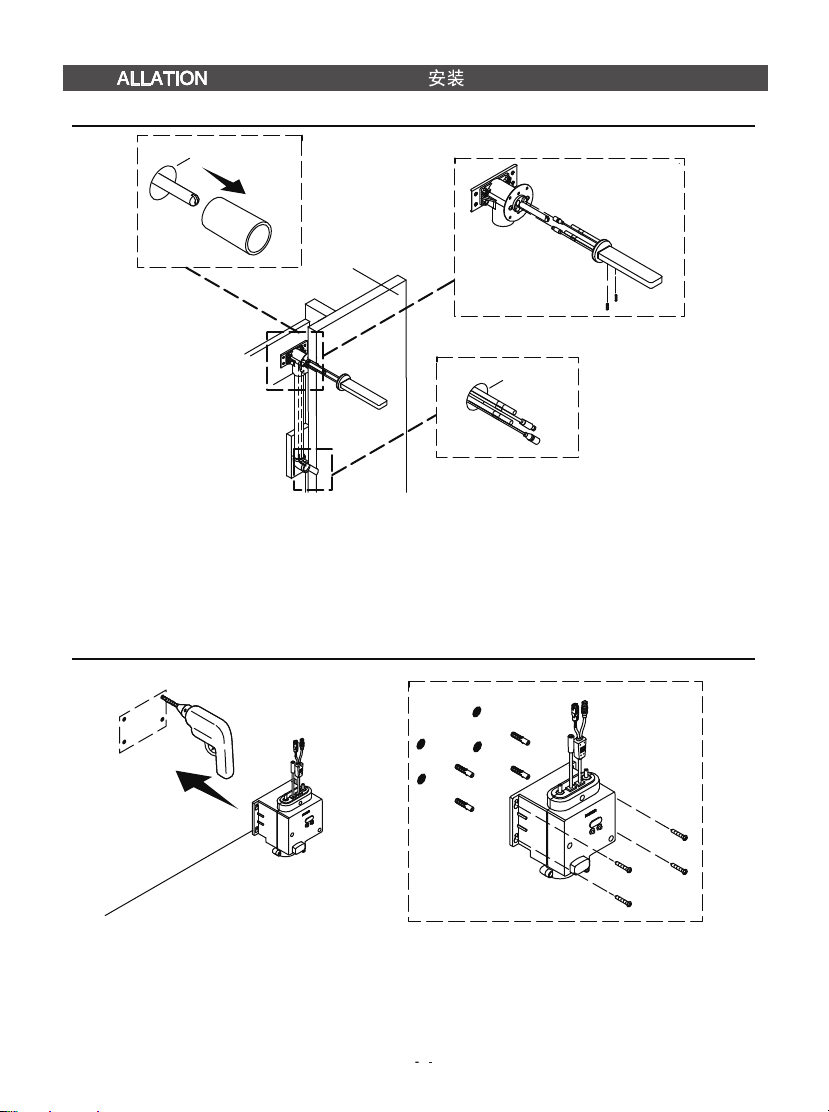

Secure the Spout 固定龙头
- Feed the cables and tubes from the spout through the
mounting bracket and down through the PVC tubing.
- 将从龙头引出的电缆和导管穿过托架，然后向下穿过PVC管。
- Slide the spout assembly onto the mounting pin until flush
with the wall.
- 将龙头组件滑到安装销上，直至与墙壁齐平。
- Pull the cables and tubes from the spout out through the
hole leading to the control box location.
- 将从龙头引出的电缆和导管穿过通向控制盒位置的孔洞。
- Mark the location of the mounting holes. 标记安装孔的位置。
- Attach the control box to the wall as shown. 如图所示将控制盒放置在墙壁上。
- Secure with the four screws provided. 使用随机提供的四个螺钉进行固定。
- Tighten the two setscrews (provided) to secure the
spout to the mounting bracket.
- 拧紧两个固定螺钉（随机提供），将龙头固定到托架上。
Install the Control Box 安装控制盒
1-1/4" OD
Finished Wall
表面处理过的墙壁
1-1/4" OD
7

Install the DC Power Unit 安装直流电源装置
电源线控制
盒
电源线电池
盒
肋条

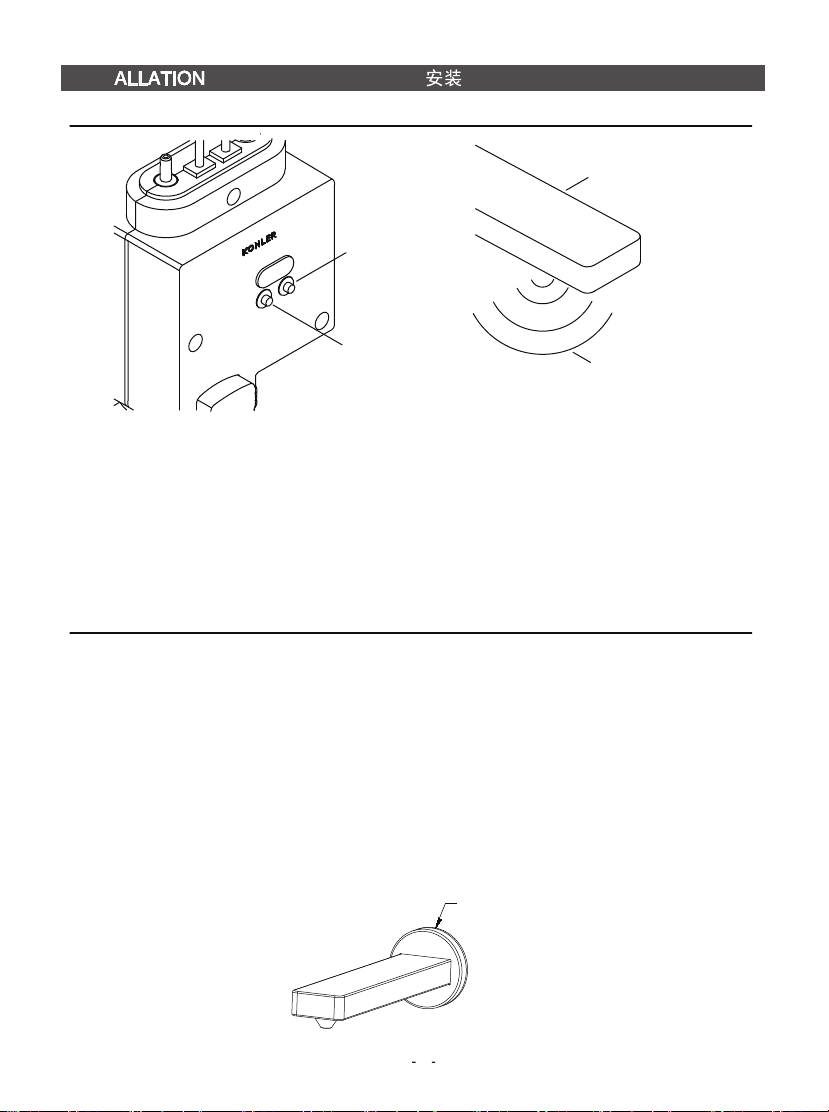

- Unthread the screws from the battery box to remove the
battery box cover.
- 拧下电池盒上的螺丝，卸下电池盒盖。
- NOTE: Do not mix used and new batteries. - 注意：请勿混用新旧电池。
- Insert four D batteries (provided). Reinstall the battery
box cover and secure with the screws.
- 放入四节一号电池（需另购）。重新安装电池盒盖并用螺丝
固定。
- Align the grooves on the battery box with the ribs on the
side of the control box.
- 将电池盒上的凹槽与控制盒侧面的肋条对准。
- Mark the location of the mounting holes. - 标记安装孔的位置。
- NOTE: The provided wall anchors are for concrete wall
installation. Use the appropriate wall anchors depending
on your wall material.
- 注意：随机提供的膨胀螺丝适用于混凝土墙壁的安装。根据您的墙
壁材料选择合适的膨胀螺丝。
- Drill the holes per the anchor manufacturers instructions.
If using the provided wall anchors, drill 1/4” (6 mm) pilot
holes.
- 根据锚固件制造商的说明进行钻孔。如果采用随机提供的膨胀螺丝，
需要钻取1/4" (6 mm)的导向孔。
- Slide the battery box onto the ribs on the side of the
control box. Secure with the screws.
- 将电池盒滑到控制盒侧面的肋条上。使用螺丝固定。
1434862-T01-D8

AC电源
2P母线
接头
2P公线
接头
2P female
connector
2P male
connector
AC power
塑料管
塑料管 连接器
电源连接器
皂泵出口
气泵出口
感应器
组件电
缆组件电缆 电源连接器
感应器组件连接器

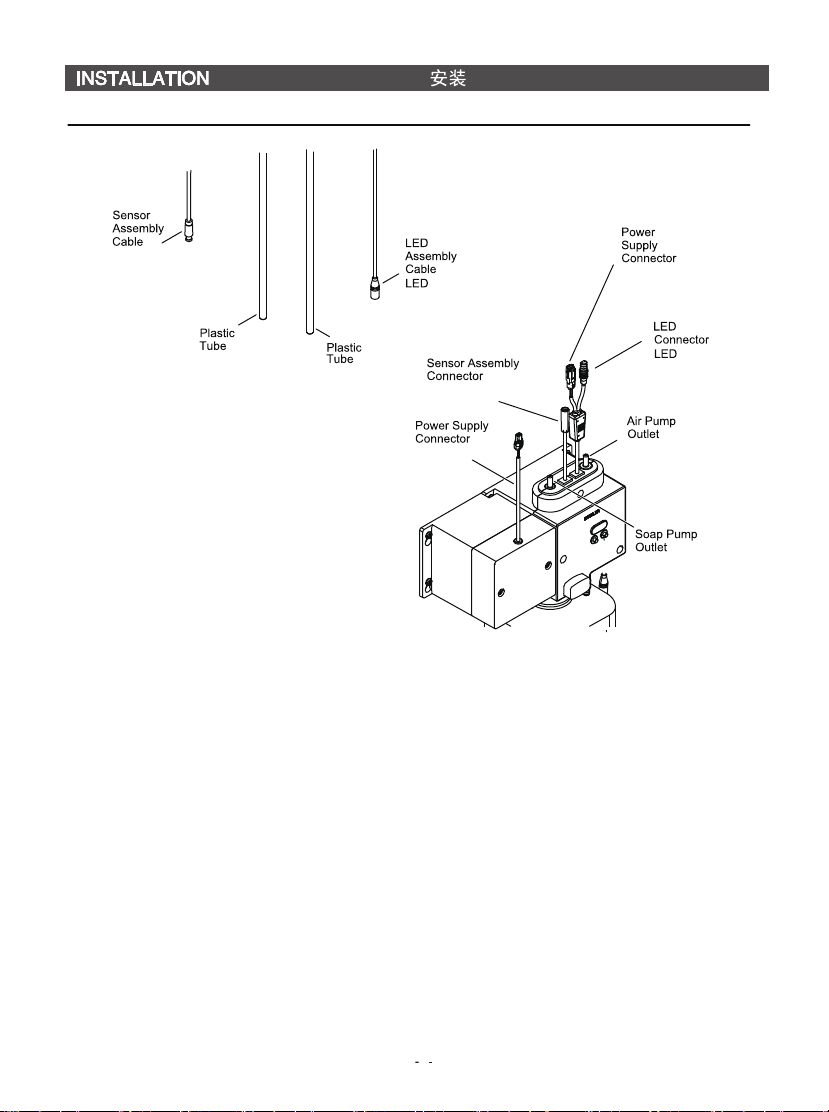

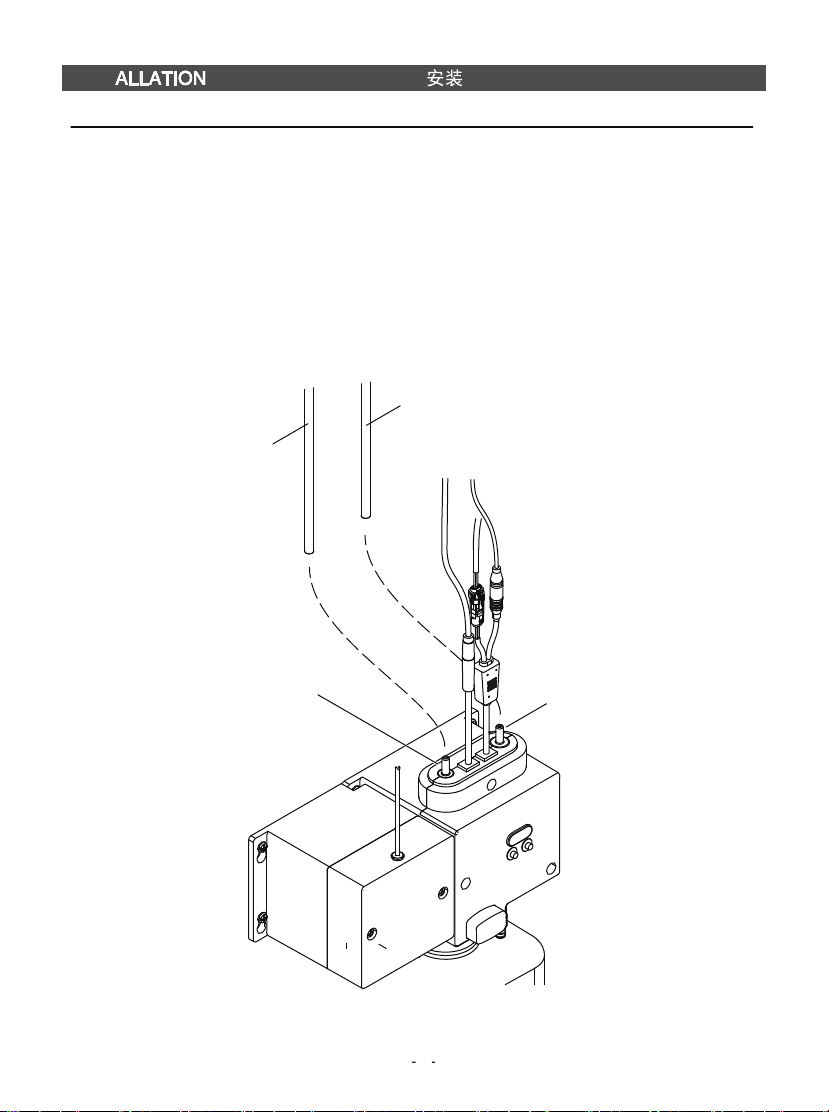

- IMPORTANT! Verify that the cables are not pinched
when connecting to the control box.
- 重要！确保连接至控制盒电缆没有被夹住。
- IMPORTANT! The area in front of the sensor must be
free of objects during the 2 minute learning cycle or the
soap dispenser may not function properly.
- 重要！在2分钟的学习循环内，感应器前方区域不得有任何物
体，否则皂液器可能无法正常工作。
- Connect the sensor cable from the spout to the sensor
cable from the control box.
- 将龙头的感应器电缆与控制盒的感应器电缆相连接。
- Connect the LED cable from the spout to the LED cable
from the control box.
- 将龙头的LED电缆与控制盒的LED电缆相连接。
- Connect the power supply connector from the battery
box to the power supply connector from the control box.
- 将电池盒的电源连接器与控制盒的电源连接器相连接。
- Allow 2 minutes for the sensor to cycle through the
automatic sensing distance.
- 等待2分钟，让感应器在自动感应距离内循环。
- NOTE: Once the power supply cords are connected
the base of the soap dispenser will lash red twice every
six seconds. This is normal and is a signal that there is
no soap in the reservoir. After the soap is illed and primed
the lashing will stop.
- 注意：连接电源线后，皂液器的底座每六秒钟闪烁两次红光。
这属于正常现象，说明皂液瓶中没有皂液。装满皂液并起动后，
灯光闪烁停止。
- Secure any extra wire under the counter. - 将多余的电线固定在洗手台下面。

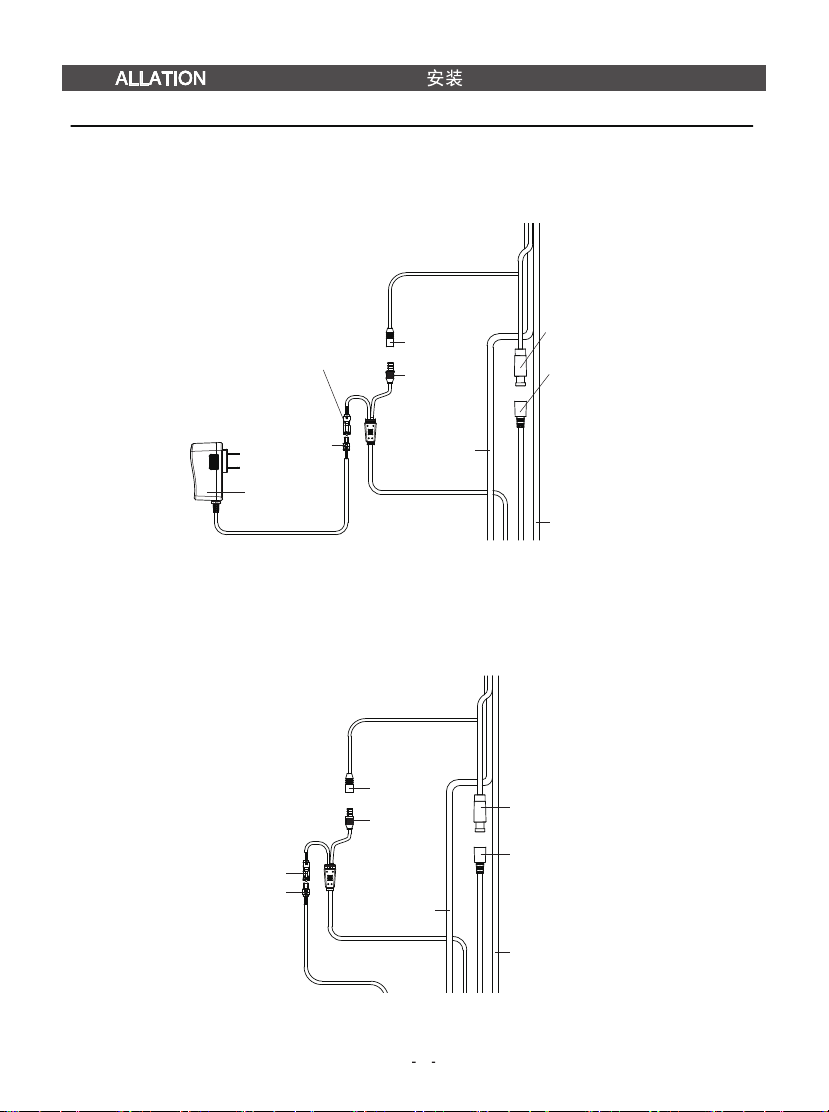

Connect the Control Box Wires 连接控制盒电线
1434862-T01-D9

Install the Power 连接电源
1434862-T01-D
