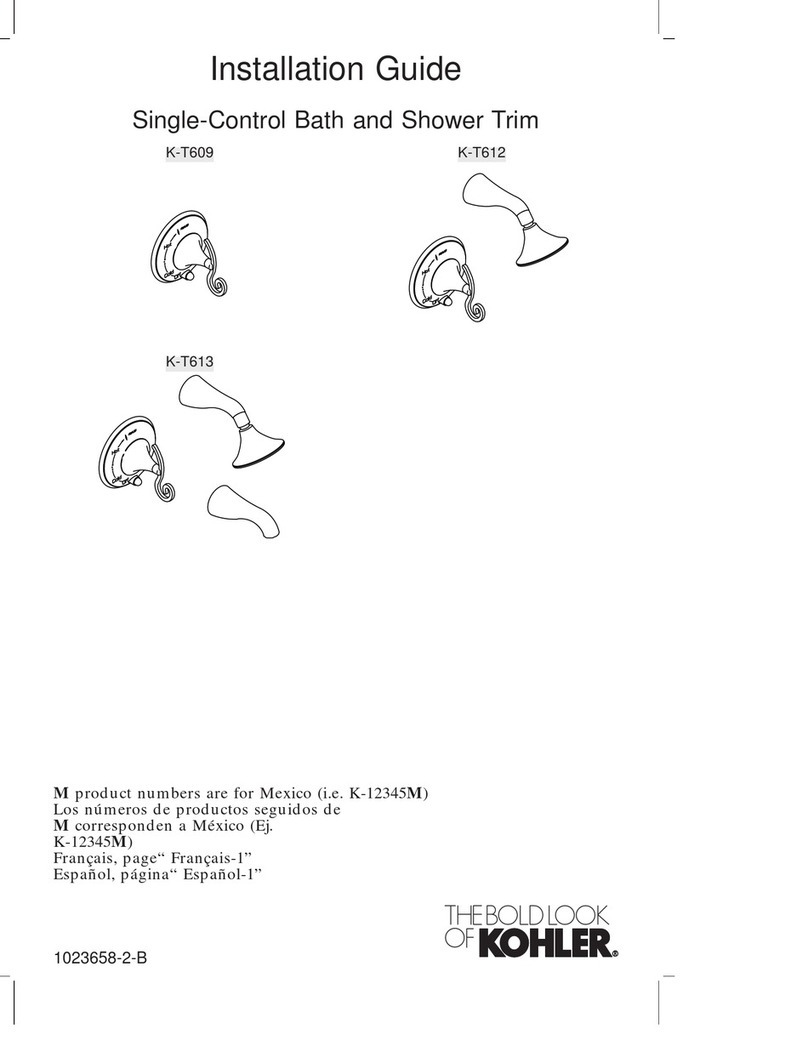

Kohler K-T609 User manual

Kohler

Kohler K-T609 User manual

Kohler Mira Atom ERD Operation manual

Kohler

Kohler Mira Atom ERD Operation manual

Kohler MasterShower K-8520 User manual

Kohler

Kohler MasterShower K-8520 User manual

Kohler K-24804-4N-CP User manual

Kohler

Kohler K-24804-4N-CP User manual

Kohler Memoirs Stately 3 Hole Basin Mixer User manual

Kohler

Kohler Memoirs Stately 3 Hole Basin Mixer User manual

Kohler FAIRFAX 12177T-B User manual

Kohler

Kohler FAIRFAX 12177T-B User manual

Kohler PureFlo K-37388 Assembly instructions

Kohler

Kohler PureFlo K-37388 Assembly instructions

Kohler Singulier 10861-4ND User manual

Kohler

Kohler Singulier 10861-4ND User manual

Kohler K-116 User manual

Kohler

Kohler K-116 User manual

Kohler PINOIR K-2015 Assembly instructions

Kohler

Kohler PINOIR K-2015 Assembly instructions

Kohler Candide 7688K-4E3 User manual

Kohler

Kohler Candide 7688K-4E3 User manual

Kohler MARSTON K-2766 User manual

Kohler

Kohler MARSTON K-2766 User manual

Kohler K-5329 Assembly instructions

Kohler

Kohler K-5329 Assembly instructions

Kohler Family Care 2.0 K-701646T-FM-SHP User manual

Kohler

Kohler Family Care 2.0 K-701646T-FM-SHP User manual

Kohler K-T15601 Assembly instructions

Kohler

Kohler K-T15601 Assembly instructions

Popular Plumbing Product manuals by other brands

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

American Standard DetectLink 6072121 manual

American Standard

American Standard DetectLink 6072121 manual

Uponor Contec TS Mounting instructions

Uponor

Uponor Contec TS Mounting instructions

Pfister Selia 49-SL Quick installation guide

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis VITRINA 6068700 quick start guide

Maxxus MX-M206-01 instruction manual

Maxxus

Maxxus MX-M206-01 instruction manual

Viega Prevista Pure 8512 Instructions for use

Viega

Viega Prevista Pure 8512 Instructions for use

Viega Prevista Dry 8522.33 Instructions for use

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela Lema SLP 59RB Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay EDF15AC Installation, care & use manual

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv WT-140 manual

baliv

baliv WT-140 manual

BELLOSTA romina 0308/CC Installation instruction

BELLOSTA

BELLOSTA romina 0308/CC Installation instruction

Bristan PS2 BAS C D2 Installation instructions & user guide

Bristan

Bristan PS2 BAS C D2 Installation instructions & user guide

Crosswater Heir 18-31 installation instructions

Crosswater

Crosswater Heir 18-31 installation instructions

Sanela SLVN 07 Mounting instructions

Sanela

Sanela SLVN 07 Mounting instructions

Glacier bay DORIND HD67478W-6001 Installation and care guide

Glacier bay

Glacier bay DORIND HD67478W-6001 Installation and care guide

Sterling Plumbing C741 Specification sheet

Sterling Plumbing

Sterling Plumbing C741 Specification sheet

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

1301217-2A-A 1
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes. Shut off the main water supply.
4. Check for leaks before covering the pipes, repair as needed.
5. Please ensure only apply water pressure test on the product, and empty the air in pipe and faucet thoroughly
before the test. Please ensure test pressure below 0.8MPa(8bar) and test duration within 30 minutes.
1301217-2A-A 4
INSTALLATION INSTRUCTIONS
78023T-4 78023T-4A Recessed Thermostatic Shower Only Trim & Valve
78024T-4 78024T-4A Recessed Thermostatic Bath Shower Trim & Valve
78023T-4 78023T-4A Recessed Thermostatic Shower Only Trim & Valve
78024T-4 78024T-4A Recessed Thermostatic Bath Shower Trim & Valve
MODULOMODULO
SERVICE PARTS
ROUGH-IN DIMENSIONS
OPERATION CONDITION
1. Minimum supply pressures: 0.5bar.
2. Recommended supply pressures: 3bar on hot and cold water.
3. If supply pressure higher than 5bar: install a pressure reducer.
4. Pressure difference between hot and cold supply: 2bar maximum.
5. Hot supply water temperatures, minimum: 50ºC, maximum: 70ºC.
6. Recommended hot supply water temperature: 60ºC (energy-saving).
7. Setting range, approximately: 20ºC to 49ºC.
8. Safety stop at: 37ºC.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
78023T-4 & 78024T-4 78023T-4A & 78024T-4A
67~97
80 32
3444
37
The finished wall
15
Ø180
67~97
80
32
3444
37
15
The finished wall
Ø180
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
831718
831718
831416
1226027
1226026**
78024T-4/4A:1323373**
78023T/78024T-4:1328175**
78023T/78024T-4:1328177**
3008304
871363
871363
871241
3018256**
870667
870667
3018196
3016134
3016134
3021239
1289491
1226024
3019455
3010602
1226023
3018303
75588
1244917
78023T-4/4A:3021300
3018197
78024T-4/4A:3016024
78024T-4/4A:3012834
78023T-4/4A:3015939
871241
3014237**
1228263
3019692
831752
1228264
75605
1289490
870992
Hot:1226021
871568
870992
Cold:1226020
831416
1226027
1226026**
78023T-4/4A:1323375**
78023T/78024T-4A:1289684**
78023T/78024T-4A:1289689**
1301217-2A-A 2
1301217-2A-A 3
INSTALLATION CHECKOUT
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
INSTALLATION
NOTE: Install mounting box
kit(1) according to the rough-in
dimensions of 98699T-NA.
Cut the protrudent part of the
mounting box kit out of the
finished wall. Unscrew the
screw(2), remove the protect
cover kit(3).
Remove the protection(5) on the valve
kit(4). NOTE: Don’t drop the
o-rings(6), don’t turn the cartridge
spindle(7) when install it. The holes on
the bottom of the valve kit should be
aligned with the holes in the mounting
box. Install the valve kit into the
mounting box kit, tighten the
screws(8).
Slide the cover kit(9) onto the valve.
Push it against the wall. Secure it with
the screws(10).
Slide the faceplate(11) onto the valve
with slots(12) downwards. NOTE:
Don’t squeeze out the rings(13,14).
Push it against the wall.
Install the handle(15,16) on the
cartridge spindle with handle vertically
upward.
The illustration shown is the correct position of the handles in the closed position.
Ensure that all coupling nuts are tight. Ensure that the handle is in the off position.
Turn on the main water supply, and check for leaks. Repair as needed.
1
2
3
Ring
Stop Assembly
Cartridge
1
Screw
TH handle
Notch
3
The temperature is set by slowly turning the temperature handle at underside. For safety reasons, there is a stop
that limits temperature to 37ºC. To get a higher temperature, push the button and continue turning the temperature
handle.
Water flow is set by turning the top flow handle.
OPERATION INSTRUCTION
Temperature Verification and Setting
Make sure that the water feeds of the faucet have reached their highest temperature but within the recommended
range by letting the water run sufficiently. With the selector in position 37ºC, the temperature of the water coming
out of the faucet must be within a range of 36ºC and 38ºC, as measured by a thermometer. If the temperature out
of the range, the installer can adjust the setting. Proceed with the setting as follows:
Remove the temperature handle kit.
With the faucet on "cold" normal water flow, slowly turn the temperature selector(always in the same direction) until
water at 37ºC is obtained. If the temperature goes over 37ºC, go back to the “cold” setting and set again.
When the temperature is stabilized, do not turn the cartridge spindle, reinstall the handle kit.
Clean Thermostatic Cartridge
Very hard water can obstruct the filters on thermostatic cartridge and reduce the flow of water. Please clean the
cartridge as follows:
Shut off the water supplies of the faucet and open the flow valve, then proceed to remove the cartridge. The
cartridge is sense part, please be careful.
Make sure the handle is aligned with the number 37 on faceplate before your action. Remove the temperature
handle kit. Remove stem, detent and stop assembly(Fig.1). Removing the thermostatic cartridge cautiously(15).
Clean the thermostatic cartridge by soaking it in warm vinegar.
After cleaning, make sure that the black dot is correctly in line with the black line. Install the “stop assembly” back
on the cartridge, adjusting the stop pin into the notch(Fig.2). Install the cartridge and stop assembly into the body,
adjusting the stop pin into the notch(Fig.3). Reinstall the ring and screw. Reinstall the temperature handle kit and
align the handle to the “37” on the faceplate.
CARE AND MAINTENANCE
Notch
Stop Pin
2
Black Dot
Black Line
4
7
8
9
10
5
6
4
NOTE: If the hot and cold water supplies are connected inversely,
installer must exchange the position of the hot and cold insert assy.
Ensure the product works properly.
Insert assy(Cold)
Insert assy(Hot)
78023T-4 78024T-4 78023T-4A 78024T-4A
11
12
14
15
16
13
