Kohler K-2220X Assembly instructions

Installation and Care Guide
Countertop Lavatory Without Faucet Deck


1042173-X2-A ©2010 Kohler Co.
K-2220X

1042173-X2-A 2 Kohler Co.

Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler crasmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
  
 
 

 

  

  


 

Kohler Co. 3 1042173-X2-A
Before You Begin
CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.

Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
 
 

 
 

¨ Observe all local plumbing and building codes.
¨ Prior to installation, unpack the new lavatory and inspect it for damage.
Return the lavatory to its protective carton until you are ready to install it.
¨ Inspect the drain and supply tubing. Replace if necessary.
¨ Use the template supplied with the lavatory.
¨ For replacement installations, make sure the existing cutout is the same size
or smaller than needed for the new lavatory.
¨ Failure to follow these precautions may result in a poor installation.
¨ Do not use adhesives or adhesive sealants with this product.
¨ Fixture dimensions are nominal and conform to tolerances established by
Standards TIS 791-2544.

1042173-X2-A 4 Kohler Co.




¨ 
¨    

¨ 
¨ 
¨ 

¨ 
¨ 
¨ 
Tools/

Kohler Co. 5 1042173-X2-A
1. Preparation
¨Install the water supplies and drain piping.
¨Determine the faucet centerline location. Consider the faucet and handle
escutcheon diameters, the length of the spout, and the clearance between
the spout and the lavatory rim.
NOTE: Some Kohler faucets require a minimum of 64 mm behind the nal
faucet centerline.
¨Cut along the backsplash locator line on the template.
¨Cut out the template along the inside of the template cuing line.
¨Position the template on the countertop to ensure clearance between the
lavatory, faucet, and backsplash.
¨Verify cabinet clearance beneath the countertop.
¨Use a pencil to trace the template on the countertop.
¨Mark the faucet and handle centerline on the countertop.

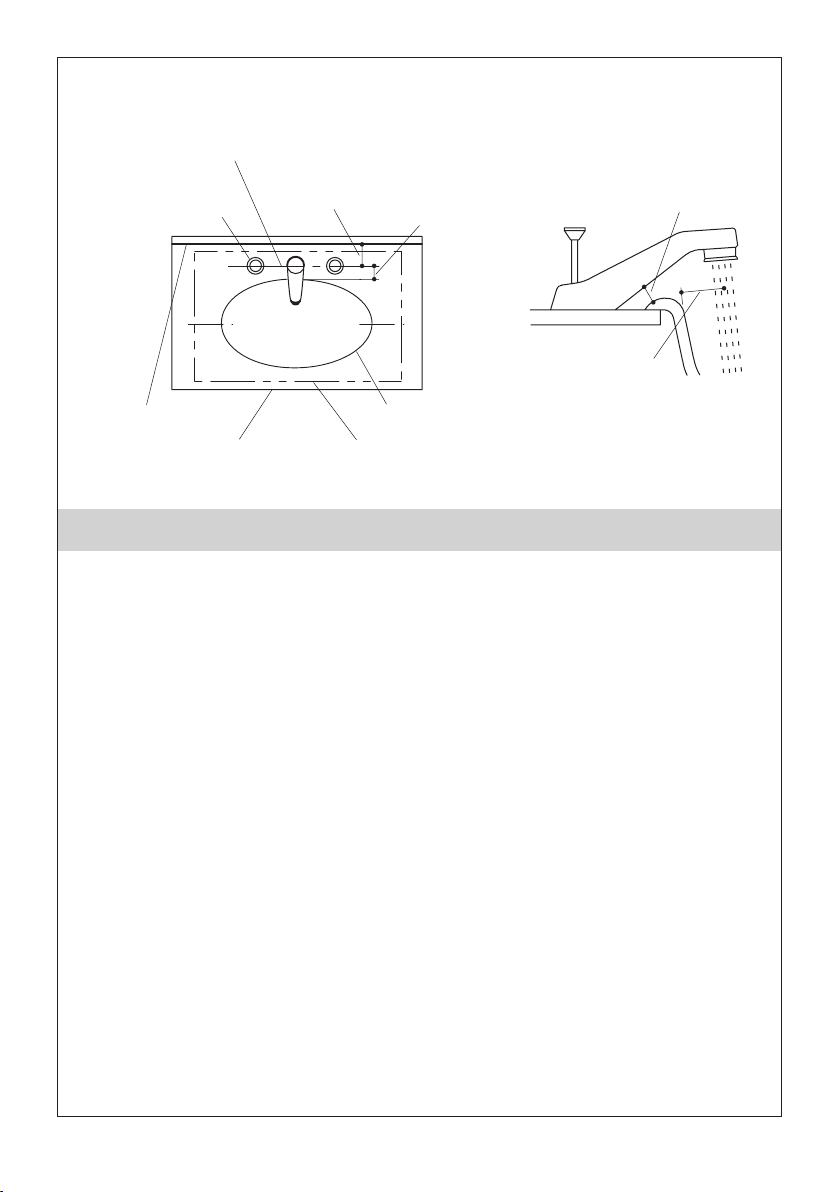

Centerline
50 mm Min.
20 mm Min.
Handle
Escutcheon 6 mm Min.
Template
Rim Outline
Backsplash
Countertop
อยางนอย 6 มม.
อยางนอย 50 มม.
อยางนอย 20 มม.
65 mm/มม.
รอยตัด
กระดาษแมแบบ
เคานเตอร
กานเปด-ปดกอกนํ้า
เสนกึ่งกลางแนว
ติดตั้งกอกนํ้า
แนวกำแพง

1042173-X2-A 6 Kohler Co.
¨ 
¨
 
 
 
 
¨ 
¨ 
¨ 
 
¨ 
¨ 
¨ 


Kohler Co. 7 1042173-X2-A
2. Install the Lavatory
Dimensions are for Kohler faucets only. When using other faucets, contact
supplier for installation instructions and dimension.
Faucet Centers Valve Holes Spout Hole
Single Hole 1-1/4" – 1-1/2" (32-38 mm)
4" (101.5 mm) 1" – 1-1/2" (25-38 mm) 1" – 1-1/2" (25-38 mm)
8" (203 mm) 1" – 1-1/2" (25-38 mm) 1-1/4" – 1-1/2" (32-38 mm)
¨Cut out the opening by carefully following the pencil line traced from the
template.
¨Temporarily position the lavatory in the opening. Adjust the t of the
lavatory.
¨Remove the lavatory from the countertop.
¨Drill the faucet holes using the above chart to determine their size.
¨Install the faucet to the countertop according to the manufacturer’s
instructions.
¨Install the drain to the lavatory according to the manufacturer’s
instructions.
¨Carefully position the lavatory in the cut-out.
¨Apply a thin, continuous bead of sealant around the lavatory edges.
¨Immediately wipe away any excess sealant, and ll any voids as needed.
¨Verify that the lavatory has not moved out of position.
¨Allow the sealant to cure for at least 30 minutes before proceeding.
¨Connect and tighten the trap to the drain, and complete the water supply
connections to the faucet according to the instructions packed with the
faucet.
¨Run water into the lavatory and check for leaks.
CAUTION: Risk of personal injury or product damage. Handle
with care. Vitreous china can break or chip if the product is handled
carelessly.

1042173-X2-A 8 Kohler Co.
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 

¨ 



  
 
  
  
¨ 




Kohler Co. 9 1042173-X2-A
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately aer
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a so, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface aer each use.

 

• 

• 

• 

• 
• 

• 
• 
 

1042173-X2-A 10 Kohler Co.
Limited Warranty
Kohler (Thailand) Public Company Limited warrants to the original products,
which are purchased from authorized distributors and dealers within Kingdom
of Thailand only, to be free of defects in material and workmanship.
Within the below mentioned periods from the date of purchase, Kohler
(Thailand) Public Company Limited will at its election, repair, replace or make
appropriate adjustment where company’s inspection discloses any such defect
occurring in normal usage and maintenance but is not responsible for labor
charges, removal charges, installation, or other incidental or consequential
costs. In no event shall the liability of Kohler (Thailand) Public Company
Limited exceed the purchase price of the product.
• Bare ware made from vitreous china Lifetime Limited Warranty
• Tank trims and accessories One (1) Year
• Kohler ll valve Five (5) Years
• Kohler ush valve Five (5) Years
• Toilet seat and cover One (1) Year
This limited warranty DOES NOT COVER the defect or damage from misuse
or abuse of products, wrong installation, accidents, natural disasters such as re,
ood, or earthquake. Consumers are responsible for the cost of service parts
and service fee for such cases.
To ensure continuous product quality and performance, as well as product
durability and lifetime, without any damage to the product, consumers should
purchase and use only genuine service parts and aer-sales services from
Kohler (Thailand) Public Company Limited or company’s authorized service
centers, distributors, or dealers only.
To obtain warranty service, please contact your dealers or contact the KOHLER
Call Center, together with proof of purchase at:
Call Center
KOHLER (Thailand) Public Company Limited
16th Floor, Jasmine City Building
2 Soi Sukhumvit 23, Sukhumvit Road
Waana, Bangkok 10110
Tel: [phone] Fax: [phone]
Email: [email protected]
Remarks:
1. There may be variation in color delity between catalog images and actual
products.
2. Kohler (Thailand) Public Company Limited reserves the right to make
changes in product characteristics, packaging, or availability at any time
without notice.
COPYRIGHT ©2010 BY KOHLER (THAILAND) PUBLIC COMPANY LIMITED.
