Kohler TAUT 73194T-4E2 User manual

1305578-2A-A 1
BEFORE YOU BEGIN
1305578-2A-A 4
INSTALLATION INSTRUCTIONS
73194T-4E2 Wall Mount Shower Column73194T-4E2 Wall Mount Shower Column
TAUTTAUT
ROUGH-IN DIMENSIONS
SERVICE PARTS
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary. Shut off the water supplies to the fitting.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for diverter is 0.05MPa.
5. Recommended minimum working pressures is 0.1MPa.
6. The highest working pressure for showerhead & handshower is 0.5MPa. If it exceeds 0.5MPa, a pressure
reducer is needed. The highest water and environment temperature is 60°C. Please keep handshower,
showerhead and the shower arm away from heater, or it may become damaged and cause injury to the user.
OPERATION INSTRUCTIONS
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
Turn the diverter handle counter-clockwise for handspray; Turn clockwise for showerhead.
Recommended Height
1000~1100
Finished Floor
1070~1270
925~1125
784
68
34
400
G1/2˝ G1/2˝
G1/2˝
G1/2˝
G1/2˝
1500
G1/2˝
005
219
G1/2˝
Ø102
102
Ø203
**Color code must be specified when ordering.
G1/2˝
G1/2˝
56
130
150±15
Ø66
73194T-4E2
870992
1196610
1196607**
832751
832751
1061576
1196621**
1111667**
1196628
1183267**
1109471**
880010
1046290
1121285
1196609**
1196622**
1196610
832751
831727**
870921
870921
880010
1121294**
1183428**
1061576
1196621**
1268608**
77420
1196627**
1260904**
1153258
1153258
77420
1256397**
1256401**
1219595**
864104**
1213567
3016381
3016381
1213561
3008523
3013706
1242786**
1209778**
1209777
1292054

1305578-2A-A 2 1305578-2A-A 3

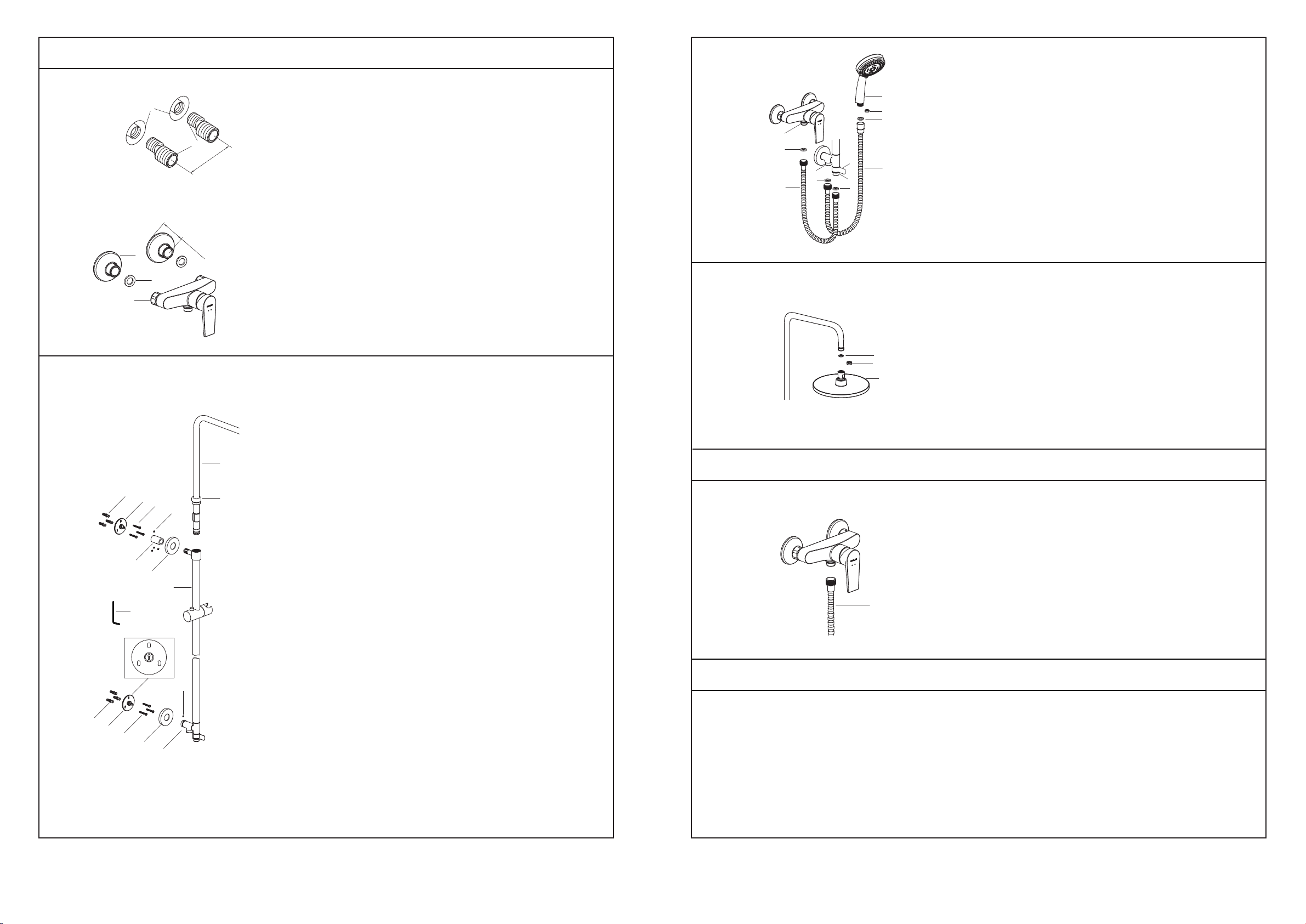

INSTALLATION
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
Ensure that all connections tightened. Ensure that the
handle is in the off position.
Turn on the drain and main water supply, and check for
leaks. Repair as needed.
Remove the hose(18). Run hot and cold water through
faucet for about one minute to remove any debris. Shut off
the faucet. Reinstall the hose.
INSTALLATION CHECKOUT
How to Install the Showerhead
T urn the diverter handle, run hot and cold water for about
one minute to remove any debris before the showerhead(27)
is installed.
Put the regulator(28) into the showerhead inlet if needed.
Connect the showerhead to the tube kit outlet with the
washer(29), and tighten the showerhead with strap wrench.
Hot
Cold
How to Install the Faucet
To perform installation, installer must provide G1/2″ female
supply fittings(1), spaced 150mm apart and horizontally. The
supply fittings should be vertical and not beyond the finished
wall. Hot supply pipe must be located on the left.
Flush the water supply pipes thoroughly to remove debris.
Install the two offset connectors(2) into the hot and cold
supply pipes. Use appropriate thread sealants or thread
tape on pipe threads.
Adjust the center-to-center distance between the connectors
to 150mm and horizontally. They should extend 29mm
beyond the finished wall. Thread the escutcheons(3) onto
the connectors until they are against the finished wall.
Put the washers(4) into the nuts(5), thread the nuts to
connectors. Tighten the nuts with strap wrench or soft cloth
between product and regular wrench.
How to Install the Shower Column
Select a location in vertical wall to install shower column
according to rough-in dimensions. Drill the lower hole
according to anchors’(6) diameter and lower base(8-1)
position in the finished wall(NOTE: The arrow in the base is
upward). Press anchors into the hole, secure the base by the
screw(7).
Rehearse the slide bar kit(9) installation for the upper
base(8-2) mounting location determination. Slide the tube
joint(10) onto the slide bar kit, and connect them to the
base(NOTE: The arrow in the base is up). Install the
screws(12) into the tube joint with the hex wrench(11), and
tighten them.
Place the slide bar and the body against the finished wall.
Connect the lower base and the diverter body kit(13).
Position and tighten them by hex wrench. Mark the hole of
upper base(8-2) with a pencil. Uninstall the slide bar kit and
tube joint.(NOTE: Don’t lose the screws.)
Drill holes on the mark. Press the anchors into the holes.
Secure the upper base(8-2) by the screws. Install the tube
joint(10) to the base(8-2) and tighten them by screws.
Reinstall the slide bar kit with escutcheons(14) to the bases.
Tighten the screws with the hex wrench. Screw the
escutcheons with the bases until against the finished wall.
Install the tube kit(15) into the slide bar kit. Install the nut(16)
onto the tube kit with soft cloth between internal hole of the
nut and the tube kit. Then screw the nut onto the slide bar kit
with strap wrench or soft cloth between the nut and regular
wrench.
2
1
150mm
How to Install the Handshower and Hose
Tighten 500mm length hose(18) to the outlet(19) and the
connector(20) with two washers(17).
Turn the diverter handle(21), run hot and cold water for
about one minute to remove any debris.
Tighten 1500mm length hose(24) to the connector(23) with
filter washers(22). Put the regulator(25) into the
handshower(26) inlet if needed. Tighten the hose to the
handshower with the filter washer(22).
6
712
8-2
14
6
7
12
8-1
14 13
16
15
10
11
9
5
4
29mm
3
22
25
26
24
19
17
20
21
22
23
17
18
29
28
27
18
