Kohler HYTEC ACR3769/LT User manual

1
114909-2 –04/08/2020
These Installation Instructions apply to HYTEC Shower Receptors with a thermoformed Acrylic surface. They are backed with
fibreglass-reinforced plastic for strength and durability. All models have a textured floor.
Model
Length
Depth
Centre of Drain
from Side
Centre of Drain
from Rear
Overall
Height
Threshold Height
ACR3769 /LT
48”
1219mm
30”
762mm
24”
610mm
14 3/16”
360mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3770 /LT
60”
1524mm
30”
762mm
30”
762mm
14 3/16”
360mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3770DTA/B
60"
1524mm
30"
762mm
30”
762mm
15”
381mm
5 7/8”
149mm
4 3/8"
112mm
ACR3771 /LT
32”
813mm
32”
813mm
16”
406mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3772 /LT
36”
914mm
32”
813mm
18”
457mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3773 /LT
42”
1067mm
32”
813mm
21”
533mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3774 /LT
48”
1219mm
32”
813mm
24”
610mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3775 /LT
60”
1524mm
32”
813mm
30”
762mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3775L/R / LTL~R
60”
1524mm
32”
813mm
9 3/4”
248mm
15 3/16”
386mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3775DTA/B~LT
60”
1524mm
32”
813mm
16”
406mm
30”
761mm
5 7/8”
149mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3776
36”
914mm
34”
864mm
18”
457mm
17”
432mm
5 7/8”
149mm
4 3/8"
111mm
ACR3777
42”
1067mm
34”
864mm
21”
533mm
17”
432mm
5 7/8”
149mm
4 3/8"
111mm
ACR3778 /LT
48”
1219mm
34”
864mm
24”
610mm
17”
432mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3778L/R / LTL~R
48”
1219mm
34”
864mm
9”
229mm
16 1/2”
419mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3778DTA/B
48”
1219mm
34”
864mm
24”
610mm
17”
432mm
4 1/4”
108mm
2 3/4"
70mm
ACR3779
54”
1372mm
34”
864mm
27”
686mm
17”
432mm
5 7/8”
149mm
4 3/8"
111mm
ACR3780 /LT
60”
1524mm
34”
864mm
30”
762mm
17”
432mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3781 /LT
36”
914mm
36”
914mm
18”
457mm
17 1/4”
438mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3782 /LT
42”
1067mm
36”
914mm
21”
533mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3783 /LT
48”
1219mm
36”
914mm
24”
610mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3784 /LT
54”
1372mm
36”
914mm
27”
686mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3785 /LT
60”
1524mm
36”
914mm
30”
762mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
*ACR3785 L/R / LTL~R
60”
1524mm
36”
914mm
18”
457mm
7 7/8”
200mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3786 /LT
36”
914mm
42”
1067mm
18”
457mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
ACR3787
42”
1067mm
42”
1067mm
21”
533mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
ACR3788
48”
1219mm
42”
1067mm
24”
610mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
*ACR3788DTA/B / LT
48”
1219mm
42”
1067mm
24”
610mm
21”
533mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3789
54”
1372mm
42”
1067mm
27”
686mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
ACR3790
60”
1524mm
42”
1067mm
30”
762mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
ACRYLIC SHOWER RECEPTORS
INSTALLATION INSTRUCTIONS

2
114909-2 –04/08/2020
Model
Length
Depth
Centre of Drain
from Side
Centre of Drain
from Rear
Overall
Height
Threshold Height
ACR3790L/R
60”
1524mm
41 7/8”
1064mm
9 5/16”
241mm
20 1/4”
521mm
3 3/4”
95.25mm
2.5”
63.5mm
*ACR3791 / LT
42”
1067mm
48”
1219mm
21”
533mm
24”
610mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3” *
111mm / 76mm
ACR3791DTA/B
48”
1219mm
42”
1067mm
24”
610mm
21”
533mm
5 7/8”
149mm
4 3/8"
111mm
ACR3792 /LT
48”
1219mm
48”
1219mm
24”
610mm
24”
610mm
5 7/8”
149mm
4 3/8"
111mm
ACR3793
60”
1524mm
48”
1219mm
30”
762mm
24”
610mm
5 7/8”
149mm
4 3/8"
111mm
ACR3794N
36”
914mm
36”
914mm
15”
381mm
15”
381mm
5 7/8”
149mm
4 3/8"
111mm
ACR3795N
42”
1067mm
42”
1067mm
30”
762mm
24”
610mm
5 7/8”
149mm
4 3/8"
111mm
*ACR3796DT / DTLT
36”
914mm
36”
914mm
18”
457mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3798L/R / LTL~R
60”
1524mm
30”
762mm
9 1/4”
235mm
14 3/16”
360mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3799 /LT
66”
1676mm
36”
914mm
33”
838mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3969 /LT
72”
1829mm
36”
914mm
36”
914mm
18”
457mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR3970L/R / LTL~R
66”
1676mm
32”
813mm
9 1/4”
235mm
16”
406mm
5 7/8” / 4 ½” *
149mm / 114mm
4 3/8" / 3”‘ *
111mm / 76mm
ACR20028DT
36”
914mm
36”
914mm
18”
457mm
18”
457mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20030L/R
48”
1219mm
30”
762mm
9 3/4”
248mm
14 3/16”
360mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20036
60”
1524mm
30”
813mm
30”
762mm
15”
381mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20036L/R
60”
1524mm
30”
813mm
9 1/4”
235mm
14 1/2"
368mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20037
60”
1524mm
32”
813mm
30”
762mm
16”
406mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20038
60”
1524mm
34”
864mm
30”
762mm
17”
432mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20039
60”
1524mm
36”
914mm
30”
762mm
18”
457mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20144
36”
914mm
47 3/4”
1213mm
18”
457mm
23 3/4”
603mm
5 7/8”
149mm
4 3/8”
111mm
ACR20445L/R
54”
1372mm
42”
1067mm
9 ½”
241mm
21”
533mm
3 5/8”
93.345mm
2.5”
63.5mm
ACR20463
34”
864mm
34”
864mm
17”
432mm
16 1/2”
419mm
5 7/8”
149mm
4 3/8”
111mm
ACR20464L/R
39 ½”
1003mm
37”
940mm
9 3/4”
248mm
18 ½
470mm
3 3/4”
95.25mm
2.5”
63.5mm
ACR20476DTA/B
60”
1524mm
36”
914mm
30”
762mm
18”
457mm
4 1/4”
108mm
2 3/4"
70mm
ACR20484DTA/BLT
48”
1219mm
32”
813mm
24”
610mm
15”
381mm
4 1/4”
108mm
2 3/4"
70mm
ACR20482LT
60”
1524mm
38”
965mm
27 ¾”
705mm
16”
406mm
4 1/4”
108mm
3”
76mm
ACR21224LT
38”
965mm
38”
965mm
19”
483mm
19”
483mm
4 1/2”
114mm
3”
76mm
ACR21225LT
50”
1270mm
38”
965mm
25”
635mm
19”
483mm
4 1/2”
114mm
3”
76mm
ACR81050SFL/R
(Former ACR3773SFTL/R)
42”
1067mm
32”
813mm
5 1/16"
129mm
15 3/8”
391mm
5 5/8”
143mm
4 3/8"
112mm
ACR81060SFL/R
(Former ACR3770SFTL/R)
60"
1524mm
30"
762mm
6"
152mm
14 1/4”
362mm
5 5/8”
143mm
4 3/8"
112mm
ACR81061SFL/R
(Former ACR3775SFTL/R)
60”
1524mm
32”
813mm
5 1/16"
129mm
15 5/8”
397mm
5 5/8”
143mm
4 3/8"
112mm
ACR81063SFL/R
(Former ACR3785SFTL/R)
60”
1524mm
36”
914mm
5 3/8”
137mm
18 ½”
470mm
5 5/8
143mm
4 3/8"
111mm
ACR20861
This accessible receptor has a different installation method (full bed of grout/mortar). Please visit our website,
www.hytec.ca, to find the specific instructions.
* Smaller Dimension is the value for the low threshold version.

3
114909-2 –04/08/2020
PLANNING AND INSTALLATION
All shower receptors should be supported from the underside with mortar or grout. Ensure that drain plumbing does not
protrude too far above the building floor and that there are no objects such as large aggregate between the building floor and
the shower bottom which would result in upwards pressure against the floor. Any upwards pressure on the floor could
cause the floor to crown and water to pool, voiding the warranty.
WARNING: Make sure a watertight seal exists on all shower receptor drain connections (flange, gasket and thread).
1. Prepare the framing pocket to suit the appropriate receptor outside dimensions as shown in the table of dimensions.
2. When a fire-rated wall is specified, the finished fire-rated wallboards should be in place prior to installation of the
unit (NOTE: In this case, allowance must be made for the thickness of the wall board when constructing the framing
pocket.)
3. Locate correct position for drain and trap and cut out floor, leaving clearance for final positioning and hook up.
4. Measure from the bottom of the apron to the top of the flange at the front of the receptor.
5. Scribe a line at this height on the studs or drywall at both ends and along the back wall of the framing pocket. This
line should assist in levelling the receptor.
6. Attach drain fitting to receptor. As mentioned above, please ensure a watertight seal.
7. Slide receptor into position, check for level at both ends and along the back wall and adjust as necessary. Hytec
recommends the use of a digital or precision level.
IMPORTANT NOTE: For proper drainage, the maximum allowed tolerance for leveling is 1/8”over the length
and width of the unit.
8. In wood frame or steel stud construction, Hytec tubs and showers are all designed to rest on their front apron and
be supported by the nailing flanges along both sides and back. The flanges are attached by screws or nails to the
studs that form the framing pocket. It is a requirement that the shower receptors are supported from below
using grout or mortar mix. Please see the “Application of Grout or Mortar”section for additional
information.
9. Once satisfied with location, mark and drill clearance holes in the nailing flange for mounting screws, lining up with
the centre of all wall studs. NOTE: failure to drill clearance holes may result in stress cracks in the acrylic finish.
10. Attach the unit with screws at each stud, making sure that the screws are long enough to penetrate the studs if
installing over previously installed drywall or fire-rated wall coverings.

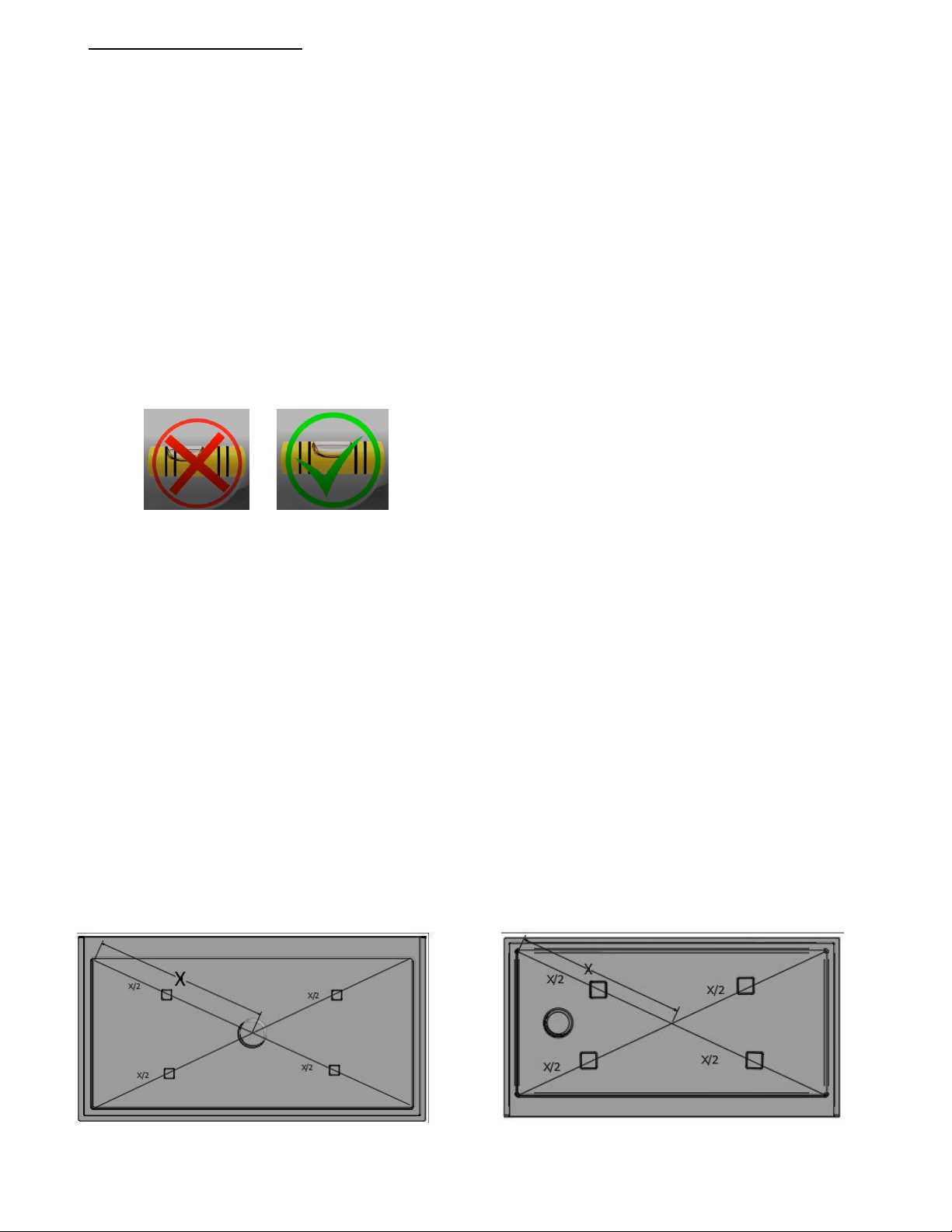

Application of Grout or Mortar.
- Measure the distance between one of the corners of the shower well and the center (“X”in the drawings below).
Mark the middle point of this distance (“X/2”in the drawings); this will be the location of the grout/mortar mix.
- Repeat and mark the spot for the other 3 corners of the shower well.
- Mix the material with water in 4 Ziploc sandwich bags. Make sure that you have enough grout to support the
receptor on each spot (close the gap between the floor and the unit). Please see the instructions provided by the
supplier to find the recommended mix ratios.
- Place the 4 Ziploc bags with mortar mix (you can keep it inside the bags), and re-check the level at both ends and
along the back wall.
- Let the mortar/grout cure.
Application of Grout/Mortar:
Center Drain (view from below) Right Hand Drain (view from below)

4
114909-2 –04/08/2020
DRYWALLING
After the Receptor is in place and secured, proceed with the installation of drywall (green in the figures below). If tile or
another finishing surface is being used, butt the bottom of the drywall up to the top of the sealing flange. The tile can then
project over the edge of the drywall, down to the deck on single flange models, or down to the horizontal ledge on double
flange models (See Figures 1 and 2). It is important to leave a 1/8”gap between the tile (or alternative finishing surface), and
the receptor. This gap should then be closed with a silicone sealant only (do not use grout for this purpose).
Single Flange (Figure 1) Double Flange (Figure 2)
CARE & MAINTENANCE
We trust you will have many years of satisfying use from our
product. The following hints are offered to assist you in
keeping your tub and shower in “as new” condition.
Normal Care:
A quick sponge-down with warm water and a liquid detergent,
such as Mr. Clean or Fantastic, will take care of most
cleaning needs. In areas where the water is hard, more
frequent cleaning will be necessary to prevent any build up
on the surface.
We recommend the use of a good quality car or boat wax to
protect the gloss and make cleaning easier.
Stains:
For stubborn stains, start with a liquid detergent; if this does
not work, try a mild powder detergent such as Spic and Span,
which also works well for removing heavy soap film.
Cleaning pads made of nylon; saran or polyethylene and
containing no abrasives may be used.
Do not use abrasive scouring powders or metal scouring
pads, as these will permanently damage the finish.
A mild abrasive action can be accomplished with an
automobile type of rubbing compound –there are several
types available, both coarse and fine. The fine ones take a
little longer to remove a stain, but they do not dull the surface
as much. Should your stain removal result in a dull area, the
shine can be restored with an automobile cleaner wax, such
as Turtle Wax.
Paint Splashes:
A quick wipe with mineral spirits, turpentine or Polyclens,
followed immediately by a wash with water will remove most
paint splashes. Do not use paint remover or stripper, as
these contain solvents that can permanently damage the
acrylic surface.
Things to Avoid:
Sand and grit. Dropped tools. Acetone on any acrylic
surface.
Should your unit suffer accidental damage, it can probably be
repaired by a qualified and trained repair person. Consult
your plumber, wholesaler or a Hytec Sales Agent to arrange
for this to be done.

5
114909-2 –04/08/2020
LIMITED 5 YEAR WARRANTY
All acrylic and gelcoat products manufactured by Hytec are covered by a 5-year warranty from the date of sale to the
original owner. This warranty does not cover materials and component parts manufactured by others (such as pumps, jets,
pipes, and fittings), which are subject to warranties offered by their original manufacturers. Hytec Plumbing Products
warrants to the purchaser of each Hytec product that such product will at time of sale be free from defect in material and
workmanship, and that Hytec will at its option repair the original unit or supply an equivalent unit in exchange, such
exchange to be F.O.B. at Hytec warehouse. Hytec shall not be responsible for shipping, handling, or installation damage;
or any expense of removal, transportation or installation of any original or exchange unit. Under no circumstances will
Hytec Plumbing Products assume liability for consequential damages or labour charges resulting therefrom.
This warranty is non-transferable and shall be voided if the unit is removed from its place of initial installation or is not
installed in accordance with the manufacturer’s instructions. Further, this warranty does not apply if the unit has been
subjected to accident, abuse, misuse, damage caused by flood, fire or act of God, or if the unit or the plumbing fixtures
used in connection with it are not installed in compliance with local codes and ordinances. Any modifications or alterations
to a unit, without prior authorization from Hytec Plumbing Products, or the installation of therapy jets by anyone other than
Hytec Plumbing Products, will void all warranties. This includes the installation of steam generators.
HYTEC’S LIMITED WARRANTY OBLIGATIONS ARE EXPRESSLY LIMITED TO THOSE SET FORTH HEREIN, AND
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. THE LIABILITY OF HYTEC TO THE BUYER
WITH RESPECT TO THE SALE OF A UNIT SHALL BE LIMITED TO REPAIR OR REPLACEMENT AS PROVIDED
HEREIN TO A MAXIMUM OF THE PURCHASE PRICE OF THE RELEVANT UNIT AND DOES NOT INCLUDE ANY
COST OF REMOVAL OR REINSTALLATION OR CONSEQUENTIAL DAMAGES OF ANY KIND.
To obtain warranty service, contact Hytec Customer Service at [phone] or [phone], or email
[e-mail]. Please have ready all pertinent information regarding your claim, including a
complete description of the problem, the product, model number, serial number and a copy of your original invoice. If the
serial number is not available, please provide a digital photo of the unit.
Authorized Service Representatives for Hytec have been thoroughly trained to perform both in and out of warranty repairs
to Hytec products. Through this training, they are familiar with the Hytec Warranty Policy. If in the opinion of the
Authorized Service Representative, the service required is not within the scope of the Hytec Warranty Policy, they will
advise you before beginning the work. Should this occur, payment of all invoices related to the service is the responsibility
of the consumer. If the problem can be attributed to incorrect installation, please contact your installing contractor. Should
there be a difference of opinion pertaining to warranty coverage between the Authorized Service Representative and the
consumer; clarification will be provided by Hytec Customer Service.
HYTEC PLUMBING PRODUCTS
(Division of Kohler Canada Co.)
4150 Spallumcheen Drive
Armstrong, BC, V0E 1B6
Phone [phone] • Fax [phone]
Please visit our website http://www.hytec.ca to find
your local representative contact information.
