Installation and Care Guide
One-Piece Toilet


K-17629MY, K-45382K, K-45382R,
K-45382VN, K-45382X

1171642-X2-E 2 Kohler Co.

Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
  

 

  

 


 

Kohler Co. 3 1171642-X2-E
Before You Begin
CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.

Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
 
  

 
 

¨Observe all local plumbing and building codes.
¨Prior to installation, unpack the new product and inspect it for damage.
Return the product to its protective carton until you are ready to install it.
¨Use the template supplied with the product.
¨Failure to follow these precautions may result in a poor installation.
¨ If the existing toilet does not have a supply shut-o valve below the tank,
install one before installing the new toilet.
¨Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.
CAUTION: Risk of property or product damage. Turn on the water
and allow water to ow through the supply pipe to ush the system of
any debris before connecting ll valve.

1171642-X2-E 4 Kohler Co.
Tools/



 
¨ 
¨ 

¨ 
¨ 

¨ 




 


Kohler Co. 5 1171642-X2-E
Installation/

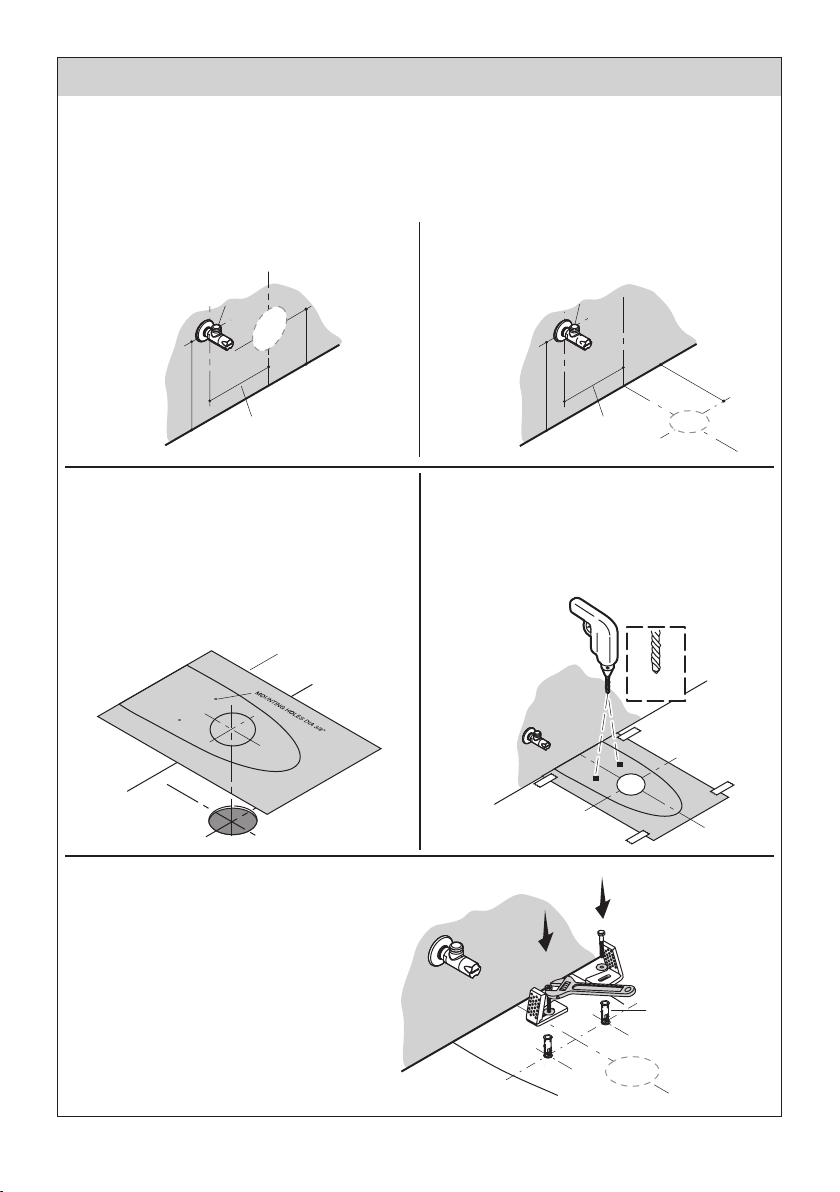

Position the template.
2
1
Template
3
3/8"
Install or relocate the supply and outlet as necessary to comform to the roughing-in
dimensions.
Position the template on the floor to
ensure the template against the wall.


Insert the anchors. Positions
as shown on the template and install.
4





กระดาษแม่แบบ
1/2" 1/2"
180
mm/มม. 180
mm/มม.
185
mm/มม.
255
mm/มม. 255 mm/มม.
305
mm/มม.
P-Trap
ท่อนํ�าทิ�งออกผนัง
S-Trap
ท่อนํ�าทิ�งลงพื�น
Anchor
พุก

1171642-X2-E 6 Kohler Co.
Installation/

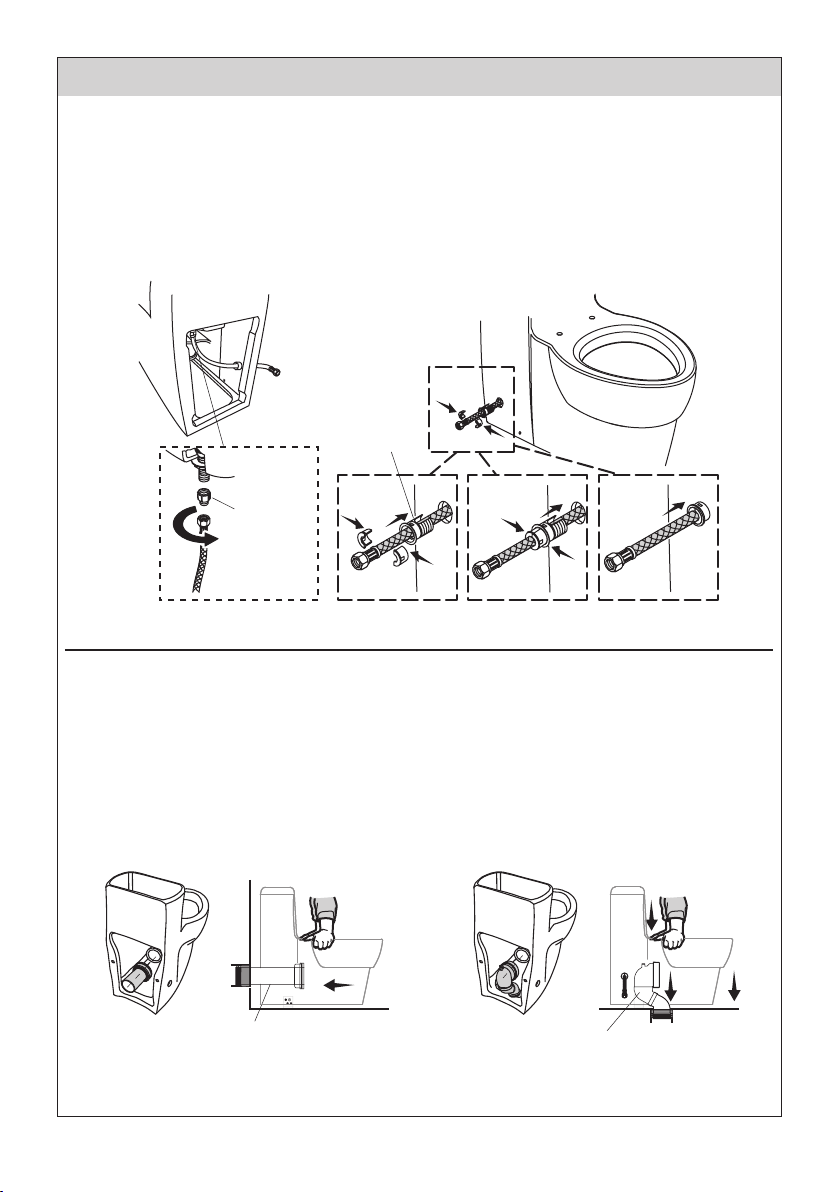

6
ประกอบข้อต่อนํ�าทิ�งเข้ากับโถสุขภัณฑ์ จัดตําแหน่งระหว่างทางนํ�าออกและท่อนํ�าเสีย
ให้แน่ใจว่า ท่อนํ�าเสียสวมครอบข้อต่อ
Connect the connector on the bowl, position between outlet and waste pipe.
Ensure outlet is properly engaged to connector.
5
ประกอบสายนํ�าดีเข้ากับก้านวาล์วนํ�าเข้า สวมปลอกสายนํ�าดีเข้ากับสายนํ�าดี ประกอบตัวล็อค
ปลอกสายนํ�าดีเข้ากับปลอกสายนํ�าดี และประกอบเข้ากับโถสุขภัณฑ์
Thread the supply hose onto the fill valve shank. Take hose guide apart and slide
onto the supply hose, with the flared end last. Slide the two inserts into the
flared end of the hose guide. Insert into toilet wall.
ปลอกสายนํ�าดี
Hose Guide
Adapter
15/16"
to1/2"
(Optional
Part)
S-trap Connector
ข้อต่อทางนํ�าเสียแบบลงพื�น
P-trap Connector
ข้อต่อทางนํ�าเสียแบบออกผนัง
ติดตั�งแบบข้อต่อทางนํ�าเสียแบบออกผนัง ติดตั�งข้อต่อทางนํ�าเสียแบบลงพื�น
Connector to Wall (P-trap) Connector to Floor (S-trap)

Kohler Co. 7 1171642-X2-E
Installation/
910


Apply silicone around base.


Remove the nut
from push button
kit.
12 14 
Install the seat.
78


Install the new toilet with sleeves,
screw and attach the caps. 
Connect supply and turn on the water.
11



Tighten the nut to the
push button under the
tank cover.


Install the tank cover. Adjust
the rod length if needed.
Blue button on the right.

Big Button
ปุ่มใหญ่
13

Turn on the
water supply.
Cap/ฝาครอบ Screw/สกรู
Sleeve/ปลอก

1171642-X2-E 8 Kohler Co.

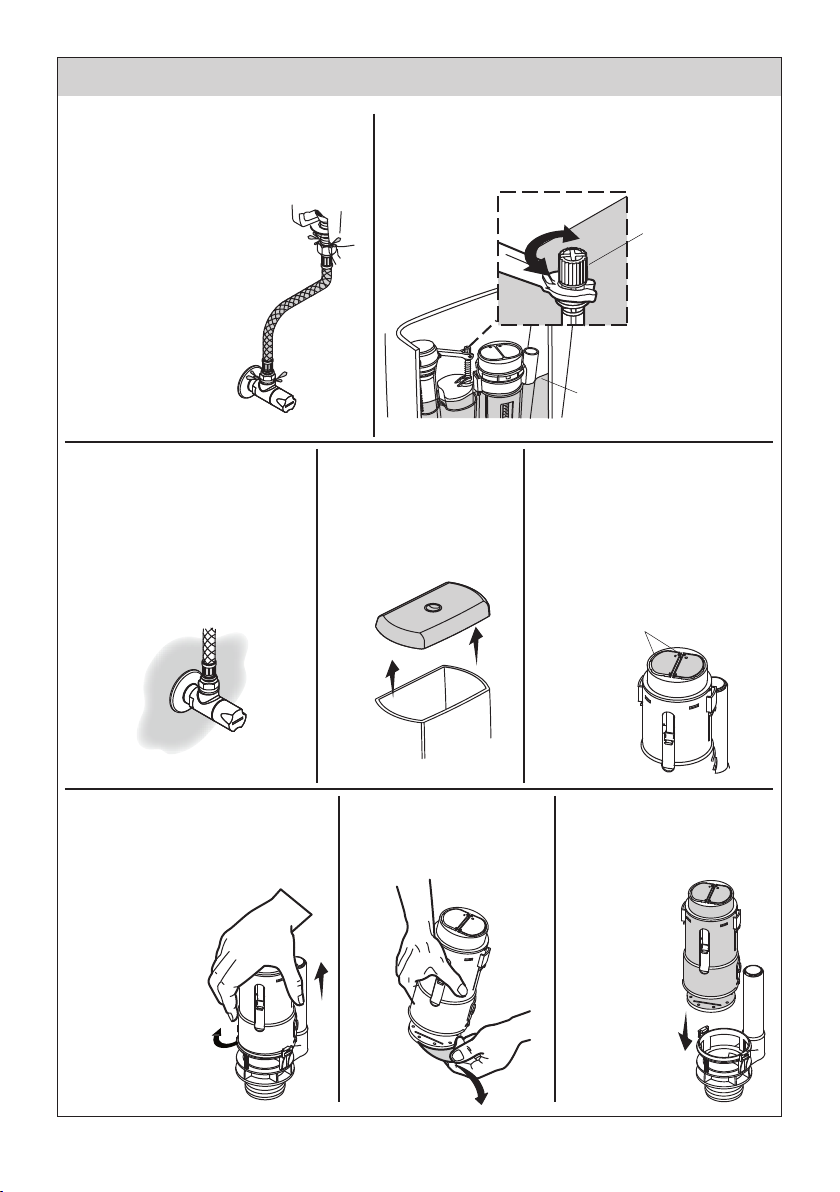

Replace the Seal/
1
2

Shut off the water supply.

Remove the
tank cover. 3



Note the position of the
colored buttons for
reinstallation.
45



Squeeze the tabs and pull
straight up on the canister.
15 16


อย่าขันแน่นจนเกินไป!
Flush several times
and check for leaks.
Do not overtighten! 
Adjust the water level.

Remove and
replace the seal.




Reinstall the canister
so it snaps into place.
6


Turn here
to adjust
the water level.
เส้นระดับนํ�า
Waterline
+
-
เปลี�ยนซีลยาง
Replace the Seal
ปุ่มกด
Buttons

Kohler Co. 9 1171642-X2-E
Replace the Seal/
910

Turn on the water supply.


อย่าขันนอตแน่นเกินไป
Flush several times and
check for leaks.
Do not overtighten!
78


Rotate the canister so that the colored
buttons are in their original positions. 
Reinstall the tank cover.
Buttons
ปุ่มกด

1171642-X2-E 10 Kohler Co.
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately after
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface after each use.
WARNING: Risk of property or product damage. Do not use in-tank
cleaners in your toilet. Products containing chlorine (calcium hypochlorite)
can seriously damage ings in the tank. This damage can cause leakage
and property damage.

Kohler Co. 11 1171642-X2-E

 

•   

•  

•  

• 
•      

• 
•   


 



1171642-X2-E 12 Kohler Co.
Troubleshooting Guide
Symptoms Recommended Action
1. Poor ush. A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-o valve.
C. Clear obstructions from the trapway, jet, or bowl rim
holes.
D. Clear obstructions from the waste line.
2. No ush. A. Make sure the push buon rods are in place. Adjust as
needed.
3. The ll valve
turns on/o by
itself or it runs,
allowing water
to enter the tank.
A. Adjust push buon rods for proper slack so the ush
valve seal isn’t held o the ush valve.
B. Clean or replace the ush valve seal if it is worn, dirty,
or misaligned with the valve seat or ush valve seat
is damaged.
C. Remove the tank and tighten the ush valve nut if
ush valve gasket is leaking. Do not overtighten. If
leakage continues, replace the gasket.
D. Clean the ll valve seal of debris or replace the seal
assembly.
E. Replace the ll valve if the valve oat sinks.
F. Adjust the tank water level if it is too high.
4. Long tank ll
cycle.
A. Fully open the water supply shut-o valve.
B. Clean the valve inlet, valve head, or supply line. Flush
lines.
5. Noisy tank ll
cycle.
A. Partially close the water supply shut-o valve if the
water pressure to the toilet is too high. Check the
toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head.
Flush lines.

Kohler Co. 13 1171642-X2-E

 

 




 



 

 
  
   




 













1171642-X2-E 14 Kohler Co.

Kohler Co. 15 1171642-X2-E
