Kohler K-8298 User manual

Installation Guide
Cleansing Seat
Français, page “Français-1”
Español, pagina “Español-1”
K-8298
1233549-2-B

Before You Begin
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
WARNING: Risk of electric shock. Do not immerse or flush
the product with water.
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed; it could cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
Observe all local plumbing, electrical, and building codes.
Only connect the seat to a cold water supply of drinking quality
at a pressure of 20 (139 kPa) - 80 psi (551 kPa).

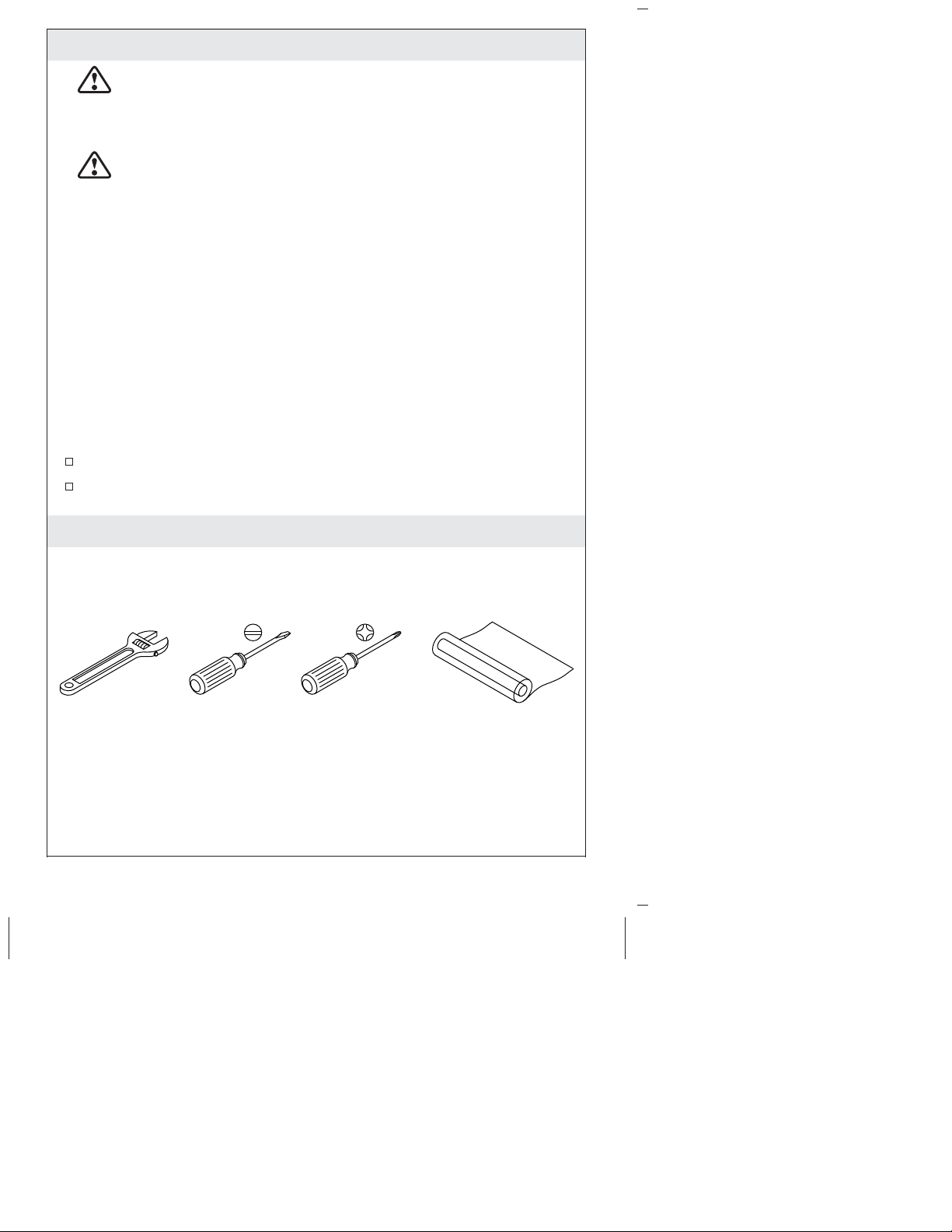

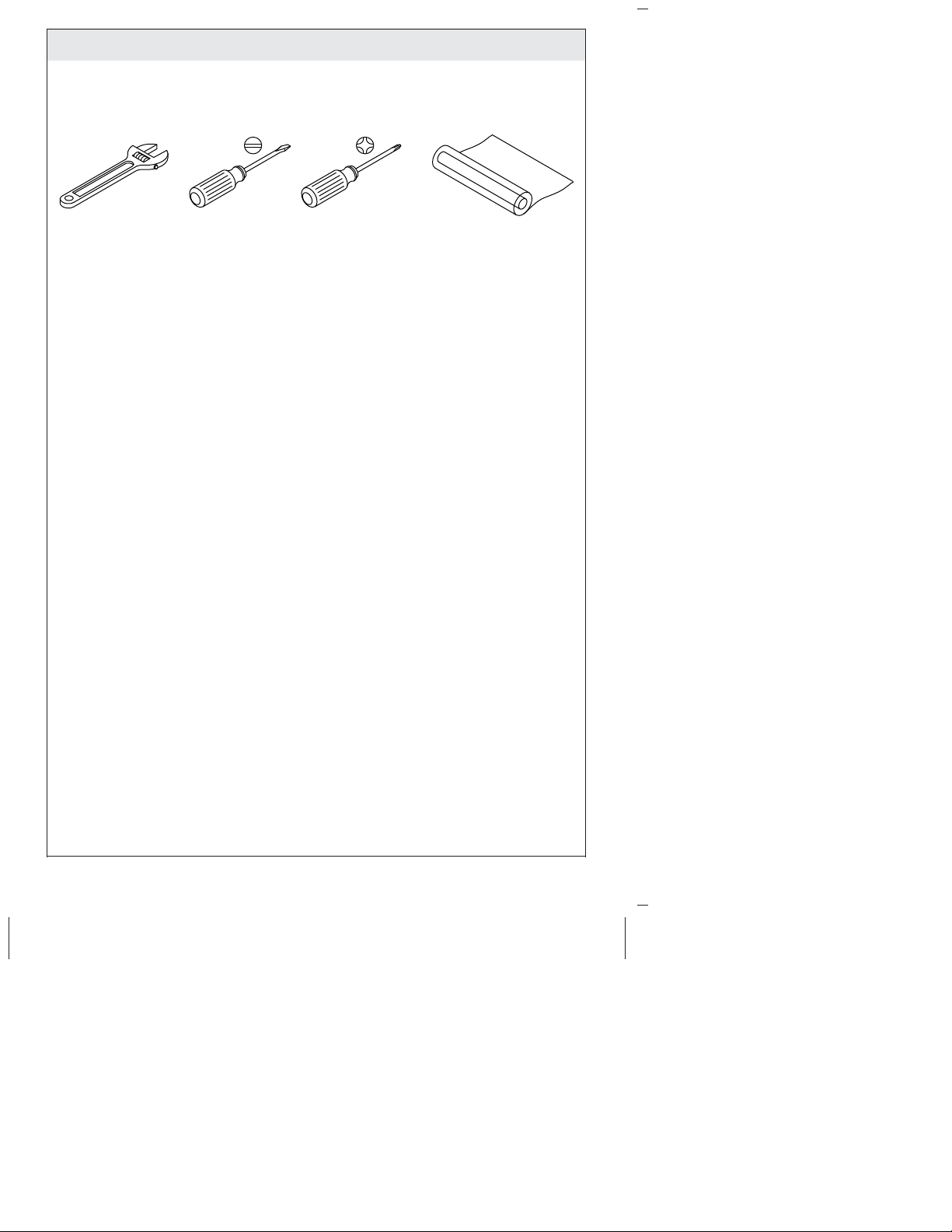

Tools and Materials
Plastic Wrap
1233549-2-B 2 Kohler Co.

Grounding Instructions
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the product is properly grounded.
NOTICE: Follow local codes when determining the connection
type. The temporary connection may not be permitted by local
electrical codes.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.

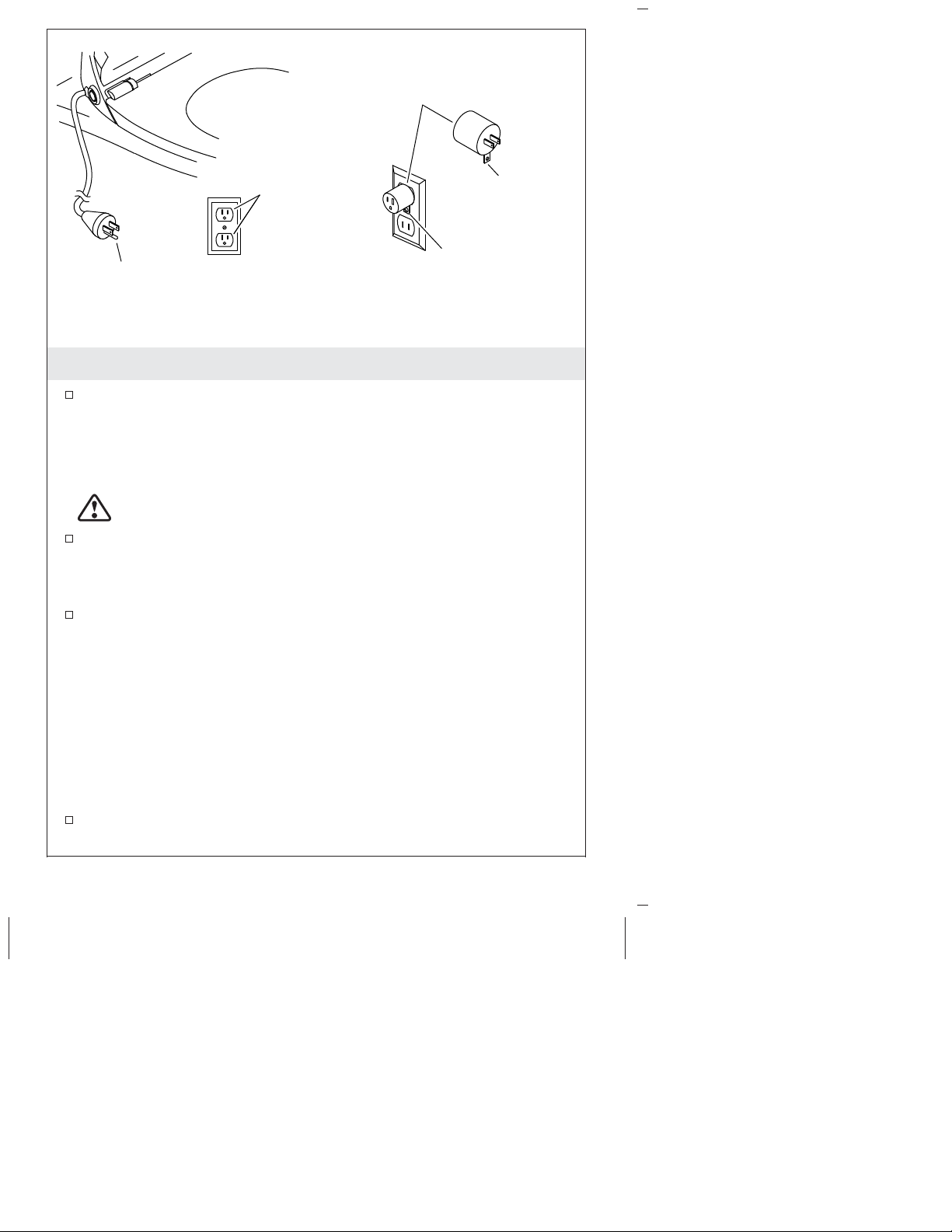

Preferred Connection
Connect the grounding plug into a grounded outlet that has the
same configuration as the plug.
Grounded
Outlet
Cover
Screw
Adapter
Grounding
Plug
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
Kohler Co. 3 1233549-2-B

Grounding Instructions (cont.)
Temporary Connection
NOTICE: Unless the outlet cover screw is grounded through the
house wiring, attaching the adapter grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adapter may be used
where local codes permit, provided the adapter is grounded.
1233549-2-B 4 Kohler Co.

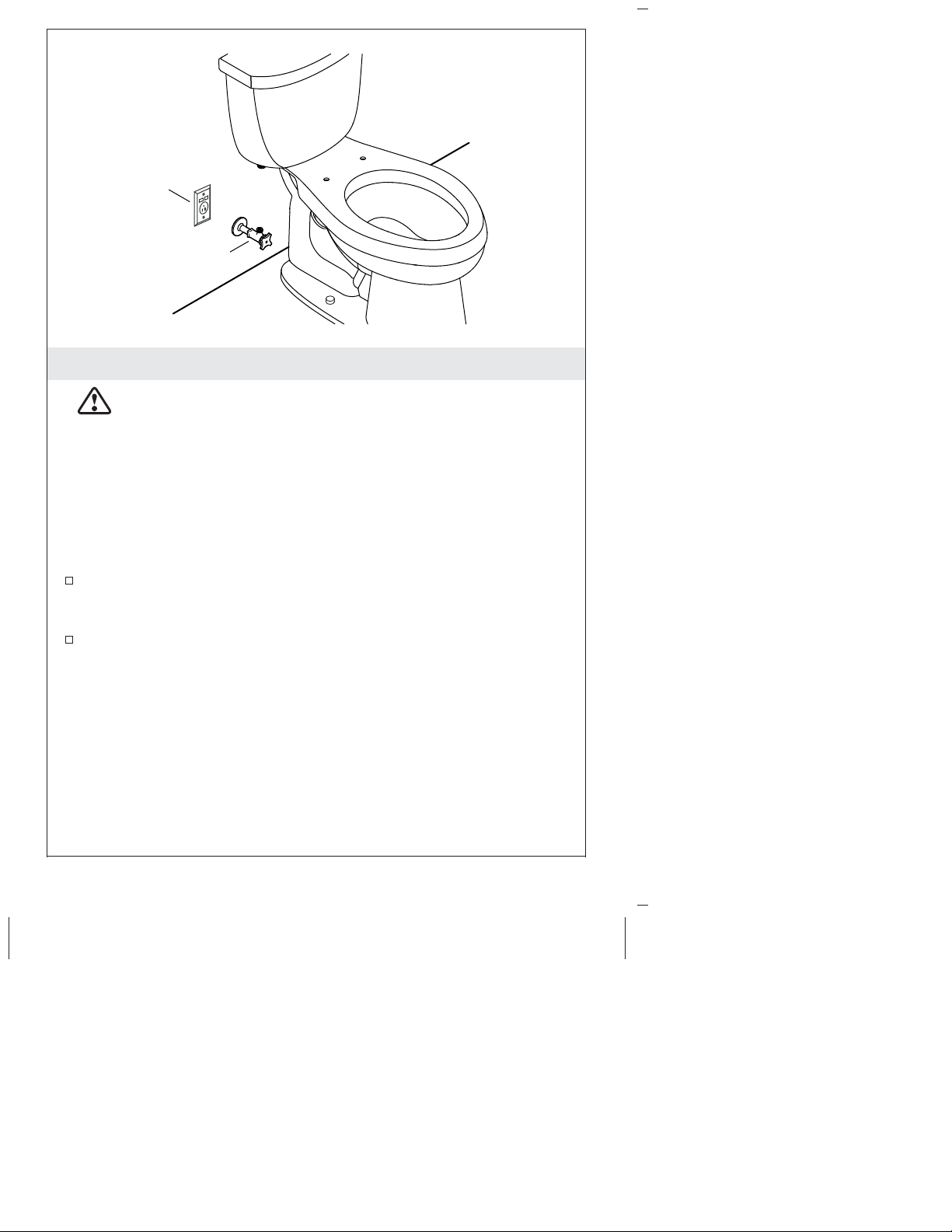

1. Install an Electrical Outlet
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 Amp Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
NOTICE: Do not use an extension cord with the product.
NOTE: Follow local codes when determining the electrical outlet
location.
Install a 120 V GFCI- or RCD-protected electrical outlet within 32″
(813 mm) of the toilet to accommodate the length of the power
cord.
Do not plug in the seat until instructed to do so.
Supply Stop
GFCI/RCD-Protected
Receptacle
Kohler Co. 5 1233549-2-B

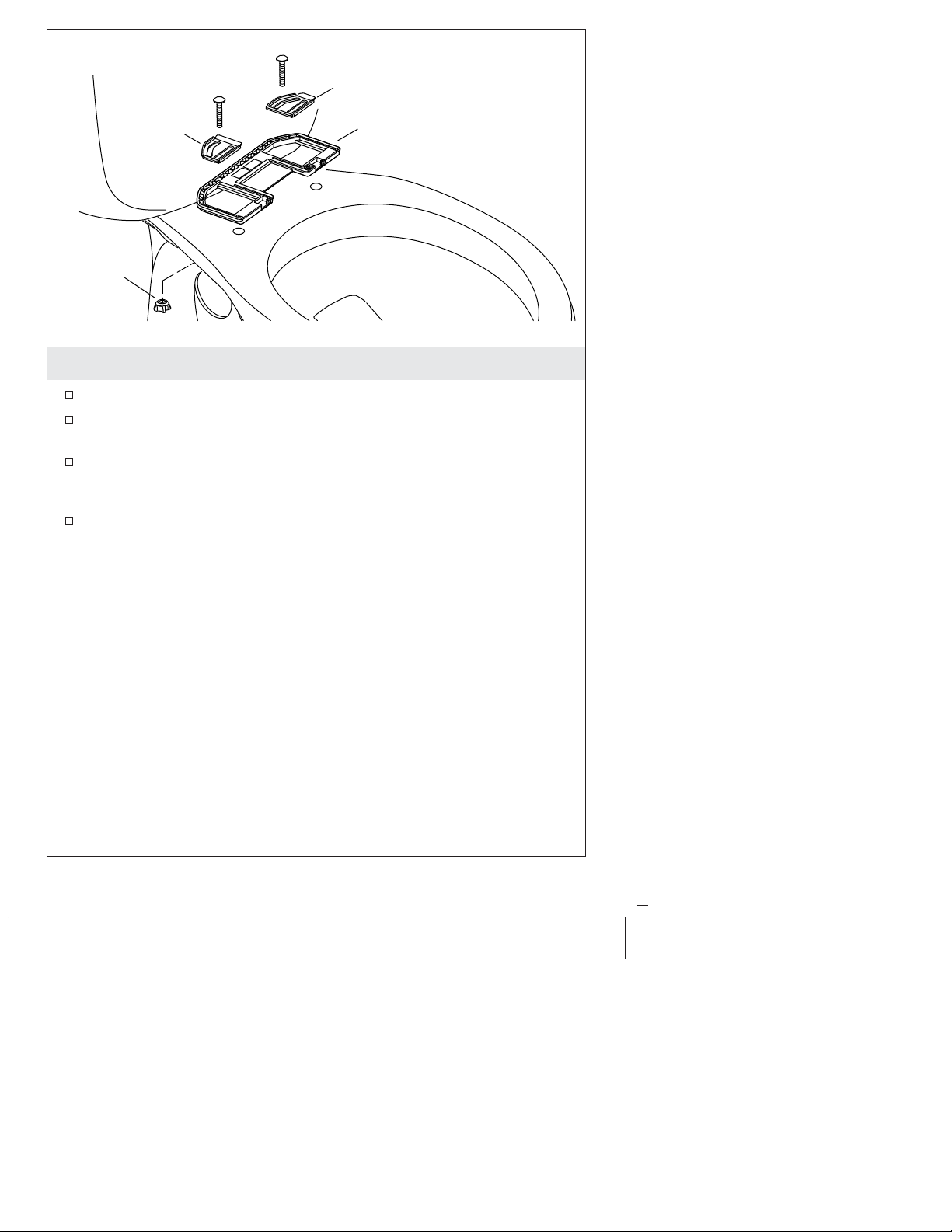

2. Install the Mounting Plate
Position the mounting plate over the mounting holes on the bowl.
Position the left and right inserts in the grooves on the mounting
plate
For toilets with threaded mounting holes: Insert the bolts
through the inserts and thread into the mounting holes. Do not
fully tighten at this time.
For all other installations: Insert the bolts through the inserts and
into the mounting holes. Thread a nut onto each bolt. Do not
fully tighten at this time.
Left Insert
Nut
Right
Insert Mounting Plate
1233549-2-B 6 Kohler Co.

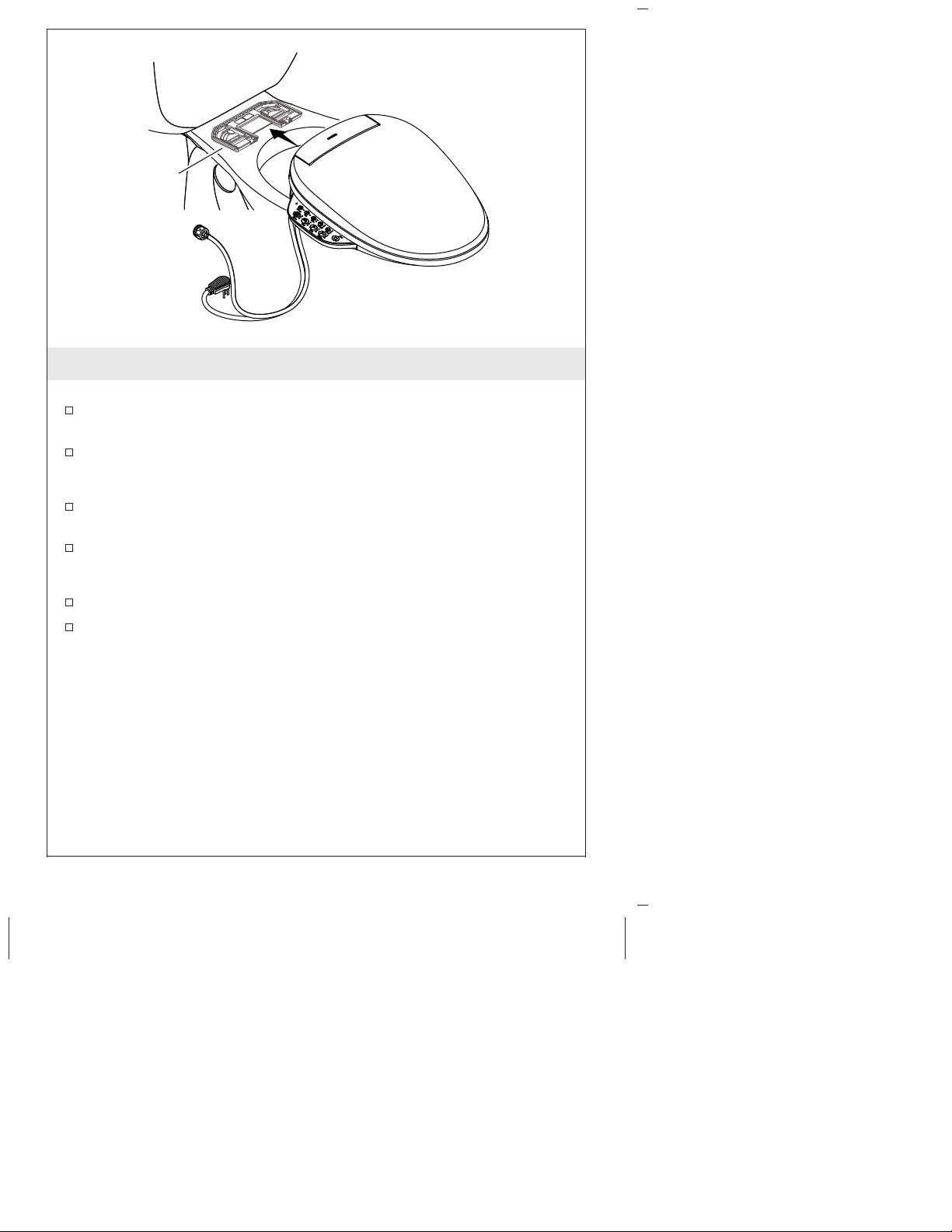

3. Install the Seat
Position the Seat
Slide the seat onto the mounting plate until you feel it snap into
place.
Check the positioning of the seat. Adjust the position if needed.
Adjust the Seat
To adjust the seat position, remove the seat by pressing in the
release button and sliding the seat forward.
Reposition the mounting plate as needed.
Install the Seat
Securely tighten the mounting plate bolts and nuts.
Slide the seat onto the mounting plate until you feel it snap into
place.
Mounting Plate
Kohler Co. 7 1233549-2-B

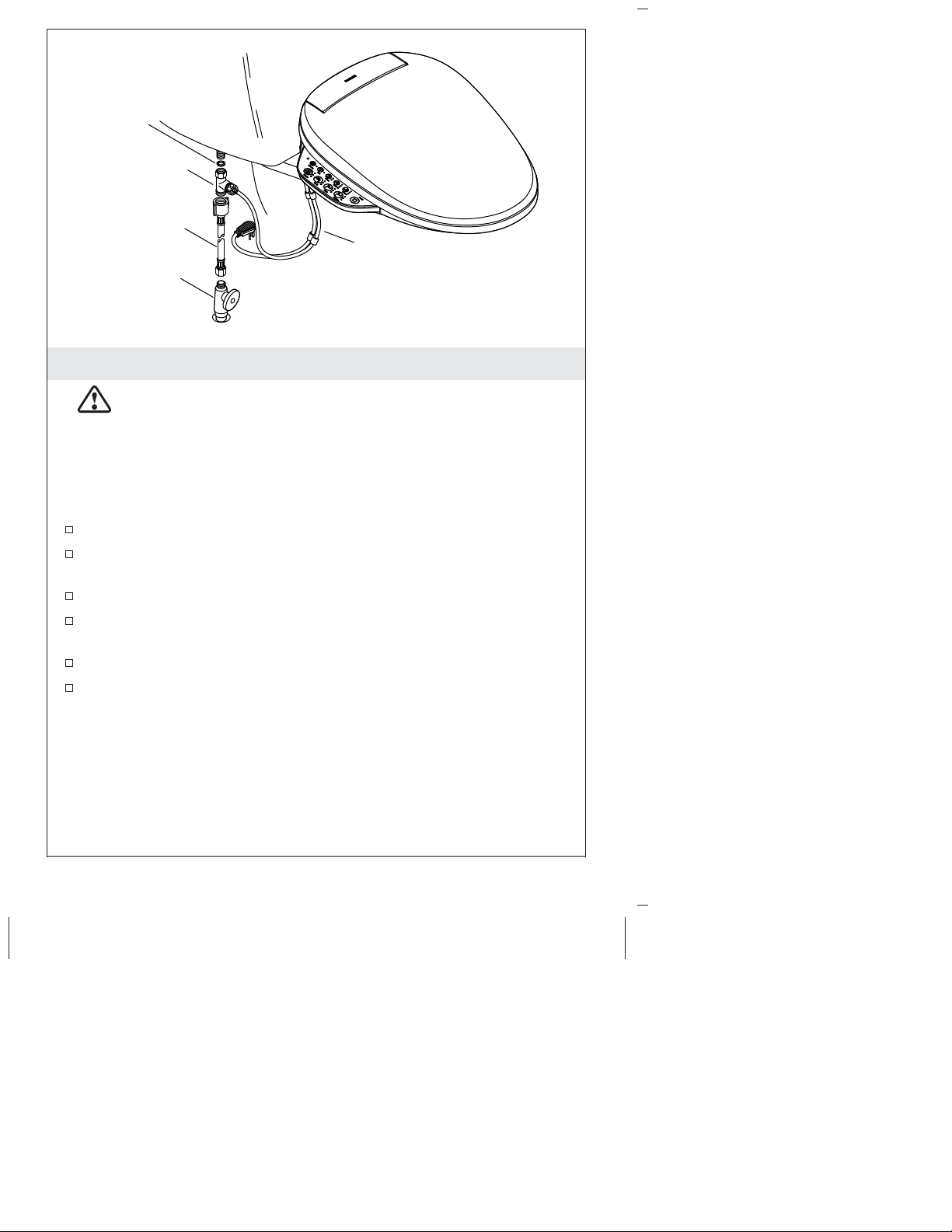

4. Connect the Water Supply
CAUTION: Risk of property damage. Do not push or pull
on the water connection between the seat and the water
supply stop. This will prevent water leakage.
NOTICE: Use care to avoid cross threading or overtightening the
connections. Use an adjustable wrench to tighten one-quarter turn
past hand-tight.
Connect the T-valve to the seat hose.
If needed, connect the supply hose to the supply stop.
Connect the supply hose to the T-valve.
Connect the T-valve to the water inlet on the toilet tank.
Turn on the water supply.
Check all connections for leaks and make any adjustments as
needed.
Hose
Gasket
T-Valve
Supply Stop
Supply Hose
1233549-2-B 8 Kohler Co.

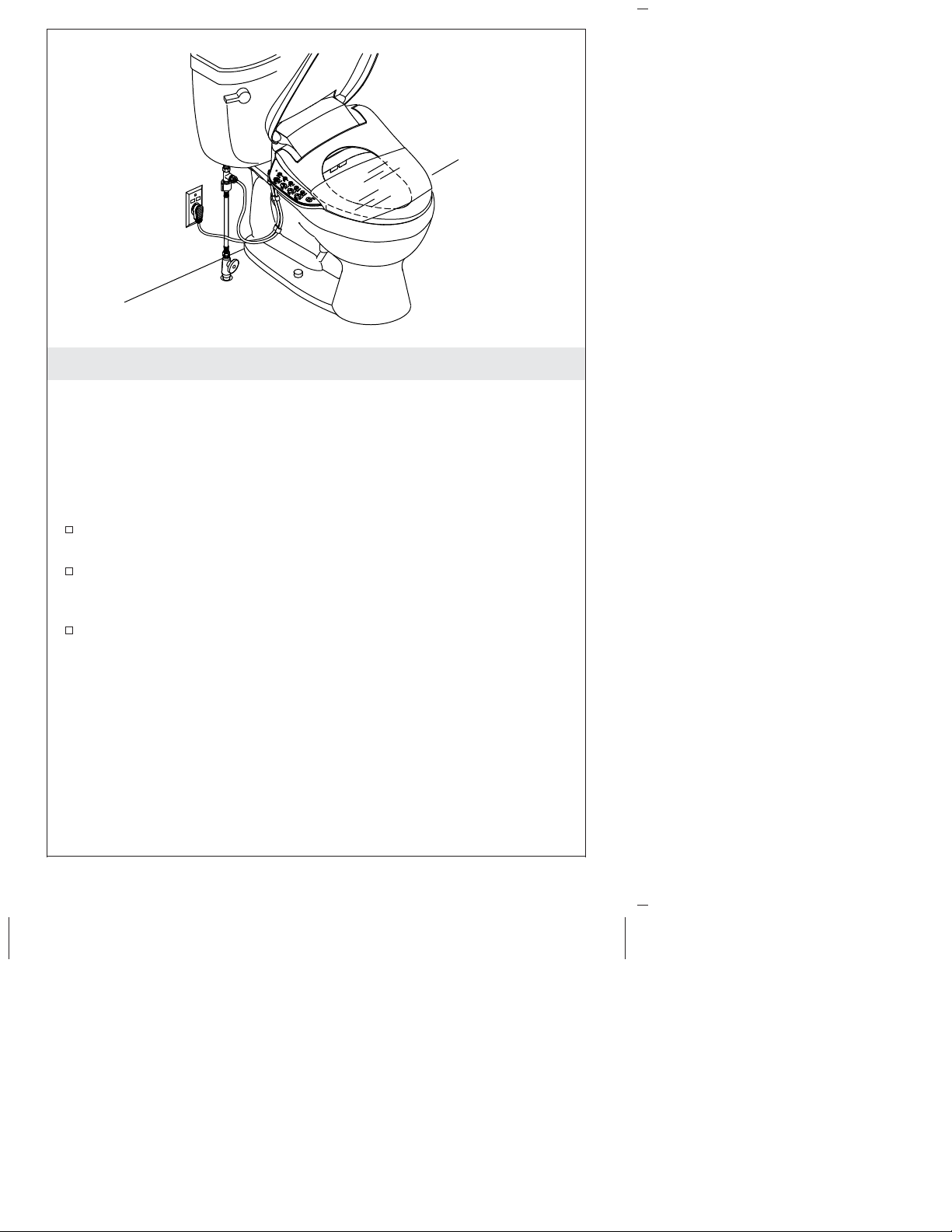

5. Installation Checkout
NOTE: Covering the seat with plastic wrap is optional. The features
can be tested while sitting on the cleansing seat or covering the
wand with your hand.
NOTE: When testing the features, apply pressure to the right side
(facing the toilet) of the seat. The features will not activate if there is
no pressure on the seat.
Wrap the seat with plastic wrap. This will prevent water from
spraying beyond the toilet during testing.
Plug the power cord into the electrical outlet. The seat will go
through a power-up sequence. The seat will go silent when the
power-up is complete.
Refer to the Homeowners Guide to test the various seat features.
Plastic Wrap
Kohler Co. 9 1233549-2-B

Guide d’installation
Siège de nettoyage
Avant de commencer
AVERTISSEMENT: Risque de choc électrique, d’incendie,
ou de blessures corporelles. Ce produit doit être mis à la
terre et connecté uniquement à un circuit nominal dédié de
120 V c.a., 60 Hz protégé par un disjoncteur de fuite de terre
(GFCI) ou par un dispositif à courant résiduel (RCD) de 15 A
minimum.
AVERTISSEMENT: Risque de choc électrique. Ne pas
immerger ou purger le produit avec de l’eau.
IMPORTANT! Risque d’endommagement du produit. Ne pas
installer ce produit dans un emplacement exposé à un excès
d’humidité et où de la condensation pourrait se former sur la
surface du produit.
IMPORTANT! Risque d’endommagement du produit. Des fuites
d’eau pourraient se produire si l’on pousse ou tire sur le raccord
d’eau.
IMPORTANT! Risque d’endommagement du produit. Ne pas
fournir d’alimentation électrique au dispositif avant d’avoir effectué
le travail d’installation de la plomberie; ceci pourrait créer des
problèmes de fonctionnement.
REMARQUE: Les protecteurs thermiques pourraient se déclencher
pendant l’entreposage ou le transport par temps chaud, et le
dispositif ne fonctionnera pas. Laisser le dispositif se refroidir à la
température ambiante avant de l’installer ou de l’utiliser.
Respecter tous les codes électriques, de plomberie et de bâtiment
locaux.
Connecter seulement le siège à une arrivée d’eau froide
fournissant de l’eau d’une qualité potable à une pression de 20
(139 kPa) à 80 psi (551 kPa).
Kohler Co. Français-1 1233549-2-B
