Kohler K-3900X-2 User manual

Installation Guide
Integrated Toilet


1195109-X2-A
English page 1-17

©2015 Kohler Co.
K-3900X-2

1195109-X2-A 2 Kohler Co.
Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for the consumer. They contain
important information.
NOTE: This product is designed for installation with the electrical and water supplies located through the wall.
Grounding Instructions
• This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This product is equipped with a cord having
a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded.
WARNING: Risk of electric shock. Improper use of the grounding plug can result in a risk of electric
shock.
• Ifrepairorreplacementofthecordorplugisnecessary,donotconnectthegroundingwiretoeitheratblade
terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the
grounding wire.
• Check with a qualied electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the product is properly grounded.
• This product is factory equipped with a specic electric cord and plug to permit connection to a proper
electriccircuit.Makesurethattheproductisconnectedtoanoutlethavingthesamecongurationastheplug.
Noadaptershouldbeusedwiththisproduct.Donotmodifytheplugprovided—ifitwillnotttheoutlet,
have the proper outlet installed by a qualied electrician. If the product must be reconnected for use on
adierenttypeofelectriccircuit,theconnectionshouldbemadebyqualiedservicepersonnel.
Thank You for Choosing Kohler Company
ThankyouforchoosingKohler.Kohlercraftsmanshipoersyouararecombinationofprovenperformance
and graceful sophistication that will satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our products here at Kohler and we know
you will be too.
Please take a few minutes to review this manual before you start installation. If you encounter any installation
or performance problems, please don’t hesitate to contact us. Our phone numbers and website are listed on
back cover.
All information in this manual is based upon the latest product information available at the time of publication.
At Kohler, we constantly strive to improve the quality of our products. We reserve the right to make changes in
product characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.

Kohler Co. 3 1195109-X2-A
Tools and Materials
Bushings
2 PCS
Caps
2 PCS
#10 x 1-1/2"
Screws
2 PCS
Supply Hose Clip
Mounting Blocks
2 PCS
Remote Control
Docking
Station
5/16" x 2-1/2" Lag Bolts
4 PCS
5/16" Lag Bolt Anchors
4 PCS
Parts Bag Contents
Other Parts
4.5x45DING
Lag Bolts
2 PCS
UX6 x 35
Lag Bolt Anchors
2 PCS
Drill with Assorted Bits Assorted
Screwdrivers
Wax Ring
Shut-off Valve
Universal
Adapter

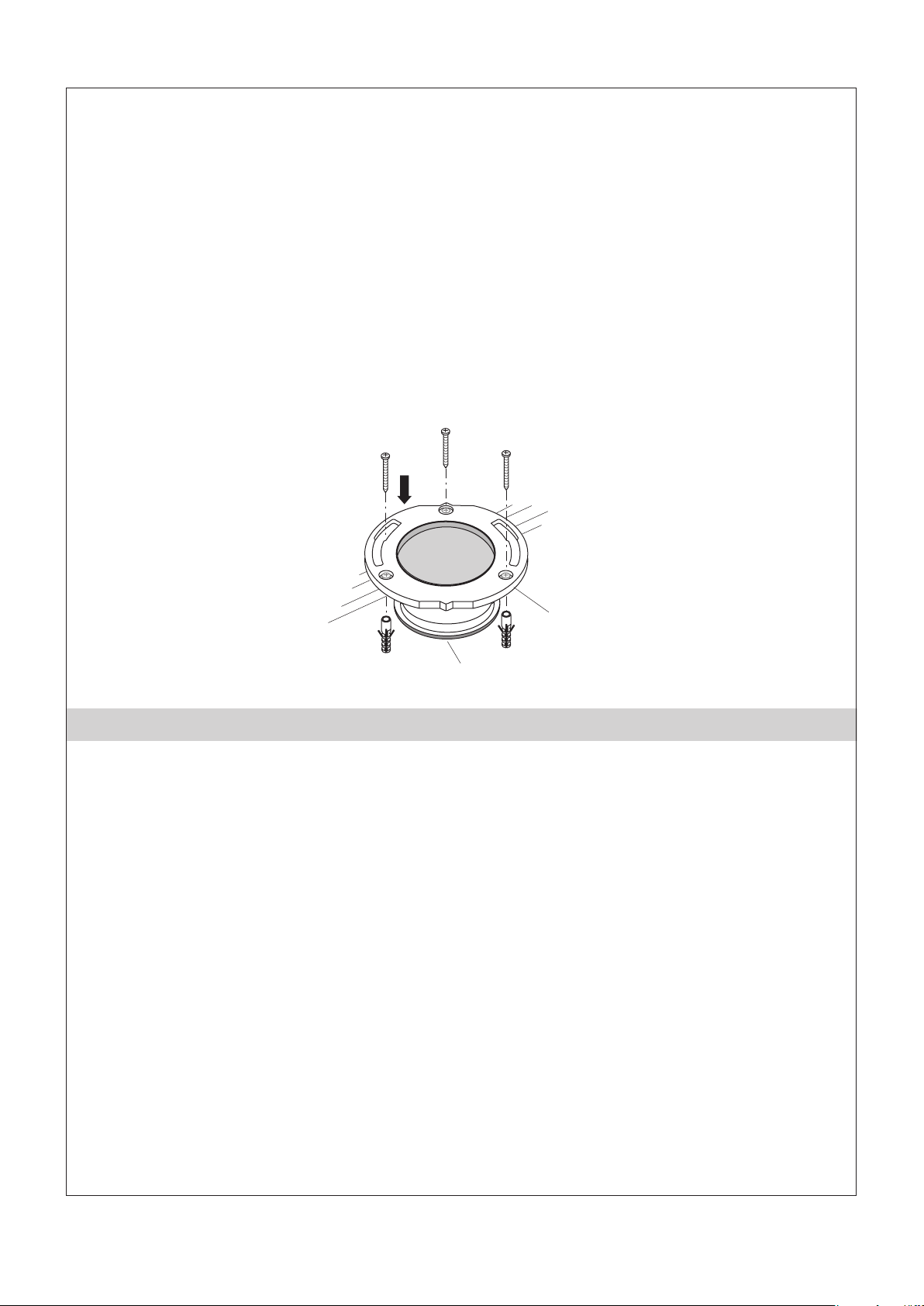

Floor Flange
Adjustable Wrench
Plus:
• Protective Material
• Tape
Offset Screwdriver
Knife Pencil Pliers Band Tape
Scissors
Floor Flange Accessory Pack

1195109-X2-A 4 Kohler Co.
Before You Begin
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of electric shock. Connect only to a properly-grounded, grounding-type receptacle
which is protected by a 220~240 V, 15 A, 50/60 Hz Ground-Fault Circuit-Interrupter (GFCI) or Earth-
Leakage Circuit-Breaker (ELCB). Do not remove the grounding pin or use a grounding adapter.
CAUTION: Risk of personal injury. This toilet weighs approximately 58 kg. Lift the toilet with two people,
employing proper lifting technique.
CAUTION: Risk of hazardous gases. If a new toilet is not installed immediately, temporarily place a rag
intheoorangeopening.
CAUTION: Risk of product and property damage. This toilet is not intended to be installed in buildings
where temperatures will drop below 1°C. If temperature drops below 0°C, the frozen water in tank could
damage the tank resulting in leaking.
¨Carefully inspect the new toilet for damage.
¨Follow all local plumbing and electrical codes.
Conrmallpartsbelowareincludedbeforebeginningtheinstallation.
Parts Bag Contents
¨(4)5/16″x2-1/2″LagBolts
¨(2)5/16″LagBoltAnchors
¨(2) Mounting Blocks
¨(2) Plastic Caps
¨(2)#10x1-1/2″Screws
¨(2) Bushings
¨(1) Wax Ring
¨(1) Floor Flange
Remote Control Box Contents
¨(1)DockingStation
¨(1) Remote Control
¨(1)DockingStationPowerCord
¨(1) FM Antenna
¨(1) AUX In Cord
¨(2) UX 6 x 35 Lag Bolt Anchors
¨(2) 4.5 x 45 DING Lag Bolts
User Guidelines
¨Homeowner’s Guide
¨Installation Guide
¨Quick Reference Guide
¨Toilet Installation Template
Other Parts
¨(1)SupplyHose
¨(1) Clip
¨(1) Adapter
¨(1)Shut-oValve
¨(1) Floor Flange Accessory Pack
CAUTION: Risk of product damage.Turnonthewaterandallowwatertoowthroughthesupplypipe
toushthesystemofanydebrisbeforeconnectinginletvalve.

Kohler Co. 5 1195109-X2-A

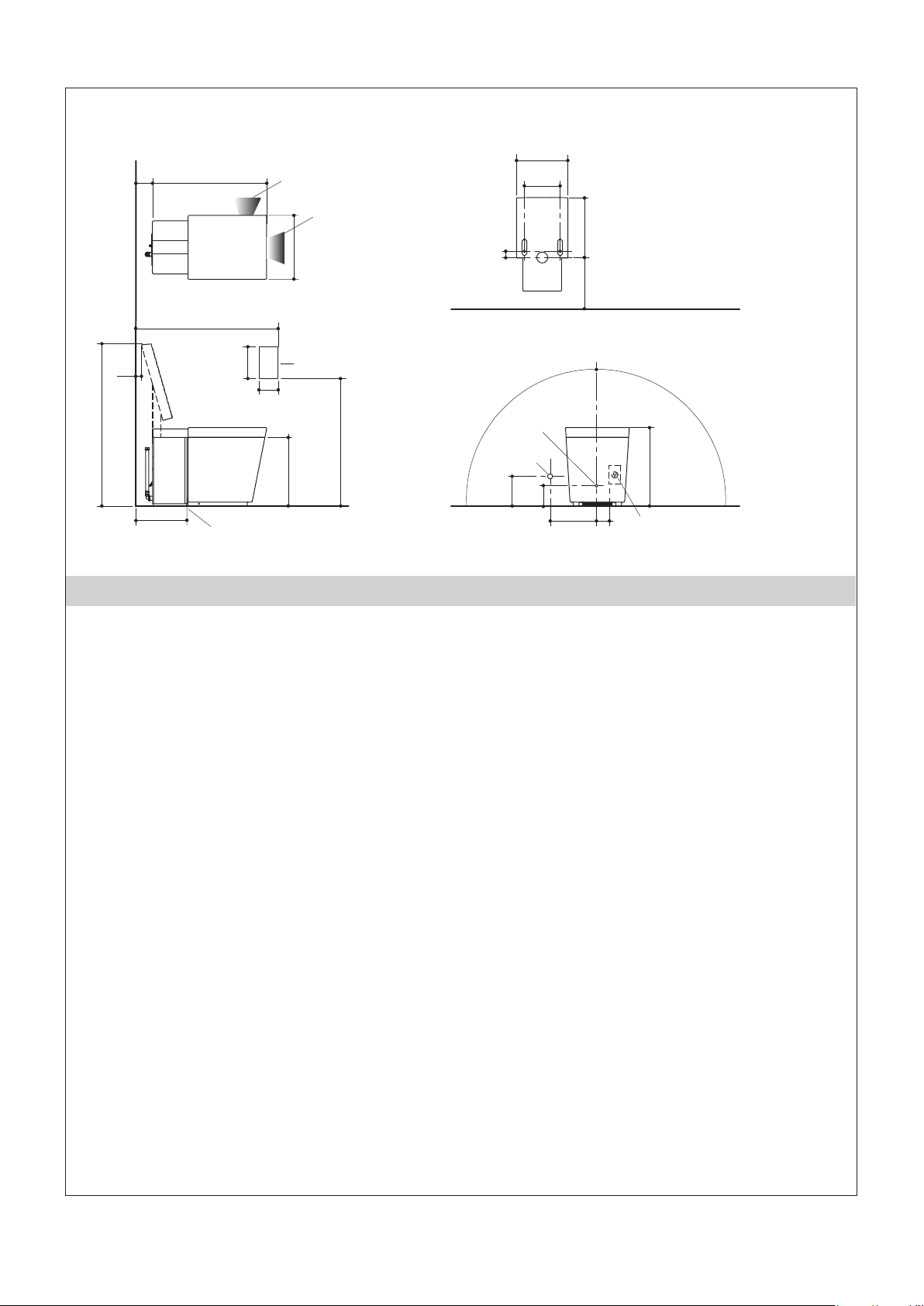

Rough-in - Wall Mount Electrical and Water Supply
NOTICE: The locations for the supply shut-o, electrical outlet, and docking station cord are suggested
locations. Make sure all installations adhere to applicable codes and standards.
NOTICE: Locatingthesupplystopbehindthetoiletwillmakeitdiculttoremovethebackpanel.
IMPORTANT! Donotinstallanyitemsbehindthetoiletthatwillinterferewiththelidwhenitisraised.
All decorative items should be at least 94 cm high to allow clearance for the seat.
¨The remote docking station is equipped with a 5 meter power cord.
¨The supplied power cord is 1422 mm in length. Install the GFCI protected outlet within 1422 mm of the toilet
location.
¨The toilet is equipped with a motion sensor to automatically open the lid when movement is sensed.

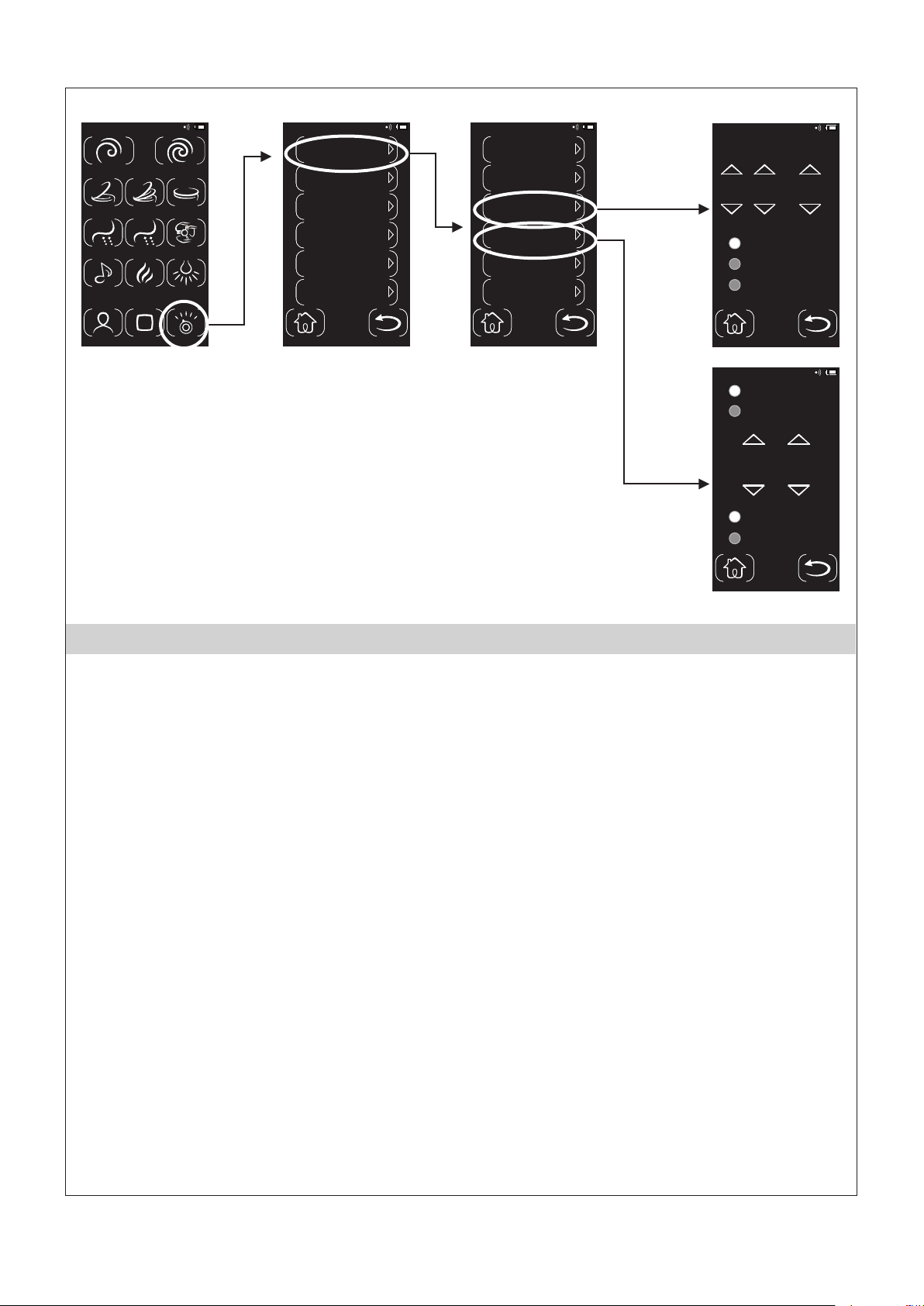

SensitivitycanbeadjustedusingtheUserInterface.
¨The toilet is equipped with a motion sensor to automatically open the ring when the light is interrupted.
The sensor is located on the right side of the toilet. This sensor has a maximum range of 20 cm. Keep this area
free of obstructions.
¨1/2″ODcompressionsupplystopoutletisrequiredunlessanadapterisused.
95
Front of Bowl
654
368
275
Finished Wall
305
336
41
305
397
920
Power Cord
Reaches
1422
104
151
1041-1676
965 - 1676
230
Remote Dock
454
152 102
203 51
Outlet
GFCI Protected Receptacle
C
L of Outlet
60
Side Signal Sensor Field
Front Signal Sensor Field
1/2"
Supply
Dock Power
Cord
Dimensions are approximate.
Unit: mm

1195109-X2-A 6 Kohler Co.

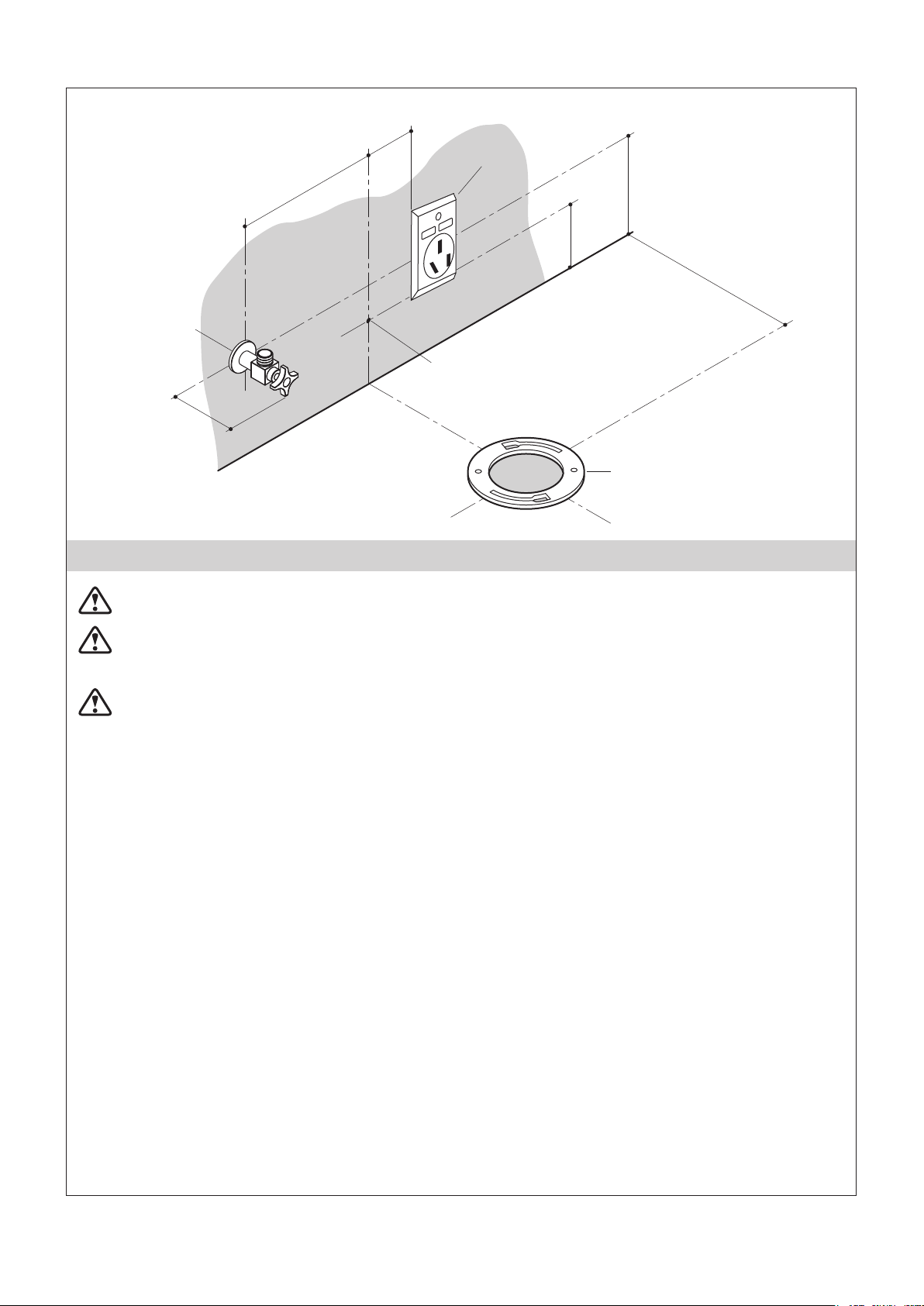

Prepare the Site
NOTE: Locatingthesupplystopbehindthetoiletwillmakeitdiculttoremovethebackpanel.
Install the Dock Power Cord
¨Ifthenishedwallhasnotbeeninstalled,embedthein-wallcableconduittoroutethedockingstationpower
cord. (concealed type)
¨If thenishedwall isinstalled,usethe slotboardcabletoroutethe cord tothe dockingstationlocation.
(out-loading type)
Install the Water Supply
IMPORTANT! Wheninstallingthesupplyhose,connectittothetoiletrst,thenthesupplystop.
NOTE: Thesuppliedwatersupplyhoseis18″(46cm)inlength.Thesuppliedhosemustbeusedforthis
installation.
¨Install the water supply and supply stop.
¨Flush the water supply line into a pail or other container to remove all debris.
Install the Electrical Service
NOTE: Thesuppledpowercordis56″(1420mm)inlength.
¨Locate a dedicated 220~240 V, 50/60 Hz, 15 A or more grounding-type receptacle, protected by a GFCI or
ELCB, within 142 cm of the back of the toilet.
Install External Speaker Wires (optional)
¨If external speakers will be used, install the speaker wires at this time with RCA plug installed at line-end
(not presented).
WARNING: Risk of electric shock. Disconnect power before installation or servicing.
WARNING: Risk of electric shock. Connect only to a properly-grounded, grounding-type receptacle
which is protected by a 220~240V, 50/60 Hz Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). Do not remove the grounding pin or use a grounding adapter.
WARNING: Risk of electric shock. For hardwire installations/through-oor electrical supply: Connect
only to a properly-grounded, dedicated circuit protected by an Class A Ground-Fault Circuit-Interrupter
(GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
152
305 mm From
Finished Wall
Recommended,
298 mm Min
203
Supply Stop
GFCI-
Protected
Receptacle
76 mm Max
When Located
Behind Toilet
102
Dock Power
Cord
51
Floor Flange

Kohler Co. 7 1195109-X2-A
Install the Remote Dock
NOTE: Thedockingstationcomeswitha5metercord.Locatethedockingstationtoallowthedockingcord
to reach the toilet.
¨Unpack the box containing the remote control components.
¨Removethesmallscrewontheboomofthedockingstation.
¨Carefully remove the cover plate by plug the tool into the gap on the top of the back, gently prying the sides
of the cover plate out until they disconnect from the dock. (see Fig. #2)
¨Carefully disconnect the cover plate plug.
¨Tape the screw to the cover plate and set it aside.
¨For installations using the concealed type, route the power cord through the back cord opening.
¨Forinstallationsusingtheout-loadingtype,routethepowercordthroughtheboomcordopening.
¨Position the docking station in the installation position and mark the screw locations using the dock as
a template.
¨Drill appropriate size mounting holes at the screw mounting locations. The size of the hole will depend
on the need for wall anchors, wall material, and installation requirements.
¨Looseneachofthevesmallscrewslocatedwherethewireswillbeconnected.
¨Run the power cord into the docking station through the back cord opening in concealed type or the
boomcordopeninginout-loadingtype.
¨Position the docking station over the installation location, connect the docking station to the wall using two
screws.
¨Cut the tin (about 2 mm) of the bare end of the wire.
¨Slidethebareendofthewiresintothecorrectport(seeFig.#3)accordingtothecolorandtighteneachscrew
to secure the wires in place, connect the cover plate plug.
¨Snapthecoverplatebackintoplace.
¨Remove the screw and tape from the cover plate and secure the cover plate with the screw to the docking
station.
Holes
Red
Blue
White
Black
Orange
ScrewFig.#1 Fig.#2
Fig.#3 Fig.#4
Connector
Harness
Docking Cord
Back Cord
Opening
Bottom Cord
Opening
Back Cord
Opening
Disconnect.

1195109-X2-A 8 Kohler Co.

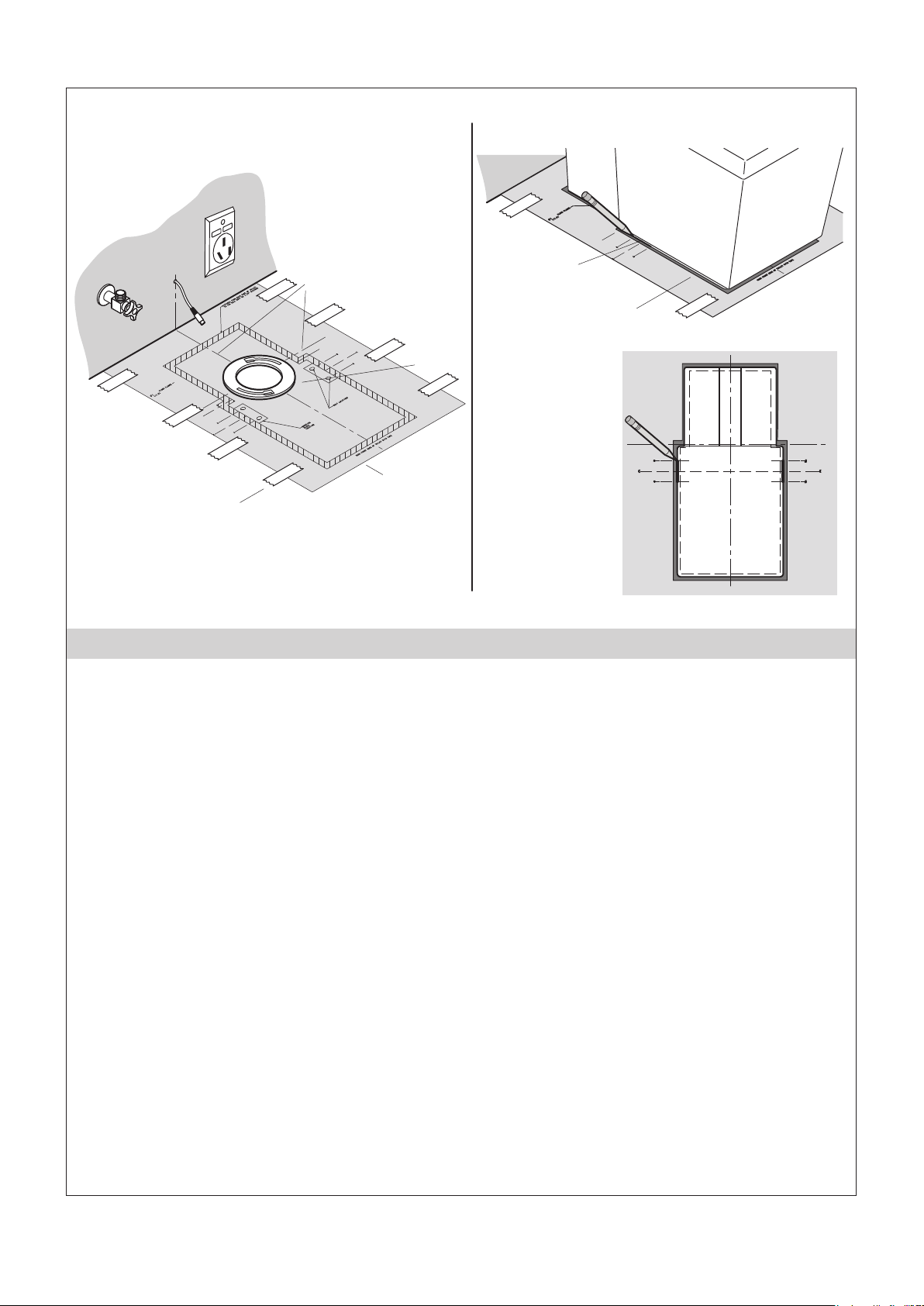

Prepare the Installation Location
IMPORTANT! Risk of product damage.IfthereareT-boltsextendingfromtheange,removethem.T-bolts
are not required for this installation.
IMPORTANT! Becauseoftheuniquedesignofthistoilet,thewidthoftheboomedgesofthetoiletwillvary.
The following steps are required because of this variation.
¨Cutouttheinsideoftheangeareaonthetemplatealongthedoedline.
¨Positionthetemplatewiththeholepositionedovertheange.Itiscriticalthatthecenterlinesmarkedonthe
templatearecenteredontheange.
¨Securethetemplatetotheoorwithtape.
¨Conrmthetemplateiscorrectlypositionedandcenteredovertheange.
¨Position the toilet on the template. Make sure the front of the base of the toilet is aligned with the markings
on the template.
¨Conrm the left/right position of the toilet left or right so that an equal amount of shaded area is visible
on each side of the template.
¨Directly under the screw holes on each side of the toilet, accurately mark the boom edge of the base.
Themarkshouldintersectthelineslabeled″C″and″A″or″B″oneachsideofthetemplate.
Template
Screw Hole
Center the toilet
on the template.
Top View
Tape
Flange
Flange Centerlines

Kohler Co. 9 1195109-X2-A

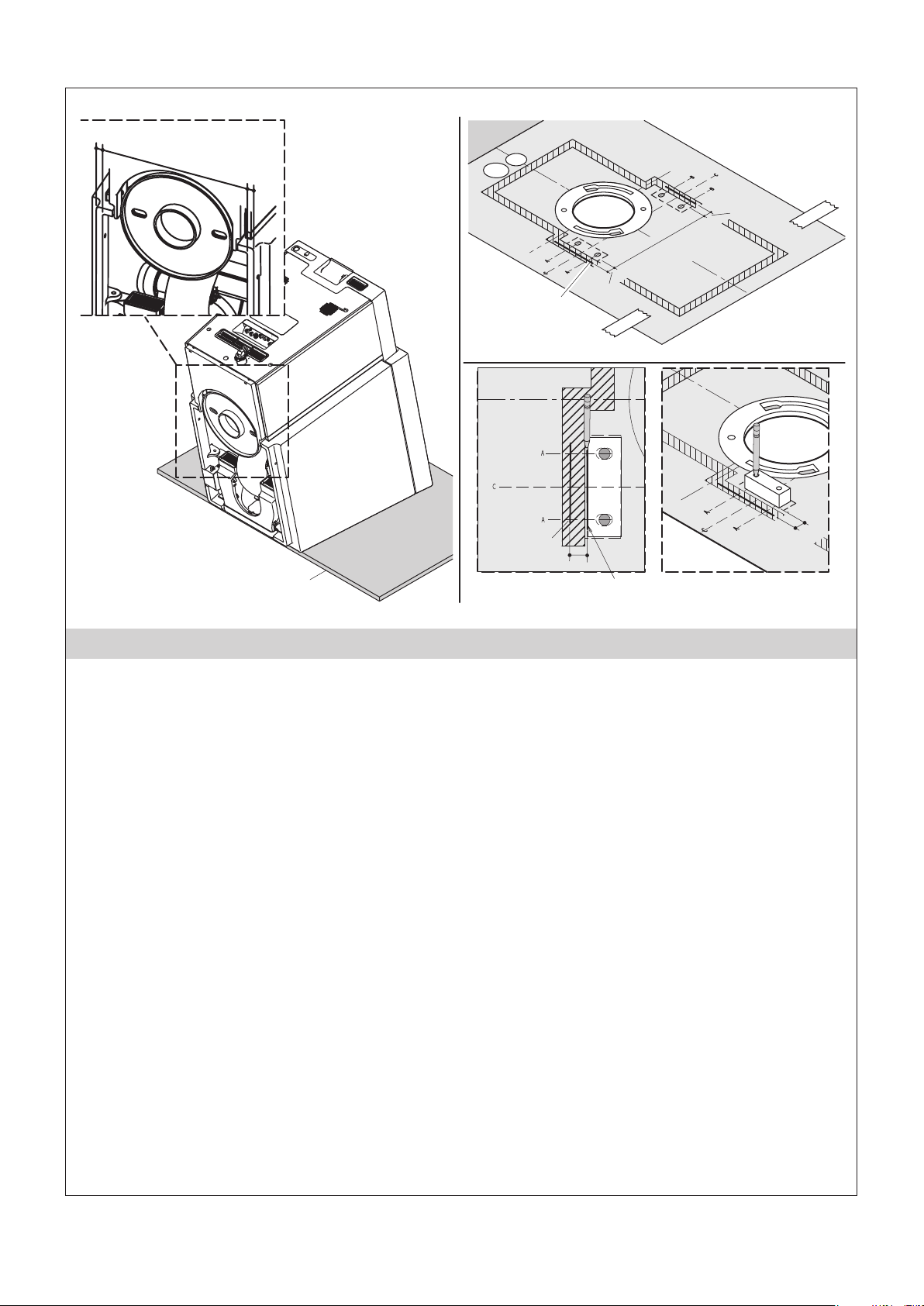

Determine Mounting Block Location
NOTE: Thereisasmallamountofbiodegradable,environmentallysafeantifreezeaddedtothetoilettankto
prevent freezing during shipment. When the toilet is tipped forward, a small amount of the antifreeze may run
ontotheoor.Makesuretheoorisprotected.
¨Positionpiecesoftheboxorotherprotectivematerialontheoordirectlyinfrontofthetoilet.
¨Gently tilt the toilet forward until it rests on the front surface.
NOTE: Theinstallationrangeofthemountingblockismarkedonthetemplate.Duetovariancesinthewidth
of the base, the exact location must be determined by the installer.
¨Measurethewidthofthebase,dimension″A″,ontheleftsideofthetoilet.
¨From the mark indicating the outside edge of the base, measure inward and mark dimension ″A″ on the
templatelinesmarked″A″.
¨Drawalineconnectingthemarksoneachofthelineslabeled″A″.
¨Measurethewidthofthebase,dimension″B,″ontherightsideofthetoilet.
¨From the mark indicating the outside edge of the base, measure inward and mark dimension ″B″ on the
templatelinemarked″B″.
¨Drawalineconnectingthemarksoneachofthelineslabeled″B″.
IMPORTANT! Dimension″C″isthedistancebetweentheinsideedgesoftherightandleftbase.Thedistance
between the outside edges of the mounting blocks should be slightly less than dimension ″C″. The distance
between the edge of the outside edge of the mounting block and the inside edge of the base must be 2 mm or less,
or the strength of the mounting block will be compromised.
¨Measuredimension″C″onthetemplate,startingattheinsideline.
¨Position a mounting block in the area indicated on the left side of the template. Align the outside edge of the
mounting blocks with the inside line. Then move parallel 2 mm to the inside.
A
B
C
Outside Edge
of Toilet
A
A
Top View
Protective Material Left Installation
Line
Outside Edge
of Base
A
B
C

1195109-X2-A 10 Kohler Co.
¨Insert a pencil into the holes in the mounting blocks and mark the center of the holes after positioning the
mounting block.
¨Remove the mounting blocks.
¨Position a mounting block in the area indicated on the right side of the template. Align the outside edge of
the mounting blocks with the inside line. Then move parallel 2 mm to the inside.
¨Insert a pencil into the holes in the mounting blocks and mark the center of the holes after positioning the
mounting block.
¨At the locations where the centerline in the slots marked on the template and the pencil mark indicating
the hole locations meet, drill a 13 mm hole if anchors will be used.
¨If anchors will be used, insert one of the supplied anchors in each of the holes.
¨Remove the template.
Determine Mounting Block Location (cont.)
¨ Positionoorangeontheoor.Markthreeanchorholesontheoorwithpencil.
¨Drill 10 mm anchor holes. Insert the anchors.
¨ Placethegasketundertheoorange.Positionoorangeontheoor.
¨Tighten the screws.

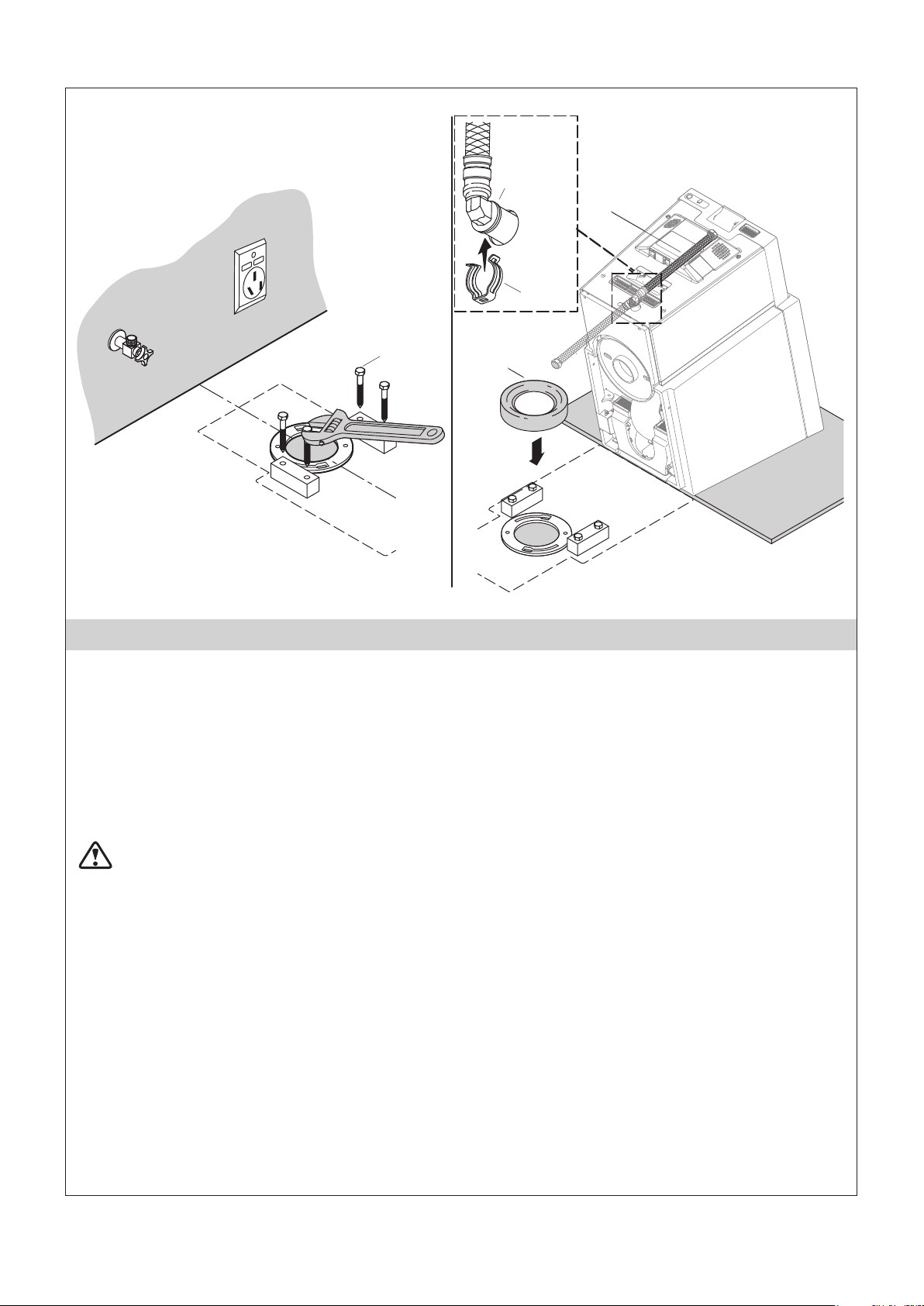

Install the Floor Flange
Gasket
Floor Flange

Kohler Co. 11 1195109-X2-A
Install Mounting Blocks and Wax Ring
¨Position the mounting blocks over the mounting holes.
¨ Secureeachofthemountingblockswithtwoofthesuppliedlagbolts.
¨ Positionawaxringontheange.
Connect the Supply Hose to the Toilet
¨ Slidethesupplyhoseoutletintothetoiletwaterinlet.
¨ Slidetheclipovertheangesonthesupplyhoseandinlet.Makesurebothangesrestinthegapintheclip
andarermlyheldinplace.
IMPORTANT! Conrmtheclipisrmlyholdingthesupplyhoseinplace.Theclipwillbeabletorotatefreely
withnosignicantresistancewhenproperlyinstalled.
CAUTION: Risk of property damage. Itiscriticalthatthesupplyhosebermlysecuredbythe clip.
The supply hose could be displaced when under pressure if the clip is not correctly installed, resulting in
water damage.
Wax
Ring
Hose Should Face
Down When Through
Floor
Clip
Flanges Supply
Hose
Lag Bolt

1195109-X2-A 12 Kohler Co.
FM Antenna
Connection
Cap
Screw
Bushing
Wall Supply
Installation
Shown
Docking
Station
Cord
Docking
Station Cord
FM Antenna
Connection
External
Universal
Adapter
Speaker
Connections
Mark Line on the
Plug Upwards
Install the Toilet
Position the Toilet
¨Carefully lower the toilet into place, making sure the water supply line and electrical cord do not interfere
with the toilet when it is in place.
¨Connect the water supply hose to the supply stop.
¨Fasten connect the docking station power cord mark line on the plug upward.
¨Connect the optional FM antenna (not shown) to the toilet if needed. In normal case no need to use the external
FM antenna as there’s already built-in antenna inside the toilet. However if the environment is causing
unsatisfactoryreceivingeect,pleaseinsertandspreadtheaccessaryexternalFMantenna.
¨Connect the external speaker wires (not shown) to the toilet if external speakers are installed (RCA plug).
¨Place the remote control on the docking station.
¨Connect the power by universal adapter.
¨Turn on the water supply.
Check for Leaks
NOTE: Once the power is connected, the toilet will automatically enter start-up mode. This process takes
several minutes.
NOTE: Ifthereisafailureduringstart-upmode,followthedirectionsontheremotecontrol.
¨Oncethestart-upsequencehasbeencompletedushthetoiletusingthemanualbuonsonthesideofthe
toilet.
¨Letthetoiletfullyrellandcheckforleaks.

Kohler Co. 13 1195109-X2-A
Screw
Battery Box
Cover
Buckle of
Battery Box
Battery
Box Slot
Battery
Box

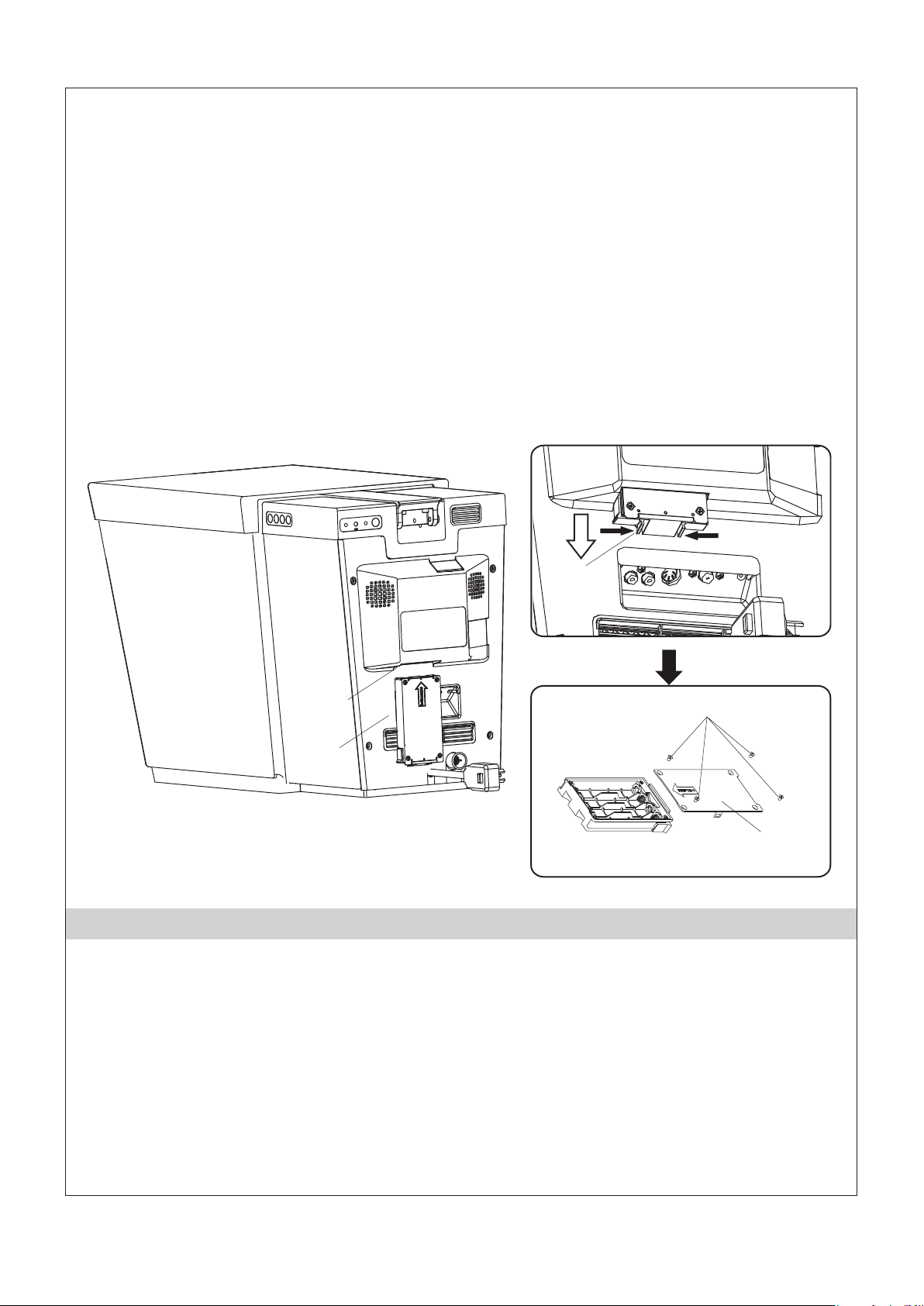

Install Battery Box
¨Pullouttheconnectingwireunderthebaerybox.
¨Pressthebuckleandpullitdown,andtakeoutthebaeryboxfromtherearpanel(asshowningure).
¨Unscrewthescrewwithacrossscrewdriverandremovethebaeryboxcover.
¨EightAAbaeriesareloadedcorrectlyaccordingtothemarkonthebaerybox.
¨Tightenthescrewonthebaeryboxcover.
¨Insertthebaeryboxproperlyintotheslotaccordingtothemarkonthe baeryboxcover, andpushthe
baeryboxuntilitisclamped.
Secure the Toilet
¨Insert the bushing into the screw hole in the side of the toilet.
¨Insert the supplied screws into the screw holes.
NOTE: A ratchet style screwdriver is the most eective tool when tightening the screws due to their close
proximity to theoor. Itisdiculttoachieveenoughforcewith a standardscrewdriver.Thereisagreater
risk of stripping the screws when a drill is used.
¨Thread each screw into the mounting blocks. Tighten the screws evenly to maintain the correct toilet position.
¨Install the caps over the screw holes.
Install the Toilet (cont.)

1195109-X2-A 14 Kohler Co.
Remote Control Setup - Set the Language
NOTE: Iftheremotecontrolhasnotchargedenoughtoberemovedfromthedockingstation,performthese
stepswithremotecontrolaachedtothedockingstation.
NOTE: Chineseisthedefaultlanguage.SkipthisstepifChineseisthedesiredlanguage.
Changing the On-Screen Language
¨Select[seings].
¨Select[system seings].
¨Select[languages].
NOTE: Ifthelanguageyoudesiredoesnotappearonthescreen,movethescrollbardowntoseeadditional
language options.
¨Selecttheradiobuonforyourdesiredlanguage.Thescreeniconswillimmediatelychange.
¨Select[home] to return to the main screen or [back] to return to the previous screen.
12:34 am
brightness
backhome
system settings
user settings
power save
set time
set date
languages
Français
Português
Español
Italiano
home
languages
back
Deutsch
English
12:34 am
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
system settings
feature settings
cleaning
maintenance
bluetooth settings
about
home
settings
12:34 am
back

Kohler Co. 15 1195109-X2-A
Remote Control Setup - Set the Date and Time
Set the Date
¨Select[seings].
¨Select[system seings].
¨Select[set date].
¨Usetheupanddownindicatorstoadjusttheday,month,andyear.
¨Selectthedesiredradiobuonforthedateformat.
¨Select[home] to return to the main screen or [back] to return to the previous screen.
Set the Time
¨Select[seings].
¨Select[system seings].
¨Select[set time].
¨Selecttheradiobuonforthe[12 hr.] or [24 hr.] option.
¨Usetheupanddownindicatorstoadjustthehourandminute.
¨Selecttheradiobuonforthe[am] or [pm] option.
¨Select[home] to return to the main screen or [back] to return to the previous screen.
12:34 am
05/17/2012
backhome
yyyy/mm/dd
dd/mm/yyyy
mm/dd/yyyy
set date
12:34 am
12:34
12
24
backhome
set time
pm
am
hr.
hr.
12:34 am
brightness
backhome
system settings
user settings
power save
set time
set date
languages
back
system settings
feature settings
cleaning
maintenance
bluetooth settings
about
home
settings
12:34 am
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am

1195109-X2-A 16 Kohler Co.
Remote Control Setup - Connect the Remote Control
NOTE: Thisseingcanbeusedtoconnectaneworasecondremotecontrol.
¨Select[seings].
¨Select[maintenance].
¨Select[learn remote].
¨Follow the instructions on the remote screen. When complete select [yes].
12:34 am
diagnostics
maintenance
reconnect
back
factory menu
learn remote
home
shutdown
reset
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
back
system settings
feature settings
cleaning
maintenance
bluetooth settings
about
home
settings
12:34 am
no
yes
home back
12:34 am learn remote
key.then press
key until LED blinks,
to associate this remote:
on the desired toilet, please hold
&

Kohler Co. 17 1195109-X2-A

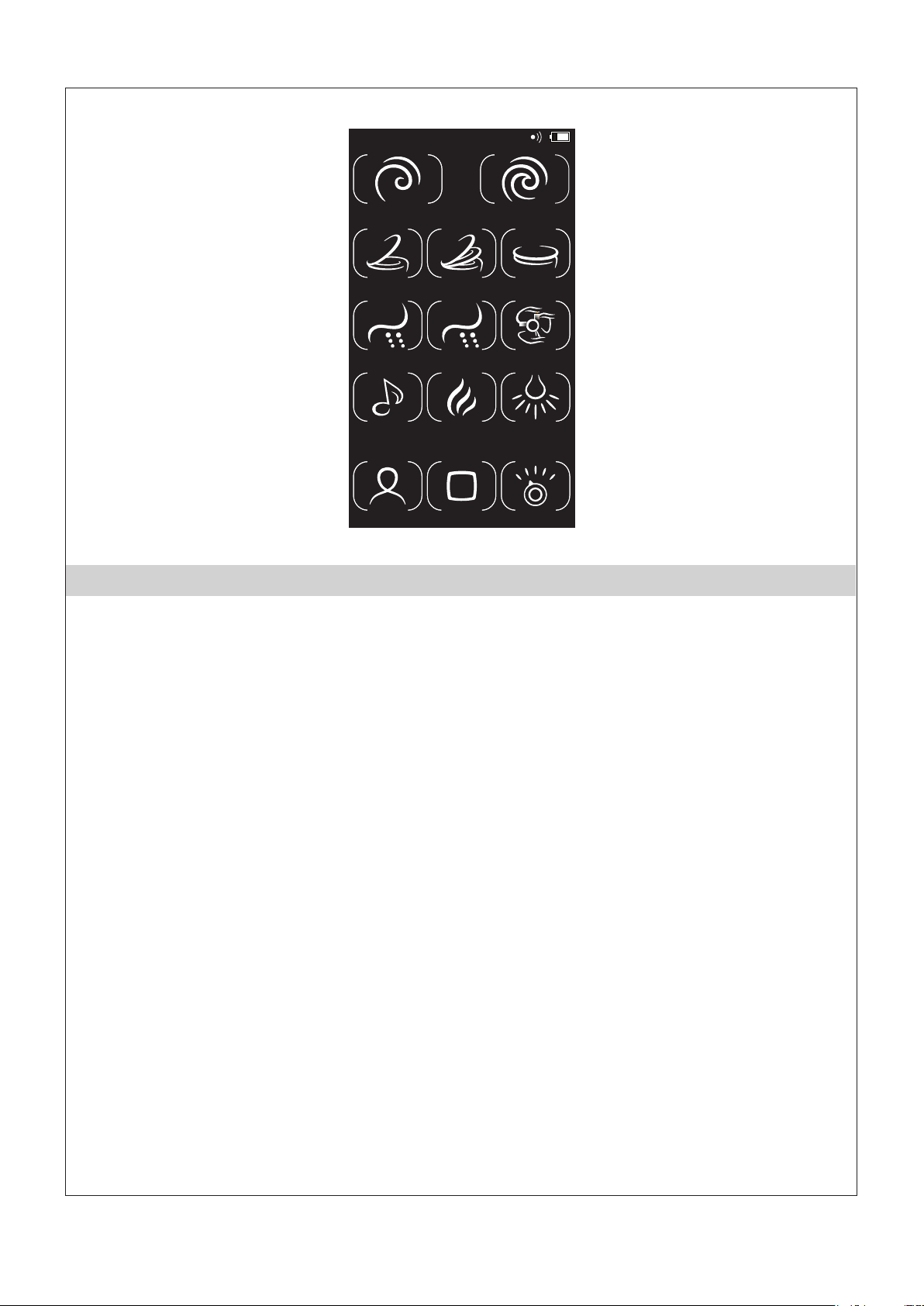

Complete the Installation
¨Presstheushbuonontheremotecontrol.Conrmthetoiletushes.
¨Removetheprotectivelmfromthetoiletandremote.
¨Apply caulk around the base of the toilet following the caulk manufacturer’s instructions.
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am

1195109-X2-A 18 Kohler Co.




 
  

•      

    
 
•    

•   
• 

 
  
 
  

   

  

 

Kohler Co. 19 1195109-X2-A







อุปกรณ์อื�นๆ
ชุดอุปรณ์ภายในถุง
 


 
 











 

 
   

• 
• 
 

1195109-X2-A 20 Kohler Co.

    
 

  
 

   
 
    

 

¨ 
¨ 


¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 

¨ 
¨ 
¨ 
¨ 
¨ 
¨ 
¨ 

¨ 
¨ 
¨ 
¨ 

¨ 
¨ 
¨ 
¨ 
¨ 
