Kohler ADAIR K- 5171T-ITSE User manual

ADAIR
INSTALLATION INSTRUCTION
4.2L SKIRTED CLASS FIVE+ ONE-PIECE TOILET+ CL
4.2 ( )
S-TRAP 305mm K- 5171T-ITSE/K- 5171T-ITNS
S-TRAP 400mm K- 4983T-ITSE/K- 4983T-ITNS
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
.
please leave instructions for the
consumer
·
·
·-
·
ORDERING INFORMATION
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
305mm ...............................................................K-5171T-ITSE
Includes French Curve Quiet-close Toilet Seat....K-4713T
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
400mm ...............................................................K-4983T-ITSE
Includes French Curve Quiet-close Toilet Seat....K-4713T
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
305mm (W/O Seat)............................................K-5171T-ITNS
ADAIR 4.2L Skirted Class Five+ One-Piece Toilet + CL
400mm (W/O Seat)............................................K-4983T-ITNS
4.2 ( )
305mm...............................................................K-5171T-ITSE
......................................K-4713T
4.2 ( )
400mm...............................................................K-4983T-ITSE
......................................K-4713T
4.2 ( )
305mm ................................................K-5171T-ITNS
4.2 ( )
400mm ................................................K-4983T-ITNS
-1-
©
©
Copyright Kohler China Investment Co., Ltd. 2020
2020
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA 256410
8 256410
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC 110400
1 110400
:
POST CODE:
POST CODE:
NOTES
·
·
·
·
·
·
·
·
·
Observe all local plumbing and building codes.
Shut off the water supply.
Seat post holes are on 140mm centers.
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension. .
Closet flange must be 305/400mm on-center from wall.
Carefully inspect the new fixture for any sign of damage.
For new construction, refer to the dimensions in
for locating the shut-off valve.
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
See Roughing-in
This product complies with Q/KCI-006-2018 and GB
25502-2017. Water Efficiency Grade 2.
installation step
·
·
·
·
·
·
·
·
·
140mm
305/400mm( )
305/400mm
ASME (
)
A112.19.2-
2018
Q/KCI-006-2018 GB 25502-2017
2
1423356-T01-B

-2-

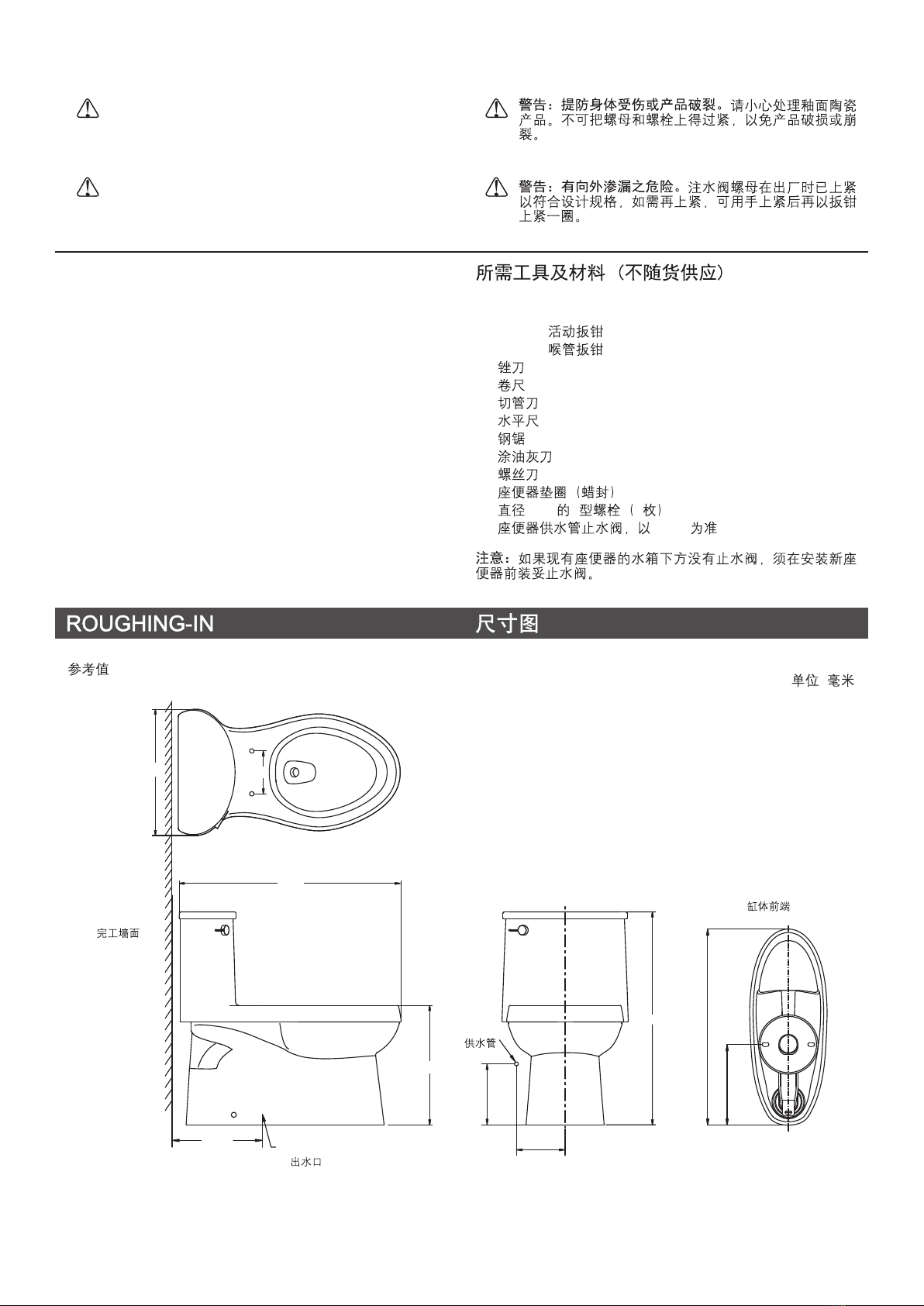

WARNING: Risk of personal injury or product
damage
WARNING: Risk of external leakage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you overtighten
bolts and nuts.
. The fill valve
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten one turn
past finger tight .
TOOLS AND MATERIALS REQUIRED (Not
supplied)
·
·
·
·
·
·
·
·
·
·
·
·
254mm (10") adjustable wrench
305mm (12") pipe wrench
Metal file (file cut)
Tape measure
Tubing cutter
Level
Hacksaw
Putty knife
Screwdriver
Toilet gasket (wax seal)
Toilet T-bolts (2), 8mm (5/16") diameter
Toilet supply shut-off valve, 10mm(3/8 ) recommended
If the existing toilet does not have a supply shut-off
valve below the tank, install one before installing the new
toilet.
"
NOTICE:
·
·
·
·
·
·
·
·
·
·
·
·
254mm
305mm
8mm T 2
10mm
Unit: mm
:
Reference Value
K-5171T-ITSE/K-5171T-ITNS
645
265
FRONT OF BOWL
OF OUTLET
C
L
305
Finished Wall
411
720
389
706
Supply
160
200
140
1423356-T01-B

-3-
411
720
389
706
Supply
160
200
140
Fig.#1
1
K-4983T-ITSE/K-4983T-ITNS
Kohler reserves the right to change marked dimensions without prior notice.
645
360
FRONT OF BOWL
OF OUTLET
C
L
400
Finished Wall
TO REMOVE EXISTING TOILET
Turn off the water supply. Flush the toilet, and use a sponge
to remove the remaining water from the tank and bowl.
Disconnect the supply shut-off valve (if present), and remove
the old tank and bowl.
()
INSTALLATION
Fig.#2
2
Remove the old gasket from the floor
and the closet flange with a putty knife.
Remove the old T-bolts and discard
them.
if the new toilet is not
installed immediately, temporarily stuff
a rag into the closet flange.
NOTICE:
T
NOTICE: Do not use white cement or high lime content
cements to install this toilet. The expansion of cement due to
a rise in temperature may make the toilet crack or cause
damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
Closet Flange
mm
67mm;
200mm
160
Fig.#3
3
TO INSTALL SUPPLY
SHUT-OFF VALVE
Install the supply shut-off valve so it is
200mm above the finished floor line,
and 160mm to the left of the closet
flange centerline.
The centerline of the supply shut-off
valve outlet should extend 67mm from
the finished wall. Install the supply
shut-off valve with the outlet vertical.
Supply Shut-Off Valve
Closet Flange
Centerline
160
305/400
200
1423356-T01-B

-4-

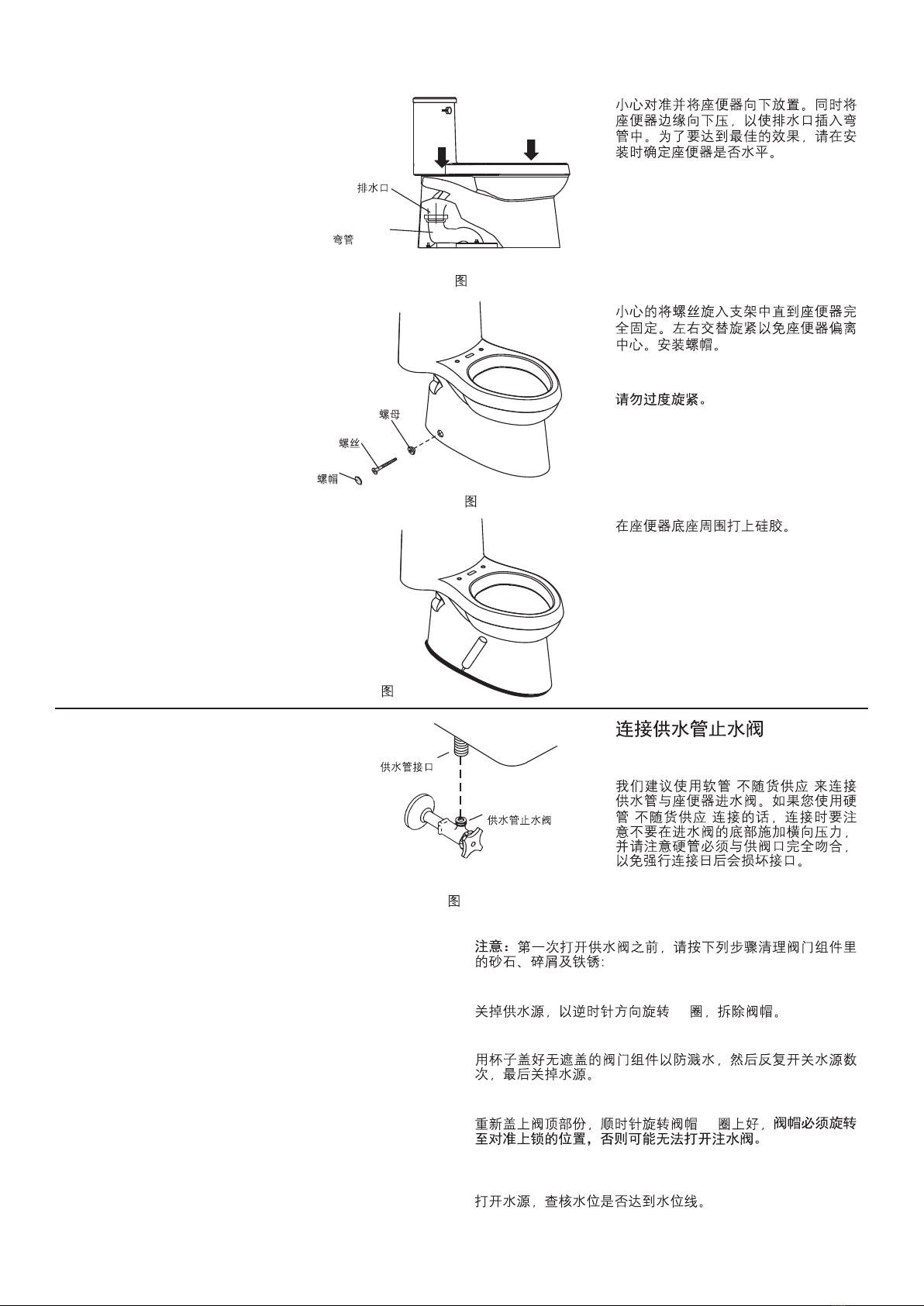

TO INSTALL BOWL
Position the template and align with
drain hole.
Mark down the position of foot and 5
holes.
Fig.#4
4
Fig.#5
5
Drain Hole
3/8
10mm
10mm
5
Drill holes on ground with the drill of
10mm (3/8"), then insert anchor to
holes.
CAUTION: Please make sure there is
no water pipe or spool under the 5
holes to be drilled.
Fig.#7
7
Firmly press the toilet gasket onto the
toilet outlet of plastic trap.
Wax ring type toilet gasket
should not be installed at temperatures
less than 21 C.
If you are using a toilet
gasket with an integral plastic sleeve,
make sure the gasket is positioned
with the sleeve facing away from the
toilet.
NOTE 1:
NOTE 2:
o
1
21
2
oC
Install brackets.
Plastic Trap Outlet
Toilet Gasket
Fig.#8
8
Install plastic to ground and mounted
with 3 set of bolts firmly.(not supplied)
3(
)
NOTE: Must use the toilet installation
gasket ring (not supplied) to seal the
area where the waste pipe contacts
the construction section to avoid
leakage.
(
)
Fig.#6
6
1423356-T01-B

Fig.#9
9
Fig.#10
10
Carefully align and lower the bowl.
Apply weight to the bowl rim to let the
outlet insert into plastic trap.
Carefully thread the screws into the
brackets, until toilet is secure.
Alternately tighten left and right sides
to prevent pulling the toilet off center.
Install cap to cover screw.
Do not overtighten.
Cap
Screw
Bushing
Outlet
Plastic Trap
-5-
TO CONNECT WATER
SUPPLY
* Flexible hose (not provided) are
recommended to connect the supply
line to the fill valve. If you use a rigid
connection(not provided), take care
not to apply side forces to the bottom
of the fill valve. Be sure the rigid
connection must be fit with supply line
completely to prevent damage shank
by forced connection.
()
()
Supply Shank*
Supply Shut-Off Valve
Fig.#12
12
IMPORTANT:
Make certain the top is turned to the locked
position. Valve may not turn on if top is not fully in the
locked position.
Before turning on the supply valve for the first
time, follow the steps below to clear sand, debris and rust
from the system:
Make sure water sure water supply is off. Remove valve END
by rotating it 1/8 turn counterclockwise.
While holding a container over the uncapped VALVE to
prevent splashing, turn water supply on and off a few times.
Leave water supply off.
Replace END by engaging lugs and rotating 1/8 turn
clockwise.
Turn on water supply. Check that water level is at the marked
water line.
1/8
1/8
Fig.#11
11
Apply caulk around base.
1423356-T01-B

-6-
Install the tank lid and the seat. Use
the supplied hardware pack for seat.
Periodically check for leaks for several
days following the installation.
Fig.#13
13
Fig.#14
14

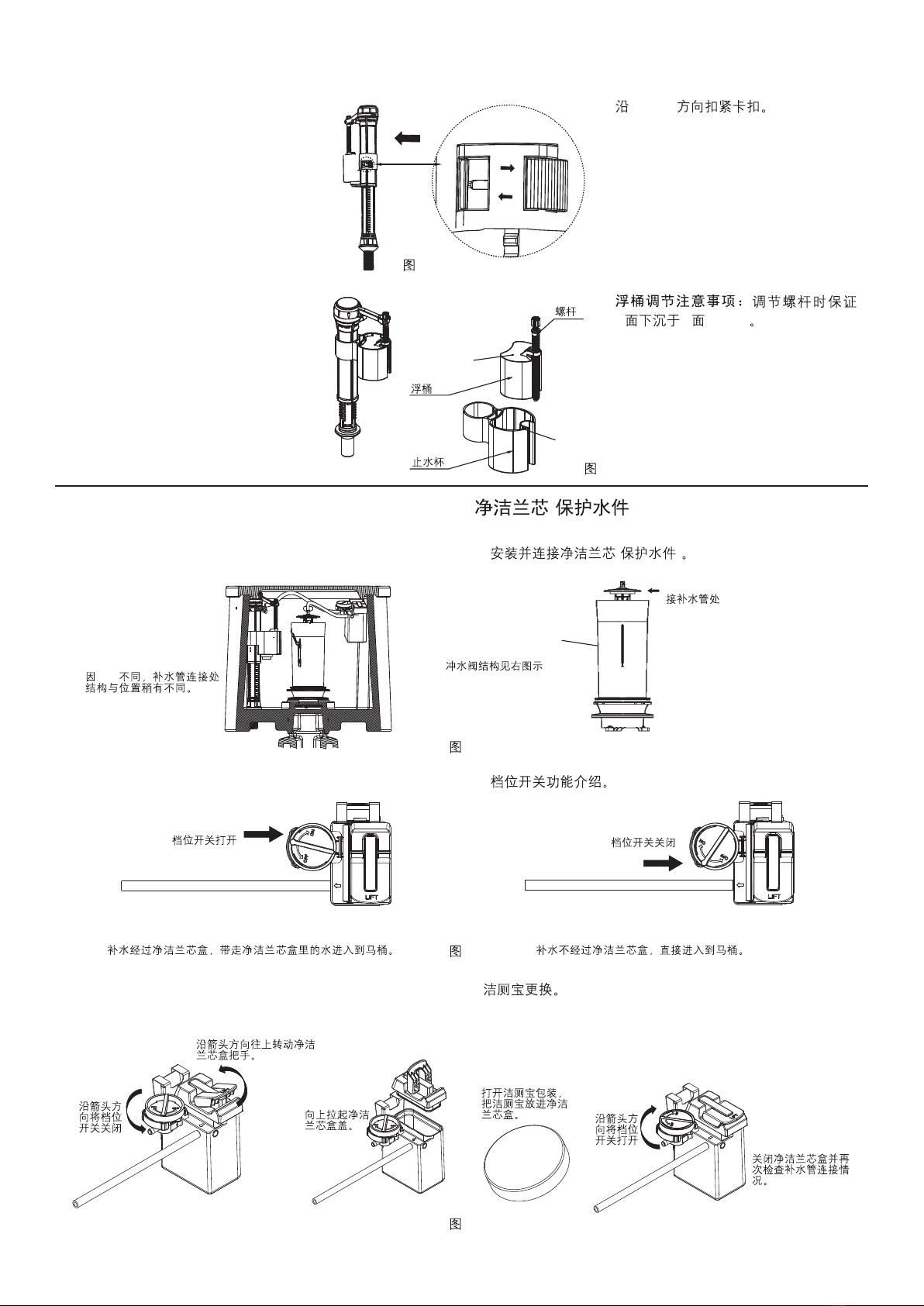

FILL FLOAT WITH
BALLAST
Test flush the toilet.
Periodically check all connections for
leaks for several days following
installation.
Set the tank cover in place on the tank.
To elevate water level: Rotate screw
clockwise and raise float to the desired
water level. Elevate water cup to a
proper position as well. (Refer to float
adjustment instructions.)
Fig.#15c
15c
Fig.#15a
15a
Fig.#15b
15b
MINOR ADJUSTMENT OF
WATER LEVEL
Move the snap along "OPEN" direction. OPEN
To lower water level: Move water cup
down to a proper height and rotate
screw anticlockwise to achieve the
desired water level. (Refer to float
adjustment instructions.)
Screw
Snap
SCALE
5:1
OPEN
CLOSE
1423356-T01-B

Switch is on Switch is off
-7-
CLOSEFasten the snap along "CLOSE"
direction.
E G 2-4mm
Float adjustment instructions: Make
sure the height of surface E is 2-4mm
lower than surface G.
Screw
E
Float
Water Cup G
Fig.#15d
15d
Fig.#15e
15e
SCALE
5:1
OPEN
CLOSE
CONTINUOUS CLEAN
1. Install and connect the CONTINUOUS CLEAN.
()
1. ( )
Fig.#16
16
Fig.#17
17
2. Function of the selection switch. 2.
The joint structure and
location of the water supply
pipe are slightly different
depending on SKU.
SKU
Place to connect the water refill tube
Water flows through the toilet bowl cleaner container and
carries water therein into the toilet.
Water directly flows into the toilet without passing
through the toilet bowl cleaner container.
3. Toilet bowl cleaner replacement. 3.
Fig.#18
18
Rotate the handle in the
direction of the arrow.
Turn off
Turn on
Lift the cover
upward.
Unpack the toilet
bowl cleaner and
place it into the
container.
Close the container
and recheck the
connection of the
water supply pipe.
Refer to the illustration on
the right for structure of
flush valve.
.
1423356-T01-B

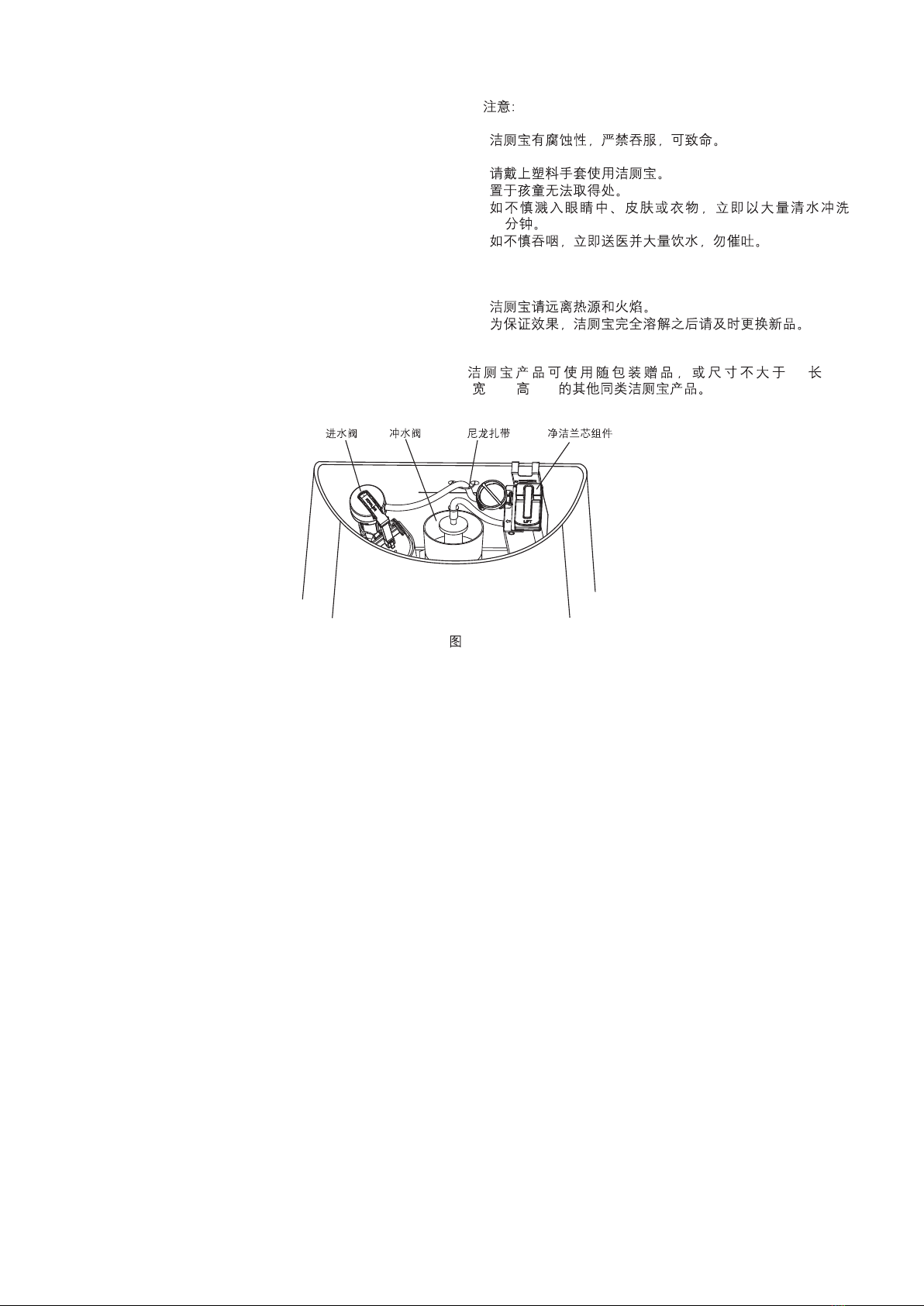

4. Caution:
The toilet bowl cleaner is corrosive and is fatal if
swallowed.
Wear plastic gloves when using the toilet bowl cleaner.
Store the toilet bowl cleaner out of reach of children.
Flush eyes, skin or clothes for 15 minutes immediately
upon contact with the toilet bowl cleaner.
If Swallowed: Call poison control center or doctor
immediately for treatment advice. Have person sip a glass
of water if able to swallow. Do not induce vomiting unless
told to do so by a poison control center or doctor.
Keep away from heat or flame.
Refill the toilet bowl cleaner immediately after it is
completely dissolved to guarantee the effect.
Use the free toilet bowl cleaner inside, or replace with similar
products less than the size of 70(H)*70(W)*25(H)mm.
·
·
·
·
·
·
·
4.
15
70( )*70
( )*25( )mm
·
·
·
·
·
·
·
Nylon Ties
Fig.#19
19
-8-
Fill Valve Flush Valve Continuous Clean Assy
1423356-T01-B

-9-
1. A.
B.
C.
D.
E. 19
2. A.
B.
C. 19
A.
B.
C. /
D.
E.
3. /
4. A.
B.
5. A.
B.
SYMPTOMS CORRECTIVE ACTION
1. Poor Flush A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-off valve.
C. Clear obstructions from the trapway, jet, or bowl rim holes.
D. Clear obstructions from the waste line.
E. Check the nylon tie in Fig.19 and replace it with a new one if it is broken. Tie the fill
tube with the new tie as shown.
A. Adjust the chain for proper slack so the seal is not held off the flush valve seat.
B. Clean or replace the seal if it is worn, dirty, or misaligned with the flush valve seat, or
if the flush valve seat is damaged. Replace the flush valve seal or flush valve.
C. Clean the fill valve seat/seat washer of debris, or replace the piston/seat washer
assembly.
D. Remove the tank and tighten the flush valve nut if flush valve gasket is leaking. Do
not overtighten. If leakage continues, replace the gasket.
E. Adjust the tank water level if it is too high.
2. No Flush
IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage.
4. Tank takes excessive time to fill.
5. There is excessive noise when the
tank is filling.
3. The fill valve turns on/off by itself
without the toilet being flushed, or it
runs allowing water to enter the tank.
A. Reconnect the chain to the trip lever or flush valve.
B. Adjust the chain assembly to remove excessive slack.
C. Check the nylon tie in Fig.19 and replace it with a new one if it is broken. Tie the fill
tube with the new tie as shown.
A. Fully open the water supply shut-off valve.
B. Clean the valve inlet, valve head, or supply line. Flush the lines.
A. Partially close the water supply shut-off valve if the water pressure to the toilet is too
high. Check the toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head. Flush the lines.
1423356-T01-B

()
0C
o

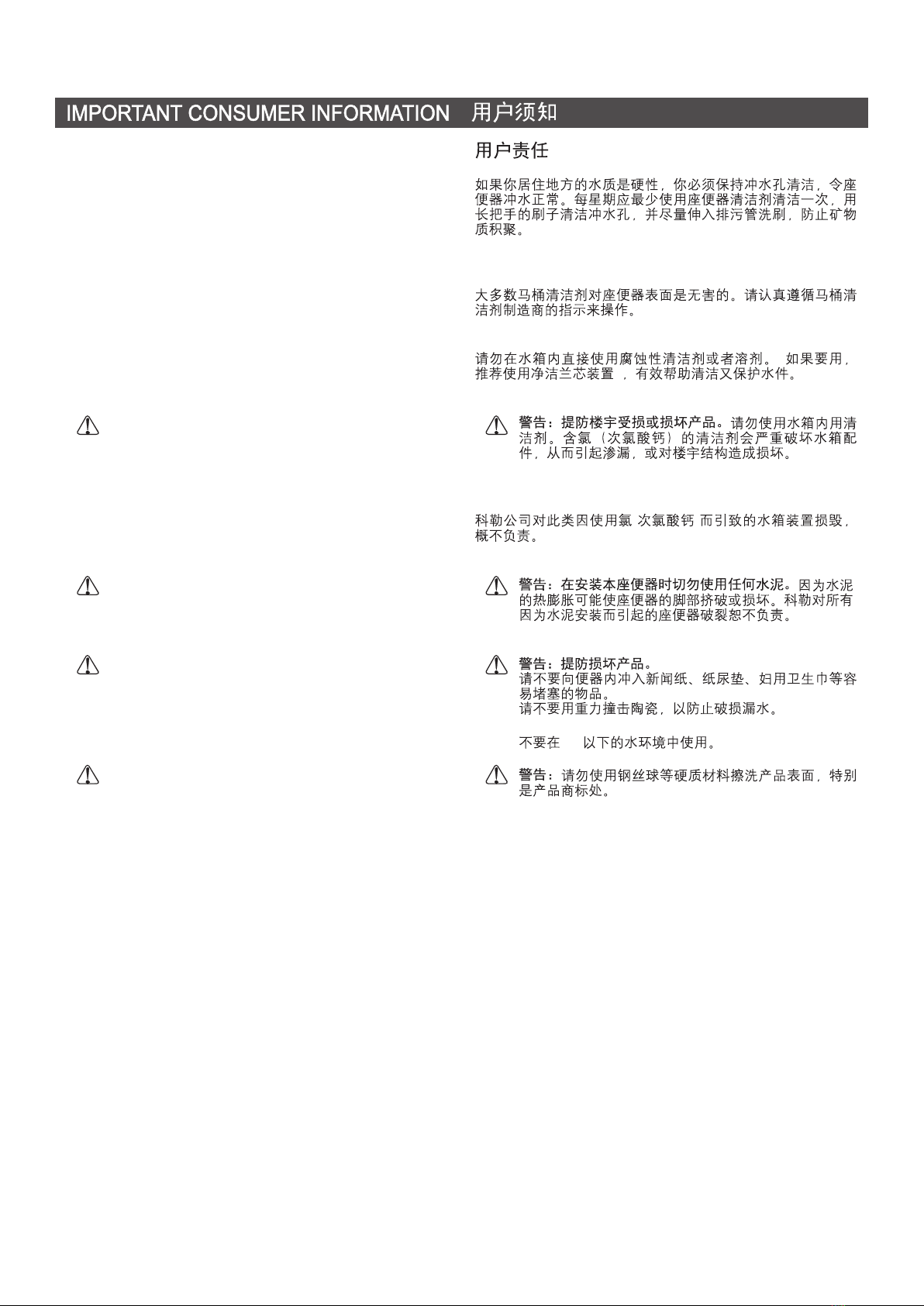

CONSUMER RESPONSIBILITIES
If you live in a hard water area, make certain that the holes in
the toilet rim are kept clean to ensure proper bowl flushing.
Toilet bowl cleaners should be used at least once a week.
Use a long-handled brush to clean the rim holes, and to clean
as far into the trap as possible to prevent mineral deposits
from forming.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the toilet bowl. Please follow the bowl cleaner
manufacturer's instructions carefully.
Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage
fittings in the tank. This damage can cause leakage
and property damage.
Kohler Company shall not be responsible or liable for any
damage to these tank fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
WARNING: Risk of property or product damage.
'
Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
CAUTION:
Do not use corrosive detergent or solvent in the tank. It is
recommended to use Continuous Clean Assembly for the
cleaning of tank and protection of valves.
Heat expansion of the toilet may damage
the feet of the toilet. Kohler will not be responsible for
any damage because of using cement.
Do not throw into the toilet what is easy to block it,
such as newspaper, paper pilch, sanitary towel.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the product in the water below 0 C.
CAUTION: Don t use any cement while installing
the toilet.
WARNING: Risk of product damage.
o
-10-
1423356-T01-B
