ESCALE
INSTALLATION INSTRUCTIONS
FLOOR STANDING TOILET
K-95027T-S
ORDERING INFORMATION
Escale Floor Standing Toilet .....................................K-95027T
Includes Bowl.......................................................K-4097T
Includes ESCALE Quick-Release QC Seat .K-4417T-2PM
....................................K-95027T
..................................................................K-4097T
.............................K-4417T-2PM
SAFETY: WARNINGS
Kohler products are precision-engineered and should give
continued superior and safeperformance,provided:
1.Theyare installed,commissioned,operated and
maintained in accordance withthe recommendations given
in this Manual.
2.Periodic attention is given,as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the section.
Carefullyinspect thenewfixture for anysigns ofdamage.
When installing Kohler Products,manufacturers guidelines for
power tool safetyshould befollowed.
MAINTENANCE
1.
2.
·
·
·
·
·
Fixture dimensions are nominal and conformto tolerances
established by ASME Standards (A112.19.2-2013).
Theproduct complies with GB 6952-2015.
Please read these instructions carefullyto familiarize
yourselfwiththerequired tools,materials,and installation
sequences. Followthe sections that pertain to your
particular installation. This will helpyouavoid costly
mistakes. In addition to proper installation,read all
operating and safetyinstructions.
All information in these instructions is based upon the
latest product information available at thetimeof
publication. Kohler China reserves the righttomake
changes in product characteristics,packaging,or
availabilityat anytimewithout notice.
These instructions contain important care,cleaning,and
warrantyinformation -
.
please leave instructions for the
consumer
·
·
·
·
·
-
ASME (A112.19.2-
2013)
GB 6952-2015
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
8 256410
©
©
CopyrightKohler China Investment Co.,Ltd. 2016
2016
1269084-T01-B

-2-
ROUGHING-IN
RECOMMENDED TOOLS AND MATERIALS
(Not Supplied)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
SafetyGlasses
TapeMeasure
PuttyKnife
PipeWrench
Adjustable Wrench
Tubing Cutter
1/2" NutDriver or socket
Pencil
Waxseal
Supply Shut-off Valve
Level
Screwdriver
Sponge
Sealant
·
·
·
·
·
·
·
·
·
·
·
·
·
·
1/2"
3/8" BSP
SPECIFICATION
Plumbing Connections
Recommended inlet connections are 3/8 BSP."
UNIT mm
Reference Value
Fig.#1
1
Kohler reserves the righttochange marked dimensions withoutprior notice.
390
600 435
377
185
160
160
102
O
185
110~130
140
360
P-trap
With 12504 S-trap(For Separate Purchase)
12504 ( )
Finished Wall
Finished Wall
1269084-T01-B

-3-
INSTALLATION
Recommended tanks for 3/4.5L
In-wall Tank K-10611T-NA(w/o iron rank) And In-wall Tank
plate K-4177T-CP and K-8857T-CP.(Need separate
purchase for plate)
Recommended tanks for 3/6L
In-wall Tank K-6286T-NA (w/o iron rank) And In-wall Tank
plate K-4177T-CP and K-8857T-CP.(Need separate
purchase for plate)
3/4.5L
K-10611T-NA( )
K-4177T-CP K-8857T-CP
3/6L
K-6286T-NA( )
K-6283T-SC/CP K-8854T-CP
Fig.#4
4
Install the Toilet
1.Install thewaste outlet and water inlet as shown.
2.Putthebowlinposition,and using a pencil,markthe
position ofthebowlonthefloor,as shown. Markthe
positions for the tankattachment bolts on thewall.
Makesure that youavoid hidden cables and
pipes when drilling holes in thefloor or wall.
Caution!
2
1
1.
2.
Fig.#3
3
UNIT mm
Water
Supply
345
Outlet
110~130/180
S.trap
345
Outlet
185
Water
Supply
P.trap
Fig.#2
2
4
3
1269084-T01-B

-4-
3.
15 38
3.Removethebowl and place the installation template on
thefloor. Drill the anchor bolt hole (depth 38mm) in the
floor withan 15mm dia. drill,then removethetemplate.
Itissuggested to reverse thebowlbefore drilling withthe
template. Compare the actual loacation ofinstallation hole
withthetemplate to mapmore accurate installation
location,as showninthefollowing figure.
Fig.#5
5
4.Adjust the distance between centerline of PVC waste pipe
and thefloor (wall)to matchit consistent withmarked
roughing-in.
Installation ofStrap: FixStraponto wall withexpansion
screwand insert into the reserved drainage pipe(Fig.7).
Pushthebowl to insert the drainage hole into theStrap
and also insert thewater pipe into theoutlet ofthein-wall
tank.
4.PVC
7
UNIT mm
Fig.#6
6
Fig.#7
7
185 185
110~130
With 12504 S-trap(For Separate Purchase)
12504 ( )
50mm FromFloor
50mm
50
185
1269084-T01-B

-5-

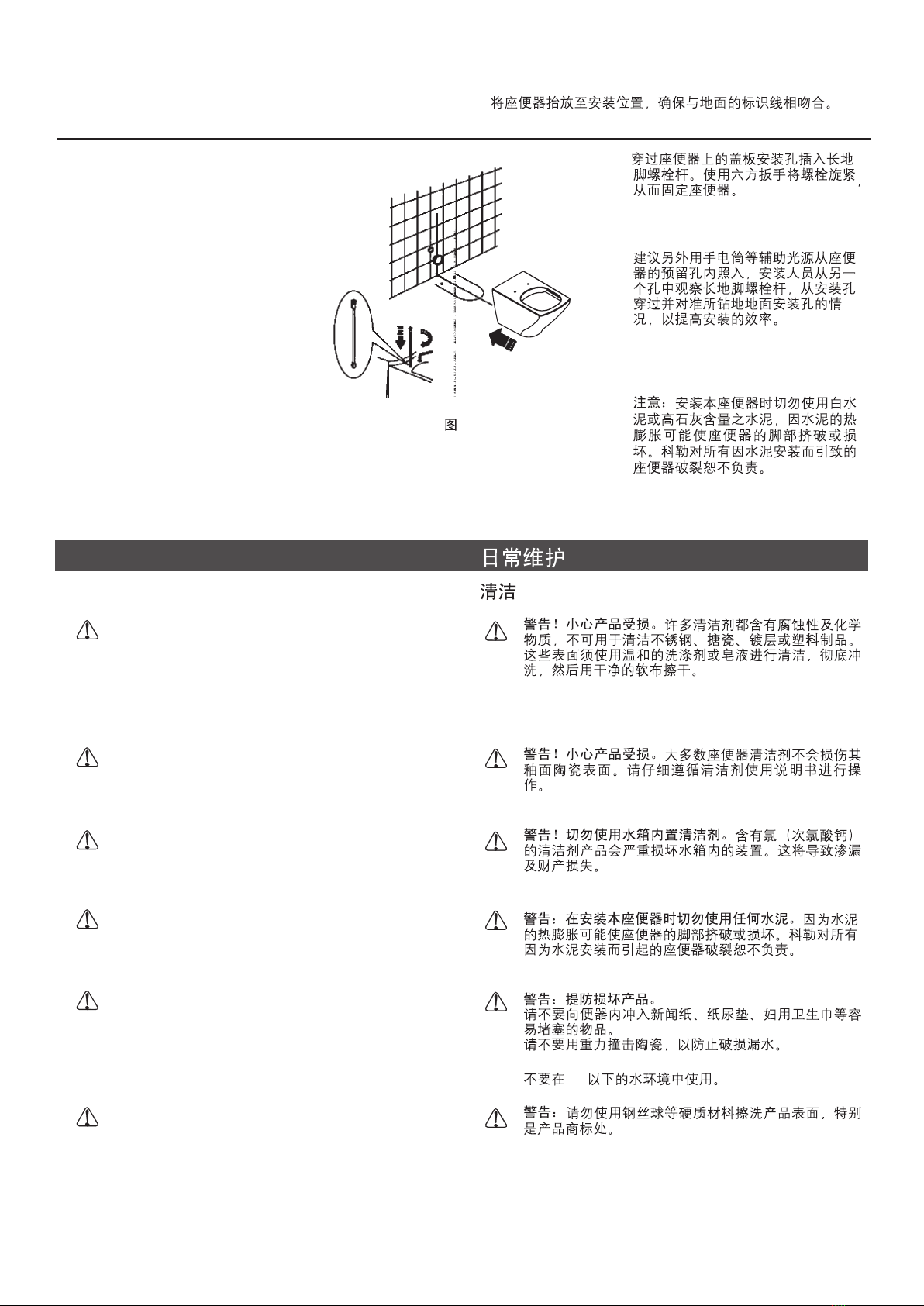

6.Install thethreaded rods through
the seat holes in thebowl. Tighten
bolts withhexwrench.Making sure
that theyinstall correctlyin the
holes in thefloor.
Itissuggested to use other auxillary
lightsuchas torchto eluminate one
preserved installation hole ofthe
toilet. Watchthemovement ofthe
threaded rod throughtheother
installation hole to better control the
installation process.
6.
Fig.#7
7
NOTE: Do not use white cement or
highlime content cements to install
this toilet. Theexpansion ofcement
due to a rise in temperature may
makethe toilet crackor cause
damage. Kohler is not responsible
for anydamage caused by
installation withtheuse ofcement.
Cleaning
Caution! Risk of product damage.
Caution! Risk of product damage.
Caution! Do not use in-tank cleaners.
Manycleaners
contain abrasive and chemical substances,and should
not beused for cleaning stainless steel,enamel,
plated or plastic fittings. These finishes should be
cleaned using a mild washing up detergent or soap
solution,rinsed and then wiped drywithasoft clean
cloth.
Most toilet bowl
cleaners are not harmfultothevitreouschina surface
ofthe toilet bowl. Please followthebowl cleaner
manufacturer,s instructions carefully.
Products
containing chlorine (calcium hypochlorite)can
seriouslydamage fittings in the tank.This damage can
cause leakage and propertydamage.
CAUTION: Don t use any cement while installing
the toilet.
WARNING: Risk of product damage.
Heat expansion ofthe toilet maydamage
thefeet ofthe toilet. Kohler will not be responsible for
anydamage because ofusing cement.
Do not throwinto the toilet what is easyto blockit,
suchas newspaper,paper pilch, sanitarytowel.
Do not bump thevitreouschina withgreat force to
prevent it fromdamaging and leaking.
Do not use theproduct in thewater below0C.
o
'
Please do not use hard materials (like
scouring pad)to clean product surface,especiallythe
product logo.
CAUTION:
0C
o
USER MAINTENANCEUSER MAINTENANCE
5.Movethe toilet to thefield and makesure thebottom
profile matches marked line on the ground.
5.
