Kokido xtrovac 200 User manual

USER MANUAL
xtrovac 200
Pool Vacuum Cleaner

SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely,
protect yourself and others from hazards, and prevent damage to the device and other
property.
SAVE THESE INSTRUCTIONS
WARNING!
- This is not a TOY. Children should be kept out of reach from this pool
vacuum and its accessories.
- Never allow children to operate this product.
-This appliance is not intended for use by persons with reduced physical,
sensory, mental capabilities, or a lack of experience and knowledge,
unless they are given supervision or instructions concerning the safe use
of the appliance and understand the hazards involved by a person
responsible for their safety.
- Children must not play with this product.
- Cleaning and user maintenance must not be carried out by children.
-Make sure the pool vacuum is fully immersed in water before initiating
operation. The minimum water level required to operate the pool vacuum
must cover the entire pool vacuum. Operating the pool vacuum when it
is not immersed in the water correctly could damage the unit and void the
warranty as a result.
- Maximum operating depth in water is 3 meters (9.8 ft.).
- Operating water temperature: 5˚C(41˚F) - 42˚C (107.6˚F).
-The pool vacuum is only to be recharged with the charging cable and
-For the purposes of recharging the battery, only use the detachable
supply unit (USB charger) that provided with this pool vacuum to
charge the battery.
USB charger delivered with this product.
- Make sure to connect the USB charger to the power source through a
residual current device (RCD)/ a ground fault circuit interrupter (GFCI). If
in doubt, consult a qualified professional electrician.
- Do not use this pool vacuum if any damage is detected.
- Replace damaged parts with ones that are certified by the distributor or
manufacturer.
- Disconnect the pool vacuum from the supply mains and make sure the
pool vacuum is powered OFF prior to servicing it such as cleaning the
filter bag.
- Do not attempt to replace the installed rechargeable Li-ion battery pack.
- DO NOT handle the pool vacuum while it is charging with wet limbs and
without shoes.
ENGLISH
1

- You should not operate this pool vacuum when people/pets are present
in the water.
- DO NOT use this pool vacuum without an intact filter bag in place,
otherwise your warranty will be voided as a result.
- Suction entrapment hazard: This pool vacuum generates suction. Do not
allow hair, body, and any loose parts of your clothing to make contact
with the suction point of the pool vacuum during its operation.
- Never insert body parts, clothing, and other objects into the openings and
moving parts of the pool vacuum.
- DO NOT use this pool vacuum to pick up any toxic substance, flammable,
and combustible liquids (i.e.gasoline) in the presence of explosive or
flammable fumes.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor, and battery by yourself.
- Never insert fingers and any object to touch the impeller.
- The built-in battery must be removed by askilled technician before it is
scrapped.
- This pool vacuum contains a battery that are only to be removed by
skilled persons.
- The pool vacuum must be disconnected from the supply mains as the
battery is removed.
- For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
- The battery must be disposed safely in accordance with local ordinances
or regulations.
- Pollution of the liquid could occur due to leakage of lubricants.
- USB charger and charging cable:
Never use the charging cable for anything other than charging the
battery of the pool vacuum that is supplied in the same pack.
The USB charger and charging cable should not be used outdoors,
nor should it be exposed to rain, humidity, any liquid or heat.
The transformer (or USB charger) is to be located outside zone 1.
Keep the USB charger and charging cable out of reach of children.
Never use the USB charger and charging cable if any damage is
detected.
DO NOT handle the USB charger and charging cable with wet
hands.
Keep the USB charger disconnected from power when it is not in
use.
Never attempt to open the USB charger and charging cable.
If the charging cable is damaged, the charging cable must be
replaced by the manufacturer or its service agent to prevent hazards
of any kind.
Make sure the pool vacuum and the charging cable are completely
dry before charging.
ENGLISH
2

CAUTION!
- This pool vacuum is designed for underwater use only; it is not an all-purpose vacuum
cleaner. DO NOT attempt to use it to clean anything other than your pool.
- Use only original accessories delivered with this product.
- DO NOT use this pool vacuum right after pool-shocking. It is recommended to first
leave the pool circulating for at least 24-48 hours.
- If you are planning on using the pool vacuum in a saltwater pool, make sure all salt
are dissolved before placing it in the water.
- DO NOT use this pool vacuum with another automatic cleaner/cleaner simultaneously
in the pool.
- Avoid picking up hard, sharp objects with this product as they may damage the pool
vacuum and filter.
- To avoid damaging the USB charging cable, do not carry the pool vacuum by
the cable or tug the USB cable to disconnect it from the power source and
product.
- Charge the pool vacuum indoors in a clean, dry area with good ventilation and away
from sunlight.
- DO NOT leave the pool vacuum charged for over 10 hours.
- If the pool vacuum will not be used for an extended period, detach it from the charging
cable and use a damp cloth to clean and dry the pool vacuum and its accessories.
Make sure to charge the pool vacuum to about 30% to 50% of the battery capacity
before it is stored. Store in a well-ventilated area away from sunlight, heat, ignition
sources, pool chemicals, and children. Recharge the pool vacuum every three
months.
- All actions concerning the disassembly of the main unit (i.e. battery disposal) can only
be carried by an authorized technician.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always
exercise extra caution and common sense when utilizing the product.
ENGLISH
3

GETTING STARTED
Charging The Battery
IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hrs) before using
it for the first time.
WARNING!
KEEP YOUR FINGERS AWAY FROM THE OPENING TO AVOID BEING
HIT BY THE IMPELLER WHEN IT’S ON.
Use only the original charging cable and USB charger provided.
Make sure the pool vacuum and the charging port are clean and dry before
set-up and charging. (TIPS: use a cotton bud to dry the charging port and
charging pins)
The charging pins are waterproof. However, remnants of water in the port
and around the pins could result in natural occurrence of stains (a
byproduct of chemical reaction between water and electric currents).
Otherwise, the stains can be removed by light scrubbing with a cotton bud
soaked with juice of lemon or vinegar.
1. Place the unit on a flat surface. Ensure the pool vacuum is OFF by turning
the On/Off switching knob clockwise. Pry over the protective plug to
expose the charging port. Align and attach the charging cable to the
charging port. WARNING! Be sure not to invert the charging cable and
ensure both the charging cable and charging port are clean and dry before
charging them. TIPS: Use cotton bud to dry the charging port and pins.
Connect the other end of charging cable to USB adaptor’s port.
2. Connect the USB charger to the power source. The indicator light beside
the charging port will turn red when charging begins and green when it is
fully charged. Charge it for 5-6 hours for best performance.
ENGLISH
4

Immediately disconnect the USB charger from the power source if you
detect any of the following:
-Offensive or unusual odor
-Excessive heat
-Deformation, cracks, leaks
-Smoke
3. When charging is complete, disconnect the USB charger from the power
source and unplug the charging cable from the main unit. WARNING!
Never leave the charging cable while the pool vacuum is in the water.
Normally the pool vacuum is designed to operate for up to 30 minutes on a full charge.
Note: Empty the filter bag regularly. Excessive debris increases the burden to the motor
and may shorten the operating time.
NOTE: Rechargeable lithium-ion battery is classified as a consumable item. It has a
limited life and will gradually lose its capacity to hold a charge. Therefore, the running time
of the pool vacuum will gradually reduce after repeated charging and discharging
throughout its product life.
Once the lifespan of the battery reaches its end, refer to section “BATTERY DISPOSAL”
for instructions regarding battery disposal.
NOTE: Let the pool vacuum rest for around 30 to 40 minutes before charging it again.
Set-Up Before Use
RED light - Charging
GREEN light - Charged
Pole Connector Assembly
"Click"
1. 2. 3. 4.
ENGLISH
5

Filter Bag Assembly
Spread the filter
bag over the main
body of the pool
vacuum.
Make sure the
cord of the bag is
placed under the
flange.
Keep the cord
fastener under
the flange.
Press on the cord
fastener and pull
both cords
simultaneously
until it stops.
To detach the main body from the vacuum head, follow the directional marking to turn the
main body until it stops, and then detach the main body.
Main body and vacuum head assembly
Align and insert the main body's nozzle into the vacuum head's hole. Make sure the nozzle
is completely inserted into the hole, and the small tab located on the nozzle opening is
secured in the hole inside the vacuum head, as shown.
ENGLISH
6

Lift up the bag to ensure it is totally secured before deploying
the pool vacuum into water.
Pole assembly
Telescopic pole (not provided) assembly (for EU & US only)
Press on the V-clip on the pole connector to retract its side pins. Slide the telescopic pole
into the connector until it’s locked in place by the side pins and holes and then release the
V-clip.
ENGLISH
7

Brush assembly
Align and insert either end of the brush into the cavity underneath the tab; then press the
whole brush into the cavity.
To detach the brush, insert the tip of a small screwdriver into the corner notch and pry up
the brush.
Pool Preparation
- If the liner is brittle, damaged, or wrinkled, contact a qualified professional to perform the
necessary repairs or perform a liner replacement prior to using the pool vacuum.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the pool
vacuum into the water.
OPERATION
WARNING! KEEP YOUR FINGERS AWAY FROM THE OPENING TO
AVOID BEING HIT BY THE IMPELLER WHEN IT’S ON.
1) Bring your pool vacuum to the side of your pool. Turn the switching knob
anticlockwise until it stops and clicks, and the power indicator will light up. Immerse
the pool vacuum into water. The indicator will begin flashing when about 5-10
minutes of working time remains.
2) Ensure the charging cable is detached and the charging port is plugged with the
protective cap before the pool vacuum is deployed.
ENGLISH
8

OFF
Power indicator light
ON
Green Power On
Red Impeller stops
(clogged) and will
automatically resume
operation in 3
seconds, for which
the light will turn
green.
To effectively vacuum up debris, ensure the pool vacuum is laid flat on the pool floor as
you steer it back and forth in regular motion over debris patches for collection. Debris is
collected from the front, side and back to fill up the filter bag.
Excess dirt and debris in the pool could clog the impeller, which would automatically stop
to protect the motor, and the indicator light will turn red for 3 seconds to release the larger
debris from the impeller. After 3 seconds, it resumes the operation automatically, and the
light turns green again. If the situation persists, remove the vacuum from the pool and turn
it off before unclogging and emptying the filter bag.
3) To retrieve the pool vacuum, bring it poolside and flip it upside down before lifting. This
is done to prevent debris from scattering back into the pool and avoid bending the pole
in the process.
4) Rinse the pool vacuum with fresh water after every use. DO NOT use any aggressive
detergent.
5) Dry the charging port and pins thoroughly (TIPS: Use cotton bud to dry them).
Vacuuming the Sunken Compartment of an Automatic Slatted Cover
WARNING! Pay attention to all safety warnings in the manual of your
automatic slatted cover concerning this cleaning operation beforehand.
The minimum distance required for the immersion of the vacuum into the sunken
compartment is 24cm (9.5in).
ENGLISH
9

-Remove the duckboard and unroll the pool slat according to instructions from your
pool cover manual.
- Attach a telescopic pole / specific telescopic pole (not provided) to the pool vacuum
as instructed in the manual.
- Power on the vacuum then align it as shown in the image above before immersion.
- Once the cleaner reaches the pool floor, parallel it to the pool length as shown above
and start vacuuming the sunken compartment.
EMPTYING THE FILTER BAG
CAUTION! Make sure the pool vacuum is OFF before cleaning the filter bag.
Washing regularly the filter bag helps to maintain a good suction and close contact
between the vacuum and the pool floor during the operation.
Place the cleaner on a flat surface. Press on the cord fastener to release the bag from the
main body. It is recommended to wash the filter bag with a water jet after each pool
cleaning cycle. To eliminate stubborn dirt or scum on a clogged filter, wash the filter bag
in a washing machine at 30 C (86 F) water temperature. If brushing is deemed necessary,
use only a soft brush to clean it carefully and gently to avoid any damages.
MAINTENANCE & STORAGE
NOTE:
1. Be sure to clean and dry the areas around the charging port and water sensors after
every use to avoid the forming of stains (byproduct of a natural chemical reaction
between electric current and water). Otherwise, the stains can be removed by light
scrubbing with a cotton bud soaked with juice of lemon or vinegar.
2. Battery discharges on its own during storage. Make sure to charge the pool vacuum
to about 30% to 50% of the battery capacity before it is stored.
3. You must recharge the battery at least once every three months when it is not in use.
Unplug the USB charger from the socket and the charging cable from the
pool vacuum .
Detach accessories from the pool vacuum. If necessary, rinse the pool vacuum and
accessories with fresh water. DO NOT use aggressive detergent.
Be sure to dry the pool vacuum before storage.
Use a damp cloth to clean and dry the pool vacuum and its accessories.
ENGLISH
10

 Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool
chemicals, and from children. Ambient temperature for storage should be 10˚C – 25˚C
(50˚F – 77˚F). NOTE: A higher storage temperature may reduce the battery life.
WARNING!
Under no circumstances should you attempt to disassemble the main unit
and replace the impeller, motor, and battery by yourself.
CAUTION!
Excessive heat can damage the battery and reduce the lifespan of your pool vacuum
as a result.
Consult your dealer regarding battery replacement if the following happens:
-Battery does not charge fully.
-Battery operation time is noticeably reduced. Observe and record the run times of
the first few operations (on a full charge). Use these run times as a reference point
for comparison with run times in the future.
The battery must be removed from the pool vacuum before it is scrapped.
The battery is to be disposed safely in accordance with local ordinances or
regulations.
NOTE: Incorrect maintenance may reduce the battery life and affect its capacity as a result.
Wheel replacement
Note: Replace with a new wheel before the next operation.
Unfasten all screws and lift the cover. Take out the damaged wheel and replace it with a
new one. Reverse the steps to install the cover back.
Protective plug replacement
WARNING! Switch off the pool vacuum before replacing the protective plug
1. Unfasten all screws and lift the round cover. Remove the damaged plug.
ATTENTION: Do not move the switching knob.
2. Align the new plug to the cover and insert either end of the hinge into the slot at first.
3. Use force to insert the other end into the slot.
4. Ensure the hinge is completely inserted into the chamber. Install the round cover back
to the unit and fasten all screws by hand only.
ENGLISH
11

BATTERY DISPOSAL (To be carried out by authorized technician)
Your pool vacuum is equipped with a maintenance-free rechargeable lithium-ion battery
pack, which must be disposed of properly. Recycling is required; please contact your
local authority for more information.
WARNING! Never attempt to disassemble a battery pack
Remove all personal items such as rings, bracelets, necklaces, and
watches when the battery pack is unwired from the pool vacuum.
A battery can produce a short circuit current high enough to weld a ring (or
similar item) to metal, causing a severe burn in the process.
Wear complete eye protection, gloves, and protective clothing when the
battery pack is being removed.
Avoid touching the wires altogether and avoid contact between them and
any metal items, which could cause sparking and/or short circuit the battery.
Never smoke or allow a spark or flame in the vicinity of the battery or the
pool vacuum.
Do not expose the battery to fire or intense heat as this may result in an
explosion.
CAUTION!
If a battery leak occurs, avoid any contact with the leaking fluids and place the damaged
battery in a plastic bag.
-If leaking fluids come in contact with skin and clothing, wash immediately with plenty
of soap and water.
- If leaking fluids come in contact with eyes, do not rub them and immediately flush them
with cool running water for at least 15 minutes. Seek medical attention as soon as
possible.
How to remove the battery pack(To be carried out by authorized technician)
Recommended tools (not included): Screwdriver.
WARNING! The pool vacuum must be disconnected from the supply mains
before removing the battery pack.
1. Place the pool vacuum on a flat surface. Use the screwdriver to unfasten
all the screws and remove the top cover. Next, remove the switching knob
and take out the transparent unit. Finally, unfasten side screws and detach
the transparent cover.
ENGLISH
12

Environmental Programmes, WEEE European Directive
Please respect the European Union regulations and help to protect the envi
r
onment.
Return non-working electrical equipment to a facility appointed by your municipality that properly
recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins. For
items containing removable batteries, remove batteries before disposing of the product.
© 2023 Kokido Development Ltd.
All rights reserved. No part of this document may be reproduced or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written
permission of Kokido Development Ltd.
SAVE THESE INSTRUCTIONS
Support Email: [email protected]
Toll-Free Voicemail: [phone]
Download Instruction Manual & Videos:
QR Code:
https://shop.kokido.com/pages/support-xtrovac-200
Manufacturer: Kokido Development Limited. Unit 1319, Sunbeam Centre,
27 Shing Yip Street, Kwun Tong, Kowloon, HK
EV18/AMZ/US Made in China
ENGLISH
13
RoHS
We reserve the right to change all or part of the
features of the articles or contents of this document,
without prior notice.
International patents pending

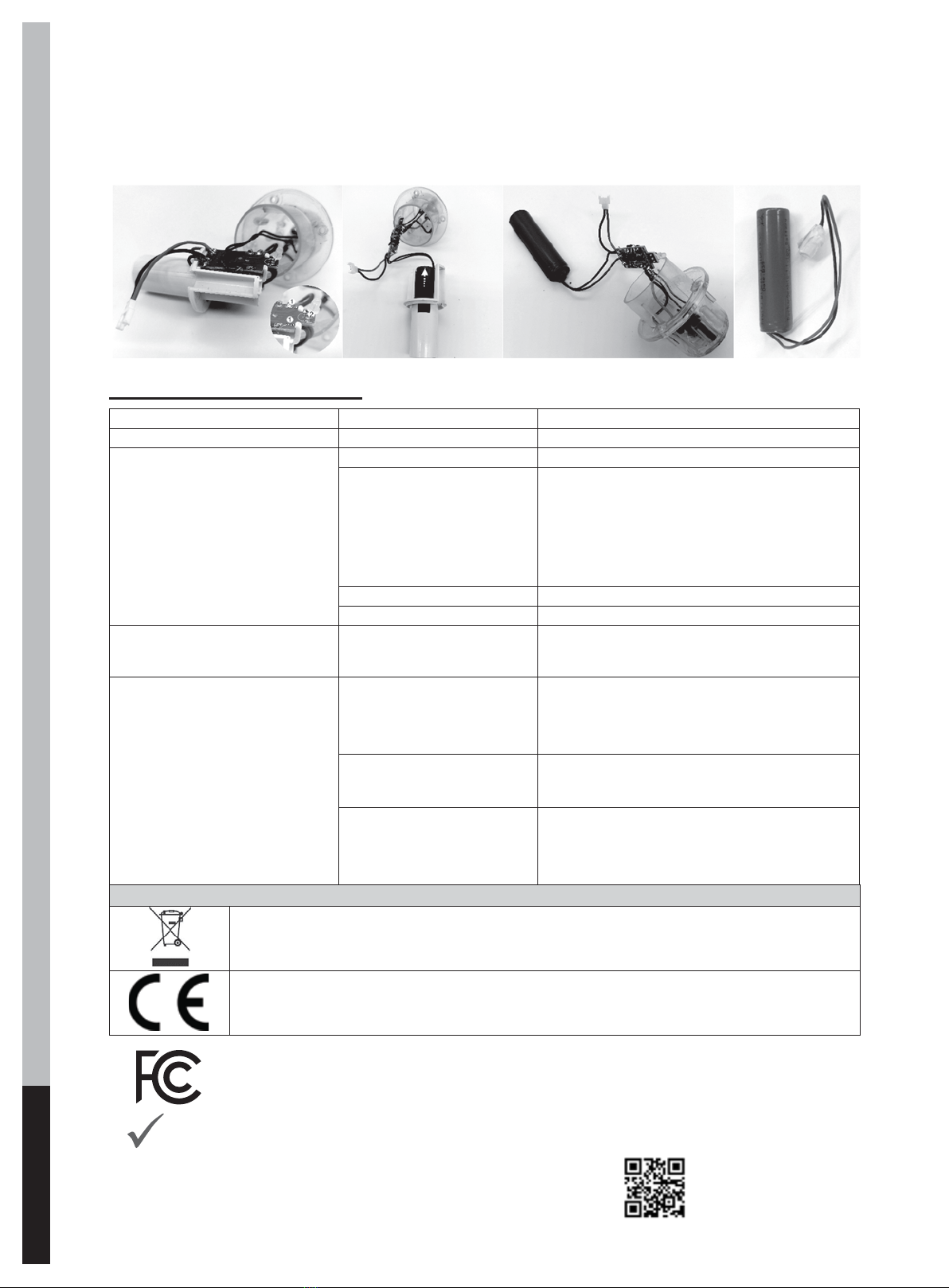

2. Push on the 2 side hooks to take out the PCBA. Remove the battery from
the unit and locate the battery cable connector. Detach the cable
connector and wrap the connector immediately with insulating tape in
order to avoid any short circuit caused by the contact of both wire
terminals.
TROUBLESHOOTING
noituloSesuaCelbissoPmelborP
Cleaner does not start working Out of battery Charge the pool vacuum.
Does not capture the debris /
debris is leaked into the pool
Low battery Charge the pool vacuum.
Jammed impeller Remove the pool vacuum from the water
and turn the knob clockwise to shut it off.
Check and see if the impeller is jammed by
large debris. Remove the debris. If necessary,
contact your dealer for further instructions.
WARNING! Make sure the pool
vacuum is off before the unit is serviced.
Broken impeller Contact your dealer for replacement.
Filter bag is full / clogged Clean the filter bag.
Charging time is longer than
advertised
Stained charging pins The stains can be removed by using a cotton
bud soaked with juice of lemon or vinegar to
clean the areas around the charging pins.
Cleaner cannot be charged Damaged battery Contact dealer for battery replacement.
WARNING!
DO NOT replace the battery
by yourself. This could result in severe or fatal
injuries and the warranty will be voided as a result.
Charging cable is not
correctly connected to USB
charger and pool vacuum
Refer to instruction manual and connect the
charging accessories correctly.
USB charger is out of
order
Contact dealer for replacement.
WARNING! Using the wrong USB charger
will result in damaging the pool vacuum /
battery and voiding the warranty as a result.
