Kokido Telsa 50 User manual

RECHARGEABLE POOL VACUUM
USER MANUAL
ASPIRATEUR RECHARGEABLE SANS FIL
MANUEL D’UTILISATION
LIMPIAFONDOS INALÁMBRICO RECARGABLE
MANUAL DE USUARIO
HERLAADBARE BODEMZUIGER
HANDLEIDING
PULITORE A BATTERIE RICARICABILI
MANUALE D’USO
WIEDERAUFLADBARER POOLSAUGER
BEDIENUNGSANLEITUNG

1
Table Of Contents
SAFETY WARNINGS & INSTRUCTIONS P.7
GETTING STARTED P.10
Charging The Battery P.10
Set-Up Before Use P.12
Handle assembly P.12
Suction head assembly P.13
Telescopic pole (not included) assembly P.13
Specific Telescopic pole (not included) assembly P.14
Pool Preparation P.14
OPERATION P.14
EMPTYING THE FILTER BASE P.15
MAINTENANCE & STORAGE P.17
BATTERY DISPOSAL P.18
How to remove the battery pack P.18
TROUBLESHOOTING P.20







Remark: Product/parts photos/drawings in this manual are for demonstration only.
Product/parts in photos/drawings may vary with the model purchased.
Accessories / parts shown in this manual are not necessarily included with every
model.


2
Table des matières

AVERTISSEMENTS DE SÉCURITÉ ET
INSTRUCTIONS P.21
DÉBUT DES OPÉRATIONSP.24
Chargement de la batterieP.24
Réglage avant l’utilisationP.26
Montage de la poignée P.26
Montage de la tête d’aspiration P.27
Montage du manche télescopique (non inclus)P.27
Montage du manche télescopique spécifique (non
inclus) P.28
Préparation de la piscine P.28
FONCTIONNEMENTP.28
VIDER LE FILTERP.29
ENTRETIEN ET STOCKAGEP.31
MISE AU REBUT DE LA BATTERIEP.32
Comment retirer le bloc de batteriesP.33
DEPANNAGEP.35




Remarque: Les photos / dessins de produits / pièces de ce manuel sont uniquement à
titre de démonstration. Le produit / les pièces dans les photos / dessins peuvent varier en
fonction du modèle acheté
Tous les accessoires / pièces illustrés dans ce manuel ne sont pas inclus avec
chaque modèle

3
Índice de contenidos
AVISOS E INSTRUCCIONES DE SEGURIDAD P.36
PRIMEROS PASOS P.39
Cargando la batería P.39
Montaje previo al uso P.41
Asamblea del mango P.41
Asamblea del cabezal de succión P.42
Asamblea de la pértiga telescópica (no incluido) P.42
Asamblea de la pértiga telescópica específico (no
incluido) P.43
Preparación de la piscine P.43
FUNCIONAMIENTO P.43
VACIADO DEL FILTRO P.44
MANTENIMIENTO Y ALMACENAMIENTO P.46
ELIMINACIÓN DE LA BATERÍA P.47
Cómo retirar el paquete de baterías P.48
RESOLUCIÓN DE PROBLEMAS P.50







Observación: Las fotografías/ilustraciones del producto o de sus piezas que aparecen en
este manual solo se incluyen a modo de muestra. El producto o las piezas que aparecen
en las fotografías/ilustraciones pueden variar respecto al modelo adquirido.
Todos los accesorios / piezas en este manual no no estan incluidos con todos los
modelos.

4
Inhoudsopgave
WAARSCHUWINGEN EN
VEILIGHEIDSAANWIJZINGEN P.51
AAN DE SLAG P.54
De batterij laden P.54
Voorbereiding P.56
P.56
P.57
P.57
De handgreep monteren
De zuigkop monteren
De uitschuifbare steel monteren (niet bijgeleverd)
De specifieke uitschuifbare steel monteren (niet bijgeleverd) P.58
Voorbereiding van het Zwembad P.58
WERKING P.58
DE FILTER LEEGMAKEN P.59
ONDERHOUD EN OPSLAG P.61
DE BATTERIJ WEGWERPEN P.62
Hoe de accu te verwijderen P.63
PROBLEMEN OPLOSSEN P.65
Opmerking: Foto's/tekeningen van (onderdelen van) het product in deze handleiding
dienen alleen ter illustratie. Foto's/tekeningen van (onderdelen van) het product kunnen
verschillen van het model dat u hebt aangeschaft.
De in deze handleiding getoonde accessoires/onderdelen worden niet
noodzakelijkerwijs bij elk model meegeleverd.

5
Indice


AVVERTENZE DI SICUREZZA & ISTRUZIONI P.66
PER INIZIARE P.69
Caricare la Batteria P.69
Montaggio prima dell’uso P.71
Montaggio del manico P.71
Montaggio della testa di aspirazione P.72
Montaggio dell’asta telescopica (non inclusa) P.72
Montaggio palo telescopico specifico (non incluso) P.73
Preparazione della piscine P.73
FUNZIONAMENTO P.73
SVUOTARE IL FILTRO P.74
MANUTENZIONE & STOCCAGGIO P.76
SMALTIMENTO DELLA BATTERIA P.77
Come rimuovere il pack batteria P.78
RISOLUZIONE DEI PROBLEMI P.80







Precisazione: I prodotti/foto dei pezzi/bozzetti nel presente manuale sono solo a scopo
dimostrativo. I prodotti/pezzi nelle foto/bozzetti possono variare rispetto al modello
acquistato.
Gli accessori / parti indicate in questo manuale non sono necessariamente incluse
in ciascun modello.

6
Inhaltsverzeichnis
SICHERHEITSHINWEISE UND -ANWEISUNGEN S.81
ERSTE SCHRITTE S.84
Laden der Batterie S.84
Vorbereitung vor der Benutzung S.86
S.86
S.87
S.87
Montage des Griffs
Montage des Saugkopfs
Montage der Teleskopstange (nicht inbegriffen)
Montage der Spezifische Teleskopstange (nicht
inbegriffen) S.88
Vorbereitung des Beckens S.88
BETRIEB S.88
ENTLEEREN DES FILTERS S.89
INSTANDHALTUNG UND LAGERUNG S.91
ENTSORGUNG DES AKKUS S.92
Entfernen den Akku S.93
FEHLERBEHEBUNG S.95
Kommentare Produkte/Teile auf den Fotos/Zeichnungen in dieser Anleitung dienen nur
zur Veranschaulichung. Produkte/Teile auf den Fotos/Zeichnungen können beim
gekauften Artikel variieren.
Das in dieser Anleitung gezeigte Zubehör/Teile sind nicht unbedingt bei jedem
Modell enthalten.

7
SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely,
protect yourself and others from hazards, and prevent damage to the device and other
property.
SAVE THESE INSTRUCTIONS
WARNING!
- This is not a TOY. Children should be kept out of reach from this pool
vacuum and its accessories.
- Never allow children to operate this pool vacuum.
- This appliance is not intended for use by persons with reduced physical,
sensory, mental capabilities, or a lack of experience and knowledge,
unless they are given supervision or instructions concerning the safe
use of the appliance and understand the hazards involved by a person
responsible for their safety.
- Children must not play with this product.
- Cleaning and maintenance of the pool vacuum must not be carried out
by children.
- Make sure the pool vacuum is fully immersed in the pool before initiating
operation. The minimum water level required to operate the pool
vacuum must reach above the power ON/OFF switch of the pool
vacuum when it is held in a vertical position. Operating the pool vacuum
when it is not immersed correctly could damage the unit and void the
warranty.
- Maximum operating depth in water is 3 meters (10ft).
- Maximum water temperature: 5˚C (41˚F) –35˚C (95˚F)
- Detachable supply unit (external adaptor).
- The pool vacuum should only be recharged with the external adaptor
and charging base delivered with this product.
- For the purposes of recharging the battery, only use the detachable
supply unit (external adaptor model number: DSS12D-1261000-B /
DSS12D-1261000-C / DSS12D-1261000-D/ LX135100U) that provided
with this pool vacuum to charge the battery.
- Connect the external adaptor to a power source through a residential
current device (RCD) / a ground fault circuit interrupter (GFCI). If in
doubt, consult a qualified electrician.
- Do NOT use this pool vacuum if any damage is detected.
- Replace damaged parts with ones that are certified by the distributor or
manufacturer.
- Turn off the power, disconnect the external adaptor from the power
source, and unplug the external adaptor from the charging base before
detaching the pool vacuum from the charging base.
- Disconnect the pool vacuum from the supply mains and make sure the
pool vacuum is OFF prior to carrying out regular maintenance – such as
cleaning the filter and the charging contact plates.
- DO NOT attempt to replace the installed rechargeable Li-ion battery

8
pack.
- DO NOT handle the pool vacuum, external adaptor, and charging base
while it is charging with wet limbs and without shoes.
- You should not operate this pool vacuum when people/pets are present
in the water.
- DO NOT use this pool vacuum without an intact filter cone in place, as
your warranty will be voided as a result.
- Suction entrapment hazard: This pool vacuum generates suction. Do
not allow hair, body, or any loose parts of your clothing to make contact
with the suction hole of the pool vacuum during its operation.
- Never insert body parts, clothing or other objects into the openings and
moving parts of the pool vacuum.
- DO NOT use this pool vacuum to pick up any toxic substance,
flammable, and combustible liquids (i.e. gasoline) in the presence of
explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor, and battery by yourself.
- Never insert fingers or any object to touch the impeller.
- The built-in battery must be removed by a skilled technician before it is
scrapped.
- This pool vacumm contains a battery that are only to be removed by
skilled persons.
- The pool vacumm must be disconnected from the supply mains as the
battery is removed.
- For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
- The battery must be disposed safely in accordance with local
ordinances or regulations.
- External adaptor and charging base:
Never use the external adaptor and charging base for anything
other than charging the battery of the pool vacuum that is
supplied in the same pack.
The external adaptor and charging base should not be used
outdoors, nor should it be exposed to rain, humidity, and any
liquid or heat.
The transformer ( or external adaptor) is to be located outside
zone 1
Keep the external adaptor and charging base out of reach of
children.
Never use the external adaptor and charging base if any
damage is detected.
DO NOT handle the external adaptor and charging base with
wet hands.

9
DO NOT handle the pool vacuum, external adaptor, and
charging base while charging with wet hands and without shoes.
Keep the external adaptor disconnected from power when it is
not in use.
Never attempt to open the external adaptor and charging base.
If the supply cord of the external adaptor is damaged, the
external adaptor must be replaced by the manufacturer or its
service agent to prevent hazards of any kind.
Make sure the pool vacuum and the charging base are
completely dry before charging.
CAUTION!
- This pool vacuum is designed for underwater use only; it is not an all-purpose
vacuum cleaner. DO NOT attempt to use it to clean anything other than your
pool / spa.
- Use only original accessories delivered with this product.
- DO NOT use this pool vacuum right after pool-shocking. It is recommended to
leave the pool circulating for at least 24-48 hours.
- If you are planning on using the pool vacuum in a saltwater pool, make sure
all salt are dissolved before deploying the pool vacuum.
- DO NOT use this pool vacuum with another automatic cleaner/cleaner
simultaneously in the pool/spa.
- Avoid picking up hard, sharp objects with this product. They may damage the
pool vacuum and filter.
- Exercise caution when cleaning pool stairs.
- To avoid damages to the external adaptor and charging base, do not attempt
to carry the pool vacuum by the cord of external adaptor / charging base or
pull the cord to disconnect it from the power source andcharging base.
- Charge the pool vacuum indoor in a clean, dry area with good ventilation and
an ambient temperature between 5˚C (41˚F) and 35˚C (95˚F).
- DO NOT leave the pool vacuum charged for over 10 hours.
- If the pool vacuum will not be used for an extended period, detach it from the
charging base and use a damp cloth to clean and dry the pool vacuum and
accessories. Make sure to charge the pool vacuum to about 30% to 50% of
the battery capacity before it is stored. Store in a well-ventilated area away
from sunlight, heat, ignition sources, pool chemicals, and children. Never
leave the pool vacuum plugged in for long-term storage. Recharge the pool
vacuum every three months.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always
exercise extra caution and common sense when utilizing the product.

10
GETTING STARTED
Charging the battery
IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hs) before
using it for the first time.
WARNING!
Use only the original external adaptor and charging base provided.
Make sure the pool vacuum and the charging contact plates are clean
and dry before set-up and charging. (TIPS: Use a cotton bud to dry the
charging contact plates)
Charging must be done indoors, in a well-ventilated area away from
sunlight, children, heat, ignition sources, and with an ambient
temperature between 5˚C (41˚F) and 35˚C (95˚F).
Never use the external adaptor and charging base if any damage is
detected.
The charging contact plates are waterproof. However, remnants of
water on the contact plates could result in natural occurrence of stains (a
byproduct of chemical reaction between water and electric currents).
Otherwise, the stains can be removed by light scrubbing with a cotton
bud soaked with juice of lemon or vinegar.
Make sure that the pool vacuum is turned off prior to charging.
1. Place the unit on a flat surface. Make sure the pool vacuum is off by
turning the power ON/OFF switch to the OFF position prior to charging.

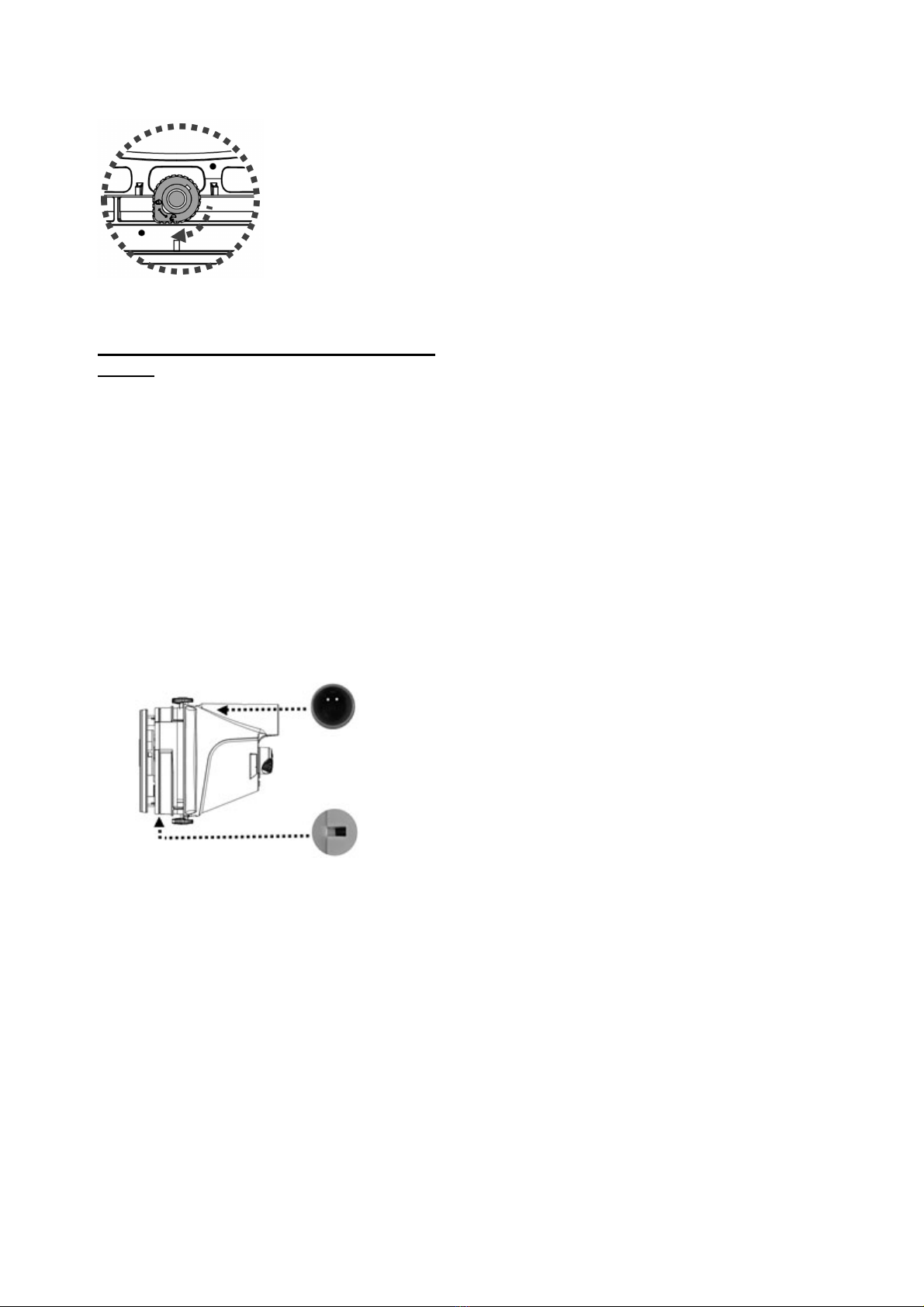

2. Turn the locking knob (on each side) anticlockwise until it points to the
green dot marking (unlock position) to unlock and release the rear body
from the transparent lid.

11
3. Place the rear body (upside down - power on/off switch face up) on a flat
surface. Align and slide the hook of the charging base onto the side notch
at the bottom of the rear body until it stops. Make sure their contact plates
are properly in contact. Plug the female jack of the external adaptor into
the charging port at the end of the charging base.
4. Connect the external adaptor to the power source. Once the pool vacuum
begins charging, the indicator light on the external adaptor will turn red.
Normally, it takes about 5-6 hours to reach a full charge. The indicator
light will turn green when the pool vacuum is almost fully charged.
NOTE: if the motor is generating noise, ensure “OFF” is selected on the
power switch.
Immediately disconnect the external adaptor from the power source if you
detect any of the following:
- Offensive or unusual odor
- Excessive heat
- Deformation, cracks, leaks
- Smoke
5. When charging is complete, disconnect the external adaptor from the
power source and detach the charging base from the unit and external
adaptor.
Normally, the pool vacuum can operate up to 40 minutes on a full charge (charged for
5-6 hours)

12
Note: Clean the filter regularly. Too much debris inside the filter will increase burden to
the motor operation and then shorten the operating duration.
To re-position the transparent case (with the filter cone inside) to the rear body, make
sure the locking knob on both sides is turned to the unlock position. Align the raised arch
on both sides of the transparent case with the locking knobs and then turn the knob
clockwise until it points to the red marking to secure the assembly.
Attention: The case has one correct position only. The water-draining valve must be
facing the bottom when holding the cleaner horizontally by the handle.
FACT: Rechargeable lithium-Ion battery is classified as a consumable item. It has a limited life
and will gradually lose its capacity to hold a charge. Therefore, running time of the pool vacuum
will gradually reduce through repeated charging and discharging in operation.
Once the lifespan of the battery reaches its end, refer to section “BATTERY DISPOSAL” for
instructions regarding battery disposal
NOTE: Let the pool vacuum rest for 30 to 40 minutes before charging it again.
Set-Up Before Use
Handle assembly
Insert the handle into the pool vacuum as shown, until the side pin on the handle is
secured to the handle’s locking hole on the rear body.
To release the handle, press down on the side pin and pull out the handle.

13
Suction head assembly
Insert the suction head directly into the suction mouth of the pool vacuum until the side
tabs of transparent case will clip in the holes of the suction head’s pivot.
NOTE: To replace the brushes on the suction head, lift the end and pull it out to make
space for a new one.
WARNING! For vinyl liner and fibreglass pools/spa, it is recommended to keep the
brushes on the suction head to avoid damaging the pool/spa.

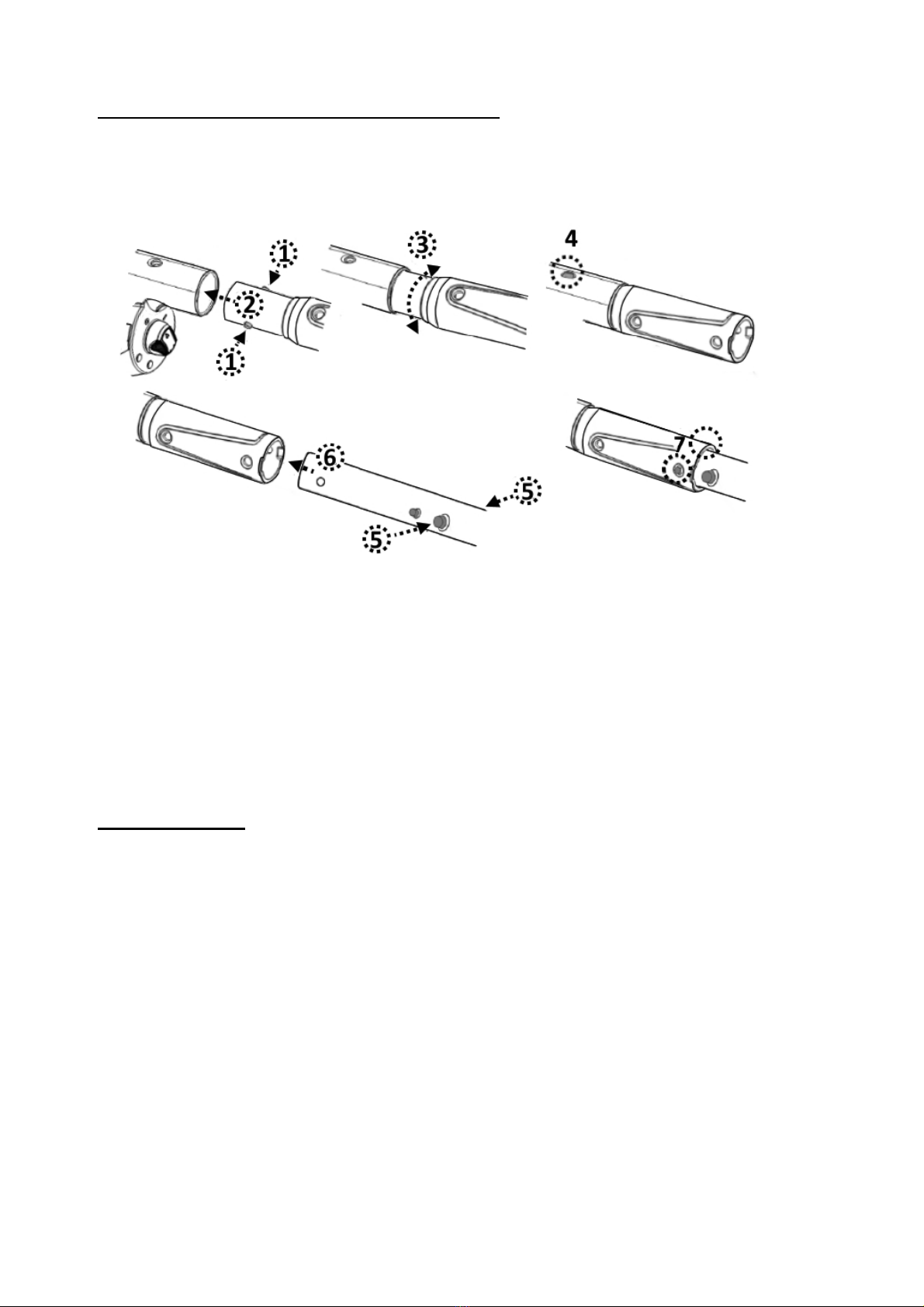

Telescopic pole (not included) assembly
Insert the end (with one side pin) of the pole connector into the pool vacuum as shown
until its single side pin is secured to the handle’s locking hole on the rear body. Slide the
telescopic pole into the pole connector until the side holes of the telescopic pole are
secured to the side pins of the pole connector.
To release the telescopic pole, press down on the two side pins simultaneously and pull
out the pole.

14
Specific Telescopic pole (not included) assembly
Insert the end (with two side pins) of the pole connector into the pool vacuum as shown
until its side pins are secured to the handle’s locking hole on the rear body. To install the
telescopic pole (with internal wishbone clip) to the pole connector as shown:
Pool Preparation
- If there are stones, roots or metal corrosion in contact with the underside of the liner,
discard them prior to using the pool vacuum. If necessary, seek assistance from a
qualified professional.
- If the liner is brittle, damaged or wrinkled, contact a qualified professional to perform
the necessary repairs or perform a liner replacement prior to using the pool vacuum.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the
pool vacuum into the water.
OPERATION
WARNING!
Make sure the pool vacuum is off
Do not use the pool vacuum if any damage is detected.
Oil stain could occur due to possible leakage of lubricants applied to the
O-ring.
Do not operate this pool vacuum if there are people/pets present in the
water.
Make sure the pool vacuum is fully immersed in the pool before initiating
operation. The minimum water level required to operate the pool
vacuum must reach above the power ON/OFF switch of the pool
vacuum when it is held in a vertical position. Operating the pool vacuum
when it is not immersed correctly could damage the unit and void the
warranty.

15
DO NOT use the pool vacuum without an intact filter cone in place.
Using your pool vacuum without an intact filter cone in place will VOID
your warranty.
DO NOT cover the side slot of the vacuum during operation. The
impeller /motor may be damaged as a result.
DO NOT leave the pool vacuum in the water when it is not in use.
1) Bring your pool vacuum to the side of your pool / spa. Immerse the pool vacuum in
water and turn the power ON/FF switch to the ON position to initiate operation.
CAUTION! Make sure the pool vacuum is always facing downwards when it is placed
into the pool/spa. Otherwise it may bend the pole connector and damage it during the
process.
1) To remove the pool vacuum from the pool / spa, lift the pool vacuum while pointing it
downwards in order to allow water to escape from the outlet valve. Water is going to
escape via the handle / pole connector and draining holes inside the handle chamber
on the rear body.
CAUTION! Make sure the pool vacuum is always facing downwards when it is removed
from the pool/spa. Otherwise, the pole connector may be bent and damage the pool
vacuum in the process
2) Rinse the pool vacuum with fresh water after every use. DO NOT use any detergent.
EMPTYING THE FILTER
WARNING! Using the pool vacuum without a filter cone in place will
VOID your warranty.
In order to maximize the cleaning efficiency, be sure to clean the filter cone before and
after each use.
CAUTION! If the pool vacuum is charging, disconnect the external adaptor from the
power source and detach the pool vacuum from the charging base. Make sure the pool
vacuum is OFF
Emptying filter cone
1. Place the pool vacuum on a stable surface.
2. Turn the locking knob (on each side) anticlockwise until it is pointing towards the
green marking to unlock and release the transparent canister. Remove the
transparent canister from the rear body.

16

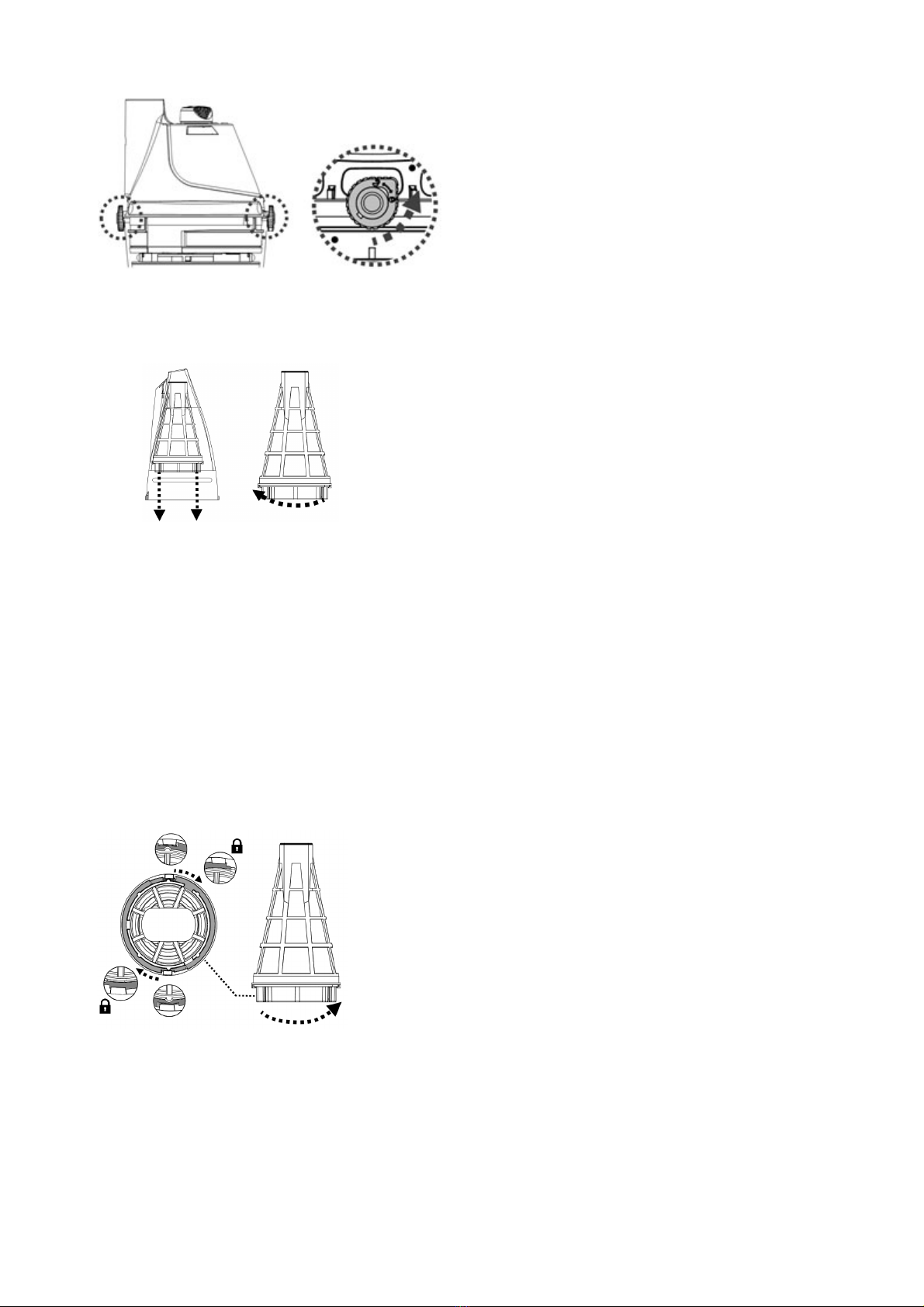

3. Tilt the transparent case and make sure the smaller end is pointing upwards,
then pull out the filter cone from the transparent case. Hold the filter cone
horizontally and turn its lid clockwise to detach it from the cone.
4. Rinse the transparent case and clean out the debris inside the filter cone. It is
recommended to clean the filter cone’s net with splashing water. If brushing is
deemed necessary, use only a soft brush to clean it carefully and gently. DO NOT
apply any pressure to the net.
5. To lock the lid onto the filter cone, align the slot of the lid’s edge to the tab of the
bottom part of the cone. Push the lid on the cone and turn the lid anticlockwise
until it stops. Attach the filter cone to the transparent case.
CAUTION! Replace a damaged filter cone immediately with a new one before the
next operation.
6. To re-position the transparent canister (with filter cone inside) onto the rear body,
make sure the locking knob on each side is turned to the unlocked position. Align the
raised arches on both sides of the transparent canister with the locking knobs and
turn each knob clockwise until it points towards the red marking to secure the
assembly. Attention: The case has one correct position only. The water-draining
valve must be facing the bottom when holding the cleaner horizontally by the handle.

17
MAINTENANCE & STORAGE
NOTE:
1. Be sure to clean and dry the charging contact plates after every use to avoid the
forming of stains (byproduct of a natural chemical reaction between electric current
and water). Otherwise, the stains can be removed by light scrubbing with a cotton bud
soaked with juice of lemon or vinegar.
2. Battery discharges on its own during storage. Make sure to charge the pool vacuum
to about 30% to 50% of the battery capacity before it is stored.
3. You must re-charge the battery at least once every three months when it is not in use.
Unplug the external adaptor from socket and then unplug the adapter jack from the
charging base.
Detach accessories from the pool vacuum. If necessary, rinse the pool vacuum and
accessories with fresh water. DO NOT use detergent.
Make sure to drain the water from the rear body through the holes located inside the
chamber that connects to the handle/ pole connector, and the hole on the rear of the
body.
Make sure to drain the water from the handle through its hole on the bottom end.
Use a damp cloth to clean and dry the pool vacuum and its accessories.
Store them in a well-ventilated area away from the sunlight, children, heat, ignition
sources, and pool chemicals. Ambient temperature for storage should be 10˚C –
25˚C (50˚F – 77˚F). NOTE: A higher temperature may reduce the battery life during
storage.
WARNING!
-Never attempt in any way to disassemble the pool vacuum.
-Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor and battery by yourself.
CAUTION!
Excessive heat can damage the battery and reduce its lifespan as a result.

18
Consult your dealer regarding battery replacement if the following happens:
- Battery does not charge fully.
- Battery operation time is noticeably reduced. Observe and record the run times of the
first few operations (on a full charge). Use these run times as a reference point for
comparison with run times in the future.
The battery must be removed from the pool vacuum before it is scrapped.
The pool vacuum must be disconnected from the supply mains when removing the
battery
The battery is to be disposed safely and according to local ordinances or regulations.
NOTE: Incorrect maintenance may reduce the battery life and affect its capacity as a
result.
BATTERY DISPOSAL (To be carried out by an authorized technician)
Your pool vacuum battery is a maintenance-free rechargeable lithium-ion battery pack,
which must be disposed properly. Recycling is required; please contact your local
authority for information.
WARNING!Never attempt to disassemble a battery pack
Remove all personal items such as rings, bracelets, necklaces and
watches when the battery pack is unwired from the pool vacuum.
A battery can produce a short circuit current high enough to weld a ring
(or similar item) to metal, causing a severe burn in the process.
Wear complete eye protection, gloves and protective clothing when the
battery pack is being removed.
Avoid touching the wires altogether and avoid allowing them to make
contact with any metal items, which could cause sparking and/or short
circuit the battery.
Never smoke or allow a spark or flame in the vicinity of the battery or the
pool vacuum.
Do not expose the battery to fire or intense heat as this may result in an
explosion.
CAUTION!
If a battery leak occurs, avoid contact with the leaking fluids and place the damaged
battery in a plastic bag.
-If leaking fluids come in contact with skin and clothing, wash immediately with plenty
of soap and water.
-If leaking fluids come in contact with eyes, immediately flush eyes with cool running
water for at least 15 minutes and do not rub them. Seek medical attention as soon as
possible.
How to remove the battery pack for battery disposal only (To be done by
authorized technician)
Recommended tools (not included): Philips screwdriver

19
1. Turn the locking knob (on each side) anticlockwise until it points to the
green dot marking (unlock position) to unlock and release the rear body
from the transparent lid.
2. Use the screwdriver to unscrew the 4 screws located on the top plate and
then detach it from the rear body to expose the rear body’s cover.
3. Unfasten 6 screws and detach the cover to expose the PCBA, motor
assembly, and battery pack.
4. To detach the battery connection wire, press the clip on the connector
and then pull it out.
5. Unfasten the 3 screws to remove the battery compartment cover and
then remove the battery pack. NOTE: Wrap the connector immediately
with insulating tape in order to avoid short circuit caused by contact of
both wire terminals.
