Komatsu D475ASD-5E0 User manual

www.Komatsu.com Printed in Japan 200801 IP.AD (10)
CEN00124-01 Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd. Japan.
HORSEPOWER
Gross: 671 kW 899 HP @ 2000 rpm
Net: 664 kW 890 HP @ 2000 rpm
OPERATING WEIGHT
113200 kg 249,560 lb
D475ASD-5E0
Photo may include optional equipment.
●Air conditioner with heater and defroster
●Air-suspension seat
●Alternator, 100 A/24 V
●Back-up alarm
●Batteries, 200 Ah/4 x 12 V
●Blower fan
●Decelerator pedal
●Dry-type air cleaner with dust evacuator
and dust indicator
●Eight-roller track frames
●Final drive case wear guard
●Head rest
●Hinged underguard with front pull hook
●Hydraulic track adjusters
●Lighting system (including six front
and two rear lights)
●Lockup torque converter
●Mirror, rearview
●Muffler with rain cap
●Perforated front mask
●Radiator reserve tank
●ROPS brackets
●Seat belt
●Segmented sprockets
●Shoes, 810 mm 32" extreme service,
single-grouser
●Starting motors, 2 x 7.5 kW/24 V
●Steel cab
●Steering control
●Sun visor
●TORQFLOW transmission
●Track roller guards
●VHMS (without orbcomm)
●Warning horn
●Water separator
●Wet steering clutches
STANDARD EQUIPMENT
ROPS*:
Weight . . . . . . . . . . . . . . . . 940 kg 2,070 lb
Dimension:
Width . . . . . . . . . . . . . . . . . . 1940 mm 6'4"
*Meets ISO 3471, SAE J1040 APR88, ROPS
standards.
Steel cab**:
Weight . . . . . . . . . . . . . . . . 455 kg 1,000 lb
Dimension:
Length. . . . . . . . . . . . . . . 1790 mm 5'10"
Width . . . . . . . . . . . . . . . . 1455 mm 4'9"
Height from compartment
floor to ceiling . . . . . . . . 1530 mm 5'0"
**Meets ISO 3449 FOPS standard.
Variable giant ripper:
Variable, parallelogram single-shank ripper
ideal for ripping up tough material. Ripping
angle is variable. Ripping depth is adjustable
in four stages by a hydraulically controlled
pin puller.
Weight (including hydraulic
control unit) . . . . . . . . 7360 kg 16,230 lb
Beam length . . . . . . . . . . . . 1477 mm 4'10"
Maximum lift above ground . 1196 mm 3'11"
Maximum digging depth . . . . 1744 mm 5'9"
OPTIONAL EQUIPMENT
●Additional cab heater
●Battery isolator
●Counterweight
●Double wiper
●Fast fuel fill
●Fire extinguisher
●Hydraulics for ripper
●Light for ripper
●Orbcomm
●Lattice front mask
●Prelubrication
●Radio-AM/FM cassette
●Shoes:
—910 mm 36"
●Spill guards
●Safety glass
Counterweight:
Weight . . . . . . . . . . . . . . 6400 kg 14,110 lb
SUPER DOZER

D475ASD-5E0
2 3
ECMV (Electronic Controlled
Modulation Valve)
controlled steering clutch
/brake system
facilitates steering operation.
See page 5.
Low noise
●Operator noise: 70dB(A)
(Engine at Hi, cooling fan at 70%, and air conditioner OFF.)
●Dynamic noise (outside): 110dB(A)
As per ISO 6395
See page 8.
VHMS (Vehicle Health
Monitoring System)
See page 9.
WALK-AROUND
Simple hull frame
and monocoque track
frame with pivot shaft
for greater reliability.
Extra-low machine profile
provides excellent machine balance
and low center of gravity.
Preventative maintenance
●Centralized service station
●Enclosed hydraulic piping
●Modular power train design
●Oil pressure checking ports
See page 9.
Photo may include optional equipment.
Automatic lockup torque converter
saves fuel and increases speed and
power transmission efficiency on
long pushes. See page 6.
New track link design
reduces maintenance cost by
making turning pins easier, with
improved pin reuse. See page 9.
SAA12V140E-3 turbocharged
after-cooled diesel engine provides
an output of 664 kW 890 HP with excellent
productivity. This machine is EPA Tier 2
emissions certified.
See page 6.
Hydraulic drive radiator cooling
fan controlled automatically, reduces fuel
consumption and operating noise levels.
See page 6.

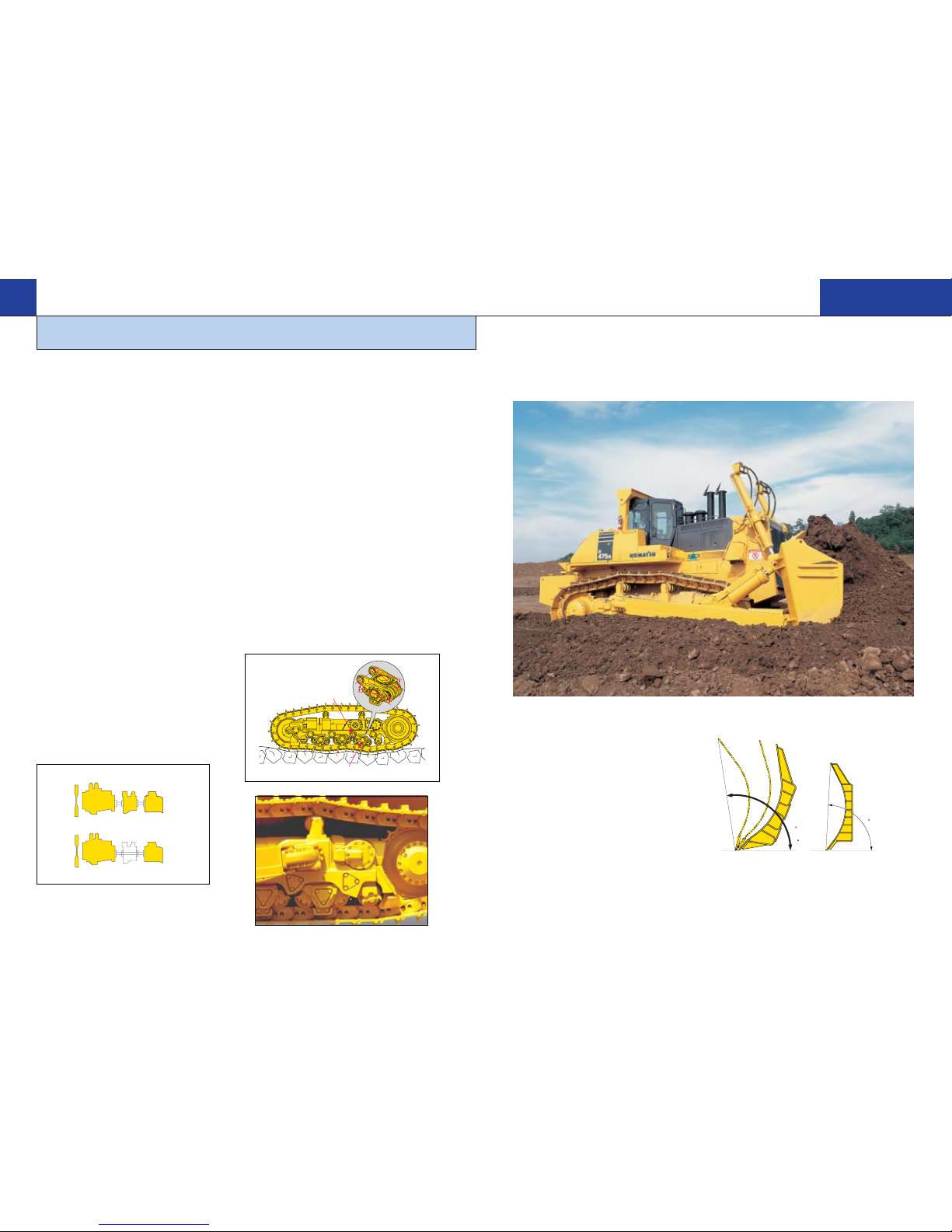

K-Bogie undercarriage system
improves traction, component durability,
and operator comfort. See page 6.
Rippers (option):
●Variable giant

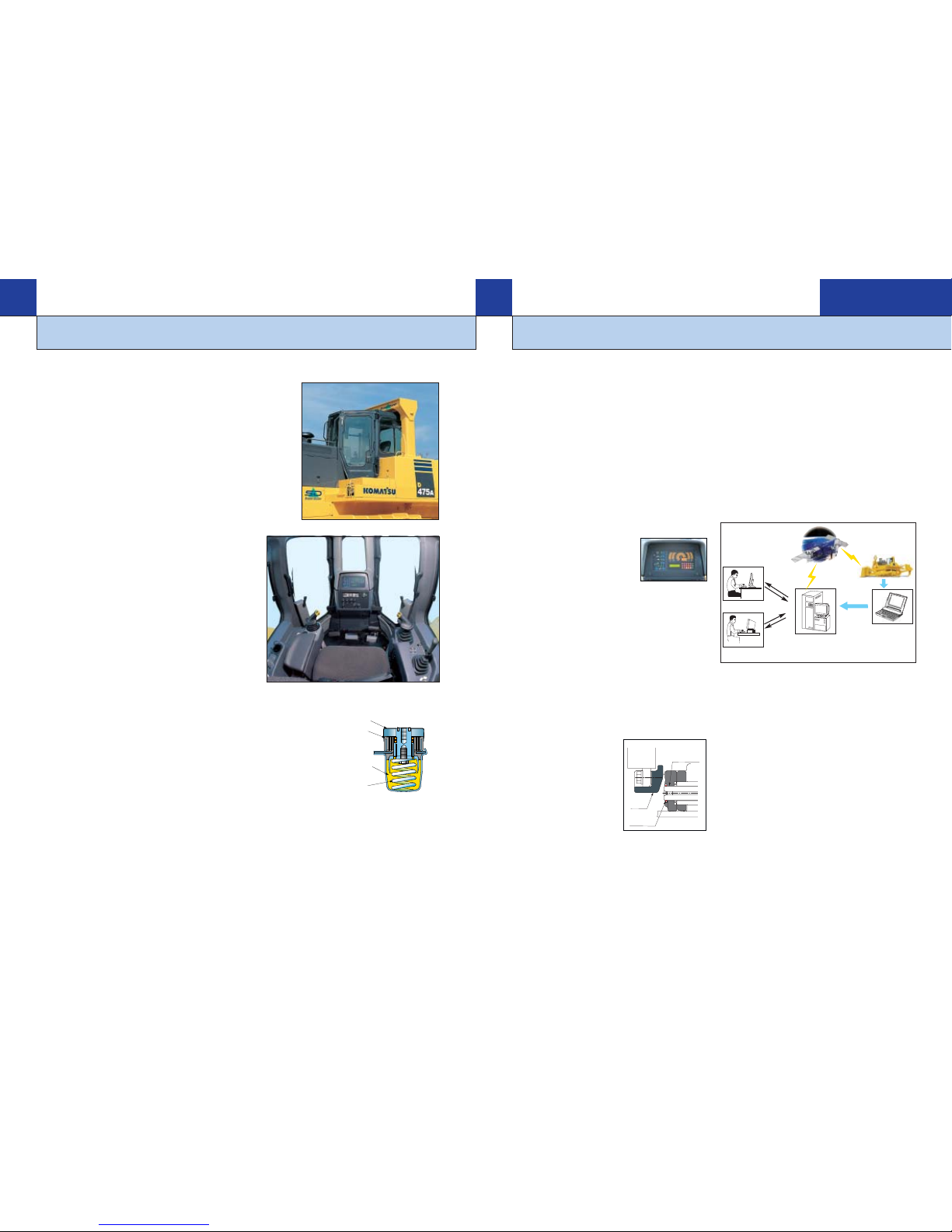

New hexagonal designed cab includes:
●Spacious interior
●Comfortable ride with new cab damper mounting and K-Bogie
undercarriage
●Excellent visibility
●High capacity air conditioning system
●PCCS (Palm Command Control System) lever controls
●Pressurized cab
●Fully adjustable air suspension seat
●Adjustable armrest
●Travel control console integrated with operator seat
Komatsu-integrated design
for the best value, reliability, and versatility.
Hydraulics, power train, frame, and all
other major components are engineered
by Komatsu. You get a machine whose
components are designed to work together
for higher production, greater reliability,
and more versatility.
Unique and unrivaled noise-suppression.
Low-drive, long-track, eight roller undercarriage
provides outstanding grading ability and stability.
SUPER DOZER
D475ASD-5E0 SUPER DOZER
The super dozer
The D475ASD-5E0 Super Dozer
greatly contributes to reducing
operating costs ($/tons) by high
dozing productivity.
●Large capacity Super Dozer
blade with low dozing resistance.
Large blade capacities:
45 m358.9 yd3(Super Dozer)
See page 7.
HORSEPOWER
Gross: 671 kW 899 HP @ 2000 rpm
Net: 664 kW 890 HP @ 2000 rpm
OPERATING WEIGHT
113200 kg 249,560 lb
BLADE CAPACITY
45.0 m358.9 yd3

54
Human-Machine Interface
Palm command
electronic controlled
travel control joystick
Ergonomically designed palm
command travel joystick
provides the operator with a
relaxed posture and superb
fine control without operator
fatigue. Transmission gear
shifting is simplified with
thumb push buttons.
Fully adjustable new air
suspension seat and
travel control console
The air suspension operator
seat absorbs shocks and vibrations providing a smooth
comfortable ride. For improved rear visibility during return
part of cycle, the operator can adjust the seat 15° to the right.
The transmission and steering controls move with the seat
for increased operator comfort. The operator seat is also
tiltable for facilitating down hill dozing. The travel control
console has adjustments fore and aft, and for height. With an
independently adjustable armrest, each D475ASD operator
can adjust control positions to individual preference,
providing optimum operational posture for all operators.
Fuel control dial
Engine revolution is controlled by electric signals, providing
ease of operation eliminating maintenance of linkage and
joionts.
Palm command PPC controlled
blade control joystick
Blade control joystick uses the PPC (Proportional Pressure
Control) valve and the same palm command type joystick as
travel control joystick. PPC control, combined with the highly
reliable Komatsu hydraulic system, enables superb fine
control.
Height adjustable blade control armrest
Blade control armrest is height adjustable without any tools
in three stages, providing the operator with firm arm support
and ideal armrest positioning.
Komatsu’s new ergonomically designed control system “PCCS” creates an operating
environment with “complete operator control”.
Facing front
Air suspension seat
Left-hand joystick
Blade and ripper (option)
control joystick
MONITORSYSTEM
Blade
control
lever
Ripper
control
lever (option)
Travel
control
lever
Brake pedal
potentio meter
Pitch
angle
sensor
Acceleration
sensor
Service
switch
Auto shift
down switch
Fuel
control
dial
Steering controller
Monitor panel
Deceleration
pedal
Transmission controller
Transmission control
Torque converter control
Implement control
Engine controller
Electronic controlled
transmission
Electronic controlled
steering/brake system
Engine Tor que converter
Transmission
control valve
Lockup
Engine
speed
Water
temp.
Fuel temp.
Engine oil
pressure
Fuel control
valve unit
ECMV ECMV ECMV ECMV
ECMV ECMV ECMV ECMV
Auxiliary
valve
Trans-
mission
output
speed
sensor
ECMV
Outline of electronic control system
Power Train Electronic Control System
Smooth and soft operation
D475ASD-5E0 utilizes a newly designed power train electronic control system. The controller registers the amount of operator
control (movements of lever and operation of switches) along with machine condition signals from each sensor to acculately
calculate the control of the torque converter, transmission, steering clutches and brakes for optimized machine operation. The
ease of operation and productivity of the new D475ASD-5E0 is greatly improved through
these new features.
ECMV (Electronic Controlled Modulation Valve) controlled transmission
Controller automatically adjusts each clutch engagement depending on travel
conditions such as gear speed, revolution and shifting pattern. This provides
shockless smooth clutch engagement, improved component reliability,
improved component life and operator ride comfort.
ECMV (Electronic Controlled Modulation Valve) controlled steering clutches/brakes
Sensors monitor machine operating conditions, and electronically control steering clutches and brakes depending on type of
job, such as size of load during dozing, incline angle of slope or load, providing smooth and ease of operation by reducing
counter-steering on downhill travel, etc.
Auto downshift function
Controller monitors engine speed, travel gear and travel
speed. When load is applied and machine travel speed is
reduced, the controller automatically downshifts to optimum
gear speed to provide high fuel efficiency. This function
provides comfortable operation and high productivity without
manual downshifting. (This function can be cancelled with
cancel switch.)
F1-R1 MODE
F1-R2 MODE
F2-R2 MODE
Press DOWN switch
Press DOWN switch
Press UP switch
Press UP switch
UP
DOWN
Indicator
Heavy load Light load
Actuated on heavy load
or steep slope
Electronic Controlled
Modulation Valve (ECMV)
Conventional modulation valve
Time
Clutch pressure
PCCS (PALM COMMAND CONTROL SYSTEM)
D475ASD-5E0
SUPER DOZER
D475ASD-5E0 SUPER DOZER
Preset travel speed function
Preset travel speed selection function is standard equipment, enabling the operator to select fore and aft travel speed from
three preset patterns; F1-R1, F1-R2 and F2-R2 by using the UP/DOWN switch. When the F1-R2 or F2-R2 preset pattern is
selected and the travel control is moved into forward or reverse, the machine travels in the preset gear range automatically.
This function reduces manual gear shifting frequency during machine operation, enabling the operator to focus on directional
and hydraulic control. Preset travel speed selection is especially helpful when used in combination with the Auto-Downshift
Function and reduces cycle times during repeated round trip operations.
When dozing and
turning, ECMV
automatically controls
stroke ratio of
steering clutches and
brakes depending on
degree of load,
enabling smooth
dozing and turning.
When dozing downhill, ECMV
automatically controls steering clutches
and brakes depending on incline of
machine or degree of load, reducing
counter-steering and producing
smooth dozing operation.
Effect of ECMV steering clutches/brake control

7
Engine
The Komatsu SAA12V140E-3 engine delivers 664 kW 890 HP
at 2000 rpm. These features, together with the heavy
machine weight, make the D475ASD-5E0 a superior crawler
dozer in both ripping and dozing production. The engine is
EPA Tier 2 emission regulation certified, and features direct
fuel injection, turbocharger, and air-to-air aftercooler to
maximize fuel efficiency.
To minimize noise and vibration, the engine is mounted
to the main frame with rubber cushions.
Hydraulic drive radiator cooling fan
Fan rotation is automatically controlled depending on
coolant and hydraulic oil temperature, saving fuel
consumption and providing great productivity with a quiet
operating environment.
Automatic torque converter lockup system
For greater efficiency during long pushes, the lockup
mode allows the system to automatically engage the torque
converter lockup clutch. Locking up the torque converter
transmits all the engine power directly to the transmission,
increasing ground speed thus achieving efficiencies equal
to a direct drive. The result is efficient use of engine power,
less fuel consumption, and faster cycle times.
K-Bogie undercarriage system
New K-Bogie Undercarriage System combines prior
advantages with new additional features.
Current features:
●K-Bogies that oscillate with two fulcrums assure large
amount of track roller vertical travel. Impact load to
undercarriage components is minimized and durability of
components is improved since track rollers are always in
contact with track link.
●Track rollers follow track link movement to extend the
undercarriage life.
●Excellent riding comfort is provided due to less vibration
and shock when traveling over rough terrain.
Features on new K-Bogie undercarriage system:
●New K-Bogies with front and rear single bogies are utilized
providing increased length of track on ground to improve
machine stability.
●The oscillating idler and increased sprocket lead angle
improve riding comfort when travelling over rough terrain.
6
Fulcrum of major bogie
Fulcrum of minor bogie
Torque
converter
Engine Transmission
Lockup “ON”
Lockup “OFF”
PRODUCTIVITY FEATURES
D475ASD-5E0
SUPER DOZER
D475ASD-5E0 SUPER DOZER
When it comes to crawler dozers, bigger really is better.
Bigger dozers are more efficient—they push more material per miner, per hour, and
per shift, for a lower overall cost per yard.
Presenting the most efficient of them all—the Komatsu D475ASD-5E0 Super dozer.
Super Dozer Blade
Thanks to an exclusive, proprietary
blade design, the Super dozer
answers a fundamental challenge
of dozer design—how to push more
load without a proportionate increase
in operating weight and horsepower.
The D475ASD’s massive 45.0 m3
58.9 yd3.Super Dozer Blade gives you
15% more production than
conventional U-blade in level dozing.
DUMP DIG CARRY
81
68 -96
D475ASD-5E0
Super Dozer Blade
Conventional
34.4m33
45.0yd
U-Blade
Unlike ordinary dozer blades, the Super Blade has a full range of movement.
Three basic positions—dig, carry and dump—create previously unheard-of
levels of efficiency. It also includes auto-dump and auto-reposition features.
Photo may include optional equipment.

Preventative Maintenance
Preventative maintenance is the only way to ensure long service life from your equipment. That’s why Komatsu designed the
D475ASD-5E0 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy.
Centralized service station
To ensure convenient maintenance, the transmission
and torque converter oil filters are both arranged next to
the power train oil level gauge.
Monitor with self-diagnostic function
If the monitor finds abnormalities, corresponding warning
lamp blinks and warning buzzer sounds. When
abnormalities occur during operation, user code and service
meter are displayed alternately. When a high importance user
code is displayed, a caution lamp
blinks and warning buzzer sounds to
prevent the development of serious
problems.
Oil pressure checking ports
Pressure checking ports for power train components are
centralized to promote quick and simple diagnosis.
Gull-wing engine side covers
Gull-wing engine side covers facilitate engine maintenance
and filter replacement. Side covers are a thick
one-piece structure with bolt-on latch to improve durability
and repairability.
VHMS (Vehicle Health Monitoring System)
VHMS controller monitors the health conditions of major
components and enables remote analysis of the machine
and its operation. This process is supported by the Komatsu
distributors, factory and design team. This contributes to
reduced repair costs and to maintaining maximum availability.
9
Low Maintenance Costs
Track link with wedge ring
New D475ASD-5E0 track links
feature reduced press-fit force
and a wedge ring. Conventional
track pins are retained only with
a large press-fit force. This results
in easier service with reduced pin
damage when turning pins and
bushings. The result is improved
undercarriage life and reduced
maintenance cost through
reduced wear, greater pin
reusability, and reduced maintenance man-hours.
Highly reliable electric circuit
The electrical circuit reliability is increased by utilizing dust,
vibration and corrosion resistant "DT connectors". The
reinforced electrical wiring harnesses include a circuit
breaker and are covered with a heat-resistant material to
increase mechanical strength, provide longer life, and
protect the system from damage.
8
Rubber
Silicon Oil
Spring
Rubber Boot
Operator Comfort
Operator comfort is essential for safe and productive work. The D475ASD-5E0
provides the operator with a quiet, comfortable environment where the operator
can concentrate on the work at hand.
Hexagonal pressurized cab
●The cab’s new hexagonal design and large tinted glass windows provide
excellent front, side, and rear visibility.
●Improved cab sealing, air filters and increased internal air pressure combine to
prevent dust from entering the cab.
●The floor mat and door sill are the same height to facilitate easy cleaning.
●The high quality cab interior is fully lined with sound absorbing material.
Comfortable ride with new cab damper mounting
and K-Bogie undercarriage
D475ASD-5E0’s cab mount uses a new cab damper
mounting which further improves viscous damper and
provides excellent shock and vibration absorption capacity
with its long stroke. The cab damper mounting, combined
with new K-bogie undercarriage, softens shocks and
vibrations while traveling over adverse condition that are
impossible to absorb with conventional cab mounting
methods. The soft spring cab damper isolates the cab
from machine body, suppressing vibrations and providing
a quiet, comfortable operating environment.
·Operator noise: 70dB(A)
(Engine at high idle, fan speed at 70%, and air conditioner OFF)
·Dynamic noise (outside): 110dB(A) (As per ISO 6395)
New air suspension seat
D475ASD-5E0 uses a new air suspension seat. Fore and aft sliding rails and
suspension spring increase strength and rigidity and reduce play of joints.
In addition to turning function for ripper operation, the seat is also tiltable to
facilitate down hill dozing.
Relocated air intake ports of air conditioner
The air conditioner fresh air inlet is located above the fender to prevent dust
from the undercarriage from entering the cab. The inside air recirculation inlet is
located behind the operator's seat, away from the dirt and dust of the floor mat,
to provide an increased cleaning/replacement interval.
Cab damper mounting
Wedge ring
Pin press fitting
force +
wedge ring
holding force
Track
guiding
guard
KOMATSU
WebCARE server
Personal
computer
terminal
(for downloading
data)
Internet
Komatsu
distributors
Customer
job site
Satellite
communication (option)
Flat face O-Ring seals
Flat face O-ring seals are used to securely seal all
hydraulic hose connections and to prevent oil leakage.
Enclosed hydraulic piping
Hydraulic piping for the blade tilt cylinder is completely
housed in the push arm protecting it from damage.
Modular power train design
Power train components are sealed in a modular design
that allows the components to be dismounted and mounted
without oil spillage, making servicing work clean, smooth,
and easy.
Maintenance-free disc brakes
Wet disc brakes require less maintenance.
WORKING ENVIRONMENT
D475ASD-5E0
SUPER DOZER
D475ASD-5E0 SUPER DOZER
EASY MAINTENANCE

G.L.
F
E
A
B
G
K
C
DI
J
H
DOZER EQUIPMENT
DIMENSIONS
SUPER DOZER WITH COUNTERWEIGHT
OPERATING WEIGHT
Tractor weight . . . . . . . . . . . . . . . . . . . . . . . . . 84510 kg 186,310 lb
Including steel cab, rated capacity of lubricant, coolant, full fuel
tank, operator, and standard equipment.
Operating weight . . . . . . . . . . . . . . . . . . . . . 113200 kg 249,560 lb
Including strengthened Super dozer, counter weight, steel cab,
ROPS, operator, standard equipment, rated capacity of lubricant,
coolant, and full fuel tank.
Ground pressure . . . . . . . . . . . . . . . . 151 kPa 1.54 kg/cm221.9 psi
HYDRAULIC SYSTEM
Ground Clearance: 655 mm 2'2"
ENGINE
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SAA12V140E-3
Type. . . . . . . . . . . . . . . . . . . . . 4-cycle, water-cooled, direct injection
Aspiration . . . . . . . . . . . . . . . . . . Turbocharged, air-to-air aftercooled
Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Bore x stroke . . . . . . . . . . . . . . . . . 140 mm x 165 mm 5.51" x 6.50"
Piston displacement . . . . . . . . . . . . . . . . . . . . . . . 30.48 ltr 1,860 in3
Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . All-speed, electronic
Horsepower
SAE J1995 . . . . . . . . . . . . . . . . . . . . . . . . . Gross 671kW 899 HP
ISO 9249/SAE J 1349*. . . . . . . . . . . . . . . . . . Net 664kW 890 HP
Rated rpm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000rpm
Fan drive type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic
Lubrication system
Method . . . . . . . . . . . . . . . . . . . . . . . Gear pump, force lubrication
Filter . . . . . . . . . . . . . . . . . . . . . . . Full-flow and bypass combined
*Net horsepower at the maximum speed of
radiator cooling fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 641 kW 860HP
TORQFLOW TRANSMISSION
Komatsu TORQFLOW transmission consists of a water-cooled,
3-element, 1-stage, 1-phase torque converter with lockup clutch
and a planetary gear, multiple-disc clutch transmission which is
hydraulically-actuated and force-lubricated for optimum heat
dissipation. Gearshift lock lever and neutral safety switch
prevent accidental starts.
FINAL DRIVES
Double-reduction final drive of spur and planetary gear sets to
increase tractive effort and reduce gear tooth stresses for long final
drive life. Segmented sprocket teeth are bolt-on for easy replacement.
STEERING SYSTEM
PCCS lever, joystick-controlled, wet multiple-disc steering clutches
are spring-loaded and hydraulically released. Wet multiple-disc
steering brakes are spring-actuated, hydraulically released, and
require no adjustment. Steering clutches and brakes are inter-
connected for easy, responsive steering.
Minimum turning radius. . . . . . . . . . . . . . . . . . . . . . . . . . 4.6 m 15'1"
UNDERCARRIAGE
Suspension . . . . . . . . . . . . . Oscillating equalizer bar and pivot shaft
Track roller frame. . . . . . . . . . . . . . . Cylindrical, high-tensile-strength
steel construction
Rollers and idlers. . . . . . . . . . . . . . . . . . . . . . Lubricated track rollers
K-Bogie Undercarriage
Lubricated track rollers are resiliently mounted to the track
frame with a bogie suspension system whose oscillating motion
is cushioned by rubber pads.
Extreme Service Track Shoes
Lubricated tracks. Unique seals prevent entry of foreign
abrasives into pin to bushing clearances to provide extended
service life. Track tension is easily adjusted with grease gun.
Number of shoes (each side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Grouser height:
Single grouser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 mm 4.1"
Shoe width (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . 810 mm 32"
Ground contact area . . . . . . . . . . . . . . . . . . . . 73290 cm211,360 in2
Ground pressure (Tractor) . . . . . . . . . . 112 kPa 1.14 kg/cm216.2 psi
Number of track rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Number of carrier rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
COOLANT AND LUBRICANT
CAPACITY (REFILL)
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1670 ltr 441 U.S. gal
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 ltr 55.5 U.S. gal
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 ltr 32.0 U.S. gal
Torque converter, transmission,
bevel gear, and steering system . . . . . . . . . 210 ltr 55.5 U.S. gal
Final drive (each side) . . . . . . . . . . . . . . . . . . . . 75 ltr 19.8 U.S. gal
Gear Forward Reverse
1st 3.3 km/h 2.1 mph 4.2 km/h 2.6 mph
2nd 6.2 km/h 3.9 mph 8.0 km/h 5.0 mph
3rd 11.2 km/h 7.0 mph 14.0 km/h 8.7 mph
Extreme Additional Ground Tractor ground
service shoes weight contact area pressure
910 mm 1830 kg 82340 cm2102 kPa
1.04 kg/cm2
36" 4,030 lb 12,762 in214.8 psi
01412108642 km/h
0
10
20
30
40
50
60
70
80
90
100
110
120
mph 0 8642
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
0
10
40
30
20
60
50
70
80
90
100
110
120
130
kN
US Ton Ton
DRAWBAR PULL
TRAVEL SPEED
F2
F1(LOCK UP)
F2(LOCK UP)
F3(LOCK UP)
F3
F1
1110
SPECIFICATIONS
D475ASD-5E0
SUPER DOZER
D475ASD-5E0 SUPER DOZER
D475ASD-5E0
Power Shift
DRAWBAR PULL VS. SPEED
MAXIMUM USABLE PULL
DEPENDS ON TRACTION AND
WEIGHT OF TRACTOR
INCLUDING MOUNTED
EQUIPMENT
A2770 mm 9'1"
B6465 mm 21'3"
C4546 mm 14'11"
D2690 mm 8'10"
E4524 mm 14'10"
F10525 mm 34'6"
G2405 mm 7'11"
H4646 mm 15' 3"
I1960 mm 6'5"
J860 mm 2'10"
K900 mm 2'11"
Blade capacities are based on the SAE recommended practice J1265.
Overall Maximum Maximum Maximum Weight
length with Blade Blade lift above drop below tilt Dozer
dozer capacity length x height ground ground adjustment equipment Ground pressure*
Super dozer 8980 mm 45.0 m36465 mm x 2690 mm 1960 mm 860 mm 900 mm 21350 kg 151 kPa 1.54 kg/cm2
29'6" 58.9 yd321'3" x 8'10" 6'5" 2'10" 2'11" 47,070 lb 21.9 psi
*Ground pressure shows tractor with Super Dozer blade, cab, ROPS, counterweight, operator, and standard equipment.
Closed-center load sensing system (CLSS) designed for precise and
responsive control, and for efficient simultaneous operation.
Hydraulic control units:
All spool valves externally mounted beside the hydraulic tank.
Plunger type hydraulic pump with capacity (discharge flow) of 542
ltr/min 143 U.S. gal/min at rated engine rpm.
Relief valve setting . . . . . . . . . . . . . 27.5 MPa 280 kg/cm23,980 psi
Control valves:
Spool control valves for Super dozer
Positions: Blade lift. . . . . . . . . . . . . . Raise, hold, lower, and float
Blade tilt . . . . . . . . . . . . . . . . . . . . Right, hold, and left
Blade pitch
(digging angle) . . . . . . . . Increase, hold, and decrease
Hydraulic cylinders . . . . . . . . . . . . . . . . . . . . . . Double-acting, piston
Hydraulic oil capacity (additional volume):
Super dozer . . . . . . . . . . . . . . . . . . . . . . . . . . 180 ltr 48 U.S. gal
Number of cylinders Bore
Blade lift 2 180 mm 7.09"
Blade tilt and pitch 2 250 mm 9.84"
