Konex Audio K-One User manual

K-one
User manual
K-two

IMPORTANT SAFETY INSTRUCTION
• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Follow all instructions – All operating and use instructions should be followed.
WARNING!
• WARNING – Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like
for a long time.
• WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with
liquids, such as vases, shall not be placed on apparatus.
• WARNING – do not cover.
• WARNING – only use attachments/accessories specified by the manufacturer (such as the exclusive supply adapter, battery etc).
• WARNING – the plug is the main disconnect device and should be used as such. The disconnect device should remain readily
.elbissecca
• WARNING – this active loudspeaker may emit high sound pressure levels.
• WARNING – do not listen too close to the active loudspeaker.
• WARNING – do not listen for an extended period of time at a high sound pressure level.
• WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts.
• WARNING – do not plug a guitar into the K-one or K-two.
• WARNING – do not insert body parts or objects into the bass port for risk of injury.
• DANGER – of dropping the product.
• DANGER – of sharp corners.
MOISTURE AND HUMIDITY
• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water on it.
INSTALLATION
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• No naked flame sources, such as lit candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
CONNECTION
• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit the apparatus.
• Use only power cables of the type specified in the operating instructions or as marked on the active loudspeaker. Do not
substitute the separate power cable included with this active loudspeaker with any other power supply – use only the power cable
provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the only way to completely
remove power to the product and the plug must be readily accessible at all times.
CLEANING
• Clean only with dry cloth.
MAINTENANCE
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• The internal battery is user replaceable according to the instructions in this manual. Only use batteries recommended by KONEX
Industries and intended for the K-one or K-two active loudspeaker.
• CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not
perform any servicing unless you are qualified to do so.

COMPLIANCE
WARNING: SHOCK HAZARD - DO NOT OPEN
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
ATTENTION: RISQUE DE CHOC ÉLÉCTRIQUE - NE PAS OUVRIR
TENIR A L’ABRIS DE LA PLUIE ET DE L’HUMIDITÉ
CAUTION
CAUTION: To prevent the risk of electric shock, do not remove cover (or back plate). There are no user serviceable parts
inside. Refer servicing to qualified service personnel.
This appliance may not be treated as regular household waste. Management of WEEE (Waste Electrical and Electronic
Equipment) is applicable in member states of the European Union and other European countries with individual national
policies on the management of WEEE. If you need more information on the collection, reuse and recycling systems,
please contact your local or regional waste administration facility.
The product complies with the following European directives: 2015/35/EU (CE-LVD), 2015/30/EU (CE-EMC), 2014/53/EU (RED),
2011/65/EU, 2015/863(ROHS).
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to oper-
ate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-
ment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition
without restriction.
IC warning
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
- French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le
fonctionnement.

BOX CONTENTS
3.
2.
1.
1. Power cord
2. KONEX K-one or K-two portable speaker
3. User manual
TECHNICAL SPECIFICATIONS
MODEL
TYPE
HF DRIVER
LF DRIVER
POWER (RMS)
POWER (MAX)
FUNCTIONS
AUX INPUT
FREQ. RANGE
POWER SUPPLY
BATTERY
DIMENSIONS
NET WEIGHT
K-one or K-two
2-WAY CONFIGURATION WITH ACTIVE FILTER
2.75’’ DOME TWEETER WITH 1’’ VOICE COIL
4’’ WITH 1’’ VOICE COIL
50W
100W
BLUETOOTH, USB, AUX INPUT, BASS, TREBLE,PAIR BUTTON,
STEREO 3.5MM
60Hz-20kHz (@-10dB)
AC 100V-240V 50/60Hz
7.4V/4.4Ah (LITHIUM-ION)
231X142X155 MM
2.55KG

FUNCTIONS
K-two
K-two
100-240V AC~
50Hz-60Hz
AC InputAUX Input USB
S/N:
1.
2. 3. 4.
5.
6. 7.
8.
9.
1. POWER SWITCH
2. VOLUME CONTROL
3. BASS CONTROL
4. TREBLE CONTROL
5. PAIR BUTTON
6. BATTERY LEVEL
7. PAIRING STATUS LED
8. AUX INPUT STATUS LED
9. AUX INPUT
10. USB INPUT
11. POWER INPUT
10. 11.

BLUETOOTH PAIRING
PAIR YOUR DEVICE :
1- When power on, the BT LED(7.) flash qulicky, pairing mode is automatically activated.
2- Search for KONEX K-one or K-two on your device and connect. BT LED (7) will change
to slow flashing light.
NOTE: You cannot start a new pairing request while a device is already connected.
You must 1st disconnect the first device and then start pairing.
Press and hold PAIR button(5.) for 1 second to disconnect pairing or restart pairing when your
device has the connection memory.
CONNECTIONS
USB
The Konex K-one or K-two portable speaker allows you to connect USB storage device such as
a USB stick or harddrive. Hardrive format must be FAT32,FAT or exFAT format.
1- Connect your USB device on USB input (10.), The USB device will be automatically selected
and the BT + AUX status LED will be light on.
2- Control your USB device with your APP.
NOTE: In USB mode the PAIR buttons (5.)will be the «Next track» button , and the POWER
button (1.) will be the «previous track» button.
AUX
The Konex K-one or K-two portable speaker allows you to connect any external audio source
with LINE level audio signal.
1- Connect your audio device to the AUX input using a 1/8 Jack cable. The AUX LED (8.) will be
light on.
NOTE: You can use the Konex APP to control volume of the AUX input.

CHARGING
The Konex K-series is equipped with a long life lithium-ion battery.
If battery level is too low ( check battery level LED(6.)), you have to charge your Konex device.
Use supplied power cable to charge your device. Charging time : 4 hours
NOTE: You can use your Konex K-series player straight out from the box, but it is recommended to
process a full charge of 4 hours before you use it the first time in order to get optimum battery
life.

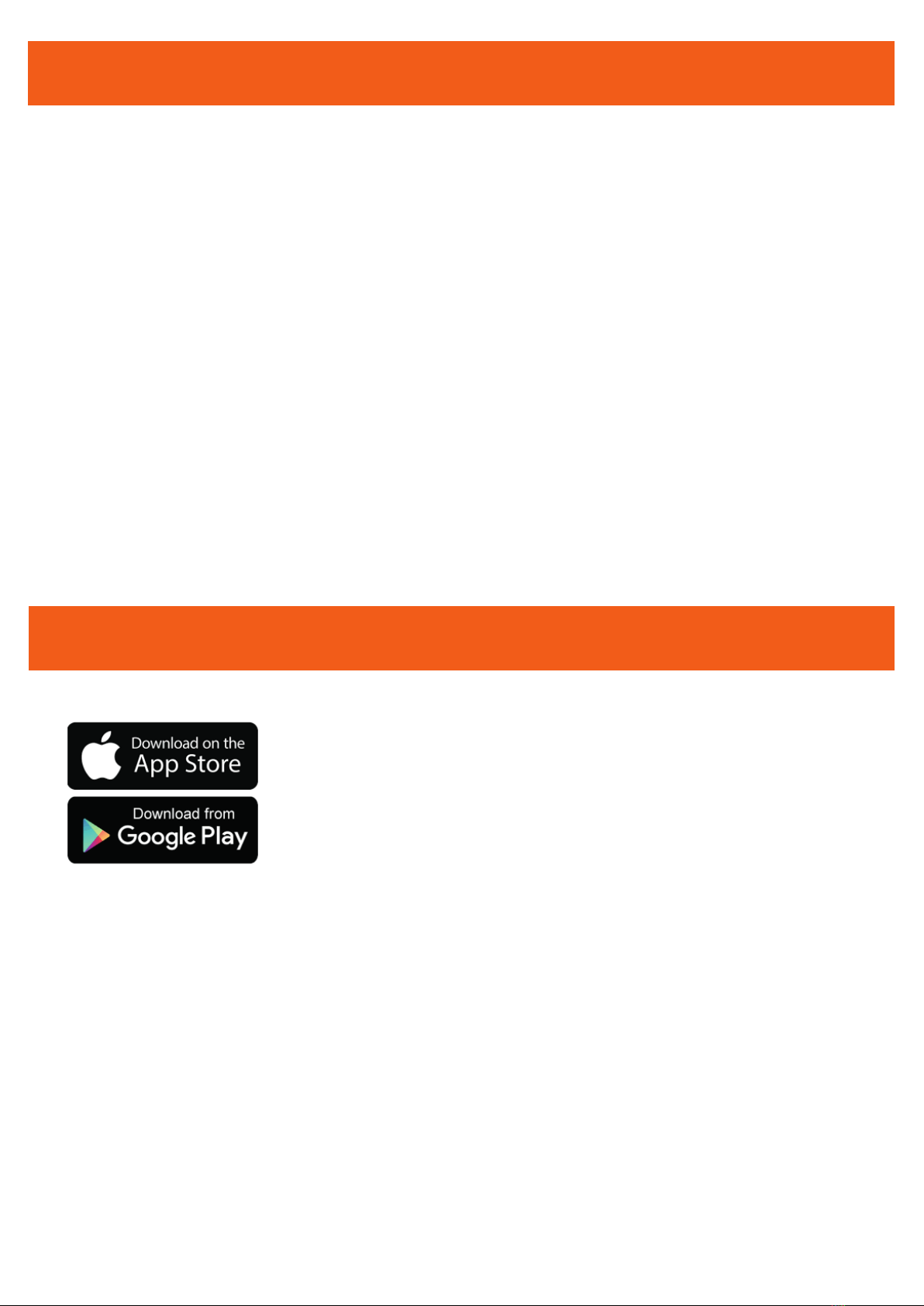

MOBILE APP
APP available to fully control your KONEX device . Download it now from APP STORE
or GOOGLE PLAY !

www.konexaudio.com
