Konnwei KW681 User manual

User's Manual

1.Product Introduction
2 in 1 KW681 Car Battery Tester & OBDII Code Reader.
KW681 Works on most vehicles sold in the USA with model year of 1996 or newer;
2000 EU-Based and 2005 Asian-Based cars or newer.
It can identify the cause of the MIL and may fix it without going to see your dealer.
It also assists you in easily passing the annual SMOG CHECK. This OBD2 Scanner
covers full OBDII/ EOBD diagnostic functions for the engine systems. O2 sensor
test, EVAP systems test, and board monitoring test give you full control of your
vehicle's running status, while a graphical and numeric live data stream can help you find
out the hidden problem of the car.
KW681 Battery Tester can test all automotive cranking lead acid battery, including
ordinary lead acid battery, AGM flat plate batteries, AGM spiral batteries, and Gel
batteries, etc. It applies the state-of-the-art conductance testing technology in the
world to easily, quickly, and accurately measure the actual cold cranking amps
capability of the vehicle starting battery, healthy state of the battery itself, and
common fault of the vehicle starting system and charging system, which can help
maintenance staff to find the problem quickly and accurately.
KW681 supports multi-languages, customer can select different language
which includes English, French, German, Dutch, Spanish, Russian, Portuguese,
Italian.

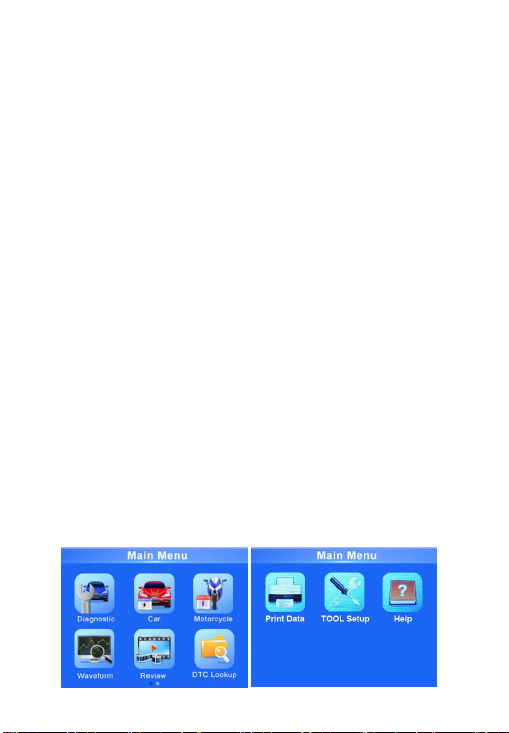

2. Main Menu
OBDII Diagnostic Menu
Car Battery Tester Menu
Motor Battery Tester Menu
—1—

— 2 —
-1. Selete Diagnostic
Monitor Status
MIL Status OFF
DTCs in this ECU 0
Readiness Completed 0
Readiness Not Completed 0
Readiness Not Supported 10
Datastream Supported 114
Lgnition Spark
Protocol Type CAN
-2. After OBDII connected well, show the Disgnostic Menu, click “Enter”
to the next step and you can see the 9 functions below.
Diagnostic Menu Diagnostic Menu
Read Codes Vehicle Information
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
-3. Read Codes: Detect the vehicle: Select Read Codes and press OK button in
Diagnostic Menu. If there are some fault codes, the screen will display the code as
shown below:
Read Codes
Current DTCs($03) P0010 1/11
Pending DTCs($07) A camshaft Position Actuator Cir
cuit/Open Bank 1
Permanent DTCs($0A)
Record DTC

— 3 —
ode has been cleared!
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(Mode$8)
-5. I/M Readiness: Select I/M Readiness and press OK button, the screen will display the inte
rface as shown below:

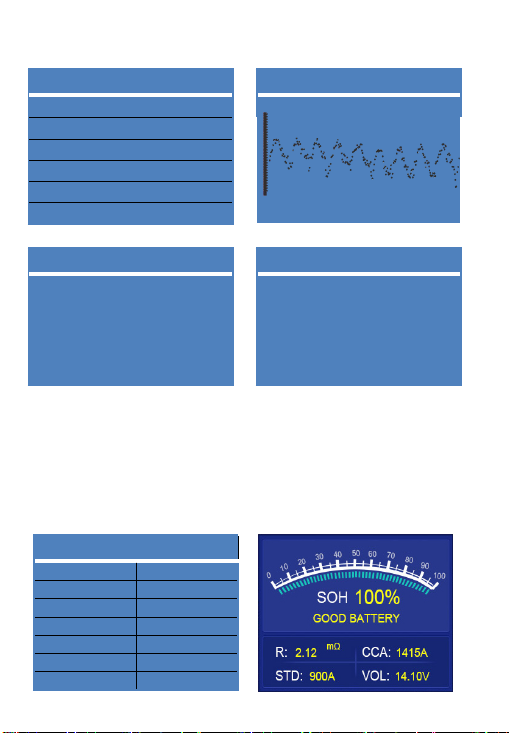

-6. Data Stream: Press the UP or DOWN button to select Data Stream in the
Main Menu interface and then press the OK button to confirm, the screen will
display the interface as shown below:
Datastream 1/17 View Graphic Items
Fuel system 1 status CL Max 9.0 158 -24.2 -89.2
Fuel system 2 status CL
Calculated LOAD Value 9.0%
Engine Coolant Temperature 158°F
Short Term Fuel Trim - Bank 1 -24.2%
I/M Readiness
Since DTCs were cleared
This Drive Cycle
Max 9.0 158 -24.2 -89.2
■ LOAD_PCT=9.0%
■ SHRTFT1=24.2%
■ ECT=158°F
■ LONGFT1-89.1%
-4. Erase Codes: Select Erase Codes, follow the prompts on the screen, until the fault c

— 4 —
-7. Freeze Frame: When an emission fault occurs, the vehicle conditions are recorded by the o
nboard computer. This information is referred to as freeze frame data. Freeze Data is a snapsh
ot of the operating conditions at the
time of an emission fault.
Diagnostic Menu Freeze Frame
Read Codes Freeze Frame
Erase Codes Record Freeze
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
-8. O2 Sensor Test: The results of the O2 Sensor Test are not the live data but instead the las
t results of the O2 sensor test in EUC. For live O2 sensor
readings, please refer to any of the live sensor screens such as graph screen.
Diagnostic Menu Select O2 Sensor
Read Codes Bank1 - Sensor1
Erase Codes Bank1- Sensor2
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
-9. On-board monitoring: This function can read the results of on-board
diagnostic monitoring tests for specific components/systems.

Diagnostic Menu On- Board Monitoring
Read Codes Catalyst Monitor B1
Erase Codes Sensor Heater B1 - S1
I/M Readiness Sensor Heater B1 - S2
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
-10. Evap System: The EVAP test function can initiate a leak test for the vehicle
EVAP system. The scan tool does not perform the leak test, but signals to the
vehicle’s onboard computer to initiate the test. Before using the system test
function, please refer to the vehicle service repair manual to determine the
procedures necessary to stop the test.
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
-11. Vehicle Information: Select Vehicle Information and press OK, the screen will display your
vehicle information.
Diagnostic Menu Vehicle Information
Vehicle Information Vehicle ldentification Number(VIN)
Calibration ldentifications(CID)
CID1:EN6C38*****7F8**
Calibration Verification Numbers(CVN)
CVN1:484BF**
— 5 —

— 6 —
After entering car battery test function, the screen will display the following contents in a seque
nce,select according to the state of the battery you need to detect:
-- Battery In-vehicle -- Out-of-Vehicle
Press UP/DOWN button to select the battery location, then press ENTER to confirm.
● For Example, select “ Out-Of-Vehicle , then show the data as below:

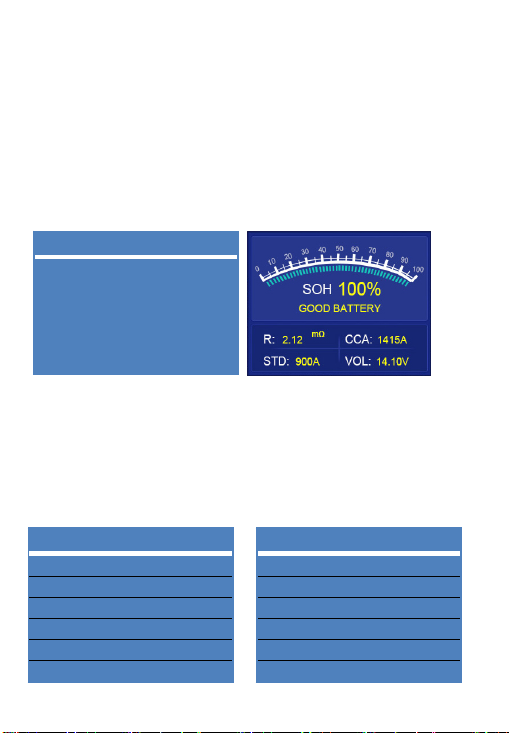

Select Type Select Standard
Regular Flooded CCA
AGM Flat Plate IEC
AGM Spiral EN
GEL DIN
EFB CA
BCI
Cold Cranking Amps Measurement Range:
Measurement Standard Measurement Range
CCA 100-2000
BCI 100-2000
CA 100-2000
MCA 100-2000
JIS 26A17-245H2
DIN 100-1400
IEC 100-1400
EN
100-2000
SAE 100-2000
1. CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for startin
g battery at 0°F(-18 °C)
2. SCI: Battery Council international standard
3. CA: Cranking Amps standard, the effective starting current value at 0°C
4. MCA: Marine Cranking Amps standard,effective starting current value at 0°C
5. JIS: Japan Industrial Standard,displayed on the battery as combination of the
numbers and letters, e.g. 55D23, 80D26
6. DIN: German Auto Industry Committee Standard
-12. Car Battery Tester Menu

—7—
7. IEC: Internal Electron technical Commission Standard
8. EN: European Automobile Industry Association Standard
9. AE: Society of Automotive Engineers Standard
Now select one of them (CCA, IEC, EN, DIN, CA, BCI, MCA, SAE, JIS)
(Please check your own battery standard on the battery, if the battery surface does not
mention, you may contact the battery dealer to know). The test resultwill be showed as
below, press the UP and DOWM button to switch between SOH and SOC.
Set Battery Rating
The battery test result will show different type: (Good Battery / Good, Recharge / Replace /
Bad cell, Replace / Charge, Retest )
Battery Test: Select I n - Vehicle -- Battery Test , then showed as below, there will
be a prompt after entering, follow the tips to the next step. And select the battery type an
d adjust the CCA value according to your battery.
Battery Location In - Vehicle
In- Vehicle Battery Test
Out - Of - Vehicle Cranking Test
Charging Test
R：2.12
STD: 900A
mΩ
530 A
CCA

— 8 —
Cranking Test: Select Cranking Test, the data will be showed as below, a
nd follow the tips to the next step.
In - Vehicle Cranking Test
Battery Test
Please turn off the engine before pre
ssing Enter to enter the test
Cranking Test
Charging Test
Cranking Test Cranking Test
START ENGINE
TIME: 3904ms
MAX: 11.46V
MIN: 9.46V
CRANKING NORMAL
Battery Test
1. Check surface charge, Turn Lights
on.
2. Take headlights on about 10
seconds.
3. Turn lights off.
Set Battery Rating
R：5.29mΩ
SOH 100%
GOOD BATTERY
R：2.12
STD: 900A
530 A
CCA

— 9 —
Charging Test: Select “ Charging Test”, the data will be showed as belo
w, and follow the tips to the next step.
In - Vehicle Charging Test
Battery Test
108mV 14.34V
Cranking Test
Charging Test
Charging Test Charging Test
Increase RPM to 2500 r/min and kee
p it 10 seconds, Press OK to continue
-13. Motor Battery Tester Menu
This function can test the motor battery status, including voltage, CCA, electronic resistance,
rated CCA,charging value,healthy value and testing result in one second. From the startup
screen,or press ESC button to enter Main Menu . After select MotorBAT the screen will
display the test result as below:
Press the UP and DOWN keys to switch between SOH and SOC
Set Battery Rating
51814 51913
53030 12N10-3A
12N10-3A-1 12N10-3A-2
1210-3B 12N11-3A-1
12N12A-4A-1 12N14-3A
12N16-3B 12N24-3
12N24-3A 12N5.5-3B
Loaded 13.60V
Unloaded 14.42V
Ripple 108mV
CHARGING NORMAL

—10 —
Battery test result includes 5 types as following: ( Good Battery/ Good, Recharge / Replac
e / Bad cell, Replace / Charge, Retest )

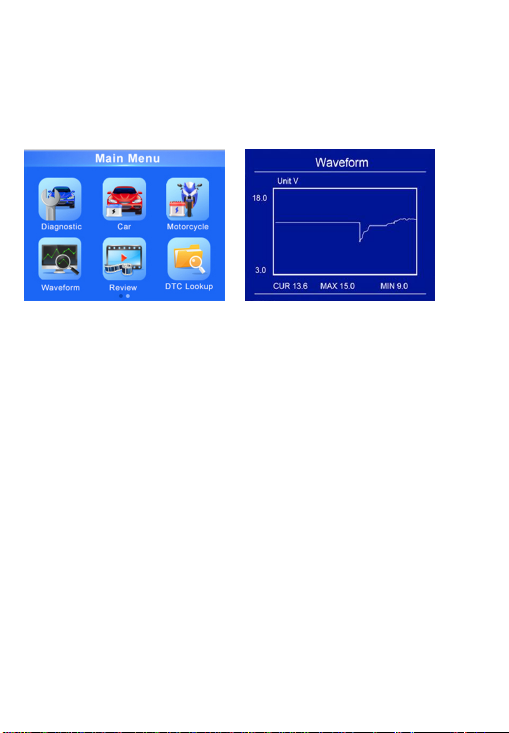

Waveform: Choose the Waveform function on the Main Menu ,
the screen will display the interface as shown below:
CUR: Current Voltage
MAX: Maximum voltage during ignition
MIN: Minimum voltage during ignition
The waveform will stay static until there are changes in the voltage changes
detected
Various vehicle voltage analyses
-- Discharge Voltage : When the ignition is OFF, the engine is OFF (Over 20 Minutes), the
Discharge Voltage should be around 12V. If the discharge voltage is lower than 11V, it wil
l be hard to turn the ignition ON. If the discharge voltage continuously stays under 11V, t
hat means the battery is aging and replacement is needed.
-- Starting Voltage : During ignition, the voltage will drop to a certain point, at this minim
um point is Starting Voltage (Around 7.5- 9.5V). If the Starting Voltage continuously stays
under 7.5, it means battery capacity is low and needs to be replaced.
-- Charging Voltage : When the ignition is ON, the engine is ON. The alternator will contin
uously charge the car battery, which normally is around 14V.
Battery status corresponding with sattery voltage (before ignition)

—11 —
Battery Voltage Battery Status Effects and Measures
<10 BV Too Low Hard to start vehicles, replace
battery needed
108V-118V Slightly Low Hard to start vehicles
Battery status corresponding with battery voltage (after ignition)
Battery Voltage Battery Status Effects and Measures
12.8V-13.2V Too Low Battery may not be charged;check
alternator or other electrical load
13.2-14.BV Normal Normal
>14.BV High Voltage May damage the battery, check alterna
tor stabilizer
Notice: If the battery voltage is 11.9V currently, after a few hours of driving, the battery v
oltage still stays low, the cause could be battery damage(The alternator is normal ). Pleas
e replace the battery ASAP.
 Review : Check all test result
Review
DTC
Datasteream
Freeze Frame
Waveform
Save Result

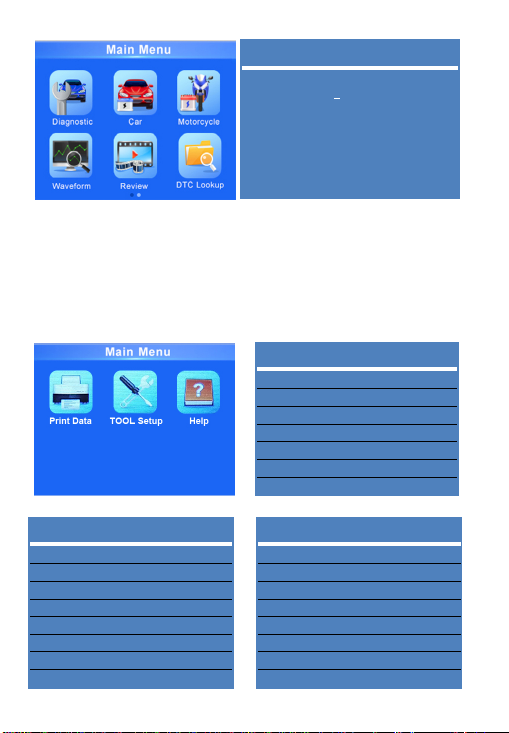

DTC Lookup: Find the explanation of the fault code

—12 —
 Setup : Select language English, French, German, Dutch, Spanish, Russian,
Portuguese, Italian.
DTC Lookup
Please input DTC:
P0000
The 1st range : P,C,B,U
The 2nd range: 0,1,2,3
The others From 0 to F
Press[▲] or [▼] to change input, press [►] or [◄] t
o select position, press [OK] to Confirm.
Tool Setup
Language
Unit of Measure
Beep
Device self - Test
Language Language
English Dutch
Français
Español
Deutsch
Pусский
Italiano
Português
Polski

—13 —
Help: View the information of this device, OBD2 function
introduction, mode definition, compatible vehicle information and
explanation of various terms in data stream.
Help
Tool Information
About OBD
About Datastream
4 . Print & Update
This function allows you to update and print the tool software through a computer .
To update and print your tool, you need the following items：
1. The Scanner
2. PC or laptop (Windows System) with USB ports
3. USB cable
Steps :
1. No need to register, log in to the website www.konnwei.com , select“Download
Update Tool” from the Support drop-down menu
2. Downloading the UPLINK.exe applications and install on your computer (Mac
OS and Linux does not compatible)
3. Connect the Scanner and computer use data cable, then press and hold any
scanner’s button and release it after the tool display a message Update Mode

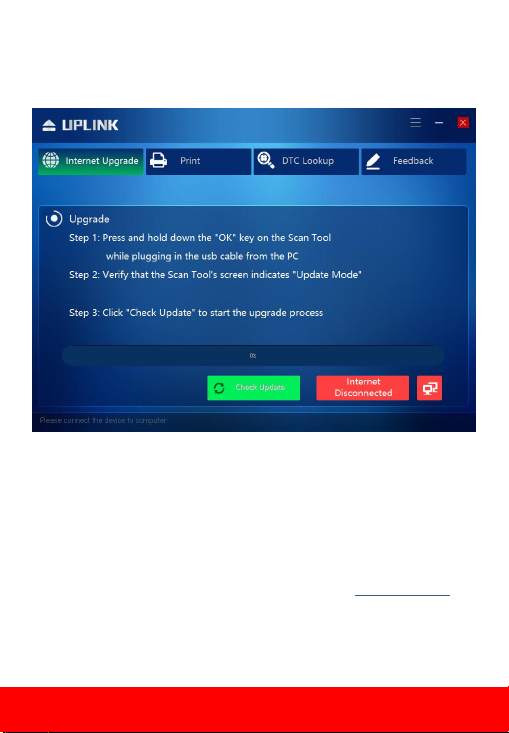

4. Run the
UPLINK software, click the "Check Update" button, if there is a newer version
you can download the upgrade file from the internet then update to the scanner.

—14 —
5. Wait for a few minutes until update succeed.
6. Restart the scanner and the update is totally finished.
5. Service
One-year warranty since the day of purchaing, lifetime free update.
All items sent to Amazon are Brand New, but around 1% customer returns would be added
to our Amazon inventory as sellable which is out of control, please contact Amazpn for a
replacement.
If you have any questions,feel free to contact our dealer via e-mail: [e-mail]
DTC Lookup Feedback
