Konnwei KW870 User manual

KW870
User's Manual
Car & Motorcycle Battery Tester
OBDII Diagnostic Scanner

- 1 -
1.Product Profile:

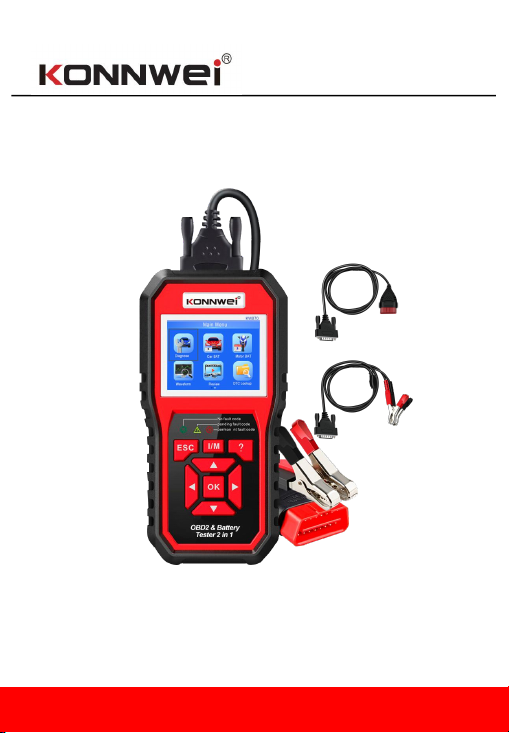

KW870 Car battery tester & car OBDII Diagnostic Tool 2 in 1.
KW870 Works on all 1996 and newer 12V gasoline and diesel that are OBD II
compliant.It can identify the cause of your CHECK ENGINE and perhaps fix it
without going to see your dealer. It also assists you in easily passing annual e
missions tests and SMOG CHECK. It covers full OBDII/ EOBD diagnostic func
tions for engine system. O2 sensor test, EVAP systems test, and board monito
ring test give you full control of your vehicle's running status,while a graphical
and numeric live data stream display will help you to find out the faulty sensor
readings.
KW870 Battery Tester can test all automotive cranking lead acid battery,
including ordinary lead acid battery,AGM flat plate battery,AGM spiral battery,
and Gel battery,Lithium battery etc. it adopts the state-of-the -art conductance
testing technology in the word to easily, quickly and accurately measur e the
actual cold cranking amps capability of the vehicle starting battery,healthy
state of the battery itself,and common fault of the vehicle starting system and
charging system, which can help maintenance personnel to find the find the
problem quickly and accurately,thus to achieve quick vehicle repair.
It Support multi-languages,customer can select different language which
includesEnglish, French, German, Dutch, Spanish, Russian, Portuguese,
Italian, Polish .
2 Technical Parameters
Voltage Measurement Range 6-16V DC.
Cold Craning Amps Measurement Range
Measurement Standard
Measurement Range
CCA
100-2000
BCI
100-2000
CA
100-2000
MCA
100-2000
JIS
26A17-245H2
DIN
100-1400
IEC
100-1400
EN
100-2000
SAE
100-2000

- 2 -

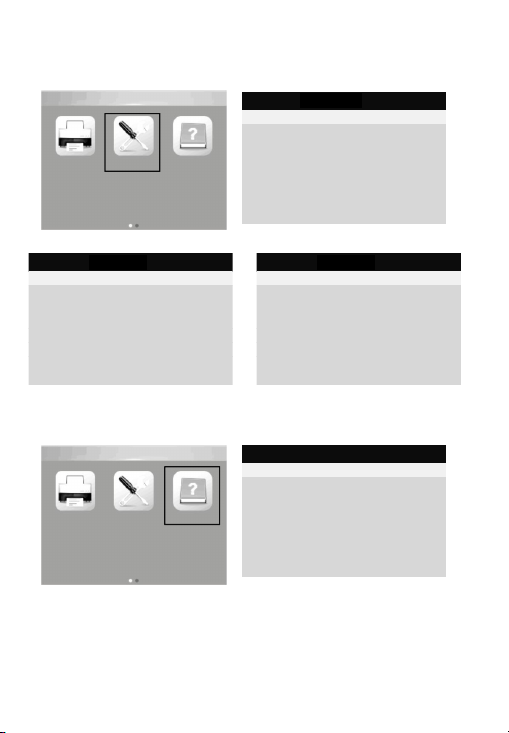

3 . Main Menu Description :
OBDII Diagnostic Menu
Car Battery Tester Menu
Motorcycle Battery Tester Menu
3.1 Choose “ Diagnostic “ For OBDII Diagnosis .
Monitor Status
MIL Status
OFF
DTCs in this ECU
0
Readiness Completed
0
Readiness Not Completed
0
Readiness Not Supported
10
Datastream Supported
114
Lgnition
Spark
Protocol Type
CAN
3.2 After OBDII Connected Well On Car ,Show "Monitor Status" ,
And Click “ Enter” For Next Step To Look Through Below 9 Functions.
Diagnostic Menu
Diagnostic Menu
Read Codes
Vehicle Information
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
Main Menu
Diagnostic Car BAT Motorcycle BAT
Waveform Review DTC Lookup
Main Menu
Print Data Tool Setup Help

- 3 -
3.3 Read Codes: Check The Car Fault Problem:Select [Read Codes] and
press OK button in Diagnostic Menu. If there are some codes, the screen will
display the codes as shown below:
Read Codes
Current DTCs($03)
P0010 1/11
Pending DTCs($07)
A camshaft Position Actuator
Circuit/Open Bank 1
Permanent DTCs($0A)
Record DTC
3.4 Erase Codes : Select [Erase Codes],Until The Emission-Related Diagnostic
Information has been Cleared!
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(Mode$8)
3.5 I/M Readiness: Select [I/M Readiness] and press OK button, the screen
will display the interface as shown below:
I/M Readiness
Since DTCs Were Cleared
This Drive Cycle

- 4 -
3.6 Data Stream: Press UP or DOWN button to select Data Stream in Main
Menu interface and then press OK button to confirm，the screen will display
the interface as shown below:
Datastream 1/17
View Graphic Items
Fuel system 1 status
CL
Max 9.0 158 -24.2 -89.2
Fuel system 2 status
CL
Calculated LOAD Value
9.0%
Engine Coolant Temperature
158°F
Short Term Fuel Trim - Bank 1
-24.2%
3.7 Freeze Frame: When and emission-related fault occurs, certain vehicle
conditions are recorded by the on-board computer. This information is referred
to as freeze frame data. Freeze Data is a snapshot of the operating conditions
at the time of an emission-related fault.
Diagnostic Menu
Freeze Frame
Read Codes
Freeze Frame
Erase Codes
Record Freeze
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
3.8 02 sensor Test: The results of 02 sensor test are not live values but
instead the results of the ECU^ last 02 sensor test. For live 02 sensor readings,
refer to any of the live sensor screens such as Graph Screen.
Diagnostic Menu
Select O2 Sensor
Read Codes
Bank1 - Sensor1
Erase Codes
Bank1- Sensor2
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
Max 9.0 158 -24.2 -89.2
■ LOAD_PCT=9.0%
■ SHRTFT1=24.2%
■ ECT=158°F
■ LONGFT1-89.1%

- 5 -
3.9 On-board monitoring: This function can be utilized to read the results of
on-board diagnostic monitoring tests for specific components/systems.
Diagnostic Menu
On- Board Monitoring
Read Codes
Catalyst Monitor B1
Erase Codes
Sensor Heater B1 - S1
I/M Readiness
Sensor Heater B1 - S2
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
3.10 Evap System: The EVAP test function lets you initiate a leak test for
the vehicle^ EVAP system. The scan tool does not perform the leak test, but
signals to vehicle’s on-board computer to initiate the test. Before using the
system test function，refer to the vehicle^ service repair manual to determine
the procedures necessary to stop the test.
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
Data Stream
Freeze Frame
O2 Sensor Test
On-Board Monitoring
Evap System(mode$8)
3.11 Vehicle Information: Select [Vehicle Information] and press OK, the
screen will display the information
Diagnostic Menu
Vehicle Information
Vehicle Information
Vehicle ldentification Number(VIN)
Not supported
Calibration ldentifications(CID)
Not supported
Calibration Verification Numbers(CVN)
Not supported

- 6 -
After entering car battery test program,tester displays Main Menu, Tester
“ Battery In-vehicle or Out-of-Vehicle”
Press UP/DOWN key to select the battery location,in vehicle or out of vehicle,
then press ENTER key to confirm
Battery Location
In - Vehicle
Out - Of - Vehicle
● For Example ,Select “ Battery Test out-of- vehicle” , Then show below
data
Select Type
Select Standard
Regular Flooded
CCA
AGM Flat Plate
IEC
AGM Spiral
EN
GEL
DIN
EFB
CA
Lithium
BCI
Cold Craning Amps Measurement Range
Main Menu
Diagnostic Car BAT Motorcycle BAT
Waveform Review DTC Lookup

- 7 -
Measurement Standard
Measurement Range
CCA
100-2000
BCI
100-2000
CA
100-2000
MCA
100-2000
JIS
26A17-245H2
DIN
100-1400
IEC
100-1400
EN
100-2000
SAE
100-2000
1. CCA: Cold Cranking Amps, specified by SAE&BCI, most
frequently used value for starting battery at 0°F(-18 °C)
2. BCI: Battery Council international standard
3. CA: Cranking Amps standard,effective starting current value
at 0°C
4. MCA: Marine Cranking Amps standard,effective starting current
value at 0°C
5. JIS: Japan Industrial Standard,displayed on the battery as
combination
of the numbers and letters, e.g. 55D23, 80D26
6 DIN: German Auto Industry Committee Standard
7 IEC: Internal Electron technical Commission Standard
8 EN: European Automobile Industry Association Standard
9 SAE: Society of Automotive Engineers Standard
Now Select one of them （CCA,IEC,EN, DIN, CA, BCI, MCA, SAE, JIS）
( Please check your own battery standard ). The test result will be showed as
below , Press the up and down keys to switch between SOH and SOC.
Set Battery Rating
The battery test result will show different type : (Good Battery / Good,
SOH 100%
GOOD BATTERY
CCA: 1415A
VOL:14.10V
R：2.12
STD: 900A
mΩ
900 A
CCA

- 8 -
Recharge / Replace / Bad cell, Replace / Charge, Retest )
For Example ,Select “ Battery in- vehicle” , Then show below data
Battery Location
In - Vehicle
In- Vehicle
Battery Test
Out - Of - Vehicle
Cranking Test
Charging Test
For example , Select “ Battery Test” ,The current health status of
the battery can be directly detected.
Battery Test
1. Check surface charge, Turn Lights
on.
2. Take headlights on about 10 seconds.
3. Turn lights off.
There will be a prompt after entering, please proceed to the next step
according to the prompt.
For example , Select “ Cranking Test”, the data will be showed as
below :
In - Vehicle
Cranking Test

- 9 -
Battery Test
Please turn off the engine before
pressing Enter to enter the test
Cranking Test
Charging Test
Cranking Test
Cranking Test
START ENGINE
TIME: 580ms
MAX: 12.69V
MIN: 10.26V
CRANKING NORMAL
There will be a prompt after entering, please proceed to the next step
according to the prompt.

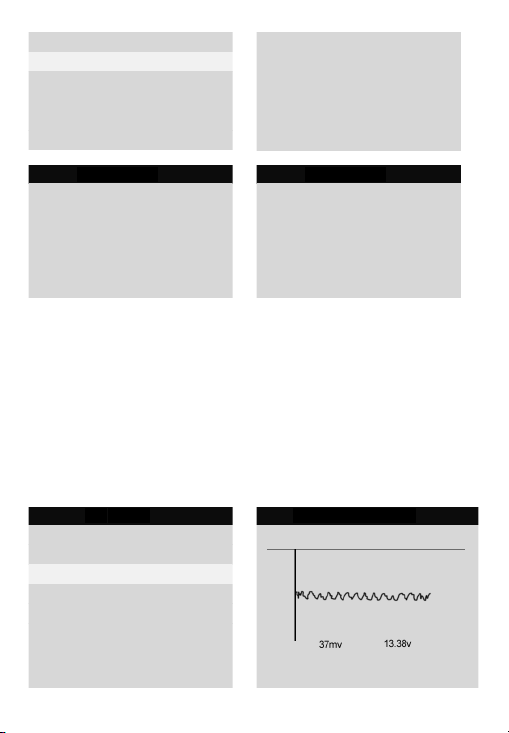

For example , Select “ Charging Test”, the data will be showed as
below :
In - Vehicle
RIPPLE TEST
Battery Test
Cranking Test
Charging Test

- 10 -
37mvV 13.38v
Charging Test
Charging Test
Increase RPM to 2500 r/min and keep it
10 seconds, Press ENTER to continue
There will be a prompt after entering, please proceed to the next step
according to the prompt.
3.13 Motorcycle Battery Tester Menu
It can make sure the battery status, including voltage, CCA, electronic
resistance, rated CCA,charging value,healthy value and testing result in
one second. From the startup screen,or press ESC button to enter Main
Menu. After select “ BatteryRating “ The screen will display the test result as
below :
Press the up and down keys to switch between SOH and SO
Set Battery Rating
51814
51913
53030
12N10-3A
12N10-3A-1
12N10-3A-2
1210-3B
12N11-3A-1
12N12A-4A-1
12N14-3A
12N16-3B
12N24-3
12N24-3A
12N5.5-3B
Batterytest result includes 5 types as following: (Good Battery / Good,
Recharge / Replace / Bad cell, Replace / Charge, Retest )

Waveform: press WAVEFORM FUNCTION button, The screen
will display the interface as shown below:
Loaded 14.44V
Unloaded 14.0V
Ripple 153mV
CHARGING NORMAL
SOH 100%
GOOD-RECHARGE
R:23.01
STD:12N9-4B-1
CCA: 131A
VOL: 12.19V
mΩ

- 11 -
CUR: Current Voltage
MAX: Maximum Voltage during Ignition MIN: Minimum Voltageduring
Ignition
The waveform will stay in staticuntil there's changes in the voltage
changesdetected
Various vehicle voltage analyses
• Discharge Voltage: When the ignition OFF,engine OFF (Over 20
Minutes),the Discharge Voltage should be around 12V. If the discharge
voltage is lower than 11V, it will be hard to turn the ignition ON. If the
discharge voltage continuously stay under 11V, ii means the battery is
aging and replacement is needed.
• Starting Voltage: During ignition, the voltage will drop to a certain
point, at this minimum point is Starting Voltage (Around 7.5- 9.5V). If
the Starting Voltage continuously stay under 7.5, it means battery
capacity is low and needs to be replaced
• Charging Voltage: When the ignition ON,engine ON. The alternator
will continuously charge the car battery,normally is around 14V
Battery Status corresponding with Battery Voltage (Before Ignition)
Battery Voltage
Battery Status
Effects and Measures
<10 BV
Too Low
Hard to start vehicles,
replace battery
108V-118V
Slightly Low
Hard to start vehicles,
Main Menu
Diagnostic Car BAT Motorcycle BAT
Waveform Review DTC Lookup

- 12 -
Battery Status corresponding with Battery Voltage (After Ignition)
Battery Voltage
Battery Status
Effects and Measures
12.8V-13.2V
Too Low
Battery may not be charged;
Check alternator or other
electrical load
13.2-14.BV
Normal
Normal
>14.BV
High Voltage
May damage the battery,
Check alternator stabilizer
Notice: If the current detected battery voltage is 11.9V, after a few
hours trip, the battery voltage is still stay low, the cause could battery
damage (Under circumstance of normal alternator). Please replace the
battery ASAP
Review :From the startup screen, or press ESC button to enter Main Menu
Press UP/DOWN button to select the [Review] function in the Main Menu and
press ENTER button,The screen will display the interface as shown below
Review
DTC
Datasteream
Freeze Frame
Waveform
Save Result
DTC Lookup: check all test result
DTC Lookup
Please input DTC:
P0000
The 1st range : P,C,B,U
The 2nd range: 0,1,2,3
The others From 0 to F
Press[▲] or [▼] to change input, press [►] or
[◄] to select position, the press [OK] to Confirm.
Main Menu
Diagnostic Car BAT Motorcycle BAT
Waveform Review DTC Lookup
Main Menu
Waveform Review DTC Lookup
Diagnostic Car BAT Motorcycle BAT

- 13 -

Setup : Select language English, French, German, Dutch, Spanish,
Russian,Portuguese, Italian,Polish
Tool Setup
Language
Unit of Measure
Beep
Device self - Test
Language
Language
English
Dutch
Français
Español
Deutsch
Pусский
Italiano
Português
Polski
Help:
Help
Tool Information
About OBD
About Datastream
4 . Print & Update
This function allows you to update and print the tool software through a
computer .
To update and print your tool, you need the following items：
Main Menu
Print Data Tool Setup Help
Main Menu
Print Date Tool Setup Help

- 14 -
1. tester tool
2. A PC or laptop with USB ports
3. USB cable
Step :
1)Downloading the applications from our website www.konnwei.com
2)Run uplink.exe in your computer(Mac OS and linux does not compatible)
3)Press and hold any button until the USB cable is connected with computer
and release it after the tool display a message "Update Mode"
4)Open the uplink software, click "Check update" button, will download the
upgrade file from internet then update to tester tool
5)Wait for few minutes until update succeed
6)During the update procedure
7)Restart tester tool finish the whole update
5.Service Procedures
If you have any questions,please contact your local store,distributor or visit
our website at www.konnwei.com
If it becomes necessary to return the tool for repair,contact your local
distributor for more information
Internet Upgrade
Print
DTC Lookup
Feedback
Upgrade
Step 1: Press and hold down the "OK" key on the Scan Tool
while plugging in the USB cable from the PC
Step 2: Verify that the Scan Tool's screen indicates "Update Mode"
Step 3: Click "Check Update" to start the upgrade process
Check Update
Internet Connected

- 15 -
