Konsmetal Koliber 16 User manual

Product card
User manual
Koliber Safes
Koliber Deposit Drop Safes
KSN Wall Safes
Grade S1
KONSMETAL Export Department
[email protected]
KONSMETAL Service:
phone: [phone] (Monday –Friday: 8-16)
e-mail: [e-mail]

str. 2
Koliber Safes
Contents
Application ............................................................................................................................3
Certificates for storing ........................................................................................................3
Important –read before operating the safe ...................................................................3
Product description..............................................................................................................4
Standard equipment............................................................................................................4
Additional equipment (option)...........................................................................................4
Types of locks:.....................................................................................................................5
Standard colours..................................................................................................................5
Specifications........................................................................................................................5
Installation ............................................................................................................................7
Operation - opening ............................................................................................................9
Operation - closing ..............................................................................................................9
Replacement of the electronic lock’s battery ..................................................................9

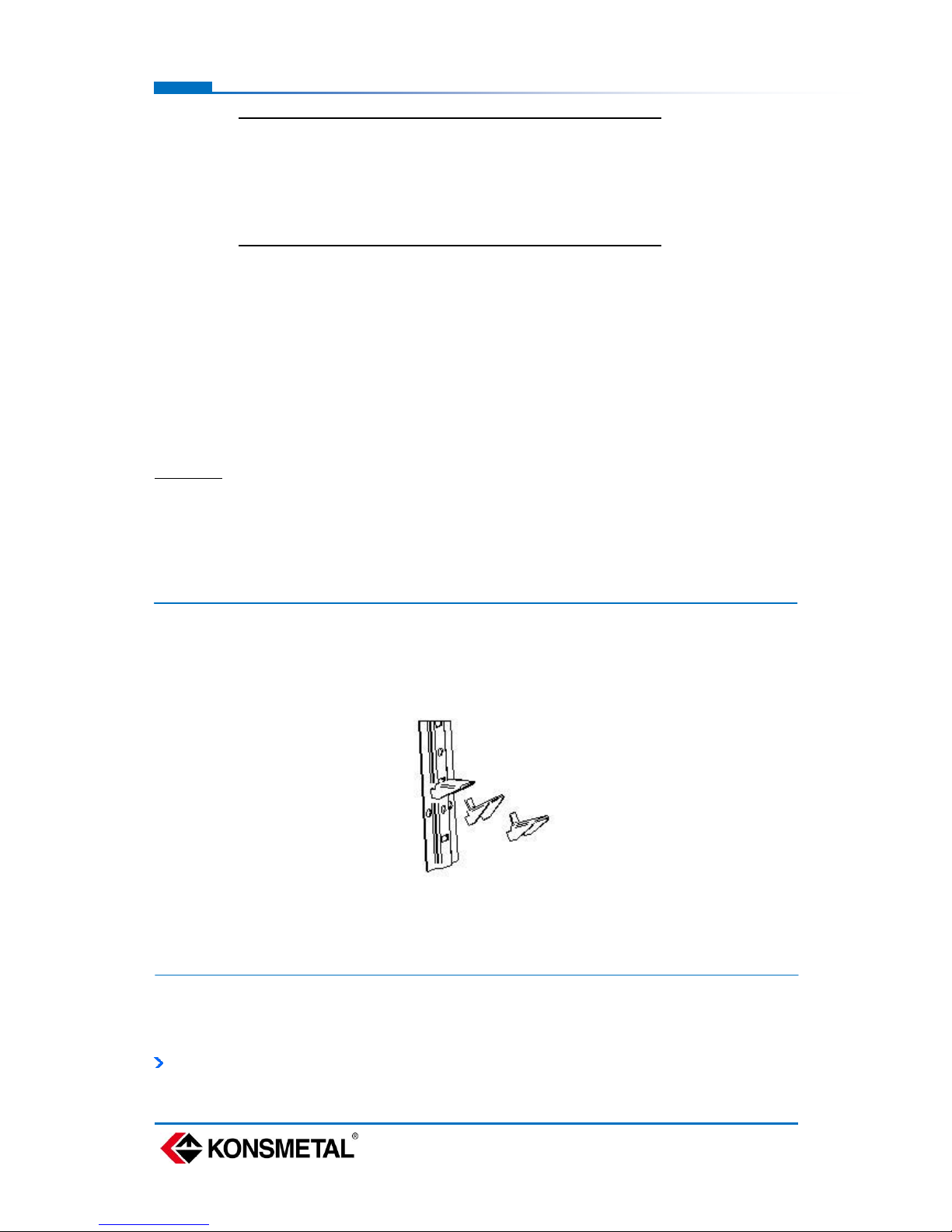

Installation of shelves .......................................................................................................10
Use.......................................................................................................................................10
Maitenance .........................................................................................................................11
Adjustment of hinges........................................................................................................11
Most common problems and remedies ..........................................................................11
Contact details to the KONSMETAL Service...................................................................12

str. 3
Koliber Safes
Application
The Koliber series are modern, high-quality safes suitable for storing jewelry, firearms, ammunition etc. The
“Laptop” models are recommended for storage of portable computers.
Products of the Koliber series are characterized by high capacity with external dimensions optimized for home
and business needs.
Depending on the model, Koliber Safes are designed for installation in walls or furniture and may also be used
as freestanding safes having been fixed to the floor.
Certificates for storing
Valuables in acoordance with the EN 14450 standard, grade S1.
Warning! In order to keep the product’s resistance grade safe or cabinet weighing up to 1 000 kg must be
anchored to the ground (freestanding models) or built into the wall (built-in models) according to the user
manual.
Important –read before operating the safe
Please read this user manual and follow its provisions.
If the device is equipped with a combination or/and electronic lock ALWAYS remember to change a
default code on its own, unknown to third parties, BEFORE using the device. Leaving default code is a
threat to the security of deposited values.
Changing the code and test of the new code in the combination or electronic lock MUST be done on the
open door of the safe. By changing the code on closed door you run the risk of the need for their
emergency opening.

str. 4
Koliber Safes
If the safe is equipped with a handle or knob to move the bolts, opening or closing the door should be
done ONLY by holding the handle or knob to move the bolts. Opening or closing the safe door by pulling
on the key, combination lock knob or electronic lock keypad can result in product damages, which are
not subject to warranty.
Before closing the safe door you MUST check if the bolts are maximally retracted. Extended bolts while
closing the safe door can damage the paint coat at the place of bolts impact on the edge of the door
opening. Such damage is not considered as a basis for warranty repair.
At the end of this user manual you will find information how to conduct the most common problems.
Product description
Bodies of Koliber safes are made from high quality sheet metal with increased resistance to attack;
The highest safety standards are also guaranteed by:
oreinforced door panel with a thickness of 5 mm with an additional cover of the bolt mechanism
and lock;
osolid bolts with a diameter of 20 mm;
oadditional protection against drilling through the bolts;
ointernal and external door block preventing the bolted safe from being opened after the hinges
have been cut out;
The outline of the door contains thresholds which hinder access to the bolts and protect against pushing
of the safe’s door to the inside during a forced entry attempt;
Door bolting by means of moving bolts;
Door with internal hinging;
Door opening angle: 900;
Safes are powder coated ensuring durability;
24-month guarantee.
Models with electronic locks are equipped with a handle.
Standard equipment
Achoring holes;
Shelves (depending on model); maximum shelf load: 50 kg;
A-grade key lock with two keys;
Product card and user manual (this document) with guarantee card.
Additional equipment (option)
Replacement of the key lock with a combination or electronic lock (the electronic lock version is also
fitted with a handle and up-down bolts);
Third key to the key lock;
Shelves (models K 35, K 45 Laptop, K 62 Laptop, KSN 35, KSN 45 Laptop);

str. 5
Koliber Safes
Drop slot on the side or back of the body (models Koliber 45 Laptop, Koliber 62 Laptop);
Separately lockable internal box to the Deposit Drop Safes;
Handgun holders –5 pieces of firearms (K 45 Laptop 15");
Handgun holders –6 pieces of firearms (K 20 Laptop 17", K 45 Laptop 17", K 62 Laptop 17", KSN 20
Laptop 17’’, KSN 45 Laptop 17’’);
Expansion anchors;.
Types of locks:
key combination electronic
Standard colours
Light grey RAL 7035.
Light grey RAL 9002.
Black RAL 9005.
*Customizable to all RAL colours on request (powder coat).
Specifications
Model
External dimensions [mm]
Internal dimensions [mm]*
Weight
[kg]
Capacity
[l]
H
W
D
H
W
D
Koliber 16
160
310
180
154
304
130
10
6
Koliber 20
200
310
200
194
304
150
12
9
Koliber 35
350
310
280
344
304
230
19
23
Koliber 45- Laptop15˝
450
400
370
444
394
320
35
56
Koliber 20- Laptop 17˝
200
490
370
194
484
320
23
30
Koliber 45 Laptop 17˝
450
490
370
444
484
320
39
69
Koliber 62 Laptop 17˝
620
490
370
614
484
320
49
95
KSN Wall Safe 20
274
384
194
194
304
130
13
8
KSN Wall Safe 35
424
384
194
344
304
130
16
14
KSN Wall Safe 45
Laptop 17”
524
564
384
444
494
320
33
70
*Internal dimensions between the walls of the safe.

str. 6
Koliber Safes
Model
Standard number
of shelves [pcs.]
Koliber 16
0
Koliber 20
0
Koliber 20- Laptop 17˝
0
Koliber 45 Laptop (15”,
17”)
1
Koliber 62 Laptop (17”)
1
KSN Wall Safe 20
0
KSN Wall Safe 35
0
KSN Wall Safe 45 Laptop
17”
1
Model
Door opening
radius R [mm]
Door clearance [mm]
H
W
Koliber 16
250
126
219
Koliber 20
250
166
219
Koliber 45-Laptop 15˝
340
416
309
Koliber 20-Laptop 17˝
440
166
409
Koliber 45 Laptop 17˝
440
416
409
Koliber 62 Laptop 17˝
440
586
409
KSN Wall Safe 20
235
166
219
KSN Wall Safe 35
235
316
219
KSN Wall Safe 45 Laptop 17”
415
416
399
Drop model*
Maximum dimenions of package dropped
[mm]
Grade
wysokość
szerokość
Drop slot
38
170
S1
Drop slot
12
120
-
Upper drop slot
12
155
-
* Available only for the Koliber 45 Laptop15”, Koliber 45 Laptop 17” and Koliber 67 Laptop17”models.

str. 7
Koliber Safes
Installation
The safes can be mounted to the floor or wall by means of two anchors or screws. It is recommended to
install lightweight safes with small dimensions inside other furniture, however, in no case should they be
mounted to easily removable shelves.
In order to mount the safe to the floor or rear wall:
1. Measure the spacing between the holes in the safe.
2. Mark the location of holes on the floor or wall.
3. Drill holes in the floor or wall to the depth matching the length of the anchors.
4. Position the safe so that the holes of the safe and the holes in the floor or wall overlap.
5. Insert and tighten the anchors (anchors sold separately).
Note: Anchors should be embedded in the floor to a depth of approx. 85 mm, in min. C12/15 concrete . In
the case of the concrete substrate covered with a material (eg. stave board, tiles, raw concrete on Styrofoam)
in the selection of the length of anchors the thickness of the material should be considered –it could mean a
need for longer anchors to keep their embedment depth in concrete at about 85 mm.

str. 8
Koliber Safes
In order to mount the safe in the wall:
1. Drill a hole in the wall as shown below.
2. Set the safe centrally in the prepared hole (set vertical and horizontal positioning).
3. When installing safes equipped with a key lock safe front may flush with the plane of the wall. For
safes equipped with a combination or electronic lock we recommend to recess the safe to a wall by
about 35 mm for a protruding knob (shown below, cross-section A-A) and about 15 mm for a flat
knob.
4. We recommend to connect the safe to the wall with clinker on cement mortar or concrete of min.
class C20/25.

str. 9
Koliber Safes
In order to mount the safe in another piece of furniture:
Installation of the safe in furniture is possible. Note, however, that to retain the conditions of the security
certificate safe must be anchored to a stable substrate while meeting the requirements for anchor embedment
depth and quality of the substrate (concrete class). Anchoring can be done by using longer anchors passing
through the wall of the furniture and entering the stable substrate (as in the case of the safe mounted to the
floor or wall). It is important that in any case after the safe anchorage anchors are not visible from outside
(eg. between the wall of the furniture and walls) to make cutting them impossible.
Operation - opening
Opening a safe with a key lock:
1. Insert the key into the lock hole.
2. Turn the key by over 90°(over 1/4 of a turn) clockwise, resistance indicates that the lock is open,
the key must remain in the lock (the key lock design prevents the key from being removed when the
lock is in open position).
3. Pulling the door opens the safe.
Opening a safe with an electronic lock:
1. Enter the code on the keypad in line with the lock’s operation manual.
2. Turn the handle by approx. 90°clockwise, resistance indicates release of door bolts.
3. Pulling the door opens the safe.
Operation - closing
Closing a safe with a key lock:
1. Close the door by pressing it against the body (door bolts must be concealed).
2. Turn the key by over 90°(over 1/4 of a turn) anticlockwise, resistance indicates that the safe is
locked.
3. Remove the key.
Closing a safe with an electronic lock:
1. Close the door by pressing it against the body (door bolts must be concealed).
2. Turn the handle by approx. 90° anticlockwise, resistance indicates engagement of door bolts.
Replacement of the electronic lock’s battery
Note:
Replacement of the battery does not require guarantee seals to be broken.
One 9V battery is required for the replacement.
Follow the instructions below in order to replace the battery.
1. The location of the battery depends on the type of installed lock. Most often battery is located on the
internal side of the safe door (in a suitable battery container) or external part of the lock (lock
keyboard).
2. If the battery is located in an external lock keyboard:
a. Open the safe.
b. Remove the black cover of the battery compartment located on the inside of the safe door.
c. Replace the battery noting the polarity - the markings "+" and "-".

str. 10
Koliber Safes
d. Check correct operation of the lock while the safe door is open (open and extend bolts
several times).
e. If the lock operates correctly, replace the battery compartment cover and close the safe.
3. If the battery is inside the safe (most often on internal side of the safe door):
a. Open the safe.
b. Remove the black cover of the battery compartment located on the inside of the safe door.
c. Replace the battery noting the polarity - the markings "+" and "-".
d. Check correct operation of the lock while the safe door is open (open and extend bolts
several times).
e. If the lock operates correctly, replace the battery compartment cover and close the safe.
4. If the battery is located on the internal side of the safe door and the lock cannot be opened, as well
as the safe door are closed:
a. Check whether the lock keypad has special contact pins to applicate additional battery and
emergency lock opening.
b. Replace the battery noting the polarity - the markings "+" and "-".
c. Hold the whole time additional battery with the contact pins, open the lock with normal code
and then unlock the safe door.
d. After unlocking the safe door additional battery can be detached and the old battery can be
replaced as described above.
Warning: Make sure that the ends of the battery with positive and negative polarity are matched correctly,
as marked in the battery compartment. If the battery is installed incorrectly, running the lock will not be
possible.
There are locks supplied more than one battery, in such cases, replace all the batteries at the same time. Do
not mix old and new batteries or mix batteries of different types (for example, alkaline and lithium batteries).
Batteries should not be opened, punctured, loaded, installed, or exposed to fire, heat or water. It is
recommended to only use alkaline or lithium batteries of known brands.
Installation of shelves
Safes are delivered with shelves packed separately and placed on the safe’s bottom. After unwrapping the
shelves, the shelf clips (in a bag) are located in the corresponding perforations in the battens (fig.2). Place the
shelves on the clips. The location of the shelves depends on the needs of the user and can be adjusted.
Rys. 2. Installation of shelf clips
* Concerns safes bought with shelves.
Use
The product should be used in rooms protected against weather elements and away from substances
corrosive to metals. Relative humidity in the room up to 75%. The device can be operated in rooms with
temperature within the range of +5°C –+40°C.

str. 11
Koliber Safes
When closing or opening the product, attention should be paid to moving parts e.g.: drawer, door.
Improper use may lead to injuries e.g.: of fingers should they remain between the drawer and the body
or between the door and the body.
Pay attention to the position of bolts when closing the door. The bolts must unconditionally be
concealed, otherwise the mechanisms may be permanently damaged.
The installed locks and mechanisms may not be modified under pain of voiding the guarantee.
Installation of locks and mechanisms during the guarantee period may be done by an authorized service
or a user holding a written approval of the service.
Should it be necessary to change the keys, it is recommended to replace the entire lock.
Pay attention to foundation of the safe so that the door does not directly hit obstacles.
Bolting mechanisms and locks should operate smoothly and without jamming. In the event of any
reservations about operation of the said subassemblies, they ought to be reported to the KONSMETAL
service.
In the event of any reservations about the delivered product, they ought to be reported to the
KONSMETAL service.
It is not recommended to make modifications without the manufacturer’s knowledge even after the
guarantee period has expired.
Maitenance
Door:
It is recommended to lubricate the hinges as necessary, however, no less frequently than once every
three years using bearing grease. All the friction couplings and joints of mechanisms ought to be
lubricated with technical acid-free petroleum jelly once every three years.
Body:
In principle, the body does not require any special maintenance. Basic maintenance involves cleaning of
the body housing. In order to do so, use a soft cloth dampened with mild detergent and then wipe the
cleaned surface dry.
Adjustment of hinges
Koliber Safes are not recommended for self-regulation of the hinges because they are located under the
locking mechanism cover. If adjustment is necessary, please contact Service.
Most common problems and remedies
1. Key or combination lock does not close:
a. Make sure bolts blocking the door opening are extended. If after their maximum ejection
lock does not close, please contact the Service.
2. Combination lock cannot be opened despite selecting the correct code:
a. Make sure the other person has not changed the code.

str. 12
Koliber Safes
b. Make sure that the base of the lock knob with the code set marker does not come loose and
the marker is not moved aside from its original position –if so, try to set code in different
positions of the marker and then contact the Service to improve the fixing base.
3. Electronic lock works differently than usual –sounds are different and/or diode blinks:
a. Check the manual of the lock whether lock signals low battery –if so, replace the battery
immediately with a new one according to the lock manual.
b. Make sure that it is not related to entering the wrong code. Detailed information on the
unusual situation signaling by the relevant model of the lock can be found in the lock
manual.
WARNING! Triple attempt of entering the wrong code moves the lock into ‘punishment’
mode which means that the lock will not accept any code for a certain time. To open the
lock you must wait for a certain time defined for that lock and then enter the correct code.
Details are given in the lock manual.
4. Electronic lock makes no sound or does not open:
a. Replace the battery or connect a new battery with the emergency power supply contact pins
(depending on the model of the lock –see the lock manual) and then try to open the lock.
If the lock still does not open please contact the Service.
Contact details to the KONSMETAL Service
phone: [phone] (Monday –Friday: 8-16)
e-mail: se[email protected]
When contacting the Service keep prepared the following data (if possible):
Device model
Purchase date
Serial numer (from the nameplate located inside the device)
In order to verify whether the product is under warranty in most cases it is sufficient to give the serial number
from the nameplate. Sometimes you will need proof of purchase or warranty card with purchase date and
vendor's stamp.
