Kontron MBATX-845GV-VEAH User manual

MBATX-845GV-VEAH
User’s Guide
PN: MBATX-845GV-VEAH
May 2005

Customer Service
Mailing Address: Kontron - United States
14118 Stowe Drive
Poway, CA 92064 USA
Tel: [phone]
Fax: [phone]
Technical Support: U.S. and Canadian Customers - 24 hours a day
Tel: [phone], option 1
Fax: [phone]
International Customers - 9am to 4pm local time
Tel: [phone]
Fax: [phone]
Visit our site at: www.kontron.com
© 2005 Kontron, an International Corporation. All rights reserved.
The information in this user’s guide is provided for reference only. Kontron does not assume
any liability arising out of the application or use of the information or products described
herein. This user’s guide may contain or reference information and products protected by
copyrights or patents and does not convey any license under the patent rights of Kontron, nor
the rights of others.
Kontron is a registered trademark of Kontron. All trademarks, registered trademarks, and
trade names used in this user’s guide are the property of their respective owners. All rights
reserved. Printed in the United States of America and Canada. This user’s guide contains
information proprietary to Kontron. Customers may reprint and use this user’s guide in other
publications. Customers may alter this user’s guide and publish it only after they remove the
Kontron name, cover, and logo.
Kontron reserves the right to make changes without notice in product or component design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this
user’s guide.

ii
CONTENTS
SECTION 1 INTRODUCTION 1
1.1 Unpacking MBATX-845GV-VEAH Series 1
1.2 Description 3
1.3 Features 3
1.3.1 Graphic & Ethernet 3
1.3.2 Ultra ATA/66/100 4
1.3.3 Hardware Monitoring 4
1.3.4 I/O Shield Connector 4
1.3.5 Power-On/Off 5
1.3.6 MBATX-845GV-VEAH Series Overview 5
1.3.7 System Block Diagram 6
1.4 Specifications 7
SECTION 2 INSTALLATIONS 9
2.1 System Installation 9
2.1.1 CPU Installation 9
2.1.2 Heat Sink Installation 10
2.1.3 Memory Module Installation 11
2.1.4 Setting Jumper and DIP Switches 13
2.2 Board Layout 14
2.3 Jumper Setting 15
2.4 Connector’s Description 18

iii
CONTENTS
SECTION 3 AWARD BIOS SETUP 36
3.1 BIOS Instructions 36
3.2 Main Menu 37
3.3 Standard CMOS Features 39
3.4 IDE Adapters 41
3.5 Advanced BIOS Features 43
3.6 Advanced Chipset Features 47
3.7 Integrated Peripherals 50
3.8 Power Management Setup 55
3.9 PnP/PCI Configurations 59
3.10 PC Health Status 60
3.11 Frequency/Voltage Control 62
3.12 Load Fail-Safe Default 64
3.13 Load Optimized Defaults 64
3.14 Supervisor/User Password Setting 65
3.15 Exit Selecting 66

SECTION 1
1
INTRODUCTION
1.1 Unpacking MBATX-845GV-VEAH Series
1. Remove the MBATX-845GV-VEAH from the carton and check if the unit
is properly sealed in the plastic bag.
2. The carton should contain:
¡Industrial Board ¡
¡Floppy ribbon cable ¡ATA-66/100 HDD ribbon cable
¡Driver Utility ¡COM2 ribbon cable (1 Set)
(for RS-232)

Introduction
2
¡COM3 ribbon cable (1 Set) ¡I/O Shield
(for RS-232/422/485)
3. Optional Cable
¡USB2.0 cable (optional) ¡COM4 ribbon cable (optional)
(for RS-232/422/485)

Introduction
3
1.2 Description
The MBATX-845GV-VEAH series combines the high performance and
exceptional value of the Intel®845GV chipset with a full-featured industrial
board. The Intel®advanced 845GV chipset supports regular socket 478-pins
Intel®Pentium®4 / Celeron®processors (1.3GHz up to 3.06GHz). User can
set the jumper to select the mobile CPU since the memory base on the FSB
400/533MHz operation supports DDR SDRAM interface. Additionally, the
845GV chipset integrates the VGA function and external graphics device on
AGP (845GV support ADD card only). The memory size of
MBATX-845GV-VEAH can be up to 2GB DDR including the onboard Intel®
82562ET Ethernet controller (support 10/100 Base-TX Ethernet), Audio and
with 4 COM ports. You many also add one slim floppy connector for special
applications.
The 82801DB I/O Controller Hub (ICH4) employs the Intel®Accelerated
Hub Architecture to make a direct connection from the graphics and memory
to the integrated Ethernet controller, the IDE controllers (ATA/33 or ATA/66
or ATA/100), six USB ports that are supported USB 1.1/2.0 standard meets
the performance, stability and reliability requirements.
The industrial board - MBATX-845GV-VEAH is suitable for all industry
applications and supports Windows®98/SE/ME/2000 and Windows®XP
operation systems.
1.3 Features
1.3.1 Graphic & Ethernet
The MBATX-845GV-VEAH is based on the Intel®845GV chipset,
offering users full integration of graphic, Ethernet, and audio functions. The
features of the chipset include:
¡Enhanced integrated graphics & system performance:
-400/533 FSB support
¡Memory:
- SDRAM PC133, DDR 266/333
- 2.0GB Max. Memory
- 2 DIMM, Non-ECC

Introduction
4
¡IO Connectivity - ICH4:
- 6 Hi-Speed USB2.0 ports
- 10/100 Base-TX Ethernet
1.3.2 Ultra ATA/66/100
The ICH4 provides two channel Ultra ATA/66/100 Bus Master IDE
controller, that support Ultra ATA/66/100 protocols, perfect for such
demanding applications as real-time video, multimedia, and high
performance operating system. A new IDE cable is required for Ultra
ATA/66/100. This cable is an 80-conductor cable; however the connectors
are, of course, backwards compatible with ATA/33.
1.3.3 Hardware Monitoring
Hardware monitoring allows you to monitor various aspects of your
systems operations and status. The features include CPU temperature,
voltage and RPM of fan.
1.3.4 I/O Shield Connector
The board is equipped with an I/O back panel. Please use the
appropriate I/O shield (figure 1).
21.64
143.76
87.71
35.97
56.05
21.75
6.50
38.10
11.96 6.22
26.13
25.00
5.00
16.80
29.50
25.42
Figure 1: I/O back panel layout

Introduction
5
1.3.5 Power-On/Off (Remote)
The board has a single 20-pins connector for ATX power supplies. For
ATX power supplies that support the Remote On/Off feature, this should be
connected to the systems front panel for system Power On/Off button. The
systems power On/Off button should be a momentary button that is normally
open.
The board has been designed with “Soft Off" functions. You can turn Off
the system from one of two sources: The first is the front panel Power
On/Off the button, and the other is the "Soft Off" function (coming from the
M/Bonboard circuit controller) that can be controlled by the operating
system such as Windows®98/SE/ME/2000 or Windows®XP.
1.3.6 MBATX-845GV-VEAH Series Overview
Function / Model MBATX-845GV-VEAH
¡Chipset Intel®845GV
¡LCD Function /
¡VGA Function 
¡SCSI Function /
¡Ethernet Function 
¡Audio Function 
¡Two EIDE Interface 
¡One Floppy Interface 
¡One Parallel 
¡PCI Slots 6
¡AGP Slot 1 (For ADD card only)
¡Serial Port 4
¡USB 2.0 Port 6 (Two for Optional USB Cable)
¡Fan Connector 4
¡Slim Floppy Connector 

Introduction
6
1.3.7 System Block Diagram
P4 Socket 478-pins ClockVRM
DATACTRLADDR
GMCH (845GV)
760 FC-BGA
ICH4
421 BGA
DDR266/333 X2
CRT
Device
Super I/O
W83627HF
ATA100
USB
IDE Primary
IDE Secondary
USB Port 1/2
USB Port 3/4
FWH
Keyboard
Mouse
COM 1/2 Port
LPT Port
Floppy
Super I/O
W83627HF
PCI BUS
PCI SLOTS
AGP4X
USB Port 5/6
Intel 82562
10/100
Base-TX
AC97
Audio
Codec
COM 3/4 Port
Figure 2: System Block Diagram

Introduction
7
1.4 Specifications
¡Processor:
-Intel®Pentium®4/Celeron™processor with socket 478-pins package,
Processor operating at 1.3GHz and up to 3.06GHz
-Intel®Pentium®4 Mobile™processor with socket 478-pins package,
Processor operating at 1.2GHz and up to 2.4GHz
-System bus frequency at 400/533 MHz FSB
¡Chipset:
- Intel®82845GV + ICH4 AGPset
¡DRAM Module:
-Two 184-pins Socket
-For DDR 266/333 SDRAM memory
- Support DDR SDRAM up to 2GB (Max.)
¡VGA Function:
-Intel®845GV Chipset integrated graphic controller
-Onboard one 15-pins VGA connector
¡LAN Function:
-Intel®82562ET Ethernet controller
- For 10/100Base-TX Ethernet
-Onboard one RJ-45 Ethernet connector
-
¡Audio Function:
-AC97 audio controller
¡External Connector:
- One slim floppy connector
¡Expansion Slot:
-1 x AGP slot (for ADD card only)
-6 x PCI slots
¡Onboard I/O:
- On-Chip I/O integrated with K/B, Mouse, FDD, Parallel and Serial,
Fast IR and Power-ON controllers

Introduction
8
¡Onboard PCI / IDE:
- Intel®82801DB (ICH4) controller
- PCI rev2.2 Compliant
- ACPI Compliant Power Management
- PCI bus IDE port with PIO /Ultra DMA-100 x 2 (up to 4 devices)
¡Rear I/O Connectors:
-PS/2 mouse and PS/2 style keyboard
-D-Sub 25-pins printer port connector
D-Sub 9-pins COM1 serial port connector for RS-232
D-Sub 15-pins VGA connector
-2 x USB2.0 connectors
-RJ-45 Ethernet and 2 x USB2.0 connectors
-Audio for Line-In, Line-Out, MIC phone jack
¡Internal I/O Connectors (pin-header):
-3 x serial ports, COM2 for RS-232 and COM3/4 for RS-232/422/485
(serial cable with bracket by optional)
-2 x USB2.0 connectors (USB cable with bracket by optional)
¡BIOS:
- Award Plug & Play BIOS
¡Form Factor:
- 12” x 8.7” (305 x 220mm) ATX Size
¡Weight:
- 1.44lb (650g)

9
INSTALLATIONS
2.1 System Installation
2.1.1 CPU Installation
Carefully follow the steps below in order to install the CPU:
1. Check and confirm that the jumpers are correctly set for the CPU youare
going to install (figure 3).
2. Lift the releasing lever of the Socket 478.
3. Align the pin of the CPU against the pinholes of the Socket 478. Be sure
to pay attention to the orientation of the CPU.
Figure 3: CPU Socket
4. Push down the CPU into the Socket 478.
5. Push down the release lever and lock it against the key hook.
6. Hook the hole in ZIF clip for the CPU cooling fan onto the notch on the
socket 478.
7. Place the CPU cooling fan atop the CPU surface.
8. Push down the opposite side of the ZIF clip and hook it.
9. Slide the head of the clip to left and lock it.
10. Connect the cooling fan cable to the socket as shown below. Be careful
not to place the cable on the CPU cooling fan.
SECTION 2

Installations
10
Removing a CPU:
1. Before removing the CPU, turn off the MBATX-845GV-VEAH Series
power; then wait for about 20 minutes until the heat radiation plate of the
cooling fan and the CPU cools down.
2. To remove the CPU, lift the releasing lever of the Socket 478.
Note: The CPU and the heat radiation plate are hot. They may cause
burns.
To remove the CPU, reverse the installation steps.
2.1.2 Heat Sink & Retention Module Installation
Make sure a secure contact is made between the processors and the
heat sinks & fan. Insufficient contact, incorrect types of heat sinks, fans, or
thermal compounds, or improper amounts of thermal compound applied on
the CPU can cause the processors to overheat, whichmay crash the system.
Figure 4: Heat Sink & Retention Module Installation
Heat Sink & Fan
(For P4 processor only) Installation
Retention Module
(For P4 Heat Sink & Fan)

Installations
11
2.1.3 Memory Module Installation
Figure 5 display the notch marks and what they should look like on your
DIMM memory module.
DIMMs have184-pins and two notches, that will match with the onboard
DIMM socket. DIMM modules are installed by placing the chip firmly into the
socket at a 90-degree angle and pressing straight down (figure 6) until it fits
tightly into the DIMM socket.
Figure 5: DIMM Memory and 184-pins Socket
Figure 6: Memory Installation

Installations
12
Carefully follow the steps below in order to install the DIMMs:
1. To avoid generating static electricity and damaging the DIMM, ground
yourself by touching a grounded metal surface or using a ground scrap
before you touch the DIMM.
2. Do not touch the connector of the DIMM. Dirt residue may cause a
malfunction.
3. Hold the DIMM with its notch to the front side of the
MBATX-845GV-VEAH Series and insert it completely into the socket. A
DIMM should be inserted into the inner socket first. Guiding the hole at
each end of the DIMM over the retaining post at each end of the DIMM
socket.
4. If you install two DIMMs, install the second DIMM using the same
procedure as above.
5. If DIMM does not go in smoothly, do not force it. Pull it all the way out
and try again.
6. Make sure the DIMM is properly installed and locked by the tabs on both
sides of the socket.
Removing a DIMM:
To remove the DIMM, use your fingers or a small screwdriver to
carefully push away the plastic tabs that secure the DIMM at each end. Lift it
out of the socket.
Make sure you store the DIMM in an anti-static bag and must be
populated the same size and manufactory of memory modules.

Installations
13
2.1.4 Setting Jumpers and DIP Switches
There are jumpers and DIP-switches on the system board of the
MBATX-845GV-VEAH Series. You can set the jumpers to make the
necessary operations.
Figure 7: Jumper Connector
For any three-pins jumpers (Figure 7), the jumper setting is 1-2 when the
jumper connects pin 1 and 2. The setting is 2-3 when pin 2 and 3 are
connected and soon. You see a number “ 1 “ and a “ 3 “ printed on the circuit
board to identify these pins. And also, there is a second way of indication –
one of the lines surrounding jumpers is thick, which indicates pin NO.1.
To move a jumper from one position to another, use needle-nose pliers
or tweezers to pull the pin cap off the pins and move it to the desired position.

Installations
14
2.2 Board Layout
Jumper & Connector Location
A
TX2
FAN1
DIMM2
DIMM1
POWERFAN
JP3
IP-4GVI63
JBAT1 IDE1 IDE2
J2
J1
FAN3
FAN4
J3
FDD1
CHASSISFAN
BAT1
USB3JPB2JCN2JPB1JCN1
REV:1.0
PCI6
PCI5
PCI4
PCI3
PCI2
PCI1 AGP1 ADDONLY
CN1
COM2
CDIN1
AUXIN1
WOL1
LAN
USB2
USB1
VGA1
JP1
ATX1
FAN2
KBMS1
LPT1
COM1 CPUFAN

Installations
15
2.3 Jumper Setting
Table for Jumper Location Description:
Use the information in the following table to change the jumpers and the
DIP switches.
Jumpers Functions
JP1 CPU type select
JP3 Watchdog Timer setting select
JBAT1 Clear CMOS setting select
JPB1 COM3 port setting select
JPB2 COM4 port setting select

Installations
16

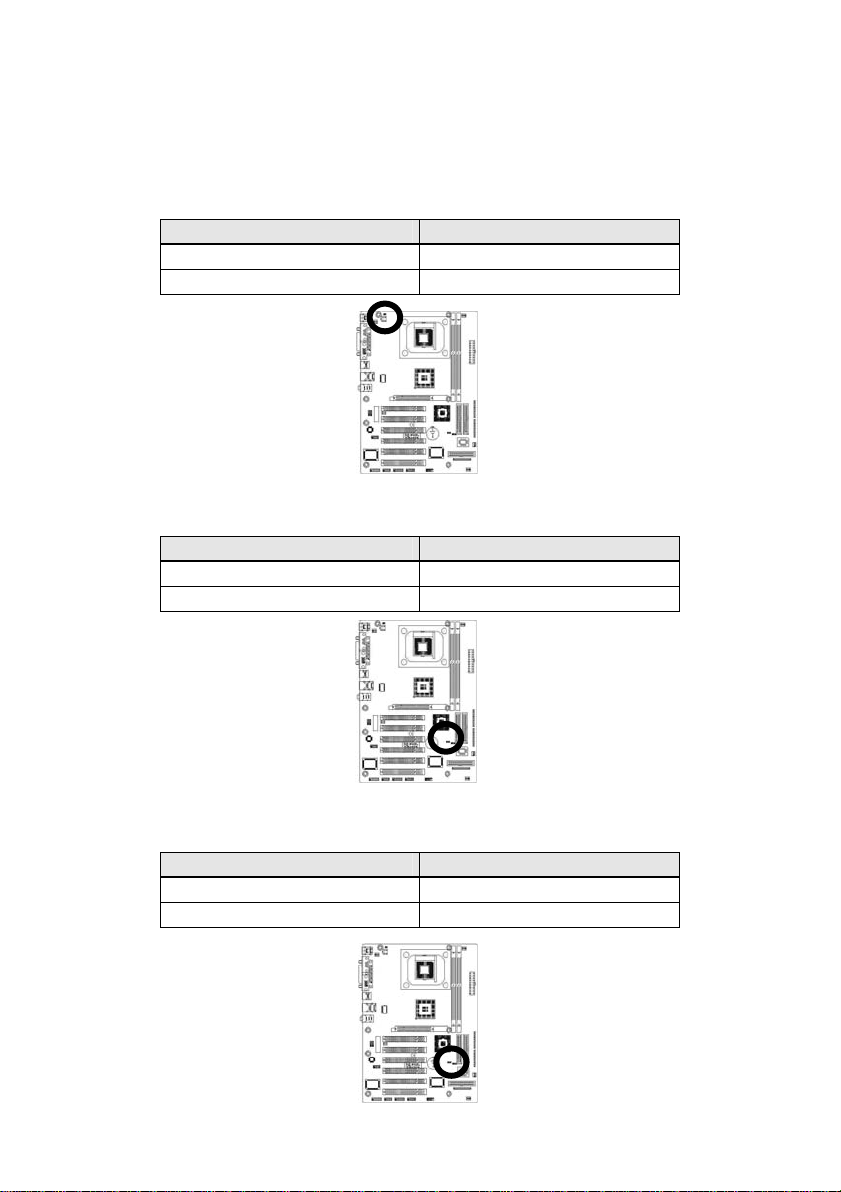

In order to set up the correct configuration, here is the description about
how to set the jumpers to enable/disable or change functions. All jumpers’
location please refer to jumper location diagram.
CPU type select: JP1
Function JP1
Regular P4 CPU (Default) 1-2 On
P4 Mobile CPU 1-2 Off
yLocation:
Watchdog Timer setting select: JP3
Function JP3
NMI (Default) 1-2
Reset System 2-3
yLocation:
Clear CMOS setting select: JBAT1
Function JBAT1
Normal (Default) 1-2
Clear CMOS 2-3
yLocation:
