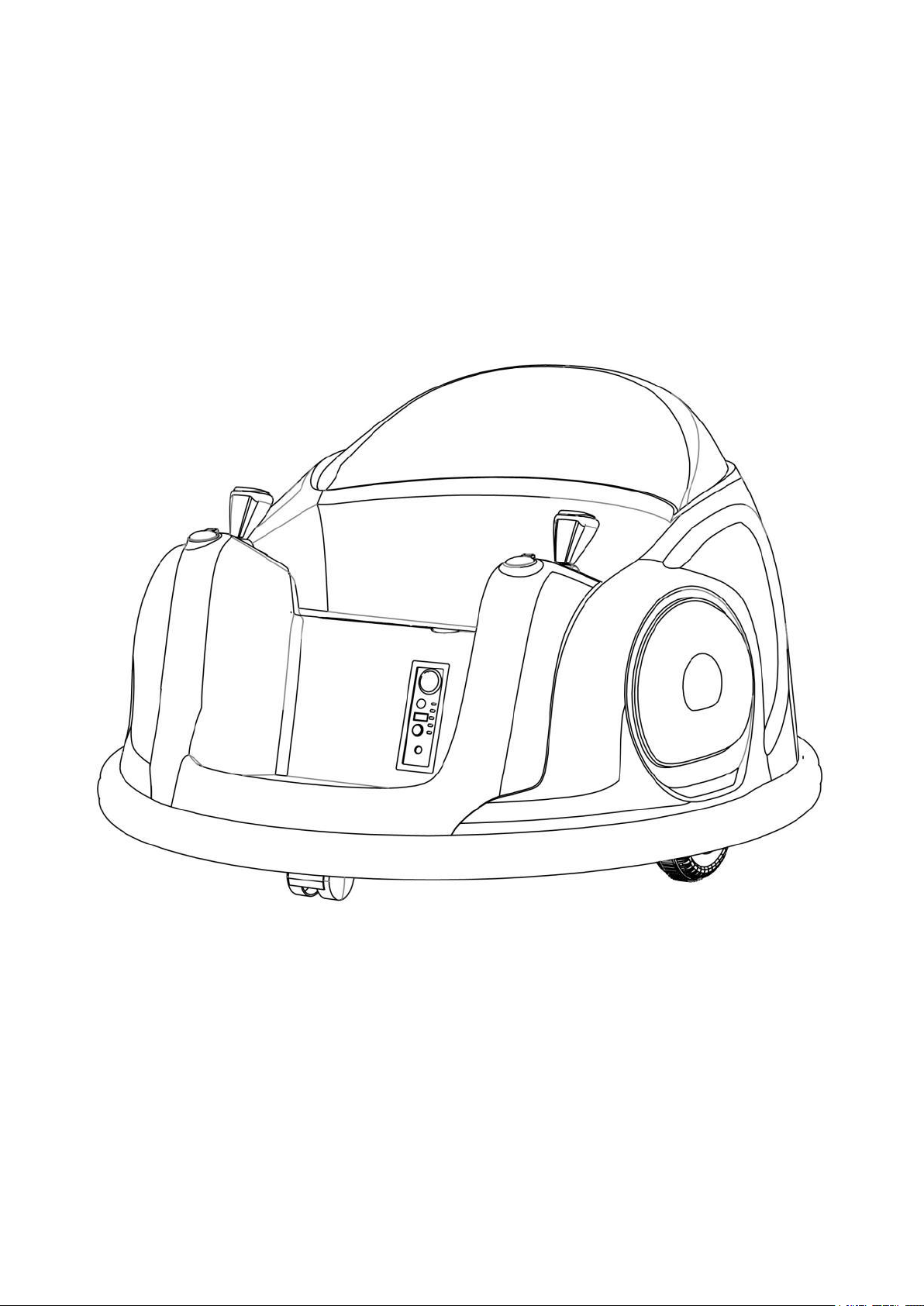

Kool Karz Playground 360 Racer User manual

DEALERS MUST TRANSLATE THEIR OWN LANGUAGE OF
MANUAL INSTRUCTIONS BELOW FOR YOUR MARKET
PLEASE READ THE INSTRUCTIONS
CAREFULLY BEFORE USE
Styles and colors may vary
Keep the package away from children and dispose of properly before
use
KKNL-018

1. Specification：
Motor
380*14000 *2
Battery
6V4AH*1
Charger
6V500MA / 6V1000MA
Speed
1~1.5 km/hr
Suitable age : 37-96 months
Load Capacity: Under 25KGS
Size of car: 66.5*66.5*44CM
Power way: Charging type
Charge time : 8-12 hours
2.Packing list：
Number
Name
Quantity
1
Remote Control
1
2
Charger
1
3
Manual
1
Assembly tools required:
Cross screwdriver
(not included)

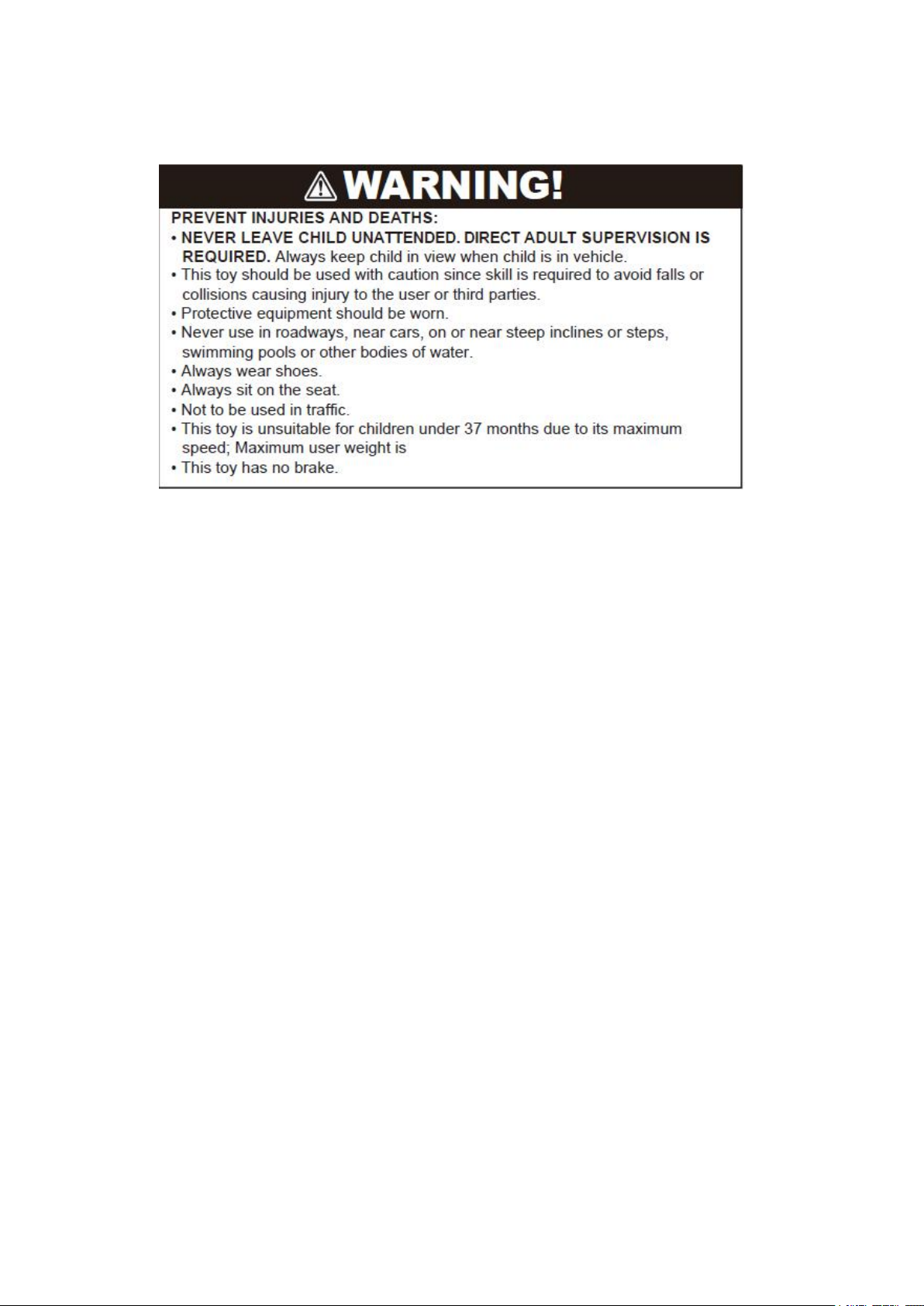

WARNING!
FOR THE SAFETY OF YOUR CHILDREN , PLEASE READ ALL
WARNINGS AND ASSEMBLY/USE INSTRUCTIONS.KEEP THIS GUIDE
FOR FUTURE REFERENCE.
ADULT ASSEMBLY REQUIRED. The product contains small parts, which
are for adult assembly only. Keep children away when assembling.
Always remove protective material and poly bags and dispose before
assembly.

2. Operation Instruction:
A. Backrest installation
Clip the backrest into the body slot;

B. Power Connecting & Install seat （Optional）
Configuration 1
1. Find the main power line and insert the plug-in of the power line into the
corresponding socket of the receiver;
2. Cover the seat on the battery
3. Fix the seat with screw by cross screwdriver

Configuration 2
1. Access the battery under the seat, connect the battery terminals (red to
red, Black to black)
2. Cover the seat on the battery
3. Fix the seat with screw by cross screwdriver

C. Function introduction （Optional）

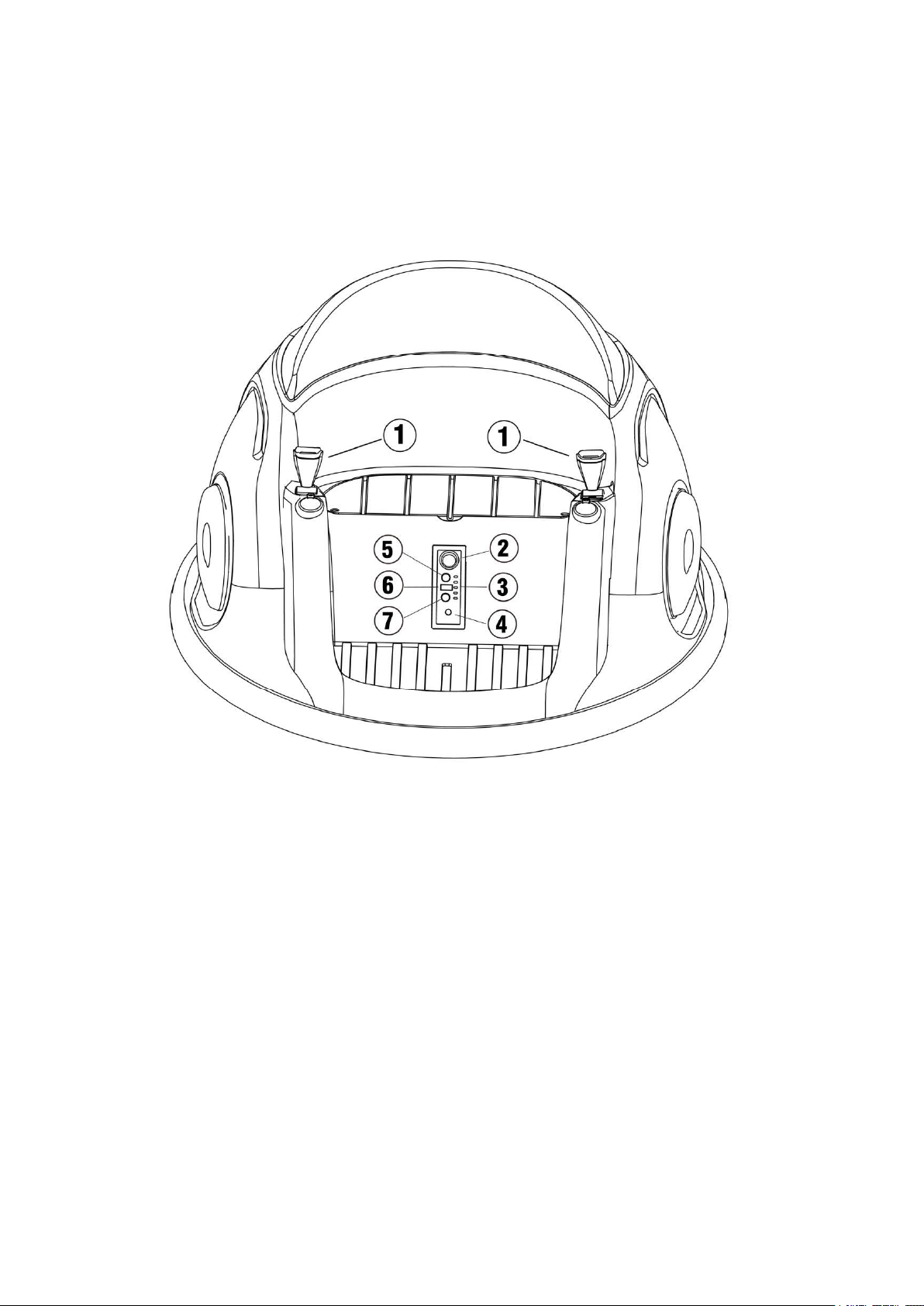

Configuration 1
stop
1．Forward-backward button：control the car forward or backward ,middle is
2．Power button: Turn the vehicle on and off
3．Power display: Clearly see the battery power, in order to charge.
4．Socket: charge.
5．Bluetooth function / music function: Click to switch mode;
6．USB;
7．Next song: Switch songs.

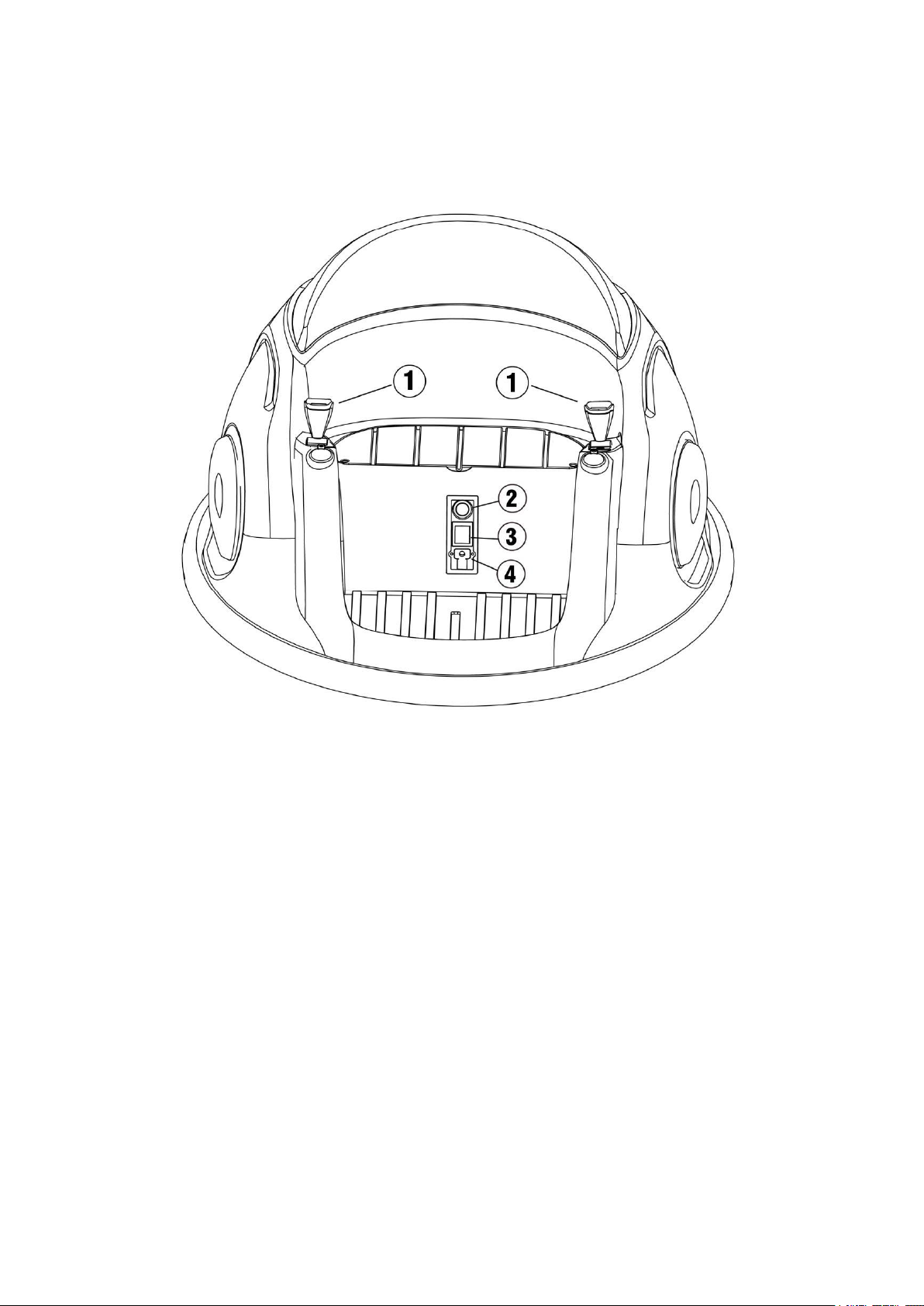

Configuration 2
1. Forward-backward button：control the car forward or backward ,middle is
stop
2. Power button: Turn the vehicle on and off
3. Light button: Turn on /off the light
4. Socket : Charge

D. Dinner plate installation
1.Clip the dining plate into the car body slot;

E. Use The Remote Control
NOTE: This product does not include the AAA(1.5v) batteries
Only allow adult to use remote control, can not let the children touch
Subject to the material object
Operation manual : For the first time use (Or Replace the battery)Need to
frequency pair
Take out the remote control, install the battery
Long press on the button “M” for 2-4 seconds, Indicator light will flash
Turn on the power of the car, Indicator light flashes to solid light, then
frequency pair is completed
If the frequency bind failed (Indicator light flashes) , remove the battery and
repeat steps 1~3
remote control without operation after 10 seconds, Indicator light will turn off
into power saving mode

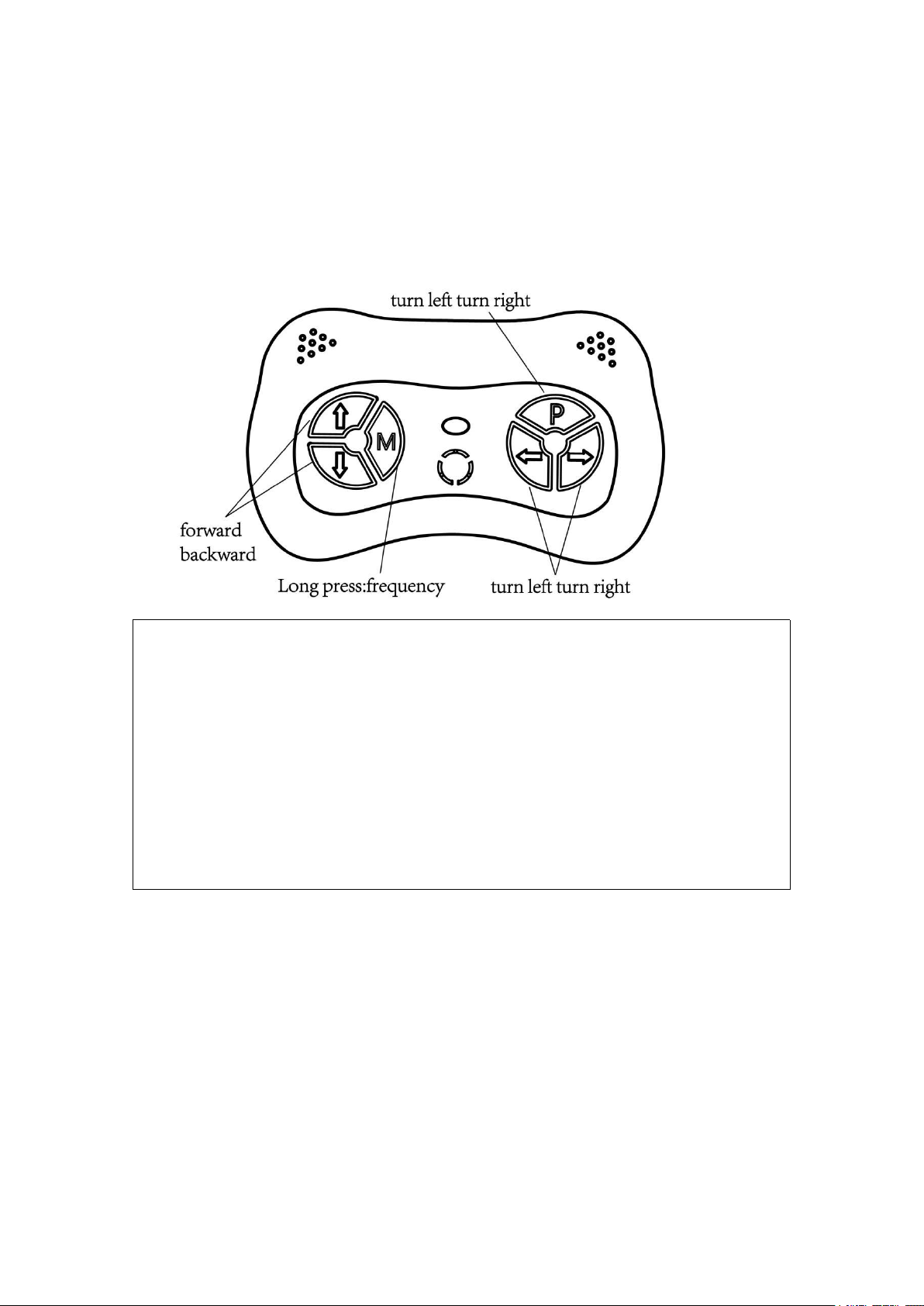

Button Description: △forward ▽backward ◁ turn left ▷ turn right
P: emergency brake, press it and the running function will fail, press again, it
release

4. Safety
Rules for Safe Riding
Keep Children within safe riding areas:
Never use in roadway, near motor vehicles, on lawn space , on or near steep inclines
or steps swimming pools or other bodies of water;
Use the toy only on flat surfaces. Such as inside your house, garden or
playground
Never use in the dark . A child could encounter unexpected obstacles and have
an accident. Operate the vehicles only in the daytime or well-lit area.
It is prohibited to change the circuit or add other electric parts.
Inspect wires and connections of the vehicle periodically
Do not let any child touch the wheels or be near them when the car is moving.
NEVER pick up the battery by the wires or charger. Damage can occur to the battery
and may cause a fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Wash hands after handling.
Do not open the battery. Battery contains lead acid and other materials that are
toxic and corrosive.
Do not open the charger. Exposed wiring and circuitry inside case electric shock..
Only adults may handle or charge the batter. NEVER allow child to handle or
charge the battery. Battery is heavy and contains lead acid (electrolyte).
Do not drop the battery. Permanent damage to the battery could occur or cause
serious injury.
Before charging the battery, check for wear or damage to the battery, charger, its
supply cord and the connectors. DO NOT charge the battery if any damage to
parts has occurred.
25 kgs.

Do not allow the battery to drain completely. Recharge the battery after each
use or once a month if not used regularly.
Do not charge battery upside down.
Always secure the battery with bracket, Battery can fall out and injure a child if
vehicle tips over.
The POWER SWITCH must be turned in OFF position when charging.
Before the first use, you should charge the battery for 4-6 hours. Do not recharge
the battery for more than 10 hours to avoid overheating the charger.
When the vehicle begins to run slowly, recharge the battery.
After each use or once a month minimum recharge times as 8 to 12 hours, less
than 20 hours at most.
5. Charging
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
Put the charger plug into the socket as picture
Please turn off the power before Charge
6.Battery Replacement
To avoid losing power , follow these guidelines:
Do not overload the vehicle.
Do not tow anything behind the vehicle.
Do not drive up steep slopes.
Do not drive into fixed objects, which may cause the wheels to spin, causing the
motor to overheat.
Do not drive in very hot weather, components may overheat.
Do not allow water or other liquid to come in contact with the battery or other
electric components.
Do not tamper with the electric system. Doing so many create a short , causing the
fuse to trip.

7.Troubleshooting Guide
Problem
Possible Cause
Solution
Vehicle dose not
run
Battery low on
power
Recharge battery
Fuse has broken
Replace,see<Fuse>
Battery connector or
wires are loose
Check that battery connectors are firmly plugged into each other. If
wires are loose around the motor contact your distributor please
Battery is dead
Replace battery ,contact your distributor please
Electrical system is
damaged
Contact your distributor please
Motor is damaged
Contact your distributor please
Vehicle dose not
run very long
Batter is under
charged
Check that the battery connectors are firmly plugged into each
other when recharging
Battery is old
Replace battery, contact your distributor please.
Vehicle runs
sluggishly
Battery low on
power
Recharge battery, contact your distributor please.
Battery is old
Recharge battery, contact your distributor please.
Vehicle is overload
Reduce weight on vehicle. Maximum user weight is 25 kgs.
Vehicle is being
used in harsh conditions
Avoid using vehicle in harsh conditions, see<safety>
Vehicle needs a
push to go forward
Poor contact of
wires or connectors
Check that the battery connectors are firmly plugged into each
other. If wires are loose around the motor, contact your distributor
please.
“Dead Spot” on
motor
A dead spot means the electric power is not being delivered to the
terminal connection and the vehicle needs repair. Contact your
distributor please.
Loud grinding or
clicking noises coming
from motor or gear box
Motor or gears are
damaged
Contact your distributor please.
Battery with not
recharge
Battery connector
adapter connector is
loose
Check that the battery connectors are firmly plugged into each
other.
Charger not plugged
in
Check that the battery charge is plugged into a working wall outlet.
Charger is not
working
Contact your distributor please.
Charger feels warm
when recharging
This is normal and
not a cause for concem
Completely read through this manual and the troubleshooting guide table before
calling. If you still need help resolving the problem Contact your distributor please.

8.Maintaining
●It is parents’ responsibility to check main parts of the toy before using, Must
regularly examine for potential hazard, such as the battery, charge, cable or cord,
plug, screws are fastening enclosure of other parts and that in the event of such
damage, the toy must not be until that damage had been properly removed.
Make sure the plastic parts of the vehicle are not cracked or broken.
Occasionally use a lightweight oil to lubricate moving parts such as wheels.
Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic
parts may melt.
Recharge the battery after each use. Only an adult can handle the battery.
Recharge the battery at least once a month when the vehicle Raider is not being
used.
Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water.
Do not drive the vehicle in rainy or snowy weather. Water will damage the motor,
electric system and battery.
Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a
non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
Do not drive the vehicle in loose dirt, sand or fine gravel which could damage
moving parts, motors or the electric system.
When not using, all the electrical source should be turn off. Turn off the power
switch and disconnect the battery connection.
