Kool Karz Playground KKATV-013 User manual

Children’s electric toy car
KKATV-013
•Please read these directions carefully before using.
•Not be used in traffic.
•Remember to keep the instruction for further reference.
•In order to improve products and quality, we may change the
structure, appearance, packing and assembly of parts of the
products. When there is a difference between the manual and
the real thing, please take the real thing as the standard.
Instruction for installation and use

PP
Table of contents
1. About this product …………………………………………… Page 2
2. Parts list ……………………………………………………… page 3
3. Parts diagram ………………………………………………… page 4
4. Assembly steps ……………………………………………. Page 5-6
5. How to operate this product ……………………………… page 7-8
6. Charging matters …………………………………………….. page 9
7. Troubleshooting guide ………………………………………. page 10
8. Simple maintenance ………………………………………… page 11
9. Disposal of battery
Thanks for choosing our products; we sincerely hope our production
could bring happiness to both your children and your family. Please
read these instructions before use.
About this product
Age range 37-72months old Battery DC6V4.5AH*1
Load limit Less than 30KG RS-380 RPM6V
14000
Motor
Material Optimum
temperature Below 40℃
Charger
Input : 100-240 V
50-60HZ
Charging
time
8-12 hours no more
than 20 hours
Output : 6V500mA Fuse 5A self-resetting
Size 70.6 *43.6 *44.8 CM
Warning!
For the safety of your children, please read all warnings and
assembly/use instructions. Keep this guide for future reference.
·This product should be assembled by adults only. This product
contains small parts, keep children away when assembling.
·Always remove protective material and poly bags and dispose before
assembly.
2

电动童车
BRD-2101
安装使用说明书
◆使用前请仔细阅读本说明书。
◆非交通工具，不能在公共交通的道路上行驶。
◆说明书含有重要信息，请妥善保管以备将来参考。
◆为了改良产品和改善品质。在未予以告知的情况下，我们可能
更改产品的部分结构、外观、包装方式、组装方法的可能。当
说明书与实物存在差异时，请以实物为准。敬请谅解!
平湖市聚君车业有限公司
1 1
1
4
1
1
3
1
1
6
1
2
3
4
5
6
7
8
9
10
Parts list
PART
NO.
PART
NAME PICTURE QUANTITY REMARKS
Body
Rear d-axis
Wheel hub
Front guide
Handle
Wheel
Driving
wheel
Charger
4*10 flat
head screw
Instruction
3

Parts diagram
Hammer
(not included)
Tools required
Screwdriver
(not included)
Pliers
(not included)
Note: some parts shown
are assembled on both
sides of this product.
The charging process has to be operated by adults!
Charging matters
- Prevent fire and electric shock.
- Neversubstitute the battery or the charger with another brand.
Using another battery or charger may cause a fire or explosion.
- Do not use the battery or charger for any other products.
Overheating, fire or explosion could occur.
- Never modify the electric circuit system. Tampering with the
electric system may cause a shock, fire or explosion or may
permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or
explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Flammable gas is created during charging. Do not charge this
product near hear or flammable materials. Charge the battery
in a well-ventilated area only.
- Never pick up the battery by the wires. Damage can occur to
the battery and may cause a fire.
- Charge the battery in dry area only.
Warning!
4

•This product requires adult assembly. Please set aside at least 40
minutes for assembly. Children can be harmed by small parts, sharp
edges and sharp points in the product’s unassembled state.
•Please identify all parts before assembly and save all packaging
material until assembly is complete to ensure that no parts are discarded.
•Assembly tool for need: screwdriver (not included), pliers (not included),
hammer (not included).
Assembly steps
1. Install the front guard
Install the front guard into the positioning
ring first, and then fix it by 6 4*10flat head
screws.
2. Install the front wheel
Remove the nut and gasket from the front
axle and install the front wheel (notice:
there is difference between front wheel
and driving wheel),
3. Install the motor and rear wheel
Insert the rear d-axis into the body of the
product (notice: insert the rear axle to the
left and right). Connect the drive motor to
the rear axle and connect the wire, install
the rear wheel (notice: there is difference
left rear wheel and right rear wheel), place
in gasket and lock with M8 nut.
5

Assembly steps
4. Install the handle
Take the handle first, connect the wire on
the handlebar with the wire on the body,
and then insert the handle into the body
hole to connect with the front axle, place
in gasket and lock with M8 nut.
5. Remove seat and connect
power supply
Remove seat with cross screws (as shown
in figure), then connect the power cord.
Install the seat and lock the screws with a
cross screwdriver.
Battery warning!
Different kinds and new/old batteries cannot be used together.
Non-rechargeable batteries cannot be recharged.
Rechargeable batteries should only be charged by adults.
Rechargeable batteries should be taken out before recharging.
Batteries can only be interposed in right poses.
Used batteries should be taken out of the toy in time. Short
circuit is strictly prohibited.
Do not use dry cell.
6

Prevent injuries and personal safety accidents:
How to operate this product
Warning!
·Do not leave children alone on this product. This product should only
be used under adult’s supervision.
·Never use in roadways, near cars, on or near steep inclines or
swimming pools.
·Always wear shoes.
·Always sit on the seat.
·Age range: 37-72 months old, load limit: 30KG
·Not to be used in traffic.
Before using this product, please make sure that the
following steps have been completed:
·Important! Before first use, please charge this product for 8-12hours, no
more than 20 hours. The charging process has to be operated by adults.
·The assembling process could be operated by adults. The power supply
and circuit parts have been assembled.
Tighten and fix all screws where needed.
Rules for safe riding
Please read the following safe use rules for your child and their
playmates to make sure they understand them correctly.
·This product has no brakes. Always wear a helmet and protective clothing when riding.
·This car should only be used under adult’s supervision.
·Make sure this product is used in a safe place.
·Never use in roadways, near cars, lawn, on steep inclines or swimming pools.
·Use this product on flat surfaces. Such as inside your house, or in the park.
·Never use in the dark. Children could encounter unexpected obstacles and have
accidents. Use this product only in the daytime.
·It is not recommended to use this product on wet surfaces or on slopes exceeding 15°.
·Do not use this product outside when it is raining or snowing.
·Make sure it comes to a complete stop before changing directions from forward to back.
·Please follow the correct age range and load limit requests.
·It is prohibited to change the circuit or add other electric parts.
·Check the wires regularly.
·To ensure the safety of children, please check the product before each use.
Do not let children stand near this product when it is moving, especially the wheels.
7

MP3
Operation steps (please make sure the power is on)
How to operate this product
Power
switch
Handle start button
Forward and reverse switch
Always stop this product when
changing the speed or direction
to avoid damaging the gearbox
and motor.
Important!
1) Turn on the power
2) Forward
Press the “forward” button.
Press the handle button.
Product will be forward.
3) Stop
Release the handle button.
4) Reverse
Press the “reverse” button.
Press the handle button.
Product drives backward.
How to operate MP3 player
8
1)USB card slot: plug in a USB terminal, connect to the audio source,
then you can play sound.
2)music Blue Tooth mode switch: press the button, play music,press
button again,play music in Blue Tooth mode, press button once more,
switch back to music mode.
3)button for skipping the song: press the button, skip to the next song.
4)volume decrease.
5)volume increase.

Charging matters
·Remove the overheated part and wash your hands immediately after completion.
·Do not open the battery, it contains lead and acid substances, which can cause
poisoning and corrosion.
·Do not open the charger. Exposed wires can cause an electric shock. The
charging process has to be operated by adults.
·Do not drop the battery. Permanent damage to the battery could occur or cause
serious injury.
·Before charging, please carefully check the circuit and parts are in good
condition. If there is any damage, please stop charging.
·Do not use up the battery. Please charge the product in time after each use. If
not used for a long time, please charge the product regularly every month.
·Do not place the battery upside down.
·Please check whether the battery cover is properly covered. The battery flying
out may injure children.
·Use this product under adults’ supervision.
·Please be careful when using the product to prevent children from falling.
Warning!
·The charging input is above the right axle at the rear.
·Please turn off the power when charging.
·Before the first use, please charge this product for 8-12 hours. Do not
charge over 20 hours to avoid overheating.
·When the speed comes low, please charge in time.
·Please charge in time after each use. When the product will not be used
for a long time, charge it regularly monthly, for 8-12 hours each time, no
more than 20 hours.
1. The charging input is above the right axle at the rear.
2. The charging port is connected with the charging hole.
3. Plug it into the socket and charging process starts to work.
Charging
input
This product includes charging
protection device:When charging,
all functions will be cut off.
Warning!
9

Fuse:5A
Batteries
Troubleshooting guide
10
Problem cause: battery has low voltage.
Please charge in time after each use. When the product will not be used
for a long time, charge it regularly monthly, for 8-12 hours each time, no
more than 20 hours.
Problem cause: resettable fuse tripped
This product is equipped with a self-resetting fuse. When this product is
overloaded or operated incorrectly, the self- resetting fuse will be cut off
for 5-20 seconds before using again. The self-resetting fuse is under the
seat. (Refer to the figure)
Problem: This product is not moving
Fuse
To avoid the fuse being cut off, please
refer to the following suggestions:
Do not overload, the maximum weight
is 30KG.
Do not use this product to pull things.
Do not drive up steep slopes.
Be careful not to let the tires get stuck
in obstacles, which can cause the tires
to run at high speed and the engine to
overheat.
Do not use this product in hot weather; it will cause overheating of the accessories.
Do not change the circuit on your own; it will cause a short circuit.
Problem cause: wheel nuts are loose
When the screw is loose, the tire will not be able to run forward. Before
each use, please carefully check whether the tire screws are tightened.

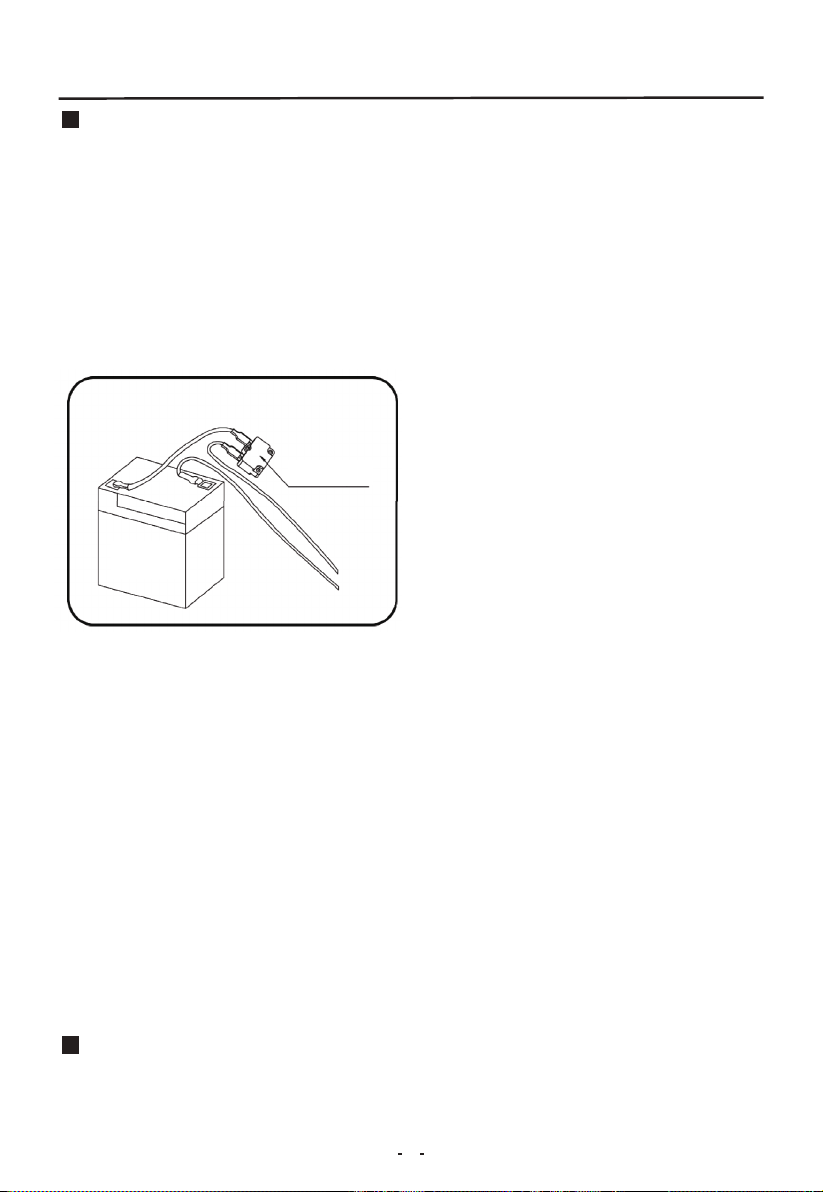

Problem cause: socket connector of the battery has fallen off
Please carefully check whether the battery connection is loose before each use.
Problem cause: battery is damaged
Are the batteries in the right position? Is the battery old? Please replace
the new battery in time.
Problem cause: Electric system is damaged
If the product is soaked in water or sand, it will lead to circuit system be
damaged. Please keep away from liquid items.
Problem cause: motor is damaged
Go to the maintenance.
Problem: battery cannot be recharged
Problem cause: socket connector of the battery has fallen off
Please carefully check whether the battery connection is loose before
each use.

11
Troubleshooting guide
Problem cause: The charger is not plugged in
Please carefully check whether the socket is plugged in, the power is on.
Problem cause: charger is not working
Does the charger get hot when charging? If not, it means that the charger
is damaged. Please replace the new charger in time.
Problem: short ride mileage
Problem cause: battery has low voltage
Please charge in time after each use. When the product will not be used
for a long time, charge it regularly monthly, for 8-12 hours each time, no
more than 20 hours.
Problem cause: battery is old
The speed of battery aging is different according to how often it is used.
When the battery is found aging, please replace the new battery in time.
Problem: There’s slight sound when charging
Problem: There’s heat when charging
It’s normal.
It’s normal.
·Adults should regularly check the main parts of this product, such as battery,
charger, wire, shell, switch and other parts, check whether the fastening parts
are loose, and stop using them in time until the potential trouble is found.
·Make sure the plastic parts of the product are not cracked or broken.
·Lubricate the vehicle with oil to prevent rust after a period of use.
·Please keep the product indoors. In case of wet weather, please cover the
product with waterproof cloth.
·Keep your car away from the heat. Plastic parts can be easily melted.
·Please charge in time after each use. When the product will not be used for a
long time, charge it regularly monthly by adults.
·Do not wash the vehicle with soap and water, which can damage the motor
battery and cause a short circuit.
·Clean this product can be wiped with dry cloth, and non-waxy furniture polish
can be used instead of soft cloth.
·Keep away from dangerous areas like street, road, slopes, and graveled path.
Otherwise, motor and electric system may be damaged.
·Please turn off the power when not use this product. Disconnect the battery
components if not using for a long time.
Maintenance

12
Disposal of battery
Disposal of battery
·The battery can be recycled and cannot be discarded.
·Do not discard the battery near the fire; it will cause explosion and
leakage.
·Do not dispose of a lead-acid battery in household trash. The
incineration, land filling or mixing of sealed lead-acid batteries with
household trash is prohibited by law.
·Put the exhausted battery into the designated dustbin or give it to a
professional worker.
·Please consult the relevant institutions for reasonable treatment before
handling the battery by your own.
·Before the first, make sure the battery has been charged. The charging
process has to be finished by adults.
·Charging should be carried out within the specified voltage range; do not
perform other operations on the product while charging.
·Charging can only be done under adult supervision.
·Check sockets, wiring, charging case and other parts regularly; once
found damaged, please stop using.
·Check whether the positive and negative poles are correct.
·Non-rechargeable batteries cannot be recharged; such kind of batteries
should be taken out when it is used up.
·New/old and different types of batteries cannot be used together.
·Check the battery regularly; once any damage is found, please stop
using it until repair work is completed.
