Koolatron TotalChef KMJ-01 Technical specifications

Owner’s Manual & Recipe Guide
KMJ-01

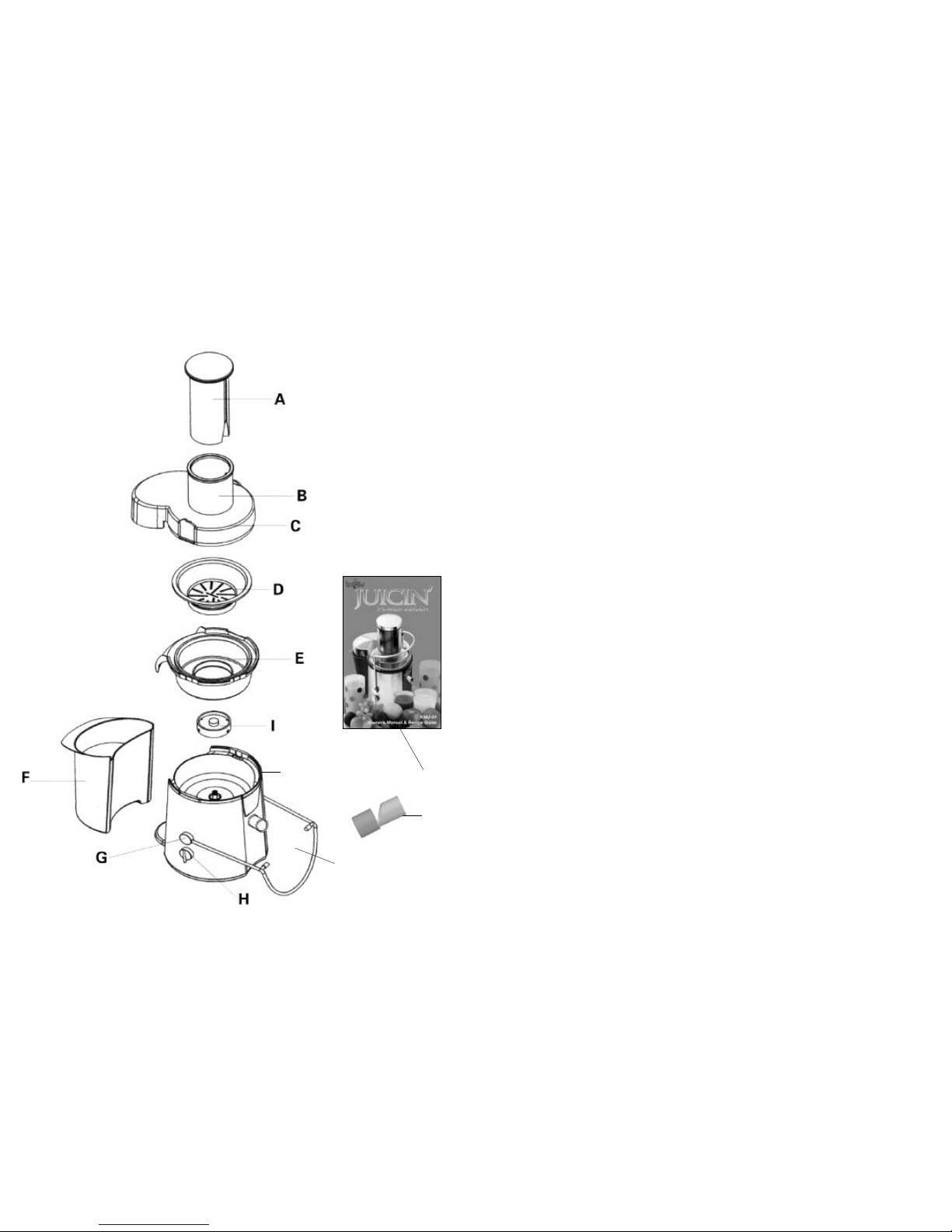

PARTS DESCRIPTION
A) Plunger
B) Feeding Tube
C) Lid
D) Filter
E) Juice Collector
F) Pulp Container
G) Clamps
H) Control Knob
I) Driving Shaft
(Do not remove)
J) Motor Unit
K) Spout
L) Manual
M) No-Drip Cap
•2• •3•
K
J
FEATURES
•700 Watt Motor
•Dual Speed Selector
•22,000 RPM’s
•Surgical Steel Juicing Blade
•Auto Shut-Off
•No-Drip Cap
•Wide Chute Opening
•Suction Cups for Sturdy Placement
L
IMPORTANT SAFEGUARDS
READ THESE INSTRUCTIONS FOR USE CAREFULLY BEFORE USING THE
JUICER AND SAVE THEM FOR FUTURE USE!
•Do not use the appliance when the cord, plug or other components are
damaged.
•If the cord is damaged it must be replaced by the manufacturer or its service
agent.
•This appliance is intended for household use only.
•Keep the appliance out of reach of children.
•Check the filter everytime you want to use the appliance. If you detect any
cracks or damage, do not use the appliance.
•Make sureall parts arecorrectly mounted beforeyou switch on the
appliance.
•Only use the appliance when the clamp is locked.
•Do not operate the juicer for morethan 40 seconds at a time when
juicing heavy loads, allowing sufficient cool down time between uses.
•NEVER reach into the feeding tube with your fingers or with an object while
the appliance is running. Only the pusher is to be used for this purpose.
•Only unlock the clamp after you have switched the appliance off and the filter
has stopped rotating.
•Do not touch the small cutting blades in the base of the filter.
•Always unplug the appliance after use.
•Never immerse the motor unit in water or any other liquid.
Do not rinse it either.
M

4. Hold the lid over the filter and lower it into position.
5. Snap the two clamps onto the lid to lock it into place. (You
will hear a click).
NOTE: Make surethe clamp is locked into position on both
sides of the lid.
6. Slide the pusher into the feeding tube by aligning the
groove in the pusher with the small protrusion on the
inside of the feeding tube.
•4• •5•
3. Put the filter in the juice collector. Make sure the filter is
fitted securely onto the driving shaft. The blade should sit
below the rim of the pulp container when in place.
DIRECTIONS FOR USE
KNOB:
Off
Position 1 - Standard Speed
(For most fruits & vegetables)
Position 2 - High Speed (For hard skin &
tough foods)
Off
Position 1
Position 2
The Juicer will only function if all parts have been properly assembled and the
lid has been properly locked in place with the clamps.
After you have processed all ingredients and the juice flow has stopped, switch
the appliance offand wait until the filter has stopped rotating.
1. For oversized pieces, wash the fruit and/or vegetables
and cut them into pieces that fit into the feeding tube.
2. Make sure your glass or pitcher sits under the spout to
collect the juice.
3. Put the pieces in the feeding tube and gently press
them towards the rotating filter by means of the pusher.
NOTE: Do not exert too much pressure on the pusher, as
this could affect the quality of the end result and it could
damage the filter.
PREPARING FOR USE
1. Place the juice collector into the appliance. Make sure the
rim is flush with the motor unit.
2. Place the pulp container into the appliance by tilting it
forwards slightly. Insert the top end first and then push
down the bottom end.
NOTE: While you are preparing juice, you can empty the
pulp container by switching the appliance off and carefully
removing the pulp container. Reassemble the empty pulp
container before you continue juicing.
“NO-DRIP” CAP:
The Juice Guru is equipped with a “No-Drip” Cap. When you
do not want juice to come out, simply slide the cap over the
spout to block the opening. Wash after every use.
WARNING: Make sure you remove the cap before juicing to
prevent backflow or damage to the unit.

3. Remove the juice collector together with the filter.
4. Clean these parts with the cleaning brush in warm water with a mild
detergent.
5. Clean the motor unit with a damp cloth.
NOTE: NEVER IMMERSE THE MOTOR UNIT IN WATER.
TROUBLESHOOTING
PROBLEM SOLUTION
TIPS
•Use fresh fruit and vegetables, as they contain more juice. Pineapples,
beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons,
tomatoes, pomegranates, oranges and grapes are particularly suitable for
processing in the Juicer.
•You do not have to remove thin peels or skins. Only thick peels, e.g. those
of oranges, pineapples and uncooked beetroots need to be removed. Also
remove the white pith of citrus fruits because it has a bitter taste.
•When preparing apple juice, remember that the thickness of the apple juice
depends on the kind of apple you are using. The juicier the apple, the thinner
the juice. Choose a kind of apple that produces the type of juice you prefer.
•Apple juice turns brown very quickly. You can slow down this process by
adding a few drops of lemon juice.
•Fruits that contain starch, such as bananas, papayas, avocados, figs, and
mangos are not suitable for processing in the juicer. Use a food processor,
blender or bar blender to process these fruits.
•Leaves and leaf stalks, e.g. lettuce can also be processed in the juicer.
•Drink the juice soon after you have extracted it. If it is exposed to air for
some time, the juice will lose it’s taste and nutritional value. Place in sealed
container,to extend taste and nutritional value.
•To extract the maximum amount of juice, always press the pusher down
slowly.
•The juicer is not suitable for processing very hard and/or fibrous/starchy fruits
or vegetables such as sugar cane.
CLEANING
•The Juicer is easier to clean if you do so immediately after use.
•Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean
appliance.
•All detachable parts are dishwasher safe.
1. Switch the juicer off, remove the plug and wait until the filter has stopped
rotating.
2. Remove the dirty parts from the motor unit. Disassemble the juicer in the
following order:
•Remove the pulp container
•Remove the pusher
•Open the clamps
•Remove the lid
•6• •7•
The juicer does not work. The juicer is equipped with a safety
system. It will not work if the parts
have not been mounted properly.
Check whether the parts have been
assembled in the right way, but switch
offthe juicer before you do so.
The motor unit gives off an
unpleasant smell the first few
times the appliance is used.
This is not unusual. If the appliance
continues to give off this smell after a
few uses, check the quantities you are
processing and the processing time.
The filter is blocked. Switch the appliance off, clean the
feeding tube and the filter and process
asmaller quantity.
The filter touches the feeding tube or
vibrates strongly during processing.
Switch the juicer offand unplug it.
Check if the filter has been properly
placed in the juice collector. The ribs
in the bottom of the filter should fit
properly onto the driving shaft.
Check if the filter is damaged.

RECIPES RECIPES
INTRODUCTION
Freshly squeezed juices are an easy yet refreshing way to stay healthy and increase your intake of
fruits and vegetables. The Juicer will not only allow you to have the best tasting treats and drinks, it
will provide a very nutritional value to your diet.
If you like the amazing taste of fresh juice, it doesn’t get any better than this.
Thank you and enjoy juicing!
To help you get started, we have provided you with the following:
HINTS & TIPS
In order to get the most out of your JUICIN’, we highly suggest that you review this
section before you get started.
COLOR SOURCE
This section contains a chart that highlights different kinds of fruits/vegetables and what
vitamins/nutrients they provide.
RECIPES
Included is over 50 different recipes ranging from The Basics, Healthy Living, Health Support,
Dieting/Fitness and Tasty Treats. We also encourage you to come up with your own!
Beforeyou begin using your Juicer,thereare a number of things you should consider for getting
the most out of your juicer.
• We strongly suggest using “fresh” fruits & vegetables. When they are in season, they taste better.
•Gradually push the food plunger slowly so you can extract the maximum amount of juice.
• Any fruits or vegetables that have a “rough” skin, we suggest peeling them first.
•The juicer is best used when you have removed as many seeds and pits as possible prior to
juicing.
•Cleaning can be easy by placing a plastic bag in the waster collection container.
•DO NOT pour liquids through the juicer.
•DO NOT use fruits or vegetables when they are at the height of ripeness.
•DO NOT freeze juice or pulps longer than one month.
•We suggest only leaving your juice refrigerated for 1 day, after that it begins to sour.
•Bundle herbs, sprouts and leafy green vegetables together for best results. You can even wrap
them in a lettuce leaf.
•Root ginger adds great taste to all sorts of juice recipes.
•It is best to store fruits and harder vegetables at room temperature. More delicate foods should
be refrigerated.
•Feel free to empty the pulp container while juicing - just make sureyou turnthe JUICE GURU
“off.”
Westrongly advise NOT to juice the following: Avocado, Rhubarb, Leek, Eggplant, Winter
Squash, Banana, Coconut, Figs, Mango, Papaya. Use a Food Processor or Blender to
process.
By eating a variety of colorful fruits and vegetables (green, yellow/orange, red, blue/purple, and
white) you are giving your body a wide range of nutrients that are important for good health.
Each color offers something unique, like different vitamins, minerals, and disease-fighting
phytochemicals, that work together to protect your health.
COMMON QUESTIONS WITH ANSWERS
Do I need to prepare fruits and vegetables for juicing?
Yes, but preparation is minimal. Simply wash all fruits and vegetables thoroughly before use, peel
any fruits with hard skin and remove seeds and pits.
Is there any order to juicing fruit and vegetables?
When juicing a variety of fruits and vegetables, always alternate between soft and hard ingredients.
Hard fruits, such as apples, clean out the micromesh filter, enabling the next item to be extracted
efficiently. Always end with a hard fruit as this makes cleaning the mesh filter basket very easy.
Can I juice the whole orange?
Oranges and other citrus fruits can be juiced whole, but always peel them first. For extra-frothy
orange juice, keep your oranges in the fridge before juicing.
What can I do with the residual pulp?
The pulp left from juicing is rich in fiber, vitamins and minerals. It can be used to bulk out hamburger
patties and thicken up soups and casseroles. Pulp will also add flavor to muffins, flans, mousse,
strudel and cakes. You can even use pulp in the garden as compost. Regular juicers will create
enough pulp for a worm-farm.
Can I store freshly squeezed juice in the refrigerator?
All freshly squeezed juices are best consumed immediately after juicing - the longer they sit the
more nutrients they lose. Juice is also at its most delicious when fresh.
Are the Juicer parts dishwasher safe?
The juice cover, filter bowl, pulp container, stainless steel filter basket and juice pitcher can all be
placed in the dishwasher (on the top shelf only). Alternatively, keep your juicer clean by rinsing all
of the removable parts under running water immediately after use.

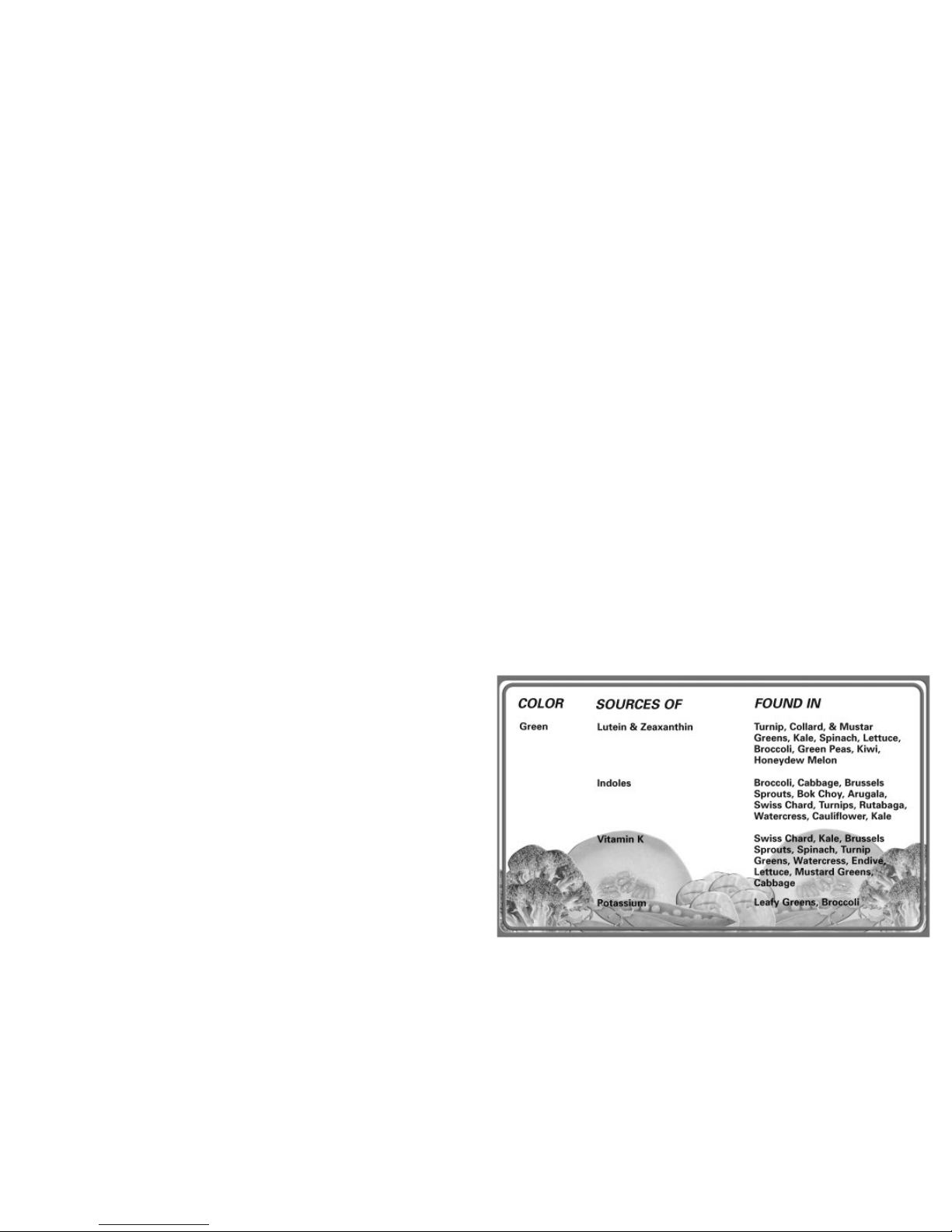

COLOR SOURCE
•8• •9•

RECIPES RECIPES
COLOR SOURCE COLOR SOURCE
•10• •11•

•12• •13•
BASICS
APPLE JUICE
•4large apples, washed and stems removed
Process through the Juicer. Serve immediately!
TIP: Mix apple varieties for best flavor. Add a carrot for a sweet difference & vitamin boost.
Spice it up with a sprig of mint or a slice of ginger.
TOMATO JUICE
•3.5 lbs. of fresh, ripe, firm tomatoes; washed, no stems or leaves
Process ingredients through Juicer. Serve immediately!
Spicy: Add a few stalks of celery with leaves (washed) and fresh ground pepper to taste.
Sweet: Add sugar for sweet tomato juice.
TIP: Fresh tomato juice can be pale, pink & frothy since it has no additives, coloring or
preservatives.
ISLAND BLEND
•1pineapple slice, top & skin removed
•1papaya, sliced & seeds removed (process in blender)
•1large orange, peeled
•1mango, peeled & pitted (process in blender)
•1guava, peeled & pitted
Process pineapple, orange and guava through the Juicer. Add papaya and mango and enjoy!
AFTERNOON DELIGHT
•1orange, peeled
•1sweet apple, washed & stems removed
•1large carrot, washed & topped & tailed
•1grapefruit, peeled
•1/2 cantaloupe, remove rind & seeds OR 1 pear, washed
Juice apple & carrot first, then juice the remaining ingredients. Serve immediately!
WATERMELON JUICE
•1watermelon
Remove rind & cut watermelon into pieces that will fit easily into chute.
Process & serve immediately!
VEGETABLE BLEND
•1large carrot, washed & topped & tailed
•1small wedge of lemon, peeled & seeded
•1head of celery, washed
Process through the Juicer. Serve immediately!
BASICS
GRAPE JUICE
• 1 bunch seedless white or red grapes, washed & stemmed
Process through the Juicer. Serve immediately!
GOOD MORNING JUICE
•1bunch red grapes, washed
•3slices pineapple, top removed & skinned
•1/2 orange, peeled
•5fresh strawberries, washed
Process through the Juicer. Serve immediately!
PINEAPPLE JUICE
•4pineapple spears, top removed & skinned
•1medium orange, peeled
Process through the Juicer. Serve immediately!
CARROT FRUIT JUICE
•4large carrots, washed & topped & tailed
• 2 sweet apples (such as red or golden delicious), washed & stems removed
Process through the Juicer. Serve immediately!
HEALTHY LIVING
BANANA, KIWI, LEMON & PEAR
Makes approximately 2 cups
•11/2 ripe banana, peeled (process in blender)
•1kiwi fruit, peeled
•1/2 lemon, peeled
• 1 pear
Process kiwi, lemon and pear through the Juicer. Add banana and serve immediately!
WILD WATERMELON
Makes approximately 1-1/2 cups
•1chopped, seeded watermelon, skin removed
•1container strawberries, hulled
•1cup papaya, peeled and seeded (process in blender)
Process watermelon and strawberries through the Juicer. Add papaya and serve immediately!
RECIPES RECIPES

•15••14•
HEALTHY LIVING
BERRY GOODNESS
Makes approximately 1-1/2 cups
•1cup frozen raspberries (allow to thaw until just soft)
•1container strawberries, hulled
•1pear
Process all ingredients through the Juicer. Serve immediately!
VITAMINS & IRON
Makes approximately 1-1/2 cups
• 10 pitted prunes
•1/4 ripe pineapple, peeled and roughly chopped
•2oranges, peeled
Process all ingredients through the Juicer. Serve immediately!
A+ VITAMIN
Makes approximately 1-1/2 cups
•4ripe apricots, pitted
•1pear
•4dates, pitted
•2oranges, peeled
Process all ingredients through the Juicer. Stir well to combine and serve immediately!
APPLE, CARROT,PEAR & LEMON
Makes approximately 1-1/2 cups
•2carrots, trimmed
•1apple
•1pear
•1/2 lemon, peeled
Process all ingredients through the Juicer and serve!
TIP: To increase the fiber content, mix 2 tsp. of slippery elm powder to a paste with a little boiling
water in the bottom of a serving glass. Add the prepared juice and whisk in 1 tbsp. of
wheatgerm, oat bran or psyllium husks.
CARROT,APPLE, LEMON & PARSLEY
Makes approximately 1-1/2 cups
•2carrots
•1apple
•1/2 lemon, peeled
•1cup lightly packed parsley leaves
Process all ingredients through the Juicer. Stir well to combine and serve immediately!
TIP: When juicing apples, add a small amount of lemon juice to prevent browning.
HEALTHY LIVING
COOL CUCUMBER JUICE
Makes approximately 1-1/2 cups
•2kiwi fruit, peeled
•2apples
•1small cucumber
Process all ingredients through the Juicer. Stir well to combine and serve immediately!
BLUE DELIGHT
Makes approximately 1-1/2 cups
•1container blueberries or 1 cup frozen blueberries (allow to thaw until just soft)
•1pink grapefruit, peeled
• 2 guavas, peeled
Process all ingredients through the Juicer and serve!
TIP: Buy grapefruit that feels heavy for their size and that have glossy, golden skin.
CANTALOUPE HEALTH
Makes approximately 1-1/2 cups
•1large or 2 small oranges, peeled
•1/2 small cantaloupe, peeled and roughly chopped
•2large carrots
Process all ingredients through the Juicer. Stir well to combine and serve immediately!
HEALTHY SUPPORT
RASPBERRY & APRICOT
Makes approximately 1-1/2 cups
•1container raspberries
•6apricots, stoned
Process all ingredients through the Juicer. Stir well to combine and serve immediately!
SWEET SURPRISE
Makes approximately 1-1/2 cups
•1lemon, peeled
•1to 2 tbsp. honey
•1/4 ripe pineapple, peeled and roughly chopped
•1small piece fresh ginger root (approx 2/3” long)
•1tbsp. bee pollen, optional (available from health food stores)
Process lemon, pineapple and ginger through Juicer. Stir in honey and bee pollen, if using. Serve
immediately!
RECIPES RECIPES

•16• •17•
HEALTHY SUPPORT
BLACKBERRY JUICE
Makes approximately 1-1/2 cups
•1cup blackberries
•3tsp. oat bran
•1medium pear
Process blackberries and pear through Juicer. Pour into a glass and whisk in the oat bran. Serve
immediately!
APPLE, CRANBERRY & PINK GRAPEFRUIT
Makes approximately 1-1/2 cups
•1cup cranberries
•1medium apple
•1medium pink grapefruit
Process all ingredients through the Juicer and serve!
TIP: If preferred, you can replace frozen cranberries with fresh ones if they are available.
PINEAPPLE, CELERY, APPLE & CUCUMBER WITH GINGER
Makes approximately 1-1/2 cups
•1/4 ripe pineapple, peeled and roughly chopped
•1apple
•2stalks celery
•1small cucumber
•1small piece fresh ginger root (approx 2/3”)
Process all ingredients through Juicer. Serve immediately!
PINEAPPLE, PAPAYA & BANANA WITH GINGER
Makes approximately 1-1/2 cups
•1/4 ripe pineapple, peeled and roughly chopped
•1cup papaya, peeled and roughly chopped (process in blender)
•1small banana (process in blender)
•1small piece fresh ginger root (approx 2/3”)
Process pineapple and ginger through Juicer. Add papaya and banana, serve immediately!
LIQUID SALAD
Makes approximately 1-1/2 cups
•1apple
•1kiwi fruit
•1celerystalk
•1ripe tomato
•1/4 bunch parsley
Process all ingredients through the Juicer. Mix well to combine and serve!
RECIPES
HEALTHY SUPPORT
PRUNE, APPLE & LEMON
Makes approximately 1-1/2 cups
• 10 pitted prunes
•2apples
•1lemon, peeled
Process all ingredients through Juicer. Stir well to combine and Serve immediately!
ORANGE, GUAVA & STRAWBERRY
Makes approximately 2 cups
•2oranges, peeled
• 3 guavas, peeled
•1container strawberries, hulled
Process all ingredients through the Juicer and serve!
TIP: For frothy orange juice, refrigerate peeled oranges before processing in the Juicer.
RED PEPPER, CELERY, CUCUMBER & LEMON
Makes approximately 1-1/2 cups
• 1 red pepper
•4stalks celery
•1small cucumber
•1/2 lemon, peeled
Remove seeds and membrane from red pepper and chop roughly.
Process all ingredients through the Juicer and serve!
FITNESS/DIET
CUCUMBER, CELERY & BEET
Makes approximately 1-1/2 cups
•1small cucumber
•1/4 bunch celery, roughly chopped
•4small or 2 large beets, stalks removed and scrubbed
Process all ingredients through the Juicer and serve!
GINGER, LEMON & PEAR
Makes approximately 1 cup
•1small or 1/2 large lemon, peeled
•1small piece fresh ginger root (approx 2/3” long)
•2pears
Process all ingredients through the Juicer and serve!
RECIPES

•18• •19•
FITNESS/DIET
PEARS, GRAPES & GINGER
Makes approximately 1-1/4 cups
•2ripe pears
•1handful of grapes (red or green)
•1small piece fresh ginger root (approx 2/3”)
Process all ingredients through the Juicer and serve!
TIP: Citrus fruits can be juiced whole in the Juicer. Simply peel the skin away.
PINEAPPLE, CANTALOUPE
Makes approximately 1-1/2 cups
•1/4 pineapple, peeled and roughly chopped
•1/4 ripe cantaloupe, peeled and roughly chopped
Process all ingredients through the Juicer and serve!
PAPAYA, PINEAPPLE & PINK GRAPEFRUIT
Makes approximately 1-1/2 cups
•1/4 ripe papaya, peeled and cut into chunks (process in blender)
•1/4 ripe pineapple, peeled and cut into chunks
•1pink grapefruit, peeled and halved
Process pineapple and grapefruit through the Juicer. Add papaya and serve!
APPLE, PEAR & ALFALFA
Makes approximately 2 cups
•1green apple
•1pear
•1container alfalfa sprouts
Process all ingredients through the Juicer and serve!
CUCUMBER, CELERY, PARSLEY & ALFALFA
Makes approximately 1 cup
•1small cucumber
•4celery stalks
•1cup lightly packed parsley
•1cup alfalfa sprouts
Process all ingredients through the Juicer and serve!
BEET, CELERY, GINGER & PEAR
Makes approximately 1-1/2 cups
•2large beets, stems removed
•4celery stalks
•1small piece fresh ginger root (approx 2/3”)
•1pear
Process all ingredients through the Juicer and serve!
RECIPES
FITNESS/DIET
PINEAPPLE, LEMON, LIME & APPLE
Makes approximately 2 cups
•1/4 pineapple, peeled and chopped
•1lime, peeled
•1lemon, peeled
•1green apple
Process all ingredients through the Juicer and serve!
CUCUMBER, WATERCRESS & APPLE
Makes approximately 1-1/2 cups
•1small cucumber
•2cups lightly packed watercress
•2green apples
Process all ingredients through the Juicer and serve!
TASTY TREATS
ISLAND FUN
•1passion fruit
•1cup grapes
•1kiwi fruit
•1/2 cup of strawberries
Process all ingredients through the Juicer and serve!
LEMONADE
•3large lemons, peeled
• 1 tbsp. sugar
•4-1/4 cups water (add after juicing)
Process lemons through the Juicer.Combine lemon juice to water,add sugar to sweeten. Serve
over crushed ice!
WATERMELON, APRICOT & STRAWBERRY
Makes approximately 2 cups
•2cups peeled, chopped and seeded watermelon
•6apricots, pitted
•1container strawberries, hulled
Process all ingredients through the Juicer and serve!
RECIPES

•20• •21•
TASTY TREATS
TROPICAL BLEND
Makes approximately 2 cups
•1mango, halved, seeded and peeled (process in blender)
•11/2 kiwi fruit, peeled
•1/4 pineapple, trimmed and halved
•1/4 cup fresh mint leaves
•1/2 cup crushed ice
Process pineapple, mint leaves and kiwi through the Juicer. Scoop ice into glasses, add mango,
and pour juice over. Serve immediately!
FRUITI PUNCH
•1pint strawberries, washed & stems removed
•1/2 pineapple, topped & skin removed & cut into spears
•1bunch red grapes, washed & stems removed
• 1/2 apple
Process ingredients through the Juicer. Serve immediately over crushed ice.
RASPBERRY DELIGHT
•2pints raspberries, washed
•1large orange, peeled
Process ingredients through the Juicer. Serve immediately over crushed ice.
MANGO MAGIC
•1firm, ripe mango; remove pit & skin (process in blender)
•2kiwi fruits, unpeeled
•1large carrot, washed & topped & tailed.
Process kiwi and carrot through the Juicer. Add mango and serve immediately.
APPLE SPARKLE
•4large apples, washed & stems removed
•10 ounces sparkling mineral water or champagne
Process ingredients through the Juicer. Serve immediately.
SPARKLING FRUIT
•1/2 lb raspberries
•1medium orange, peeled
•1/4 lime, peeled
•1/2 pineapple, top removed & skinned
•seltzer, ginger ale or champagne (add after juicing)
Process ingredients through the Juicer. Add ginger ale and serve immediately.
FRUIT PUNCH
•1pineapple, top & skin removed & cut into spears
•1pint strawberries, washed & stems removed
•2large sweet apples, washed & stems removed
•Rum (optional)
Process ingredients through the Juicer. Add rum to taste. Serve immediately over crushed ice.
RECIPES
MY RECIPES
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
RECIPES

MY RECIPES
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
MY RECIPES
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
•22• •23•
RECIPES RECIPES

09/2006-v2H1S025
WARRANTY
This KOOLATRON product is warranted to the retail consumer for 90 days from
date of retail purchase, against defects in material and workmanship.
WHAT IS COVERED:
-Replacement parts and labor.
-Transportation charges to customer for the repaired product.
WHAT IS NOT COVERED:
-Commercial or industrial use of this product.
-Damage caused by abuse, accident, misuse, or neglect.
-Transportation of the unit or component from the customer to Koolatron.
IMPLIED WARRANTIES:
Any implied warranties, including the implied warranty of
merchantability are also limited to duration of 90 days from the date
of retail purchase.
WARRANTY REGISTRATION:
Register on-line at www.koolatron.com AND keep the original, dated, sales
receipt with this manual.
WARRANTY AND SERVICE PROCEDURE:
If you have a problem with your JUICER, or you require replacement parts, please
telephone the following numbers for assistance:
North America 1-800-265-8456
The Service Advisors will advise you on the best course of action.
Koolatron has Master Service Centres at these locations:
Koolatron USA Koolatron Canada
4330 Commerce Dr. 27 Catharine Ave.
Batavia, NY Brantford, ON
14020-4102 N3T 1X5
U.S.A. CANADA
AKoolatron Master Service Centre must perform all warranty work. Service
after warranty may be obtained at a Master Service Centre or at an authorized
service dealer. Purchase Receipt is required to establish warranty eligibility.
