Korenix JetCon 1100 Series User manual

1
JetCon 1100 / 1200
USB to Serial Converter series
User’s Manual
Version 1.0
www.korenix.com

2
JetCon 1100 / JetCon 1200
User’s Manual
Copyright Notice
Copyright 2013 Korenix Technology Co., Ltd.
All rights reserved.
Reproduction in any form or by any means without permission is prohibited.

3
Declaration of CE
This product has passed the CE certification for environmental specifications. Test
conditions for passing included the equipment being operated within an industrial
enclosure. In order to protect the product from being damaged by ESD (Electrostatic
Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial
enclosure products.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his expense.
The user is cautioned that changes and modifications made to the equipment without
approval of the manufacturer could void the user's authority to operate this equipment.

Index
1Introduction.................................................................................................1
1.1 Overview ................................................................................................. 1
1.2 Major Features ......................................................................................... 1
1.3 Package List ............................................................................................ 2
2Hardware Installation ....................................................................................3
2.1 Hardware Introduction ............................................................................... 3
2.2 Wiring to Serial Device (DCE) and Host Computer (DTE) ............................... 9
2.3 Install the USB /Serial Converter onto DIN Rail ........................................... 13
3Software Driver Installation..........................................................................14
4Appendix ..................................................................................................17
4.1 Specification of JetCon 1101 / JetCon 1101i-5KV......................................... 17
4.2 Specification of JetCon 1102..................................................................... 18
4.3 Specification of JetCon 1104..................................................................... 19
4.4 Specification of JetCon 1201 /JetCon 1201i-3KV......................................... 20
4.5 Revision History...................................................................................... 23
4.6 About Korenix......................................................................................... 24

1
1Introduction
Welcome to Korenix JetCon 1100 and JetCon 1200 USB to Serial Converter series.
Following topics are covered in this chapter:
1.1 Overview
1.2 Major Features
1.3 Package Checklist
1.1 Overview
The JetCon 1100 and JetCon 1200 series provides USB to serial communicate ability with
RS-232 (JetCon 1100) and RS-422/ RS-485 (JetCon 1200) serial modes. It also provides 15KV
ESD protection for Human Body Cotact Mode and Insulation protection for some extereme
application environment, such as medical application. The JetCon 1100 series support RS-232
serial interface from 1 port to 4 ports in standard DB-9 connector for different JetCon 110x
model; and the JetCon 1200 series support RS-422/ RS485 serial mode in removable terminal
block connector.
Both of product line supports several of operating system; it includes Microsoft windows system,
Macintosh System and Linux System. To learning and use it, please read the QIG and user
manual before apply the converter.
1.2 Major Features
The major features are listed in below, and some features only presented for special
model:
JetCon 1100 Series
USB / RS-232 DTE and DCE Connection
RS-232 with Hand-Shaking function
USB 1.1/1.2/2.0 compatible
921.6 Kbps High Speed Serial
12~480Mbps USB Data Throughput
15KV Human Body ESD protection
5KV Isolation for Medical Electrical Equipment (JetCon 1101i-5KV)
-30~75°C wide operating temperature
JetCon 1200 Series
USB to RS_485 /RS_422 Serial Converter
USB 1.1/1.2/2.0 compatible
921.6 Kbps High Speed Serial
12Mbps USB Data Throughput

2
JetCon 1101/1101i-5KV
Build-in 120ΩLine Terminator
32 x RS-485 devices connection
15KV Human Body ESD protection
3KV isolation, 600W Serial Port surge protection (JetCon 1201i-3KV)
-30~75°C wide operating temperature
The detail spec is listed in Session- 4 Appendix
Note-1: those certifications are pending for special project request, please contact your
sales widnow.

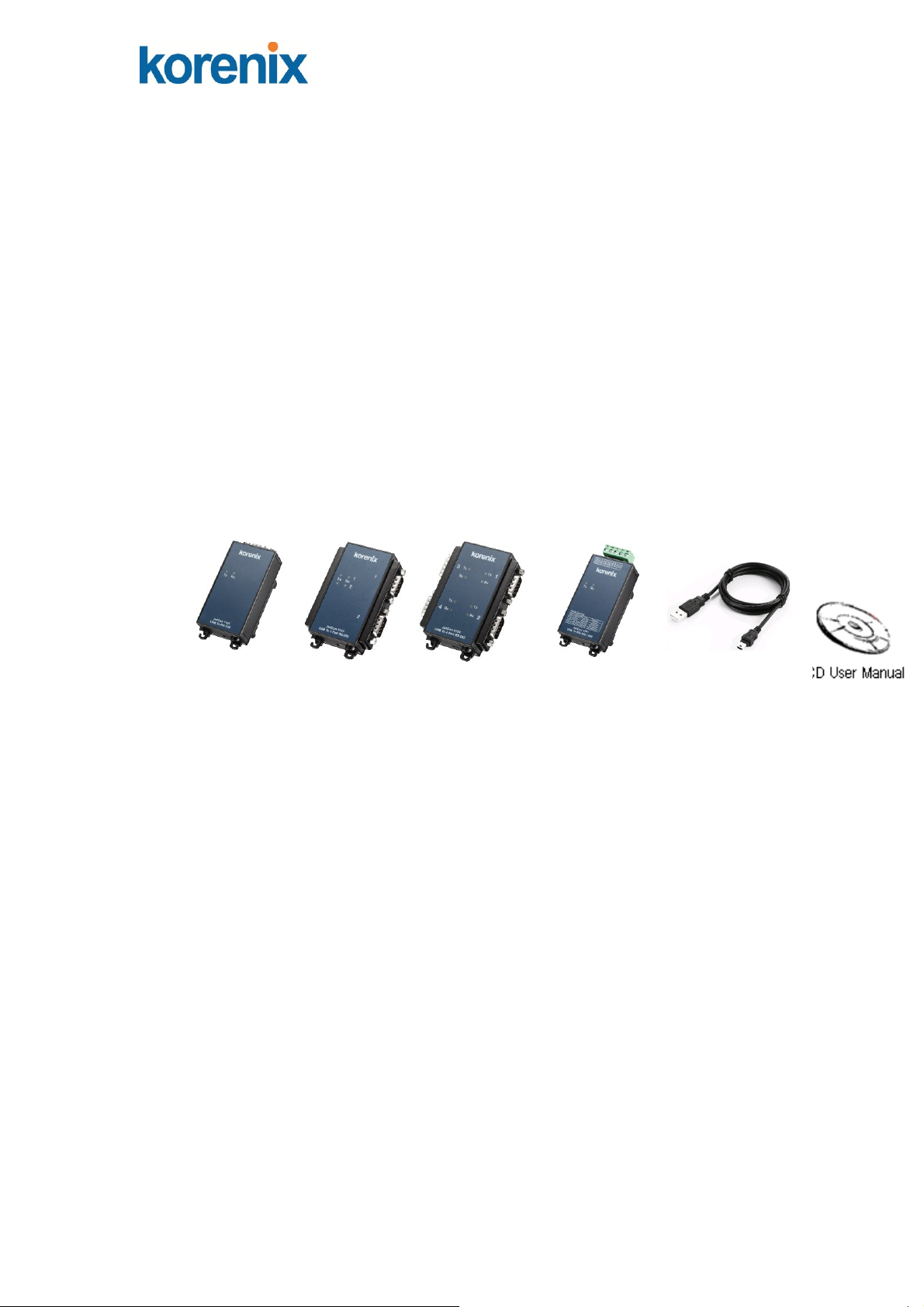

1.3 Package List
Korenix JetCon 1100/ JetCon 1200 Series are shipped with following items:
JetCon 1100 USB/ Serial RS-232 or JetCon 1200 USB/ Serial RS422/485 Converter
One Mini-USB female to USB female cable
Quick Installation Guide
One CD-ROM with User manual and Drivers.
If any of the above items is missing or damaged, please contact your local sales
representative.
QIG
JetCon 1102
JetCon 1104
JetCon 1201/1201i-3KV
USB to MINI USB Cable

3
2Hardware Installation
This chapter includes hardware introduction, installation and configuration information.
Following topics are covered in this chapter:
2.1 Hardware Introduction
Model Description
Dimension
Panel Layout
2.2 Wiring to Serial Device and Host Computer
Connectting USB interface
Connecting RS-232 (JetCon 1100 series)
Connecting RS-422 / RS-485 (JetCon 1200 series)
2.1 Hardware Introduction
This session will present different model with dimension and panel/bottom layout for the further
install and configuration.
Model Name and function description
Model Name
Product Description
USB Port
Serial Port
ESD / Insulation Protect
JetCon 1101
USB to 1-Port RS-232 Serial
V1.1/ 1.2/ 2.0 12Mbps
1 x 921.6Kbps
15KV ESD
JetCon 1101i-5kv
USB to 1-Port RS-232 Serial
V1.1/ 1.2/ 2.0 12Mbps
1 x 921.6Kbps
15KV ESD/ 5KV Isolation
JetCon 1102
USB to 2-Port RS-232 Serial
V1.1/ 1.2/ 2.0 480Mbps
2 x 921.6Kbps
15KV ESD
JetCon 1104
USB to 4-Port RS-232 Serial
V1.1/ 1.2/ 2.0 480Mbps
4 x 921.6Kbps
15KV ESD
JetCon 1201
USB to 1-Port RS-422/485 Serial
V1.1/ 1.2/ 2.0 12Mbps
1 x 921.6Kbps
15KV ESD
JetCon 1201i-3kv
USB to 1-Port RS-422/485 Serial
V1.1/ 1.2/ 2.0 12Mbps
1 x 921.6Kbps
15KV ESD/ 3KV Isolation

4
JetCon 1101 / JetCon 1101i-5KV dimension is: 80 (H) x 42 (W) x 22 (D) / without DIN Rail Clip

5
JetCon 1102 dimension is: 89mm (H) x 58.3mm (W) x 22mm (D) / without DIN Rail Clip

6
JetCon 1104 dimension is: 89mm (H) x 62.6 mm (W) x 22 mm (D) w/o DIN Rail Clip
