Korenix JetCon 1302 Series User manual

Connecting to Network
1. Connecting the Ethernet Ports: Connect one end of an Ethernet cable into the UTP port
of JetCon 1302, while the other end is connected to the attached networking device. All
UTP ports support auto MDI/MDIX function. e LNK / ACT LED will turn Yellow for
10M Ethernet or Green for 100M Ethernet.
2. Connecting the Fiber Port: Connect the ber port on your JetCon 1302 to another Fiber
Ethernet device, by following the gure below. Wrong connection will cause the ber port
not working properly.
DIP Switch Settings for Alarm Relay Output
5 Years Warranty
Each of Korenix’s product line is designed, produced, and tested with high industrial standard.
Korenix warrants that the Product(s) shall be free from defects in materials and workmanship
for a period of ve (5) years from the date of delivery provided that the Product was properly
installed and used.
is warranty is voided if defects, malfunctions or failures of the warranted Product are caused
by damage resulting from force measure (such as oods, re, etc.), other external forces such as
power disturbances, over spec power input, or incorrect cabling; or the warranted Product is
misused, abused, or operated, altered and repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in power
connector when power is on.
e product is in compliance with Directive 2002/95/EC and 2011/65/EU of the European
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronics equipment(RoHS Directives & RoHS 2.0).
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional stas are
ready to solve your problems at any time Korenix global service center's e-mail is
[e-mail].
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
Support
！
is is a Class 1 Laser/LED product.
Don't look into the Laser/LED Beam.
ATTENTION
RX
TX
RX
TX
Cable Wiring(SC to SC)
RX A TX B
TX A RX B
Grounding JetCon 1302
ere is one grounding screw on the bottom side
of JetCon1302. Connect the frame grounding of
JetCon1302 to the grounding surface to ensure
safety and prevent noise.
Wiring the Power Inputs
1. Insert the positive and negative wires into the V+
and V- contact on the terminal block connector.
2. Tighten the wire-clamp screws to prevent the DC
wires from being loosened.
Notes: The recommended working voltage is DC24V
(DC18~ 32 V).
Wiring the Relay Output
e relay output alarm contacts are in the middle of
the terminal block connector as shown in the gure .
By inserting the wires and set the DIP switch of Port
Alarm to "ON", relay output alarm will detect any
port failures, and form a short circuit. e alarm
relay output is "Normal Open".
Erdung
Port Alarm Fault V+ V- DC24
Power Inputs
Fault V-V+
V-
Relay Output,
Carry ability
1A @24V
Fault V+
Pin No. # Status Description Alarm Switch
ON
Off
To enable port break alarm at this port.
P1 to P3
(Pin1 ~3) To disable port break alarm at this port.
NO
123

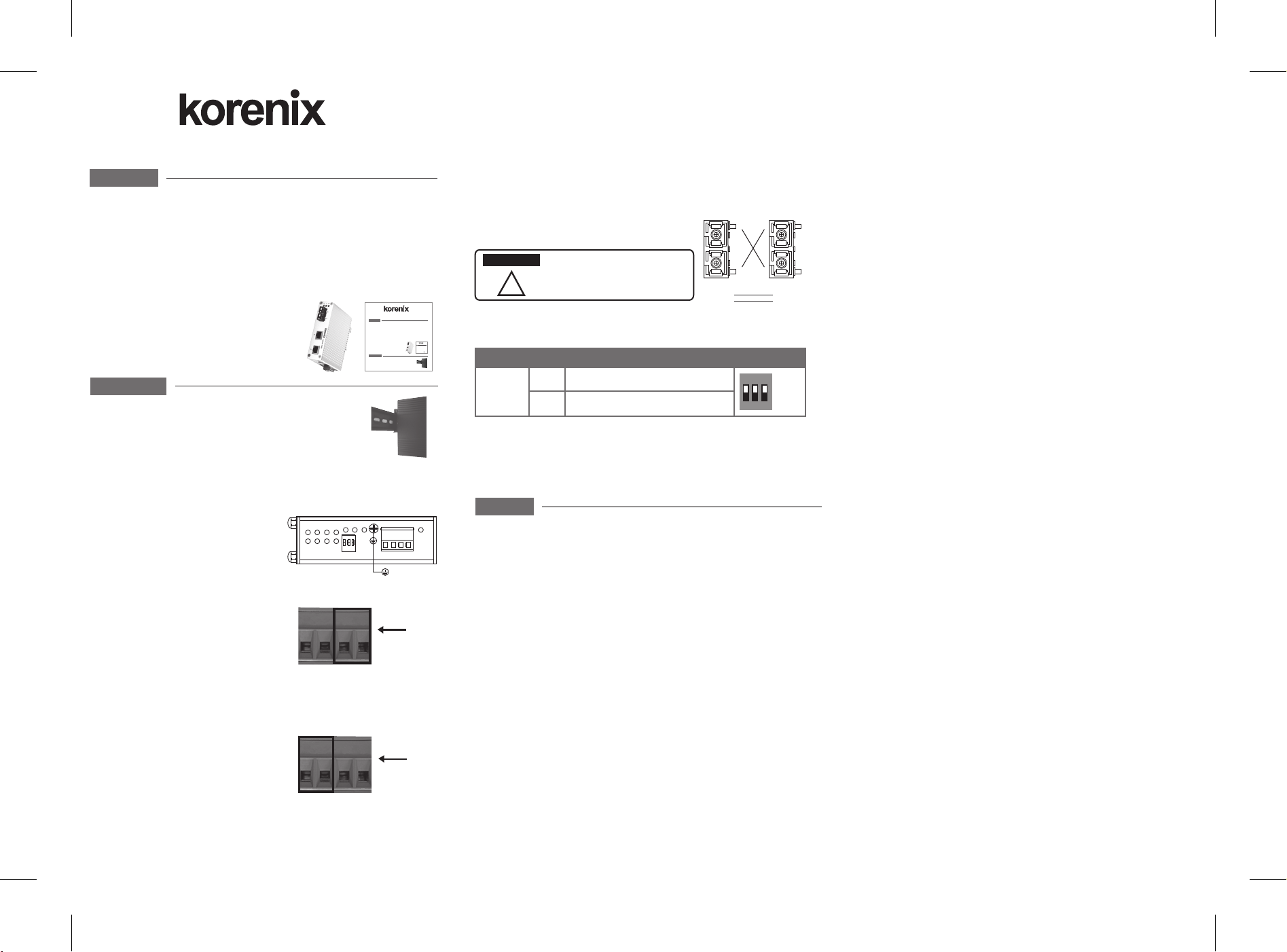

JetCon 1302 Series Industrial Media Converter
Quick Installation Guide V1.2
JetCon 1302 Industrial Media Converter, conforming IEEE 802.3 and 802.3u standard,
supports 2 10/100Base TX plus one 100FX Ethernet port. JetCon 1302 adopts slim industrial
design to save rail space of compact system requirement. In order to survive under harsh
environment, JetCon 1302 chooses industrial-grade aluminum case with IP30 standard
protection. It provides one relay output to alarm port break events, which is enabled/ disabled
by the dip switch. JetCon 1302 is recommended to be powered by DC24V (18~32V) from
the 2-pin terminal block.
Overview
A Beijer Electronics Group Company
Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip screwed on the rear of
JetCon 1302 on the DIN rail
Package Check List
 JetCon 1302 Industrial Media Converter
 Quick Installation Guide
JetCon 1302 Series Industrial Media Converter
Quick Installation Guide V1.2
JetCon 1302 Industrial Media Converter, conforming IEEE 802.3 and 802.3u standard,
supports 2 10/100Base TX plus one 100FX Ethernet port. JetCon1302 adopts slim industrial
design to save rail space of compact system requirement. In order to survive under harsh
environment, JetCon 1302 chooses industrial-grade aluminum case with IP30 standard
protection. It provides one relay output to alarm port break events,which is enabled/ disabled
by the dip switch. JetCon 1302 is recommended to be powered by DC24V (18~32V) from
the 2-pin terminal block.
Overview
ABeijer Electronics Group Company
Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip screwed on the rear of
JetCon 1302 on the DIN rail
Package Check List
 JetCon 1302 IndustrialMedia Converter
 Quick Installation Guide
ABeijerElectronicsGroupCompany
JetCon2301IndustrialFast Ethernet to Fiber Media Converter
QuickInstallationGuideV1.1
JetCon2301isa single port Fast Ethernet to Fibermedia converter, supporting 4 types of
forwardingmodes– Store and Forward, Modied Cut-through, Pure Converter and
Converterwithauto-changemodes. e JetCon 2301 adopts rugged aluminum case with
IP31grade enclosure and 1.5KV Hi-Potisolation protection to operate in harsh
environmentswithsevere electromagnetic interference and -25~70°C (JetCon 2301) or
-40~75°C(JetCon2301-w).Itfeatures Link Loss Forwarding to forward link status changes
foralertingremote or central management systems when a remote fault occurs. It also
adoptsonerelayoutputto alarm users if a port link fails or if the power fails. Alarms can be
enabled/disabledbydip switch. JetCon2301 has redundant power inputs with wide range
DC10~60Vthrough the 6-pin removable terminal block. e ber port supports
Single-modeorMulti-modeforprovidingup to 30KM extended distance transmission.
Overview
PackageCheckList
 JetCon2301IndustrialMediaConverter
 QuickInstallationGuide

！
is is a Class 1 Laser/LED product.
Don't look into the Laser/LED Beam.
ATTENTION
RX
TX
RX
TX
Cable Wiring(SC to SC)
RX A TX B
TX A RX B
Patent No. (Taiwan):
Granted Invention: I 313547
Granted Invention: I 321415
Granted Invention: I 344766
Granted Invention: I 346480
Granted Invention: I 356616
Granted Invention: I 364684
Granted Invention: I 376118
Granted Invention: I 393317
Granted Invention: I 398066
Granted Invention: I 398125
Granted Invention: I 459757
Utility Model: M 339841
Utility Model: M 339840
Korenix售后服务
KoreCARE 是科洛理思科技全球服务中心，我们专业的技术人员随时准备解答您的
疑问。科洛理思全球服务中心 EMAIL: [e-mail]
详细说明及文件请至网站下载: http://www.korenix.com.cn/support_downloads.htm
业务服务: [email protected]
官网: www.korenix.com.cn
客户服务
5年质保
所有科洛理思产品的设计、制造及测试都是采用较高的工业标准。科洛理思保证自
产品出货日起提供最高5年之免费保修服务，保修期间如因零件损坏或制程不良而
导致产品故障，我们将提供免费维修服务。
然而，自然外力(火、水、雷灾)所造成的产品故障，或其它外部因素如电源干扰、
不当电源输入、不当接线等造成的损坏，不列入产品保固范围；此外，产品被误用
、未经授权的修理及修改等行为将造成保固条款失效。
注意! 请勿于电源开启时插拔接线端子，以避免产生火花造成系统损坏。
此产品保证完全符合欧盟2003年1月27日电气和电子设备危害物质限制委员会所提
出的限用指令2002/95/EC(ROHS禁令)及2011/65/EU(RoHS 2.0)。
Tel:[phone]
Fax:[phone]
Business service:[email protected]
Customer service:[email protected]
www.korenix.com
CPQ000V1302002
Korenix Technology Co., Ltd.
(A Beijer Electronics Group Company)
JetCon 1302 工业级信号转换器，符合IEEE 802.3 和IEEE 802.3u标准，提供2个10/100Base TX 和1
个100FX界面。JetCon 1302 采用小巧的工业级外形设计，可以免除系统安装空间狭小的顾虑。为
了适应工业现场恶劣的作业环境，JetCon 1302 密闭的铝制外壳符合IP30工业防护标准。它还提供
端口断线继电器报警输出功能，透过前面板的DIP拨码开关，启动或关闭报警系统。JetCon 1302 i
建议供电范围︰透过 2-pin terminal block 为设备供给 DC24V (18~32V)。
导言
安装配件
导轨安装: 将 JetCon 1302 后面的导轨夹卡上导轨
安装
电源连接
1. 将电源线正负极插入产品底部接线端子的V+
和V- 接脚。
2. 将线夹拧紧，防止DC电源线脱落。
备注: 建议供电范围︰DC24V (DC18~32V)。
继电器报警连接
继电器输出触点在产品底部接线端子的中间，
如右图所示。使用该界面连接报警系统，并将
DIP拨码开关置"ON"，继电器报警输出系统就
可以监视任意端口的断线情况，一旦发现断线
，自动形成一个闭合环路。正常情况下报警系
统是开路。
网络连接
1. 连接以太口: 双绞线的一端连接JetCon 1302 UTP口，另一段连接网络设备。所有
UTP口自适应MDI/MDIX，10M连接时LNK / ACT指示灯显示黄色，100M连接时指
示灯显示绿色。
2. 连接光口:光纤线一端连接JetCon 1302光口，另一端连设备，如图所示连接模式
。错误的连接会致使光口不能正常工作。
JetCon 1302设备接地
在JetCon1302底部有一个地线连接螺丝。将
JetCon1302地线螺丝接地，可以确保设备使用
安全，并可防干扰。设备未接地，因自然因
素造成损害，将不予以修复。
DIP拨码开关设置继电器报警
产品清单
 JetCon 1302工业信号转换器
 快速安装向导
Erdung
Port Alarm Fault V+ V- DC24
电源输入
Fault V-V+
V-
继电器报警输出
Carry ability
1A @24V
Fault V+
Pin No. # 狀態 描述 Alarm Switch
ON
Off
启动该端口断线报警
P1 to P3
(Pin1 ~3) 关闭该端口断线报警
NO
123
JetCon 1302 Series Industrial Media Converter
Quick Installation Guide V1.2
JetCon 1302 Industrial Media Converter, conforming IEEE 802.3 and 802.3u standard,
supports 2 10/100Base TX plus one 100FX Ethernet port. JetCon1302 adopts slim industrial
design to save rail space of compact system requirement. In order to survive under harsh
environment, JetCon 1302 chooses industrial-grade aluminum case with IP30 standard
protection. It provides one relay output to alarm port break events,which is enabled/ disabled
by the dip switch. JetCon 1302 is recommended to be powered by DC24V (18~32V) from
the 2-pin terminal block.
Overview
ABeijer Electronics Group Company
Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip screwed on the rear of
JetCon 1302 on the DIN rail
Package Check List
 JetCon 1302 IndustrialMedia Converter
 Quick Installation Guide
ABeijerElectronicsGroupCompany
JetCon2301IndustrialFast Ethernet to Fiber Media Converter
QuickInstallationGuideV1.1
JetCon2301isa single port Fast Ethernet to Fibermedia converter, supporting 4 types of
forwardingmodes– Store and Forward, Modied Cut-through, Pure Converter and
Converterwithauto-changemodes. e JetCon 2301 adopts rugged aluminum case with
IP31grade enclosure and 1.5KV Hi-Potisolation protection to operate in harsh
environmentswithsevere electromagnetic interference and -25~70°C (JetCon 2301) or
-40~75°C(JetCon2301-w).Itfeatures Link Loss Forwarding to forward link status changes
foralertingremote or central management systems when a remote fault occurs. It also
adoptsonerelayoutputto alarm users if a port link fails or if the power fails. Alarms can be
enabled/disabledbydip switch. JetCon2301 has redundant power inputs with wide range
DC10~60Vthrough the 6-pin removable terminal block. e ber port supports
Single-modeorMulti-modeforprovidingup to 30KM extended distance transmission.
Overview
PackageCheckList
 JetCon2301IndustrialMediaConverter
 QuickInstallationGuide
