Kramer VP-200AK User manual

1:2 UXGA / Audio DA
Model:
VP-200AK
USER MANUAL
KRAMER
Kramer Electronics, Ltd.

5
7
Table 1: VP-200AK 1:2 UXGA / Audio DA Features
Table 2: Technical Specifications of the VP-200AK 1:2UXGA / Audio DA
Tables
4
6
Figures
Figure 1: VP-200AK 1:2 UXGA / Audio DA
Figure 2: Connecting the VP-200AK 1:2 UXGA / Audio DA
1
1
1
3
4
5
7
Introduction
Getting Started
Quick Start
Overview
Your VP-200AK 1:2 UXGA / Audio DA
Connecting the VP-200AK 1:2 UXGA / Audio DA
Technical Specifications
1
2
2.1
3
4
5
6

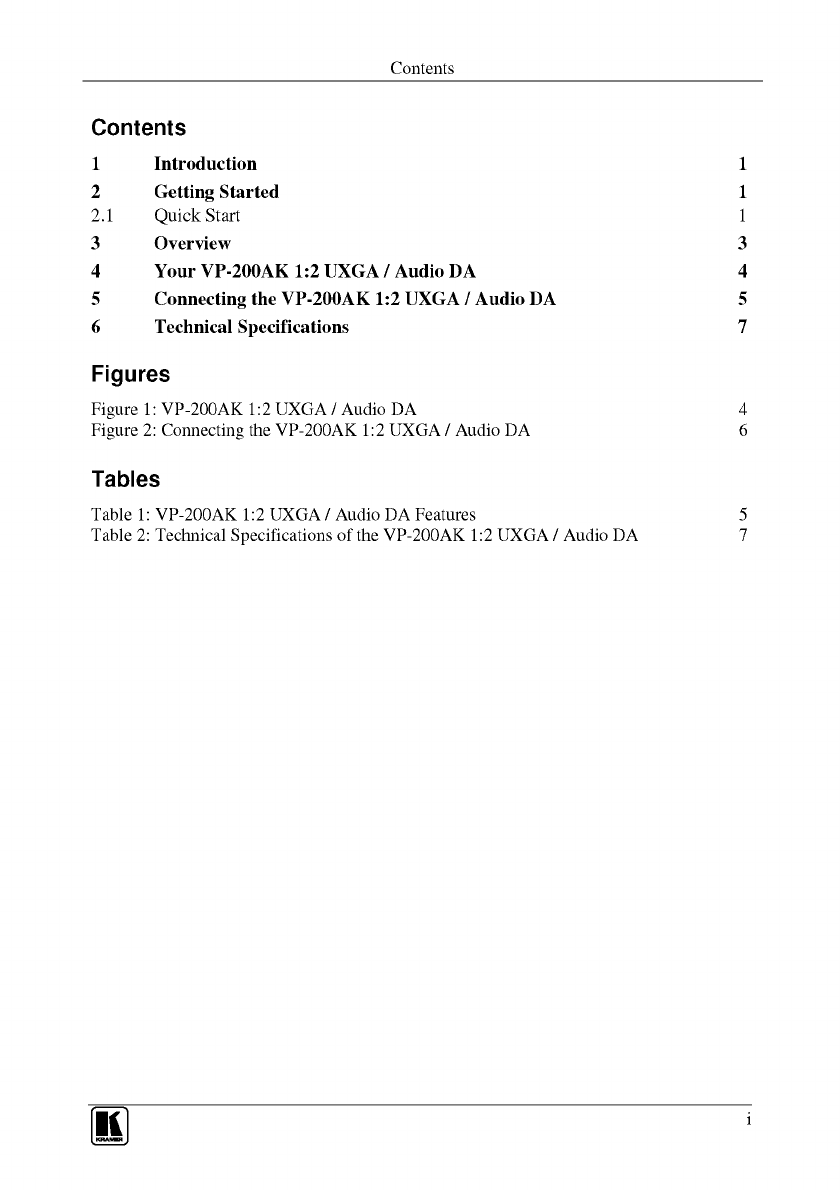

Contents
Contents

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet
3 The complete list of Kramer cables is on our Web site
This quick start chart summarizes the basic setup and operation steps.
2.1 Quick Start
We recommend that you:
• Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high-performance high-resolution cables
2 Getti n9 Started
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
I,OOO-plusdifferent models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing your Kramer TOOLS VP-200AK 1:2 UXGA/
Audio DA, which is ideal for:
• Rental and staging systems
• Schools, religious institutions, corporate applications
The package includes the following items:
• VP-200AK 1:2 UXGA/ Audio DA
• Power adapter (5V DC Input) and this user manual?

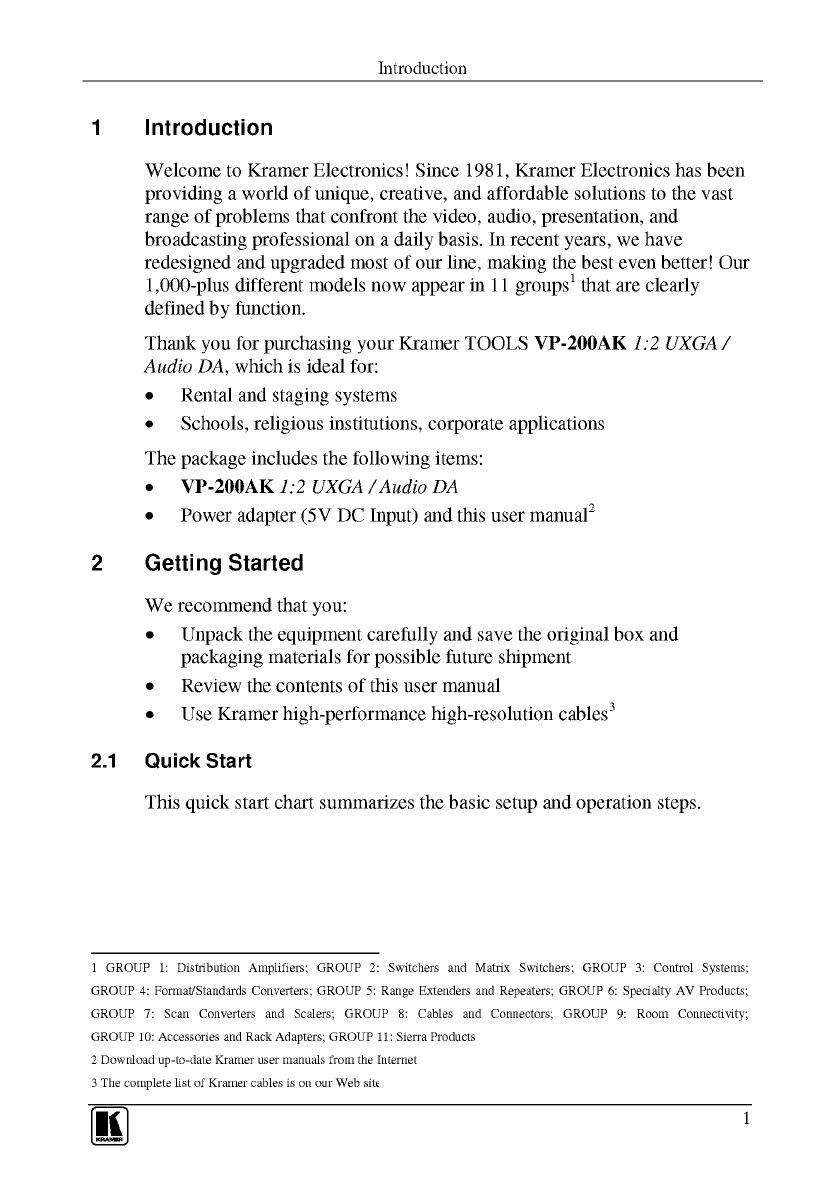

1 Introduction
Introduction

KRAMER: SIMPLE CREATIVE TECHNOLOGY
o (1)0 (f)0 (f)
LEFT R1GIfT UXGA
TM LfvEL LEVEL Ea.
IKR .!!!!P.l UNBAlANCEDAuDIO
2
Adju5t the:audio
gain and UXGA
e:qualization
Connect an unbalances audio source to the: audio INPUT
Conne:ctthe: audio OUtPUt5to the: unbalancedand balanced audio acce:ptor5
Conne:ct a computer graphic5 eource to the: INPUT
Conne:ctthe:vide:oOUtPUt5to the: acce:ptor5

3
1 At any resolution (for example, UXGA)
2 Allowing selection of KR-ISPlNormal technology by internal jumpers. Note that both the Hs (horizontal sync) jumper and
the Vs (vertical sync) jumper MUST be setidentically
3 Available from Kramer Electronics on our Web site
To achieve the best performance:
• Use only good quality connection cables to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
• Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VP-200AK away from moisture, excessive sunlight and dust
TheKramerTOOLSVP-200AK is a 1:2distributionamplifierforUXGA(and
higher)resolutionsignals,aswellasunbalancedstereoaudiosignalsand/or
balancedstereoaudiosignals.
In particular, the VP-200AK 1:2 UXGA/ Audio DA:
• Accepts one computer graphics input', provides correct buffering and
isolation, and then distributes the signal to two identical outputs on
high-density I5-pin HD connectors
• Accepts an unbalanced stereo audio input, and simultaneously
outputs two unbalanced stereo audio outputs on mini-plug
connectors, and two balanced stereo audio outputs on terminal block
connectors
• With its video bandwidth exceeding 500MHz, ensures transparent
operation at high-resolution graphics modes such as UUXGA
(I600xI200)
• Accepts TTL syncs"andprovides ID bit control internally, as well as
separate controls for audio output level and UXGA equalization
• Features KR-ISP™ advanced sync processing that ensures
compatibility with a wide range of computers (even if the sync level
is too low) by restoring the sync signal waveform to achieve a sharp,
stable image
• Is 5V DC fed

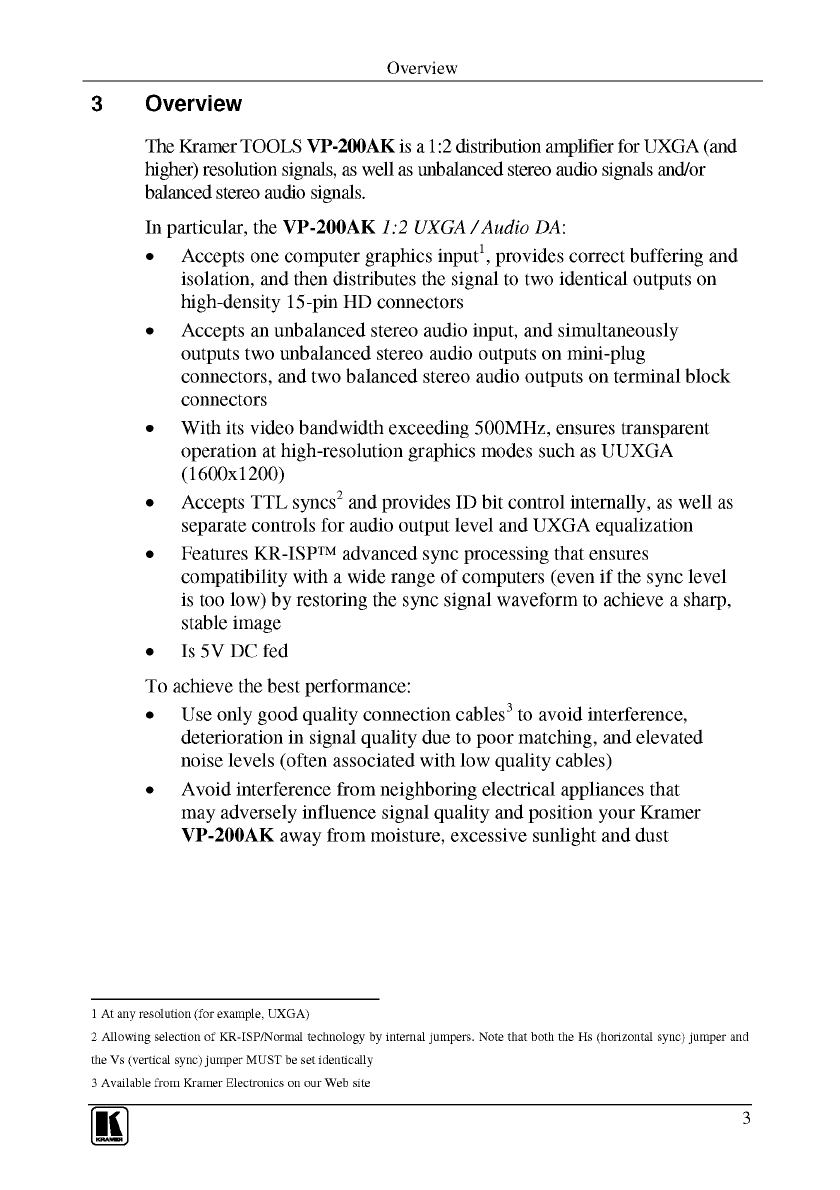

3 Overview
Overview

KRAMER: SIMPLE CREATIVE TECHNOLOGY
4
1 For example, part number 2535-052002
Figure 1: VP-200AK 1:2 UXGAI Audio DA
KRAMER TOOLS
Figure 1 and Table 1 define the VP-200AK:
4 Your VP-200AK 1:2 UXGA / Audio DA
(iliftltiffi - No operator-serviceable parts inside unit.
,',iijilttm - Use only the Kramer Electronics input power
wall adapter that is provided with this unit'.
,',iijilttm - Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
YourVP-200AK 1:2 UXGAI Audio DA

5
l Switch OFF the power on each device before connecting it to your VP-200AK. After powering up your VP-200AK, switch
on the power on each device
2 When only one output is required, use either of the outputs, and leave the other output unconnected
To connect your VP-200AK 1:2 UXGA/ Audio DA, as the example in
Figure 2 illustrates, do the following':
1. Connect a computer graphics source to the I5-pin HD (F) INPUT
connector.
2. Conned the I5-pin HD (F) OUTPUT connectors to up to two
acceptors, as follows:
• Connect the OUTPUT 1 connector to acceptor 1 (for example, a
display)
• Connect the OUTPUT 2 connector to acceptor 2 (for example, a
projector)
3. Connect the unbalanced audio source (for example, the computer graphics
source audio) to the INPUT 3.5mm mini j ack connector.
4. Connect the unbalanced audio OUT 1 and OUT 2, 3.5mm mini jack
connectors, to up to two unbalanced audio acceptors (for example, tape
recorders).
5. Connect' the BALANCED AUDIO OUTPUT (RI, L1 and R2, L2)
terminal block connectors to up to two balanced audio acceptors (for
example, power amplifiers).
6. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
5 Connecting the VP-200AK 1:2 UXGA / Audio DA
# Feature Function
1INPUT3.5mm Mini plug Connector Connects unbalanced audio to the audio source
2LEFT LEVEL Trimmer Adjusts the left audio signal level
3OUT I 3.5mm Mini plug Connector Connects unbalanced stereo audio to the audio acceptor 1
4RIGHT LEVEL Trimmer Adjusts the right audio signal level
5OUT 2 3.5mm Mini plug Connector Connects unbalanced stereo audio to the audio acceptor 2
6UXGA EO.Trimmer Adjusts the video Ea. (equalization) compensation
7 BALANCEDAUDIO OUTPUT I R2, L2 Connects balanced stereo audio to the audio acceptor 2
Terminal Block Connectors
I RI, L1 Connects balanced stereo audio to the audio acceptor 1
8 5VDC +5V DC connector for powering the unit
9INPUT 15-pin HD (F) Connector Connect to the computer graphics source
10 OUTPUT I 15-pin HD (F) Connector Connect to the computer graphics acceptor 1
11 ONLED Illuminates when receiving power
12 OUTPUT 2 15-pin HD (F) Connector Connect to the computer graphics acceptor 2

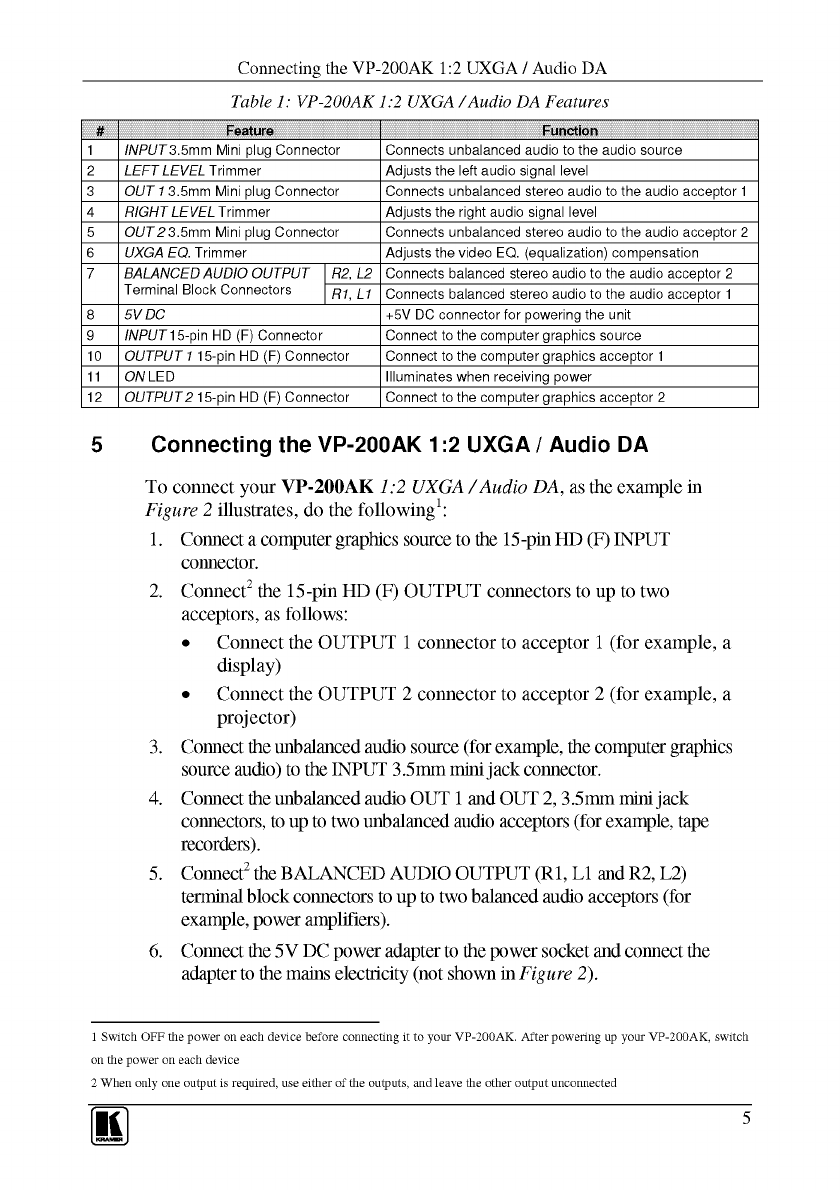

Table 1: VP-200AK 1:2 UXGA/ Audio DA Features
Connecting the VP-200AK 1:2 UXGA / Audio DA

KRAMER: SIMPLE CREATIVE TECHNOLOGY
6
l Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level

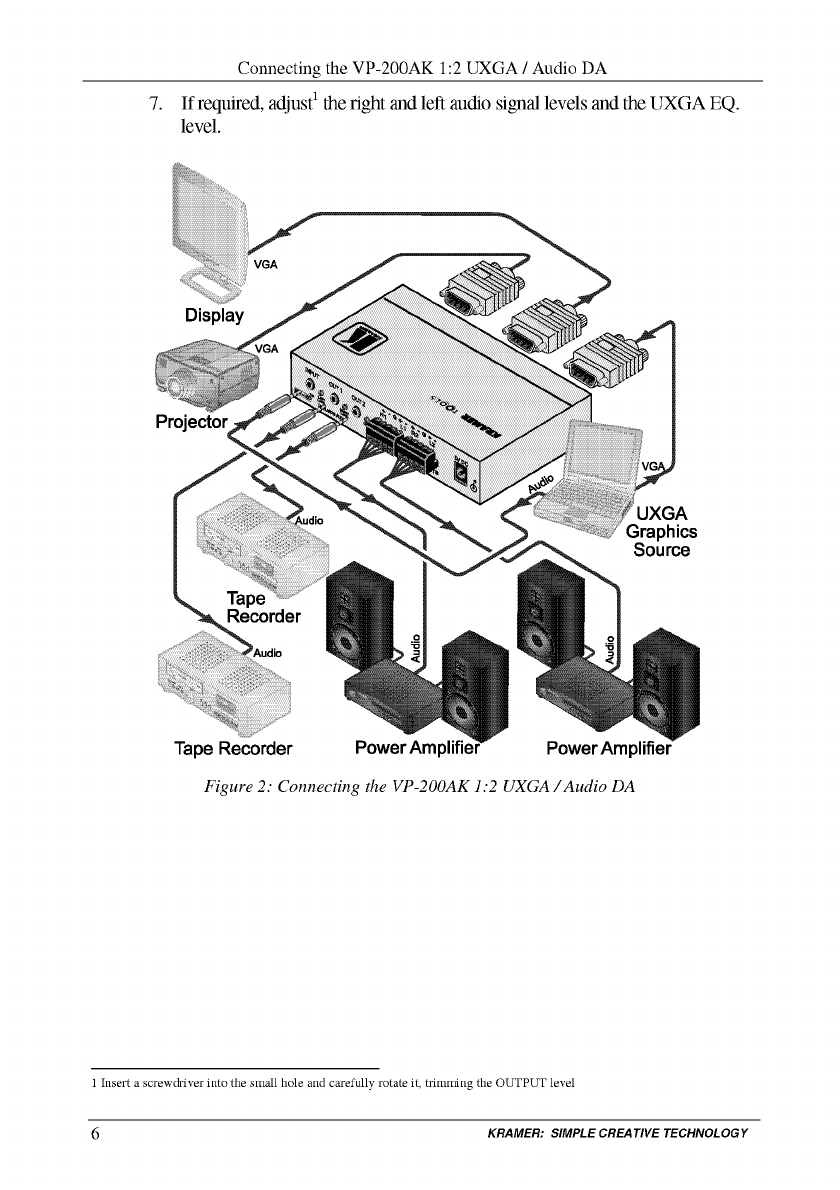

Figure 2: Connecting the VP-200AK 1:2 UXGA/ Audio DA
7. If required, adjust) the right and left audio signal levels and the UXGA EQ.
level.
Connecting the VP-200AK 1:2 UXGA / Audio DA

7
1 Specifications are subject to change without notice
INPUT: 1 XGA on a 15-pin HD (F) connector
1 unbalanced audio stereo on a 3.5mm mini jack audio connector
OUTPUTS: 2 UXGA on 15-pin HD (F) connectors
2 unbalanced audio stereo on 3.5mm mini jack audio connectors
2 balanced audio stereo on detachable 5-pinterminal blocks
MAX. OUTPUT LEVEL: Video: 2.0Vpp
I Audio: 7.2Vpp
BANDWIDTH (-3dB): Video: 510MHz
I Audio: > 100kHz
DIFF. GAIN: 0.55%
DIFF. PHASE: 0.10Deg.
K-FACTOR: <0.05%
SIN RATIO: Video: 72.5dB @5MHz
I Audio: 82dB (balanced); 88dB
(unbalanced)
CONTROLS: EQ: OdBto 4.7dB @50MHz
COUPLING: Video: DC I Audio: AC at the output; DC at the input
AUDIO THD + NOISE: 0.005% @1kHz (unbalanced and balanced)
AUDIO 2nd HARMONIC: 0.003% (unbalanced); 0.001% (balanced)
POWER SOURCE: 5V DC, 120mA
DIMENSIONS: 12cmx7.18cm x2.42cm (4.7" x2.8" x 0.95") W, D, H
WEIGHT: 0.3kg (0.67Ibs)approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: 19" rack adapters
The VP-200AK technical specifications are shown in Table 2:
Table 2: Technical Specifications! of the VP-200AK 1:2 UXGA/ Audio DA
6 Technical Specifications
Technical Specifications

8
CAUTION!
IE> Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
IE> Use the supplied DC power supply to feedpowerto the machine.
[29 Please use recommended interconnection cables to connect the machine to other components .
• FCC and CE approved using STP cable (for twisted pairproducts)
CFR47:
EN-500S2:
"Electromagnetic compatibility (EMC);
generic emission standard.
Part I: Residential, commercial and light industry"
"Electromagnetic compatibility (EMC) generic immunity standard.
Part I: Residential, commercial and light industry enviromnent".
FCC· Rules and Regulations:
Part IS: "Radio frequency devices
Subpart B Unintentional radiators"
EN-500SI:

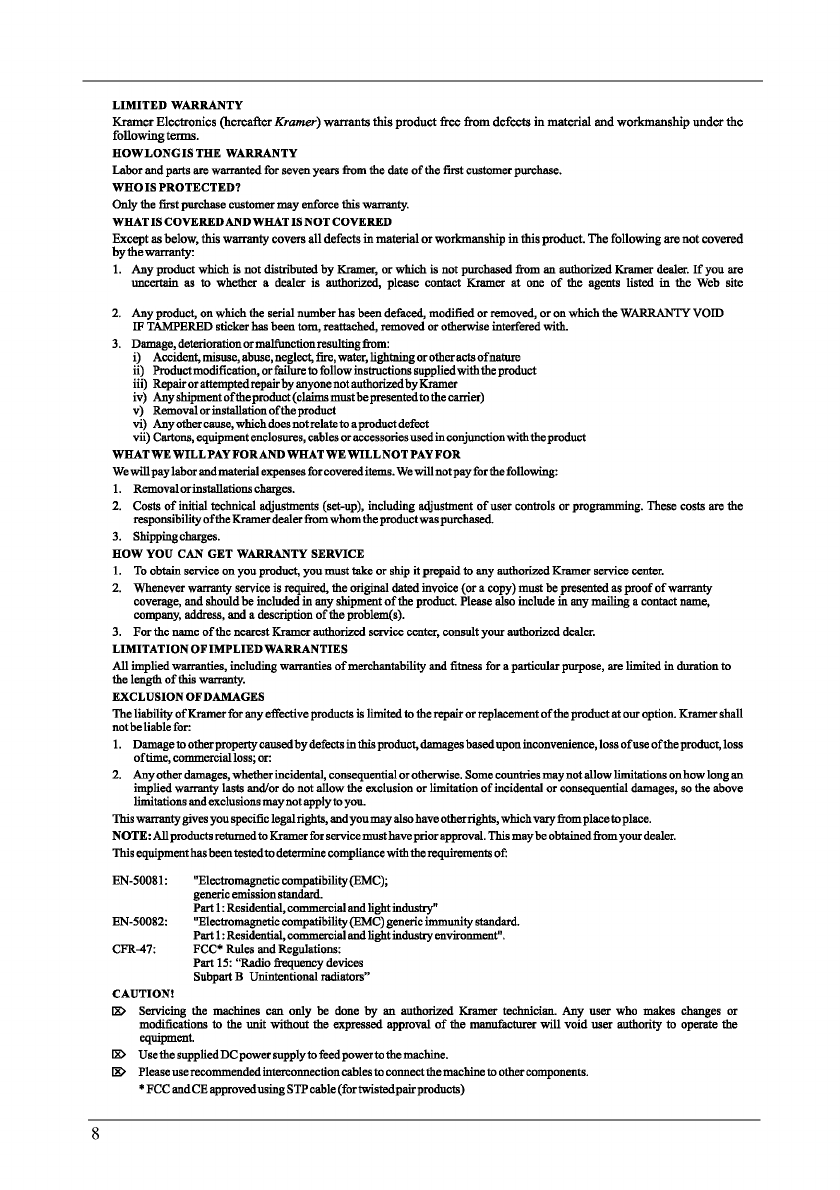

LIMITED WARRANTY
Kramer Electronics (hereafter Kramer)warrants this product free from defects in material and workmanship under the
following terms.
HOWLONGISTHE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVEREDANDWHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
IF TAMPERED sticker has been tom, reattached, removed or otherwise interfered with.
3. Damage, deterioration ormalfunctionresulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts ofna!ure
ii) Productmodification, or failure to follow instroctions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (clairusmust be presented to the cattier)
v) Removal orinstallation of the product
vi) Any other cause, which does notrelate to aproduct defect
vii) Cartons, equipment enclosures, cables or accessories usedin conjunction with tbeproduct
WHAT WE WILL PAYFORAND WHATWEWILLNOT PAYFOR
Wewill pay labor and material expenses for covered items. Wewill not pay forthe following:
1. Removal orinstallations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility ofthe Kramer dealer fromwhom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
notbe liable for:
I. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations onhow long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty givesyou specific legalrights, and youmay also have otherrights, which vary fromplace toplace.
NOTE: Allproducts returned to Kramer for service must have prior approval. This may be obtained fromyour dealer.
This equipment has been tested to determine compliance with therequirements of:

Kramer Electronics, Ltd.
PIN: 2900-000480 REV 1
(E

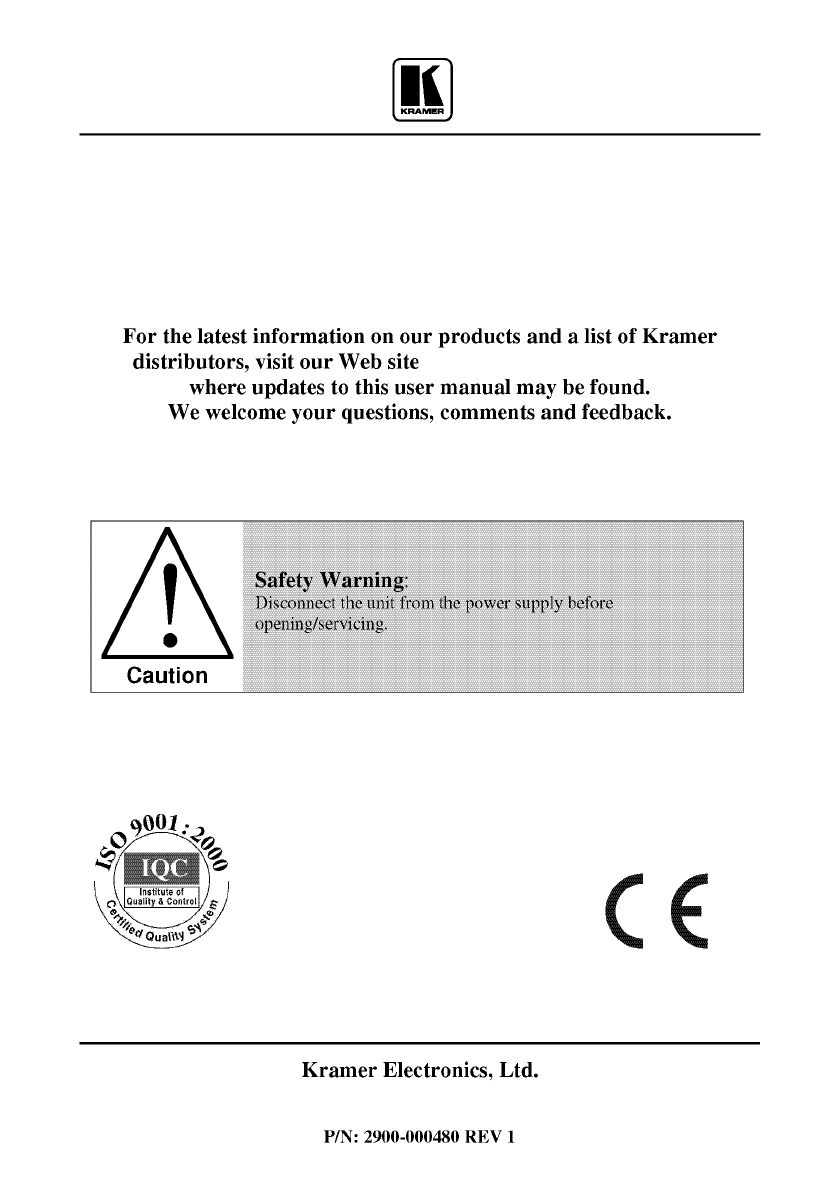

For the latest information on our products and a list of Kramer
distributors, visit our Web site
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
