Kramer 123Vx1 User manual

Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
123Vxl
Differential Video Line Amplifier

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 2
3.1 Quick Start 3
4 Your Differential Video Line Amplifier 4
5 Connecting the 123Vxl Differential Video Line Amplifier 5
6 Connecting Differential Video Line Amplifier Units 6
7 Technical Specifications 7
Figures
Figure 1: 123Vxl Differential Video Line Amplifier 4
Figure 2: Connecting the 123Vxl Differential Video Line Amplifier 5
Figure 3: Connecting 123Vxl Differential Video Line Amplifier Units 6
Tables
Table 1: 123Vxl Differential Video Line Amplifier Features 4
Table 2: Technical Specifications of the 123Vxl Differential Video Line Amplifier 7

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing your Kramer TOOLS: 123Vxl Differential Video
Line Amplifier, which is ideal for:
Professional display systems that require long distance delivery of
high quality video
CCTV, medical, and sports applications
Retail stores, delivering an identical picture to up to three distant
monitors
The package includes the following items:
123Vxl Differential Video Line Amplifier
Power adapter (12V DC Input)
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3 Overview
The Kramer 123Vxl Differential Video Line Amplifier is a high-
performance line amplifier for composite or SDI video signals. It splits an
input source to 3 identical outputs and includes controls and circuitry to
compensate for signal losses and noise inherent in long cable runs.
In particular, the 123Vxl features:
Special differential amplifying circuitry that eliminates common
mode noise and hum problems commonly found in long video
lines, almost completely isolating the input from the outputs
High bandwidth of 425MHz (-3dB)
Gain and equalization trimmer controls to compensate for signal
losses inherent in long cable runs
A Kramer TOOLS enclosure and 12V DC supply voltage
To achieve the best performance:
Use only good quality connection cables
1
to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
123Vxl away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
2
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
2 For example, part number 22535-000251

Overview
3
3.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Differential Video Line Amplifier
4
4 Your Differential Video Line Amplifier
Figure 1 and Table 1 define the 123Vxl:
Figure 1: 123Vxl Differential Video Line Amplifier
Table 1: 123Vxl Differential Video Line Amplifier Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT 1 BNC Connector Connects to the video acceptor 1
3 OUT 2 BNC Connector Connects to the video acceptor 2
4 OUT 3 BNC Connector Connects to the video acceptor 3
5 CV IN BNC Connector Connects to the video source
6 TERM Hi-Z / 75Switch Pushing in selects 75, releasing selects Hi-Z
1
7 LOOP BNC Connector For looping to increase output availability
2
8 ON LED Illuminates when receiving power
9 GAIN Trimmer Adjusts
3
the output signal level for outputs 1, 2 and 3
10
EQ. Trimmer Adjusts
3
the cable compensation equalization level
1 For looping select Hi-Z
2 Connects to the CV IN connector on the next unit
3 Insert a screwdriver into the hole and carefully rotate it, to trim the level

Connecting the 123Vxl Differential Video Line Amplifier
5
5 Connecting the 123Vxl Differential Video Line Amplifier
To connect the 123Vxl, as the example in Figure 2 illustrates, do the
following:
1. Connect the video source (for example, a video player) to the CV IN BNC
connector.
2. Connect the CV OUT BNC connectors
1
—OUT 1, OUT 2 and OUT 3—to
the appropriate video acceptors (for example, video display 1, video
display 2, and video display 3).
3. If necessary, connect the LOOP BNC connector to the CV IN BNC
connector on an additional 123Vxl unit and release the TERM switch to
Hi-Z.
4. If required, adjust
2
the output signal level and/or cable compensation
equalization level.
5. Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
Figure 2: Connecting the 123Vxl Differential Video Line Amplifier
1 Not all outputs need to be connected. Only connect those required, and leave the others unconnected
2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Differential Video Line Amplifier Units
6
6 Connecting Differential Video Line Amplifier Units
You can connect up to five 123Vxl Differential Video Line Amplifier units,
to provide up to 15 outputs, as Figure 3 illustrates.
To connect up to five 123Vxl Differential Video Line Amplifier units:
1. Connect the video source to the CV IN BNC connector on the first unit.
2. Connect the LOOP BNC connector on each unit to the CV IN BNC
connector on the next unit in the line, respectively
1
.
3. Connect the OUT 1,OUT 2 and OUT 3 BNC connectors on each unit to the
appropriate video acceptors
2
, as required.
4. Release the TERM switch (selecting Hi-Z) on all units, except on the last
(fifth) unit. Push in the TERM switch on the last (fifth) unit (selecting
75).
5. If required, adjust
3
the output signal level and/or cable compensation
equalization level on each unit.

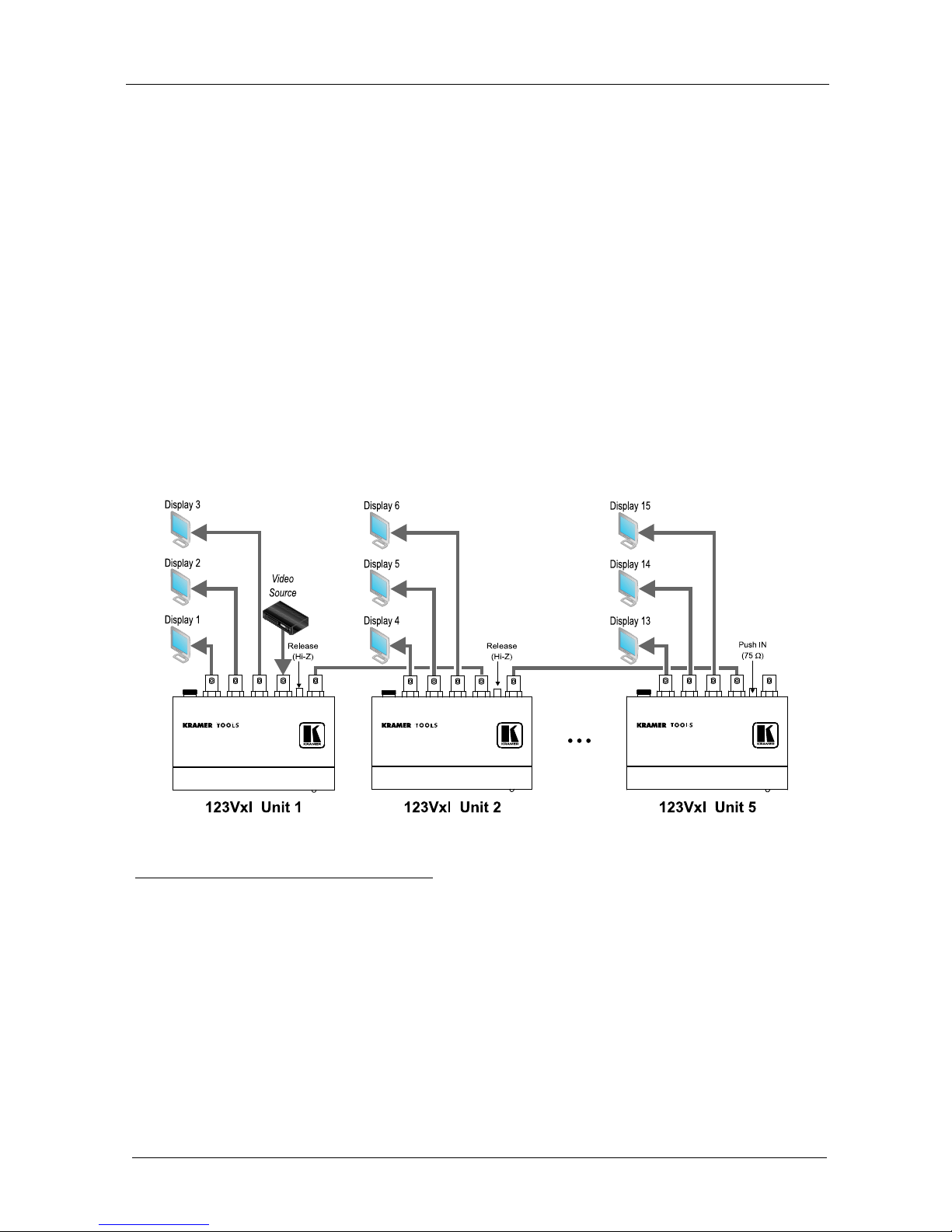

Figure 3: Connecting 123Vxl Differential Video Line Amplifier Units
1 Connect the LOOP BNC connector on the first unit to the CV IN BNC connector on the second unit. Connect the LOOP
BNC connector on the second unit to the CV IN BNC connector on the third unit. Connect the LOOP BNC connector on the
third unit to the CV IN BNC connector on the fourth unit. Connect the LOOP BNC connector on the fourth unit to the CV IN
BNC connector on the fifth unit. Leave the LOOP BNC connector on the fifth (last) unit unconnected
2 Connect the OUT 1, OUT 2 and OUT 3 BNC connectors on the first unit to the video acceptors 1, 2 and 3, respectively.
Connect the OUT 1, OUT 2 and OUT 3 BNC connectors on the second unit to the video acceptors 4, 5 and 6, respectively.
Connect the OUT 1, OUT 2 and OUT 3 BNC connectors on the third unit to the video acceptors 7, 8 and 9, respectively.
Connect the OUT 1, OUT 2 and OUT 3 BNC connectors on the fourth unit to the video acceptors 10, 11 and 12, respectively.
Connect the OUT 1, OUT 2 and OUT 3 BNC connectors on the fifth unit to the video acceptors 13, 14 and 15, respectively
3 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

Technical Specifications
7
7 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications
1
of the 123Vxl Differential Video Line Amplifier
INPUTS: 1 looping video, differential, 1Vpp/75on a BNC connector
OUTPUTS: 3 video, 1Vpp/75on BNC connectors
MAX. OUTPUT LEVEL: 1.7Vpp
BANDWIDTH (-3dB): 425MHz
DIFF. GAIN: 0.5%
DIFF. PHASE: 0.3 Deg
K-FACTOR: <0.05%
S/N RATIO: 60.3dB
CONTROLS: Level: -1.8dB to +5.6dB, EQ.: 0 to +15dB @5.8MHz, 75termination switch
COUPLING: AC
POWER SOURCE: 12V DC, 80mA
DIMENSIONS: 12cm x 7.5cm x 2.5 cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
