Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models now
appear in 11 groups1that are clearly defined by function.
Thank you for purchasing your Kramer PicoTOOLS™ PT-100, XGA Line
Extender which is ideal for:
•Presentation and multimedia applications
•Long range graphics distribution for schools, hospitals, security and stores
The package includes:
•PT-100, XGA Line Extender
•Power adapter (12V DC)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack
Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com
3 The complete list of Kramer cables is available from http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
AOUT
UDIO
LIN
INE
TP-124
XGA OUT
XGA / Audio / Data Line Receiver
TP-124
RS-232
GND
TXD
A
NALOG
S/PDIF
12V DC
LOUT
INE
RS-232RS-232
XGA IN
TP-123
XGA / Audio / Data Line Transmitter
GND
Computer Graphics /
Audio / RS-232 Control
TP-123
RXD
AIN
UDIO
12V DC
AV Display System
with Built-in Speakers
VGA
RS-232
Audio
VGA
Audio
RS-232
CAT5 Cable
CAT5 Cable
PT-100
Step 1: Connect the inputs and outputs - see Section 5
Attach 12V DC power supplies to both devices if the distance between
the TP-123 and PT-100 is more than 50m (see Section 3.2)
Attach 12V DC power supplies to both devices if the distance between
the TP-123 and PT-100 is more than 50m (see Section 3.2)
Step 2: Turn the power ON
1
2
Connect the source to the input of the TP-123
Connect the line out of the TP-123 to the input of the PT-100
Connect the output of the PT-100 to the line in of the TP-124
Connect the output of the TP-124 to the video and audio acceptor
Connect the source to the input of the TP-123
Connect the line out of the TP-123 to the input of the PT-100
Connect the output of the PT-100 to the line in of the TP-124
Connect the output of the TP-124 to the video and audio acceptor
3
1
2
4
3
4

Overview
3
3 Overview
The PT-100 XGA Line Extender is a high-performance TP (Twisted Pair) line
extender that transmits a computer graphics signal, an audio signal, unidirectional
RS-232 data and 12V DC power over TP cable. The PT-100 lets you adjust the
line level and equalization. This makes it ideal for connecting between sources and
a router where it can be used to match the level each channel independently (see
Figure 2).
The PT-100 has a transmission range of more than 100m (320ft) over UTP cabling
providing a total range of more than 200m (640ft) between the TP transmitter and
receiver.
This section describes:
•Using Shielded Twisted Pair/Unshielded Twisted Pair cabling (see
Section 3.1)
•The Power Connect™ feature (see Section 3.2)
•Recommendations for achieving the best performance (see Section 3.3)
3.1 Shielded Twisted Pair/Unshielded Twisted Pair
We recommend that you use Shielded Twisted Pair (STP) cable. There are
different levels of STP cable available, and we advise you to use the best quality
STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is
intended for analog signals where skewing is not an issue. For cases where there is
skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind,
though, that we advise using STP cables where possible, since the compliance to
electromagnetic interference was tested using those cables.
Although Unshielded Twisted Pair (UTP) cable might be preferred for long range
applications, the UTP cable should be installed far away from electric cables, motors
and so on, which are prone to create electrical interference.
However, since the use of UTP cable might cause inconformity to electromagnetic
standards, Kramer does not commit to meeting the standard with UTP cable.
3.2 About the Power Connect™ Feature
The Power Connect feature applies as long as the cable can carry power. This
feature is available when using STP cable and the distance does not exceed 50m on
standard CAT 5 cable. For longer distances, heavy gauge cable should be used1.
For units which are connected via RJ-45 connectors, make sure that the shield of
the STP cable is connected to the metal casing of the connectors on both ends of
the cable. For units which are connected via terminal block connectors, the shield
1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the PT-100 XGA Line Extender
4
of the STP cable must be connected to a ground terminal on the units at both ends
(use the ground terminal of the power supply connection if necessary).
For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be
connected to the transmitter and to the receiver simultaneously.
3.3 Recommendations for Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables
1
to avoid interference, deterioration
in signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables).
•Avoid interference from neighboring electrical appliances that may adversely
influence signal quality and position your Kramer transmitters away from
moisture, excessive sunlight and dust
4 Defining the PT-100 XGA Line Extender
Figure 1 and Table 1 define the PT-100, XGA Line Extender.

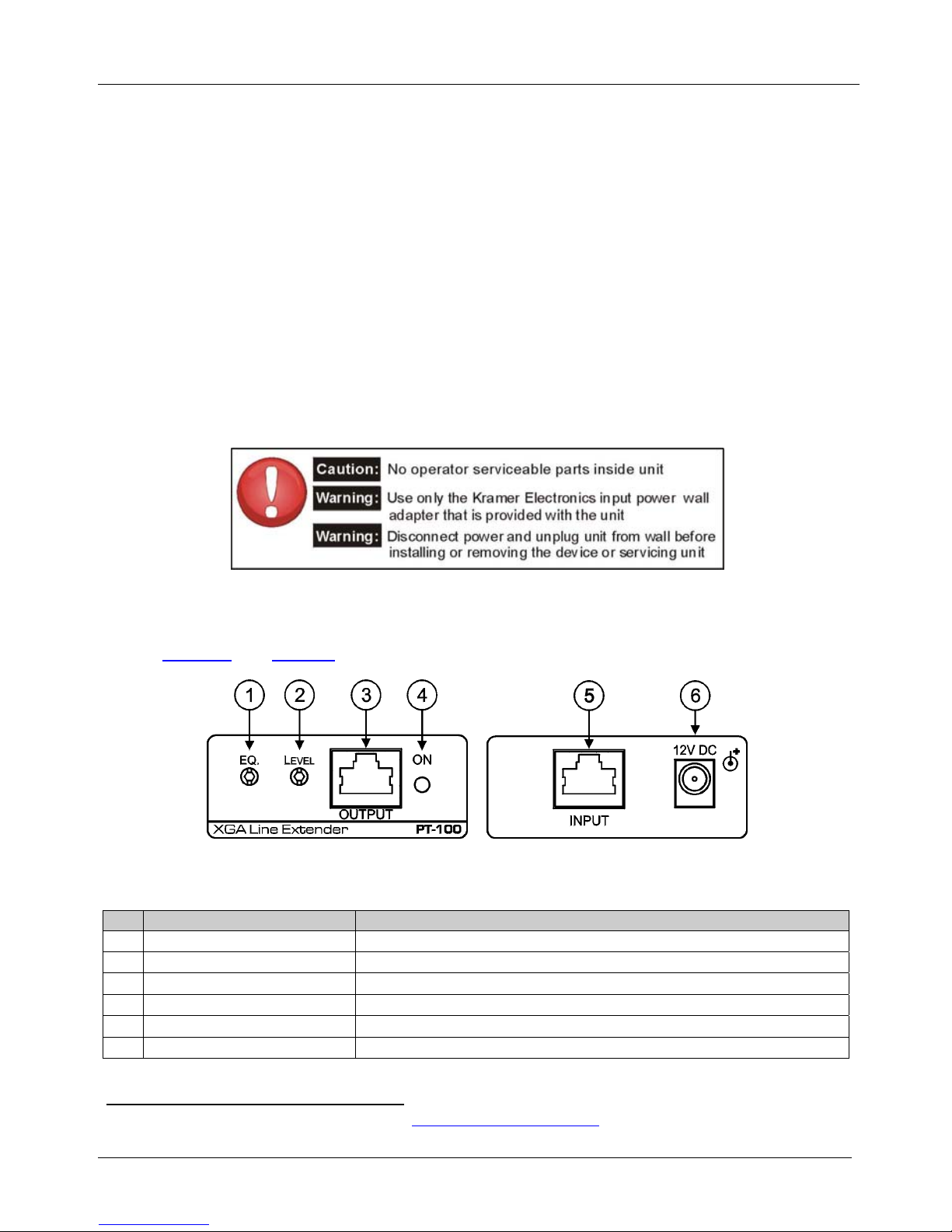

Figure 1: PT-100, XGA Line Extender Front and Rear Panels
Table 1: PT-100, XGA Line Extender Front and Rear Panel Features
# Feature Function
1 EQ. Trimmer Turn to adjust the line equalization
2 LEVEL Trimmer Turn to adjust the line level
3 OUTPUT RJ-45 TP Connector Connect to a compatible TP receiver (for example, VS-169TP or TP-122)
4 ON LED Lights green when the device receives power
5 INPUT RJ-45 TP Connector Connect to a compatible TP transmitter (for example, TP-121 or TP-125)
6 12V DC Power Connector Connect to the 12V DC power adapter, center pin positive
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Connecting the PT-100 XGA Line Extender
5
5 Connecting the PT-100 XGA Line Extender
The PT-100 can be used to compensate for varying TP cable lengths by adjusting
the line level and equalization as shown in the following example.
Figure 2: Connecting the PT-100 XGA Line Extender

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the PT-100 XGA Line Extender
6

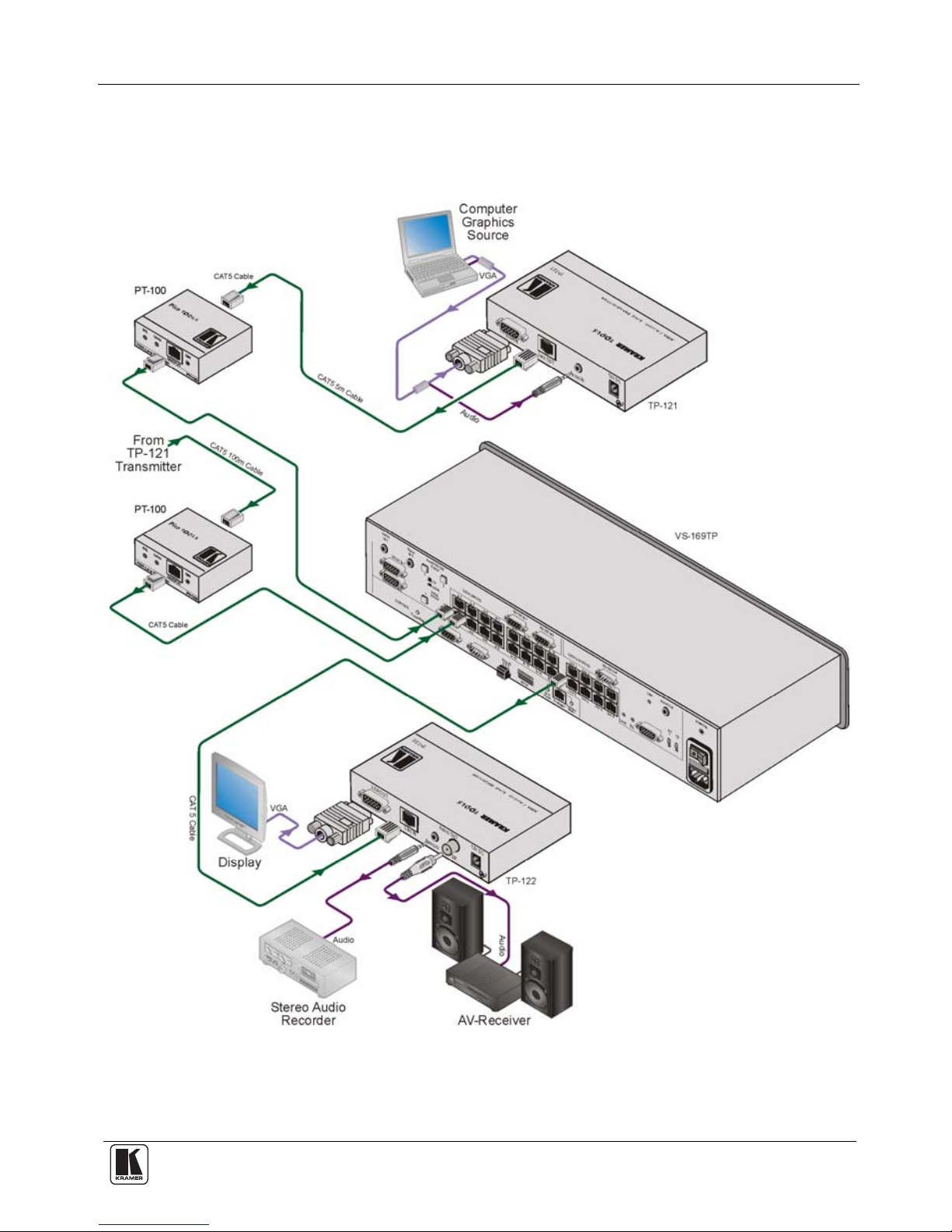

To connect the PT-100 as a TP line extender as part of a system with line
equalization and level control, as illustrated in the example in Figure 2:
1. Connect the video and audio sources (for example, computer graphics source)
to the first TP-121.
2. Connect the first TP-121 transmitter (must have the power supply attached) to
the input of the first PT-100 using TP cabling.
Note: In this example, the cable is 5m (16ft) long and therefore no power
supply to the PT-100 is required (see Section 3.2).
3. Connect the output of the first PT-100 to the VS-169TP Input 1 using TP
cabling.
4. Connect the second TP-121 transmitter to the input of the second PT-100
using TP cabling.
Note: In this example, the cable is 100m (320ft) long and therefore a power
supply to the PT-100 is required (not shown, see Section 3.2).
5. Connect the output of the second PT-100 to the VS-169TP Input 3 using TP
cabling.
6. Connect the VS-169TP Output 1 to the input of the TP-122 receiver using TP
cabling.
7. Connect the output of the TP-122 to the display and to the audio acceptors
(for example, display, stereo audio recorder and AV receiver).
8. Using the Level and Equalization controls on the front of both PT-100
devices, adjust the level and equalization so that the inputs to the VS-169TP
are matched. Use the front panel switches to switch each input to the local
output of the VS-169TP to assist in matching levels.
5.1 Connecting the PT-100 XGA Line Extender as a Simple Line Extender

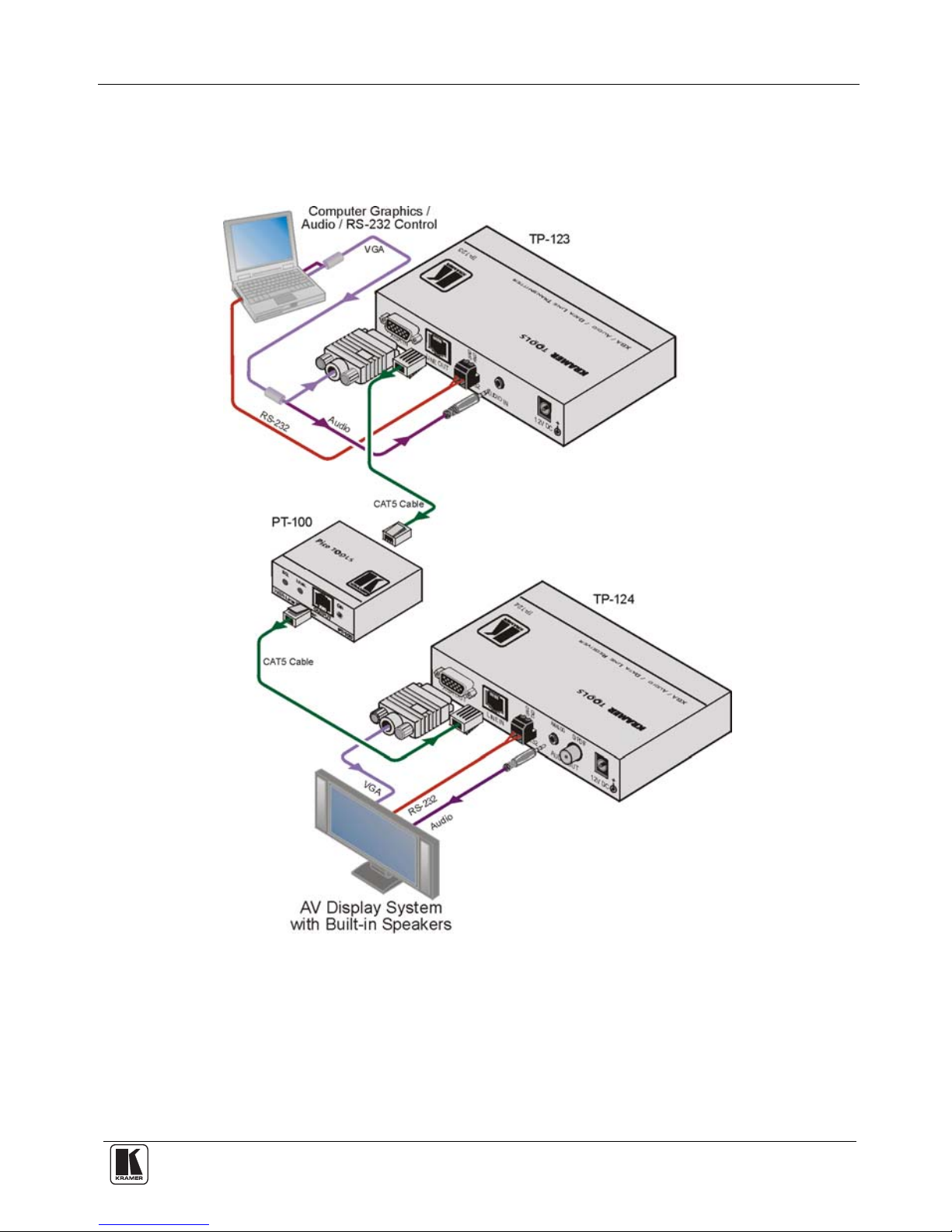

The PT-100 can be connected as a simple TP line extender as shown in Figure 3.
In this example, the PT-100 is used to extend the distance (to 200m) between the
TP-123 and TP-124 transmitter and receiver pair.
To connect the PT-100 as a simple line extender as illustrated in the example
in Figure 3:
1. Connect the computer graphics, audio and RS-232 data sources (for example,
computer graphics source) to the input of the TP-123.
Note: The RS-232 data link is unidirectional.
2. Connect the output of the TP-123 to the input of the PT-100 using TP
cabling1.
3. Connect the output of the PT-100 to the input of the TP-124 using TP
cabling1.
1 Up to 100m (320ft) away

Connecting the PT-100 XGA Line Extender
7
4. Connect the outputs of the TP-124 to the video, audio and RS-232 data
acceptors (for example, an AV display system).
5. Connect the 12V DC power adapter to the power socket on the PT-100 and
connect the adapter to the mains electricity.
Figure 3: Connecting the PT-100 as a Simple TP Line Extender

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Wiring the Twisted Pair Connectors
8
6 Wiring the Twisted Pair Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector

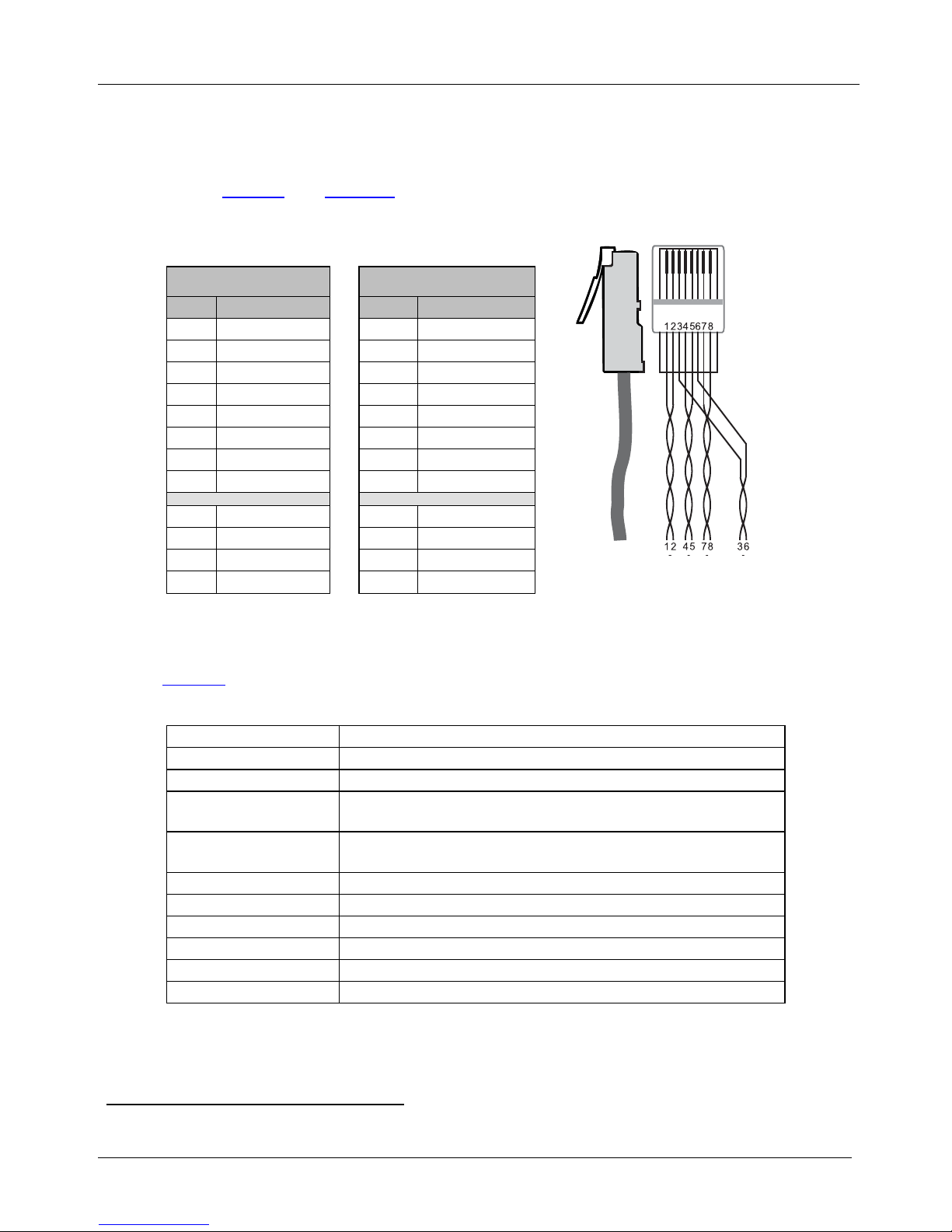

shield. Table 2 and Figure 4 define the TP pinout using a straight pin-to-pin cable
with RJ-45 connectors.
Table 2: TP Connector Pinout
Figure 4: TP Connector
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green/White 1 Orange/White
2 Green 2 Orange
3 Orange/White 3 Green/White
4 Blue 4 Blue
5 Blue/White 5 Blue/White
6 Orange 6 Green
7 Brown/White 7 Brown/White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
7 Technical Specifications
Table 3 includes the technical specifications1of the PT-100, XGA Line Extender.
Table 3: Technical Specifications of the PT-100 XGA Line Extender
INPUT: 1 CAT 5 IN on an RJ-45 connector
OUTPUT: 1 CAT 5 OUT on an RJ-45 connector
RESOLUTION: Up to WUXGA and 1080p
S/N RATIO: VIDEO: 58dB unweighted, 68dB @5MHz weighted
Audio: <-80dB
CONTROLS: Equalization trimmer
Level trimmer
COUPLING: AC
POWER SOURCE: 12V DC 900mA
DIMENSIONS: 6.2cm x 5cm x 2.4cm (2.44" x 1.97" x 0.94") W, D, H
WEIGHT: 0.2kg (0.44lbs) approx.
ACCESSORIES: Power supply, rack ears
OPTIONS: RK-4PT, RK-1TPT, RK-1T2PT 19” rack adapter
1 Specifications are subject to change without notice

9
LIMITED WARRANTY
WHOISPROTECTED?
WHATISCOVEREDANDWHATISNOTCOVERED
WHATWE WILLPAYFORANDWHATWEWILLNOTPAYFOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATIONOFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
followingterms.
Kramer
HOWLONGISTHE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
Wewillpaylaborandmaterialexpensesforcovereditems.Wewillnotpayforthefollowing:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at ouroption. Kramer shall
notbeliable for:
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,whichvaryfromplacetoplace.
Allproducts returnedto Kramerforservicemust havepriorapproval.Thismay be obtainedfromyourdealer.
Thisequipmenthasbeentestedtodeterminecompliancewiththerequirementsof:
EN-50081: "Electromagneticcompatibility(EMC);
genericemissionstandard.
Residential,commercialandlightindustry"
EN-50082: "Electromagneticcompatibility(EMC)genericimmunitystandard.
Part1:Residential,commercialandlightindustryenvironment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by thewarranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage,deteriorationormalfunctionresultingfrom:
i) Accident,misuse,abuse,neglect,fire,water,lightningorotheractsofnature
ii) Product modification, or failure to follow instructions supplied with the product
iii) RepairorattemptedrepairbyanyonenotauthorizedbyKramer
iv) Anyshipmentoftheproduct(claimsmustbepresentedtothe carrier)
v) Removalorinstallationoftheproduct
vi) Anyothercause,whichdoesnotrelatetoaproductdefect
vii) Cartons, equipment enclosures,cablesor accessoriesusedinconjunctionwiththe product
1. Removalorinstallationscharges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibilityoftheKramerdealerfromwhomtheproductwaspurchased.
3. Shippingcharges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damagetootherpropertycausedbydefectsinthisproduct,damagesbaseduponinconvenience,lossofuseoftheproduct,loss
of time, commercialloss; or:
2. Anyotherdamages, whetherincidental,consequential or otherwise. Some countriesmaynot allowlimitations onhow longan
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitationsandexclusionsmaynotapplytoyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
UsethesuppliedDCpower supplyto feedpower to themachine.
Pleaseuserecommendedinterconnectioncablestoconnectthemachinetoothercomponents.
IF reattached, removed or otherwise interfered with.
*FCCandCEapprovedusingSTPcable(fortwistedpairproducts)
NOTE:
Part1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N: 2900-000701 REV 2
For the latest information on our products and a list of
Kramer distributors, visit www.kramerelectronics.com
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
