Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer VS-62HA 6x2 HDMI/Audio Matrix
Switcher, which is ideal for the following typical applications:
Conference rooms
Entertainment
Hospitality

2
VS-62HA - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to www.kramerav.com/downloads/VS-62HA to check for up-to-date
user manuals, application programs, and to check if firmware upgrades are
available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
For optimum range and performance, use the recommended Kramer cables
available at www.kramerav.com/product/VS-62HA
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VS-62HA away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

VS-62HA - Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at www.kramerav.com/support/recycling/.

4
VS-62HA - Overview
3 Overview
The VS-62HAis a 4K UHD 6x2 matrix switcher for HDMI and analog audio signals.
It reclocks and equalizes the signals and can route any input to either or both
outputs simultaneously. It supports resolutions of up to 4K UHD including
4K@60Hz (4:2:0).
In particular, the VS-62HA features:
Up to 8.91Gbps data rate (2.97Gbps per graphics channel)
Maximum resolution of up to 4K@60Hz UHD (4:2:0).
Support for HDCP 1.4 (High Definition Digital Content Protection)
HDMI 2.0 Support –3D, Deep Color, x.v.Color™, Lip Sync , Dolby®
TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 multi-channel audio
Four unbalanced and two balanced audio inputs and two balanced audio
outputs on a matrix switcher
Contact closures to mirror front panel switching selection buttons and LEDs
Per input EDID capture that copies and stores the EDID from a display
device
Independent (breakaway) audio routing of HDMI and analog audio content to
two balanced audio ports
Programmable step-in functionality when used in conjunction with
compatible step-in devices, such as the SID-X3N and DIP-31 (using an
HDMI cable that supports HEC, the HDMI Ethernet Channel)
True video clock detection
Advanced auto AV switching modes (last connected and priority switching)
Non-volatile EDID storage
Kramer reKlocking™ & Equalization Technology that rebuilds the digital
signal to travel longer distances
A lock button to prevent unwanted tampering with the buttons on the front
panel
Internal pattern generator

VS-62HA - Overview
5
Support for Kramer Protocol 3000
Static or dynamic DHCP IP addressing
Flexible control options including front panel buttons, IR remote (included),
optional external remote IR receiver, RS−232, Ethernet, buttons and LED
over contact closure, embedded Web server and step-in.
Mini-USB port for upgrading firmware
19” 1U enclosure for rack mounting
3.1 Using the IR Transmitter
You can use the RC-IR3 IR transmitter to control the machine via an optional
external IR receiver (for example, P/N C-A35M/IRR-50). The external IR receiver
can be located up to 15m away from the machine. This distance can be extended
to up to 60m when used with three extension cables (for example, P/N
C-A35M/A35F-50).
Before using the external IR receiver, be sure to arrange for your Kramer dealer to
insert the internal IR connection cable (for example, P/N: 505-70434010-S) with
the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.
Connect the external IR receiver to the REMOTE IR 3.5mm connector.
3.2 About Fast Switching
To switch to a new digital video signal upon the loss of a digital video signal, older
display devices require the following:
A long period of time between the signal loss and the signal acquisition
Physical interconnecting cable disconnection
These enable older display devices to detect and adjust to the new video attributes
and parameters. Therefore, regular switching methods include a 5V signal
disconnection and a delay in switching.
However, many new display devices are now capable of “on-the-fly” switching.
Depending on the display device in use, the VS-62HA enables:
Fast switching –minor reset, connection kept alive

6
VS-62HA - Overview
Extra fast switching –no reset, connection kept alive
Fast and extra fast switching modes enable split-second switching times when
using high performance display devices or a scaler on the video output.
3.3 Defining the VS-62HA 6x2 HDMI/Audio Matrix Switcher
This section defines the VS-62HA.

VS-62HA - Overview
7

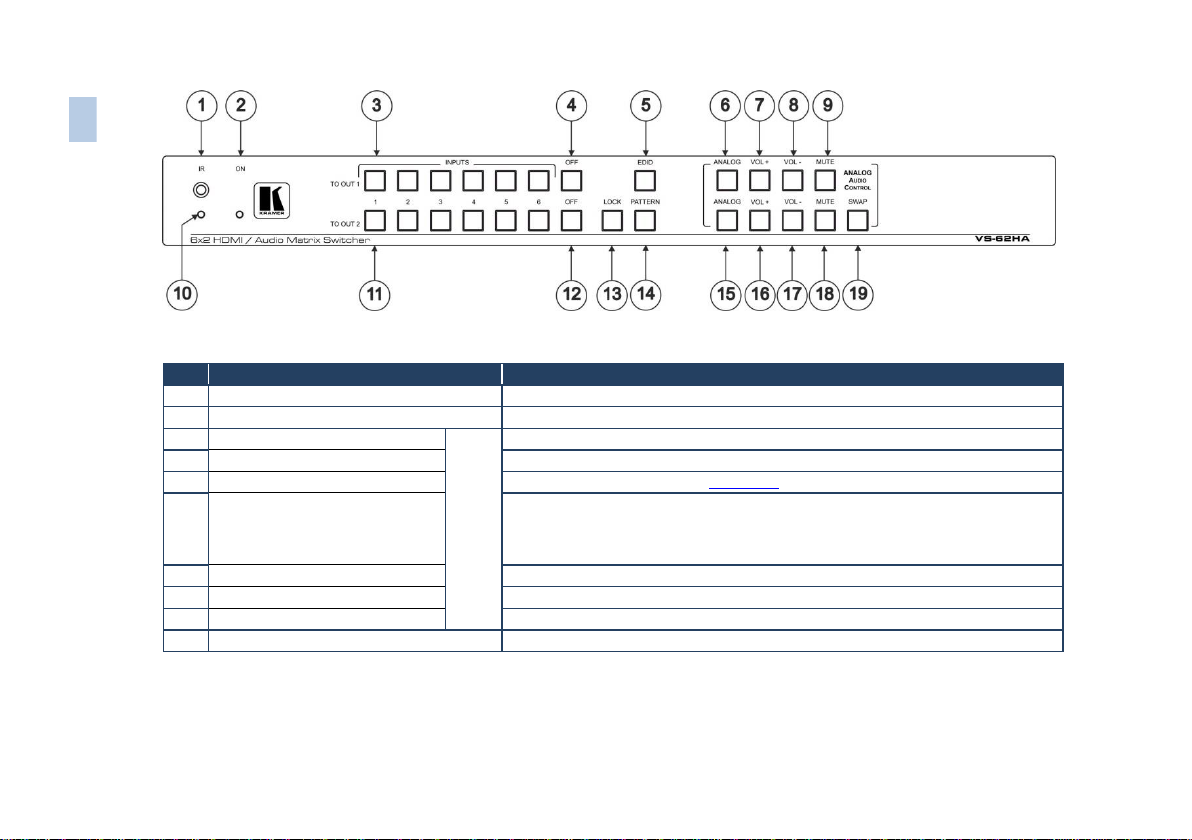

Figure 1: VS-62HA 6x2 HDMI/Audio Matrix Switcher Front Panel
#
Feature
Function
1
IR Sensor
Signal receiver for the infrared remote control transmitter
2
ON LED
Lights green when the device is powered on
3
INPUT Selector Buttons (1 to 6)
TO OUT 1
Press one of the six inputs to switch it to Output 1
4
OFF Button
Press to turn off HDMI output 1 video and audio
5
EDID Button
Press to capture the EDID (see Section 7.2)
6
ANALOG Button
Press to select/de-select the analog audio of output 1, colors are as follows:
green –analog audio follows HDMI video input
red –analog audio breakaway (Web control only)
off –outputs HDMI audio of the selected HDMI input
7
VOL+ Button
Press to increase output 1 volume
8
VOL- Button
Press to decrease output 1 volume
9
MUTE Button
Press to toggle muting of output 1 audio
10
IR LED
Lights yellow when receiving an IR signal
7
VS-62HA –Overview

8
VS-62HA - Overview
VS-62HA –Overview
7
#
Feature
Function
11
INPUT Selector Buttons (1 to 6)
TO OUT 2
Press one of the six inputs to switch it to Output 2
12
OFF Button
Press to turn off output 2 video and audio
13
LOCK Button
Press to inactivate/activate all front panel buttons to prevent tampering
14
PATTERN Button
Press to activate the test pattern generator. When the generator is active, press one of
the input buttons to select a test pattern
15
ANALOG Button
Press to select the analog audio of output 2
16
VOL+ Button
Press to increase output 2 volume
17
VOL- Button
Press to decrease output 2 volume
18
MUTE Button
Press to toggle muting of output 2 audio
19
SWAP Button
Press to swap output 1 and output 2

VS-62HA - Overview
9
Figure 2: VS-62HA 6x2 HDMI/Audio Matrix Switcher Rear Panel
#
Feature
Function
20
AUDIO IN (1-4) 3.5mm Mini Jacks
Connect to unbalanced stereo audio sources (1-4)
21
AUDIO IN (5-6) 5-pin Terminal Blocks
Connect to balanced stereo audio sources (5-6)
22
AUDIO OUT (1-2) 5-pin Terminal Blocks
Connect to balanced stereo audio acceptors (1-2)
23
REMOTE LEDS (1-2) Terminal Blocks
Connect to LEDS that display the selected input channel (1-6)
24
REMOTE IR 3.5mm Mini Jack
Connect to an external IR receiver for controlling the device via an IR remote
controller (see Section 3.1).
Covered by a cap. The 3.5mm mini jack at the end of the internal IR connection
cable fits into this opening
25
HDMI IN (1-6) Connectors
Connect to HDMI sources (1-6)
26
HDMI OUT (1-2) Connectors
Connect to HDMI acceptors (1-2)
27
SETUP DIP-Switches
Sets the device configuration (see Section 8.1)
28
REMOTE SWITCHES (1-2)
Connect to up to six remote, contact-closure input selection switches for Output 1
and Output 2 (see Section 5.3)
29
RESET/FACTORY DEFAULT Button
Press while power-cycling the device to reset to factory default parameters (see
Section 12)
30
RS-232 3-pin Terminal Block
Connect to a PC/serial controller (see Section 5.1)
31
PROGRAM USB Connector
Connect to a PC to upgrade the firmware (see Section 8.3)
32
ETHERNET RJ-45 Connector
Connect to a PC via a LAN (see Section 5.2)
33
Power Module (Socket, Fuse, On/Off Switch)
Connects to mains power and turns the unit on and off
8
VS-62HA –Overview

10
VS-62HA - Installing in a Rack
4 Installing in a Rack
This section provides instructions for rack mounting the unit.

VS-62HA - Connecting the VS-62HA
11
5 Connecting the VS-62HA
Always switch off the power to each device before connecting it to your
VS-62HA. After connecting your VS-62HA, connect its power and then
switch on the power to each device.
To connect the VS-62HA as illustrated in the example in Figure 3:
Figure 3: Connecting the VS-62HA 6x2 HDMI/Audio Matrix Switcher
1. Connect up to six HDMI sources, (for example, a laptop, desktop, VIA
Connect PRO) to the HDMI In connectors.
2. Connect up to six analog audio sources, (for example, a laptop, desktop,
a Dante interface) to the AUDIO IN connectors. AUDIO IN 1 through 4
are unbalanced stereo on 3.5mm mini jacks. AUDIO IN 5 and 6 are
balanced stereo audio on 5-pin terminal block connectors.
i

12
VS-62HA - Connecting the VS-62HA
3. Connect the two HDMI OUT connectors to up to two HDMI acceptors, (for
example, LCD displays).
4. Connect the two balanced AUDIO OUT 5-pin terminal block connectors
to up to two analog audio acceptors, (for example, audio receivers).
5. If required, connect a PC/controller to the RS-232 port (see Section 5.1)
and/or the Ethernet port (see Section 5.2).
6. If required for remote switching, connect up to 6 contact closure switches
per channel to their terminal block connectors (Remote 1 and 2
Switches).
7. If required for remote switch indication, connect up to 6 LEDS per
channel to their terminal block connectors (Remote 1 and 2 LEDS).
8. Connect a power cord to the device and plug it into the mains electricity
(not shown in Figure 3).
9. If required, acquire the EDID (see Section 7.1).
5.1 Connecting a Serial Controller to the VS-62HA via
RS-232
To connect a serial controller to the VS-62HA:
From the RS-232 9-pin D-sub serial port on the serial controller connect:
Pin 2 to the TX pin on the VS-62HA RS-232 terminal block
Pin 3 to the RX pin on the VS-62HA RS-232 terminal block
Pin 5 to the GND pin on the VS-62HA RS-232 terminal block

VS-62HA - Connecting the VS-62HA
13
5.2 Connecting to the VS-62HA via Ethernet
You can connect to the VS-62HA via Ethernet using either of the following
methods:
Directly to the PC using a crossover cable (see Section 5.2.1)
Via a network hub, switch, or router, using a straight-through cable (see
Section 5.2.2)
Note: If you want to connect via a router and your IT system is based on IPv6,
speak to your IT department for specific installation instructions.
5.2.1 Connecting the Ethernet Port Directly to a PC
You can connect the Ethernet port of the VS-62HA directly to the Ethernet port
on your PC using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying the VS-62HA
with the factory configured default IP address.
After connecting the VS-62HA to the Ethernet port, configure your PC as
follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device
and click Change settings of this connection.
The Local Area Connection Properties window for the selected network
adapter appears as shown in Figure 4.
i

14
VS-62HA - Connecting the VS-62HA
Figure 4: Local Area Connection Properties Window
4. Highlight Internet Protocol Version 4 (TCP/IPv4) by clicking on the
item.
5. Click Properties.
The Internet Protocol Properties window appears as shown in Figure 5.

VS-62HA - Connecting the VS-62HA
15
Figure 5: Internet Protocol Version 4 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in
the details as shown in Figure 6.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.
