Kramer VS-88HCB User manual

Kramer Electronics, Ltd.
USER MANUAL
Model:
VS-88HCB
8x8 Component /Video / Audio Matrix Switcher
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
4 Your VS-88HCB 3
4.1 Using the IR Transmitter 8
5 Installing in a Rack 9
6 Connecting the VS-88HCB 10
6.1 Connecting the Balanced/Unbalanced Stereo Audio Input/Output 12
6.2 Controlling via RS-232 (for example, using a PC) 13
6.3 Controlling via RS-485 14
6.4 Controlling the VS-88HCB via the Ethernet Port 15
6.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) 15
6.4.2 Connecting via a Straight-Through Cable 16
6.4.3 Configuring the Ethernet Port 16
6.5 Setting the VS-88HCB Dipswitches 17
6.5.1 Setting the SELF ADDRESS Dipswitches 18
6.5.2 Setting the Reply Dipswitch 18
6.5.3 Setting the RS-232/RS-485 Dipswitch 18
7 Operating Your VS-88HCB 19
7.1 Displaying the Unit Characteristics 19
7.2 Selecting and Connecting an Output and/or Input 19
7.3 Choosing the Audio-Follow-Video or Breakaway Option 20
7.3.1 Setting the Audio-Follow-Video Option 20
7.3.2 Setting the Breakaway Option 20
7.4 Confirming Settings 20
7.4.1 Toggling between the At Once and Confirm Modes 21
7.4.2 Confirming a Switching Action 21
7.5 Storing/Recalling Input/Output Configurations 22
7.5.1 Storing an Input/Output Configuration 22
7.5.2 Recalling an Input/Output Configuration 22
7.5.3 Deleting an Input/Output Configuration 22
7.6 Resetting the Machine 22
8 Controlling Several VS-88HCB Units 23
8.1 Control Configuration via RS-232 and RS-485 23
8.2 Control Configuration via RS-485 25
8.3 Control Configuration via the ETHERNET Port 26
9 Technical Specifications 27
 Table of Hex Codes for the Master VS-88HCB 28
11 Communication Protocol 2000 29
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
Figures
Figure 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel 4
Figure 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel 6
Figure 3: Connecting the VS-88HCB 8x8 Component / Video / Audio Matrix Switcher 11
Figure 4: Connecting the Balanced Stereo Audio Input/Output 12
Figure 5: Connecting the Unbalanced Stereo Audio Output 12
Figure 6: Connecting an Unbalanced Source to the Balanced Input 12
Figure 7: Connecting a PC without using a Null-modem Adapter 13
Figure 8: Controlling via RS-485 (for example, using an RC-3000) 14
Figure 9: Local Area Connection Properties Window 15
Figure 10: Internet Protocol (TCP/IP) Properties Window 16
Figure 11: VS-88HCB Dipswitches 17
Figure 12: Control Configuration via RS-232 and RS-485 24
Figure 13: Control Configuration via RS-485 26
Tables
Table 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel Features 5
Table 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel Features 7
Table 3: Dipswitch Settings 17
Table 4: MACHINE # Dipswitch Settings 18
Table 5: Technical Specifications of the VS-88HCB 27
Table 6: Hex Codes for Switching the Master VS-88HCB 28
Table 7: Protocol Definitions 29
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 1,000-plus
different models now appear in 11 groups
1
that are clearly defined by
function.
Congratulations on purchasing your Kramer VS-88HCB 8x8 Component /
Video / Audio Matrix Switcher, which is ideal for presentation and production
applications. The package includes the following items:
VS-88HCB 8x8 Component /Video / Audio Matrix Switcher
Power cord and Null-modem adapter
Windows®-based Ethernet Configuration Manager and Virtual Serial Port
Manager
Windows®-based Kramer control software
2
and this user manual
3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
4
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and
Rack Adapters; GROUP 11: Sierra Products
2 Downloadable from our Web site at http://www.kramerelectronics.com
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Overview
3
3 Overview
The high performance VS-88HCB is a universal matrix switcher for composite
video, s-Video, component video (Y, Cb/Pb, and Cr/Pr), balanced stereo audio
and S/PDIF digital audio signals. It can route any or all inputs to any or all outputs
simultaneously. The VS-88HCB 8x8 Component /Video / Audio Matrix
Switcher features:
High Bandwidth - 300MHz (-3dB) fully loaded
HDTV compatibility
Control via the front panel, RS-232 (K-Router™ Windows®-based
software is included), RS-485, Ethernet, IR Remote RC-IR2 (included)
and external Remote IR receiver (optional), see section 4.1
A Take button to execute multiple switches all at once
Memory locations that can be used to store multiple switches as presets to
be recalled and executed when needed
Audio (analog) breakaway switching, for switching audio independently
from video
The VS-88HCB is housed in a 19” 3U rack mountable enclosure.
In addition, the VS-88HCB:
Can be used for mixed video applications such as CV, Y/C and YUV
simultaneously
Includes an ETHERNET connection that supports easy dial-up and Internet
system remote control (requiring only a dedicated IP address
1
and a modem in
the remote location) whether it is a stand-alone PC or a LAN
2
system
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise-
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position your
Kramer VS-88HCB away from moisture, excessive sunlight and dust
4 Your VS-88HCB
Figure 1 and Table 1 define the front and rear panels of the VS-88HCB.
1 IP Address is a 32-binary digit number that identifies each sender or receiver (within a network via a particular server or
workstation) of data (HTML pages or e-mails) that is sent in packets across the Internet. Every device connected to an IP
network must have a unique IP address. This address is used to reference the specific unit
2 LAN is Local Area Network
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-88HCB
4
Figure 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Your VS-88HCB
5
Table 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel Features
#Feature Function
1IR Receiver The red LED is illuminated when receiving signals from the Kramer
Infrared remote control transmitter
2POWER switch Illuminated switch for turning the unit ON or OFF
3OUTPUT SELECTOR
Buttons Select the output to which the input is switched (from 1 to 8)
4INPUT SELECTOR
Buttons Select the input to switch to the output (from 1 to 8)
5 TAKE Press to toggle between the Confirm mode1and the At Once mode (user
confirmation per action is unnecessary), or press to confirm action
6INPUT STATUS display Displays the selected input switched to the output (marked above each input)
7RCL Button Press the RCL button followed by an INPUT button2to recall a setup from the
non-volatile memory
8 STO Button Press the STO button followed by an INPUT button2to store the current
settings
9AFV Button When pressed3, actions relate to the video and audio channels. The audio
channels follow the video channels
10 AUDIO Button When pressed3, actions relate to audio
11 VIDEO Button When pressed3, actions relate to video
12 OFF Button An OFF-OUTPUT combination disconnects that output from the inputs; an
OFF-ALL combination disconnects all the outputs
13 ALL Button Press ALL followed by an INPUT button to connect that input to all the outputs
1 When in the Confirm mode, the TAKE button blinks
2 In this case the INPUT button corresponds to the setup address number
3 The button illuminates
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-88HCB
6
Figure 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Your VS-88HCB
7
Table 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel Features
#Feature Function
14 AUDIO INPUTS Terminal
Block Connectors Connect to the balanced stereo audio sources (from 1 to 8)
15 AUDIO OUTPUTS Terminal
Block Connectors Connect to the balanced stereo audio acceptors (from 1 to 8)
16 Ethernet Connector Connects to the PC or other Serial Controller through computer networking
17 RS-485 Port Pin G is for the Ground connection1; pins B (-) and A (+) are for RS-485
18 REMOTE IR 3.5mm Mini
Jack
Connect to an external IR receiver unit for controlling the machine via an IR
remote controller (instead of using the front panel IR receiver)2
19 Power Connector with Fuse AC connector, enabling power supply to the unit
20 Factory Reset Button Press to reset to factory default definitions3:
IP number 192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
21 Dipswitches Dipswitches for setup of the unit (1, 2 and 3 are for setting the machine
number; 4 is for RS-485 bus termination; 5 is for Reply; 8 is for RS-485 PC
communication)
22 RS-232 9-pin D-sub Port Connect to the PC or the remote controller
23 Video/Y
S/PDIF/
C
Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)
acceptors, or to the s-Video (Video/Y and S/PDIF/C) acceptors
C
R /P R
C
B /P B
OUT BNC
Connectors
(from 1 to 8)
Y
Connect to the component video (Y, C
B /P B , C R /P R ) acceptors
24 Video/Y
S/PDIF/C
Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)
sources or to the s-Video (Video/Y and S/PDIF/C) sources
C
R /P R
C B /P B
INPUT BNC
Connectors
(from 1 to 8)
Y
Connect to the component video (Y, C
B /P B , C R /P R ) sources
1 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not
connected
2 Can be used instead of the front panel (built-in) IR receiver to remotely control the machine
3 Turn the machine OFF, then turn the machine ON while pressing the FACTORY RESET button. The unit powers up and
loads its memory with the factory default definitions
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-88HCB
8
4.1 Using the IR Transmitter
You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an external IR receiver
1
. The
external IR receiver can be located 15 meters away from the machine. This
distance can be extended to up to 60 meters when used with three extension
cables
2
.
Connect the external IRreceiver to the REMOTE IR 3.5mm connector.
Control the VS-88HCB using the front panel buttons, or remotely via the
Kramer RC-IR2 Infrared Remote Control Transmitter, via an external remote
IR receiver (optional), or via RS-485 or RS-232 serial commands transmitted
by a touch screen system, PC, or other serial controller.
1 P/N: C-A35M/IRR-50
2 P/N: C-A35M/A35F-50
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Installing in a Rack
9
5 Installing in a Rack
This section describes what to do before installing in a rack and how to rack
mount.
Before Installing in a Rack How to Rack Mount
Before installing in a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5º to +45º C (41º to 113º F)
Operating humidity range 10 to 90% RHL, non-condensing
Storage temperature range -20º to +70º C (-4º to 158º F)
Storage humidity range 5 to 95% RHL, non-condensing

CAUTION!!
When installing in a 19" rack, avoid hazards by taking
care that:
1. It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
2. Once rack mounted, enough air will still flow around
the machine.
3. The machine is placed straight in the correct
horizontal position.
4. You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the
product label.
5. The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to situations where
electricity is supplied indirectly (when the power cord
is not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip, and that you use only the power cord that is
supplied with the machine.
To rack-mount a machine:
1. Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the
machine (3 on each side), and
replace those screws through the
ear brackets.
2. Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided)
through each of the four holes in the
rack ears.
Note that:
In some models, the front panel
may feature built-in rack ears
Detachable rack ears can be
removed for desktop use
Always mount the machine in the
rack before you attach any cables
or connect the machine to the
power
If you are using a Kramer rack
adapter kit (for a machine that is not
19"), see the Rack Adapters user
manual for installation instructions
(you can download it at:
http://www.kramerelectronics.com)
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-88HCB
10
6 Connecting the VS-88HCB
To connect the VS-88HCB, as illustrated in the example in Figure 3, do the
following
1
:
1. Connect the video sources
2
. For example, connect:
A composite video source (for example, a video player) to the Video/Y
INPUT 1 BNC connector
An s-Video source (for example an s-Video player) to the Video/Y and
S/PDIF/C INPUT 3 BNC connectors
A component video source (for example a DVD player) to the Y,
CB/PBand CR/PRINPUT 5 BNC connectors
2. Connect up to eight
3
balanced stereo audio sources
4
to the AUDIO INPUT
terminal block connectors.
3. Connect the video acceptors. For example, connect the:
Video/Y OUT 1 BNC connector to a composite video acceptor (for
example, a composite video display)
Video/Y and S/PDIF/C OUT 3 BNC connectors to an s-Video acceptor
(for example, an s-Video display)
Y, CB/PBand CR/PROUT 5 BNC connectors to a component video
acceptor (for example, a projector)
4. Connect the corresponding balanced stereo audio acceptors
4
to the AUDIO
OUTPUTS terminal block connectors.
5. Set the dipswitches (see section 6.5).
6. Connect a PC and/or controller (if required) to the:
RS-232 port and/or
RS-485 port and/or
ETHERNET connector
7. Connect the power cord
4
.
1 Switch off the power on each device before connecting it to your VS-88HCB. After connecting your VP-88HCB, switch on
its power and then switch on the power on each device
2 All signal connections using more than one cable to interconnect between the devices, should be of equal length
3 Alternatively, you can connect digital S/PDIF audio (when connecting component and/or composite video)
4 Not illustrated in Figure 3
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the VS-88HCB
11
Note that you can use the VS-88HCB for:
Various video applications such as composite video, s-Video and
component video on different inputs
Parallel applications. For example, you can use it simultaneously as a
composite video 8x8 matrix and a component video matrix
Mixed applications (such as composite video and component video
simultaneously). When doing so, select the parallel output channels for
the same format. For example, if the Video/Y Channel is used for
composite video then the output channel (Video/Y)
1
should be used
similarly

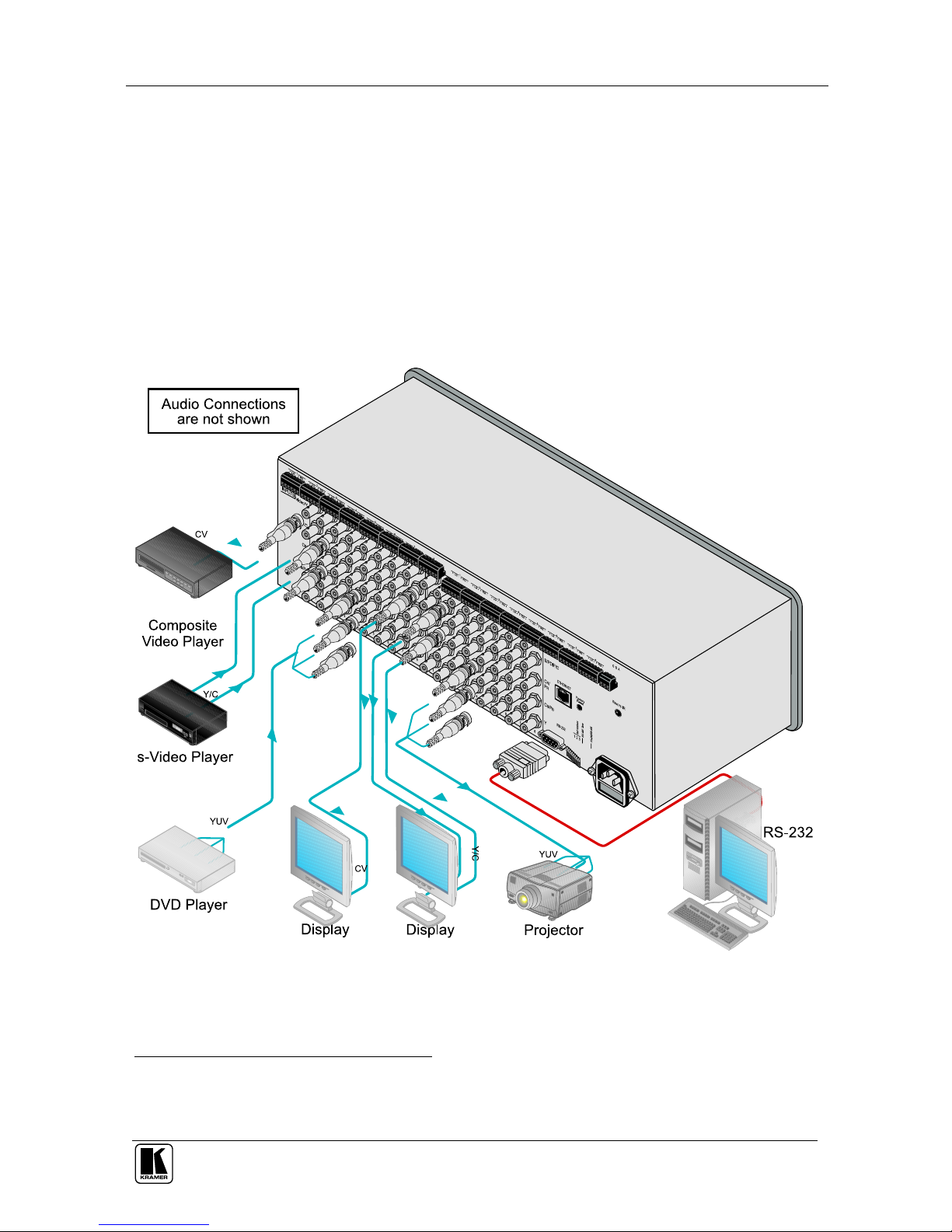

Figure 3: Connecting the VS-88HCB 8x8 Component / Video / Audio Matrix Switcher
1 In a mixed signal application all the input channels are selected simultaneously. For example, if used for CV and component
video parallel switching, then when input number 1 is selected, it selects both input number 1 of the CV and input number 1
of the component video channels
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-88HCB
12
6.1 Connecting the Balanced/Unbalanced Stereo Audio Input/Output
This section illustrates how to wire:
A balanced input/output connection (see Figure 4)
An unbalanced audio output (see Figure 5)
An unbalanced source to the balanced input on the VS-88HCB (see Figure 6)
Figure 4 illustrates how to wire a balanced input/output connection:
+
+
L
R
-
-
G
G
Figure 4: Connecting the Balanced Stereo Audio Input/Output
Figure 5 illustrates how to wire an unbalanced acceptor to the balanced output
of the unit:
+
+
L
R
-
-
G
G
Figure 5: Connecting the Unbalanced Stereo Audio Output
Figure 6 illustrates how to connect an unbalanced source to the balanced input
on the VS-88HCB:
+
+
L
R
-
-
G
G
Figure 6: Connecting an Unbalanced Source to the Balanced Input
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the VS-88HCB
13
6.2 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VS-88HCB unit
1
, using the Null-modem adapter
provided with the machine (recommended):
Connect the RS-232 9-pin D-sub rear panel port on the VS-88HCB unit to
the Null-modem adapter and connect the Null-modem adapter with a
9-wire flat cable
2
to the RS-232 9-pin D-sub port on your PC
To connect a PC to the VS-88HCB unit
1
, without using a Null-modem adapter:
Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin
D-sub rear panel port on the VS-88HCB unit, as Figure 7 illustrates
2



9-pin D-sub
(From PC)
9-pin D-sub
(Male)
If a shielded cable is used, connect the shield to PIN 5
PIN 4 is connected to PIN 6
PINs 8, 7, 1 are connected together



PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Figure 7: Connecting a PC without using a Null-modem Adapter
1 When connecting a single VS-88HCB unit via RS-232, set the SELF ADDRESS # dipswitches to SELF ADDRESS # 1,
according to Table 4
2 Up to 50 feet of cabling may be used for the RS-232 connection
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-88HCB
14
6.3 Controlling via RS-485
You can control a VS-88HCB unit via an RS-485 controller
1
, for example, a
PC (equipped with an RS-485 interface) or a Master Programmable Remote
Control system, such as the Kramer RC-3000.
To connect an RC-3000 to a single VS-88HCB unit (see Figure 8):
1. Connect the RS-485 terminal block port on the RC-3000 to the RS-485 port on
the VS-88HCB unit, as follows:
Connect the “A” (+) PIN on the RS-485 rear panel port of the
RC-3000 to the “A” (+) PIN on the RS-485 rear panel port of the
VS-88HCB unit
Connect the “B” (-) PIN on the RS-485 rear panel port of the
RC-3000 to the “B” (-) PIN on the RS-485 rear panel port of the
VS-88HCB unit
If shielded twisted pair cable is used, the shield may be connected to
the “G” (Ground) PIN on one of the units (for example, on the
RC-3000)
2. Set the SELF ADDRESS # dipswitches on the VS-88HCB unit to a SELF
ADDRESS # between 2 and 8, according to section 6.5.1. Do not set as SELF
ADDRESS # 1 (the Master). Terminate the RS-485 line on both the
VS-88HCB unit (set DIP 4 to ON) and on the RC-3000
2
.
Figure 8: Controlling via RS-485 (for example, using an RC-3000)
1 RS-485 can be used for control even for distances exceeding 1km
2 Refer to the RC-3000 user manual for details of how to terminate the RS-485 line
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the VS-88HCB
15
6.4 Controlling the VS-88HCB via the Ethernet Port
You can connect the VS-88HCB via the ETHERNET in the following ways:
For direct connection to the PC, use a crossover cable (see section 6.4.1)
For connection via a network hub or network router, use a
straight-through cable (see section 6.4.2)
6.4.1 Connecting the ETHERNET Port directly to a PC (Crossover
Cable)
You can connect the Ethernet port of the VS-88HCB to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory default
IP Address of the VS-88HCB during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 9).
Figure 9: Local Area Connection Properties Window
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-88HCB
16
6. Select Use the following IP address, and fill in the details as shown in
Figure 10.
7. Click OK.
Figure 10: Internet Protocol (TCP/IP) Properties Window
6.4.2 Connecting via a Straight-Through Cable
You can connect the ETHERNET of the VS-88HCB to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
6.4.3 Configuring the Ethernet Port
After connecting the Ethernet port, you have to install and configure it.
For detailed instructions on how to install and configure your Ethernet port,
see the “ Ethernet Configuration (FC-11) guide.pdf” on our Web site:
http://www.kramerelectronics.com
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the VS-88HCB
17
6.5 Setting the VS-88HCB Dipswitches
This section describes the machine set-up and dipswitch selection.
Figure 11 illustrates the factory default dipswitches and Table 3 describes
them.
OFF
ON
Figure 11: VS-88HCB Dipswitches
Table 3: Dipswitch Settings
DIPS Function Description
1, 2, 3 Self Address Determines the position of the machine in the input expansion configuration
(in the factory default, these DIPs are set to ON)
4 RS-485 TERM ON for RS-485 Line Termination (factory default)
OFF for no RS-485 Line Termination
5Reply ON enables reply from switcher to PC (factory default)
OFF disables reply from switcher to PC
6, 7 RESERVED Set to ON (factory default)
8 RS-232 \ RS-485 ON enables RS-232 communication between switcher and PC (factory
default)
OFF disables reply from switcher to PC
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]
