Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 1
3Overview 3
4Defining the RGBHV/Balanced Audio Matrix Switcher 4
4.1 Using the IR Transmitter 8
5Installing in a Rack 8
6Connecting the RGBHV/Balanced Audio Matrix Switcher 9
6.1 Wiring a Balanced/Unbalanced Stereo Audio Input/Output 10
6.2 Connecting to the VP-88K via RS-232 11
6.3 Connecting to the VP-88K via RS-485 12
6.4 Connecting to the VP-88K via the Ethernet Port 12
6.4.1 Connecting Directly via the Ethernet Port 12
6.4.2 Connecting via a Network Hub, Switch, or Router 14
6.4.3 Configuring the Ethernet Port on the VP-88K 14
6.5 Setting the VP-88K DIP-switches 16
7Operating the VP-88K 18
7.1 Displaying the Configuration of the VP-88K 18
7.2 Switching Outputs to Inputs 18
7.3 Confirming Settings 18
7.3.1 Toggling between At Once and Confirm Modes 19
7.3.2 Confirming a Switching Action 19
7.4 Understanding the 7-Segment Status Display Information 20
7.4.1 Status Display Immediately After Power is Turned On 20
7.4.2 Status Display During Normal Operation 20
7.4.3 Status Display During Audio Gain Level Setting 21
7.5 Choosing the Audio-Follow-Video or Breakaway Option 21
7.5.1 Setting the Audio-Follow-Video Option 21
7.5.2 Setting the Breakaway Option 22
7.6 Storing/Recalling Input-Output Configurations 22
7.6.1 Storing an Input-Output Configuration 22
7.6.2 Recalling an Input-Output Configuration 22
7.6.3 Deleting an Input-Output Configuration 23
7.7 The Audio Input/Output Gain Control 23
7.8 Resetting the Unit 24
7.9 Selecting the Genlock Source 24
8Controlling the VP-88K 25
8.1 Controlling the VP-88K via RS-232 25
8.2 Controlling the VP-88K via RS-485 26
8.3 Controlling the VP-88K via Ethernet 27
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
9Connecting to the VP-88K via your Browser 28
9.1 Connecting to the VP-88K User Manual via your Browser 28
9.2 The Main Switching Matrix Page 30
9.2.1 Switching an Input to an Output 30
9.2.2 Setting the AFV Mode 31
9.2.3 Operating in the Offline Mode 32
9.2.4 Storing and Recalling Setups 33
9.2.5 Locking the Front Panel Buttons 35
9.3 Audio Input Gain Control Page 35
9.4 The Configuration Page 36
10 Flash Memory Upgrade 37
11 Technical Specifications 38
12 Communication Parameters 39
13 Tables of ASCII Codes for Serial Communication (Protocol 3000) 39
14 Tables of Hex Codes for Serial Communication (Protocol 2000) 40
15 Kramer Protocol 42
15.1 Switching Protocols 42
15.1.1 Switching Protocols via the Front Panel Buttons 43
15.1.2 Switching Protocols via Protocol Commands 43
15.2 Kramer Protocol 3000 43
15.2.1 Protocol 3000 Syntax 43
15.2.2 Command Parts Details 45
15.3 Kramer Protocol 2000 51
Figures
Figure 1: VP-88K RGBHV/Balanced Audio Matrix Switcher Front Panel 4

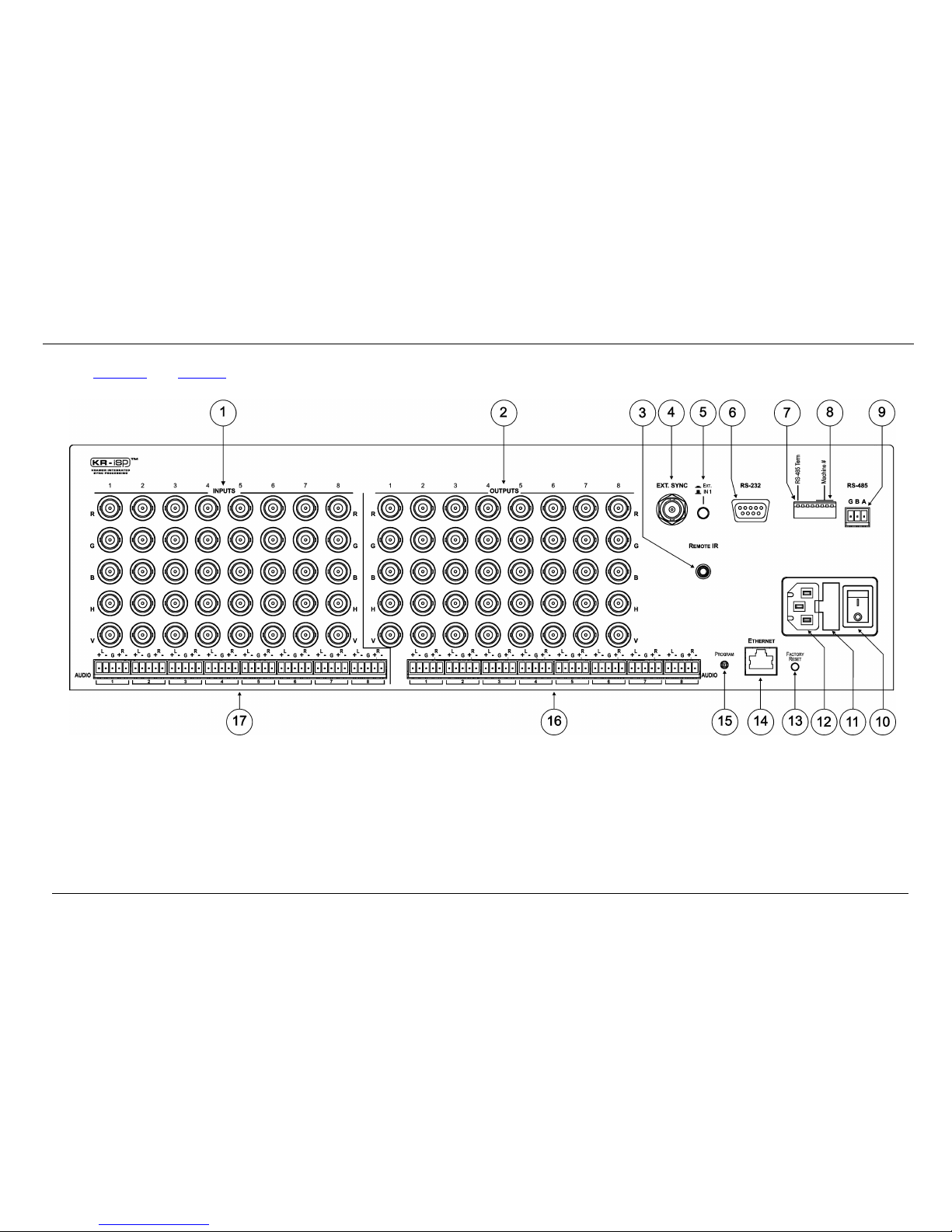

Figure 2: VP-88K RGBHV/Balanced Audio Matrix Switcher Rear View 6

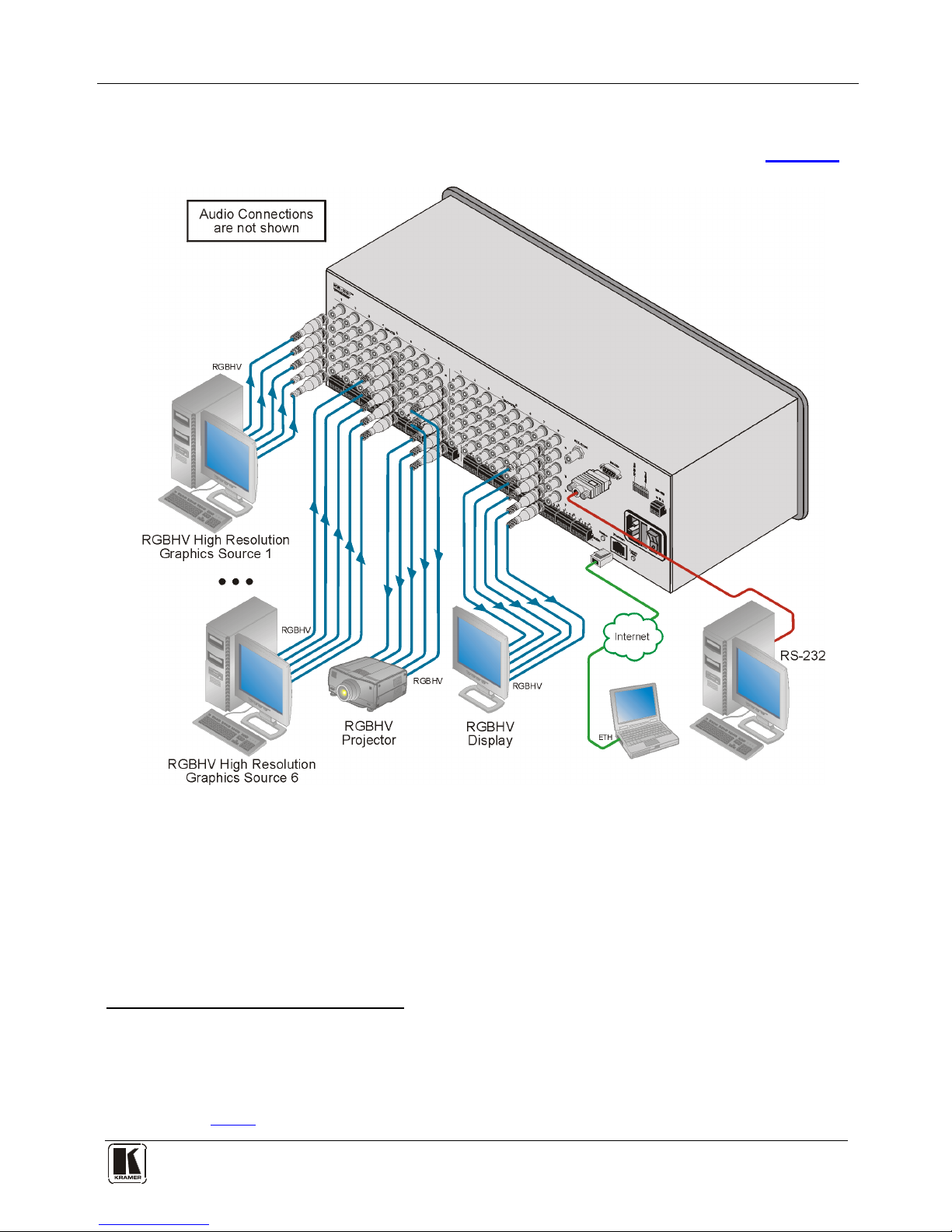

Figure 3: Connecting the VP-88K RGBHV/Balanced Audio Matrix Switcher9
Figure 4: Wiring a Balanced Stereo Audio Input/Output 10

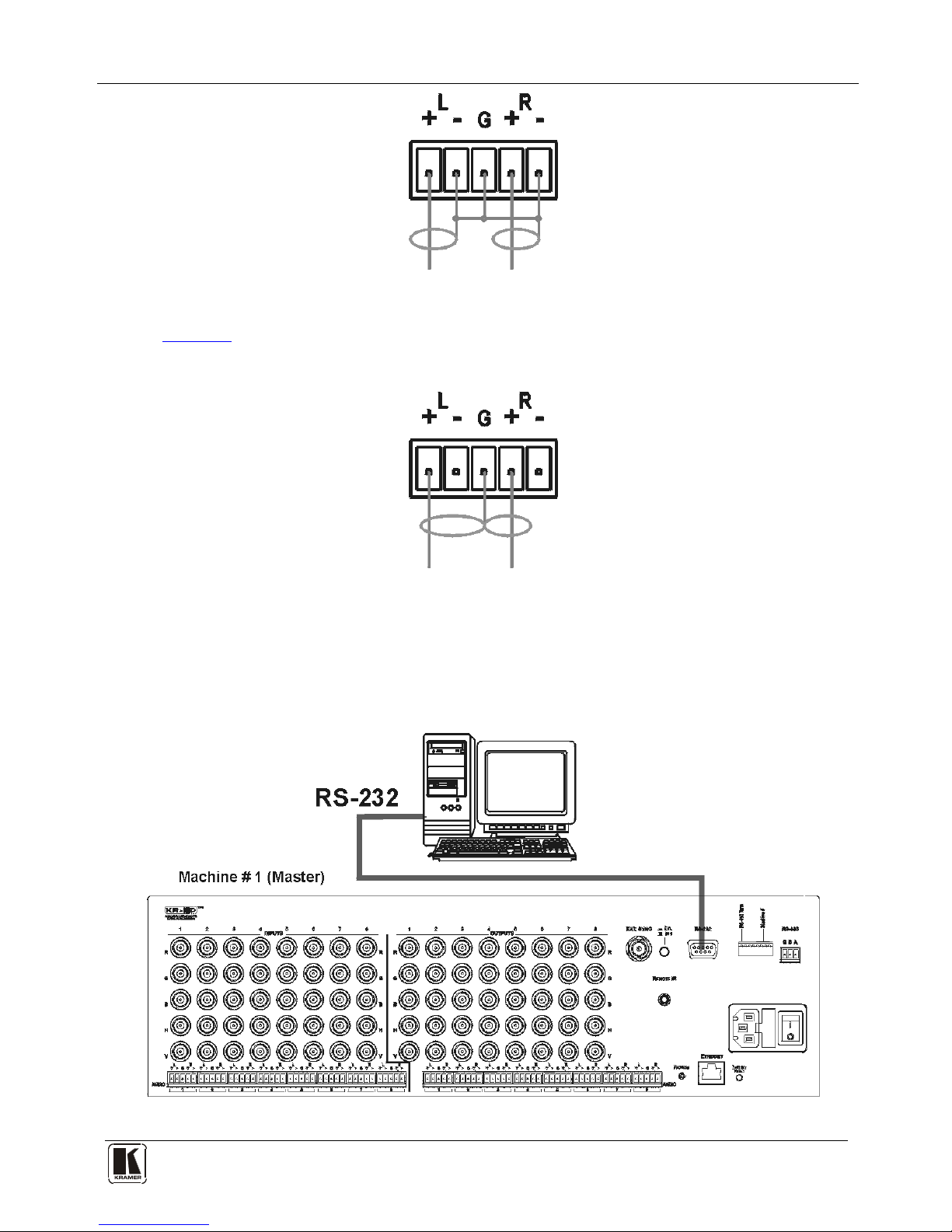

Figure 5: Wiring an Unbalanced Stereo Audio Output 11
Figure 6: Wiring an Unbalanced Source to a Balanced Input 11
Figure 7: Connecting to the VP-88K via RS-232 using a PC 11
Figure 8: Local Area Connection Properties Window 13

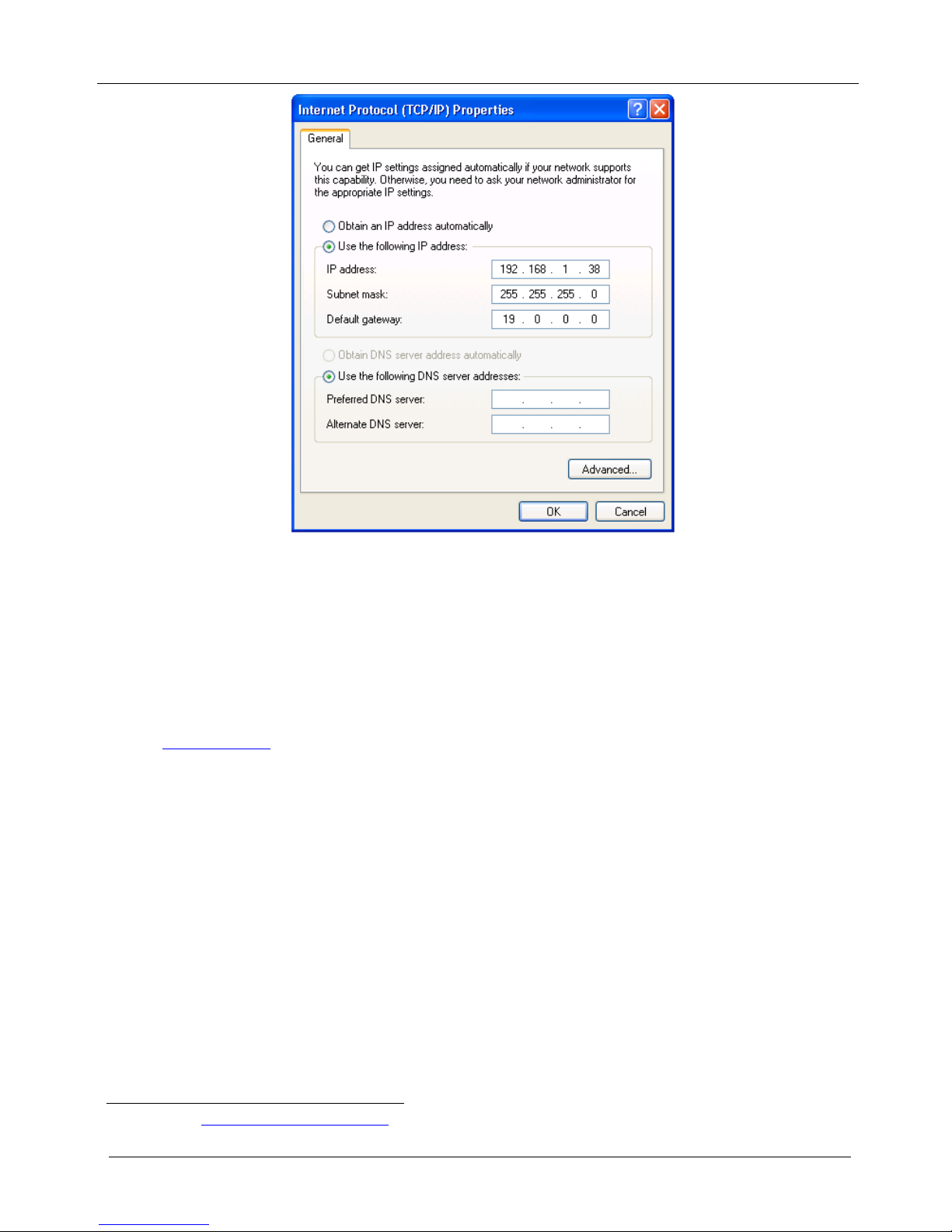

Figure 9: Internet Protocol (TCP/IP) Properties Window 14
Figure 10: Connect Window 15
Figure 11: Device Properties Window 16
Figure 12: VP-88K DIP-switches 16
Figure 13: Status Display Immediately After Turn On 20
Figure 14: Status Display 5 Seconds After Turn On 20
Figure 15: Status Display During Normal Operation 21
Figure 16: Status Display Showing OUTPUT 3, Gain -4.5 21
Figure 17: Configuration Button Numbering 22
Figure 18: Status Display OUTPUT 8 Flashing 23
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Contents
iii
Figure 19: Status Display Showing OUTPUT 8, Gain -4.5 24
Figure 20: Genlock External Connector and Source Selector Button 24
Figure 21: Control Configuration via RS-232 25
Figure 22: DIP-switch Setting for Machine 2 26
Figure 23: Controlling the VP-88K via Ethernet 27
Figure 24: Java Test Page Success Message 28
Figure 25: Entering the IP Number in the Address Bar 28
Figure 26: The Loading Page 29
Figure 27: First Time Security Warning 29
Figure 28: Main Switching Matrix Page 30
Figure 29: Selecting a Switching Point on the Matrix 31
Figure 30: Switching an Input to an Output 31
Figure 31: AFV Mode Warning 32
Figure 32: AFV Mode Audio Channels Switched 32
Figure 33: Switching Audio in the Offline Mode 33
Figure 34: Exiting Offline Warning 33
Figure 35: Selecting Preset 07 34
Figure 36: Selecting Preset 03 34
Figure 37: Recalling a Preset in Offline Mode 35
Figure 38: Audio Gain Control Page 35
Figure 39: Selecting Audio Input Gain for Channel 2 36
Figure 40: Configuration Page 36
Tables
Table 1: VP-88K RGBHV/Balanced Audio Matrix Switcher Front Panel Features 5
Table 2: RGBHV/Balanced Audio Matrix Switcher Rear Panel Features 7
Table 3: DIP-switch Settings 17
Table 4: Machine Number DIP-switch Settings 17
Table 5: Technical Specifications for the VP-88K 38
Table 6: Communication Parameters 39
Table 7: VP-88K Video Signal Codes 39
Table 8: VP-88K Audio Signal Codes 40
Table 9: VP-88K Audio Input Gain Codes 40
Table 10: VP-88K Audio Output Gain Codes 40
Table 11: VP-88K Hex Codes that Switch Video Channels 41
Table 12: VP-88K Hex Codes that Switch Audio Channels 41
Table 13: VP-88K Hex Codes that Increase/Decrease Audio Input Gain 41
Table 14: Hex Codes that Set the Audio Input Gain 41
Table 15: VP-88K Hex Codes that Increase/Decrease the Audio Output Gain 42
Table 16: VP-88K Hex Codes that Set the Audio Output Gain 42
Table 17: Instruction Codes for Protocol 3000 45
Table 18: Protocol Definitions 51
Table 19: Instruction Codes for Protocol 2000 52
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models now
appear in 11 groups1
Congratulations on purchasing your Kramer VP-88K RGBHV/Balanced Audio
Matrix Switcher, which is ideal for:
that are clearly defined by function.
•Professional display systems requiring true 8x8 computer graphics and audio
matrix operation
•Multimedia and presentation source, and acceptor selection
•Presentation and production applications
The package includes the following items:
•VP-88K RGBHV/Balanced Audio Matrix Switcher
•Power cord
•Windows®-based Kramer control software2
•This user manual
3
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables4
2.1 Quick Start
The following quick start chart summarizes the basic steps when connecting a
VP-88K RGBHV/Balanced Audio Matrix Switcher.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack
Adapters; GROUP 11: Sierra Products
2 Download from our Web site at http://www.kramerelectronics.com
3 Download the latest user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Overview
3
3
3 Overview
The high performance VP-88K RGBHV/Balanced Audio Matrix Switcher is
designed for high-resolution computer video graphics signals and balanced stereo
audio signals. Each machine is a true matrix, routing any input to any or all outputs
simultaneously.
In particular, the VP-88K RGBHV/Balanced Audio Matrix Switcher features:
•Kramer’s innovative integrated sync processing; Kr-isp®technology that lets
you achieve a sharp stable image by restoring the signal waveform, even when
the sync level is too low
•Three high bandwidth video channels, Red, Green and Blue (RGB) and two
TTL (logic level) channels – Horizontal and Vertical sync
•Channel switching during the vertical interval, offering glitch-free transitions
when sources share a common reference sync
•Audio breakaway, for switching audio independently from video
•Preset memory locations for quick access to common configurations
•A TAKE button, which lets you place multiple switches in a queue and then
activate them with one touch of the TAKE button
•Mixed video application usage, such as CV, Y/C, and YUV simultaneously
•An Ethernet connection that supports easy dial-up and Internet system remote
control (requiring only a dedicated IP address1and a modem in the remote
location) whether it is a stand-alone PC or a LAN2
Control the VP-88K using the front panel buttons, or remotely via:
system
•RS-485
•RS-232 serial commands transmitted by a touch screen system, PC, or other
serial controller (Protocol 2000 and Protocol 3000)
•Ethernet
•The Kramer RC-IR3 Infrared Remote Control Transmitter
•An (optional) external remote IR receiver (see Section 4.1
The VP-88K is dependable, rugged, and fits into three vertical spaces (3U) of a
standard 19" rack.
)
To achieve the best performance:
•Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise- levels
•Avoid interference from neighboring electrical appliances and position your
Kramer VP-88K away from moisture, excessive sunlight and dust
1 IP Address is a 32-binary digit number that identifies each sender or receiver (within a network via a particular server or workstation)
of data (HTML pages or e-mails) that is sent in packets across the Internet. Every device connected to an IP network must have a unique
IP address. This address is used to reference the specific unit
2 LAN is Local Area Network
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the RGBHV/Balanced Audio Matrix Switcher
4
4 Defining the RGBHV/Balanced Audio Matrix Switcher
Figure 1 and Table 1 define the front panel of the VP-88K.

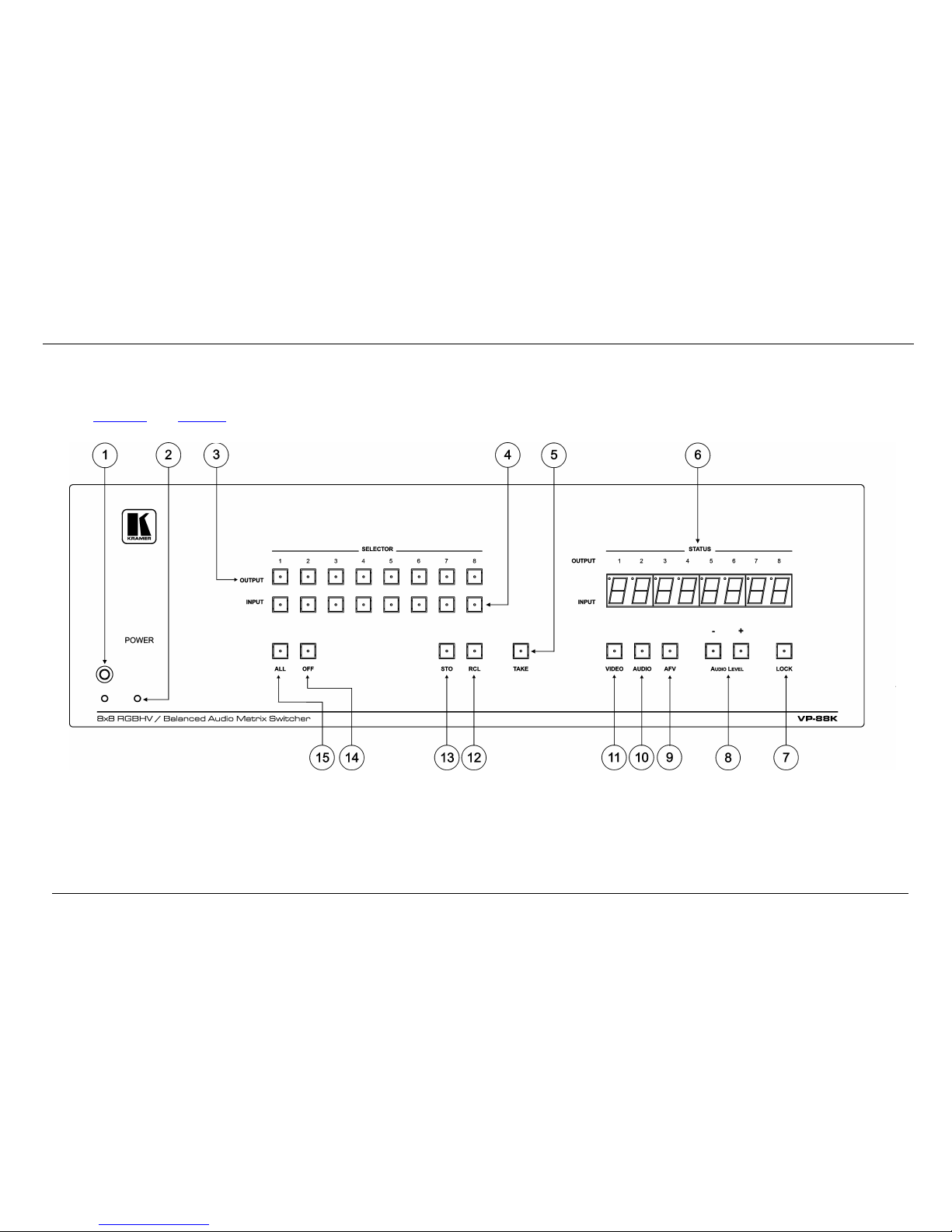

Figure 1: VP-88K RGBHV/Balanced Audio Matrix Switcher Front Panel
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Defining the RGBHV/Balanced Audio Matrix Switcher
5
5
Table 1: VP-88K RGBHV/Balanced Audio Matrix Switcher Front Panel Features
# Feature Function
1 IR Receiver LED Lights yellow LED when receiving signals from the Kramer infra-red
remote control transmitter
2 POWER LED Lights red when the unit is turned on
3 OUTPUT SELECTOR
buttons
Select the output to which the input is switched
4 INPUT SELECTOR buttons Select the input to switch to the output (see Section 7.2
5
)
TAKE button Press to toggle between the Confirm mode
1
and the At Once mode
(see Section 7.3
6
)
INPUT-OUTPUT STATUS
display
Displays the selected input switched to the output (marked above
each input)
7 LOCK button Locks the front panel buttons
8 AUDIO LEVEL + button Press to increase the input or output audio signal level
– button Press to decrease the input or output audio signal level
9 AFV ButtonWhen pressed2
10
, actions relate to the video and audio channels. The
audio channels follow the video channels
AUDIO Button When pressed and the button is lit, subsequent actions relate to
audio functions
11 VIDEO Button When pressed and the button is lit, subsequent actions relate to video
functions
12 RCL Button Recalls a setup from the non-volatile memory. Press the RCL button
followed by an OUTPUT (1-8) or INPUT (9-16) button3
13 STO Button Stores the current settings in non-volatile memory. Press the STO
button followed by an OUTPUT (1-8) or INPUT (9-16) button3
14 OFF Button An OFF-OUTPUT combination disconnects that output from the
inputs; an OFF-ALL combination disconnects all the outputs
15 ALL Button Press ALL followed by an INPUT button to connect that input to all
the outputs
1 When in the Confirm mode, the TAKE button lights
2 The button lights
3 In this case the INPUT or OUTPUT button corresponds to the setup address number
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the RGBHV/Balanced Audio Matrix Switcher
6
Figure 2 and Table 2 define the rear panel of the VP-88K.
Figure 2: VP-88K RGBHV/Balanced Audio Matrix Switcher Rear View
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Defining the RGBHV/Balanced Audio Matrix Switcher
7
7
Table 2: RGBHV/Balanced Audio Matrix Switcher Rear Panel Features
# Feature Function
1 INPUT BNC connectors Connect to the RGBHV video sources (or composite video, Y/C, YUV,
and even SD – SDI signals on different inputs)
2 OUTPUTBNC connectors Connect to the RGBHV video acceptors
3 REMOTE IR 3.5mm mini
connector
(Optional, requires a special order cable) Connect to an external IR
receiver unit for controlling the machine via an IR remote controller
(instead of using the front panel IR receiver)1
4 EXT. SYNC BNC connector Connects to the external sync source
5 EXT./IN 1 Button When pushed in selects an external sync from the external source;
when released selects the internal sync (inputted via the video input #1
connectors) (see Section 7.9
6
)
RS-232 9-pin D-sub port Connects to the PC or the remote controller
7 RS-485 Term switch Terminates the RS-485 bus (see Section 6.5
8
)
Machine # DIP-switches DIP-switches for setup of the unit: 5, 6, 7, and 8 set the machine
number; 1 sets the RS-485 bus termination (see Section 6.5
9
)
RS-485 Port Pin G is for the Ground connection
2
10
; pins B (-) and A (+) are for RS-485;
12V is connected to the 12V power
Mains power switch Illuminated switch for turning the unit ON or OFF
11 Mains fuse holder Contains the mains fuse
12 Mains power socket Socket for a mains power cable
13 FACTORY RESET Button Press and hold while powering up the unit to reset the audio,
switching and Ethernet settings to their factory default values:
IP number 192.168.1.39
Mask 255.255.255.0
Gateway 192.168.1.1
Audio gain for all inputs and
outputs
0dB
All switching configuration Erased
Display 1, 2, 3, 4, 5, 6, 7, 8
Audio mode AFV
14 ETHERNET RJ-45 Connector Connects to the PC or other serial controller through the computer
network
15 PROGRAM Button Push in to enter Program mode to upgrade to the latest Kramer firmware
via RS-232; Release to revert to Normal mode (the factory default)
16 AUDIO OUTPUTS removable
terminal blocks
Connect to the balanced stereo audio acceptors
17 AUDIO INPUTS removable
terminal blocks
Connect to the balanced stereo audio sources
1 Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (see Section 4.1)
2 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not connected
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing in a Rack
8
4.1 Using the IR Transmitter
You can use the RC-IR3IR transmitter to control the machine via the built in IR
receiver on the front panel or via an external IR receiver11F
1. The external IR receiver
can be located 15m (49ft) away from the machine. This distance can be extended
to up to 60 m (197ft) when used with three extension cables12F
2. Connect the external
IR receiver to the REMOTE IR 3.5mm connector.
5 Installing in a Rack
This section provides instructions for rack mounting the unit.
1 Kramer P/N: C-A35M/IRR-50
2 Kramer P/N: C-A35M/A35F-50
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the RGBHV/Balanced Audio Matrix Switcher
9
9
6 Connecting the RGBHV/Balanced Audio Matrix Switcher
To connect the VP-88K RGBHV/Balanced Audio Matrix Switcher1(see Figure 3):
Figure 3: Connecting the VP-88K RGBHV/Balanced Audio Matrix Switcher
1. Connect up to 8 RGBHV video sources2to the BNC INPUT connectors3
2. Connect up to 8 balanced/unbalanced stereo audio sources to the AUDIO
INPUT terminal block connectors.
.
3. Connect up to 8 RGBHV video acceptors to the BNC OUT connectors3.
4. Connect the corresponding balanced stereo audio acceptors4
1 Switch off the power on each device before connecting it to your VP-88K. After connecting your VP-88K, switch on its power and
then switch on the power on each device
to the AUDIO
OUTPUT terminal blocks.
2 All signal connections using more than one cable to interconnect between the devices should be of equal length
3 5 BNC connectors (RGBHV) per source/acceptor
4 Not illustrated in Figure 3
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the RGBHV/Balanced Audio Matrix Switcher
10
5. Set the RS-485 termination and Machine number (see Section 6.5
6. If required, connect a PC and/or controller to the:
).
RS-232 port and/or
RS-485 port and/or
Ethernet connector
7. Connect the power cord17F
1.
Note that you can use the VP-88K18F
2:
•For various video applications (other than RGB), such as, composite video,
Y/C (s-Video), YUV (component video), and even SD – SDI signals (Serial
Digital Video) on different inputs
•For parallel applications, for example, you can use it simultaneously as a
composite video 8x8 matrix and as a Y/C (s-Video) Matrix19F
3
•In mixed applications (such as Y/C and CV simultaneously). To do so, select
the parallel output channels for the same format, for example, if the Red and
Green Channels are used for Y/C (the Red for “Y” and the Green for “C”) then
the output channels should be used similarly (Red for “Y” and Green for “C”)20F
4
6.1 Wiring a Balanced/Unbalanced Stereo Audio Input/Output
UFigure 4Uillustrates how to wire a balanced input/output connection.
Figure 4: Wiring a Balanced Stereo Audio Input/Output
UFigure 5Uillustrates how to wire an unbalanced acceptor to the balanced output of
the unit.
1 Not illustrated in Figure 3
2 Including the RGB connectors but not the HV connectors
3 For example, the Red channel is used for composite video and Green and Blue channels are used for s-Video
4 In a mixed signal application all the input channels are selected simultaneously. For example, if used for Y/C and CV parallel
switching, then when input number 1 is selected, it selects both input number 1 of the Y/C and input number 1 of the CV channel
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the RGBHV/Balanced Audio Matrix Switcher
11
11
Figure 5: Wiring an Unbalanced Stereo Audio Output
Figure 6 illustrates how to wire an unbalanced source to the balanced input on the
VP-88K.
Figure 6: Wiring an Unbalanced Source to a Balanced Input
6.2 Connecting to the VP-88K via RS-232
You can connect to the VP-88Kvia an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
Figure 7: Connecting to the VP-88K via RS-232 using a PC
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the RGBHV/Balanced Audio Matrix Switcher
12
To connect to the VP-88K via RS-232 as illustrated in the example in
Figure 7):
•Connect the RS-232 9-pin D-sub rear panel port on the VP-88K unit via a
9-wire straight cable (pin 2 to pin 2, pin 3 to pin 3, pin 5 to pin 5) to the
RS-232 9-pin D-sub port on your PC
6.3 Connecting to the VP-88K via RS-485
You can operate the VP-88K via the RS-485 port from a distance of up to 1200m
(3900ft) using a PC equipped with a card that provides an RS-485 port.
To connect a PC or controller to the RS-485 port on the unit:
1. Wire the RS-485 port on the VP-88K to the RS-485 port on the controller as
follows:
Connect the A (+) pin on the RS-485 port of the PC to the A (+) pin on
the RS-485 port on the rear panel of the VP-88K
Connect the B (–) pin on the RS-485 port of the PC to the B (–) pin on the
RS-485 port on the rear panel of the VP-88K
Connect the G pin on the RS-485 port of the PC to the G pin on the
RS-485 port on the rear panel of the VP-88K
2. Set the DIP-switches (see Section 6.5
3. Terminate the RS-485 line on both the VP-88K (set DIP-switch 1 to ON) and
on the controller.
) so that the Machine number on the
VP-88Kis any number between 2 and 16.
6.4 Connecting to the VP-88K via the Ethernet Port
You can connect the VP-88Kvia Ethernet using either of the following methods:
•Direct connection to the PC using a crossover cable (see Section 6.4.1
•Connection via a network hub, switch, or router, using a straight-through cable
(see
)
Section 6.4.2
Note: The following instructions are valid only if your PC uses a fixed IP address.
If your PC receives an IP address from a DHCP server, consult your IT department
regarding a suitable IP address.
)
6.4.1 Connecting Directly via the Ethernet Port
You can connect the Ethernet port of the VP-88Kto the Ethernet port on your PC
via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory
default IP Address of the VP-88K during the initial configuration
To connect the VP-88K directly to a PC using a crossover cable:
1. Using a crossover cable, connect the VP-88K to the PC via the Ethernet port
on both units.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the RGBHV/Balanced Audio Matrix Switcher
13
13
2. On the PC, click Start > Control Panel.
3. Double-click Network Connections.
4. Right-click, and from the menu select Properties.
The Local Area Connection Properties window appears.
5. Select Internet Protocol (TCP/IP) (see Figure 8).
Figure 8: Local Area Connection Properties Window
6. Click the Properties button.
7. Select Use the following IP address, and fill in the details as shown in
Figure 9.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the RGBHV/Balanced Audio Matrix Switcher
14
Figure 9: Internet Protocol (TCP/IP) Properties Window
8. Click OK.
6.4.2 Connecting via a Network Hub, Switch, or Router
You can connect the Ethernet port of the VP-88Kto the Ethernet port on a network
hub, switch, or router, via a straight-through cable with RJ-45 connectors. The VP-
88K Ethernet port has to be configured to be compatible with your network (see
Section 6.4.3
6.4.3 Configuring the Ethernet Port on the VP-88K
).
To configure the Ethernet port on the VP-88K, download the P3K Ethernet
Configuration software1
To configure the VP-88K Ethernet port:
to your PC, extract the files to a folder, and install the
software.
1. Click Start > All Programs > Kramer > P3K Wizard
The P3K Wizard window appears.
2. Click Connect.
The Connect window appears.
1 Available from http://www.kramerelectronics.com
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the RGBHV/Balanced Audio Matrix Switcher
15
15
Figure 10: Connect Window
3. Select one of the following methods to connect to the Ethernet port of the
VP-88K:
Ethernet, if you are connected via an Ethernet cable. Enter the IP address1
or the machine name
The default IP address is 192.168.1.39 and the default name for the unit is
KRAMER_XXXX2
Serial, if you are connected via a serial port. Select the COM port from
the Select Port drop-down list.
4. Click OK.
The Device Properties window appears.
1 The default IP address is 192.168.1.39
2 The four digits are the last four digits of the machine’s serial number.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the RGBHV/Balanced Audio Matrix Switcher
16
Figure 11: Device Properties Window
5. Make the required changes.
6. Click Set to save changes, or click Close to exit and not save the changes.
6.5 Setting the VP-88K DIP-switches
This section describes the VP-88K DIP-switch settings that configure RS-485 bus
termination and VP-88K machine number.
Figure 12 illustrates the factory default DIP-switch positions.
Figure 12: VP-88K DIP-switches
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]
