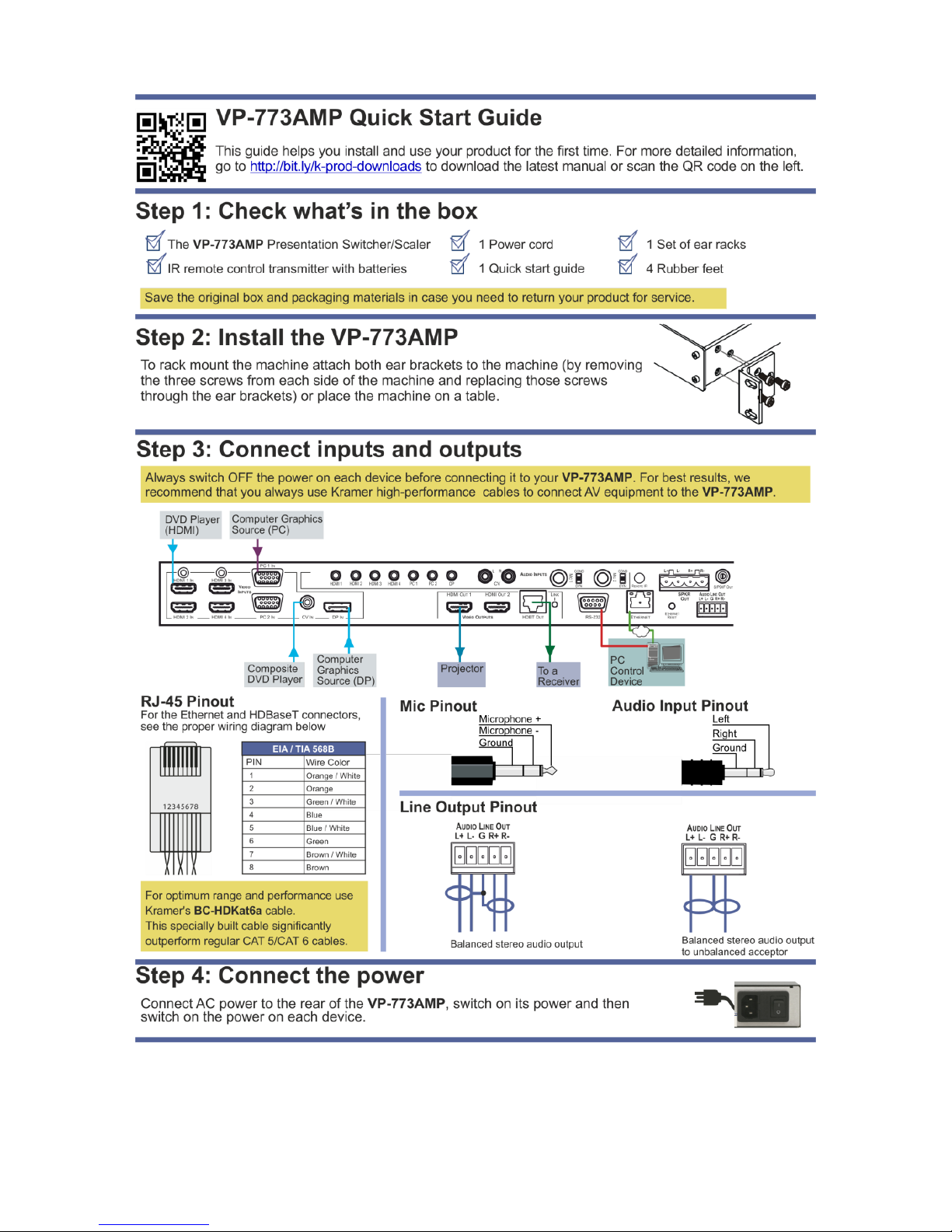

Kramer VP-773AMP User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VP-773AMP
Presentation Switcher/Scaler
P/N: 2900-300323 Rev 2

VP-773AMP – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
3.1 HDCP Compliance 7
3.2 About HDBaseT™ Technology 7
3.3 Using Twisted Pair Cable 7
3.4 Defining the VP-773AMP Presentation Switcher/Scaler 7
4Installing in a Rack 11
5Connecting the VP-773AMP 12
5.1 Wiring the RJ-45 Connectors 15
5.2 Connecting the Balanced Stereo Audio Output 16
5.3 Microphone Pinout 16
5.4 Audio Input Pinout 16
6The OSD Menu 17
6.1 OSD Menu Operation Example 17
6.2 The Input Menu 20
6.3 The Audio Menu 27
6.4 The Process Menu 29
6.5 The Picture Menu 30
6.6 The Enhance Menu 31
6.7 The Scale Menu 32
6.8 The Miscellaneous Menu 35
7The Display Modes 41
7.1 The Single Window Display Mode 41
7.2 The Dual Window Display Mode 41
8Controlling the VP-773AMP 46
8.1 Controlling via the Front Panel Buttons 46
8.2 Controlling via the OSD Menu 46
8.3 Controlling via the VP-773AMP Web Pages 47
8.4 Controlling via the Infrared Remote Control Transmitter 52
9Using the Embedded Web Pages 54
9.1 The Routing and Scaling Page 56
9.2 The Device Settings Page 66
9.3 The Input Settings Page 73
9.4 The Enhance Page 76
9.5 The Output Settings 77
9.6 The Audio Settings Page 78
9.7 The RS-232 over TP Page 81
9.8 The Emergency Alert System Page 85
9.9 The Security Page 87
9.10 The About Us Page 88
9.11 Save or Upload a Configuration 89
10 Port Tunneling 90
11 Flash Memory Upgrade 92

ii
VP-773AMP - Contents
12 Technical Specifications 93
12.1 Default Communication Parameters 94
12.2 Input Resolutions 94
12.3 Output Resolutions 95
13 The VP-773AMP RS-232 Communication Protocol 96
13.1 Using the Communication Protocol 96
13.2 Communication Protocol: Mimicking OSD 97
13.3 Protocol Table: Mimicking Remote and Front Panel Buttons 107
13.4 The Protocol 3000 Common Operation Commands 107
Figures

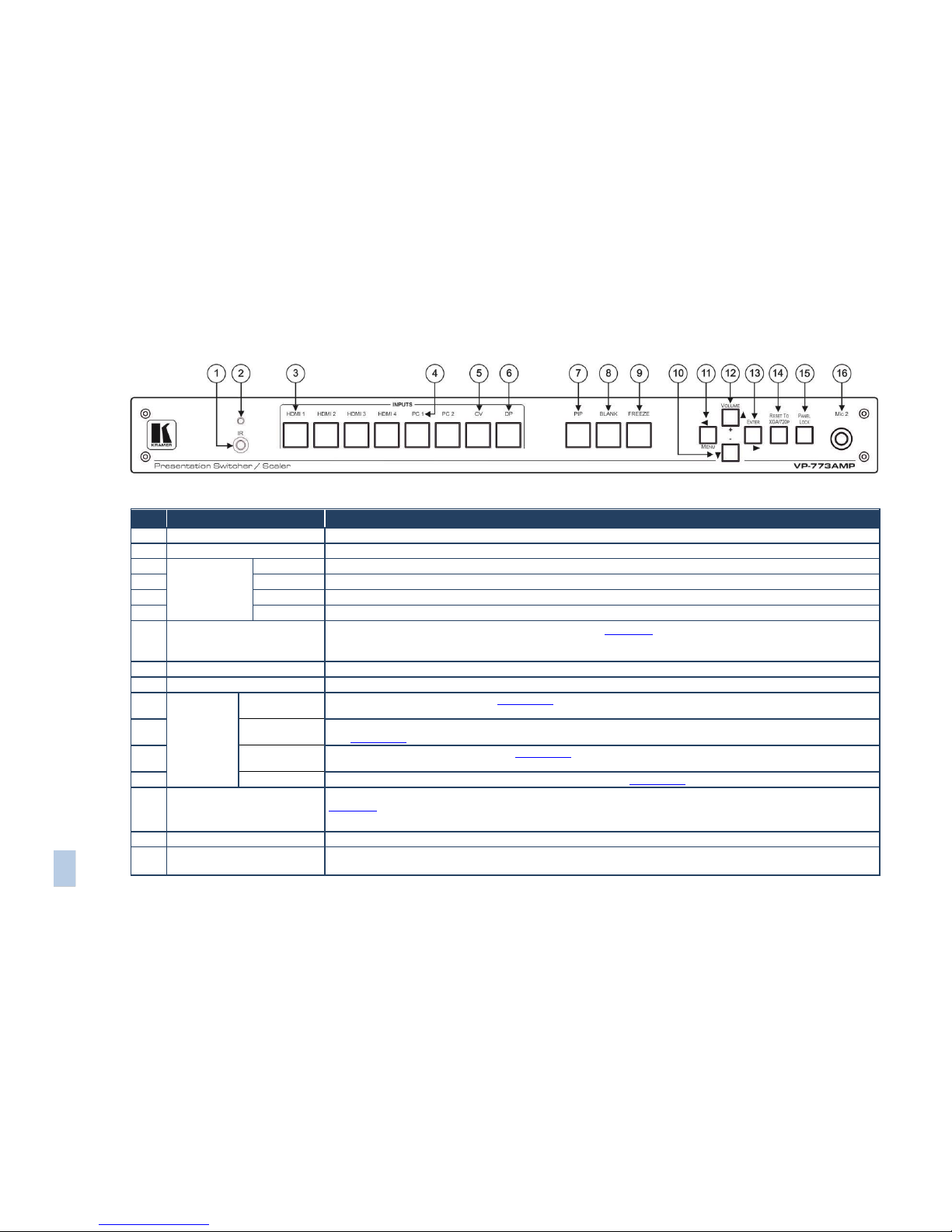

Figure 1: VP-773AMP Presentation Switcher/Scaler Front Panel 8

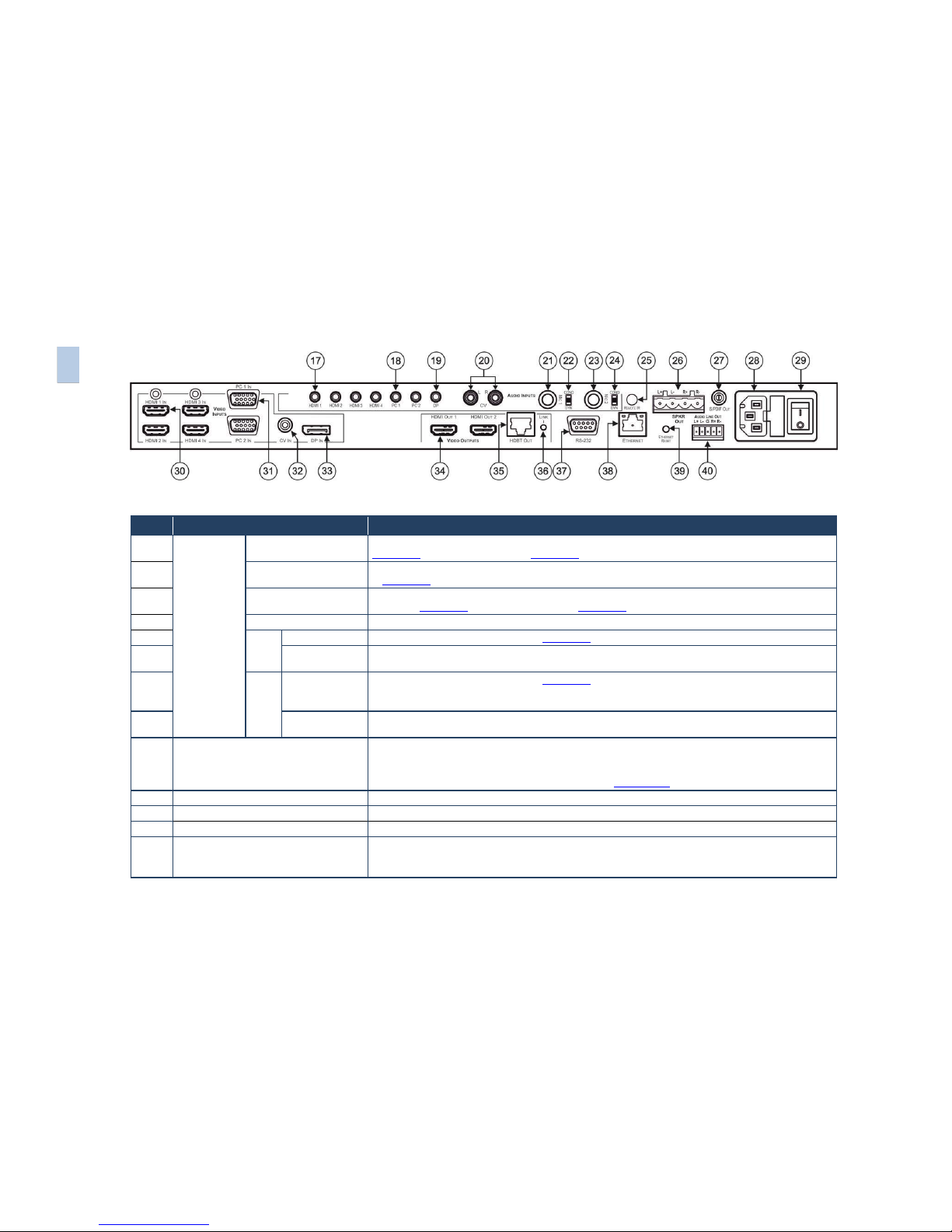

Figure 2: VP-773AMP Presentation Switcher/Scaler Rear Panel 9
Figure 3: 15-pin HD Connector Pinout 12

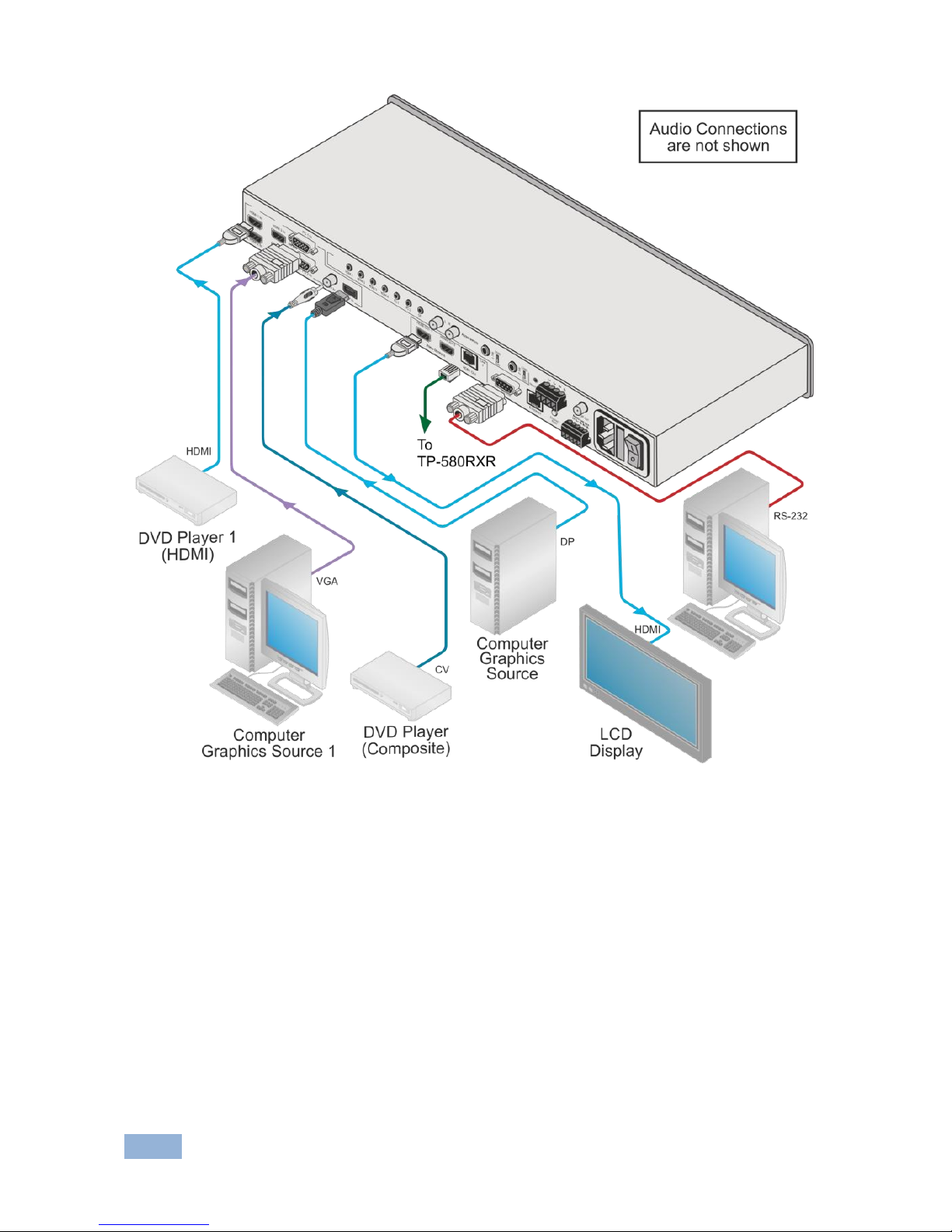

Figure 4: Connecting the VP-773AMP Presentation Switcher/Scaler 14
Figure 5: TP PINOUT 15
Figure 6: Connecting the Balanced Stereo Audio Output 16
Figure 7: Connecting an Unbalanced Stereo Audio Acceptor to the Balanced Output 16
Figure 8: Microphone Pinout 16
Figure 9: Audio Input Pinout 16
Figure 10: Input Menu 20
Figure 11: Select the Display Mode 22
Figure 12: Changing the Size of the Window 23
Figure 13: Increasing the Width 24
Figure 14: Increasing the Height 24
Figure 15: Positioning the Window 25
Figure 16: Window Customization 25
Figure 17: H-Position Slide Bar 26
Figure 18: Moving the PiP Window 26
Figure 19: Audio Menu 27
Figure 20: Set the Output Volume Level 28
Figure 21: Process Menu 29
Figure 22: Picture Menu 30
Figure 23: Enhance Menu 31
Figure 24: Scale Menu 32
Figure 25: Misc Menu 35
Figure 26: XML File Transfer 39
Figure 27: Emergency Alert System Display 39
Figure 28: CV superimposed over DP 44
Figure 29: Entering the IP Number in the Address Bar 47
Figure 30: Local Area Connection Properties Window 49
Figure 31: Internet Protocol Version 4 Properties Window 50
Figure 32: Internet Protocol Version 6 Properties Window 50
Figure 33: Internet Protocol Properties Window 51
Figure 34: Infrared Remote Control Transmitter 52
Figure 35: The Authentication Window 54
Figure 36: The Loading Page 55
Figure 37: The Routing & Scaling Page with Web page list on the left 56
Figure 38: The Routing & Scaling Page –Single Window 56
Figure 39: The Routing & Scaling Page –Moving the PIP Window 57
Figure 40: The Routing & Scaling Page –PIP Window 58
Figure 41: The Routing & Scaling Page –Changing the Resolution 59

VP-773AMP – Contents
iii
Figure 42: The Routing & Scaling Page –The Swap Inputs 60
Figure 43: The Routing & Scaling Page –Swapping the Inputs 60
Figure 44: The Routing & Scaling Page –Auto Switching Window (Main Tab) 61
Figure 45: The Routing & Scaling Page –selecting the Inputs to Scan (PiP Tab) 61
Figure 46: The Routing & Scaling Page –Auto Switching Window 62
Figure 47: The Routing & Scaling Page –Lower Buttons Bar 62
Figure 48: The Routing & Scaling Page –Selecting a Preset 64
Figure 49: The Routing & Scaling Page –Saving the selected Preset 64
Figure 50: The Routing & Scaling Page –Recalling a Preset 64
Figure 51: The Routing & Scaling Page –TAKE Mode 65
Figure 52: The Routing & Scaling Page –Cancel the Changes 65
Figure 53: The Routing & Scaling Page –Audio Level Sliders 66
Figure 54: The Routing & Scaling Page –Muting the Audio Level 66
Figure 55: The Device Settings Page 66
Figure 56: The Device Settings Page –Changing the IP number 67
Figure 57: The Device Settings Page –Selecting the Firmware File 67
Figure 58: The Device Settings Page –Firmware File Downloaded 68
Figure 59: The Device Settings Page –Firmware Upgrade Warning 68
Figure 60: The Device Settings Page –Firmware Upgrade Stage 68
Figure 61: The Device Settings Page –Writing the Firmware 69
Figure 62: The Device Settings Page –Firmware Upgrade Waiting for Restart 69
Figure 63: The Device Settings Page –The Reset Device Window 70
Figure 64: The Device Settings Page –The Reset Device Window Including Ethernet 70
Figure 65: The Device Settings Page –Web page Reset 71
Figure 66: The Device Settings Page –The Information Window 72
Figure 67: The Input Settings Page 73
Figure 68: The Input Settings Page –PIP Window Inactive 74
Figure 69: The Enhance Page 76
Figure 70: The Output Settings Page 77
Figure 71: The Audio Settings Page –General Tab 78
Figure 72: The Audio Settings Page –Microphones Tab 79
Figure 73: The Audio Settings Page –Microphones Tab 79
Figure 74: The Audio Settings Page –Setting the Mix Level 80
Figure 75: The Audio Settings Page –Output Volume Pre-limiter 80
Figure 76: The RS-232 over TP Page 81
Figure 77: The RS-232 over TP Page –the Remote Device Commands Table 82
Figure 78: The RS-232 over TP Page –the Edit Command Window 82
Figure 79: The RS-232 over TP Page –Setting the Trigger 83
Figure 80: The RS-232 over TP Page –Setting the Sync on Trigger 83
Figure 81: The RS-232 over TP Page –the Power on Command 84
Figure 82: The Emergency Alert System Page 85
Figure 83: The Emergency Alert System Page –Local Message Example 86
Figure 84: The Security Page –Security Deactivated 87
Figure 85: The Security Page –Activating the Security 87
Figure 86: The Security Page –Authentication Required 87
Figure 87: The Security Page 88
Figure 88: The About Us Page 88
Figure 89: Loading a Configuration 89
Figure 90: Saving a Configuration 89
Figure 91: Port Tunneling 90

VP-773AMP – Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer VP-773AMP Presentation
Switcher/Scaler. This product, which incorporates HDMI™ technology, is ideal for:
Projection systems in conference rooms, boardrooms, auditoriums, hotels
and churches, production studios, rental and staging
Any application where high quality conversion and switching of multiple and
different video signals to graphical data signals is required for projection
purposes

2
VP-773AMP - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your VP-773AMP away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

VP-773AMP – Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
VP-773AMP - Overview
3 Overview
The Kramer VP-773AMP is a high quality presentation switcher and scaler. It
accepts one of eight inputs: a DisplayPort (DP) signal on a DisplayPort connector,
one composite video signal on an RCA connector, two computer graphics signals
on 15-pin HD connectors, and four HDMI signals on HDMI connectors. It scales the
video, embeds the audio, and simultaneously outputs the signal to two HDMI
outputs and to an HDBaseT TP output, together with a digital audio output and a
balanced stereo audio output.
The VP-773AMP Presentation Switcher / Scaler features:
PixPerfect™Scaling Technology –Kramer’s precision pixel mapping and
high quality scaling technology. High-quality 3:2 and 2:2 pull down de-
interlacing and full up and down scaling of all video input signals
State-of-the-art video processing technology, with the highest quality de-
interlacing, noise reduction, and scaling performance for both standard-
definition and high-definition signals
K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra stable
picture−in−picture, picture−and−picture and split screen capability, or fully
customizable windows’size and position control: any source can be inserted
into or positioned next to any other source and resized as desired
Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions
are clean and ultra-fast. The video fades to black and the new input fades
from black for smooth, glitch-free switching. The output signal provides
constant sync so the display never glitches
An emergency alert system that can have a national or campus-wide
notification immediately displayed when an emergency situation develops, by
means of automatic text overlaying, either via a crawler or a full screen cover
up, as well as an optional audio alert

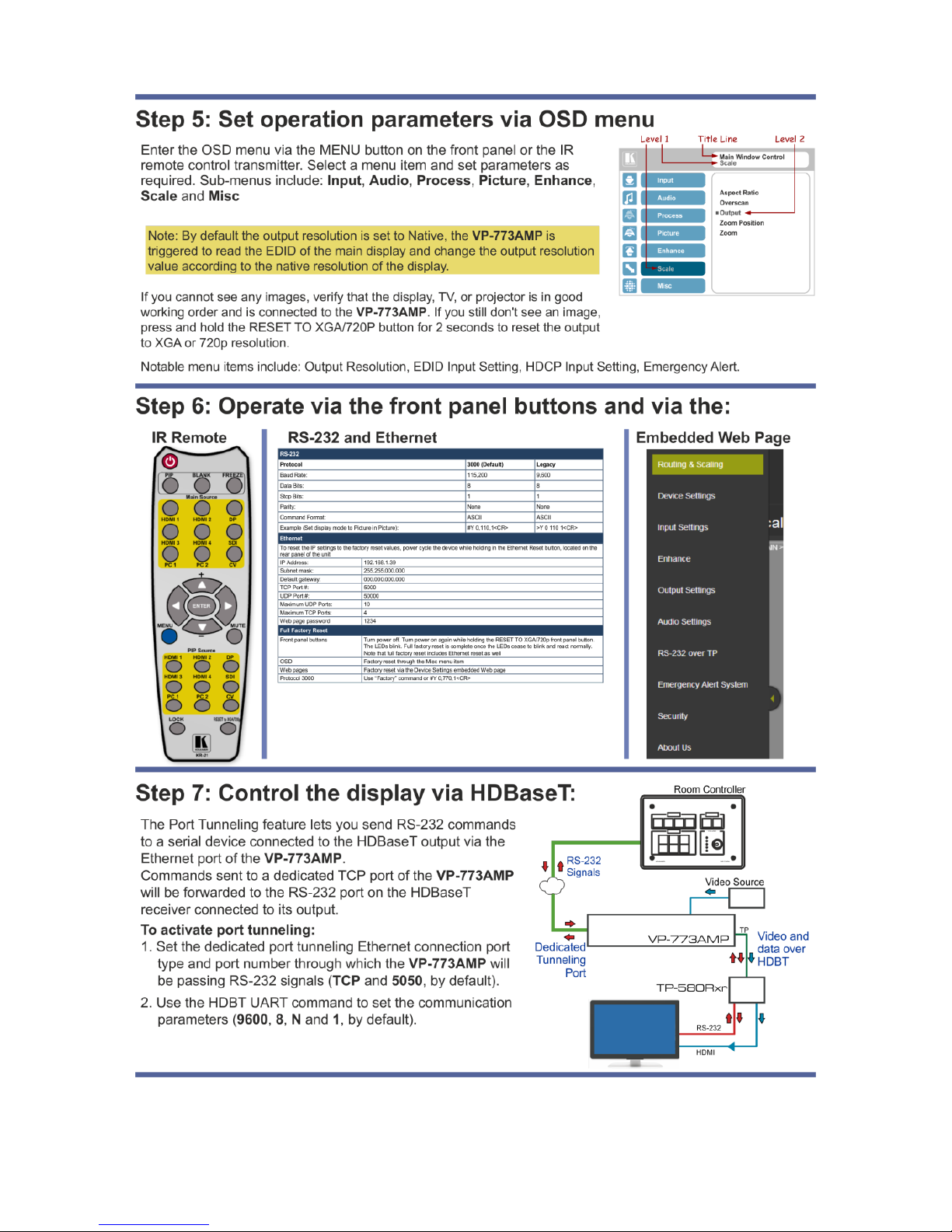

Port tunneling, bidirectional RS-232 interface –simple control commands
and data can flow in both directions from a controller to the VP-773AMP via
the Ethernet, allowing status requests and control of the destination unit
Advanced deinterlacing functions - including 3D comb filtering, film mode,
diagonal correction and motion detection
