VP-409 Quick Start
P/N:
2900- 301262QS
Rev:
2
Scan for full manual
VP-409 Quick Start Guide
This guide helps you install and use your VP-409 for the first time.
Go to www.kramerav.com/downloads/VP-409 to download the latest user manual and check if firmware
upgrades are available.
Step 1: Check what’s in the box
VP-409 Video to WUXGA Scaler
1 Set of rack ears
1 Power cord
1 Quick start guide
Step 2: Get to know your VP-409
#
Feature
Function
1
OUTPUT 15-pin HD Connector
Connects to the VGA-WUXGA acceptor
2
Y/C IN 4-pin Connector
Connects to an s-Video source
3
CV IN RCA Connector
Connects to a composite video source
4
5V DC
+5V DC connector for powering the unit
5
INPUT SELECT Button
Press to select between inputs
6
CV LED
Illuminates when the CV input is selected
7
Y/C LED
Illuminates when the Y/C input is selected
8
OUTPUT RES. Button
Press to select the desired output resolution
9
VGA LED
Illuminates when the VGA (640x480) resolution is selected
10
SVGA LED
Illuminates when the SVGA (800x600) resolution is selected
11
XGA LED
Illuminates when the XGA (1024x768) resolution is selected
12
1280x800 LED
Illuminates when the 1280x800 (Wide XGA) resolution is selected
13
1366x768 LED
Illuminates when the 1366x768 (WXGA) resolution is selected
14
WSXGA LED
Illuminates when the WSXGA (1440x900) resolution is selected
15
SXGA LED
Illuminates when the SXGA (1280x1024) resolution is selected
16
1400x1050 LED
Illuminates when the 1400x1050 (SXGA+) resolution is selected
17
1680x1050 LED
Illuminates when the 1680x1050 (WSXGA+) resolution is selected
18
UXGA LED
Illuminates when the UXGA (1600x1200) resolution is selected
19
1920x1080 LED
Illuminates when the 1920x1080 (1080p RGB) resolution is selected
20
WUXGA LED
Illuminates when the WUXGA (1920x1200) resolution is selected
Step 3: Mount VP-409
Install VP-409 using one of the following methods:
•Attach the rubber feet and place the unit on a flat surface.
•Fasten a bracket on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/VP-409).
•Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VP-409).
•Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.

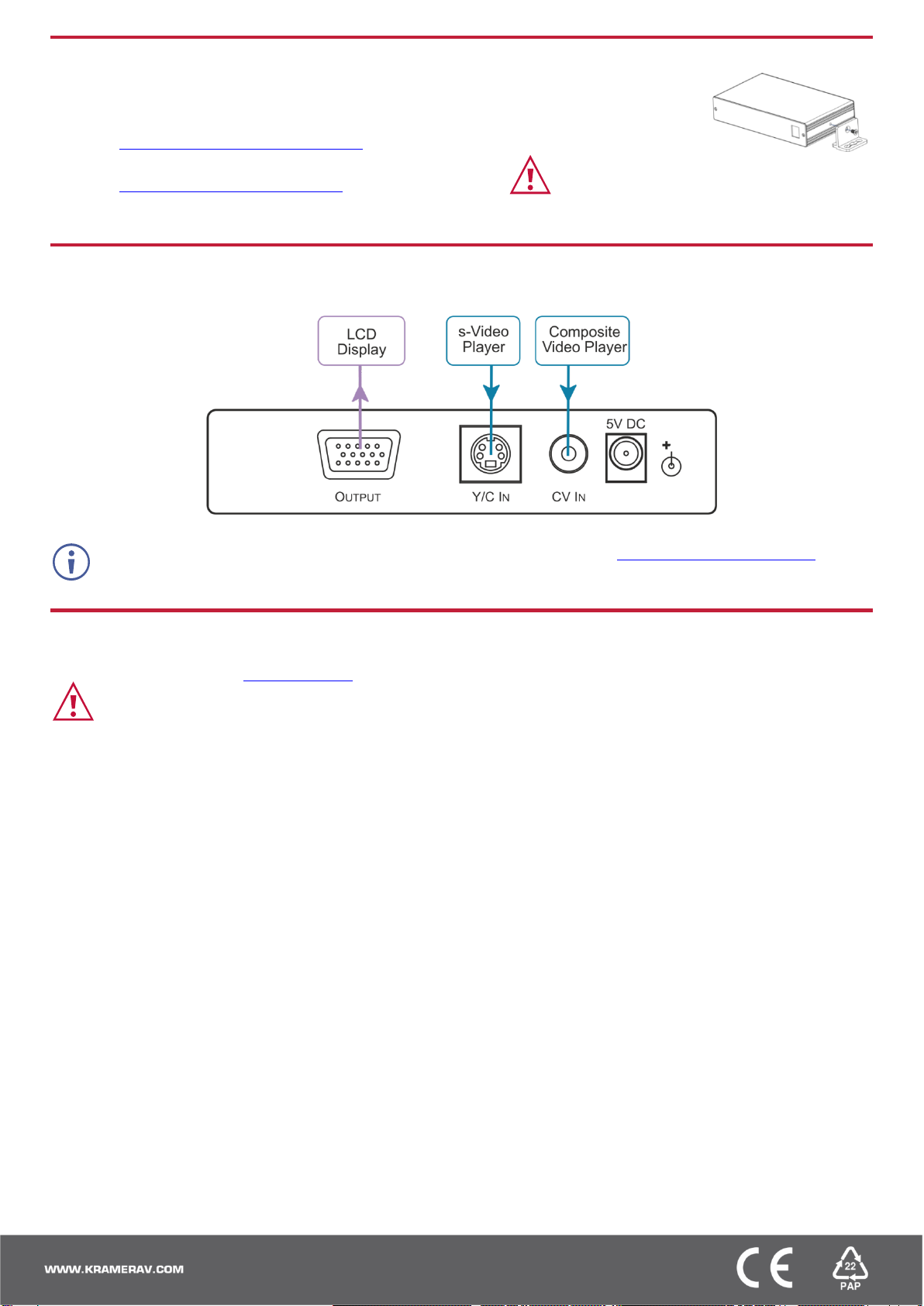

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VP-409.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VP-409.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to VP-409 and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the
bottom of the unit.
