Kramer MegaEdge User manual

P/N: 2900-301232 Rev 1 www.kramerAV.com
USER MANUAL
MODEL:
MegaEdge
All Day Portable Power Supply

Kramer Electronics Ltd.
MegaEdge –Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Defining MegaEdge All Day Portable Power Supply 4
Mounting MegaEdge 5
Operating and Controlling MegaEdge 6
Replacing the MegaEdge Battery 7
Technical Specifications 8

Kramer Electronics Ltd.
MegaEdge –Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/[Title] to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer MegaEdge away from moisture, excessive sunlight and dust.
Safety Instructions
Caution:
•This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
•For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified
personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating
specified on the product label which located on the bottom of the unit.

Kramer Electronics Ltd.
MegaEdge –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer MegaEdge All Day Portable Power Supply.
MegaEdge has two AC Power Sockets, two USB type A charging stations, one USB type C
charging station, and a 5m (15ft) Retractable AC Power Cord Reel for charging.
Advanced and User-friendly Operation
•Intelligent, microprocessor controlled, safe, and reliable.
•Battery capacity percentage indicator.
•Electronic overload protection with automatic shutdown.
•Low battery voltage shutdown.
•Overheat protection with automatic shutdown.
•Over current protection.
•Short circuit protection.
•Standby timer off.
•Charging over timer protection.
•Temperature protection.
Flexible Connectivity
•Portable power.
•All day continuous ‘Bring Your Own Device’ (BYOD) charging.
•Powers any laptop or mobile device.
•Maximizes learning flexibility.
•Average charging capacity.
▪For smartphone: approx. 35 times (iPhone 1900mah).
▪For tablet: approx. 10 times (iPad 6930mah).
▪For a Laptop: approx. 3-4 times.

Kramer Electronics Ltd.
MegaEdge –Introduction
3
Typical Applications
MegaEdge is ideal for the following typical applications:
•Active class learning freedom & flexibility.
•Mobile podium.

Kramer Electronics Ltd.
MegaEdge –Defining MegaEdge All Day Portable Power Supply
4
Defining MegaEdge All Day
Portable Power Supply
This section defines MegaEdge.
Figure 1: MegaEdge All Day Portable Power Supply
#
Feature
Function
AC Power
Connector (x2)
Connect to up to two US power consuming devices simultaneously.
When a single power socket is connected, consumption should not exceed
5A. When both power sockets are connected, the total consumption should
not exceed 6A.
5V-2A USB
Charging Port (x2)
Use to charge a mobile device.
USB-C
Use to charge a mobile device.
Control Button
Short press to turn MegaEdge On.
Once on, each additional short press toggles MegaEdge AC power outlets
On/Off
MegaEdge consumes some power when the AC power indicator is on
even when no devices are connected to it.
Long press to turn MegaEdge Off.
Power On Indicator
LED
Lights blue when MegaEdge is on.
Numeric LED
Display
Indicates percent of power remaining.
AC Indicator LED
Lights red when AC power enabled.
Mounting Bracket
Used with security screw for securing the MegaEdge to the table.
Security Screw (2)
For securing the MegaEdge to the table.
1
2
3
4
5
6
7
8
9

Kramer Electronics Ltd.
MegaEdge –Mounting MegaEdge
5
Mounting MegaEdge
This section provides instructions for mounting MegaEdge. Before installing, verify that the
environment is within the recommended range:
•Operation temperature –0to 40C (32 to 104F).
•Storage temperature –-40to +70C (-40 to +158F).
•Humidity –10% to 90%, RHL non-condensing.
Caution:
•Mount MegaEdge before connecting to power.
Warning:
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
•Avoid uneven mechanical loading.
To mount the MegaEdge on a table
Install MegaEdge
1. Carefully place MegaEdge over the
edge of a table at the desired location
so that the table edge is pressed
against the device.
2. Secure MegaEdge to the table using
the Torx bit and the two security screws
provided.
3. Tighten each security screw through
the MegaEdge mounting bracket into
the table.
Install Retractable AC Power Cord Reel
1. Attach the Reel Mounting Bracket
under the table using the four screws
(provided) so that the Retractable AC
Power Cord Reel’s fixed plug can
easily reach the MegaEdge AC socket
(less than 50cm distance).
2. Press the Retractable AC Power Cord
Reel to the Reel Mounting Bracket and
rotate clockwise until you hear a click.
3. Plug the Retractable AC Power Cord
Reel’s fixed plug into the MegaEdge.
Reel Mounting Bracket
Retractable AC Power Cord Reel

Kramer Electronics Ltd.
MegaEdge –Operating and Controlling MegaEdge
6
Operating and Controlling
MegaEdge
To Charge MegaEdge
When not in use, extend the AC plug from the Retractable AC Power Cord Reel and plug it
into an AC outlet for at least 8 hours to fully charge the MegaEdge.
To Turn MegaEdge On
Press the Control button.
To Turn MegaEdge On/Off
Press the Control button for 3 seconds.
To Toggle AC Power On/Off
Press the Control Button to toggle between AC power On and AC power Off (AC LED is lit
when AC is on).
MegaEdge consumes some power when the AC power indicator is on even when no devices
are connected to it.
When no power is being used, the MegaEdge powers off automatically after 1 minute.
MegaEdge batteries are rated to run 500 cycles and are replaceable.

Kramer Electronics Ltd.
MegaEdge –Replacing the MegaEdge Battery
7
Replacing the MegaEdge Battery
1. Unplug the Retractable AC Power Cord Reel’s fixed plug from MegaEdge.
2. Remove the 2 Torx screws securing MegaEdge to the table using the Torx bit provided.
3. Detach MegaEdge from the table and place on a flat surface.
4. Open the MegaEdge cover by removing the four screws indicated in Figure 2.
5. Unplug the AC and USB extension cords from the MegaEdge battery.
6. Place the new battery into MegaEdge.
7. Plug the AC and USB extension cords into the new MegaEdge battery.
8. Close the MegaEdge cover using the four screws indicated in Figure 2.
9. Follow the instructions for remounting MegaEdge (see Mounting MegaEdge on page 5).

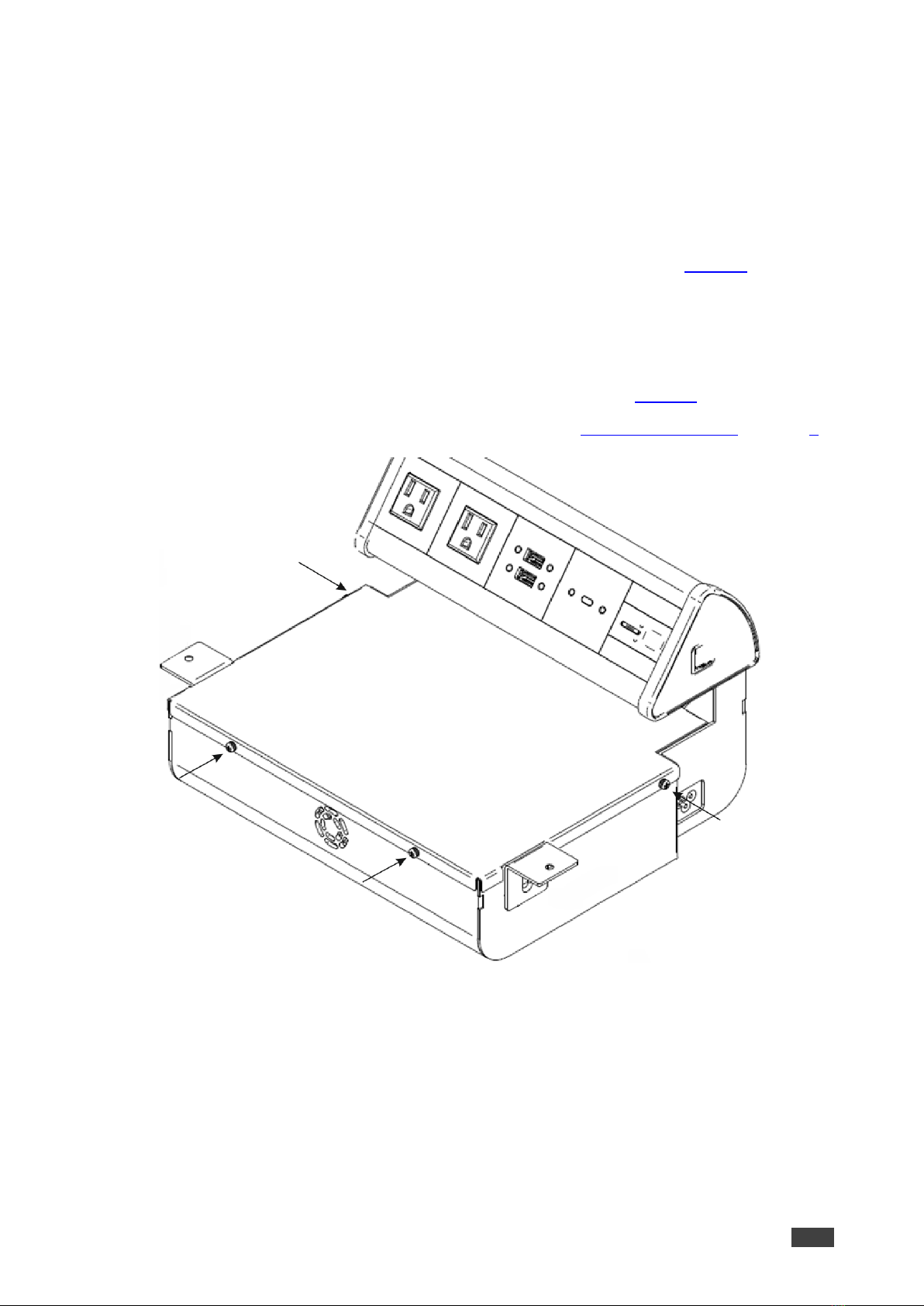

Figure 2: MegaEdge cover screws

Kramer Electronics Ltd.
MegaEdge –Technical Specifications
8
Technical Specifications
Ports
2 AC Power Sockets
On a 5A/125V Power Socket
2 USB Type A
On a female USB type A connector
1 USB Type C
On a female USB type C connector
Reach
Retractable 110 V AC Power Cord
Reel
Up to 5m (15ft)
Controls
Front Panel
1 Power button (also used to toggle AC power On/Off)
Indication LEDs
Front Panel
1 Power on LED
1 AC on LED
Cooling
Fan Ventilation
AC Adapter
Input
AC 100V-240V, 50/60Hz 2.0 A
Output
DC 24V /2A
Power
Consumption
AC 100V-240V, 50/60Hz
AC power Output
AC Output Voltage (Nominal)
120V
Continuous AC Output Power
200W
Maximum AC Output Power
250W
AC Output Frequency
60Hz
AC Output Waveform
Modified sine wave
DC power Output
Dual USB Output
Voltage: 5V Current: Max. 3.4 A
TYPE-C Output
Voltage: 5V Current: Max. 3.1 A
Battery
Type
SANYO (Panasonic) Lithium-ion Battery NCR18650BF
3350mAh*24
Drain
No load: < 1.5mA
AC Load: 200W Time：>1.1h，100W：>1.8h
DC Load: 3.0A Time：>14.3h，2.0A：>22.2h
Rated Capacity
3200mAh 0.64A discharge at 20°C (68°F)
Capacity (Minimum)
3250mAh 0.65A discharge at 25°C (77°F)
Capacity (Typical)
3350mAh (Reference only)
Normal Voltage
3.6V (0.65A discharge)
Discharging End Voltage
2.5V
Charging Current (Std.)
1.625A
Charging Voltage
4.20 +0.03V
ContinuousDischarge Current(Max.)
4.875A 0°C ~ +40°C (32°F to 104°F)
Internal Resistance
less than 100m(AC impedance 1 kHz)
Environmental
Conditions
Operating Temperature
0° C to +35°C (32°F to 95°F)
Storage Temperature
-10°C to +60°C (14°F to 140°F)
Humidity
10% to 90%, RHL non-condensing
Regulatory
Compliance
Safety
CE
Enclosure
Type
Aluminum, Steel
General
Net Dimensions (W, D, H)
32.2cm x 25.4cm x 18.2cm
(13.07" x 10.0" x 7.17")
Shipping Dimensions (W, D, H)
44.5cm x 36.5cm x 28.5cm (17.5" x 14.3" x 11.2")
Net Weight
4.6kg (10.2lbs) approx.
Shipping Weight
6.8kg (15lbs) approx.
Accessories
Included
1 Retractable AC Power Cord Reel 5m (15ft)
1 Torx bit (1/4” T20 25mm)
2 T20 Torx screws
4 4x½” screws
Charging Time
8h
